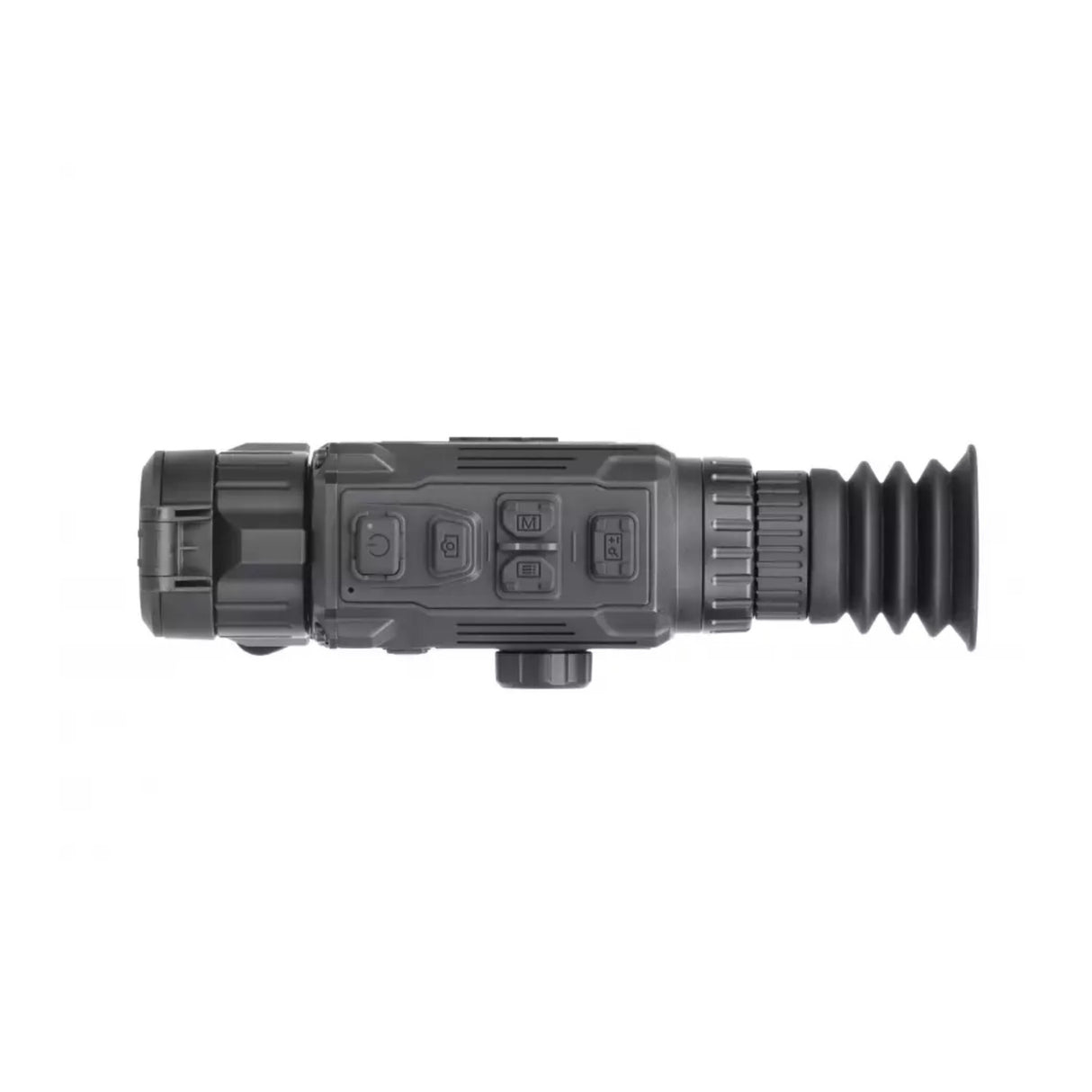

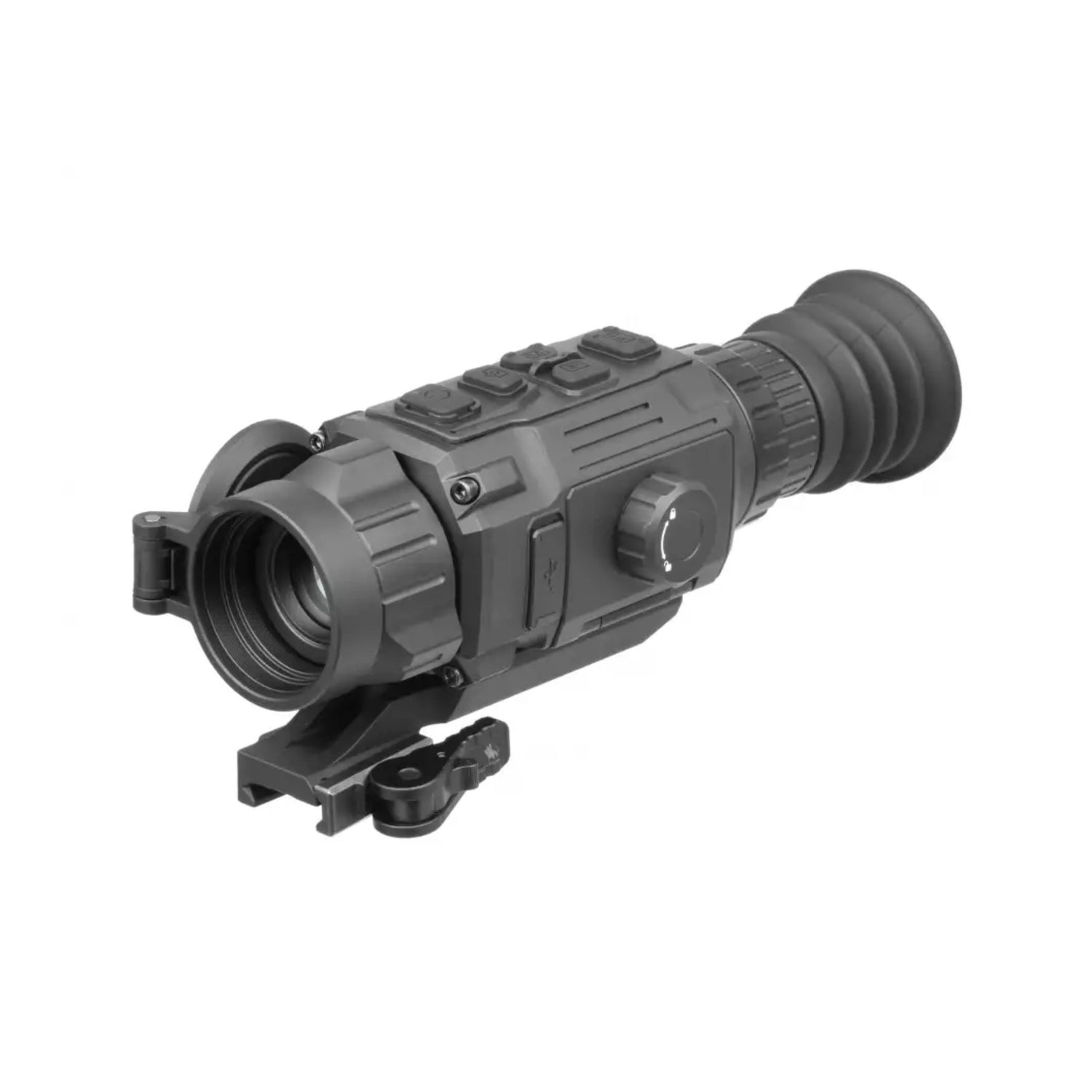

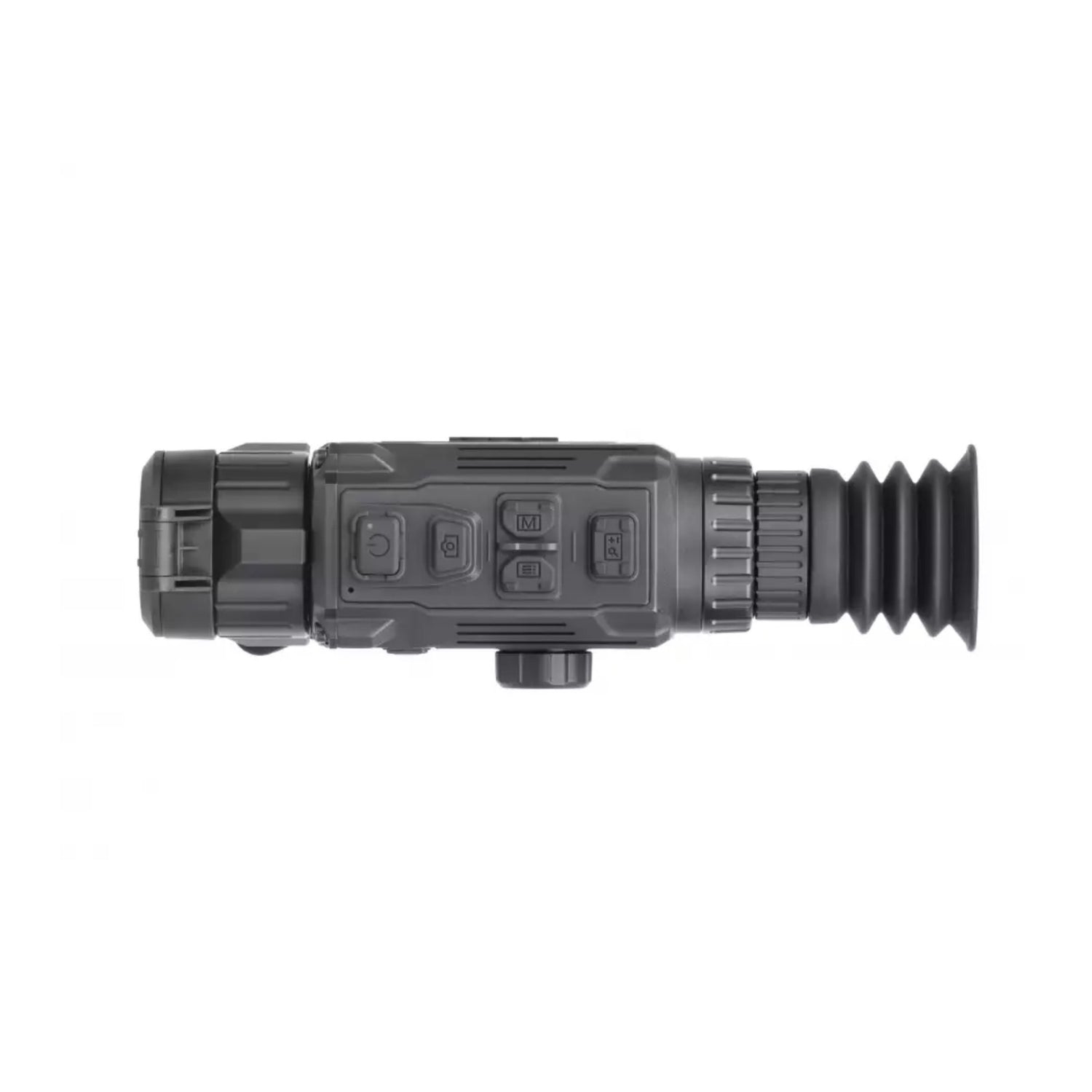

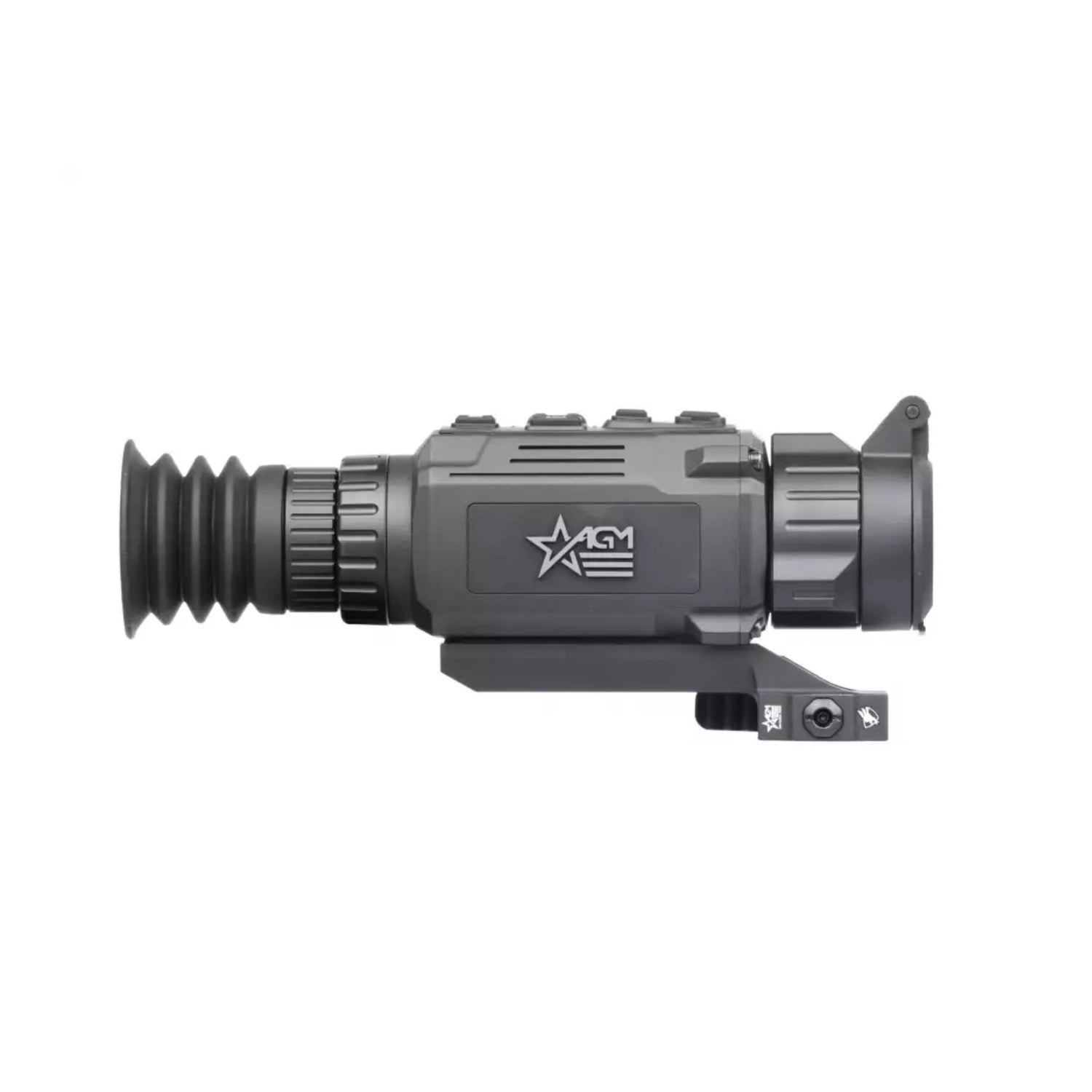

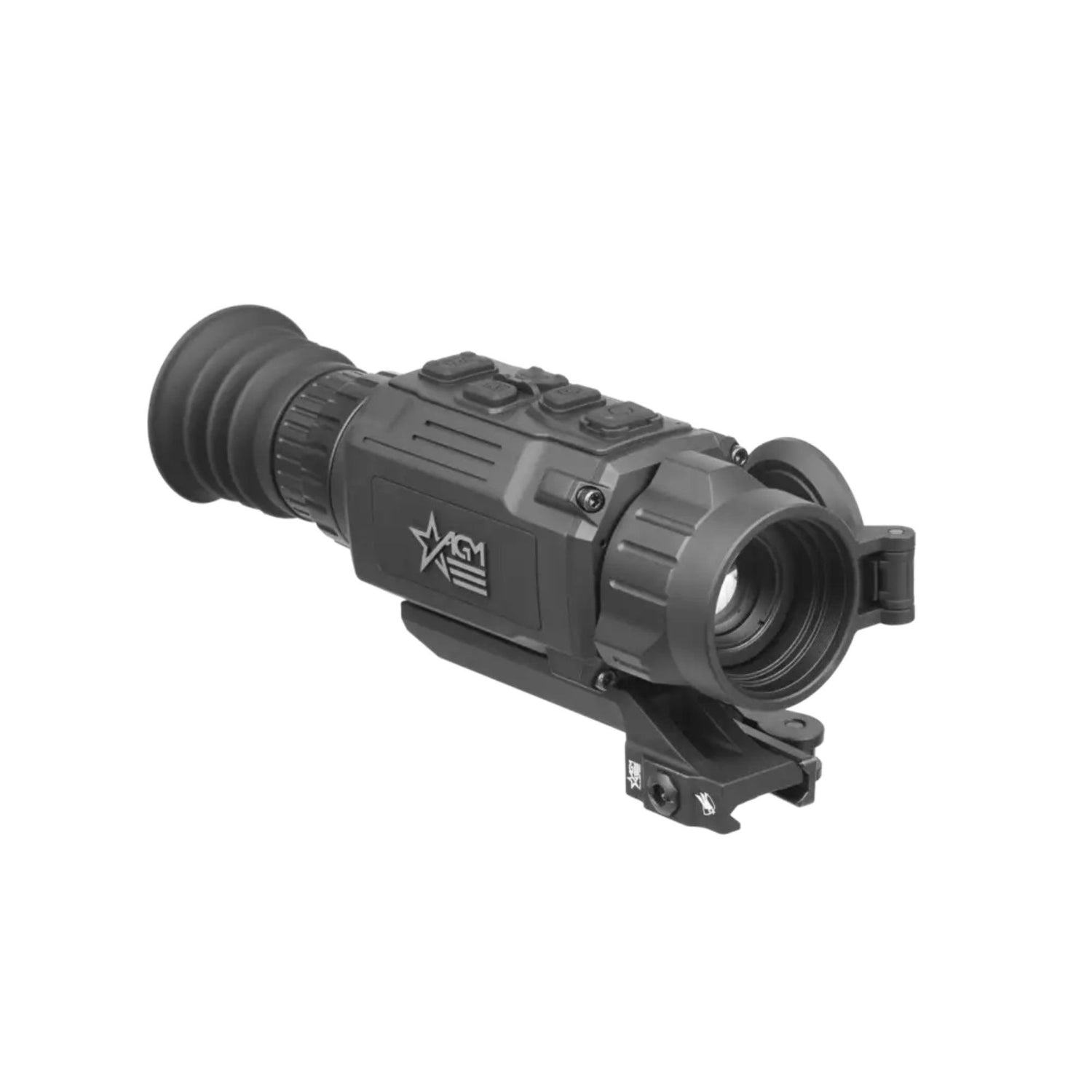

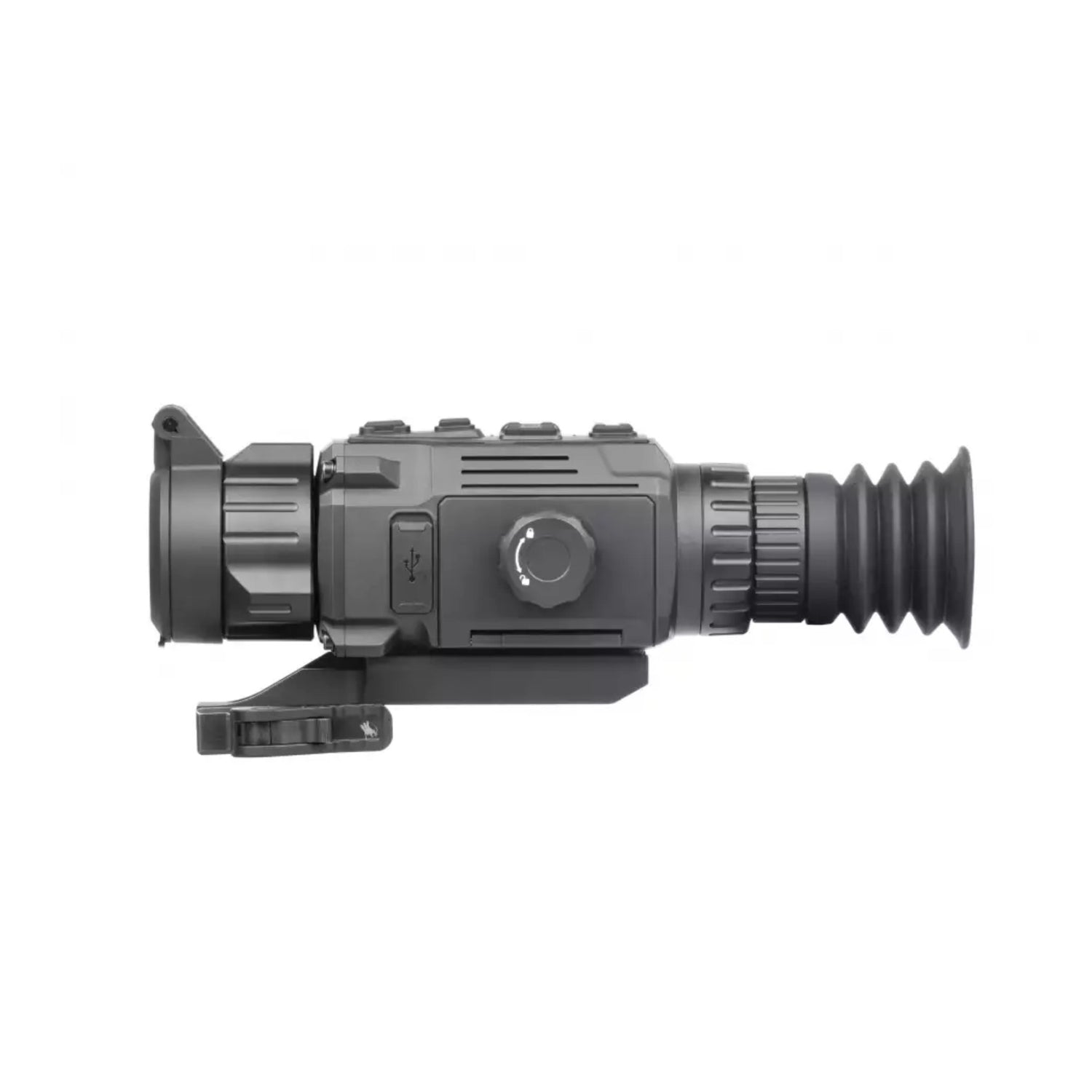

AGM Rattler-C V2 19-256 Thermal Imaging Clip-On with 20mK 19mm Lens and Video Recording (Black)
The RattlerV2 19-256, an improved version of the Rattler TS19-256, is an awesome option for close-range night hunts, beginners getting into thermal hunting, or to use as a buddy scope.
It features a 19mm Germanium lens, a 256x192 resolution thermal sensor, and a 2.5x base magnification with a detection range of up to 950 yards. Its wide Field of View (9.3 degrees × 6.9 degrees or 49 feet at 100 yards) allows for extensive area coverage during scanning. The upgrade from a 25 Hz to a 50 Hz refresh rate in the Rattler V2 19-256 ensures smoother scanning with minimal lag.
Features
- 256×192 resolution with 12-micron sensor
- High-sensitivity thermal detector
- Fast 50Hz imaging
- High resolution OLED display
- Adjustable color palettes
- Various reticle types and colors
- 1x, 2x, 4x, 8x digital zoom
- On-board video/audio recording and image capture
- Built-in EMMC storage (16 GB)
- Shot Activated Recording (SAR)
- Wi-Fi data transmission
- Stadiametric rangefinder
- Standby mode
- Up to 11.5 hours battery life
- External power supply compatibility
- Waterproof and shockproof.
Camera
| Internal Storage | 16 GB |
General
| WiFi | Yes |
| Power Source | Battery |
| Water-Resistant | Yes |
| Weight | 1.06 lbs. (0.48 kg) |
Performance
| Lens Configuration | 19mm |
| Maximum Magnification | 2.5x - 20x |
| Refresh Rate | 50 Hz |
AGM Rattler-C V2 19-256 Thermal Imaging Clip-On with 20mK 19mm Lens and Video Recording (Black)
Detector
| 12 micrometer VOx Uncooled Focal Plane Array |
Resolution
| 256 × 192 |
NETD
| Less than 35 mK (25 degrees Celsius, F# = 1.0) |
Refresh Rate
| 50 Hz |
Lens System
| 19 mm; F/1.0 |
Magnification
| 2.5x - 20x |
Field of View
| 9.3 degrees × 6.9 degrees |
Diopter Adjustment
| -5 to +5 diopters |
Focus Range
| 0.5 m to infinity |
Exit Pupil
| 6 mm |
Eye Relief
| 45 mm |
Digital Zoom
| 1x, 2x, 4x, 8x |
Detection Range (6’ object)
| 950 m/yd |
Display
| 0.39-inch, OLED, 1024×768 |
Palettes
| Black hot, White hot, Red hot, Fusion |
Flat Field Correction
| Auto, Manual, External Correction |
Scene Mode
| Cold, Warm |
Boresight Adjustment
| Digital Controlled |
Video/Audio Recording
| Yes |
Image Capture
| Yes |
Standby Mode
| Yes |
Storage
| Built-in EMMC (16 GB) |
PIP
| Yes |
Defective Pixel Correction
| Yes |
WiFi Hotspot
| Yes |
Hot Track
| Yes |
Reticle
| 10 types, 4 colors, on/off |
Distance Measurement
| Yes (Stadiametric) |
Shot Activated Recording (SAR)
| Yes |
Battery
| Type 4400 mAh Replaceable and Rechargeable Li-ion Battery |
Battery Life (Operating, 20 degrees Celsius)
| Up to 11.5 hours (25 degrees Celsius, with hotspot off) |
External Power Supply
| 5 VDC, 2 A, USB Type-C |
Operating Temperature Range
| -30 degrees Celsius to +55 degrees Celsius (-22 degrees Fahrenheit to 131 degrees Fahrenheit) |
Protection Level
| IP67 |
Max. Recoil
| 1000 g/0.4 ms |
Weight (w/o mount and battery)
| 1.06 lbs. (0.48 kg) |
Dimensions (w/o mount)
| 8.5 in. × 2.7 in. × 2.6 in. (219 mm x 68 mm x 67 mm) |
