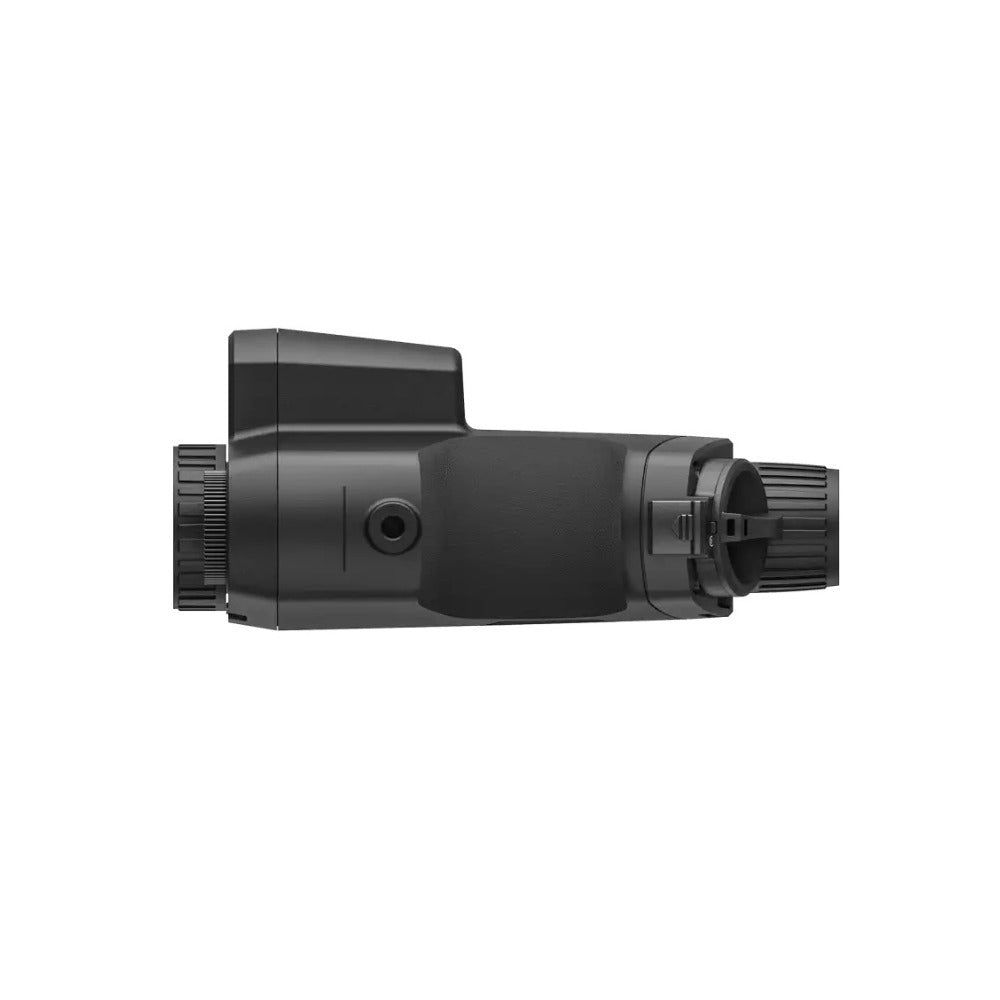

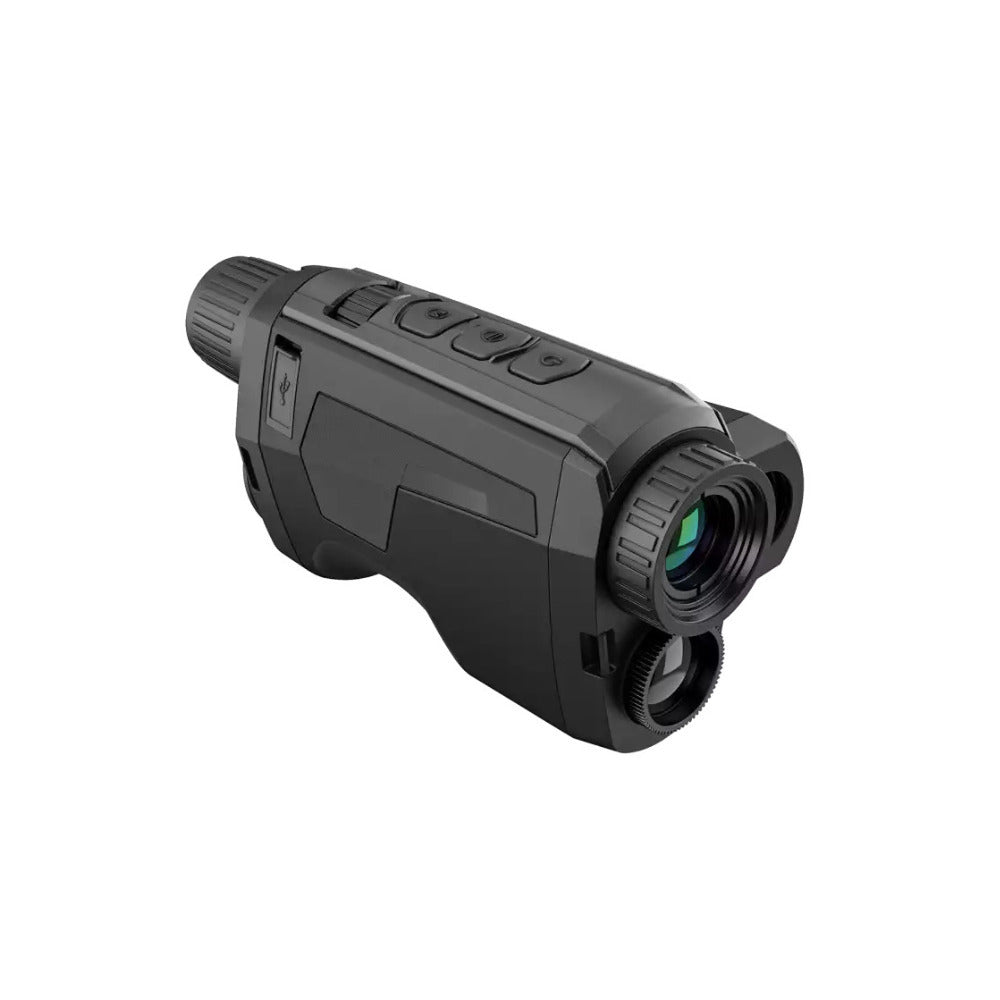

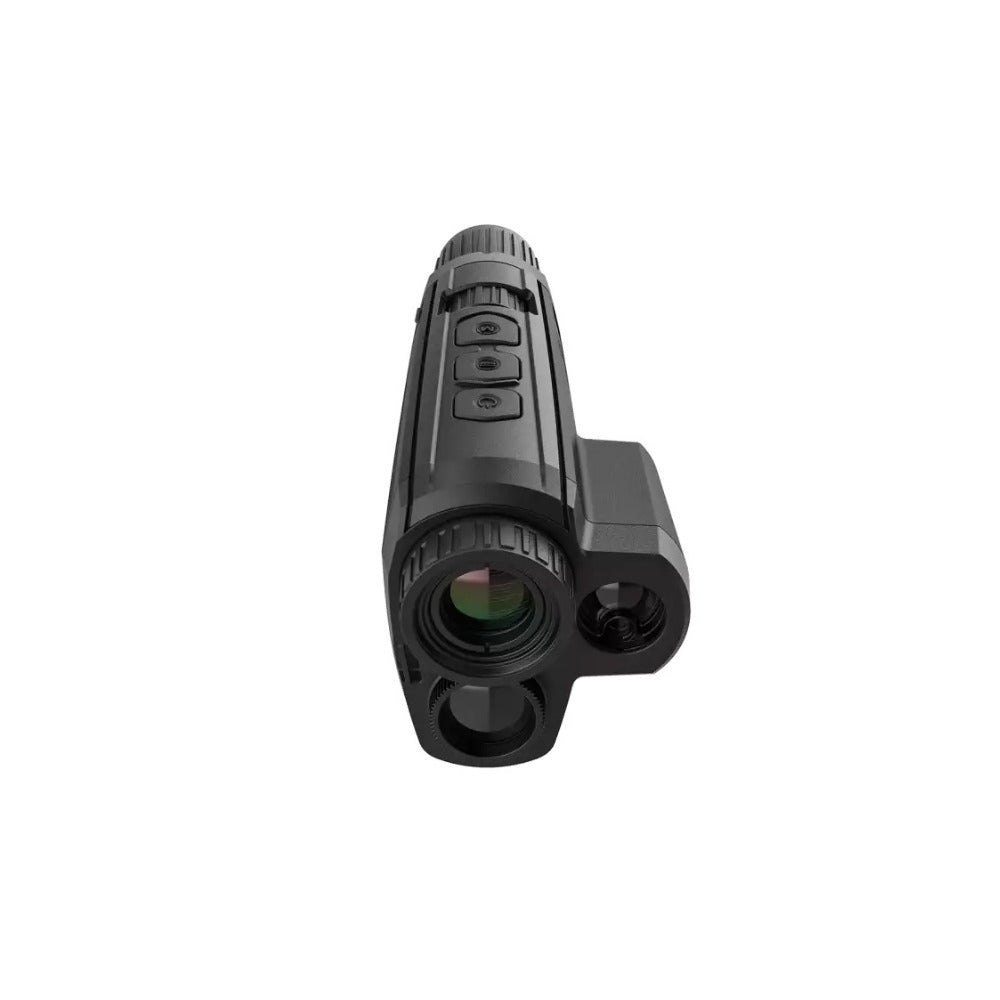

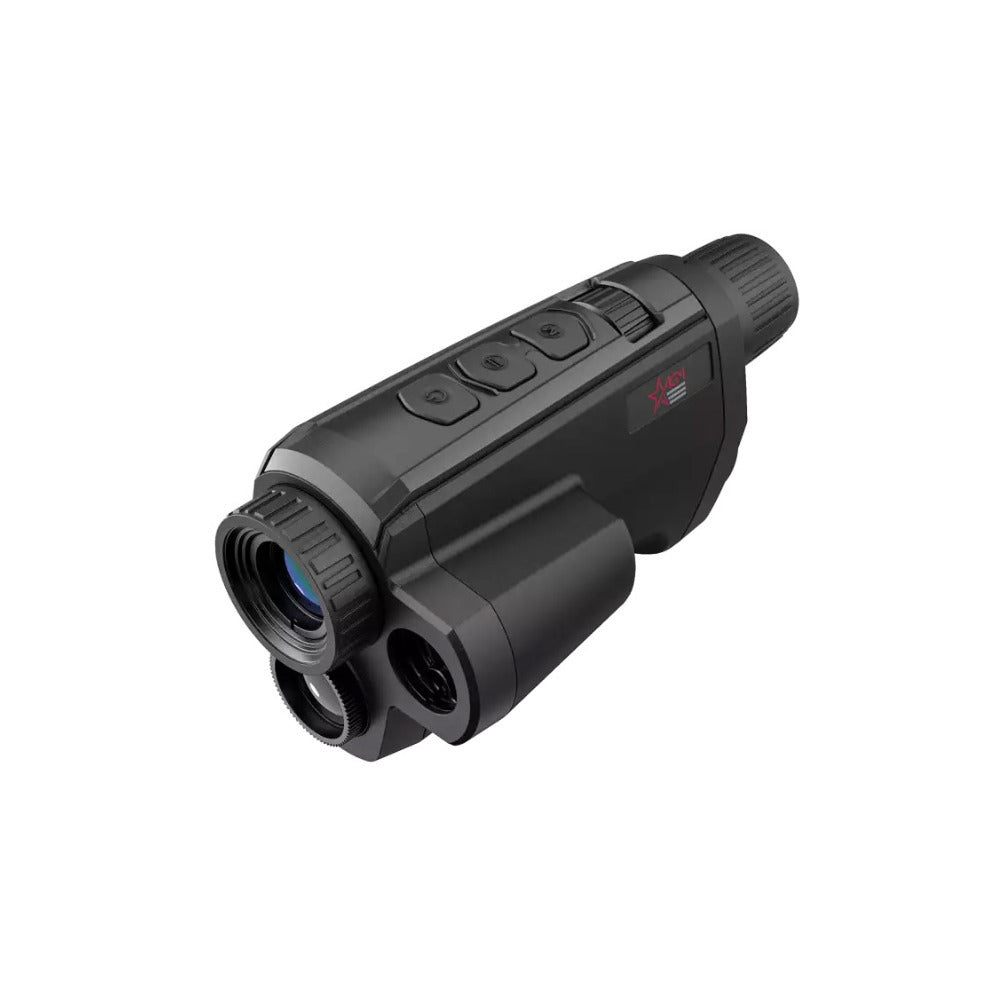

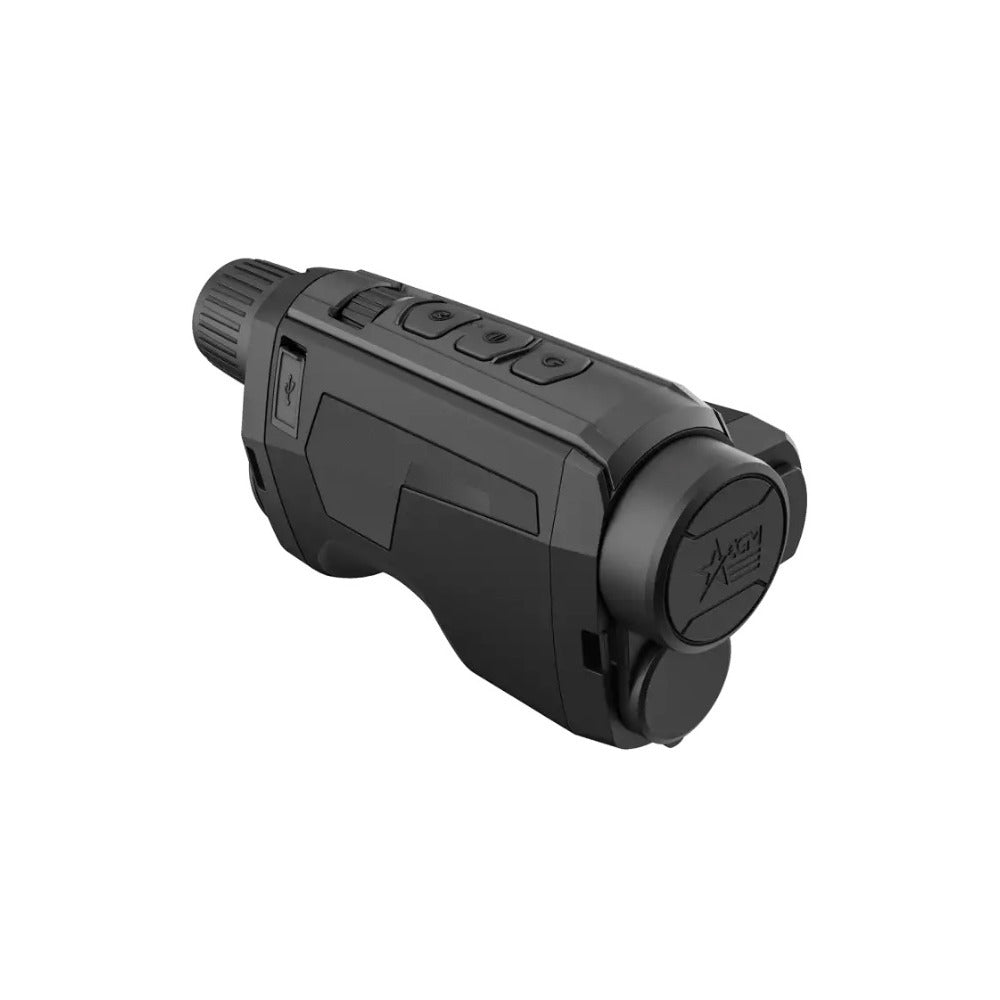

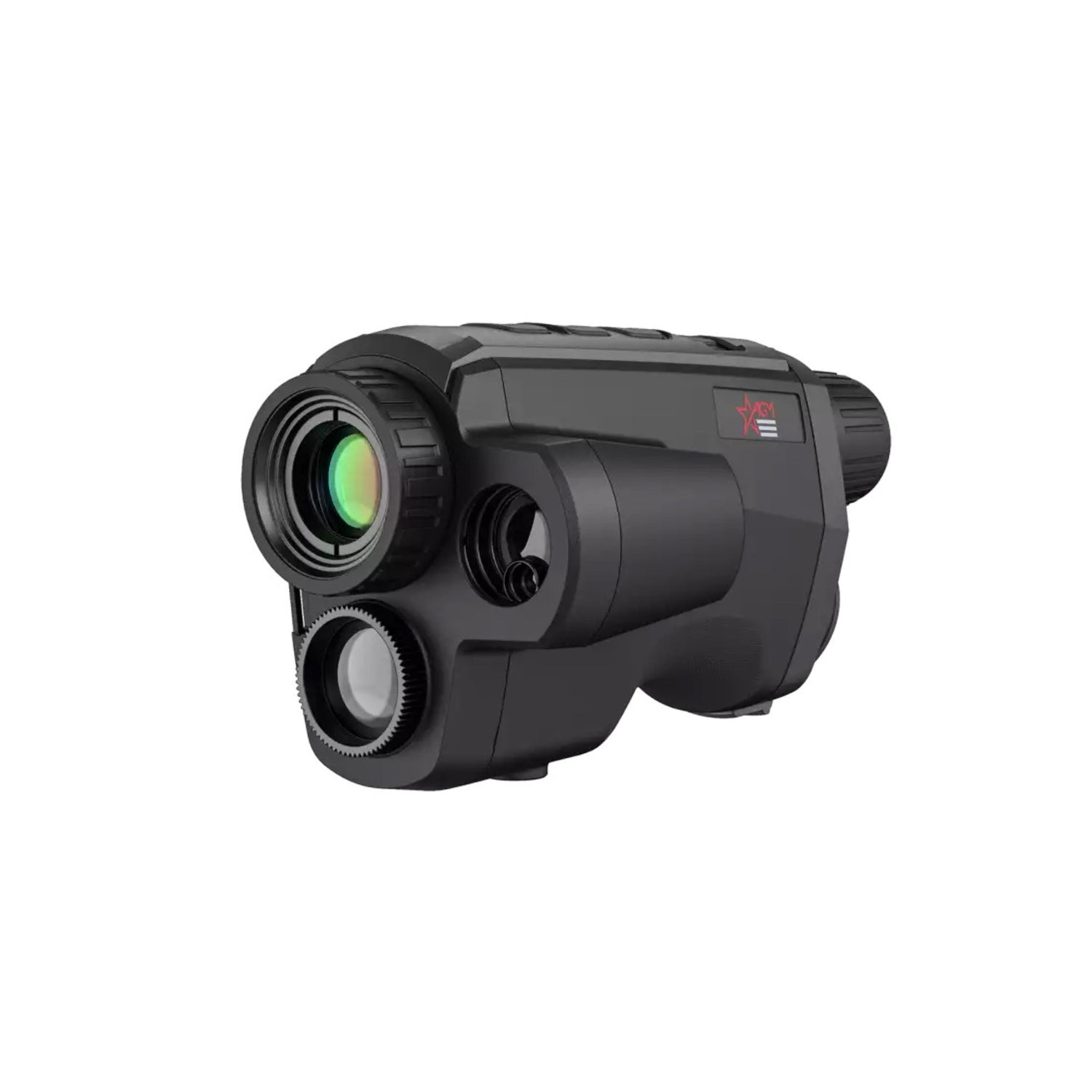

AGM Fuzion TM25-384 Fusion Thermal and CMOS Monocular with Laser Range Finder
Couldn't load pickup availability
Product highlights
Product highlights
In the box
In the box
Free standard shipping
Free standard shipping
*Orders placed before 1 PM EST Mon - Thur will ship the same day. Orders placed beyond these hours will be shipped the next business day. Exclusions apply. See shipping policy
Free Local Pickup
Free Local Pickup
Please call for store stock availability. Requests made before 2:30 PM EST can be available for next-day pickup. Learn more
The AGM Fuzion LRF TM25-384 Thermal and Digital Day and Night Vision monoculars are some of the most technologically advanced and feature-packed optics in the world. The primary engine behind this monocular lies within the main thermal viewing channel, with its high-sensitivity 12-micron 384x288 thermal detector. This sensor from AGM will ensure human-sized heat signatures detectable at up to 0.8 miles (1250m). Unlike other thermal monoculars on the market, the Fuzion LRF also comes outfitted with a digital night vision channel as well, which is great for aiding in the recognition of targets detected by the thermal channel. The built-in 600m laser rangefinder simply takes the Fuzion LRF to another level, and this is without even mentioning its 16GB of internal memory and Wi-Fi compatibility. The Fuzion LRF also comes packed with numerous software improvements, and many features that have become commonplace within the AGM thermal product assortment: a high-sensitivity thermal detector, 25mm Germanium lens with a 1.0 aperture, 1920x1080 ultra-low light CMOS sensor, various viewing modes, including fusion imaging and multiple color palettes, 2.5X base magnification with 8X digital zoom, picture-in-picture mode, built-in laser rangefinder, up to 5 hours of battery life on one removable, rechargeable 18650 battery, USB Type-C port for external power capabilities, IP67 waterproof rating. The package includes a long-range IR illuminator, wrist strap, and charger.
General
| Battery | 1 x 18650 Rechargeable Battery (Removable) |
| Weight | 1.12 lb |
Environmental
| Water-Resistant | Yes |
| Fogproof | Yes |
Performance
| Magnification | 2.5-20x |
| Field of View | 10.5 x 7.9 Degree |
AGM Fuzion TM25-384 Fusion Thermal and CMOS Monocular with Laser Range Finder
| Dimension (LxWxH) | (158 x 61 x 57 mm) 3.2 x 2.4 x 2.2 inch |
| Weight | 510g (1.12 Ib) |
| Palettes | Black hot, white hot, red hot, fusion, visible, image Ffusion |
| Working Temperature | -20 to 55-degree-C (-4 to 131-degree-F) |
| Distance measurement | Yes (laser rangefinder: up to 600 m, ±1 m accuracy) |
| Scene mode | Jungle, recognition |
| Hotspot | Yes |
| Detector type | 12 μm VOx uncooled focal plane arrays |
| Response waveband | 8 μm to 14 μm |
| Optical image sensor | 1/2 Wavelength 400-1000 nm |
| FFC (Flat field correction) | Auto, manual, external correction |
| Highest temperature spot tracking | Yes |
| Standby mode | Yes |
| Refresh rate | 50 Hz |
| Aperture | F1.0 |
| Resolution | 384 x 288 |
| Laser wavelength | 905 nm |
| Detection range | 1,180m/yd |
| Optical magnification | 2.5x – 20x |
| Lens (focal length) | Thermal lens focal length - 25mm optical module Lens focal length - 22mm |
| Power | 5 VDC/2 A, USB type-C interface supports external power supply |
| Field of view (H x X) | 10.5 x 7.9-degree |
| Digital zoom | 1x, 2x, 4x, 8x |
| Monitor | 1024x768, 0.39 inch, OLED, 50Hz |
| Storage | Built-in 16 GB EMMC |
| Record video | On-board video recording |
| Capture snapshot | Yes |
| Battery type | One 18650 rechargeable battery (removable) |
| CVBS output | Yes (via USB) |
| Battery operating time | Up to 5 hours continuous running (25-degree-C, WiFi and CVBS off) up to 3 hours continuous running (25-degree-C, WiFi and CVBS on) |
| Battery capacity display | Yes |
| Protection level | IP67 (Waterproof) |
