Wavelength BlogAV Matrix SC2030 3G-SDI/ HDMI Scaling Cross Converter
- mfr: SC2030
- SKU: SC2030
Available options:
-
Free standard shipping
*Orders placed before 3 PM EST Mon - Thur will ship the same day. Orders placed beyond these hours will be shipped the next business day. Exclusions apply. See shipping policy
-
Free Local Pickup
Please call for store stock availability.
Requests made before 2:30 PM EST can be available for next-day pickup. Learn more
Additional options:
Product highlights

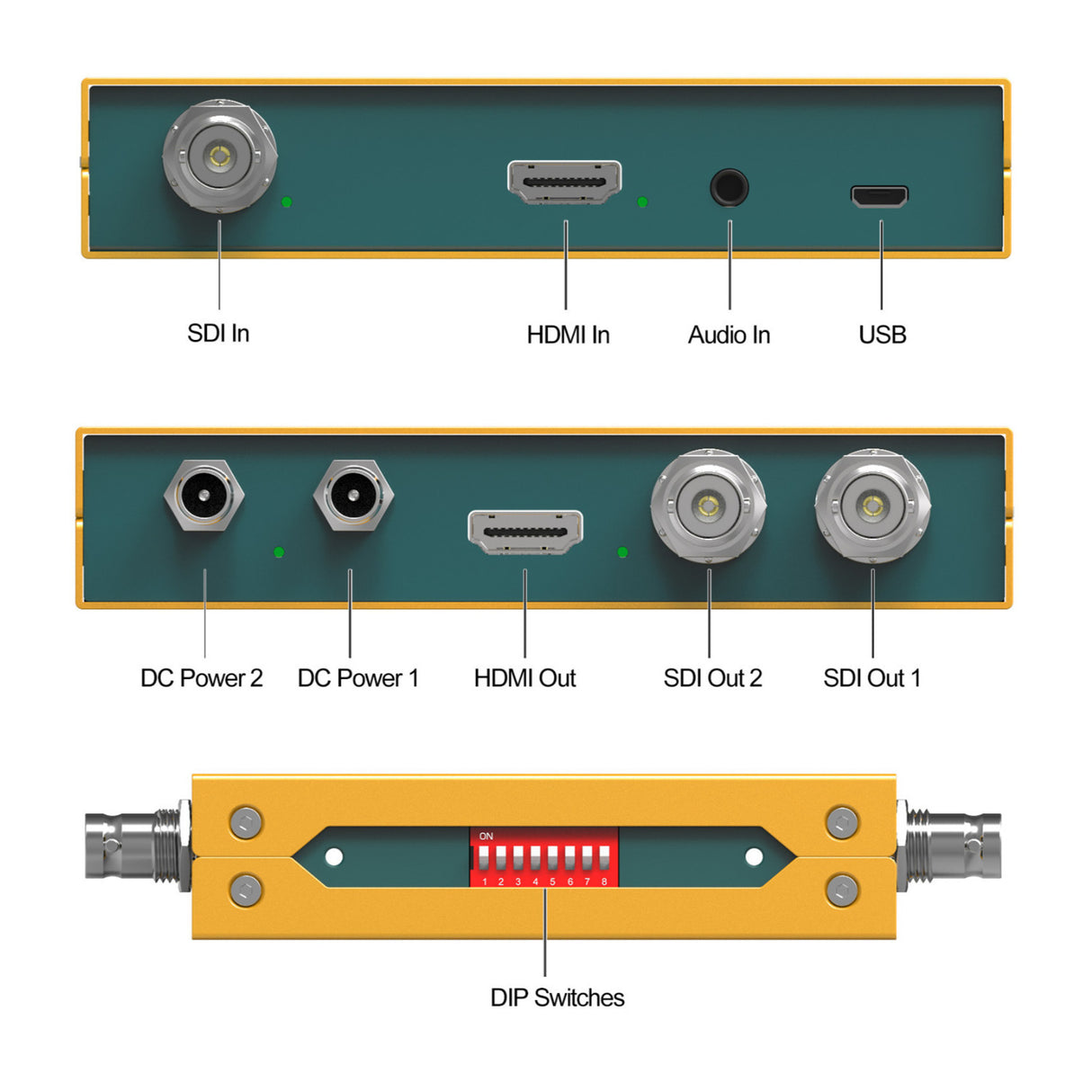

- HDMI/SDI and analog audio inputs
- 2x3G-SDI and HDMI outputs
- Up/down scaling and frame rate conversion
- Analog audio embedding
- HDMI/SDI input automatic detection and configuration
- Control easily via the DIP switches
- USB is used for PC software control and power supply
- Dual threaded locking power, for redundant power supply
- Detachable bracket design for wall mounting

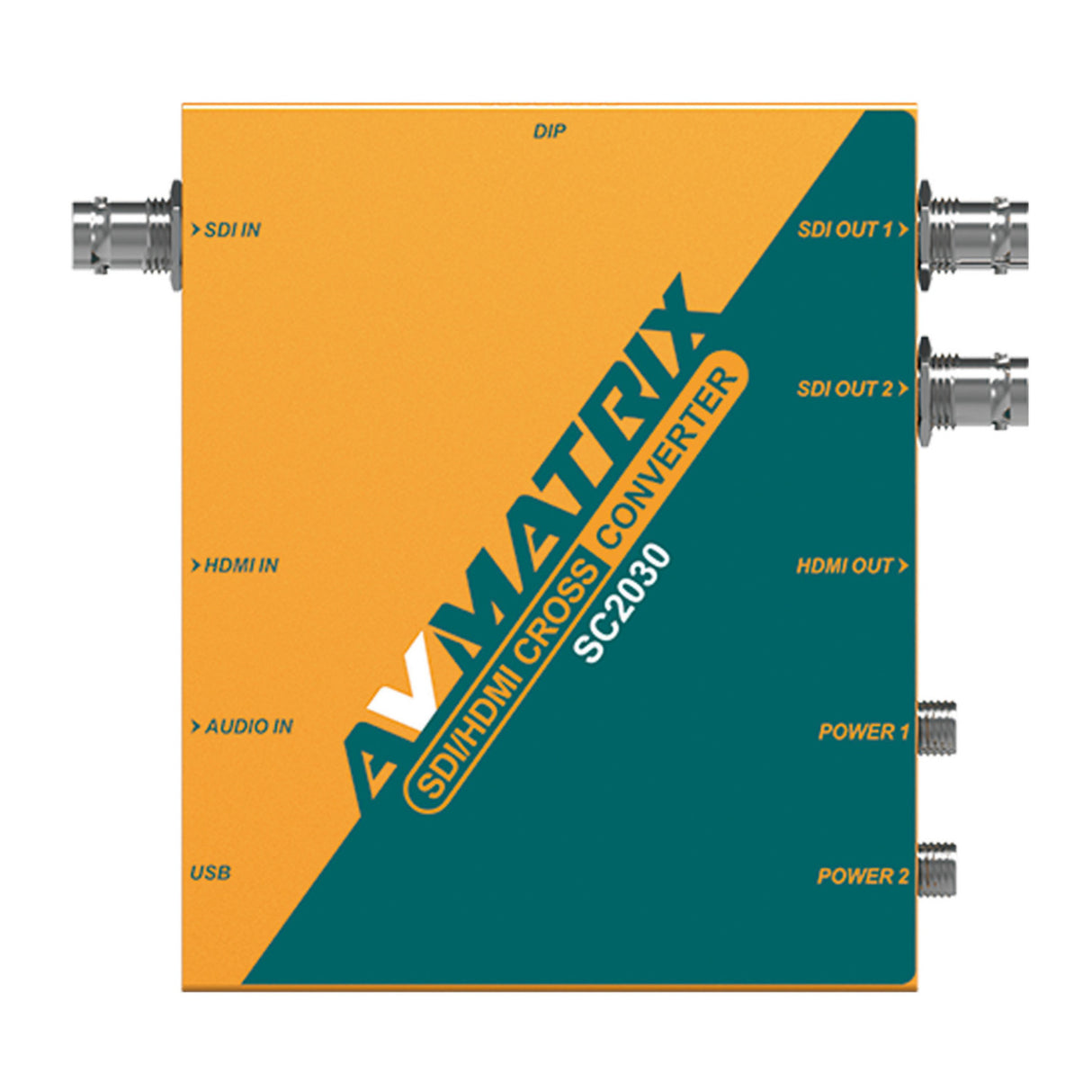

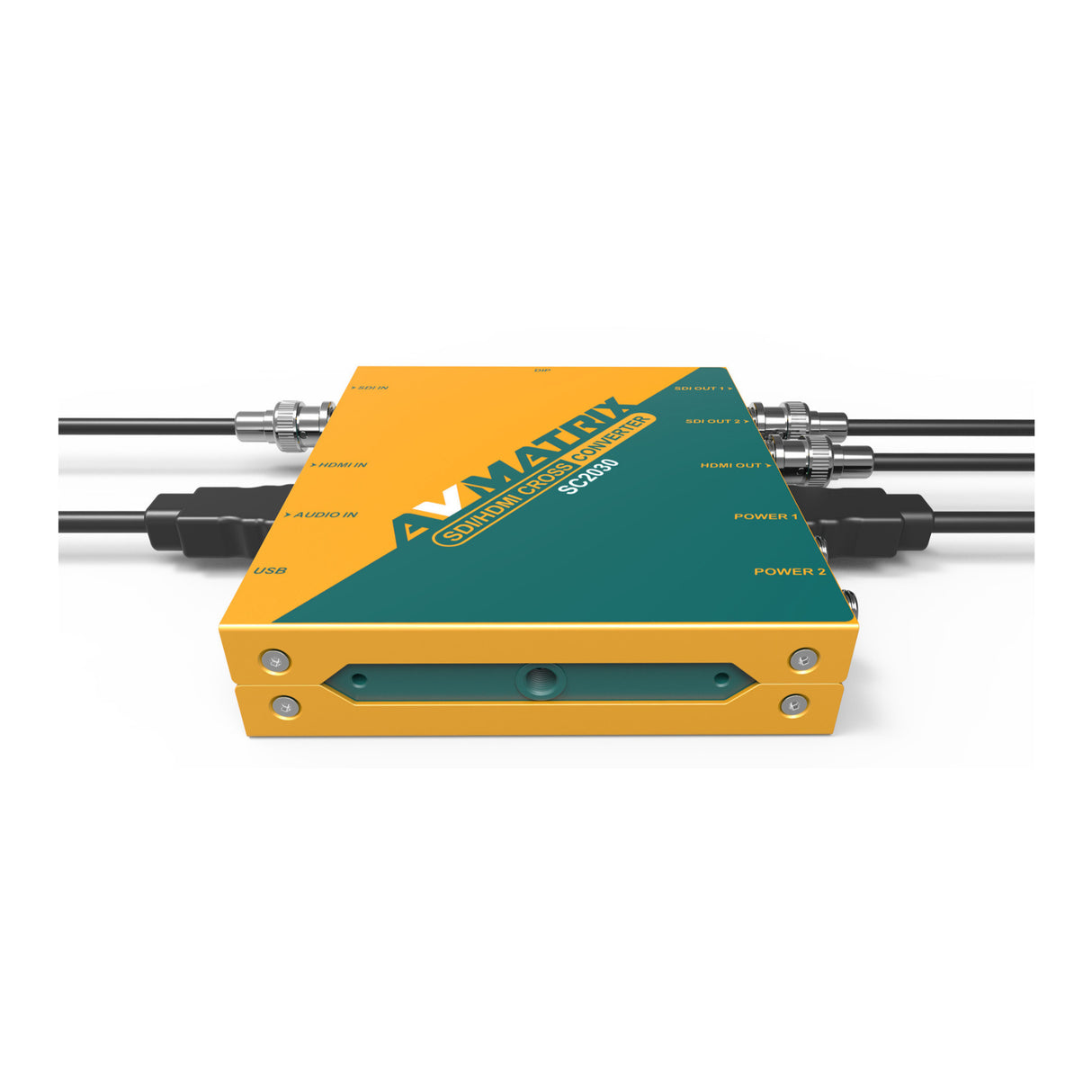

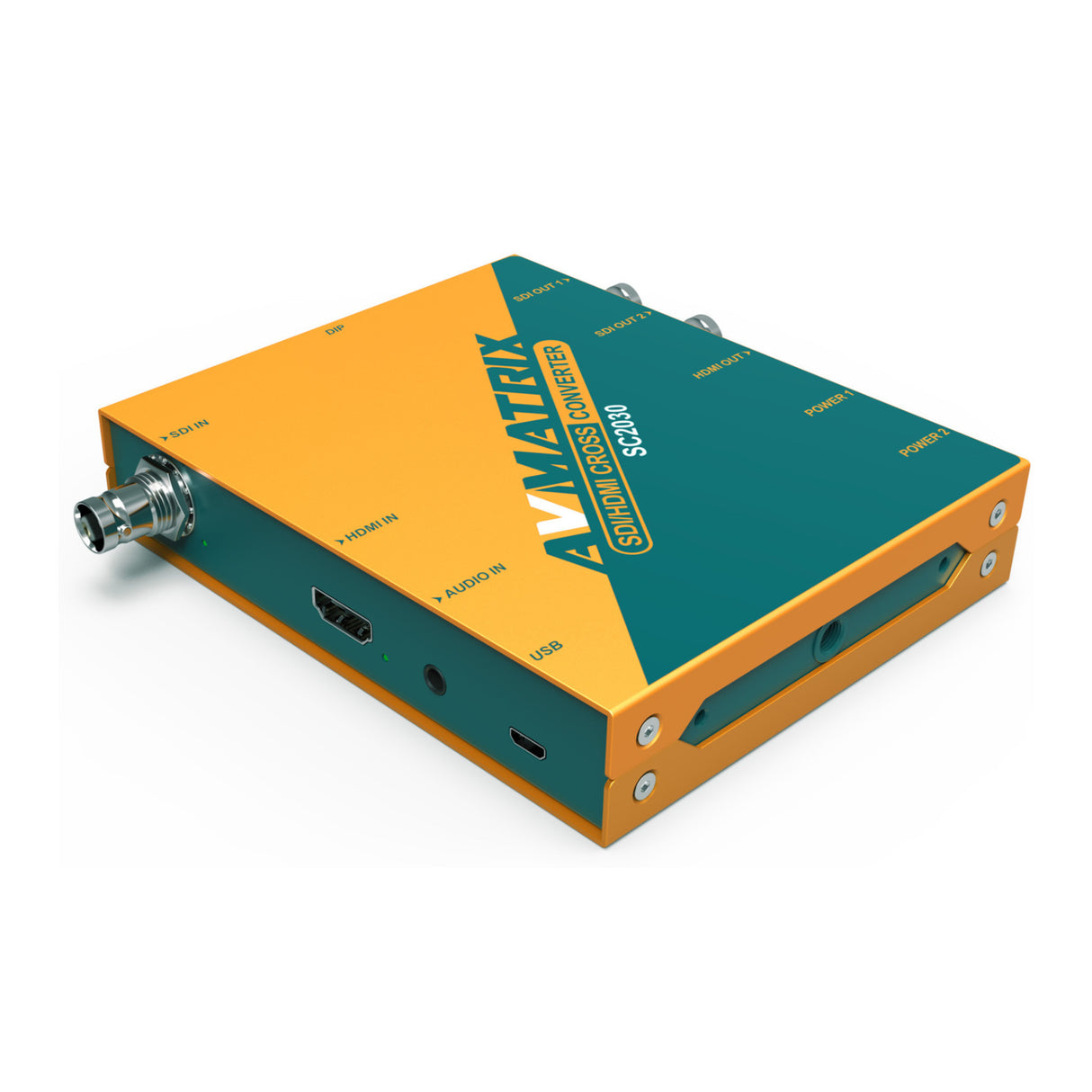

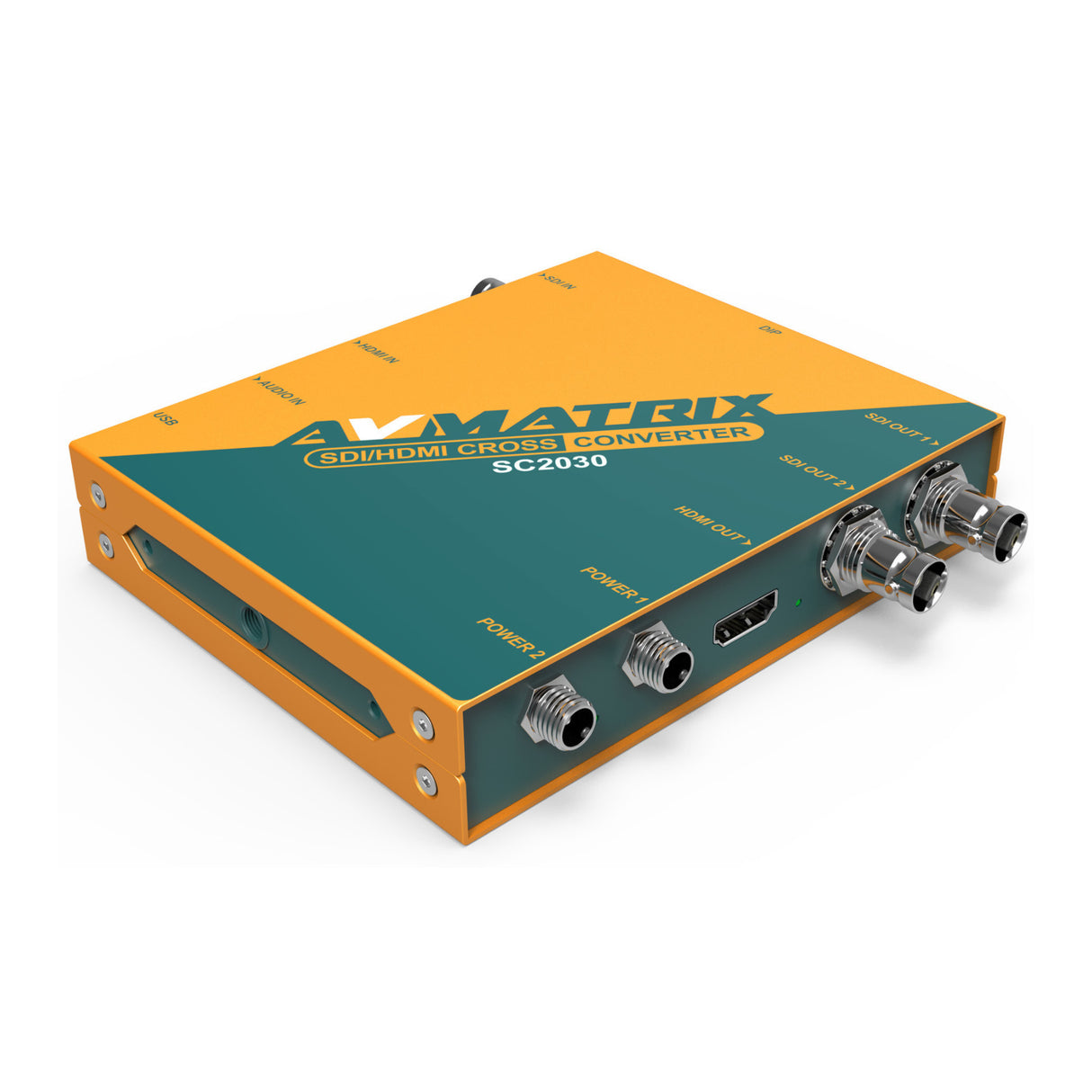

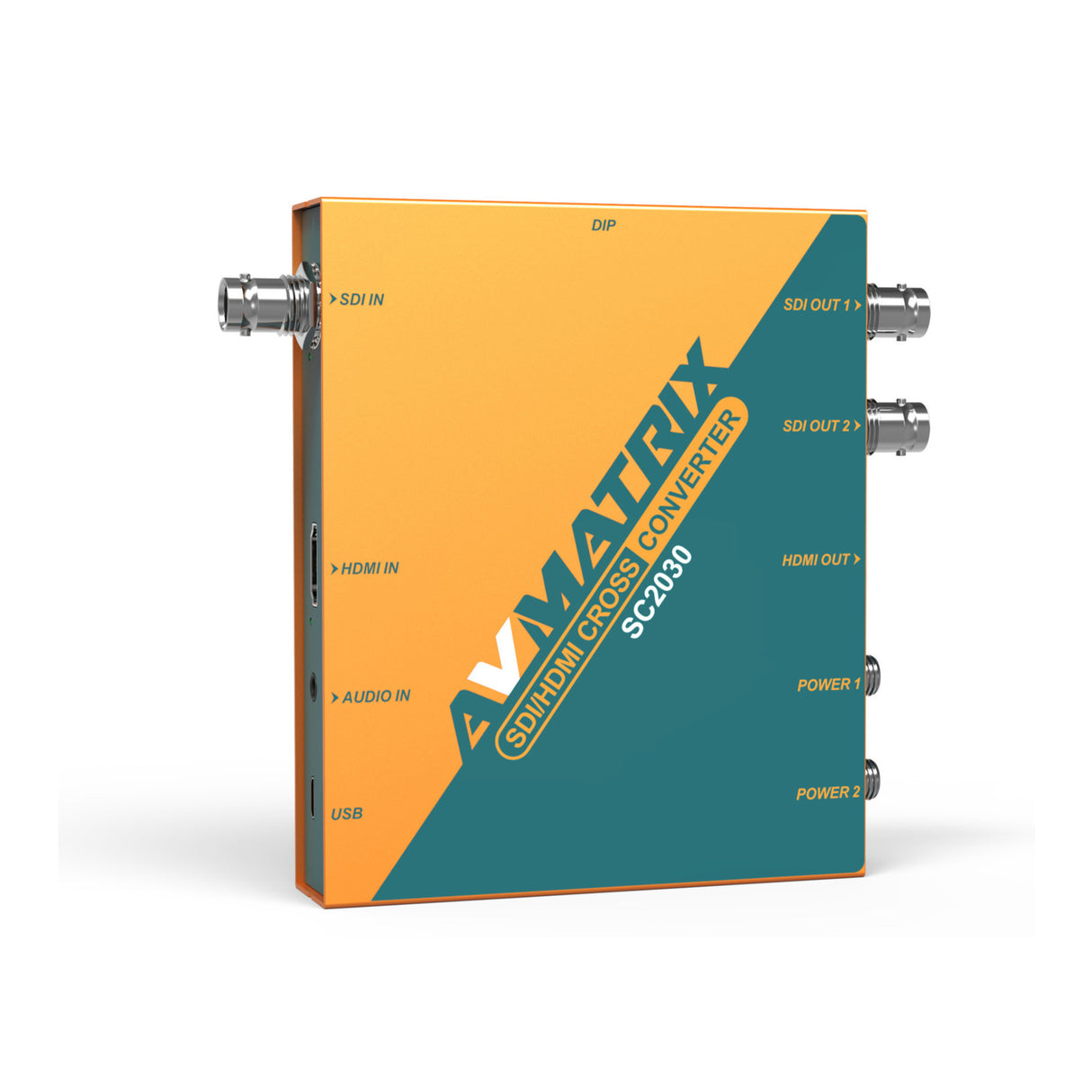

AV Matrix SC2030 3G-SDI/ HDMI Scaling Cross Converter
The AV Matrix SC2030 has a variety of transformation combinations to realize the inter-rotation of various resolutions between SDI/HDMI. It supports SDI to SDI, SDI to HDMI, HDMI to HDMI, and HDMI to SDI scaling conversions. When you choose either an SDI or HDMI input, both SDI and HDMI output at the same time. Its multiple signal conversion function is suitable for a variety of HD video conversion needs. When both SDI and HDMI input signals are connected at the same time, then the default priority is given to an SDI signal input.
Audio Embedding
AV Matrix SC2030 allows embedding an external analog audio to both SDI and HDMI outputs. The most commonly used 3.5mm interface makes it easy to add external audio signals to SDI/HDMI video output.

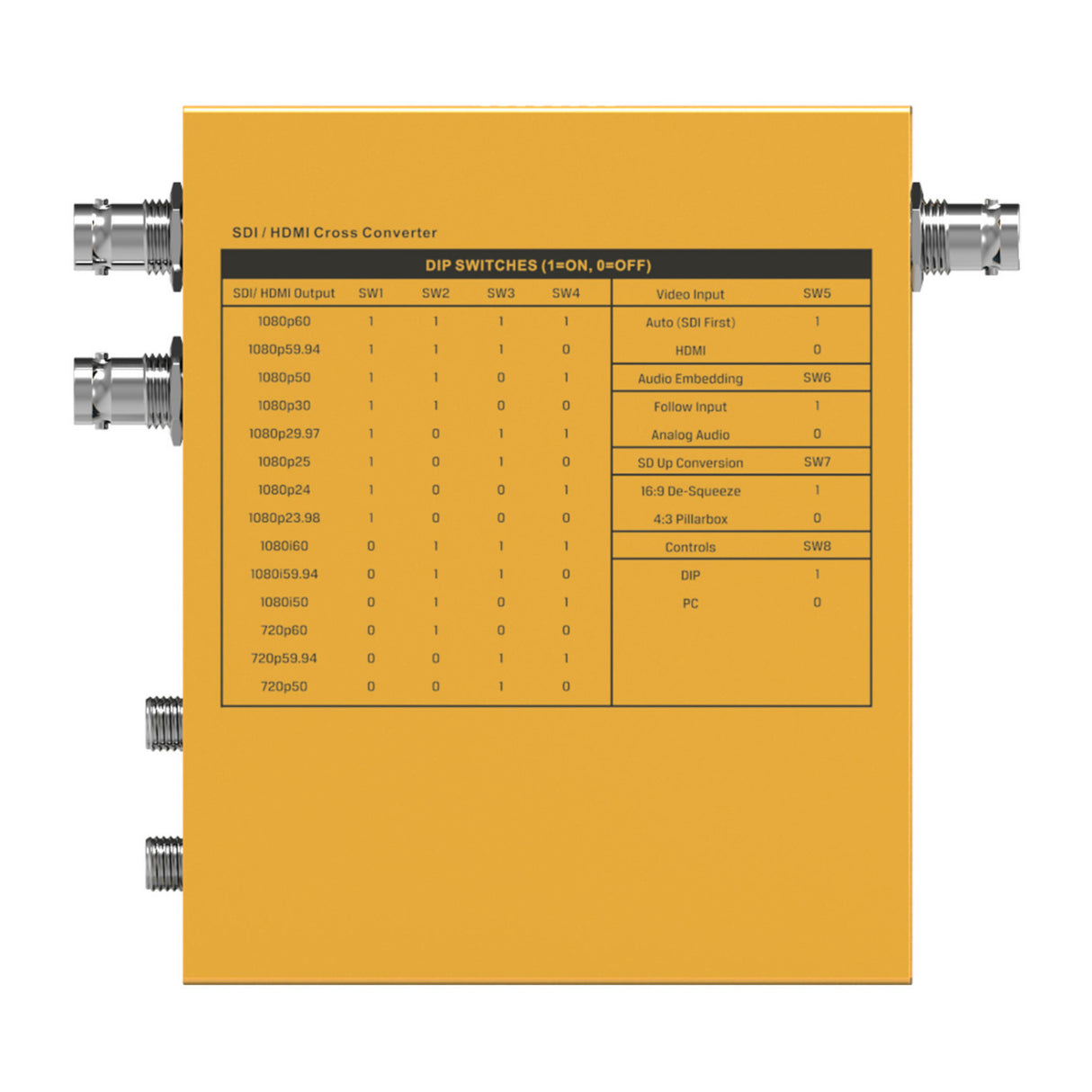

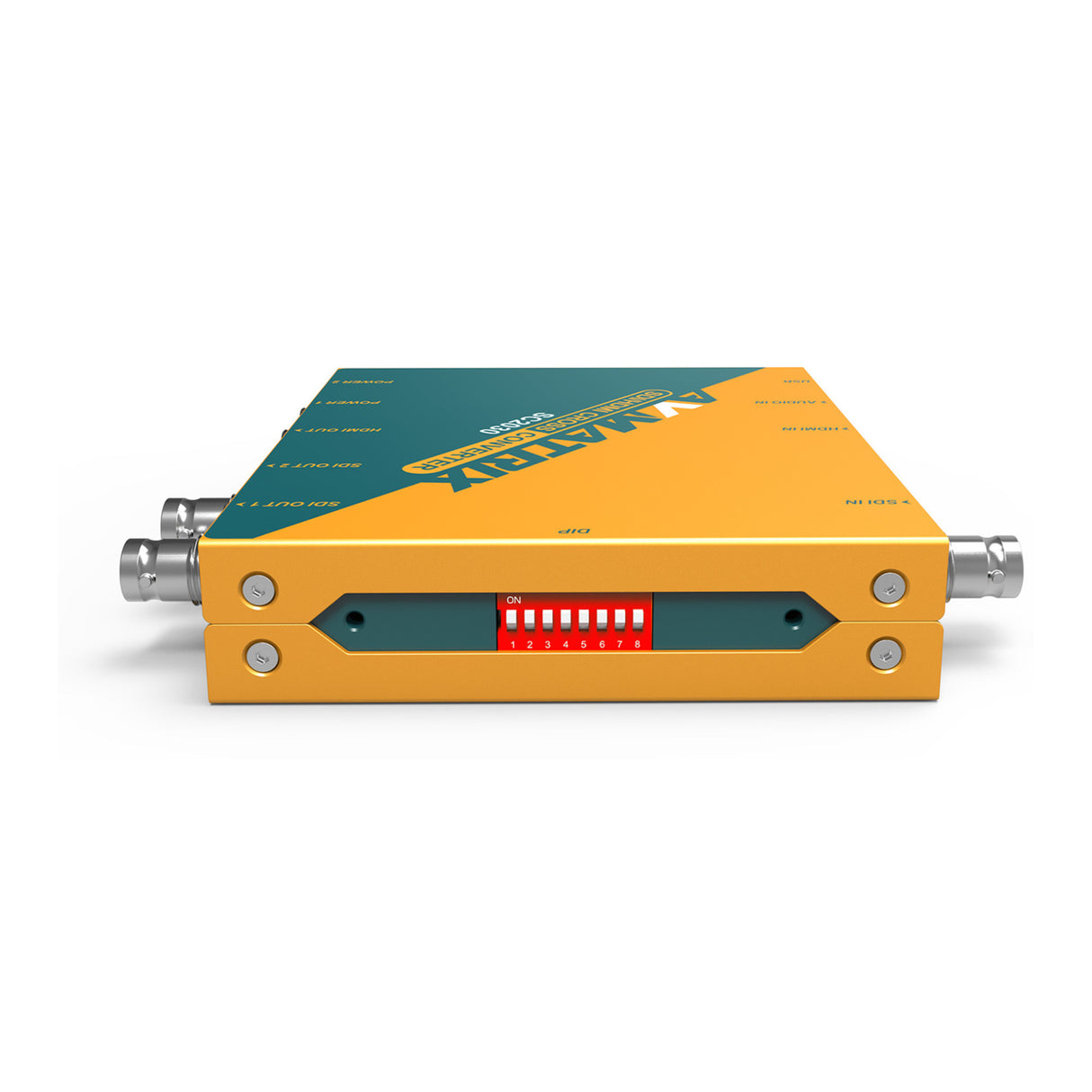

Easy Control over DIP Switches and PC
Easily adjust the DIP switches to set the functions, without any tool. It's a smart method to change common settings quickly when outdoors. Meanwhile, it can also be remotely set by software through a connected PC via USB. Besides, the latest software can be upgrades by connecting it with a PC via the USB.
Redundant Power
Use of premium components coupled with dual redundant power supplies ensure that the device works fine even when the main power supply encounters problems. The AV Matrix SC2030 Cross Converter’s 1/4-inch hot shoe slot is perfectly suitable for various installations.
Specifications
| HDMI Inputs | 2 |
|---|---|
| External Ports | HDMI |
| Weight | 485g |
|---|---|
| Color | Yellow |
