Blackmagic Design 15.6-Inch SmartView 4K G3 DCI Broadcast Monitor with SMPTE 2110 (Deep Black)

The Blackmagic Design SmartView 4K G3 Broadcast Monitor boasts integrated optical and copper SMPTE 2110 IP video connections, facilitating direct compatibility with IP-based broadcast systems. Additionally, it offers two 12G-SDI inputs for seamless integration with various professional video equipment. Both the 12G-SDI and 2110 video inputs support output to a 12G-SDI loop output connection. Maintaining its lightweight machined aluminum chassis, the monitor features a full-resolution Ultra HD LCD. On-screen overlays include focus peaking, framing guides, safe areas, and more for enhanced usability. Moreover, it comes equipped with built-in 3D LUTs, enabling users to apply creative looks, convert log film gamma, or manage custom HDR profiles effortlessly.
Excellent Video Monitoring
SmartView 4K excels in broadcasting with support for 12G-SDI and 2110 IP up to 2160p60. It seamlessly toggles between SDI and IP with a single button press, adapting to SD, HD, or Ultra HD standards automatically. Its robust camera monitoring capabilities, including focus peaking, zoom, aspect ratio markers, and tally, ensure precise live production monitoring. The 4K display provides exceptional camera image detail. Its lightweight aluminum construction makes it portable and durable, with a slim design facilitating excellent rack ventilation via natural convection. Additionally, it offers extensive camera and technical monitoring features.
Anodized Metal Design in Deep Black Finish

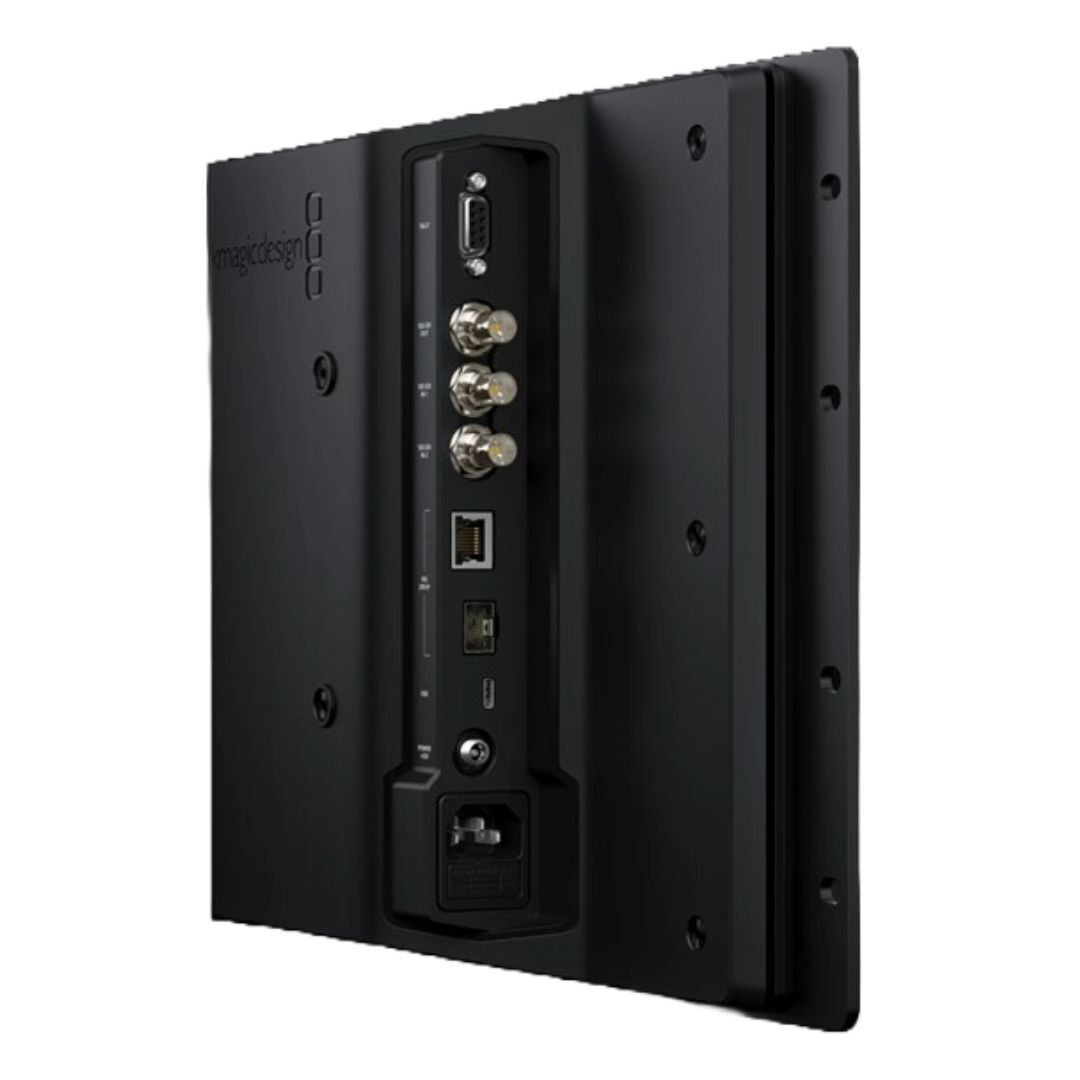

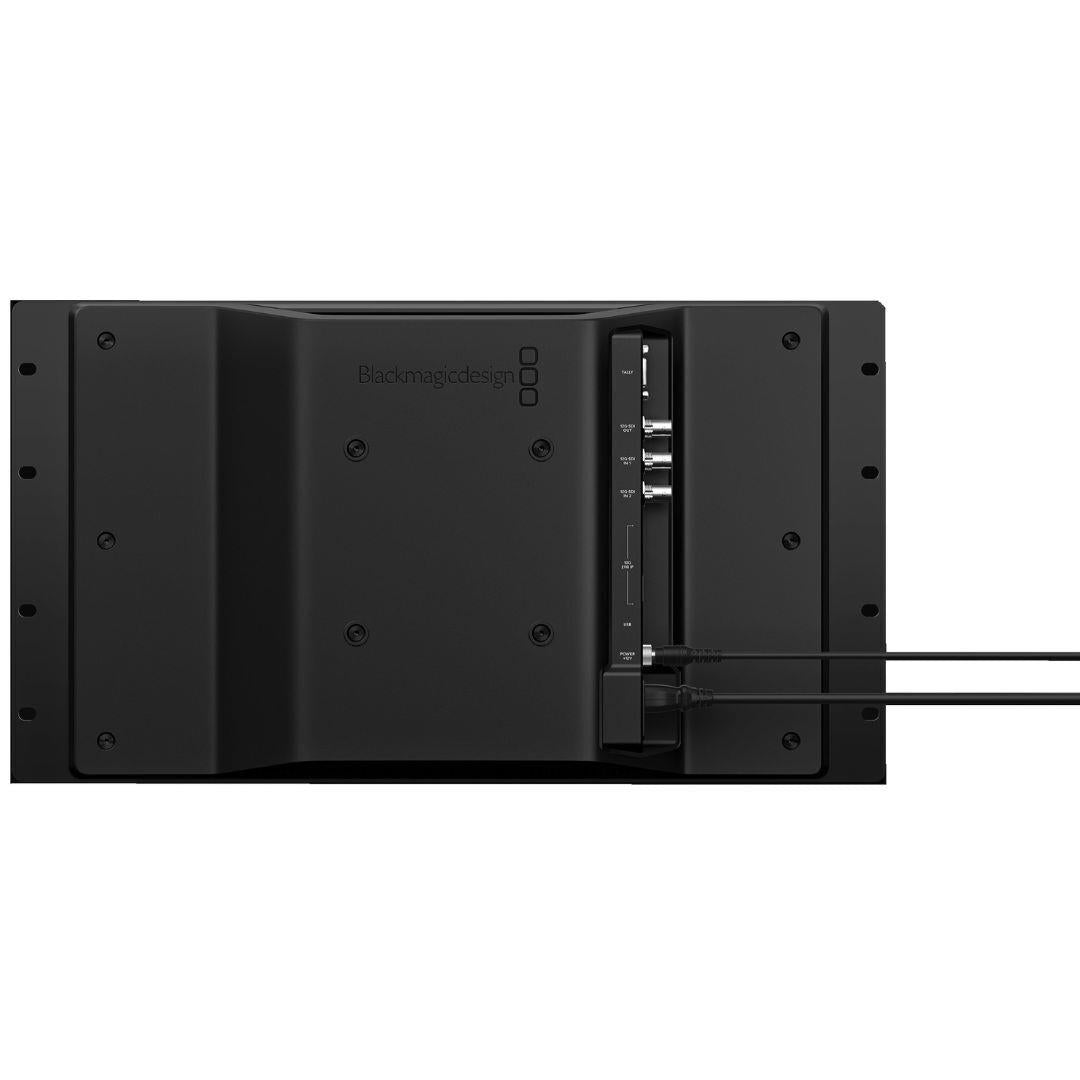

SmartView 4K boasts a robust machined aluminum design, anodized in sleek black, enhancing its appeal when paired with other Blackmagic Design equipment in equipment racks. Its slim profile ensures efficient ventilation for the entire rack, crucial for maintaining equipment coolness. The bottom hosts conveniently tilted button controls for ease of use, while the rear accommodates all video connections and includes a VESA mounting point.
HD Display
SmartView 4K's LCD boasts high resolution, ensuring optimal display of every pixel in Ultra HD images, delivering pristine visuals with rich color accuracy. To maintain screen cleanliness, it features bottom-mounted control buttons, allowing adjustment without touching the screen. Designed for broadcasting, SmartView 4K swiftly locks onto new video sources, vital for dynamic input changes common in router-connected setups. Unlike TVs, it doesn't overscan, ensuring full pixel display to the LCD's edge for detailed imagery.
Monitor Control Buttons

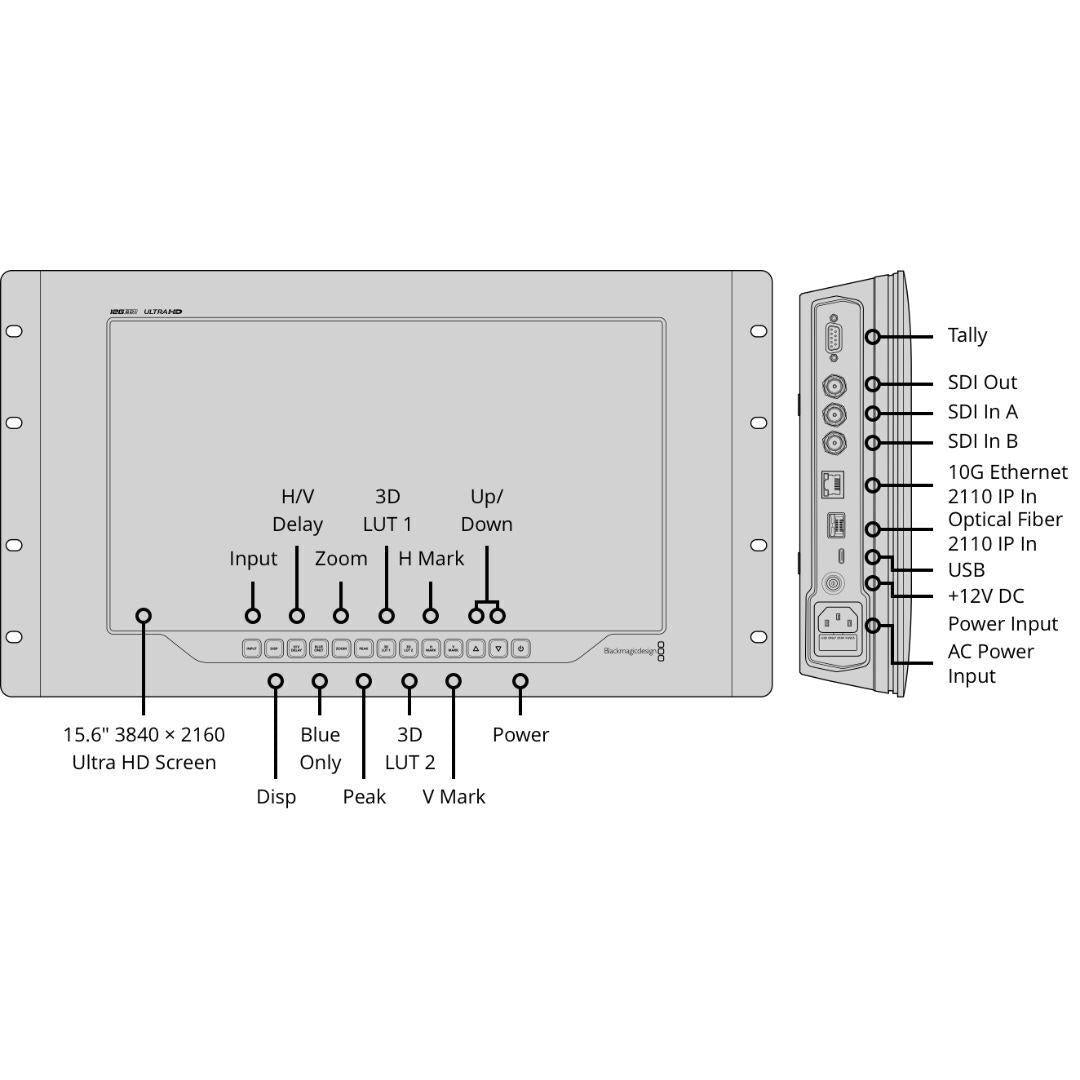

The SmartView 4K front panel offers comprehensive monitoring controls: input selection between two 12G-SDI video inputs and the 2110 IP video input, display brightness adjustment, traditional H and V display for image blanking inspection, blue-only mode for checking hue from SD archive content, zoom function for camera focus adjustment, peaking for sharp image detail, 3D LUT activation and switching, and H and V marker buttons for on-screen marker display and adjustment.
Frame Guides and Focus Peaking
SmartView 4K assists in framing and focus with on-screen overlays, including safe areas, title markers, and 4 frame guides (2 vertical, 2 horizontal). These guides, adjustable for any aspect ratio, suit various framing needs, from social media to feature films. Additionally, it features on-screen focus peaking, toggleable via a front panel button, ideal for remote camera monitoring to ensure precise focus.
3D LUT Benefit
Broadcasters and filmmakers often encounter issues with washed-out or incorrect colors in SDI sources due to log film gamma or HDR encoding. SmartView 4K addresses this by supporting 3D LUTs, allowing users to remap input colorspaces to the monitor. These LUTs not only correct color issues but also offer creative possibilities. They can be easily uploaded using the SmartView utility, and DaVinci Resolve users can export custom LUTs. With DaVinci Resolve available for free, building a diverse library of 3D LUTs is accessible and cost-effective.
Direct Connection to SMPTE 2110 IP Networks
SmartView 4K enables the creation of modern IP video systems by adhering fully to the SMPTE 2110 standard for IP video, offering optical fiber and copper 10G Ethernet connectivity. SMPTE 2110 outlines the protocols for transporting, synchronizing, and describing video, audio, and ancillary data over IP networks for broadcasting purposes. It encompasses various elements, including support for uncompressed video (SMPTE 2110-20), the Blackmagic IP codec for high-frame-rate Ultra HD, traffic shaping and timing (SMPTE 2110-21), audio transmission (SMPTE 2110-30), and ancillary data support (SMPTE 2110-40). Additionally, SmartView 4K allows the selected video input to be distributed through the 10G Ethernet SMPTE 2110 IP connection, facilitating multicast transmission to multiple destinations.
NMOS Protocol for Virtual Routing
SmartView 4K enables seamless integration with NMOS interface specifications, allowing all 2110 IP video devices to function collectively as a unified virtual router. Additionally, Videohub Smart Control serves as an NMOS controller, facilitating routing from sources to destinations within 2110 IP networks. NMOS outlines the discovery and control protocols for SMPTE 2110 devices on IP networks. SmartView 4K supports IS-04 for device discovery and registration, and IS-05 for connection management among IP video devices. This capability enables users to establish connections between sources and destinations akin to a conventional SDI router.
