Blackmagic Design ATEM 2 M/E Constellation 4K Live Production Switcher (Black)

Introducing the Blackmagic Design ATEM 2 M/E Constellation, a top-tier HD and 4K live production switcher. This advanced switcher boasts 20 standards converted 12G-SDI inputs, 12 x 12G-SDI aux outputs, 2 DVEs, 8 ATEM Advanced Keyers, 2 multiviews, and a SuperSource with 6 DVEs. Each SDI input is equipped with a full standards converter, and the integrated Fairlight audio mixer features a compressor, limiter, 6-band parametric EQ, and expander on each input. The package includes free ATEM Software Control, and users have the option to add a 1 M/E, 2 M/E, or 4 M/E ATEM Advanced Panel for enhanced control.
Powerful Broadcasting
The ATEM Constellation switchers have a compact rack-mount design with an integrated control panel, facilitating smooth operation crucial for setup or emergencies. Additionally, it features a large LCD for viewing program output and adjusting settings via on-screen menus. Its portable design is ideal for live production, equipped with connections for 3G-SDI or 12G-SDI inputs, aux outputs, balanced audio, and Ethernet control at the rear. Despite its robust capabilities, the ATEM Constellation remains remarkably quiet, thanks to its innovative high-efficiency thermal system.
Alternate Panel
The ATEM Micro Panel provides an affordable solution to integrate panel control with ATEM Software. Equipped with high-end buttons akin to ATEM Advanced Panels, it delivers a professional broadcast quality experience. Its layout includes dedicated buttons for program and preview, with shift buttons enabling access to up to 20 sources. Featuring 4 upstream and 2 downstream key buttons, along with a macro button, it offers comprehensive control. The panel includes a fader for smooth manual transitions, ensuring seamless operation. Its compact profile and portability make it ideal for on-the-go use. Connection options include USB-C or Bluetooth, complemented by a sizable internal battery for extended usage.
ATEM Camera Control
The ATEM Camera Control Panel offers four industry-standard camera controllers, delivering the same functionality as camera chains worth hundreds of thousands of dollars. It's designed with portability in mind, allowing placement on a desktop or slide-out rack shelf. Utilizing the SDI camera control protocol, compatible with cameras like Blackmagic URSA Broadcast and Blackmagic Studio Cameras, all control commands are seamlessly transmitted. Enjoy dedicated controls, including a CCU-style joystick and adjustments for RGB camera color, master gain, black levels, iris, and more. The layout mirrors that of traditional broadcast setups, ensuring familiarity for operators, whether seasoned veterans or newcomers.
Versatile Compatibility
ATEM switchers offer scalable solutions tailored to your needs. Start with an ATEM Advanced Panel for professional switcher control. Enhance your setup with an ATEM Camera Control Panel for efficient camera management. Utilize Blackmagic Studio Cameras for versatile studio capabilities, and rely on Blackmagic HyperDeck Studio recorders for mastering tasks. Stream effortlessly with UltraStudio or Blackmagic Web Presenter. Simplify HDMI monitoring with a Micro Converter SDI to HDMI 3G converter.
Fully Integrated Features
With ATEM switchers, all features come fully enabled in the initial purchase, eliminating the need for additional license fees or monthly costs. This ensures that advanced functionalities like multiview, SuperSource, DVEs, and ATEM Advanced Keyers are always accessible without expiration concerns. Moreover, you can utilize the free ATEM Software Control on multiple computers, facilitating streamlined workflow division among team members handling various tasks such as audio mixing, graphics preparation, camera control, and switcher operation.
Next-Gen Switcher
ATEM Constellations are engineered as cutting-edge switchers, integrating new technologies and an extensive array of features to tackle modern, intricate workflows effectively. Notably, the front control panel is meticulously crafted to mirror the operation of an ATEM Television Studio switcher, ensuring a familiar user experience for effortless upgrading to ATEM Constellation.

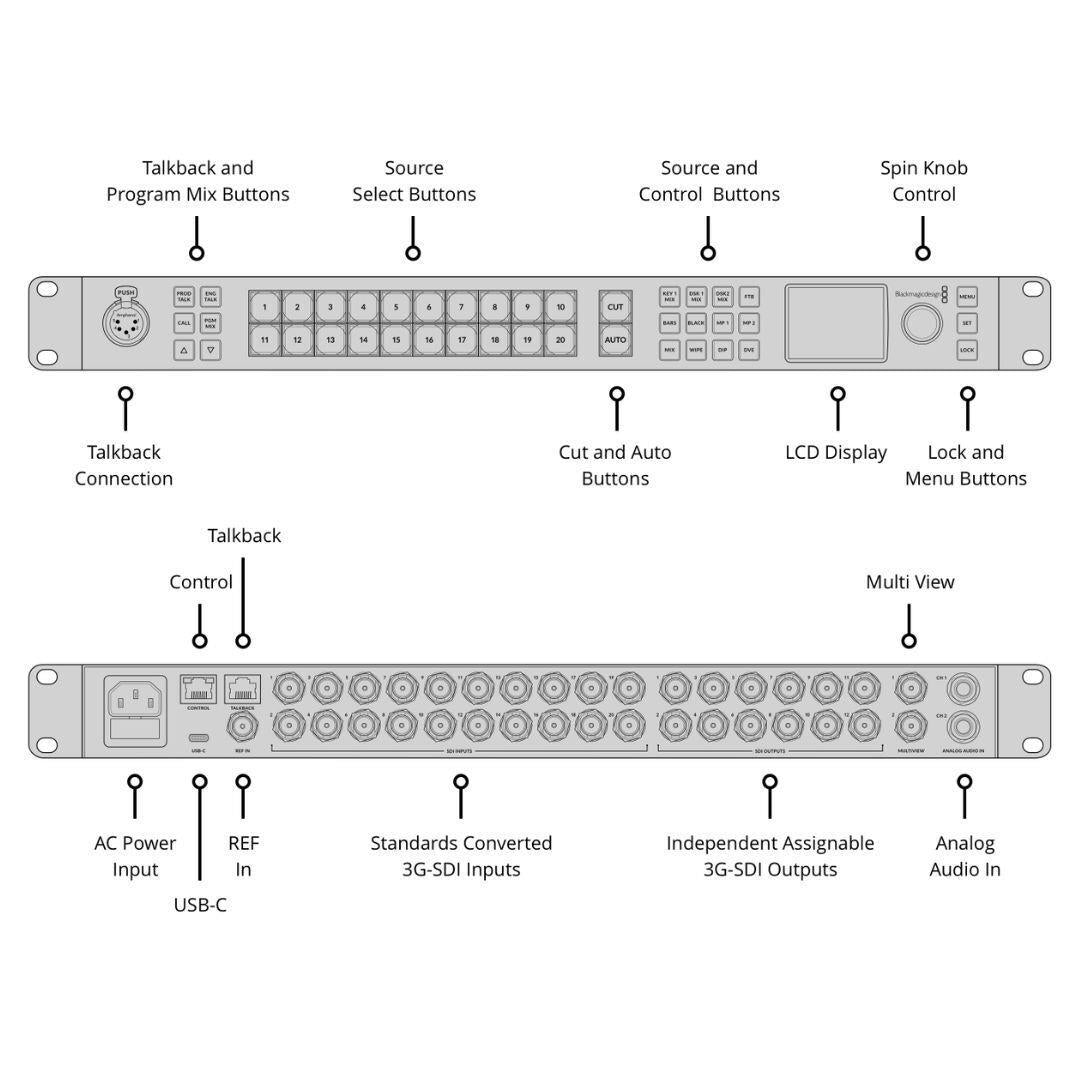

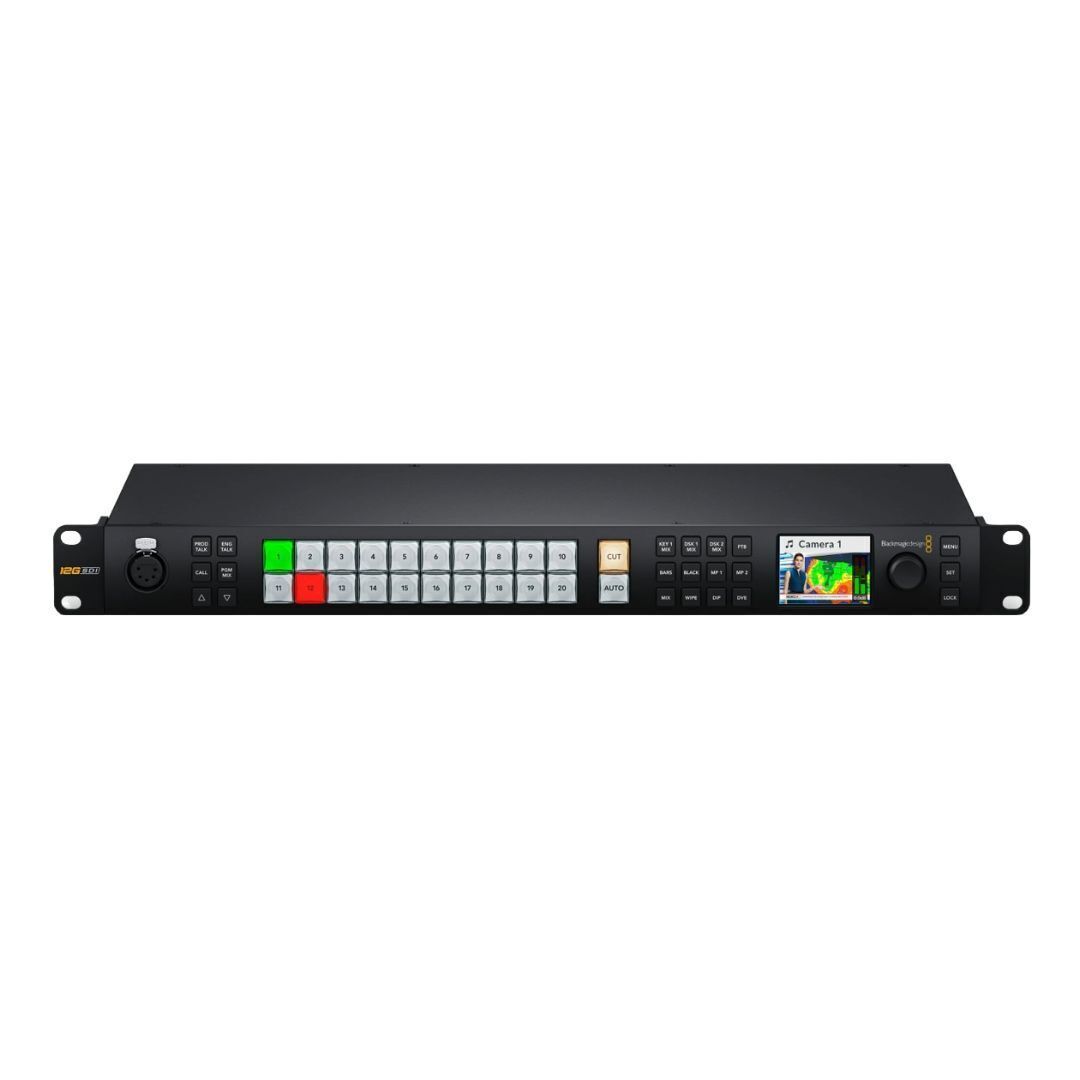

Complete Front Panel Control
The front panel of the switcher offers convenient access to 10, 20, or 40 inputs via a keypad, featuring buttons akin to those found on professional control panels. Switching between sources is straightforward: simply select a source and choose between cut or auto modes. An alternative cut-bus mode enables instant switching with the press of a button. Additionally, there are buttons for activating key and media players. While the full range of switcher features is accessible through the LCD menu for comprehensive control, the front panel serves well for emergencies, setup, and smaller AV tasks, complementing external panels or free software for primary operation.
In-Built Talkback
The advanced design of the switcher incorporates professional talkback functionality seamlessly. Utilizing the SDI camera feed and program return feed, talkback communication is facilitated without the need for extra cables. Program talkback is transmitted via unused SDI audio channels 15 and 16, while separate engineering talkback com loops utilize channels 13 and 14. The front panel features a standard 5-pin broadcast headset connector and buttons for talkback activation. Additionally, for larger broadcast setups, the rear panel offers an RJ12 expansion connector compatible with industry-standard talkback systems like ClearCom or RTS.
