Blackmagic HyperDeck Shuttle 4K Pro – Desktop with 7in HDR LCD and Multi-Format Ultra HD Playback

Blackmagic HyperDeck Shuttle 4K Pro – Desktop Broadcast Deck with 7 inch HDR LCD

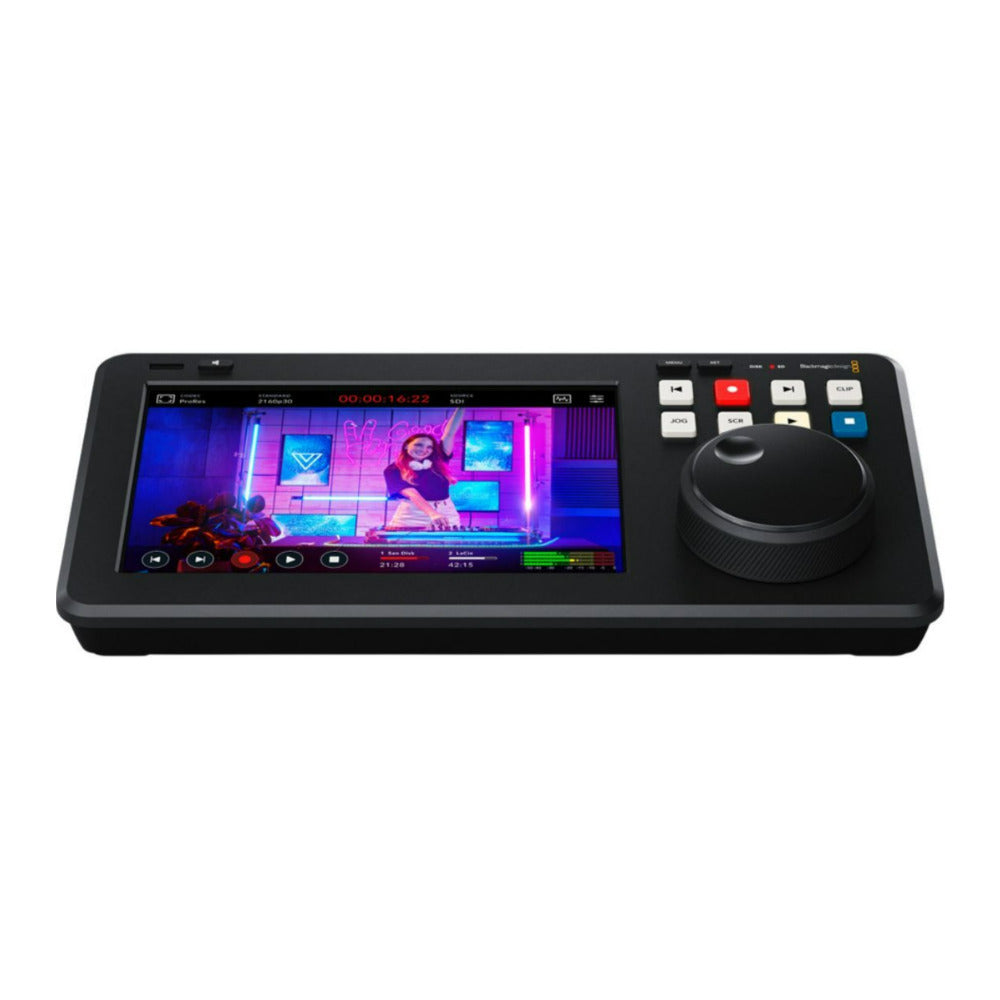

The Blackmagic Design HyperDeck Shuttle 4K Pro is an advanced recorder and player with a large 7-inch LCD touchscreen for monitoring and scopes. It has a 2TB M.2 PCIe NVMe card included. The large search dial and broadcast controls are perfect for scrolling through media to find the media you want to play. 12G-SDI connections allow you to connect to professional broadcast equipment. Supports HDMI 4K, H.264, H.265, ProRes or DNx files, HD proxies, scopes, 3D LUT, and network recording via fast 10G Ethernet. The HyperDeck Shuttle 4K Pro model has 10G Ethernet and internal M.2 storage, so it can share media on your local network or record to network storage. It is perfectly designed for the desktop. This means the front panel can be operated with a single hand. The gentle angle allows your hand to rest on the search dial, and the control buttons are positioned under your fingertips. Scrolling media is fast as the machined metal search dial has a natural inertia, and the soft rubber surface feels nice to the touch. That's perfect when you're searching through lots of media. The HyperDeck Shuttle 4K Pro model boasts a large 7-inch LCD screen for live monitoring, complete with a 'heads up display' overlay. Plus, it features full menus with all the deck settings. The rear panel includes all video, audio, and network connections.

Built-in 7-Inch Monitor for Fast Touch Control:

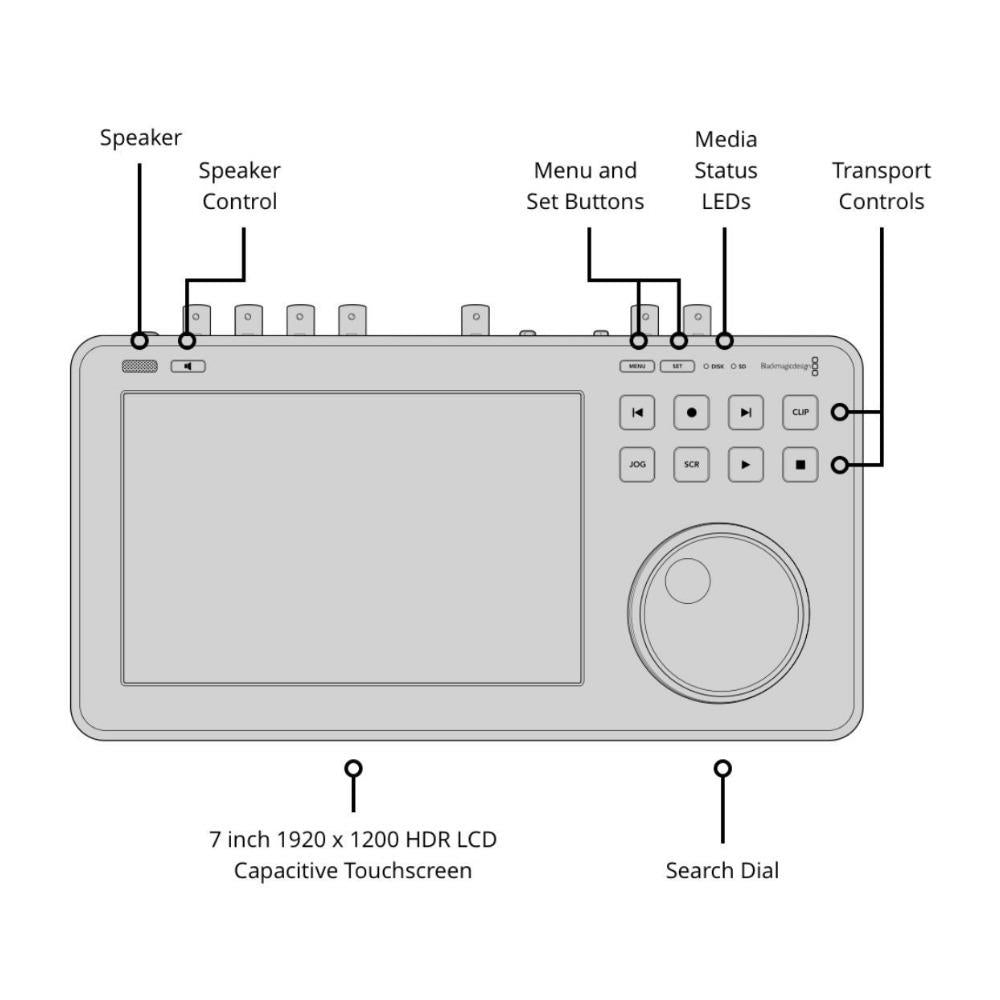

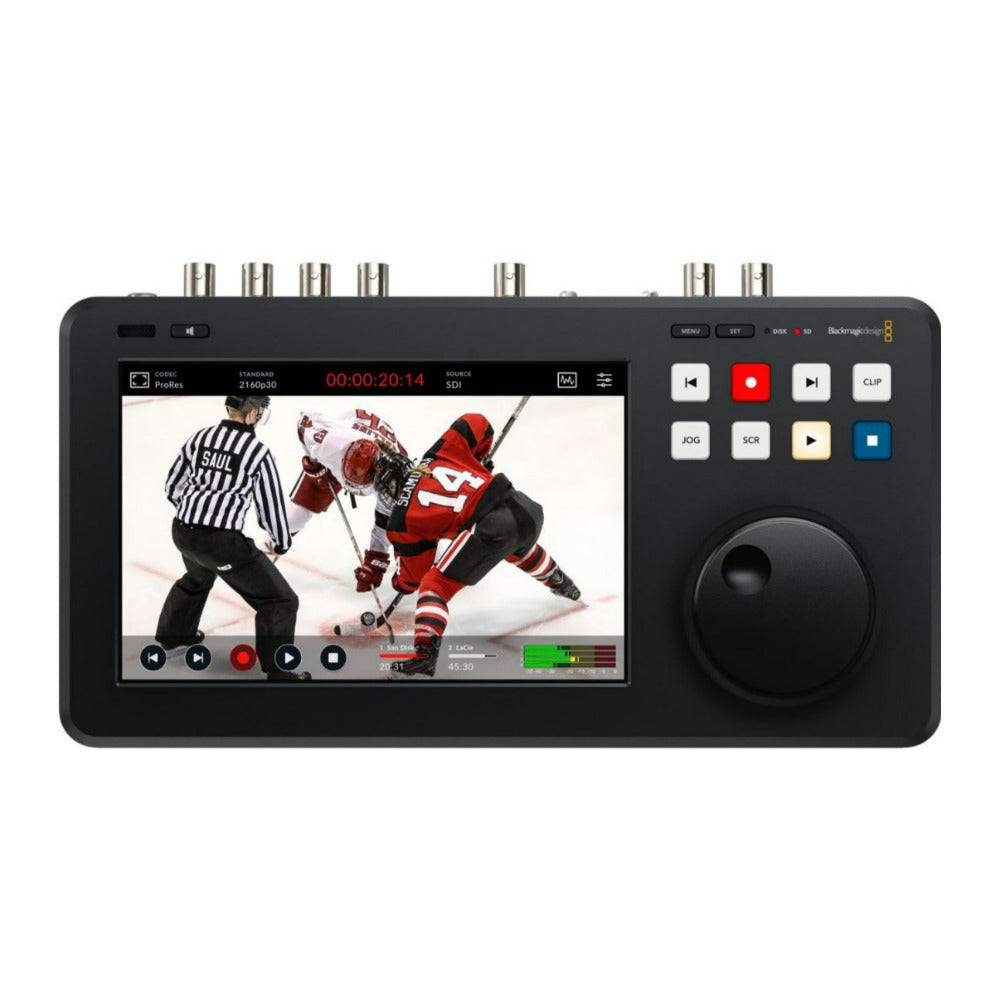

The HyperDeck Shuttle 4K Pro model features an innovative touch LCD user interface for interactive control, built-in monitoring, and menu settings. The large 7-inch HDR display has buttons for playback, pause, and recording functions, as well as a mini playback timeline so you can scroll through your clips. A 'HUD', or heads-up display, is included that overlays important information such as timecode, media status, and audio meters. You can also enable full broadcast scopes via the touch screen and enable features such as focus assist and an RGB exposure histogram. The HyperDeck Shuttle 4K Pro's settings can also be changed through the on-screen menus. Plus, you can load and save 3D LUTs.

Record to Internal or External Network Storage:

The HyperDeck Shuttle 4K Pro model has space for M.2 flash storage cards, so the network storage is built in. This means any editing system can just log into the HyperDeck Shuttle 4K Pro and access all the media in one location.

Popular ProRes, DNx, H.265, and H.264 Files:

The HyperDeck Shuttle 4K Pro model handles H.265 record and playback. You get tight 60:1 to 285:1 compression ratios for small files at full broadcast quality. You can choose uncompressed PCM or AAC audio for uploading files to YouTube. HyperDeck Shuttle supports both ExFAT on Windows and HFS Plus on Mac disk formats, allowing disks to be mounted and read on both platforms.

Latest Multi-Rate 12G-SDI for SD, HD, and Ultra HD:

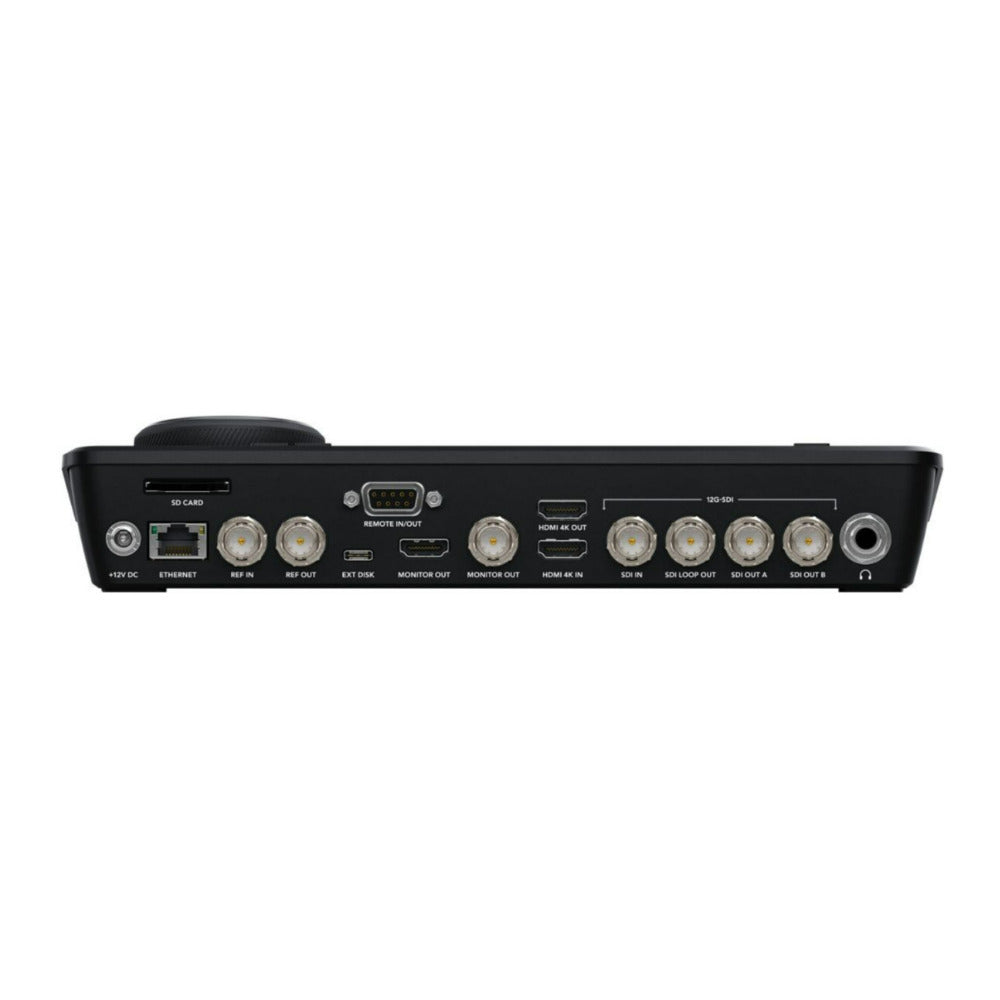

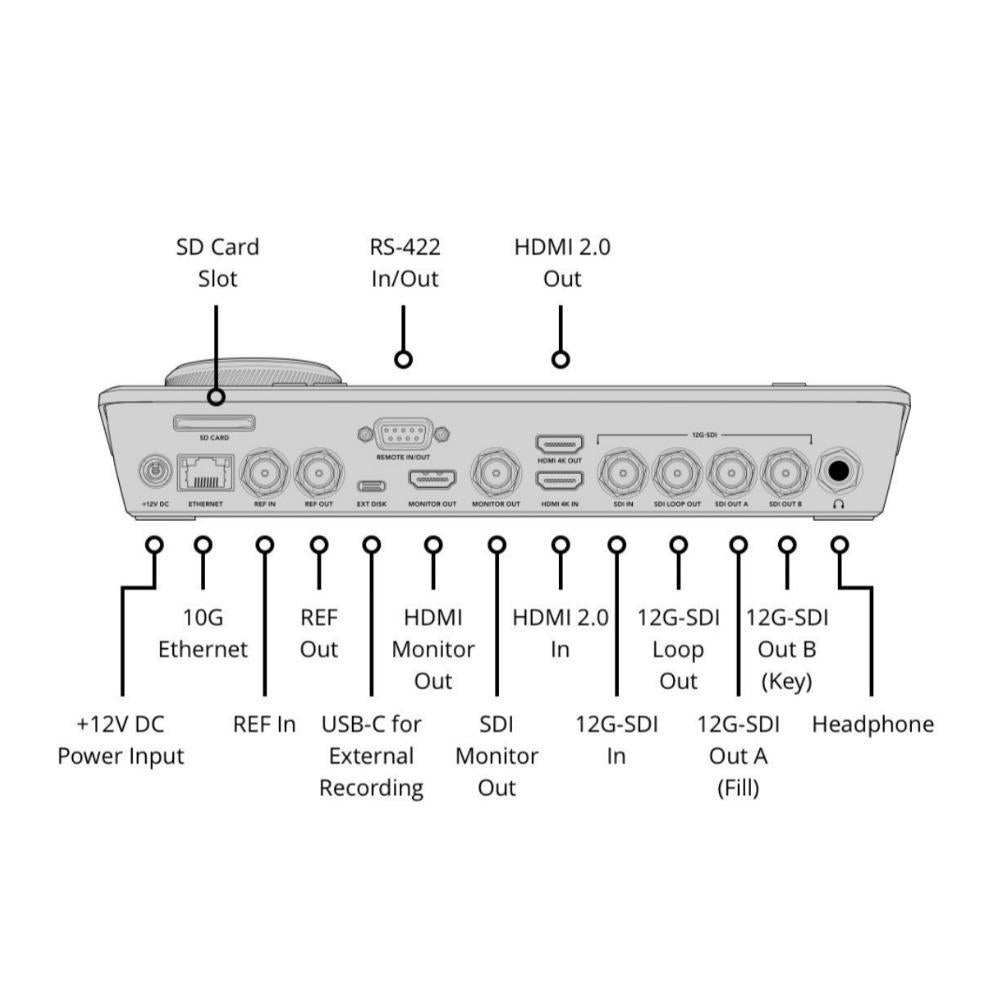

The extremely advanced HyperDeck Shuttle 4K Pro model includes the latest 12G-SDI video connections. 12G-SDI is multi-rate, so a single connection can connect to SD, HD, and Ultra HD equipment. Standard-definition support includes NTSC and PAL. 720p HD standards include 720p50 and 59.94p. 1080i HD interlaced standards include 1080i50 and 1080i59.94. 1080p HD television standards include 1080p23.98, 24, 25, 29.97, 30, 50, 59.94, and 60p. HyperDeck Shuttle 4K Pro even handles 1080 PsF formats. The 12G-SDI also handles Ultra HD in all television standards, including 2160p23.98, 24, 25, 29.97, 50, 59.9,4 and 60p. There is also support for both level A and level B when working in 3G-SDI rates.
