Blackmagic Design Streaming Encoder 4K with 16 Channels Embedded Audio and Webcam Output (Black)

The Blackmagic Streaming Encoder 4K is a robust, self-contained processor specifically designed for streaming, offering H.264 and H.265 streaming capabilities in both HD and Ultra HD formats through SRT or RTMP protocols. You can stream directly to platforms like YouTube, Facebook, X, and others. Additionally, it allows for internet streaming via Ethernet or by connecting a 5G or 4G mobile phone to utilize mobile data. The device comes equipped with a USB webcam, a standards-converted 12G-SDI input, and an output for monitoring the stream. The Blackmagic Streaming Encoder can also create internet broadcast links when paired with the Blackmagic Streaming Decoder 4K. The encoder features in-built 2.2-inch LCD for monitoring video, audio and status along with menu settings.

Simplifying Live Streaming

The Blackmagic Streaming Encoder is equipped with a robust hardware encoder and user-friendly software that includes a variety of presets. This design significantly simplifies the connection process to most streaming services, eliminating the need for a computer with complex streaming software and numerous settings. All necessary components are incorporated in a compact design that's one-third of a rack width. To get started, just connect an SDI video source from a live production switcher, then link to the internet via the integrated Ethernet connection, or utilize a smartphone for mobile data. With pre-configured settings for popular streaming services, simply enter the streaming key and hit 'on air.'

Compatible with Live Streaming Platforms

The Blackmagic Streaming Encoder is compatible with the leading streaming platforms. Its built-in hardware streaming engine has been carefully engineered to ensure high-quality professional broadcast live streaming. This offers a comprehensive solution for live streaming that prevents dropped frames. Setting up is straightforward, as the Blackmagic Streaming Utility software allows you to choose the streaming platform and update your streaming key. This utility is compatible with both Mac and Windows and can connect directly via USB or remotely through Ethernet. Tech-savvy users can also customize the presets stored in an XML file to adjust specific low-level settings or incorporate new streaming services.

Connects Phones for Mobile Data

By connecting your phone's mobile data, you gain maximum flexibility for streaming from remote locations or as an alternative to your primary Ethernet connection. For easy access, both the front and rear panels have USB-C ports that facilitate phone tethering. It is compatible with the latest high-speed 5G smartphones as well as 4G devices. If the internet connection fails, the Blackmagic Streaming Encoder will automatically switch to the internet connection via the attached phone. You can also prioritize either the Ethernet or phone connection. The Blackmagic Streaming Encoder serves as an ideal solution for streaming from remote locations, leveraging phone tethering and mobile data.

2 USB-C Ports

The Blackmagic Streaming Encoder features two USB-C ports that can serve as webcam video outputs. This allows for easy connection to any computer and compatibility with various video applications. The software is deceived into recognizing the Streaming Encoder as a standard webcam, even though it delivers a broadcast quality SDI video feed. This ensures compatibility with all video programs in full 720p HD, 1080p HD, or 2160p Ultra HD quality. Picture linking a Blackmagic Streaming Encoder to Microsoft Teams, Zoom, or Webex and delivering broadcast quality to your client.

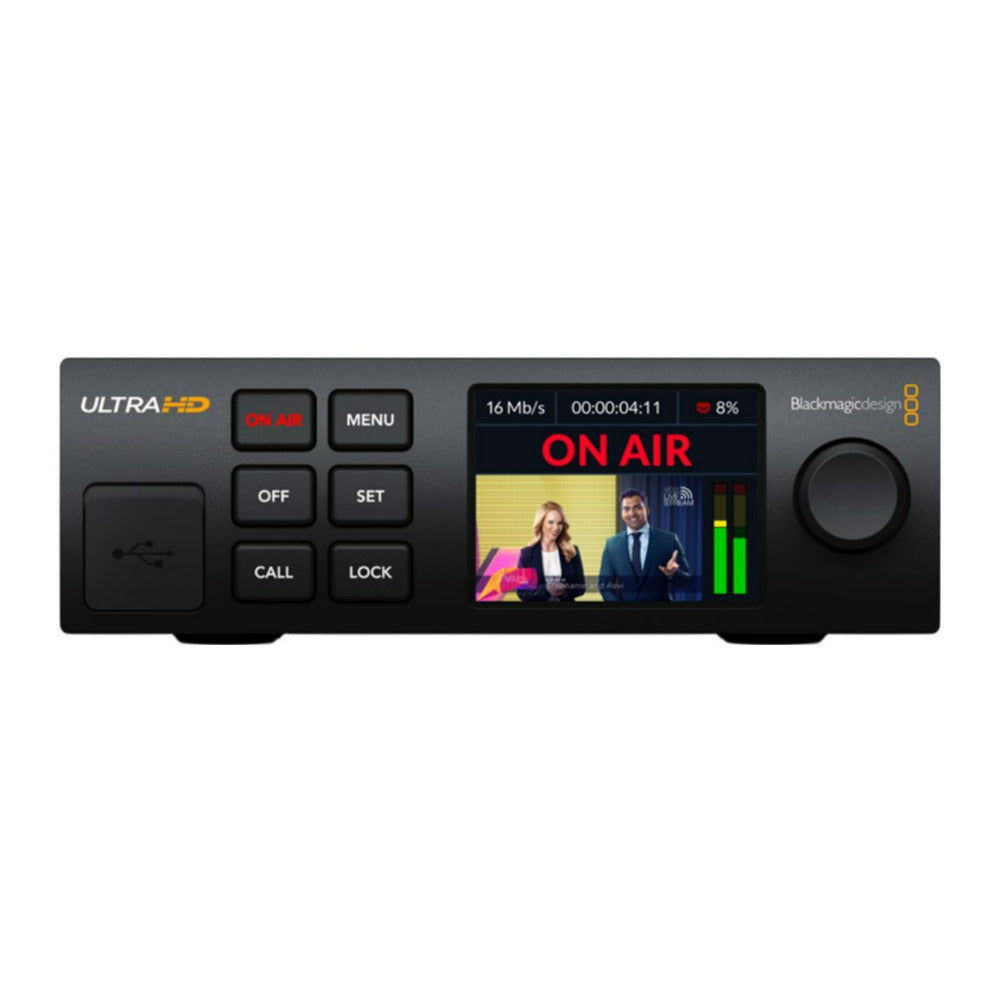

Advanced In-Built Technical Monitoring

While traditional broadcast transmitters are vital for a television station, streaming servers have become equally essential, as millions of viewers can tune in from around the globe. To facilitate this, the Blackmagic Streaming Encoder features an advanced technical monitoring output. The graphics-based monitoring output gives a live video feed, audio level meters with precise metrics, trend graphs for codec data rates and cache fill, and an overview of streaming configurations.

Comes with Blackmagic Streaming Utility

The Blackmagic Streaming Utility software facilitates management of multiple streaming encoder, enabling you to adjust settings and update software. You can connect the Blackmagic Streaming Encoder directly via its front USB port or use Ethernet for remote configuration, which is advantageous for handling multiple off-site locations.

Equipped with 12G-SDI Input

The Blackmagic Streaming Encoder is equipped with a 12G-SDI input that supports all HD and Ultra HD formats up to 2160p60. It also features a 12G-SDI loop output, allowing you to relay video, enabling streaming to several services. The Blackmagic Streaming Encoder incorporates Teranex conversion technology on the SDI input for exceptionally clear video output.

Support Camera Control

Many Blackmagic Design cameras are compatible with camera control, talkback, and tally functions via an ATEM switcher using an SDI control protocol. Control is applicable to all cameras and is integrated into the ATEM SDI outputs, allowing you to select the specific camera number for functionality. Imagine adjusting ISO, tint, iris, focus, and zoom with tally and talkback capabilities all remotely. This feature also applies to cameras with integrated streaming functionality, and the Blackmagic Streaming Encoder can be utilized for cameras without streaming capabilities.

1/3 Rack Mount Compact Design

The Blackmagic Streaming Encoder utilizes the modular Teranex Mini format, enabling rack installation. It features an integrated AC power supply and a 4-pin 12V DC option for backup or battery use.
