Blackmagic Design Videohub Mini 4x2 12G Zero Latency Video Router with 4 12G-SDI Inputs (Black)

The Blackmagic Videohub Mini 4x2 12G Router in Black is a small video router with zero latency that can handle any mix of SD, HD, and Ultra HD signals simultaneously. It offers 4 12G-SDI inputs and 2 12G-SDI outputs, all in a compact 1/3 rack width design. The front panel allows for swift routing of video connections and includes a dedicated emergency 12G-SDI connection for integrating external equipment, along with USB-C output for webcam video. Additionally, it supports SDI re-clocking, provides external Ethernet control, and accommodates all SDI video formats up to 2160p60.

Simplifies Cable Organization

The Blackmagic Videohub Mini router is engineered to enhance SDI broadcast equipment by adding extra inputs. Its compact design means it occupies minimal space in mobile racks, making it especially suitable where space is at a premium. You can use it to expand the input options for ATEM switchers, add input selection for streaming encoders, or provide additional inputs for HyperDeck recorders and video monitors. This router is excellent for making connection alterations without having to hurriedly patch cables during a job. In cases where a customer has an urgent request or there is an emergency, you can quickly connect equipment using the SDI connections located on the front panel, allowing you to handle unexpected situations without needing to rewire your rack.

Routing and Video Control

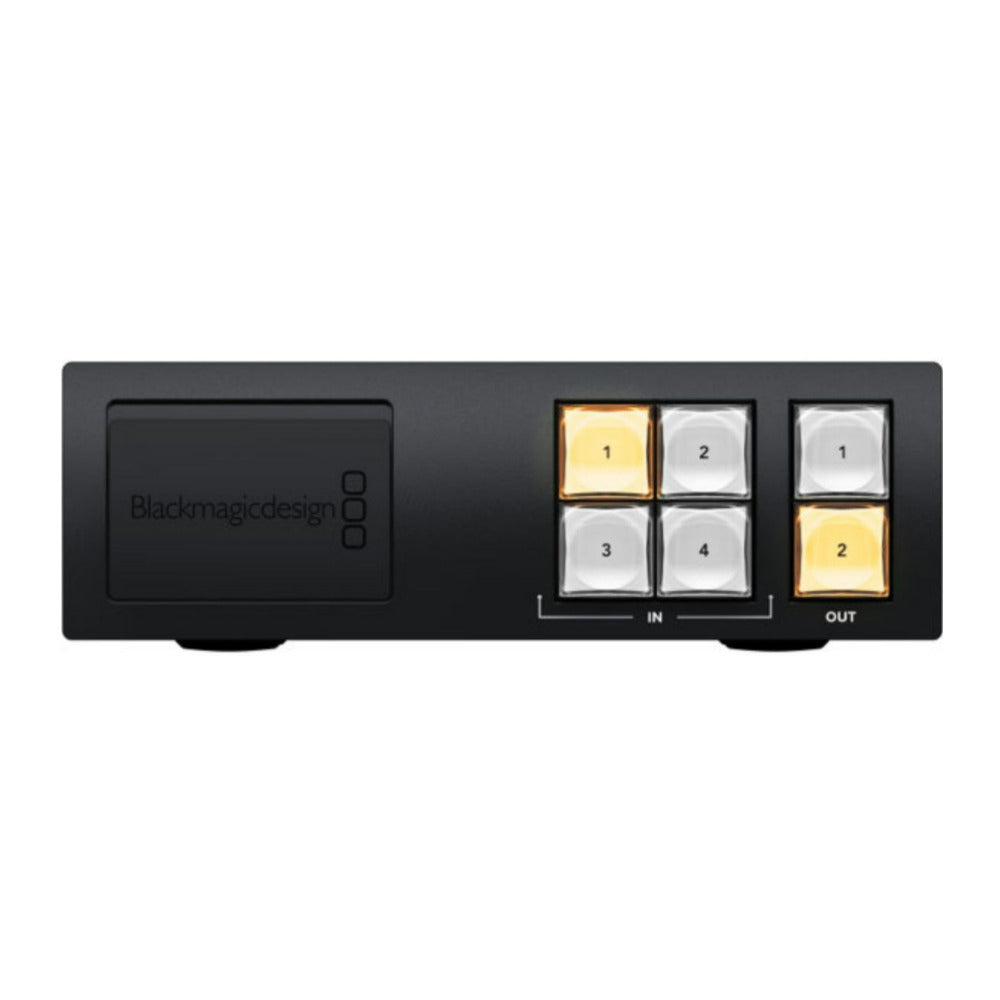

The front panel of the Blackmagic Videohub Mini is designed for quick cut-bus style switching, featuring designated buttons for both outputs and inputs. Routing a video connection is straightforward; you simply press the destination button followed by the source button. This setup provides efficient routing control while maintaining a compact form suitable for portable racks. The front panel additionally offers 12G-SDI video outputs for connecting external gear, with the front input taking precedence over the highest rear input when a video signal is connected. Furthermore, there is a USB webcam output available for linking to a computer for recording, video scopes, or streaming applications.

Enhanced 12G-SDI for Routing SD, HD, and Ultra HD

The Blackmagic Videohub Mini comes equipped with advanced multi-rate 12G-SDI connections that accommodate any SD, HD, and Ultra HD video format up to 2160p60. This means it can interface with various SD, HD-SDI, 3G-SDI, 6G-SDI, and 12G-SDI devices. Additionally, the router can manage any video standard concurrently. With 12G-SDI, you gain high frame rate Ultra HD capabilities through a single BNC connection, which is also compatible with your standard HD equipment, allowing for smooth switching between different video inputs while the SDI output automatically adjusts to the appropriate standard. The 12G-SDI technology is designed to be future-proof, ensuring compatibility with both current and upcoming equipment.

Each Output Includes Its Own Clean Switch

It incorporates a 'clean switch' feature that guarantees stable video transitions when changing between sources. Notably, the clean switch function is assigned to each output individually, rather than the inputs. This distinction is crucial because the re-sync processors required for a clean switch may add or remove video frames. Consequently, you can configure a HyperDeck recorder to receive a non-clean switch direct feed to avoid additional frames, while utilizing clean switch outputs on a monitor or streaming encoder for flawless source transitions. The clean switch locks the sources to input 1 or the reference input available on the Videohub Mini.

Integrated SDI Re-Clocking

The Blackmagic Videohub Mini is equipped with integrated SDI re-clocking on every 12G-SDI input. SDI re-clocking refreshes the video signal to maintain optimal video quality and minimize SDI data errors. This feature is crucial because longer video cables can diminish the signal quality. High-end 'digital' cables can help improve this, but they still can't fully eliminate the loss of signal integrity due to lengthy cables. By re-clocking all the SDI devices in your studio, you ensure that all your equipment receives a renewed signal with improved jitter performance. This translates to extended cable lengths and no video dropouts.

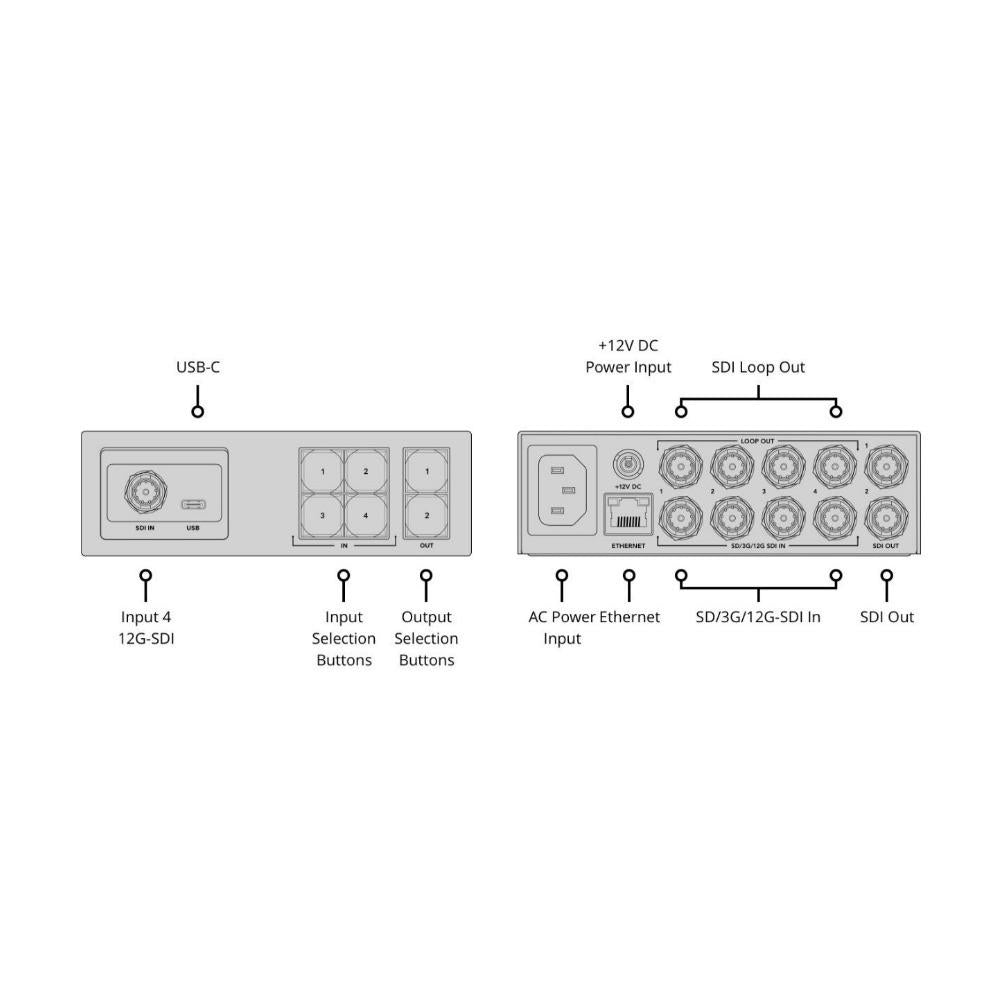

12G-SDI Patch Connectors

The Blackmagic Videohub Mini offers practical 12G-SDI patch connectors located on the front panel for easy video access. This convenience means you'll avoid the hassle of searching through the back of a rack for cables, preventing accidental disconnections of important components.

USB-C Port as HD Webcam Video Source

You can stream live directly from the front panel of the router since the USB-C port serves as an HD webcam video source. This allows you to connect to a computer and utilize any video software, as the software is tricked into identifying the router as a standard webcam, despite it being an SDI video source. You will enjoy full compatibility with any video software at a resolution of 1080HD.

Supports Remote Control

The router supports remote control, essential for large broadcast studios where the equipment linked to the router may be dispersed throughout the facility. There are two types of hardware panels available. The Videohub Master Control Pro resembles the front panel, featuring a spin knob, LCD, and shortcut buttons.

Router Control

If you need to manage a Blackmagic Videohub Mini remotely, the Videohub Software Control is an excellent option, and it can be downloaded for free. This software is compatible with both Mac and Windows, making it suitable for the computers already in use for creative tasks.
