Wavelength BlogBZBGEAR 4-Channel Live Streaming Video Switcher/Audio Mixer
- mfr: BG-HDVS42U
- SKU: BG-HDVS42U
Available options:
-
Free standard shipping
*Orders placed before 3 PM EST Mon - Thur will ship the same day. Orders placed beyond these hours will be shipped the next business day. Exclusions apply. See shipping policy
-
Free Local Pickup
Please call for store stock availability.
Requests made before 2:30 PM EST can be available for next-day pickup. Learn more
Additional options:
Product highlights
- 4 inputs, 1 PGM out, 1 multiview out
- USB-C output for recording or streaming via PC
- Import graphics for custom logos and overlays
- 2 x 3.5mm inputs for microphones or external audio feeds
- Mix HDMI-embedded audio
- T-bar/Auto/Cut - T-bar/Auto/Cut transitions
- 49 default patterns
- LAN port for PC software remote control
- FTB/ MUTE/ STILL/ GPIO for tally customer configuration

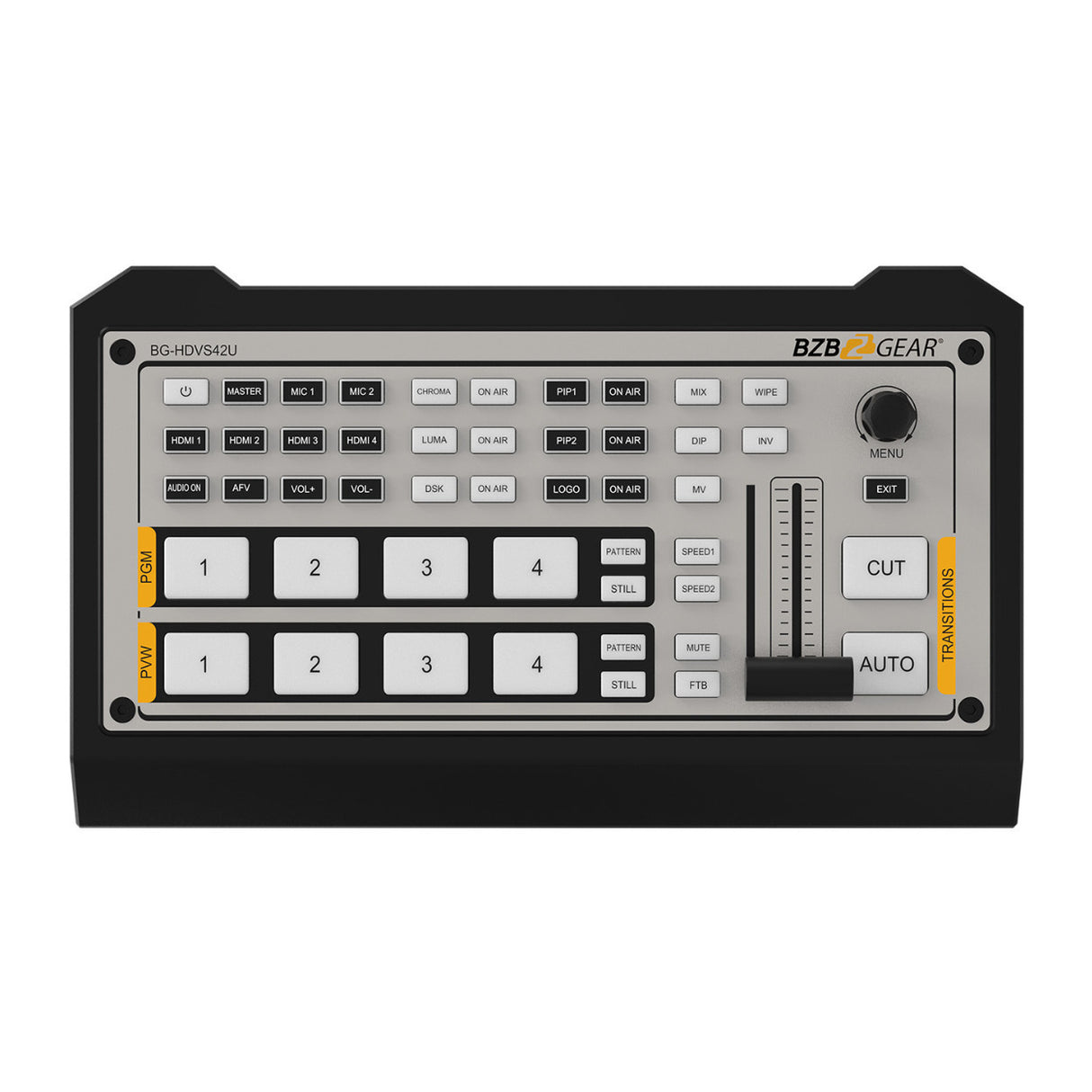

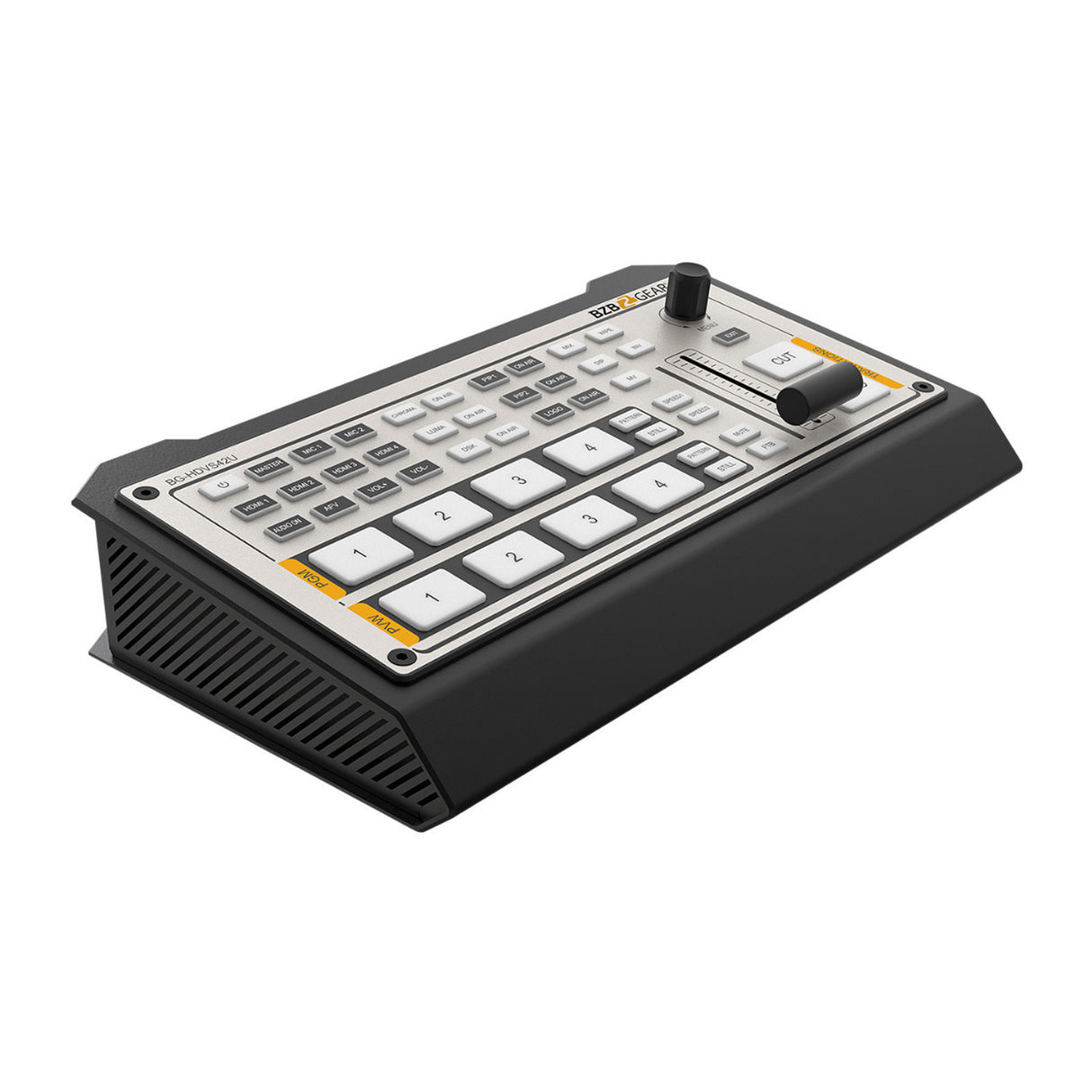

BZBGEAR 4-Channel Live Streaming Video Switcher/Audio Mixer
Compact and versatile, the BZBGear 4-Channel Live Streaming Video Switcher/Audio Mixer provides users with a powerful set of features designed to deliver professional-quality results. With full audio mixing capabilities, multiple transition options, graphic overlays, PC software utility, and USB-C program output, the BG-HDVS42U provides high-performance and tremendous value.
Connectivity and Features

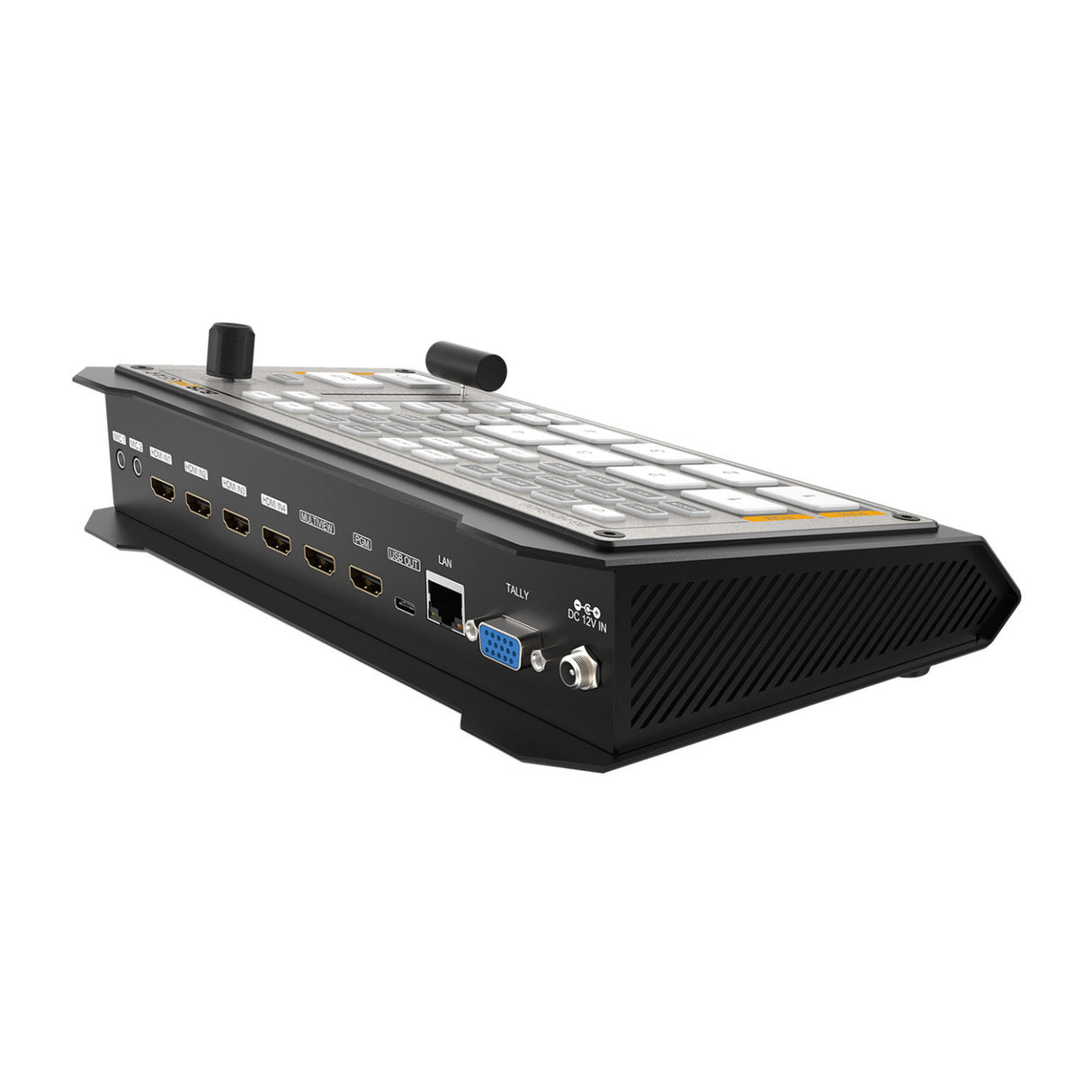

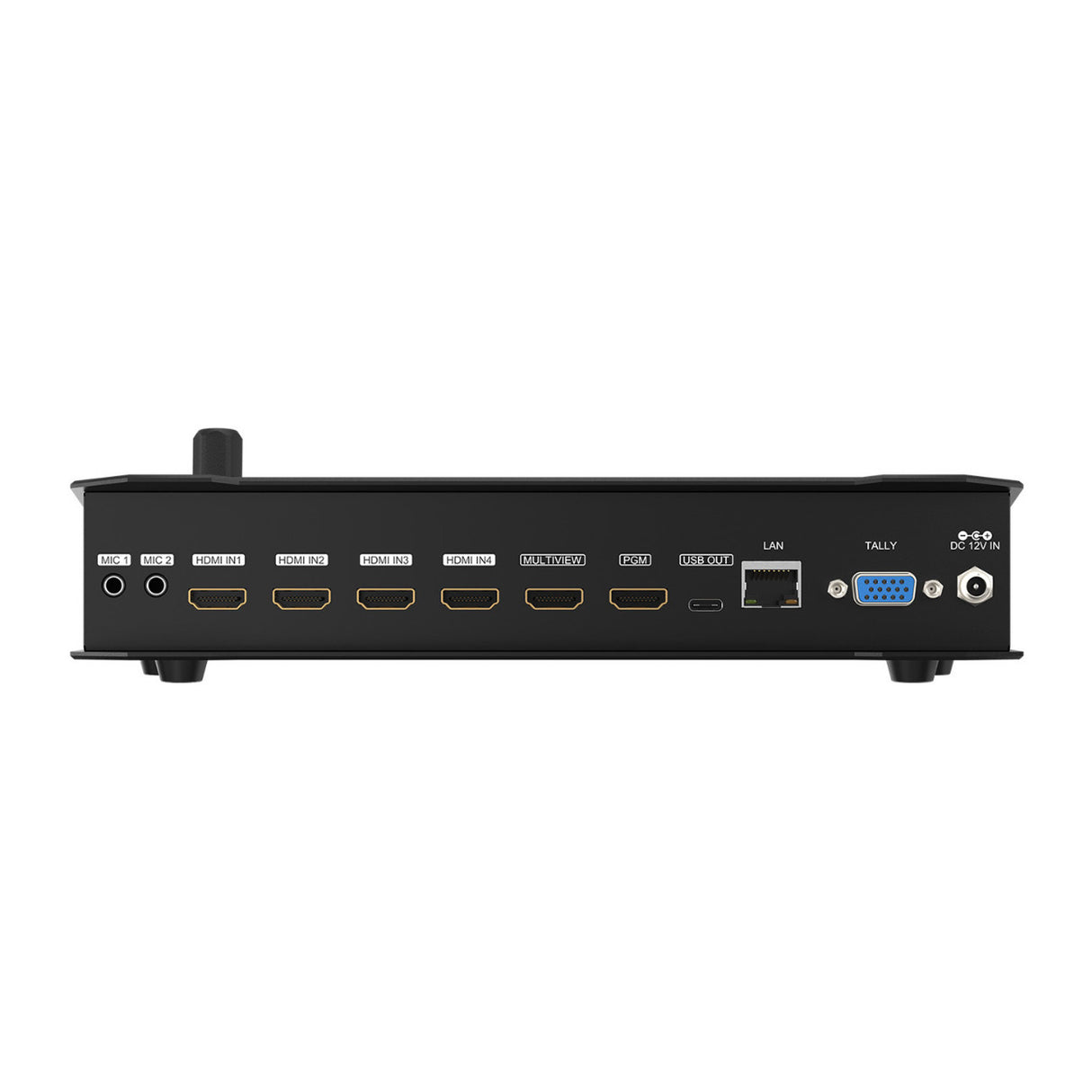

The BG-HDVS42U’s four HDMI inputs support resolutions up to 1080p at 60Hz. Video outputs include one HDMI program output, one HDMI multiview output, and one USB type-C output. Audio can be de-embedded from all four HDMI sources and mixed with the two 3.5mm analog inputs. Each audio channel can be delayed to ensure proper sync with the video signal. The mixed audio is embedded into the HDMI and USB-C program outputs. The DB-15 Tally connection provides support for compatible systems.
Control
The BG-HDVS42U includes a full-featured PC control utility, offering enhanced access to all functions including switching, mixing, luma and chroma key, PIP, and POP. DSK and Logo overlays can also be controlled. A variety of transition effects include such as wipe, mix, and dip. The integrated media library comes with 49 default patterns, 16 imported images, 16 captured images, and two-color generators. Graphics can be imported and overlayed using this library, enabling operators to utilize their custom logos and overlays for video output.
Specifications
| HDMI Inputs | 4 |
|---|---|
| External Ports | HDMI |
| Ethernet | LAN |
| Color | Black |
|---|
