Wavelength BlogAV Matrix FE1121 20km 3G-SDI Fiber Optic Extender
- mfr: FE1121
- SKU: FE1121
Available options:
-
Free standard shipping
*Orders placed before 1 PM EST Mon - Thur will ship the same day. Orders placed beyond these hours will be shipped the next business day. Exclusions apply. See shipping policy
-
Free Local Pickup
Please call for store stock availability.
Requests made before 2:30 PM EST can be available for next-day pickup. Learn more
Additional options:
Product highlights

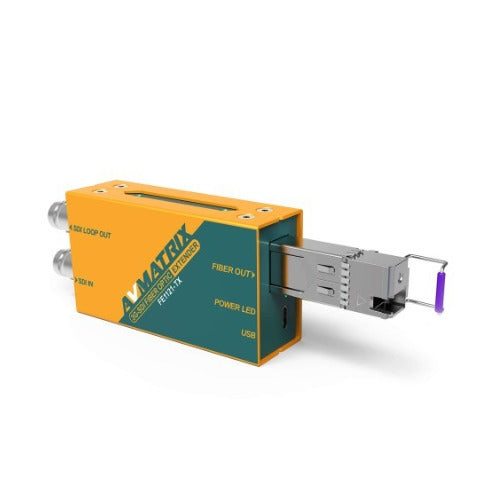

- Detachable SFP Module
- Universal LC Fiber Port

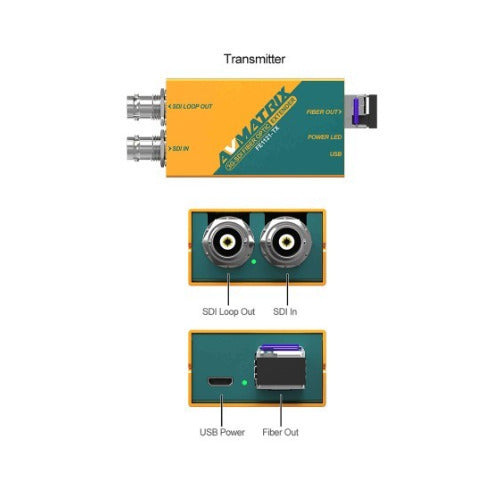

- Fiber Transmitter with 1x 3G-SDI input, 1x 3G-SDI loop output
- Fiber Receiver with 2x 3G-SDI Output
- RS485 input / output for control
- Supports Video Signals up to 1080P at 60Hz (3Gbps)
- 5-12V Wide Voltage

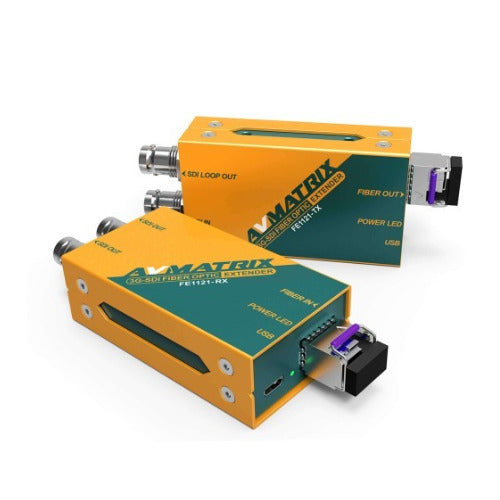

AV Matrix FE1121 20km 3G-SDI Fiber Optic Extender

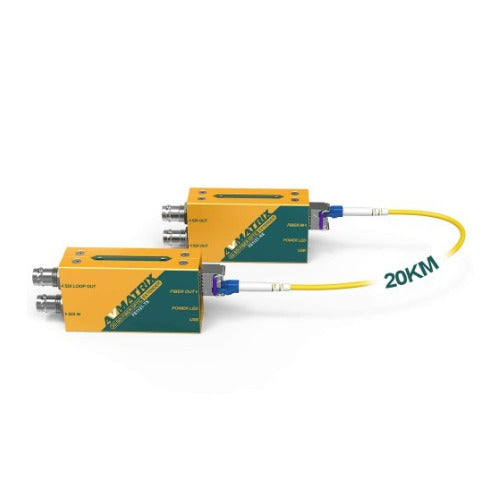

The AV Matrix FE1121 3G-SDI Fiber Optic Extender is a miniature extension solution that supports all SDI formats and resolutions of up to 1080p with audio and metadata. This transmitter receiver kit supports single-mode LC simplex fiber extensions up to a range of 20km. In addition, it also supports SDI formats at both level A and B and 3G / HD / SD SDI signals. The local SDI loop out and dual SDI outputs increase its versatility. For shorter distances, multimode fiber can also be used.
