YoloLiv YoloBox Pro Portable Multi-Camera Encoder, Streamer, Switcher, Monitor, and Recorder

YoloBox Pro is a video switcher, encoder/streamer, monitor, recorder and audio mixer all in one. With built-in restreaming service, native support integrates directly with YouTube/Facebook/Twitch, adding graphic overlays (logos, lower-thirds, picture in picture, scoreboard, rolling captions) and featuring comments to the stream, Side-By-Side, Split-View and much more. YoloBox Pro brings the professional features and processing power required for the most demanding live broadcasts.

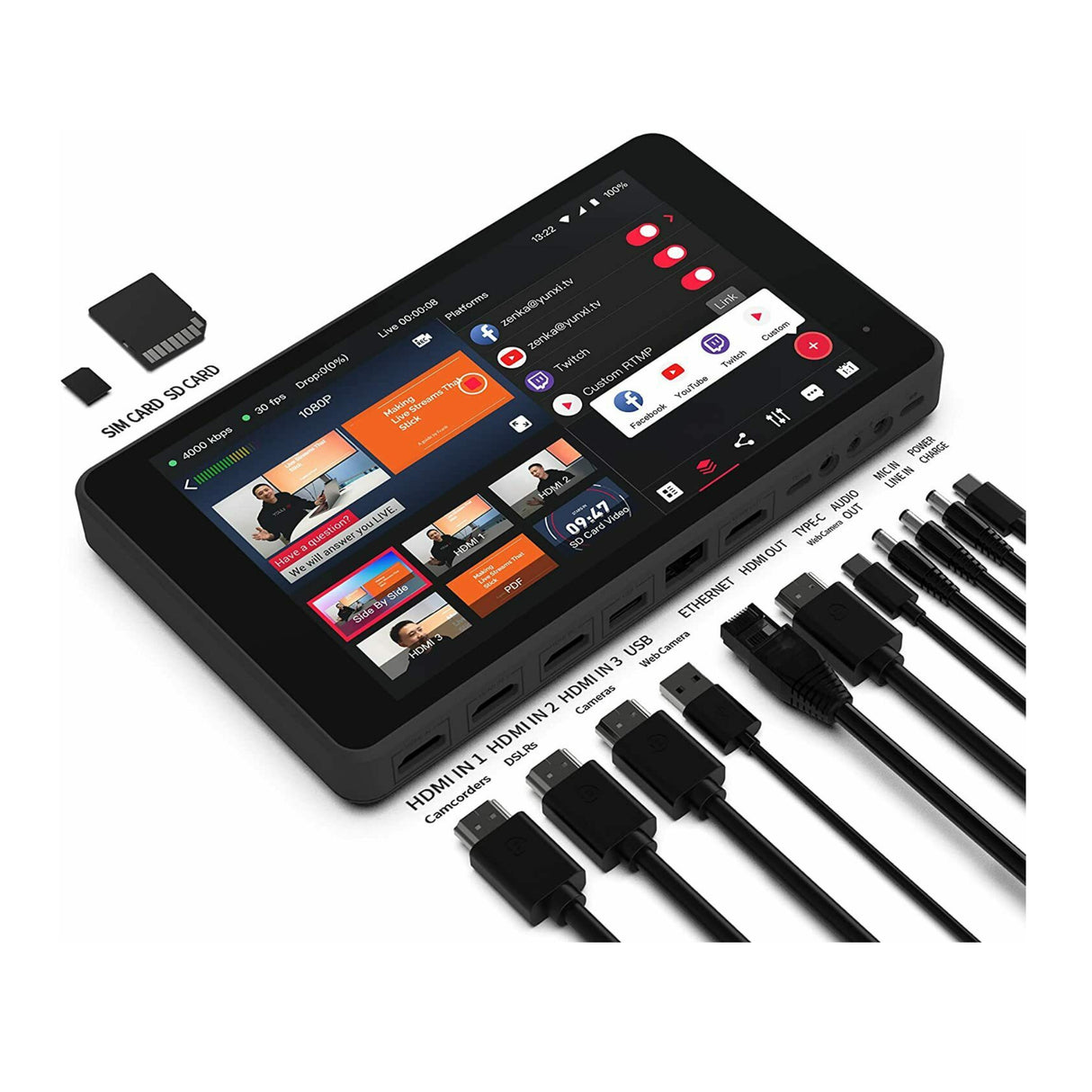

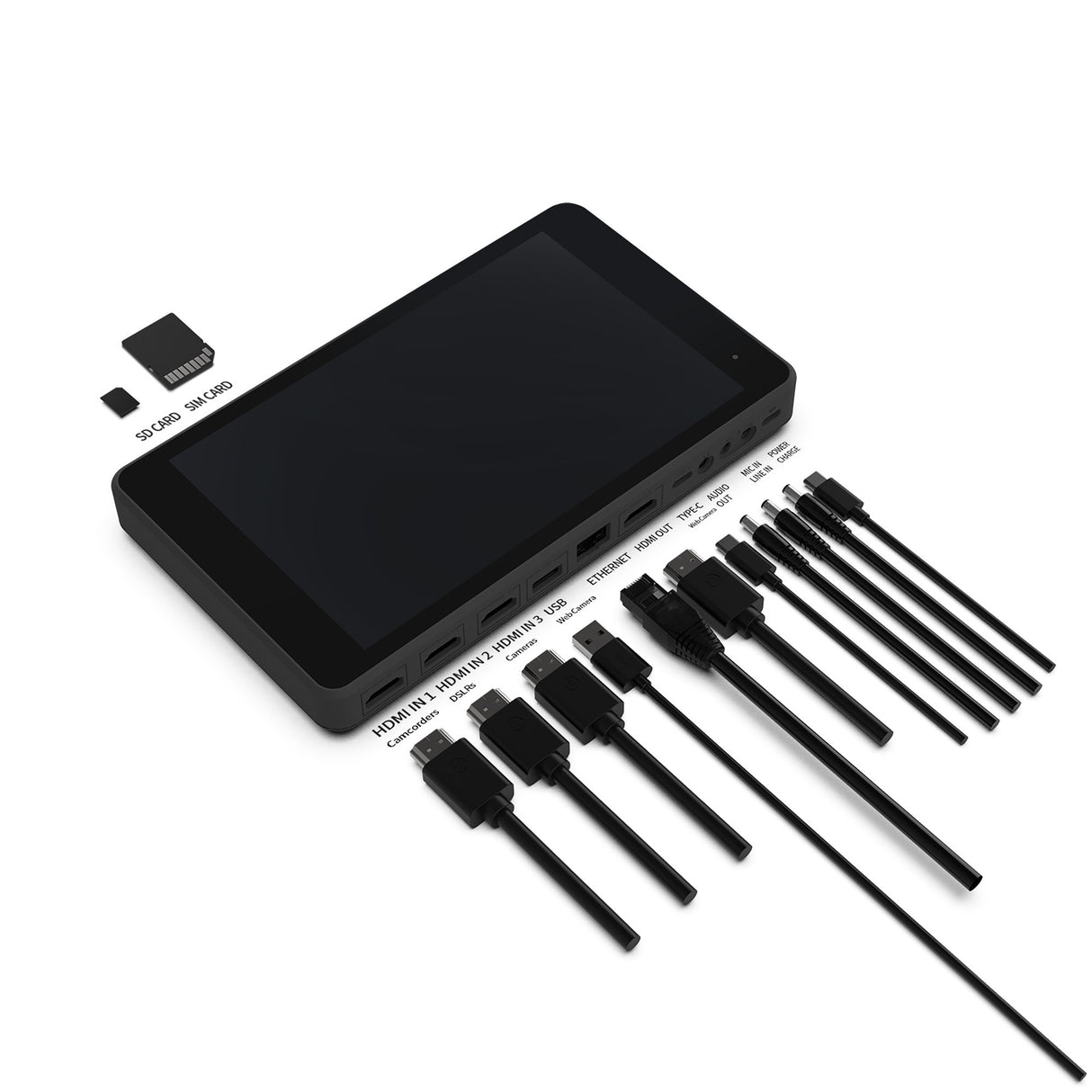

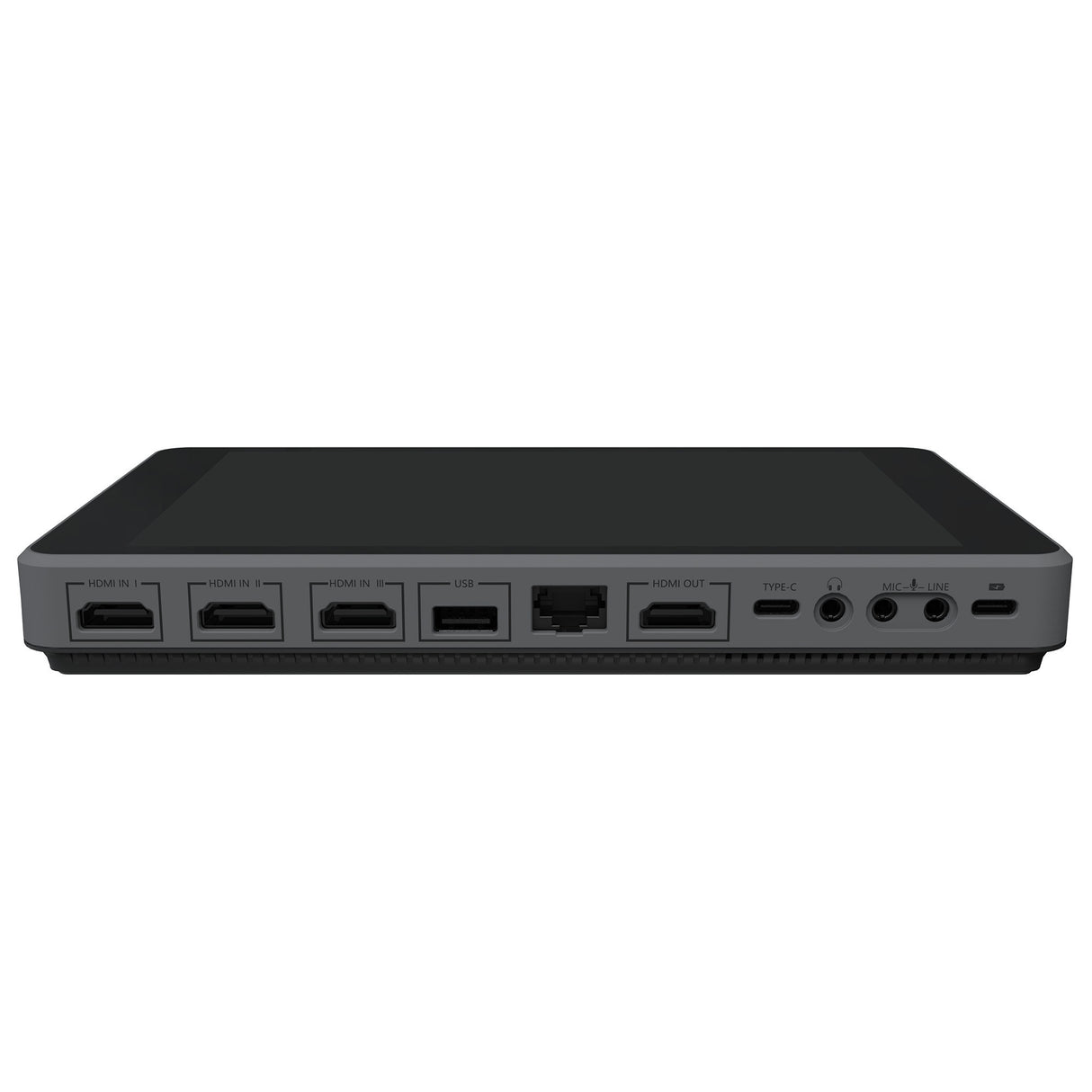

The YoloBox Pro is 8-inches large and weighs 1.6 lbs. It features 3 HDMI inputs, 1 HDMI output, and 1 full-featured USB-C, allowing you to switch up to 8 sources (up to four physical local cameras). The other two pre-recorded videos, either stored on an internal memory chip or from a web source. The Pro supports input resolutions of 720p and 1080i/p, as well as streams of 540p, 720p, and 1080p60 at your choice, using the H.264 codec. With HDMI output, you can display your stream locally on an HDMI device.

The YoloBox Pro provides you with a large LCD touchscreen interface for easy streaming and control, demonstrating the streaming image as well as the input streams; the LCD display also presents the control interface, which allows you to switch sources of information with a simple touch. It also has a line-level audio input, and separate headphone audio out. You can record your stream directly in the .mp4 format to an optional SD card, up to 128 GB in size, using the built-in SD card slot. The line-in allows you to connect with the synthesizer and the mic-in can be connected to the microphone for recording.

Touchscreen Control

The YoloBox Pro provides you with a large touchscreen interface for easy streaming and control.

Functions

The device works as a switcher, with a variety of picture-in-picture templates as well as graphic layers. It has a built-in encoder that allows for live streaming, and it can record to optional SD cards.

Overlays

• You can brand your live stream by adding logos/watermarks/rolling captions
• Customized PiP options, including Interview mode, allow you to bring a unique look and feel to your stream
• Engage with your audience in real-time via feature comment overlays
• The customizable scoreboard feature displays a real-time-controlled scoreboard for professional-looking results
• Built-in lower-thirds templates can be edited or you can add your own

Internet

You can connect to the internet using the integrated RJ45 (Ethernet) port, Wi-Fi, and via cell service using an optional SIM card.

Simultaneous Streaming

YoloBox Pro will first push your feed to the YoloLIV platform, from where it automatically forwards your feed to a maximum of 3 destinations simultaneously.

Streaming Platforms

Major streaming platforms such as Facebook live, YouTube, and Twitch are directly integrated, you can simply log in to your social account and stream.

SD Card Input

Roll in pre-recorded videos for intro, countdown, B-rolls, or special segments from an SD media card.

PDF

You can load a PDF as a local source to your YoloBox

Battery Life

The internal battery can power your YoloBox for approximately 3 hours. The YoloBox charges via the USB connection, which is used for power only.
