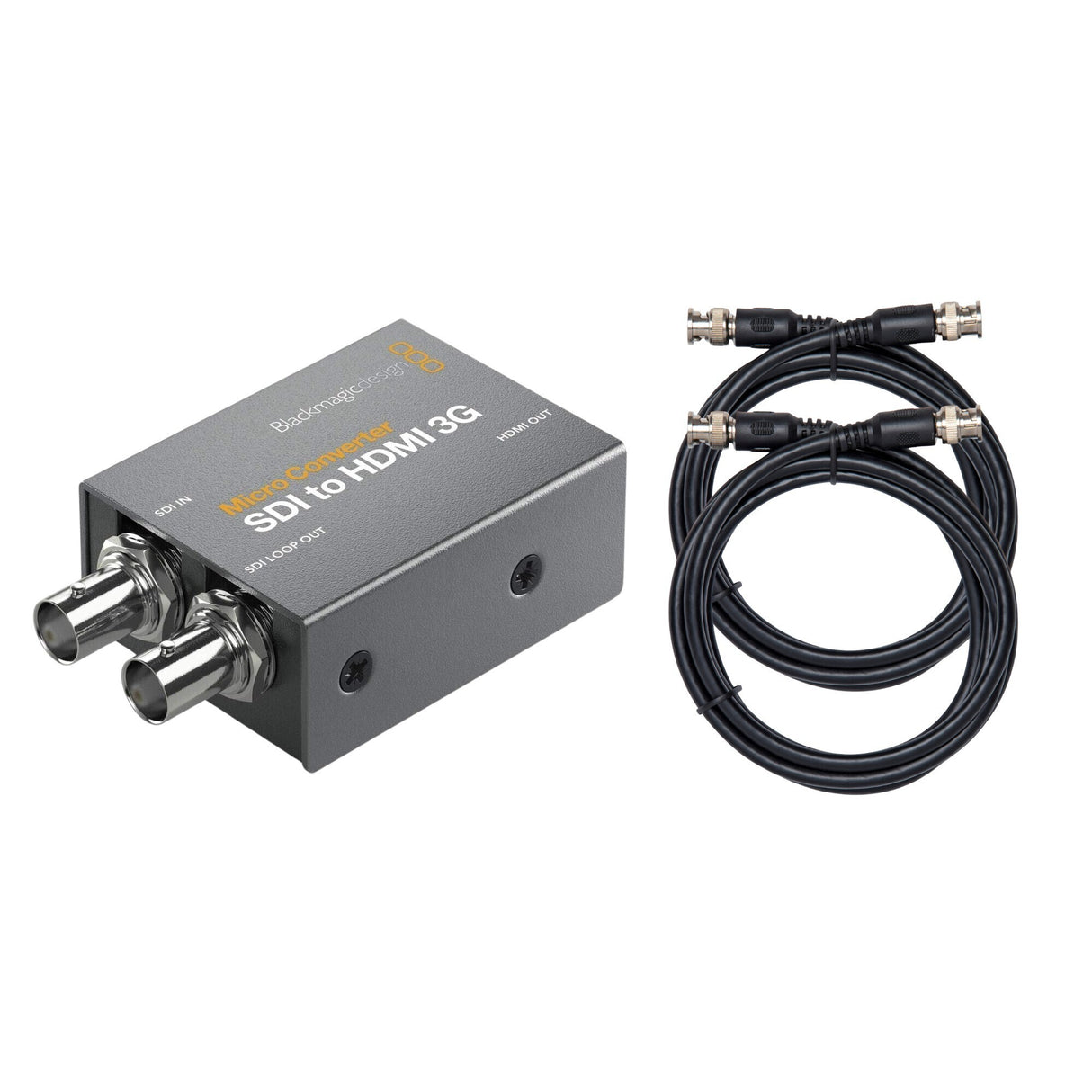

Blackmagic Design Micro Converter SDI to HDMI 3G

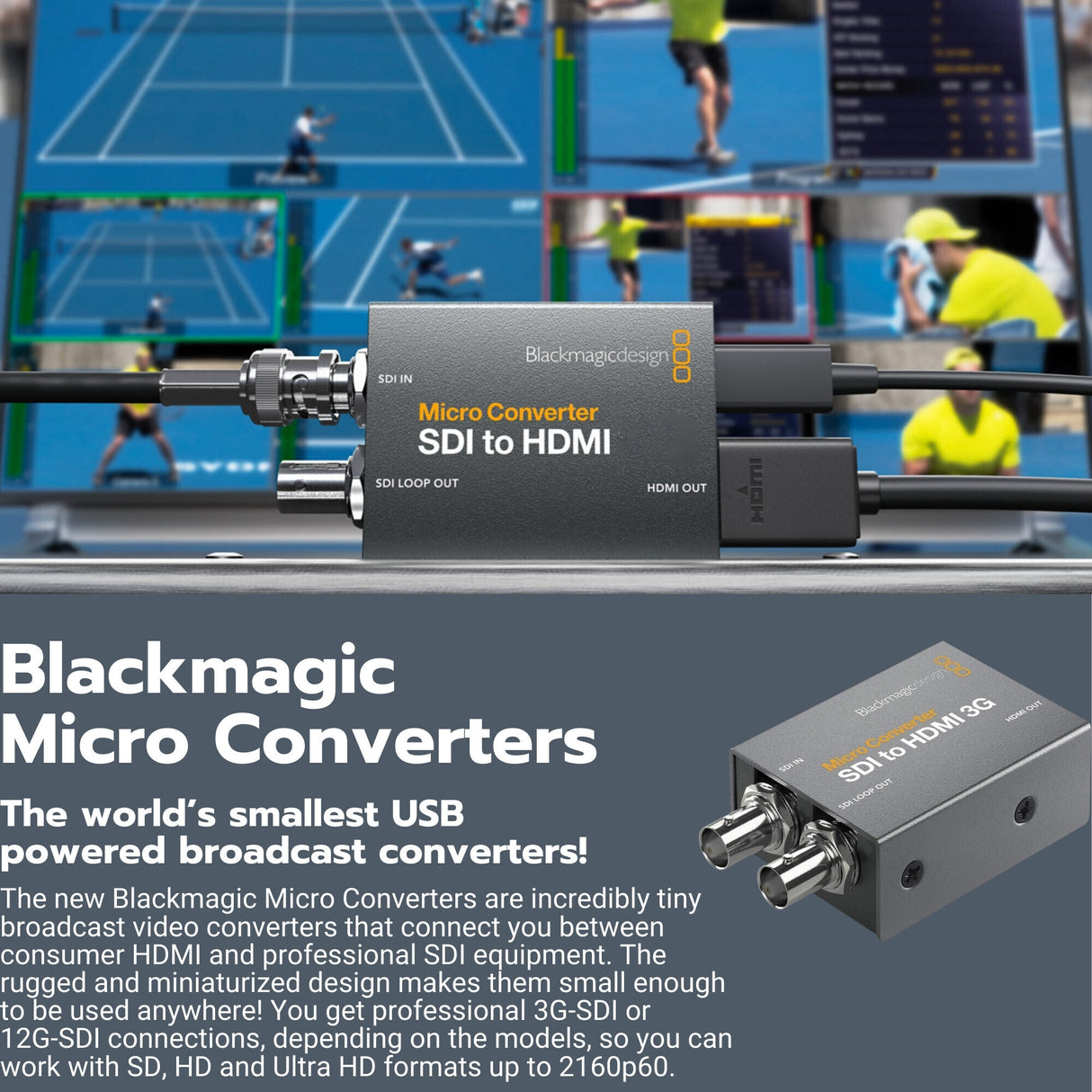

The Blackmagic Design Micro Converter SDI to HDMI 3G is an incredibly tiny broadcast video converter that let you connect between consumer HDMI and professional SDI equipment. The rugged and miniaturized design makes them small enough to be used anywhere! Micro Converters use USB for power, so they can be powered directly from televisions or laptop computers. This model has been specifically designed for professional monitoring. It includes a 17 point 3D LUT for color calibrating any monitor, projector, or television. You can even output the 3D LUT on the SDI loop output! Plus it supports DCI formats and film rates including 1080p24, 1080p47.95 and 1080p48.

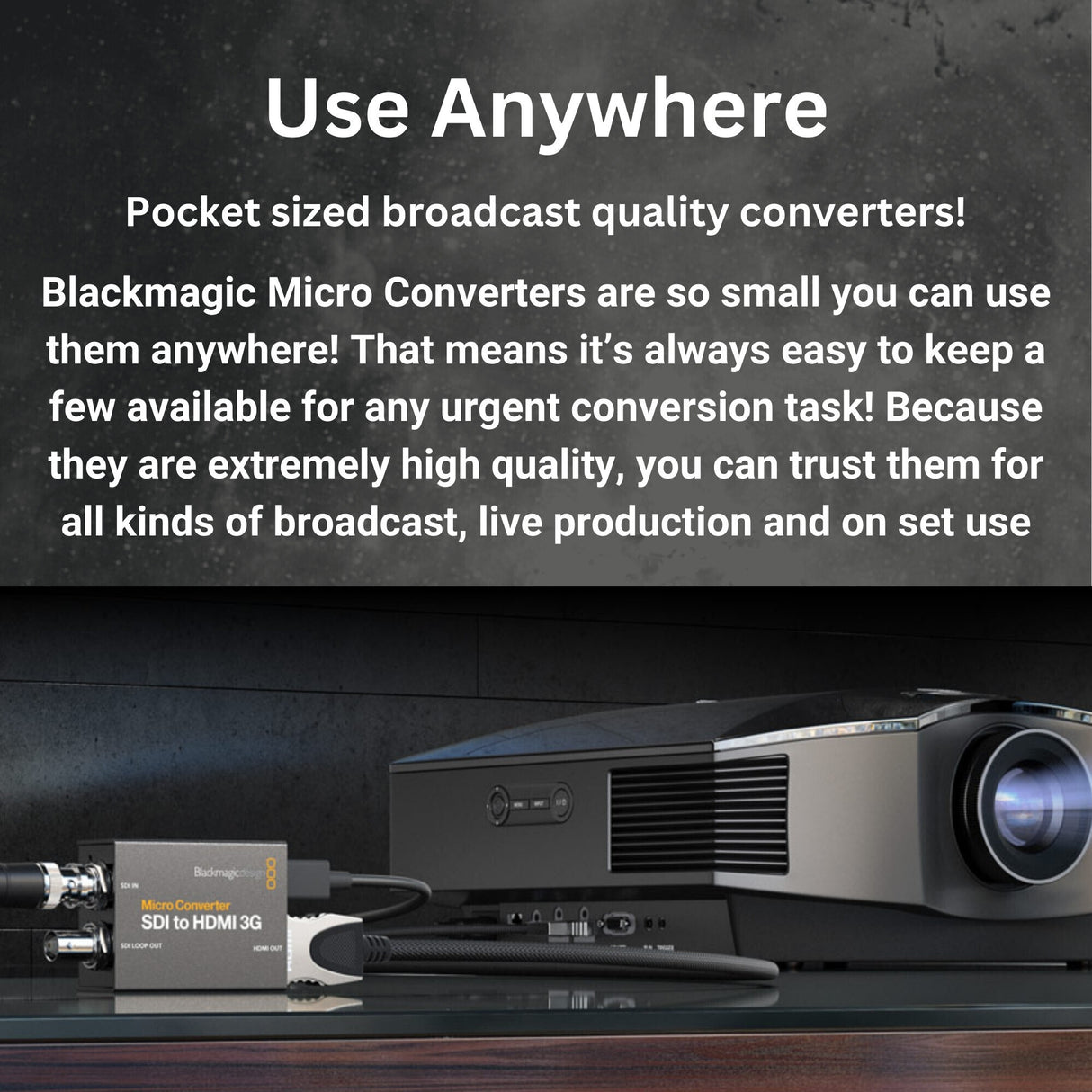

Use Anywhere

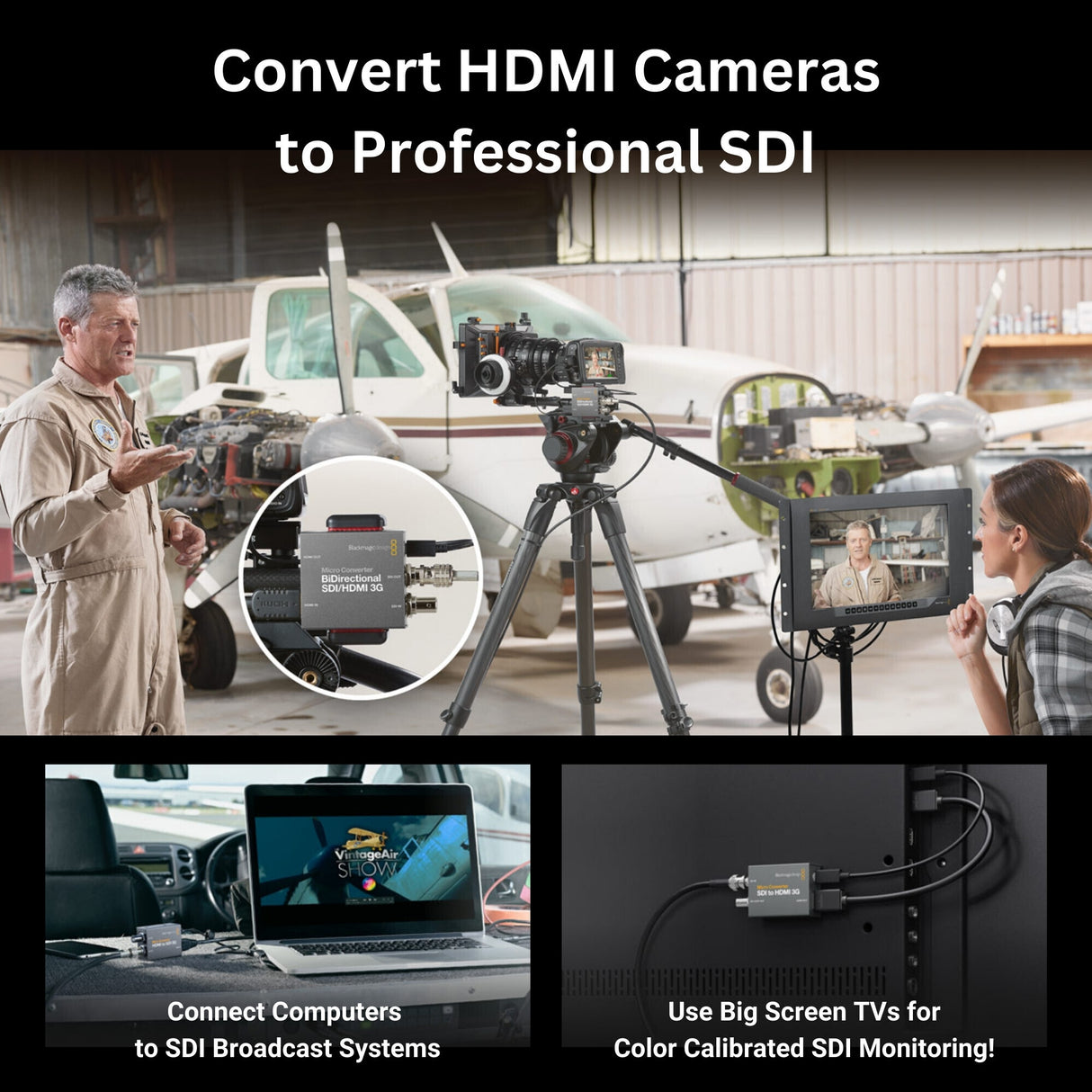

The Blackmagic Design Micro Converter is so small you can use them anywhere! That means it’s always easy to keep a few available for any urgent conversion task! Because they are extremely high quality, you can trust them for all kinds of broadcast, live production, and on-set use. Use them to turn any computer display, television, or video projector into a high-quality color-calibrated broadcast monitor. They're also perfect for converting the HDMI outputs of computers and consumer video cameras to high-end SDI equipment. Imagine using a slide show running on a computer for high-end broadcast-quality titles in live production! You could even use them for extending HDMI long distances using SDI.

Miniaturized Design

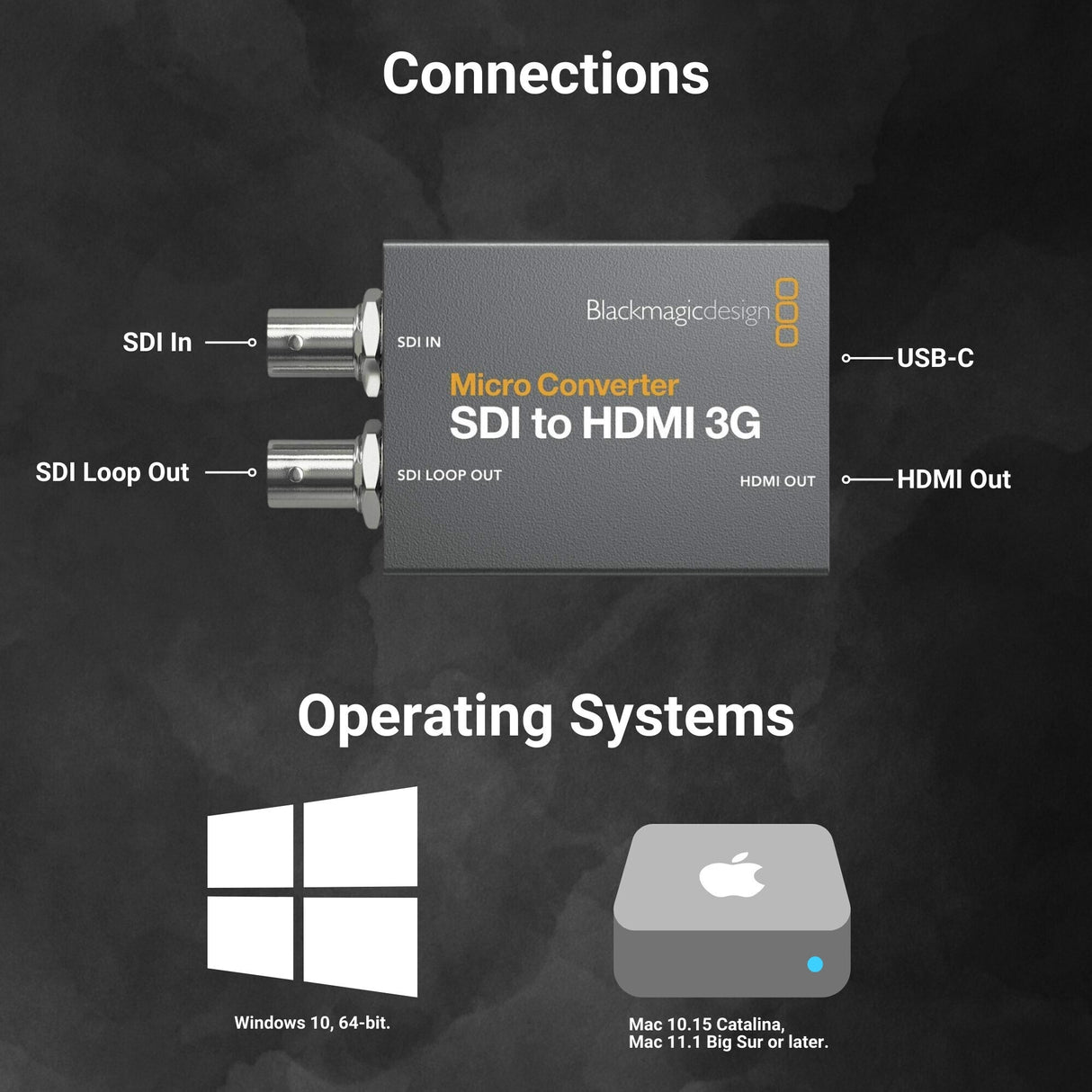

Unlike other small SDI converters, Blackmagic Micro Converters feature the highest quality broadcast technology, miniaturized into an incredibly strong metal enclosure. Each converter has the highest quality broadcast industry-standard SDI and HDMI connectors. Blackmagic Micro Converters include a USB connection for power, as well as for changing settings via the converter utility on Mac and Windows. Because the USB powers the converter, you can even power it from televisions or laptop computers.

Broadcast Quality

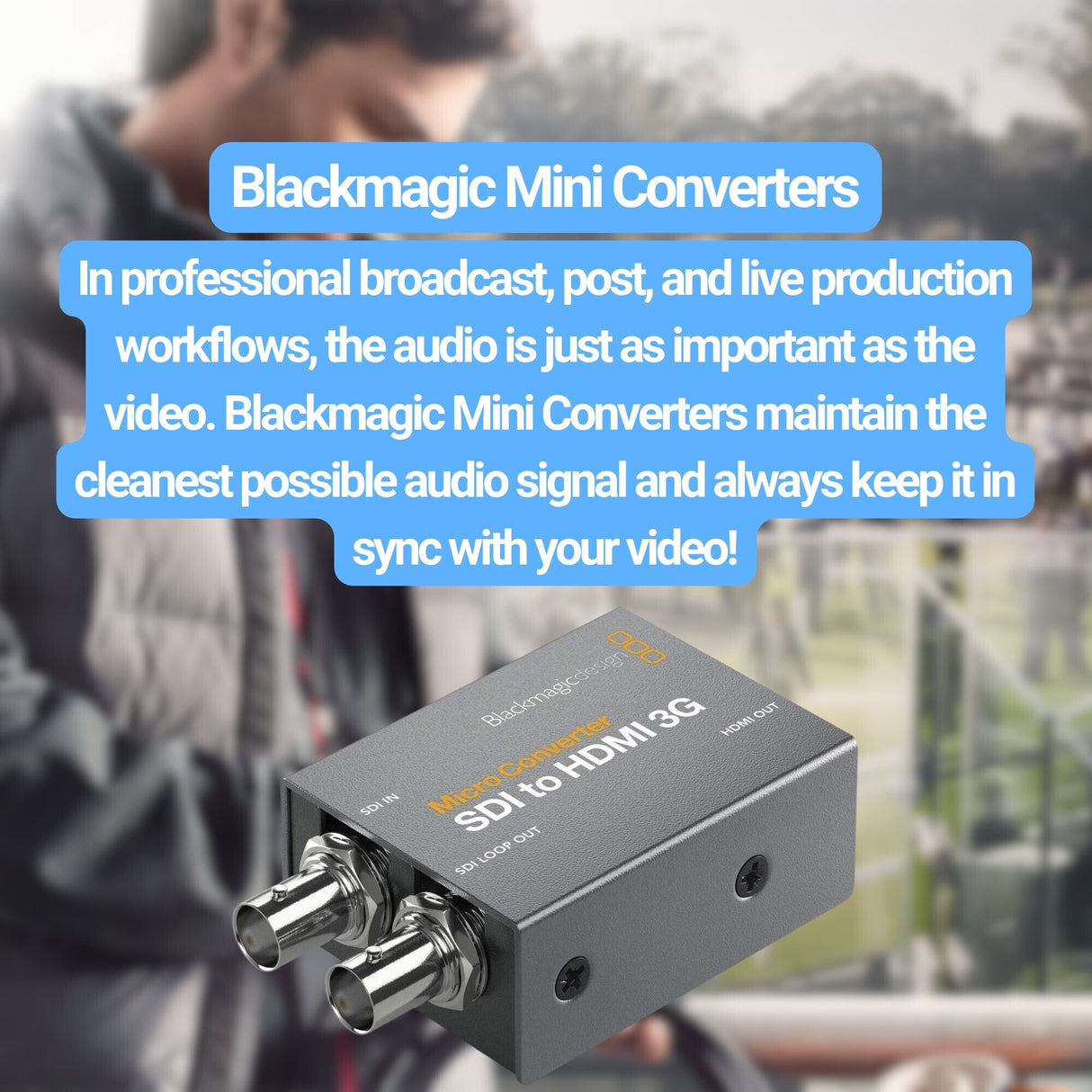

The Blackmagic Micro Converters include the highest quality signal processing and deep bit depth video pipeline. Micro Converters have been engineered with precision electronics so you get a very low SDI jitter, allowing you to extend SDI cables over long distances. That’s vital for live production where equipment such as cameras can be long-distance from switchers. The converter works with both 8 and 10-bit video formats, in RGB or YUV, and all SD, HD, and Ultra HD formats, depending on the model, up to 2160p60. They even support 1080p24, 1080p47.95, 1080p48, 4Kp24, 4Kp47.95 and 4Kp48 film rates! Plus you get fully embedded audio and timecode support.

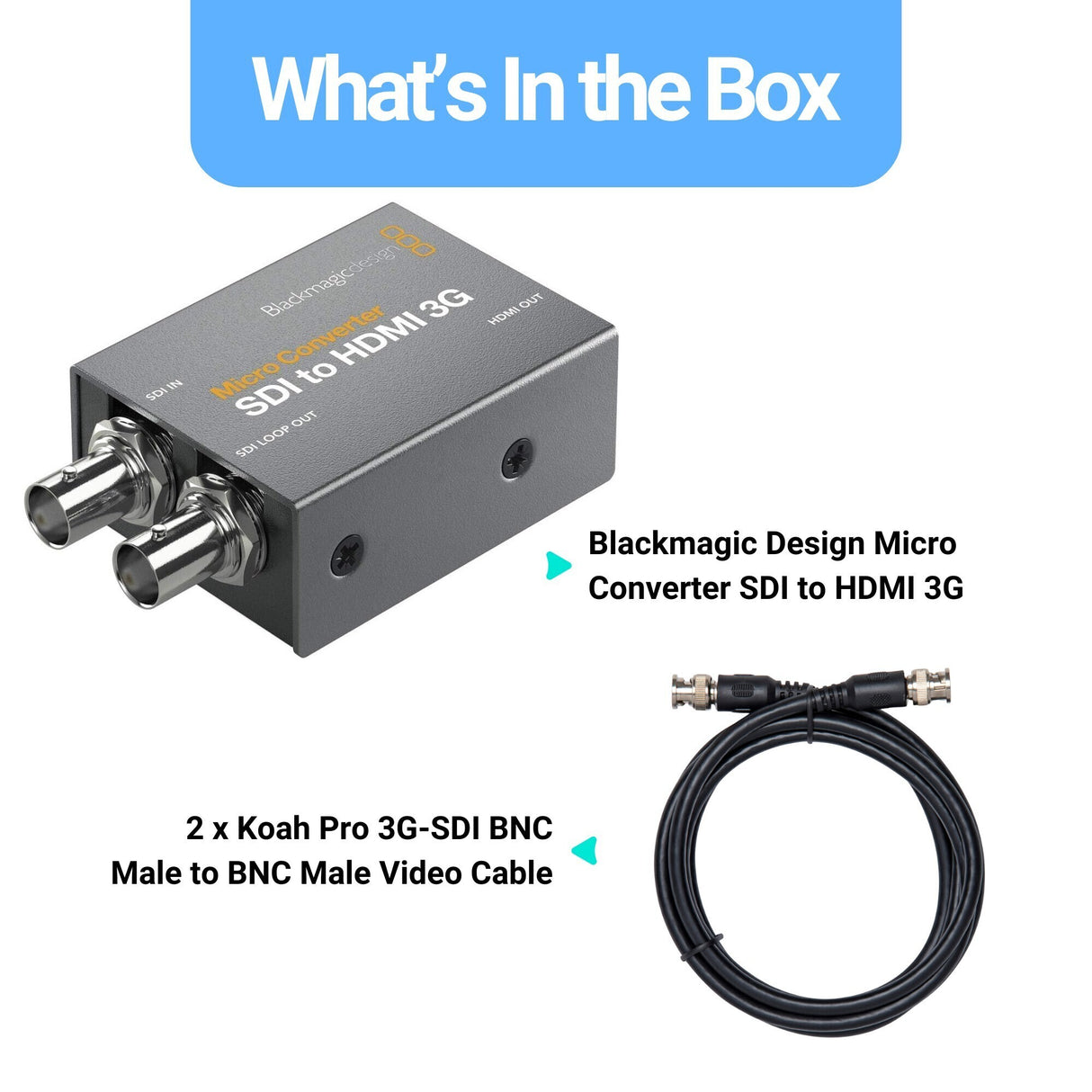

Koah Pro 3G-SDI BNC Male to BNC Male Video Cable, BNC - BNC Cable, 6 Feet Coaxial Cable

Enjoy high-definition video every time and anywhere. The Koah Pro Premium SDI Video Cable is an 18 AWG RG-6 solid coaxial cable that supports high-definition RF and video signals. The 3G SDI coax cable is made of flexible material for tight fits and is easy to bend for wall or ceiling installations. It remains the preferred choice to relay cable crisp and uninterrupted television signals. The premium 3G-SDI video cable is a 6-feet long dual-sided coax cable that features BNC male to BNC male simple, convenient, and ready-to-use screw-on connectors supporting satellite signal transmission for residential or commercial purposes installations. This cable is built with OFC Braided Shielding and FPE insulation and provides superior protection against signal drop-outs and RF/EMI interference. Made with cellular polyethylene dielectric, the cable integrates both audio and video signals for correct sign switch even over long runs, with four shields around the cable to protect the integrity of the signal. The BNC to BNC connectors with copper contact pins are ideal for high RF and video transmission bandwidth with full SDI performance. Its thicker dielectric insulation makes it less likely to carry damaging electric currents. Also featuring a UV-resistant outer jacket, this cable is perfect for the outdoors. With minimum static and high picture quality, the coax cable is optimal for high-definition signals in the home and commercial entertainment systems. It supports HD-SDI, 3G-SDI, and SD-SDI signals, making it compatible with VCR, DVR, camera, CB radio, CCTV monitor, SDI converter, video splitter, satellite receiver, digital router, cable modem, and oscilloscopes. Koah values customer satisfaction above all else; hence The Koah Pro Premium 3G-SDI Video Cable comes with a 1-year warranty for a risk-free investment. Our durable cable sleeve protects against extreme temperature changes and weather conditions, and the supreme quality BNC male connectors provide strain relief.
