Blackmagic Design URSA Cine 12K Camera with 16-Stop Dynamic Range and Built-In ND Filters (PL Mount)

The Blackmagic Design URSA Cine marks a groundbreaking leap in digital film technology, seamlessly integrated into the post-production workflow. It stands as the first digital film camera with built-in fast capability storage and high-speed networking for onset media synchronization. Featuring a new large format RGBW 36 x 24mm image sensor with enlarged photo sites, it delivers remarkable dynamic range and compatibility with the PL lens mount. With Wi-Fi equipped for SRT streaming, remote client viewing is effortless. Moreover, its industry-standard Lemo and Fischer connections render it ideal for high-end cinema production needs.
Large-Format Cinematic Sensor
The URSA Cine showcases a groundbreaking sensor engineered to produce exceptional image quality across resolutions ranging from 4K to a staggering 12K. Leveraging the technology of the URSA Mini Pro 12K, the larger sensor boasts enhanced photo-site size, resulting in an impressive 16 stops of dynamic range. With its unique RGBW architecture, featuring equal amounts of red, green, and blue pixels, it's optimized to deliver vivid colors across all resolutions, ensuring unparalleled image quality and versatility. Experience heightened detail and expanded dynamic range like never before, with the added benefit of in-sensor scaling allowing for recording at various resolutions without cropping.Top of Form
Ideal Body for Professional Productions

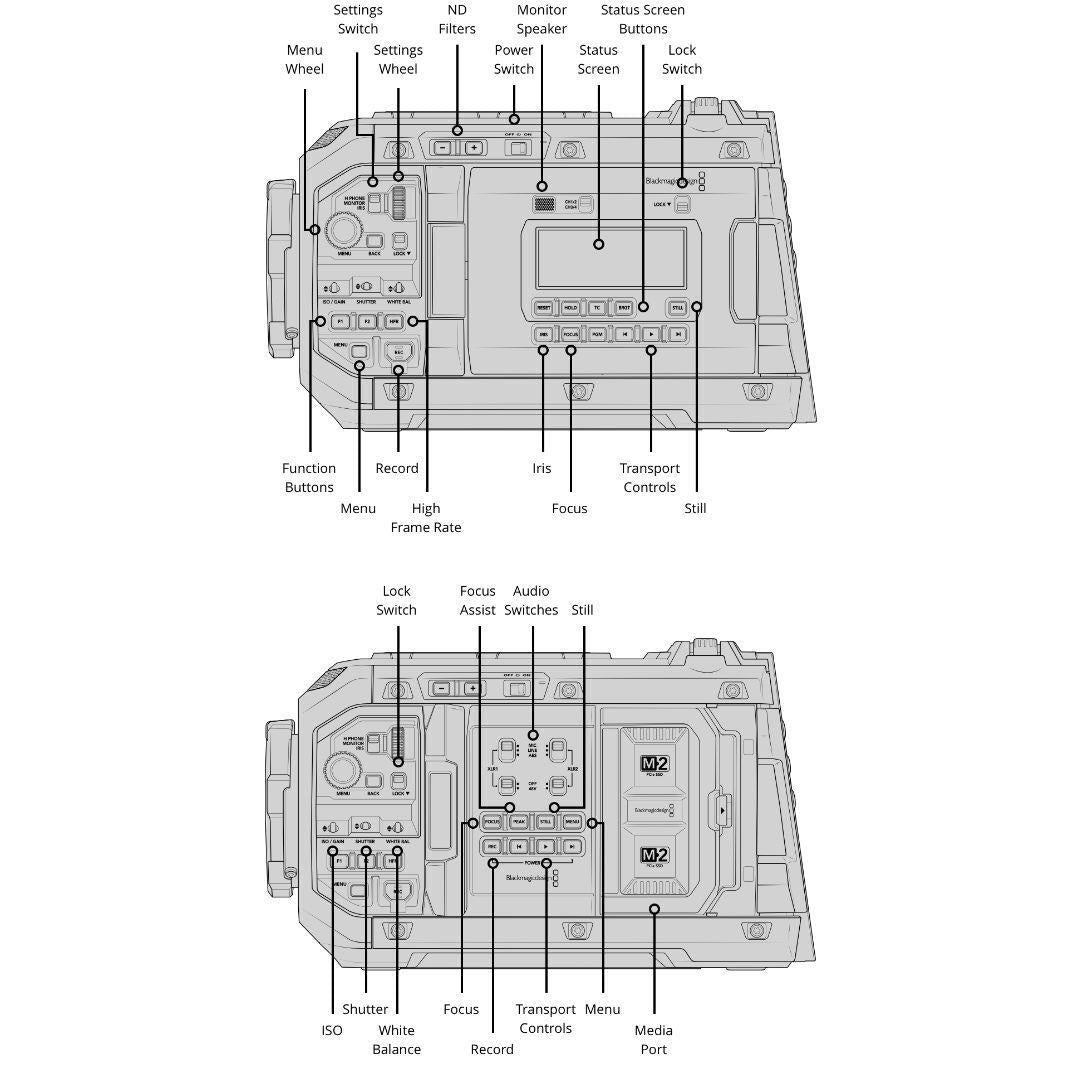

URSA Cine caters to high-end productions with its balanced, durable design. The magnesium alloy chassis and carbon fiber polycarbonate composite skin ensure swift maneuverability on set. Soft touch backlit buttons ensure visibility in any condition. It also features a 5-inch fold-out touchscreen for shot review and settings, along with a dedicated assist station on the opposite side, equipped with a 5-inch LCD and comprehensive controls. Remote control capabilities via standard Lemo and Fischer connectors, providing power for accessories. Includes 12G SDI out, 10G Ethernet, USB-C, XLR audio, and more.Top of Form
Flexible in Large Formats
URSA Cine's large format sensor offers unparalleled flexibility for aspect ratios, lenses, and delivery formats. The full sensor area enables a breathtaking 3:2 open gate image for post-production reframing. Alternatively, utilize the expansive sensor area for shooting anamorphic, with de-squeeze factors ranging from 1.3 to 2x, accommodating various aspect ratios like 1.5, 1.6, 1.66, 1.8, and 2x. Capture in 4K, 8K, or 12K without cropping, maintaining the full field of view of your lenses. Additionally, enjoy compatibility with classic cinema lenses through 9K Super 35 4-perf, 3-perf, and 2-perf modes, ensuring the creation of distinctive content in the highest quality.Top of Form
Versatile in Mounting
URSA Cine offers an interchangeable lens mount to accommodate diverse project requirements. Switch effortlessly between PL, LPL, EF, and Hasselblad mounts, enabling compatibility with a broad spectrum of professional lenses. From modern high-speed lenses for sharp, precise images to vintage photographic lenses for period dramas, URSA Cine ensures flexibility for any production scenario. Each mount features contact pins to read lens metadata, facilitating monitoring and post-production integration. With URSA Cine, you have the liberty to select the ideal lens for every project.
HD Monitoring and Camera Control

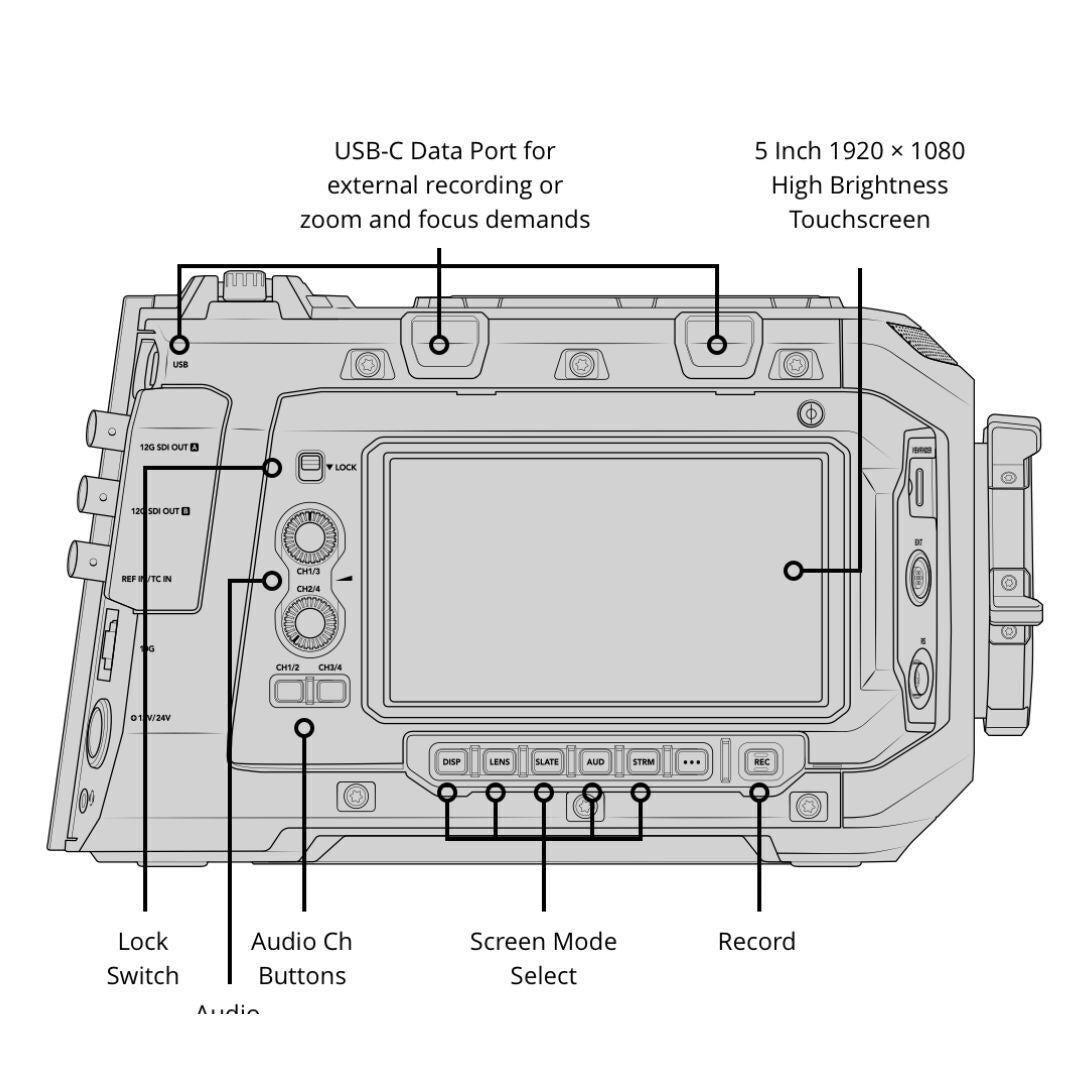

URSA Cine enhances on-set efficiency with versatile monitoring options. The fold-out monitor boasts a spacious 5-inch HDR touchscreen on one side and an external color status LCD on the other, with the flexibility to rotate and fold back into the camera. Positioned on the camera's right side, a dedicated assist station features a second 5-inch HDR touchscreen, enabling crew members to operate around the camera without additional monitors. Featuring a 1500-nit display and removable sunshade, visibility remains optimal even in bright sunlight. On-screen overlays provide essential information such as status and record parameters, histograms, frame guides, and more. Additionally, a dedicated focus puller's mode ensures precise focusing assistance.Top of Form
Industry Standard Connections
URSA Cine is tailor-made for high-end cinema production with its extensive array of industry-standard connections. The front-mounted 7-pin Lemo and 3-pin Fischer connectors facilitate record start/stop functionality and provide 24V power, ideal for onboard accessories like focus motors. Camera power is seamlessly supplied via a standard 24V 8-pin Lemo connection, complemented by an additional 2-pin Lemo 12V connection at the rear for lower voltage accessories. This setup enables accessory power directly from the camera, eliminating the need for cumbersome external cabling. Additionally, two independent 12G-SDI outputs allow monitoring on two separate monitors with distinct overlays, while the inclusion of 10G Ethernet facilitates Blackmagic Cloud media syncing.
Image Capture with Blackmagic RAW
Blackmagic RAW is a groundbreaking format engineered to capture and retain the sensor data quality from your camera. These files contain comprehensive metadata, including camera settings, lens data, white balance, and custom LUTs, ensuring image consistency from set to post-production. Constant quality options maintain a consistent level of quality by adjusting compression to match scene detail, while constant bitrate encoding ensures predictable and consistent file sizes while maximizing image quality. URSA Cine records onto the included Blackmagic Media Module 8TB, providing ample storage for over 4 hours of Blackmagic RAW in 12K or an extensive 20 hours in 4K.
