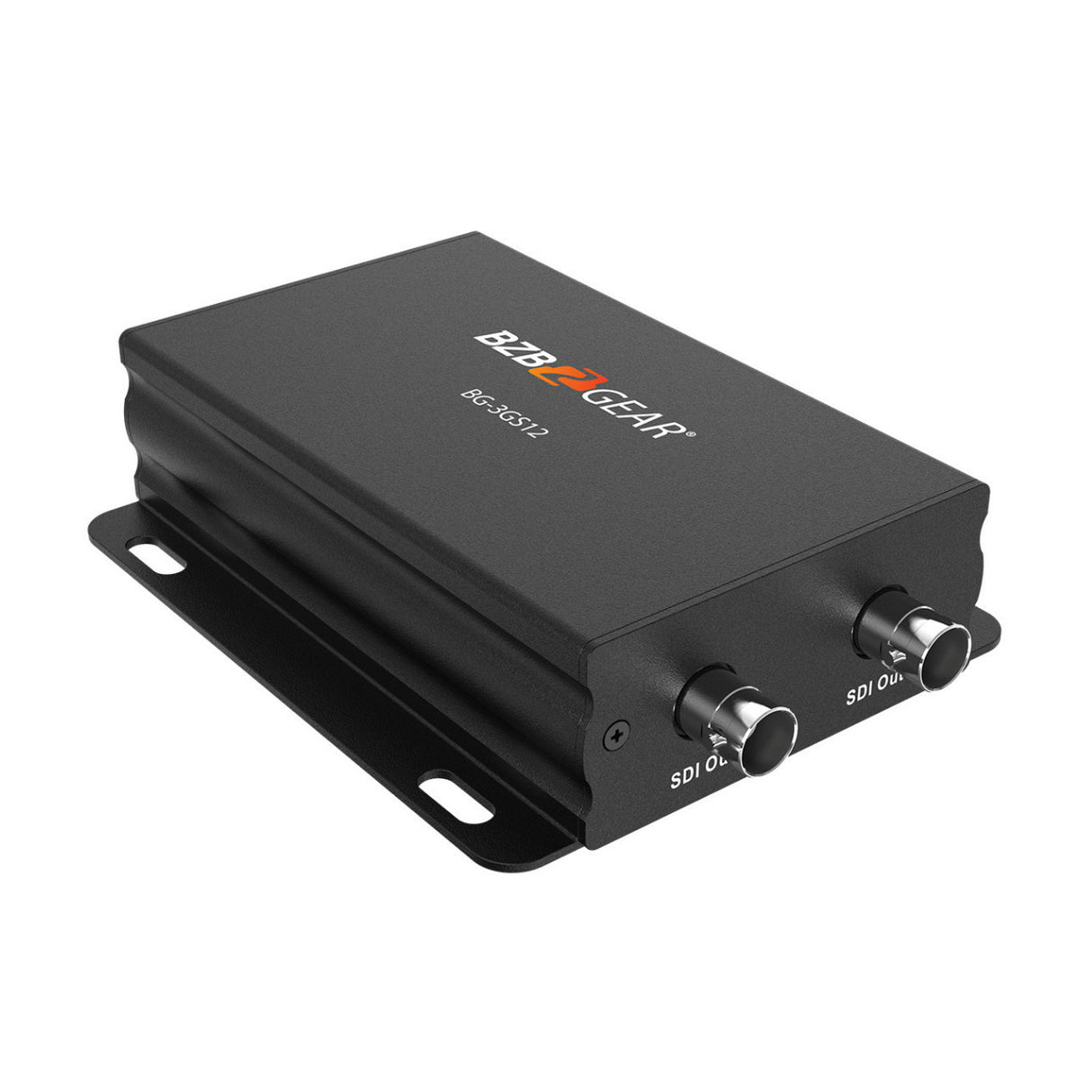

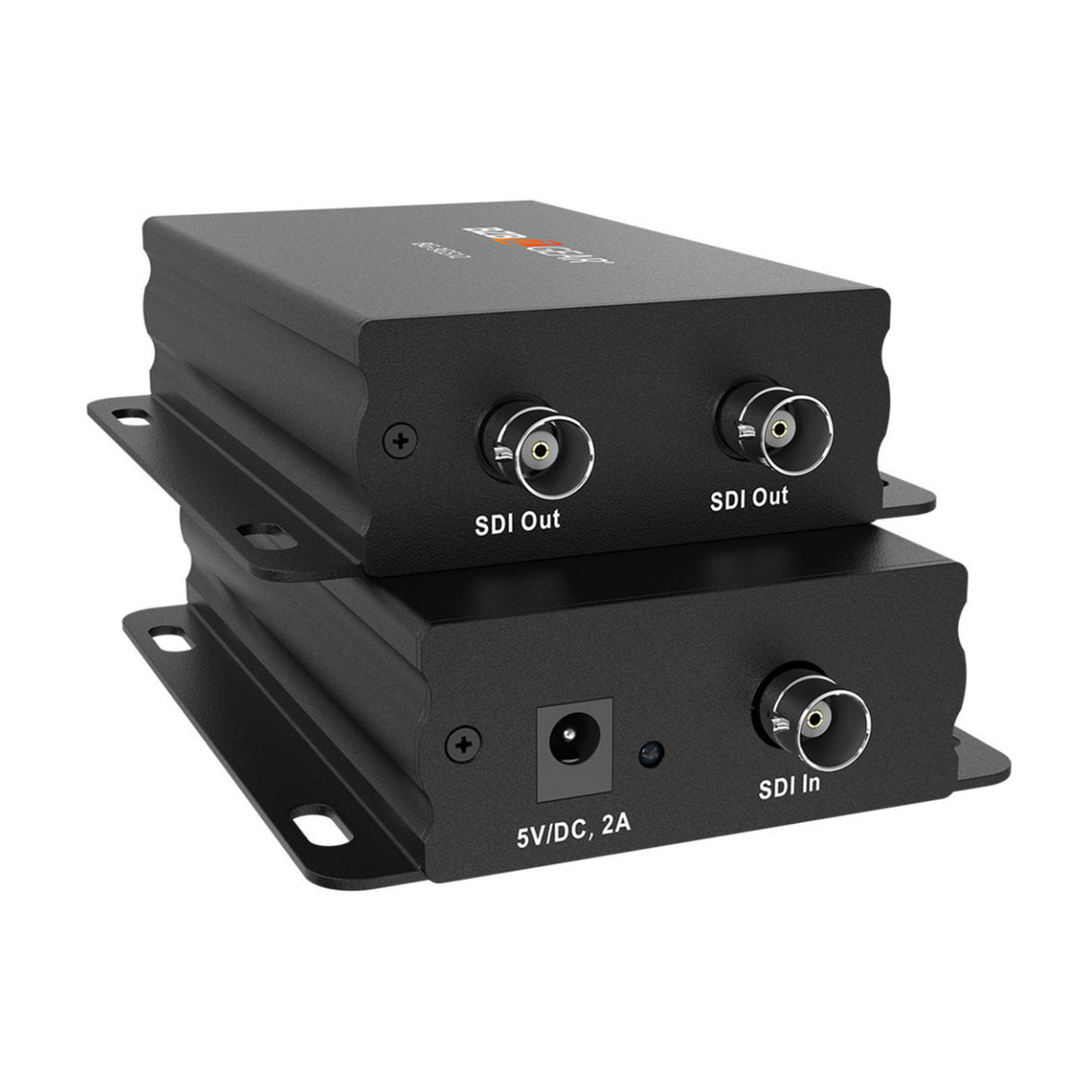

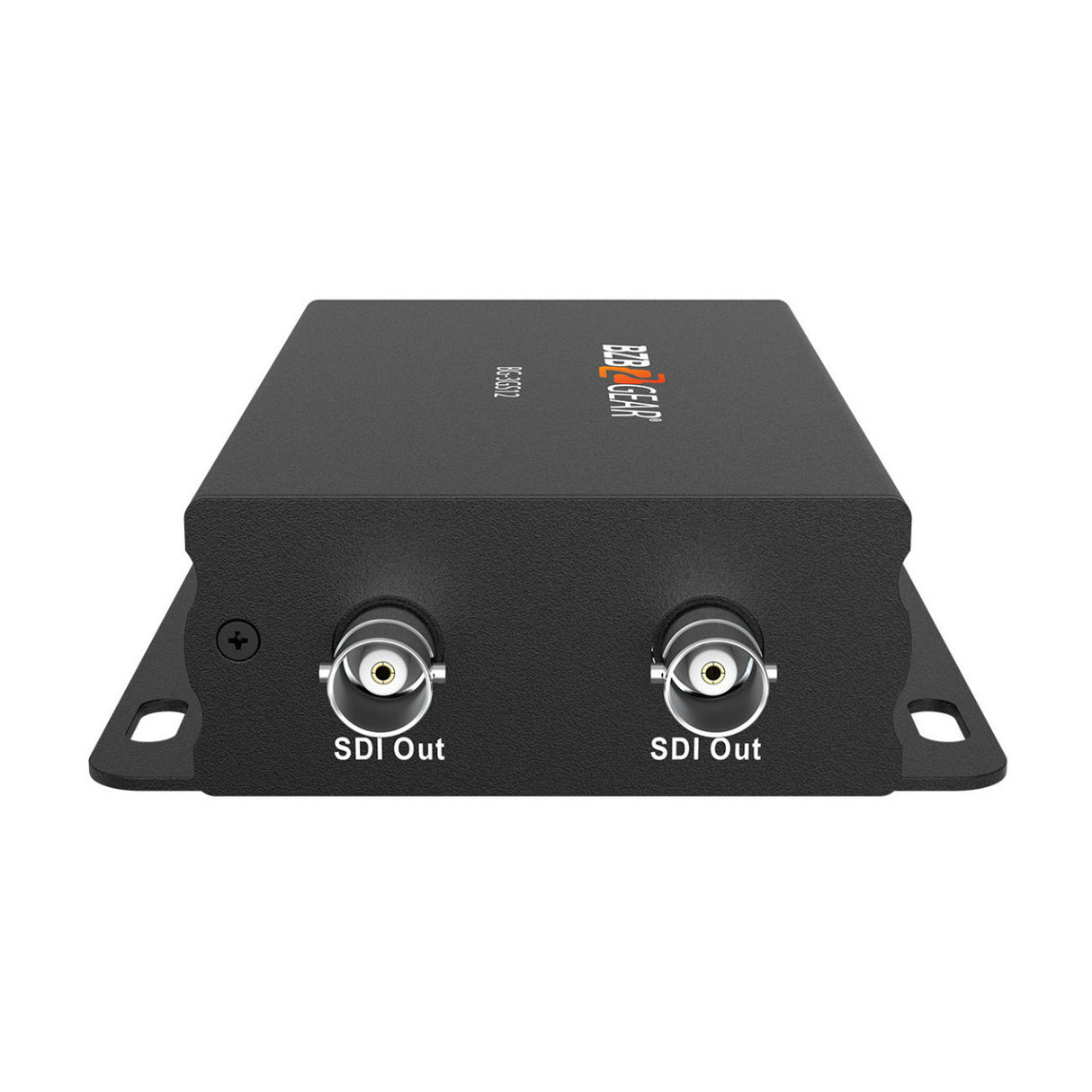

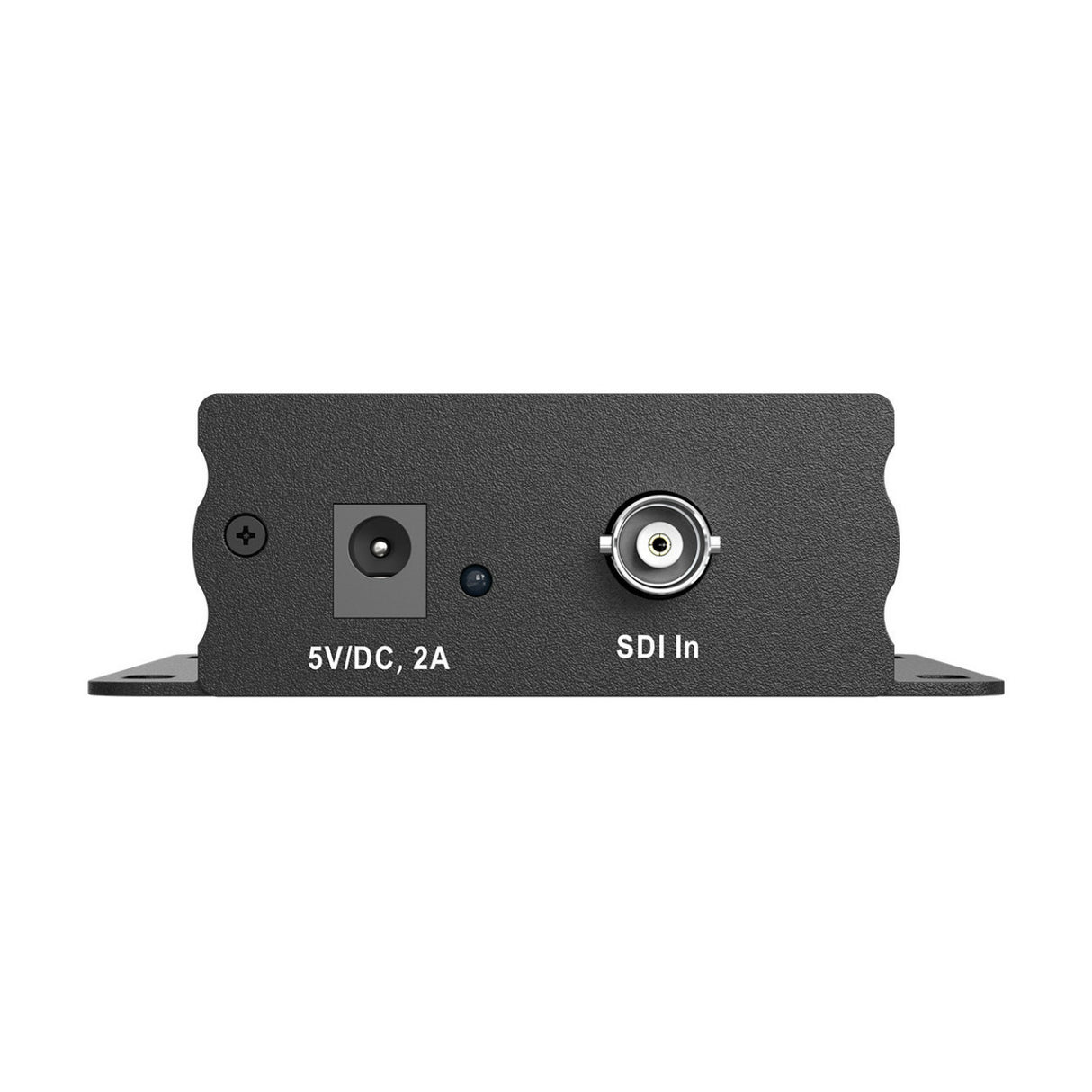

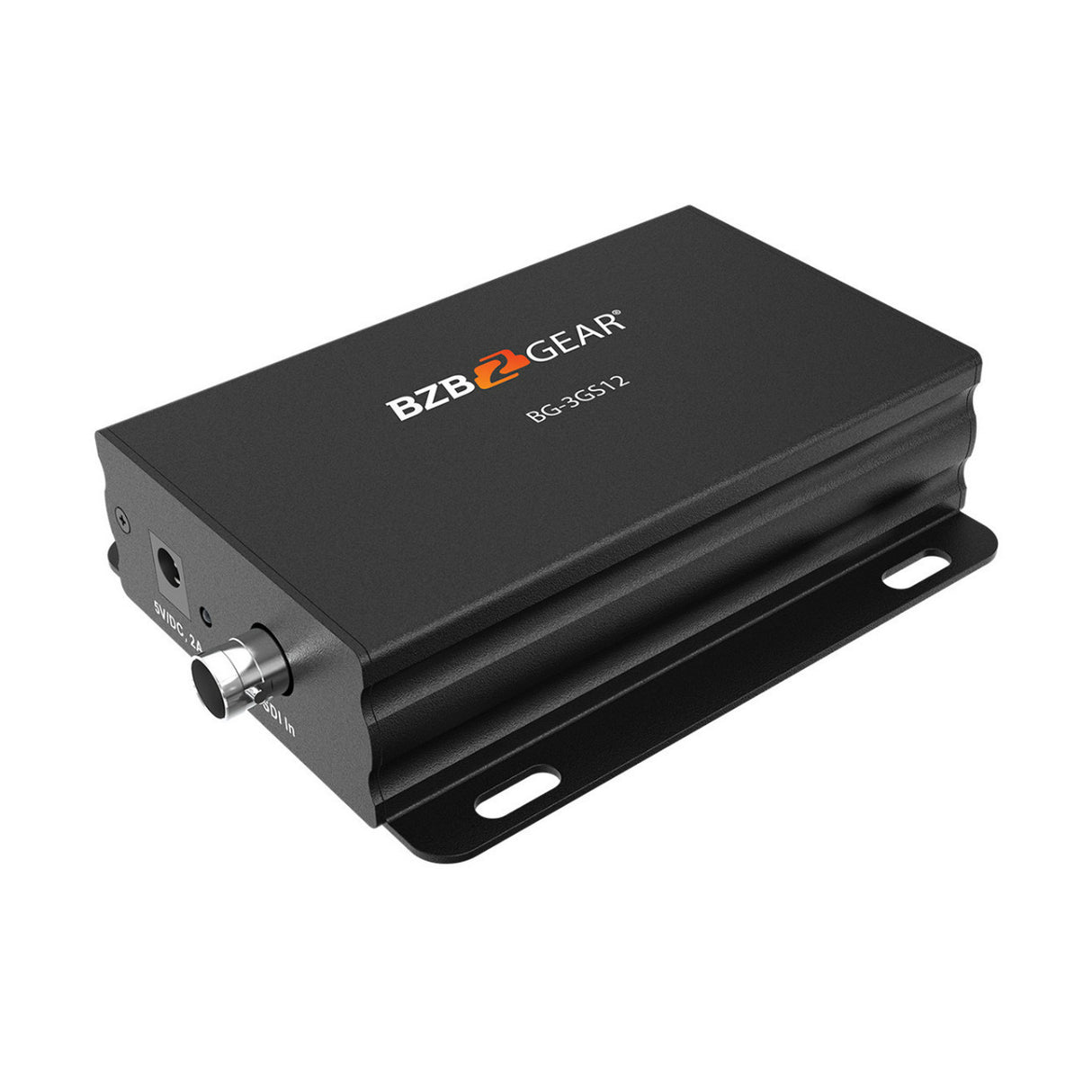

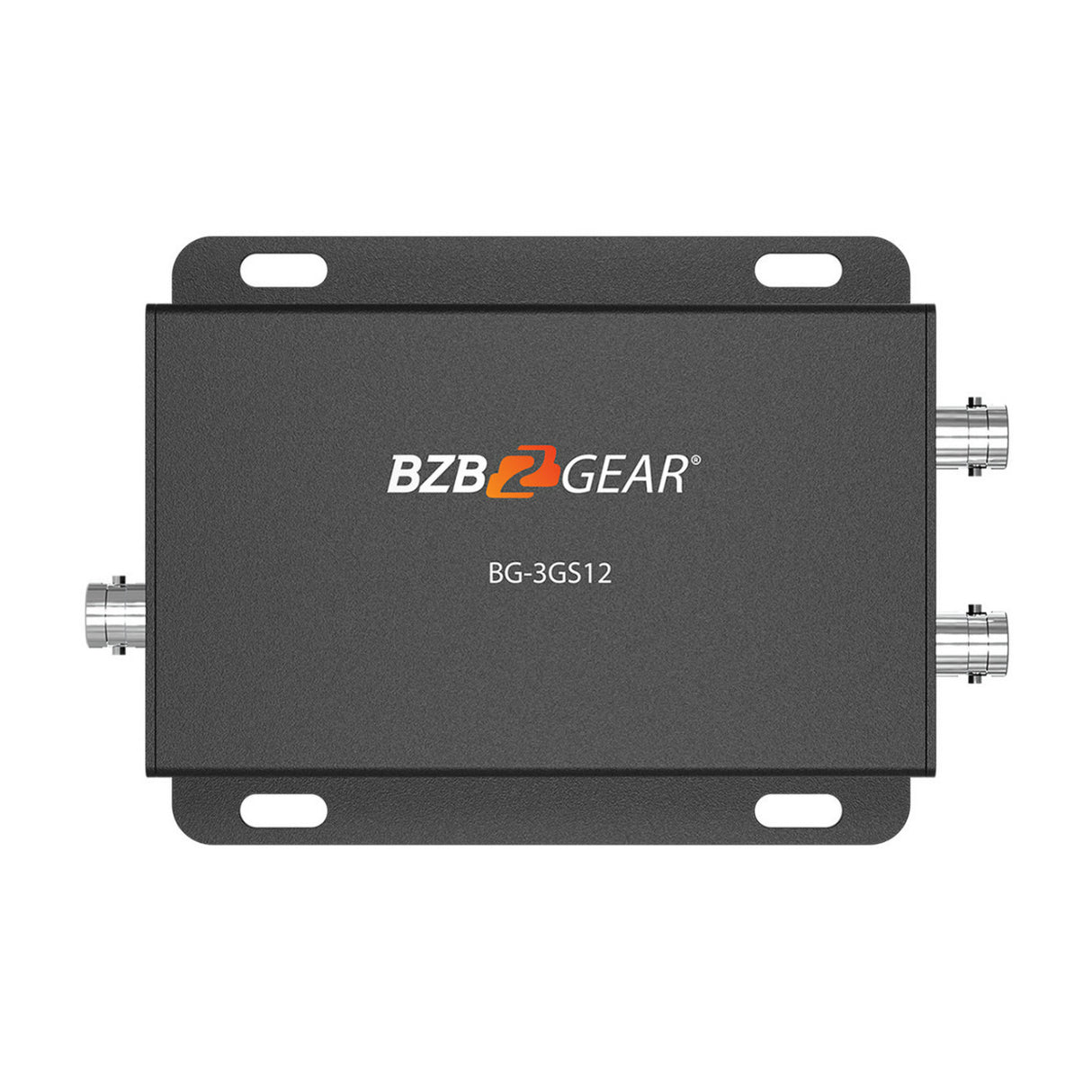

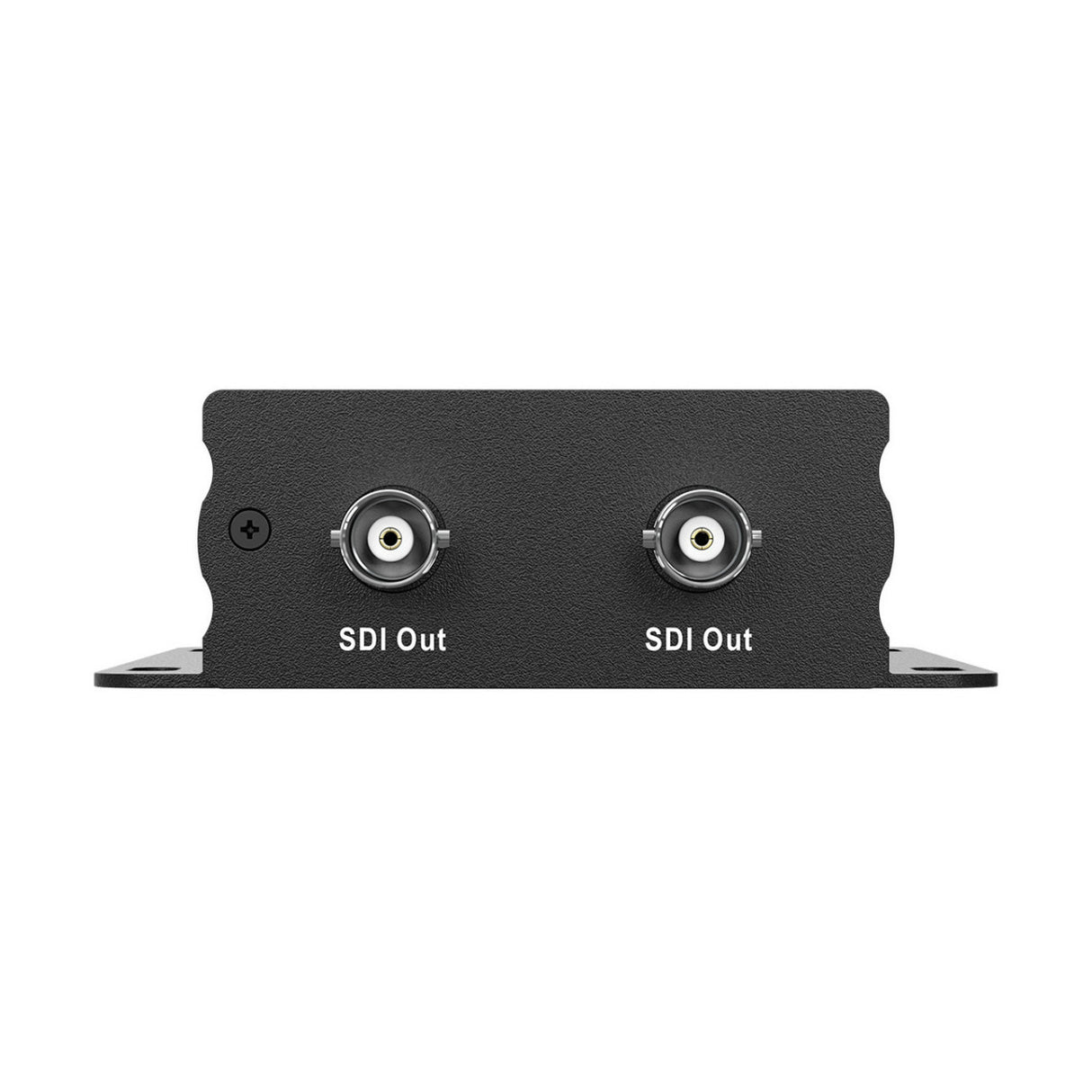

BZBGear 3G-SDI 1x2 Splitter/Distribution Amplifier

The BZBGear 3G-SDI 1x2 Splitter/Distribution Amplifier is a splitter that splits one SDI input into two SDI outputs simultaneously. With a signal relocking feature, it can also extend a video signal for long-distance transmission.

Functionality

This reliable and powerful tool provides consistent connections in a variety of different scenarios, like adding a second output for monitoring video feeds on a separate display, splitting the signal and cascading to multiple displays, or extending an SDI signal.

Support and Connectivity

The BG-3GS12 supports a maximum resolution of 1080p at 60Hz with 3G-SDI signal. The device also supports a wide range of data rates from 270 Mbps at the low end to a maximum bandwidth of 2.97 Gbps. There is also support for multiple deep color settings such as 8-bit, 10-bit, and 12-bit.

Signals

This splitter can also maintain SD signals for up to 200meter, HD signals 120meter, and 3G for up to 80meter. Multiple video resolutions are also available with this unit, including SD 480i, 576i, and 625i, HD 720p at 24/25/30/50/60, 1080i at 50/60, 1080p at 24/25/30, and 3G 1080p at 50/60. It further supports multiple color spaces, including RGB or YCbCr 4:4:4 sampled, YCbCr 4:2:2 or 4:2:0 sampled.

Reliability

Quality SDI connectors provide reliability due to their interlocking design. This prevents SDI cables from being dislodged from the unit via accidental forces or from loose connections.
