Hollyland Pyro 5 Wireless Transceiving Monitor with Dual Band Transmission and Multi Cam Switching
- Pyro 5 Wireless Transceiving Monitor
- Tempered Glass Screen Protector
- 2 x Easy-Install Short Antenna
- USB-C OTG Adapter
- Quick Guide
- Packing List Card
- Warranty Card
SanDisk 128GB Extreme PRO 200MB/s SDXC UHS-I Memory Card
- Limited Lifetime Warranty
NANUK 320 Nano Series Large Ultra Resistant Waterproof Polycarbonate Hard Protective Case (Black)
Koah Photography Cleaning Kit
- Compact Mini Tripod
- Microfiber Lens Cloth
- Fine Bristle Cleaning Brush
- Lens Cleaning Wipes
- Lens Cleaning Spray Bottle
- Rubber Bulb Air Blower
- Straps
Trusted & Verified

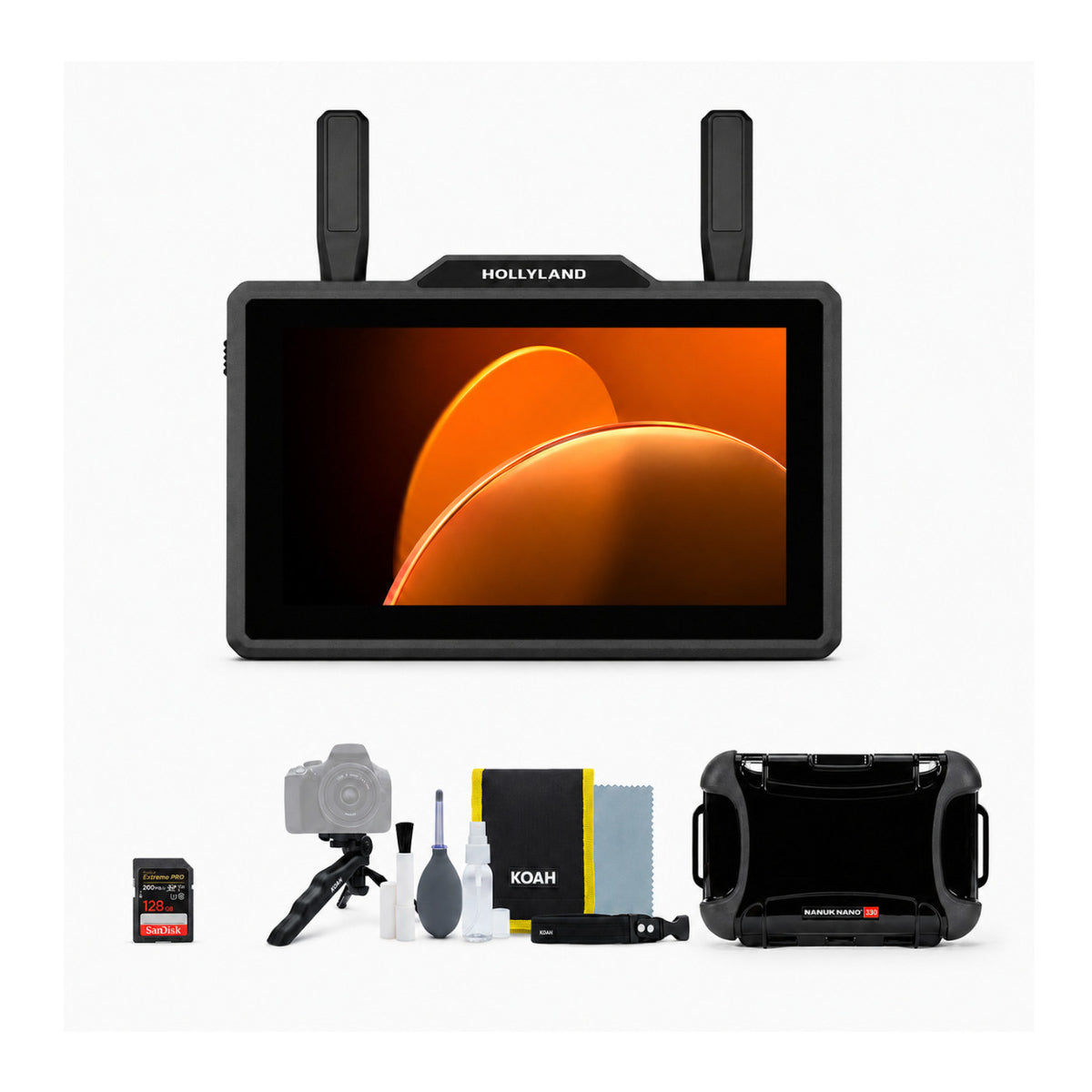

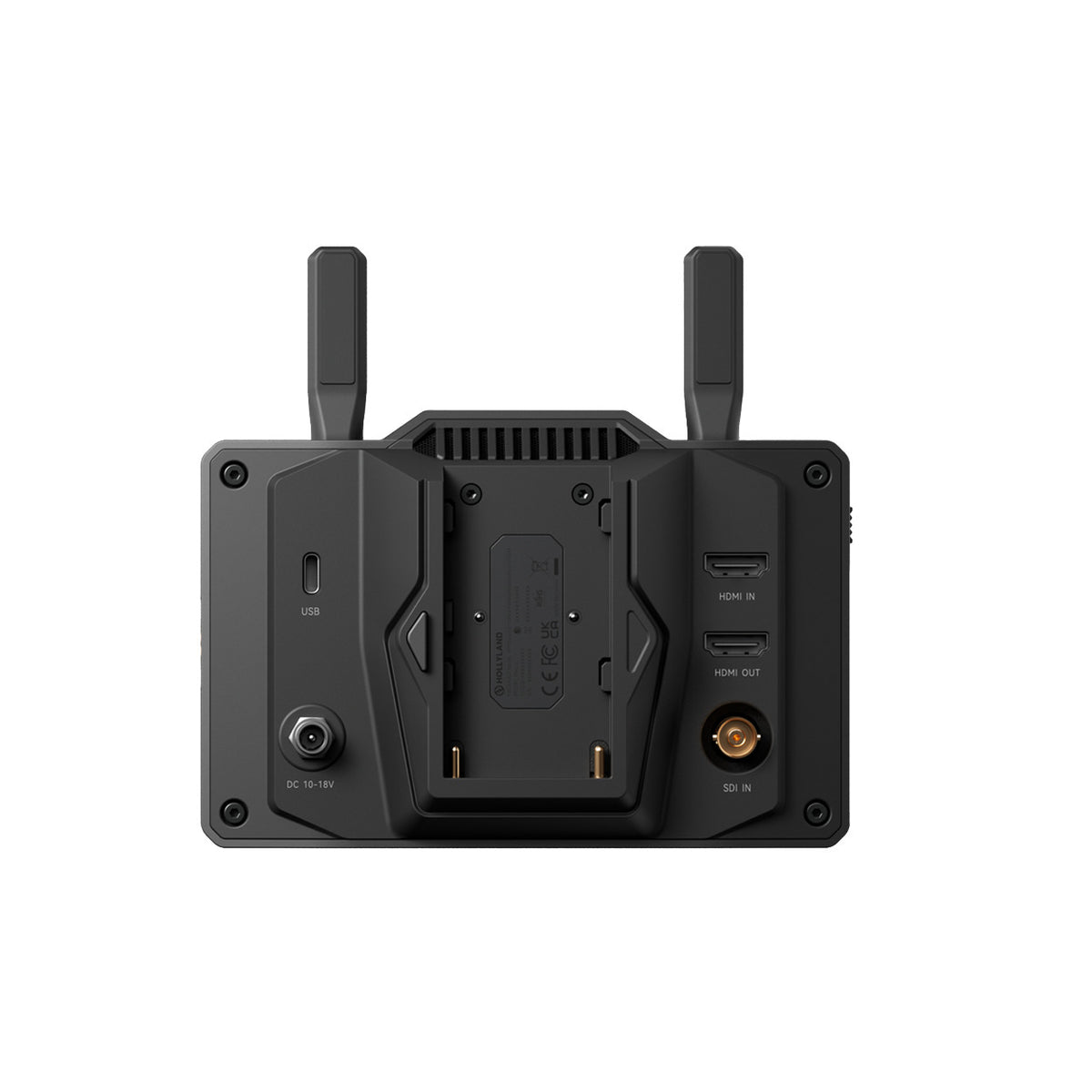

Hollyland Pyro 5 Wireless Transceiver Monitor Bundle
- Dual-band transmission
- Broadcast Mode
- Direct camera control
- Proxy recording
- Multi-cam switching
- Lock Pairing
- Auto Frequency Hopping
- Smart channel selection
- 3D LUT support
- HDMI and SDI loopout
- Rugged design
- RTMP streaming

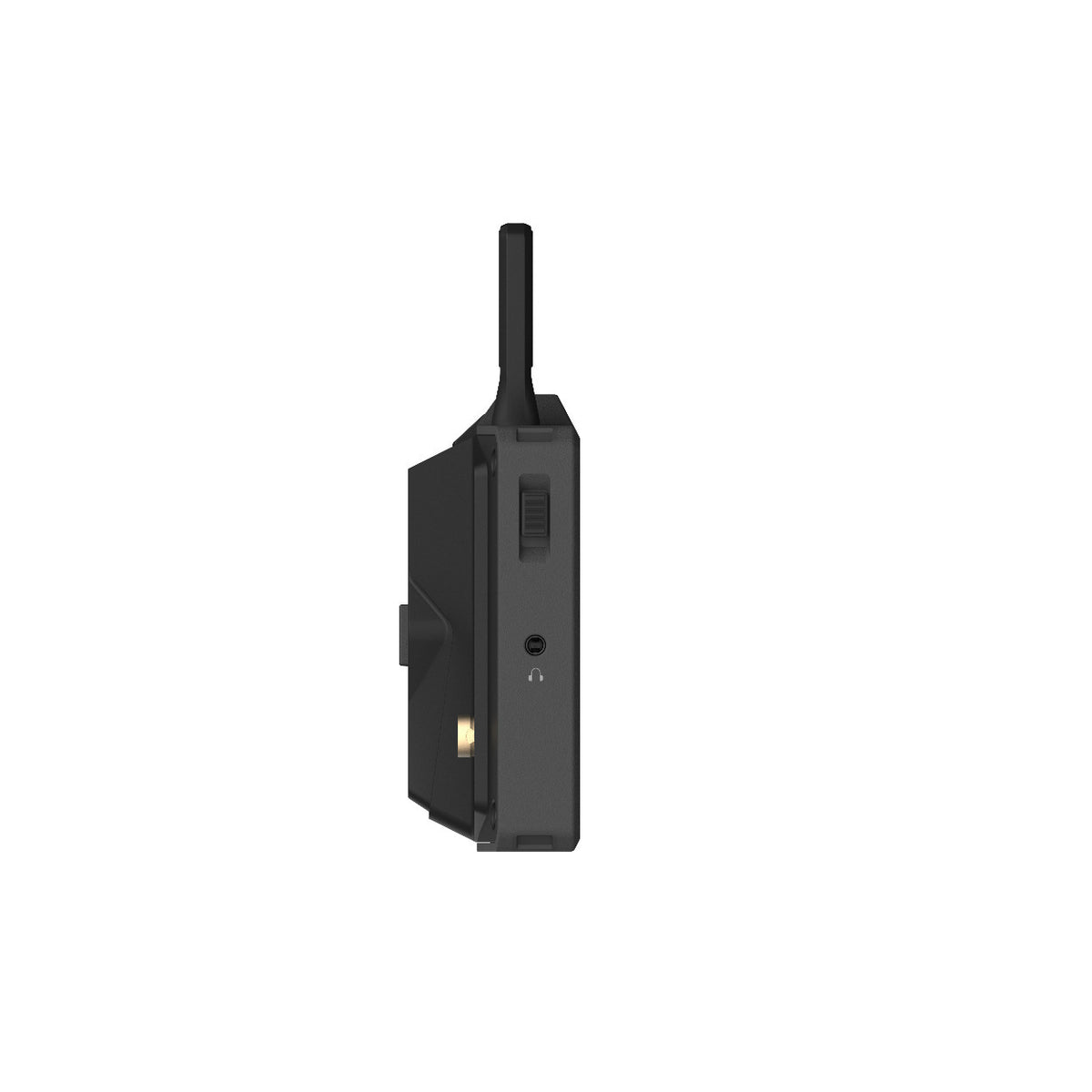

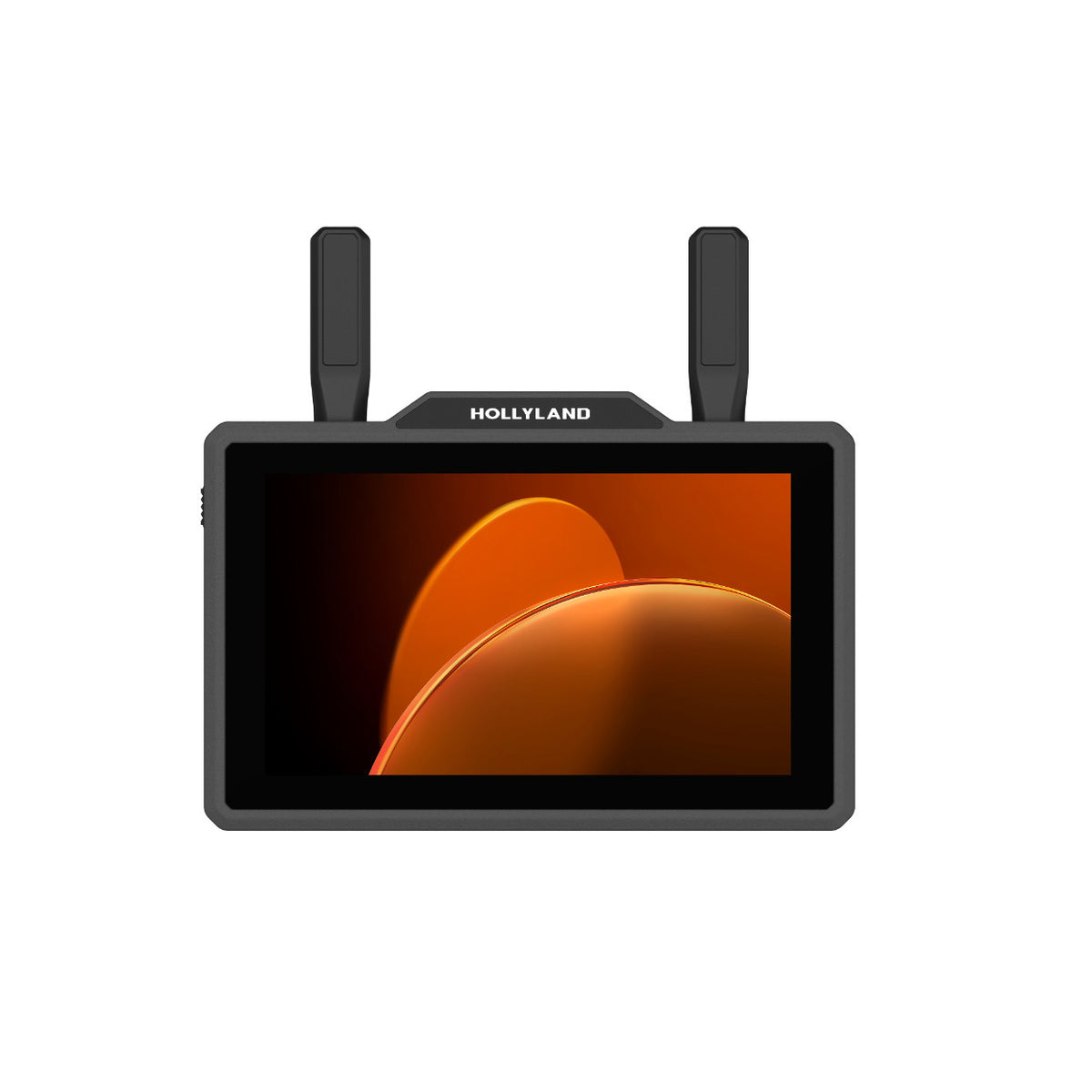

Hollyland Pyro 5 Wireless Transceiving Monitor with Dual Band Transmission and Multi Cam Switching
Pyro 5 is a 5.5-inch wireless monitor designed for do-it-all performance. With dual-band transmission, 4-way monitoring via Broadcast Mode, direct camera control, smart channel selection, and a 1500-nit daylight-viewable screen, it combines multiple functions into one compact tool. Proxy recording, real-time overlays, and RTMP live streaming make Pyro 5 more than just a monitor-it's your multitasking hub on set, built to simplify and speed up every step of production.
Shoot.Sync.Share.
Pyro 5 is a 5.5-inch wireless monitor designed for flexible on-set collaboration. Powered by cutting-edge Wi-Fi-Broadcast technology, it allows one transmitter to connect with up to four receivers while maintaining stable, real-time video transmission.
Broadcast Mode
In Broadcast Mode, one transmitter connects to up to four receivers with camera views switching and auto frequency hopping. Ideal for multi-cam setups, it delivers stable performance at up to 200m line-of-sight or 100m back-to-back. Pyro 5 still supports one-to-four transmission even when Broadcast Mode is off. At the same time, it offers a more extended range, up to 400m line-of-sight and 150m back-to-back.
Dual-Band Stronger Signal. Smoother Feeds.
Built with a dual-band 2.4G/5G transmission system, Pyro 5 automatically adapts to changing environments, delivering robust, interference-resistant video even in signal-heavy locations.
Direct Camera Control. Just a Tap Away.
With the 5.5-inch touchscreen, Pyro 5 enables direct adjustments to shutter speed, aperture, focus, focus mode, white balance, and ISO, offering dynamic control over your camera's settings. It enables direct adjustments to shutter speed, aperture, focus, and focus mode. white balance, and ISO, offering dynamic control over your camera's settings.
Multi-Cam Switching.
Pyro 5 supports switching between camera groups, keeping up with fast-paced live productions.
Lock Pairing
When multiple Pyro systems are in use, Lock Pairing ensures each receiver stays securely connected to its original transmitter-no signal mix-ups.
Auto Frequency Hopping
Pyro 5 is equipped with Auto Frequency Hopping technology, which constantly scans and monitors the strength of the signal and interference across various frequency ranges to find the best wireless channel to use, resulting in a more reliable connection.

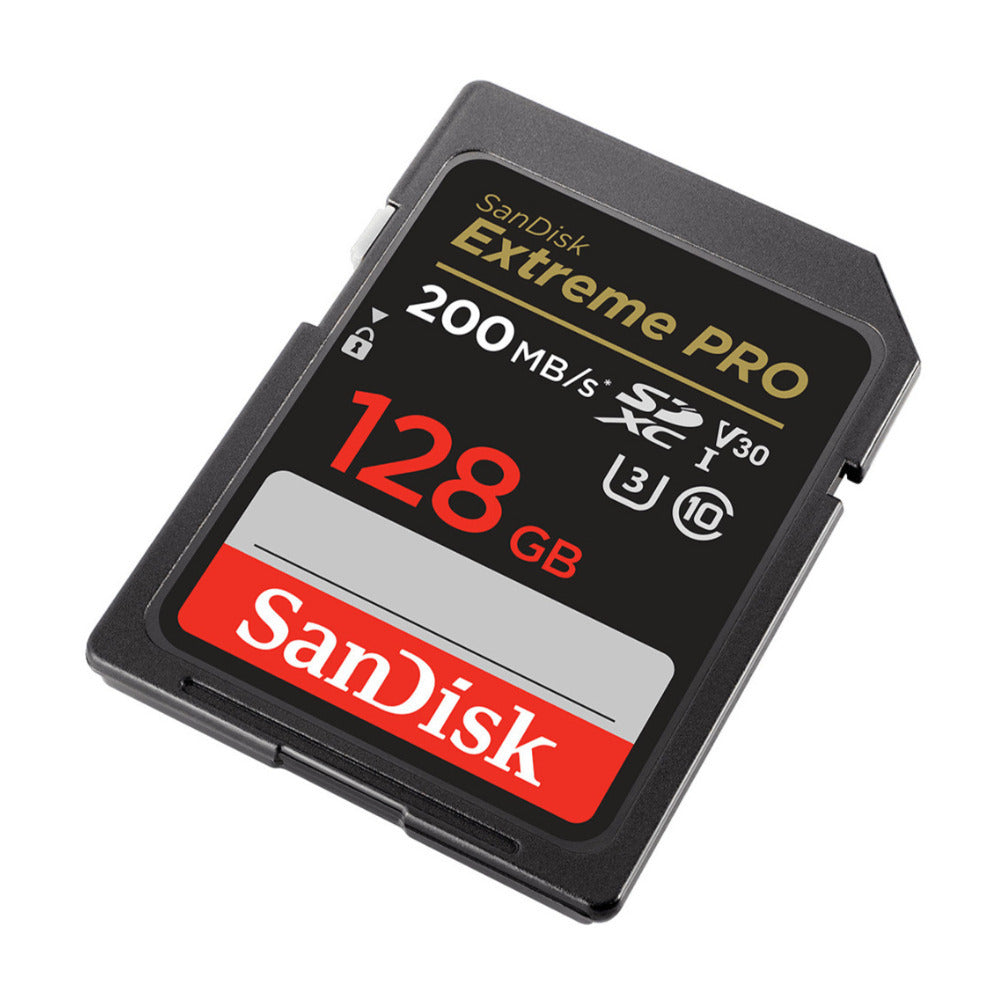

SanDisk 128GB Extreme PRO 200MB/s SDXC UHS-I Memory Card
The SanDisk Extreme PRO SD UHS-I Memory Card delivers up to 200MB/s transfer and 140MB/s shot speeds with QuickFlow Technology, U3 and V30 ratings for 4K UHD video and burst shooting, temperature, water, shock, and X-ray resistance, plus a 2-year RescuePRO Deluxe data recovery software offer.

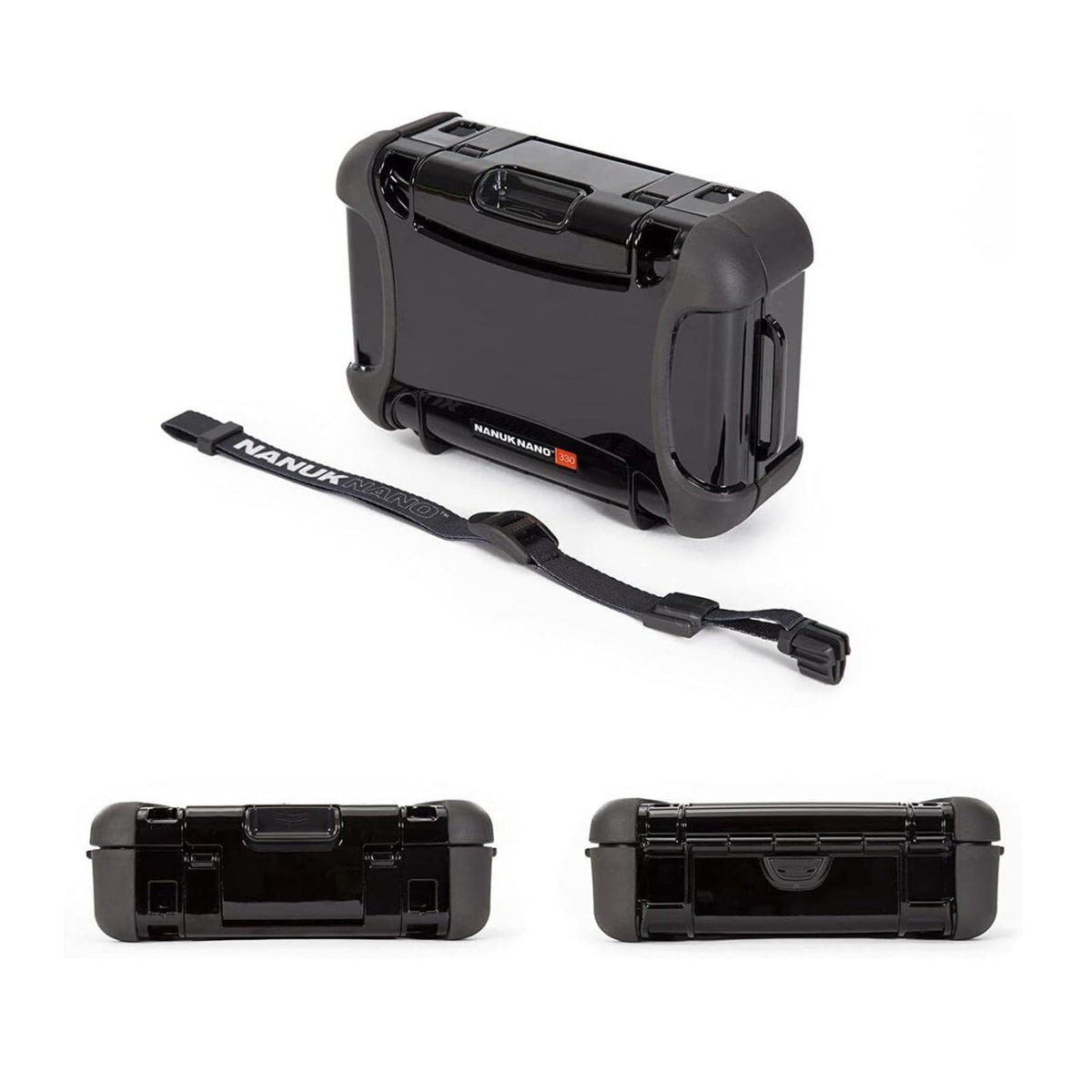

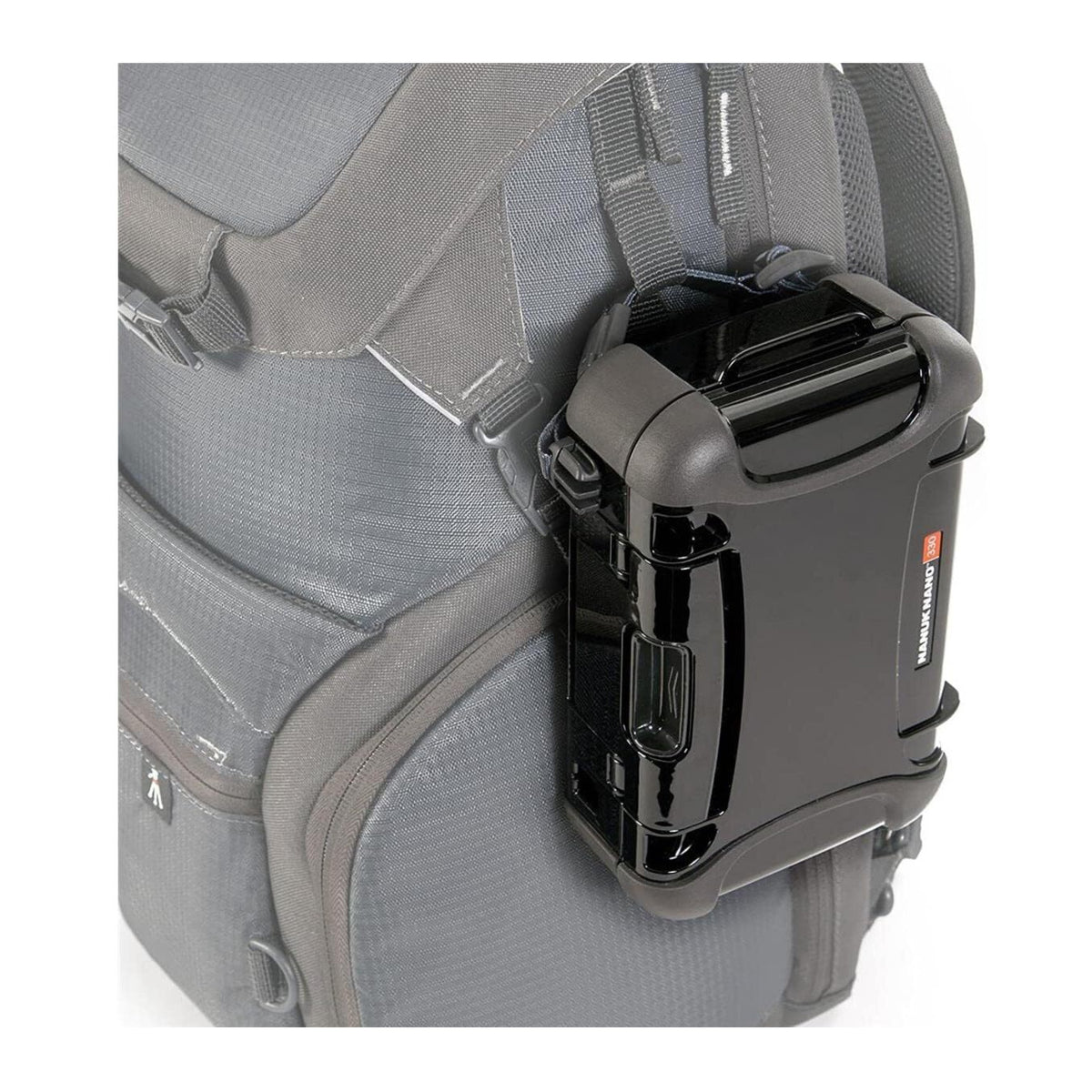

NANUK 320 Nano Series Large Ultra Resistant Waterproof Polycarbonate Hard Protective Case (Black)
The NANUK Nano Series 320 Protective Case features a durable polycarbonate shell, patented PowerClaw latching system with slide lock, IP65 dust and water jet protection, protective interior webbing, rubberized lining, Santoprene bumpers, NANUKNANO SmartStrap with quick release, and six attachment points for secure, flexible carrying and storage.

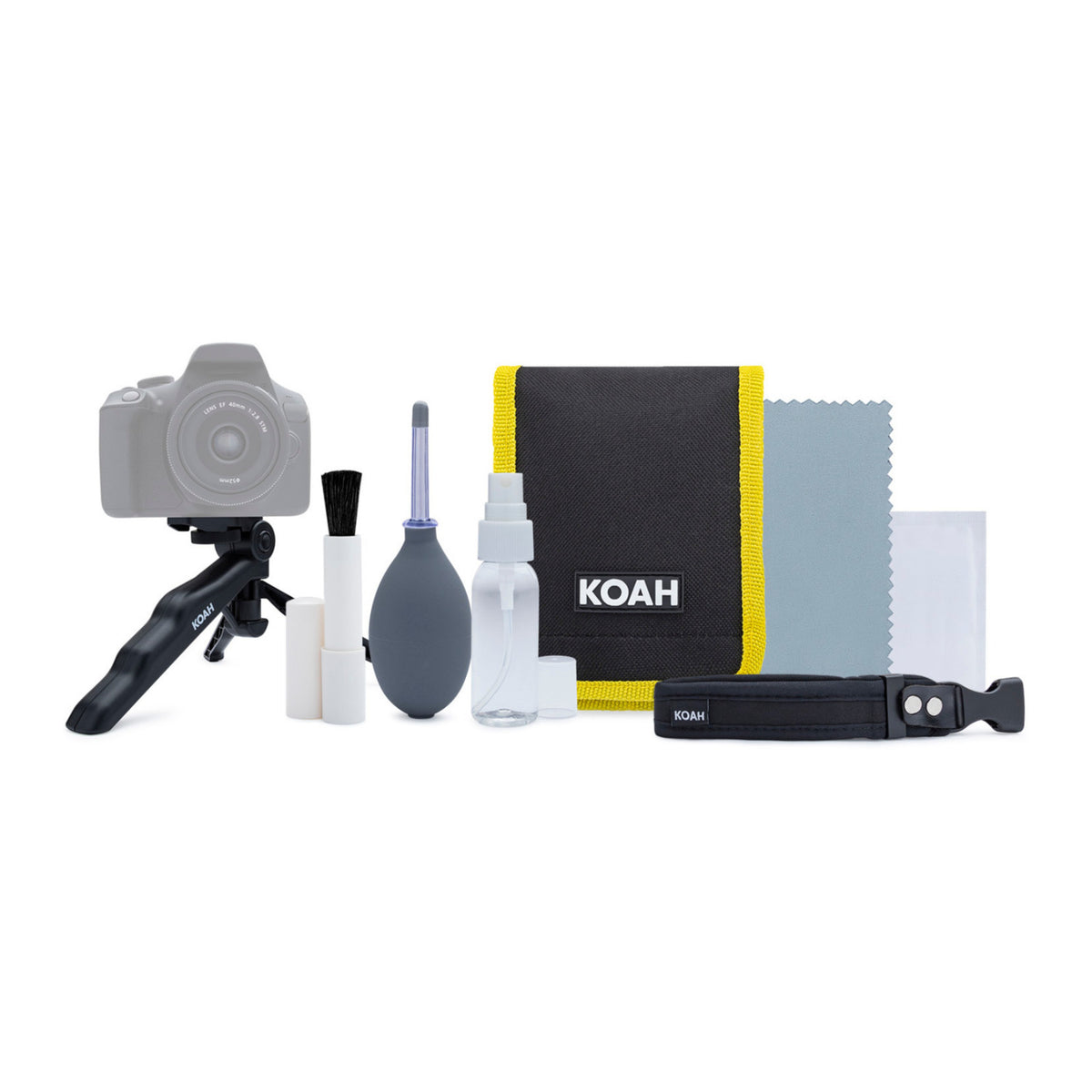

Koah Photography Cleaning Kit
The Koah Photography Cleaning Kit includes a compact tripod that doubles as a hand grip with a universal screw mount, reusable washable microfiber lens cloth, rubber bulb air blower for lenses and sensors, wrist straps for a secure camera grip, residue free lens cleaning spray for coated optics, individually sealed cleaning wipes, a fine bristle brush for hard to reach areas, and a nylon carrying pouch with hook and loop closure for organized storage.
Hollyland Pyro 5 Wireless Transceiving Monitor with Dual Band Transmission and Multi Cam Switching
Input Port
| Transmitter Mode | HDMI 1.4b + 3G SDI |
| Receiver Mode | / |
Output Port
| Transmitter Mode | Loop-Out HDMI 1.4b |
| Receiver Mode | HDMI 1.4b |
Audio-Video Parameters
| Transmitter Mode | Color Depth Capability |
| Transmitter Mode | Input Audio Format |
| Transmitter Mode | Output Audio Format |
| Receiver Mode | HDMI Input: YUV422/YUV444 8BIT |
| Receiver Mode | HDMI 1.4b 8-Channel |
Antenna
| SMA Male |
Power Input
| DC Input (2.0mm coro socket) |
Headphone Jack
| 3.5mm |
Upgrade Port
| USB-C (USB 2.0 CTG) / SD Card Slot |
Screen Size
| 5.5in Touchscreen |
Screen Resolution
| 1920x1080 Pixels |
Color Gamut
| Rec.709 |
Aspect Ratio
| 16 | 9 |
Screen Brightness
| 1,500 nits |
Contrast Ratio
| 1000-1 |
Power Input Voltage
| NPF | 6V-16V |
| DC-in | 10-18V DC |
Video Processing Technology
| Transmitter Mode | Vidco Bitrate |
| Transmitter Mode | Video Encoding Format |
| Receiver Mode | Maximum 12 Mbps |
| Receiver Mode | H.264 |
Power Consumption
| Transmitter <14W | |
| Receiver Mode | <16.5W |
Net Weigh
| 538g (1902) |
Dimensions
| (LxWx) | 180x127x45.8mm |
Operating Frequency
| 5.150-5.250GHz | |
| 2412-2.484GH2 | |
| 5.250-5.350GHz | |
| 5.470-5.600GHz | |
| 5.600-5.725GHz | |
| 5.725-5.850GHz |
Transmit Power
| Transmitter Mode | < 23dBm |
Receiver Sensitivity
| Receiver Mode | Unicast: -85dBm; Broadcast: -80dBm |
Transmission Latency
| =60ms (Tested in a laboratory environment with 1080P60 signal transmission) |
Bandwidth
| Unicast | 20 MHz Broadcast: 40 MHz |
Operating Temperature
| -10°C - 45°C |
Storage Temperature
| -40°C - 60°C |
SanDisk 128GB Extreme PRO 200MB/s SDXC UHS-I Memory Card
| Storage capacity | 128GB |
| Form factor | SDXC |
| Performance |
|
| Compatibility |
|
| Security | Built-in write-protect switch prevents accidental data loss |
| Applications | Store a variety of digital formats, including RAW and JPEG photos, high-definition videos, music, and more |
| Added protection | RescuePRO Deluxe data recovery software offers |
| Operating temperature | -13 to 185-degree-F (-25 to 85-degree-C) |
| Storage temperature | -40 to 185-degree-F (-40 to 85-degree-C |
| Card dimensions | 0.94 x 1.25 x 0.08 inch (24 x 32 x 21mm) |
NANUK 320 Nano Series Large Ultra Resistant Waterproof Polycarbonate Hard Protective Case (Black)
| Product Type | Waterproof hard protective case |
| Exterior Material | Ultra-resistant polycarbonate |
| Interior Material | Rubberized lining with flexible web organizer |
| Water and Dust Rating | IP65 |
| Latch Type | Patented PowerClaw system with safety slide lock |
| Impact Protection | Shock-resistant molded shell with rubber bumpers |
| Carrying Options | SmartStrap compatible with quick-release attachment |
| Ideal For | Cash, cards, keys, small tools, and everyday essentials |
| Dimensions | |
|
Koah Photography Cleaning Kit
| Includes |
|
| Application | Photo-optics, display screens and eyeglasses |
