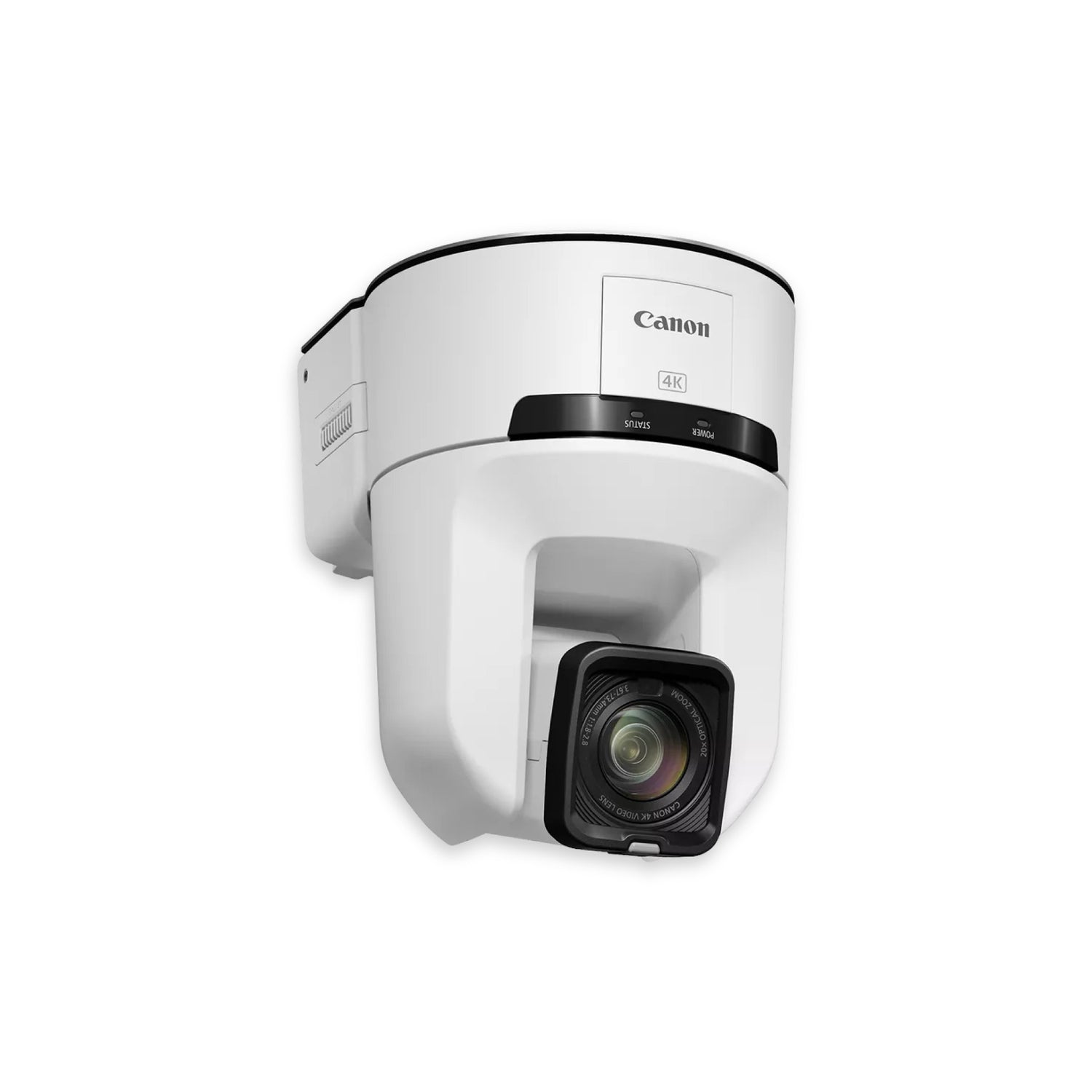

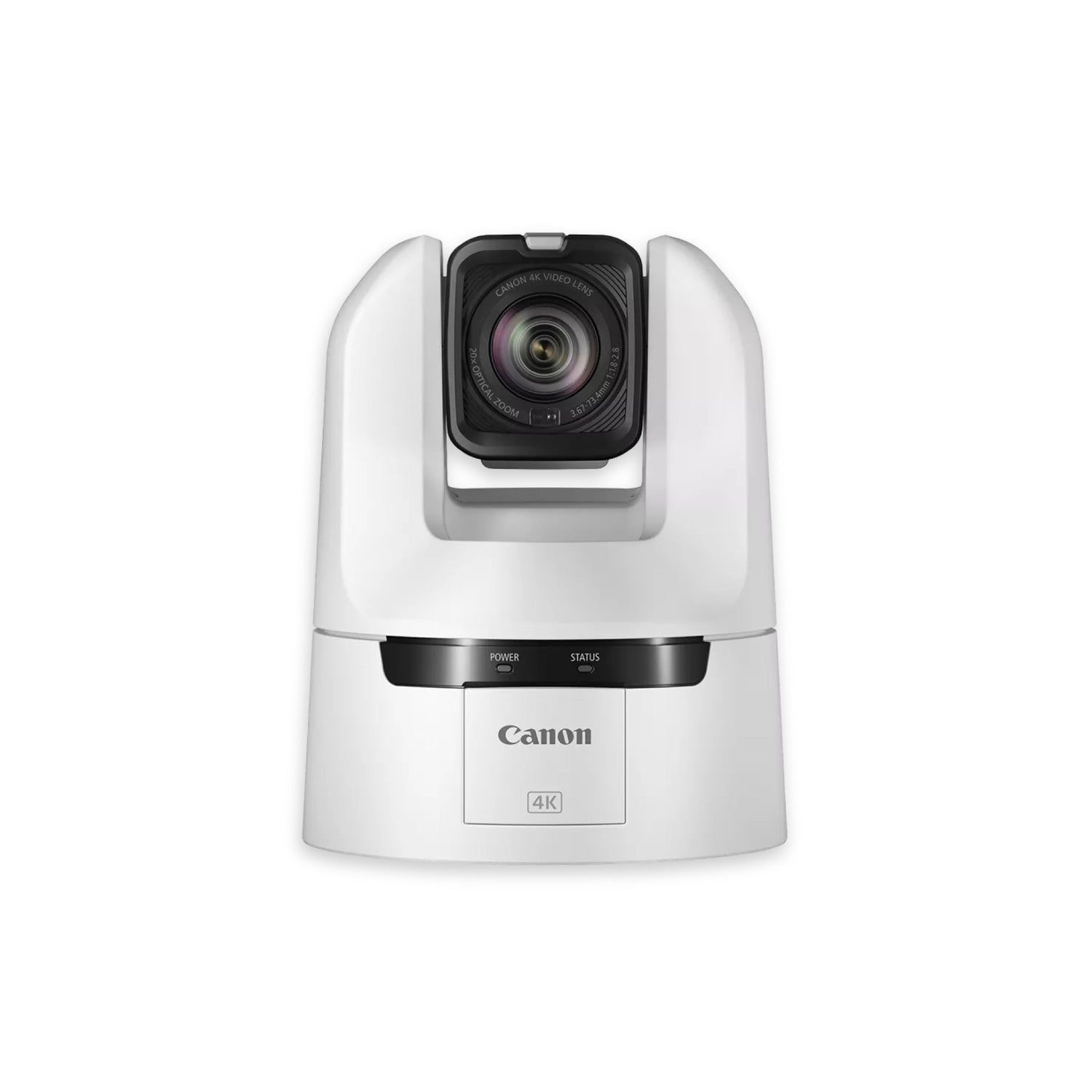

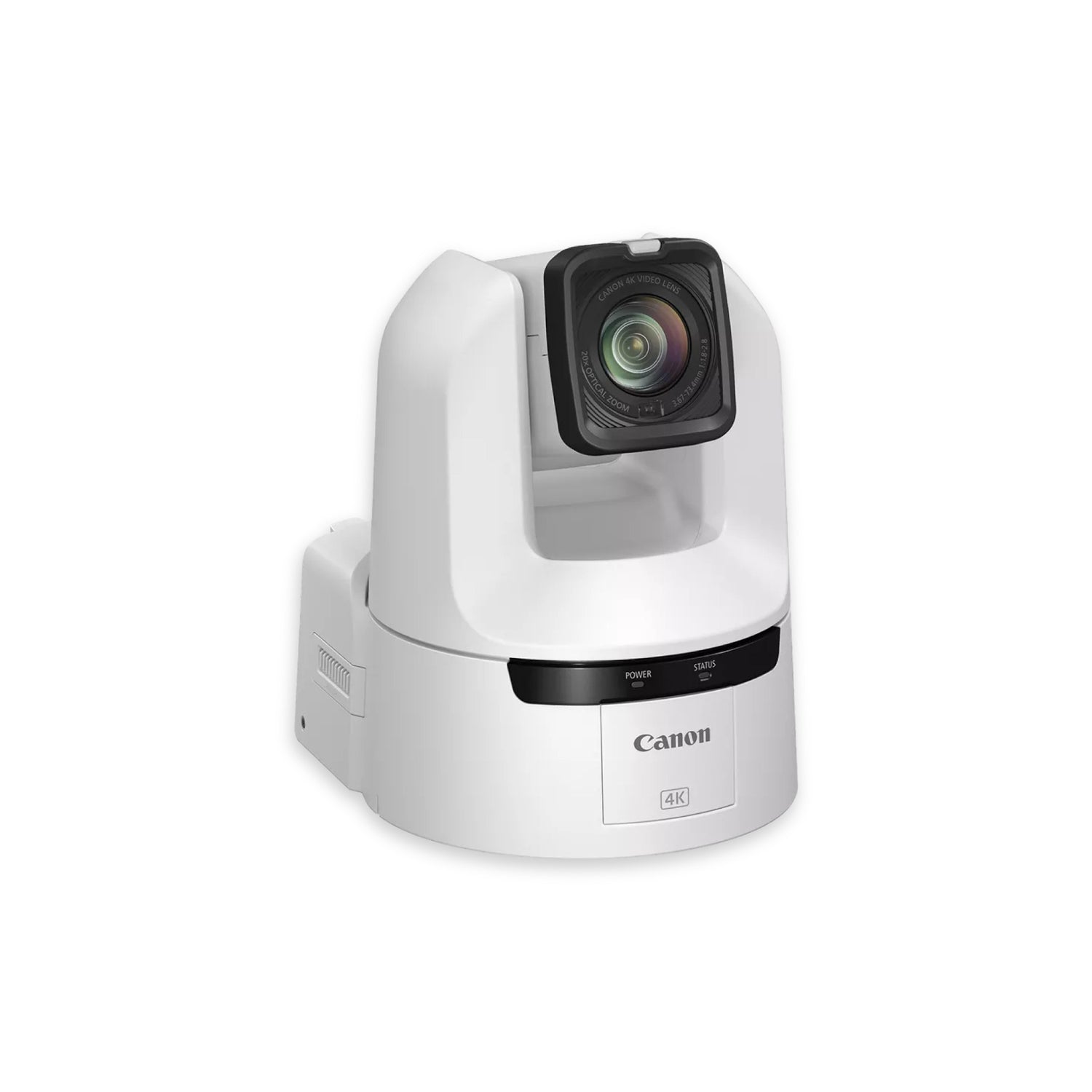

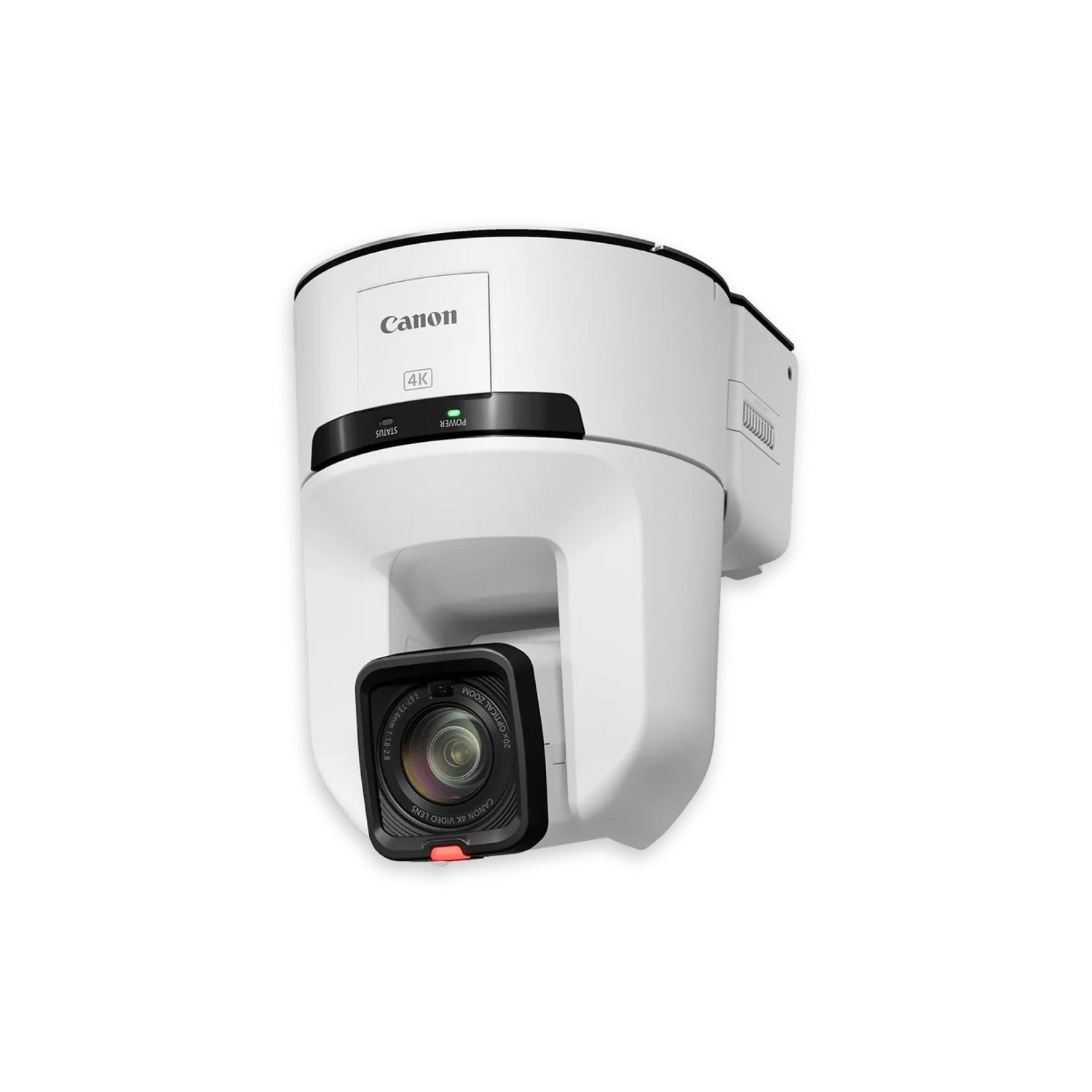

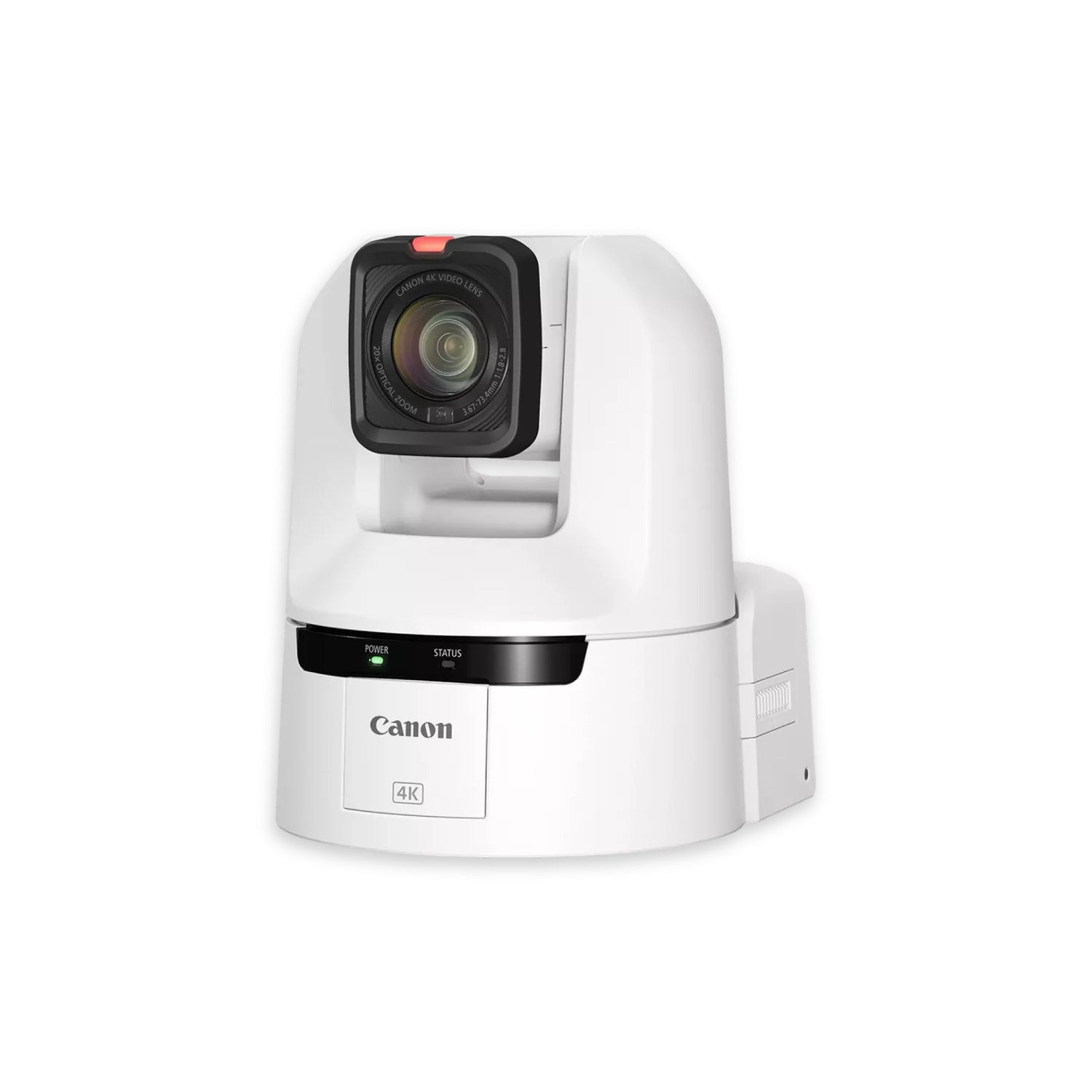

Canon CR-N400 4K 12G-SDI NDI PTZ Camera with 20x Optical Zoom (Titanium White)
Product highlights
Product highlights
In the box
In the box
Free standard shipping
Free standard shipping
*Orders placed before 1 PM EST Mon - Thur will ship the same day. Orders placed beyond these hours will be shipped the next business day. Exclusions apply. See shipping policy
Free Local Pickup
Free Local Pickup
Please call for store stock availability. Requests made before 2:30 PM EST can be available for next-day pickup. Learn more
Canon's CR-N400 PTZ camera produces outstanding image quality and is equipped with powerful features and functions to be utilized in many industries including House of Worship, Education, Broadcast, Corporate, Events and more.
The CR-N400 PTZ camera produces incredible 4K and HD image quality with the combination of a 1/2.3" CMOS sensor and the DIGIC DV 7 image processor. This camera incorporates a Canon 4K lens that exhibits a 20x optical zoom ratio that maintains a high level of precision throughout the zoom range. The CR-N400 can also provide 40x Advanced Zoom when in Full HD. On-air pan and tilt movement is possible thanks to the smooth and responsive pan and tilt mechanism equipped with the CR-N400.
The CR-N400 PTZ camera supports multiple professional interfaces, including single cable PoE++ connectivity, which allows you to use NDI® HX2 to stream audio and video, control (IP), tally, and power over a single cable. The camera supports other protocols, such as SRT, RTSP/RTP, as well as RTMP/RTMPS to stream to social sites such as Facebook Live and YouTube. Even better, the CR-N400 can be controlled remotely by IP, Serial, or IR. The camera supports multiple control standards, including Canon's XC protocol as well as Standard Protocol (serial and IP) for easy connectivity to a wide range of compatible 3rd party hardware controllers.
Camera
| Color | Titanium White |
| Image Sensor | 1/2.3-inch CMOS (single board) |
| Total Pixels | Approx. 21.14 MP |
| Effective Pixels | 3840 x 2160 ~8.29 MP (29.97/25/23.98 Hz), 3744 x 2104 ~7.88 MP (59.94/50 Hz) |
| Lens | f=3.67 – 73.4 mm, F/1.8 – 2.8, 20x optical zoom, 8-bladed iris diaphragm |
| 35mm Equivalent Focal Length | Approx. 30mm (W) – 616 mm (T) @59.94/50 Hz; Approx. 29.3mm (W) – 601 mm (T) @29.97/25/23.98 Hz |
| Zoom | Optical: 20x, Digital: 20x, Advanced Full HD Zoom: 40x |
| Lens Configuration | 10 groups of 12 lenses (2 aspherical) |
| Minimum Focusing Distance | 1 cm at wide end, 60 cm across zoom range |
| Angle of View | Horizontal: 63.3° (W) – 3.5° (T), Vertical: 38.9° (W) – 2.0° (T) @59.94/50 Hz; Horizontal: 65.6° (W) – 3.6° (T), Vertical: 39.8° (W) – 2.0° (T) @29.97/25/23.98 Hz |
| Shutter Speed | 1/3 – 1/2000 sec |
| Iris | Manual/Automatic aperture |
| Gain | 0.0 dB – 36.0 dB |
| ND Filter | Built-in (motor operated) |
| White Balance | AUTO, Set A/B, Presets (5600K/3200K), Custom 2000K–15000K, Manual |
| Focus | Manual, Continuous AF, Face/Eye Detection, Hybrid AF, Contrast AF |
| Gamma | BT.709 Wide DR, BT.709 Standard, Canon Log 3, Canon 709, HDR (PQ/HLG) |
| Image Stabilizer | Optical |
| Min. Subject Illumination | 1.3–3 lux depending on frame rate and shutter |
| Pan & Tilt | Pan: ±170°, Tilt: -30° to +90°, Speed 0.1–100°/sec (up to 200°/180° with presets) |
Video Output Format
| 3G-SDI | 1920x1080 59.94P/59.94i/50P/50i/29.97P/25P/23.98P 4:2:2 10bit; 1280x720 59.94p/50P 4:2:2 10bit |
| 12G-SDI | 3840x2160 59.94P/50P/29.97P/25P/23.98P 4:2:2 10bit; 1920x1080 same; 1280x720 same; 720x576 50i; 720x480 59.94i |
| HDMI | 3840x2160 / 1920x1080 / 1280x720 / 720x576 / 720x480 (4:2:2 10bit) |
| IP | 3840x2160 to 640x360 multiple fps (4:2:0 8bit) |
| Supported Protocols | XC, RTSP/RTP, NDI HX2, RTMP/RTMPS, Serial/IP, FreeD, SRT |
| Number of Presets | Max. 100 (including home position) |

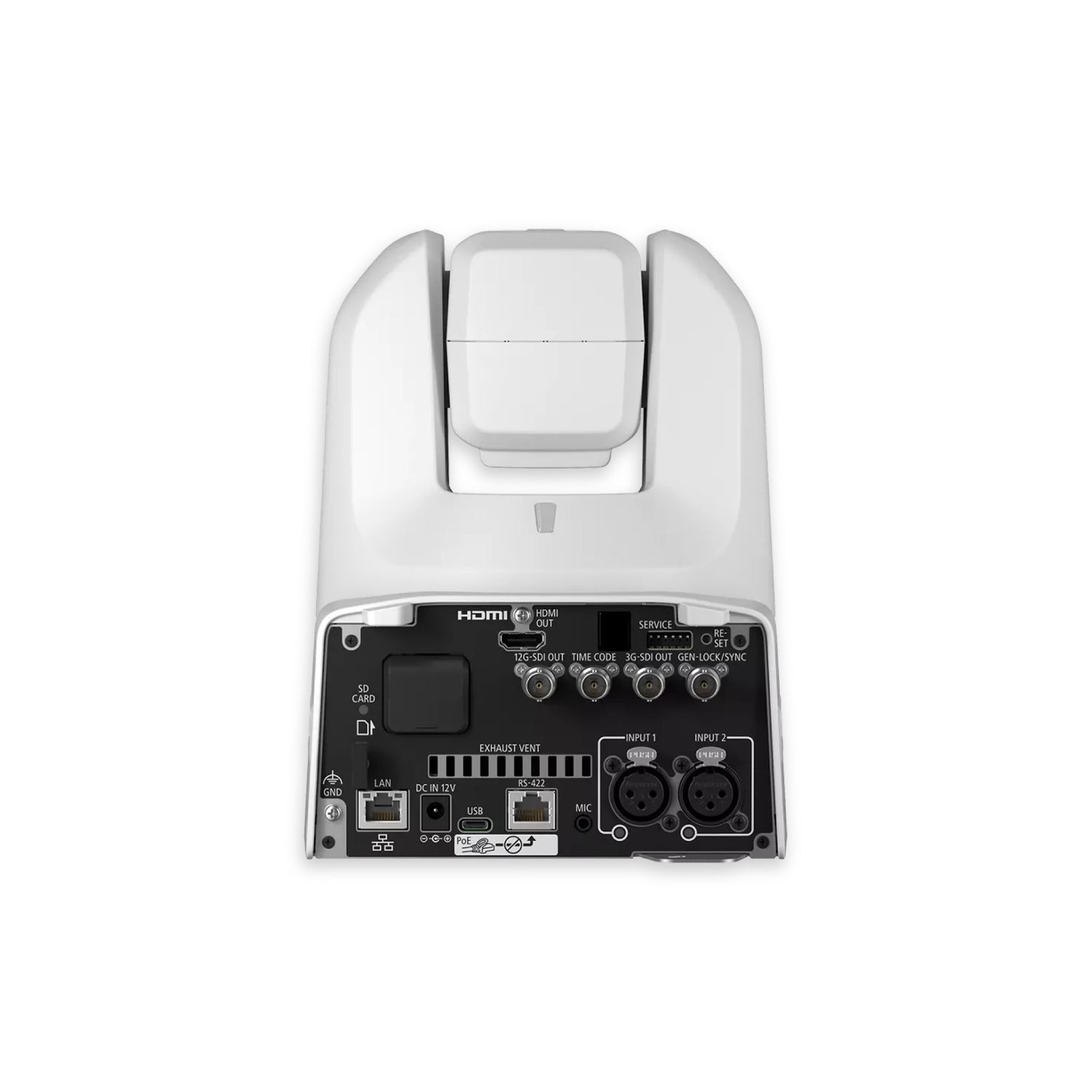

Interface
| Communication Control | LAN, Wi-Fi, Serial, IR, USB |
| Network Terminal | LAN x1, RJ45, 1000Base-T |
| 12G/3G-SDI OUT Terminal | BNC x1 each, 0.8 Vp-p/75Ω |
| GEN-LOCK Terminal | BNC x1, 1.0 Vp-p/75Ω |
| Time Code Terminal | BNC x1, 1.3 Vp-p/50Ω |
| HDMI OUT Terminal | HDMI x1 |
| RS-422 Terminal | RJ45 x1 |
| Audio Input 1 / 2 Terminals | 3-pin jack, balanced |
| Sensitivity (MIC/LINE) | MIC: -60 dBu/-72 dBV, LINE: +4 dBu/-12 dBV |
| Supply Voltage | MIC: 48V DC, LINE: 2.4V DC |
| Media Slot | SD Card x1 (future expansion, recording unavailable) |
Other
| Operating Environment | 0°C – 40°C, Humidity 10% – 90% (no condensation) |
| Storage Environment | 0°C – 40°C, Humidity 10% – 90% (no condensation) |
| Power Supply | PoE++ via LAN, External 12 V DC |
| Power Consumption | PoE++: 34.4 W max, DC Input: 33.8 W max |
| Quietness | NC35 or lower |
| Dimensions (W x H x D) | 176 x 220 x 194 mm (6.93 x 8.66 x 7.64 in.) excluding protrusions |
| Weight | Approx. 3.1 kg (6.8 lb) body only |
| Supported Controllers | Hardware: RC-IP100, RC-IP1000; Software: Remote Camera Control App, Multi-Camera Control & Management App, Camera Search Tool |
