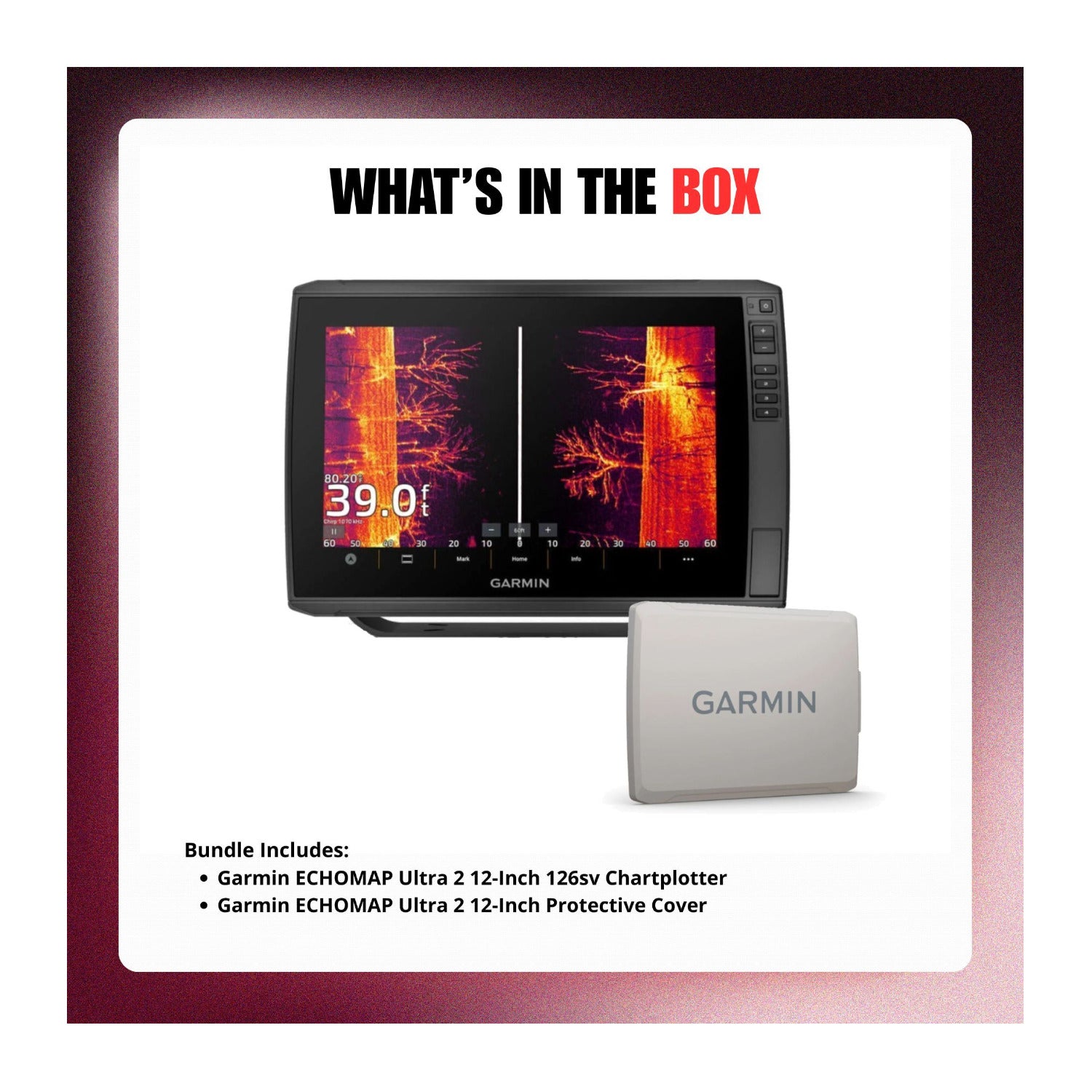

In the box
In the box
Free standard shipping
Free standard shipping
*Orders placed before 1 PM EST Mon - Thur will ship the same day. Orders placed beyond these hours will be shipped the next business day. Exclusions apply. See shipping policy
Free Local Pickup
Free Local Pickup
Please call for store stock availability. Requests made before 2:30 PM EST can be available for next-day pickup. Learn more

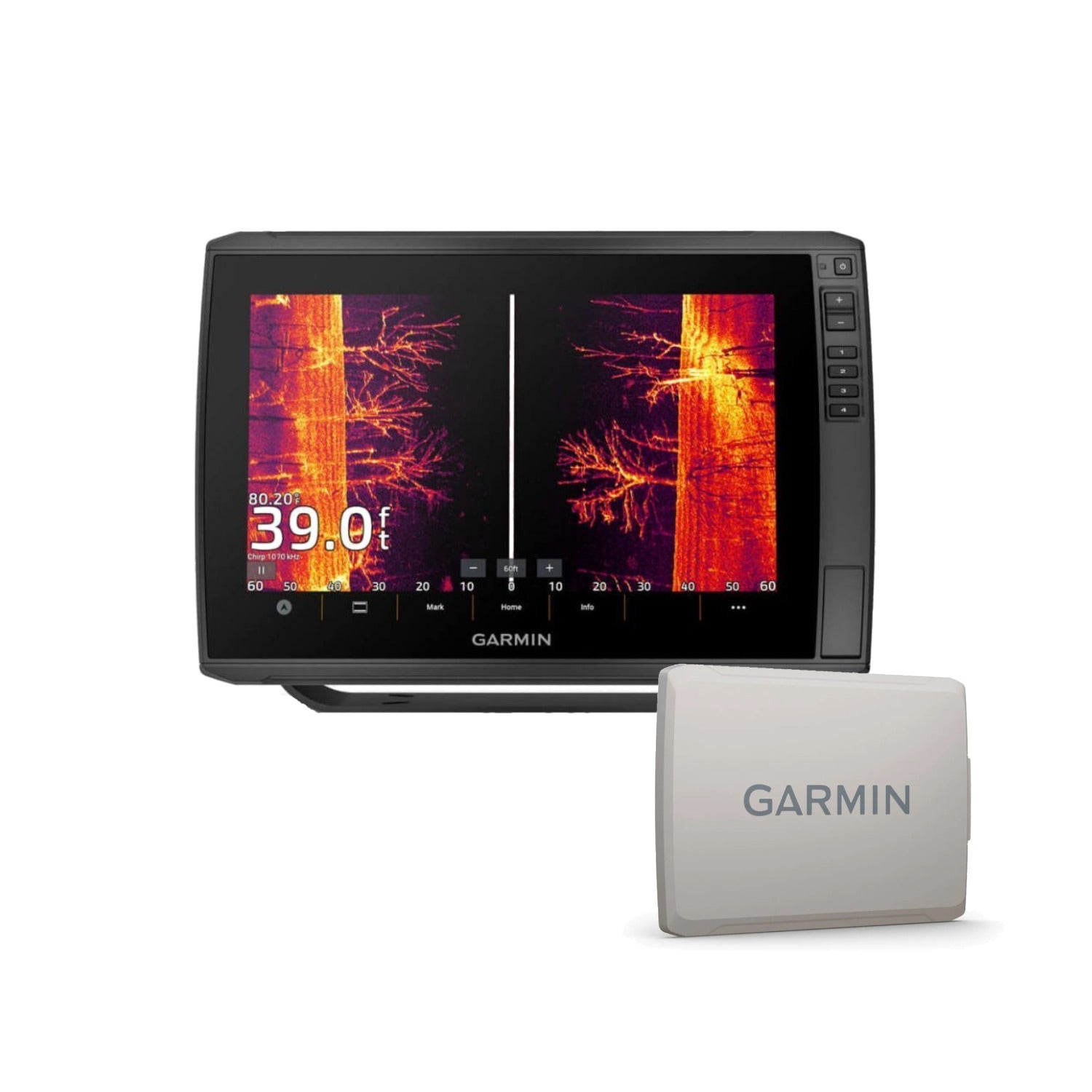

Garmin ECHOMAP Ultra 2 126sv Chartplotter w/o Transducer with Cover...

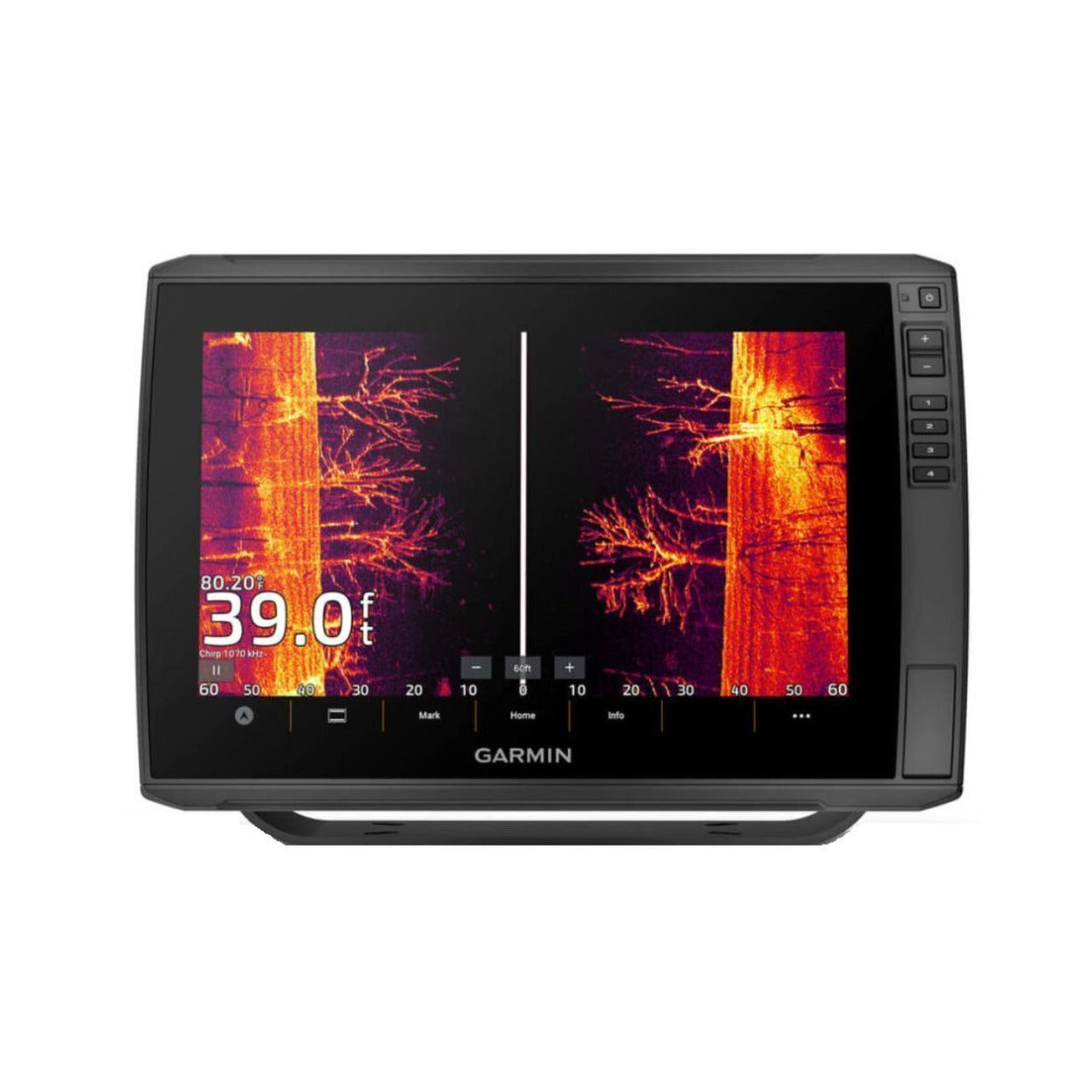

Garmin ECHOMAP Ultra 2 12-Inch 126sv Chartplotter with Navionics Plus Mapping (Black)
With big, crisp, sunlight-readable touchscreen displays, the Garmin ECHOMAP Ultra 2 12-Inch Chartplotter in Black puts a world of fishfinding capability at your fingertips. They’re available with built-in Garmin Navionics Plus mapping.
Features

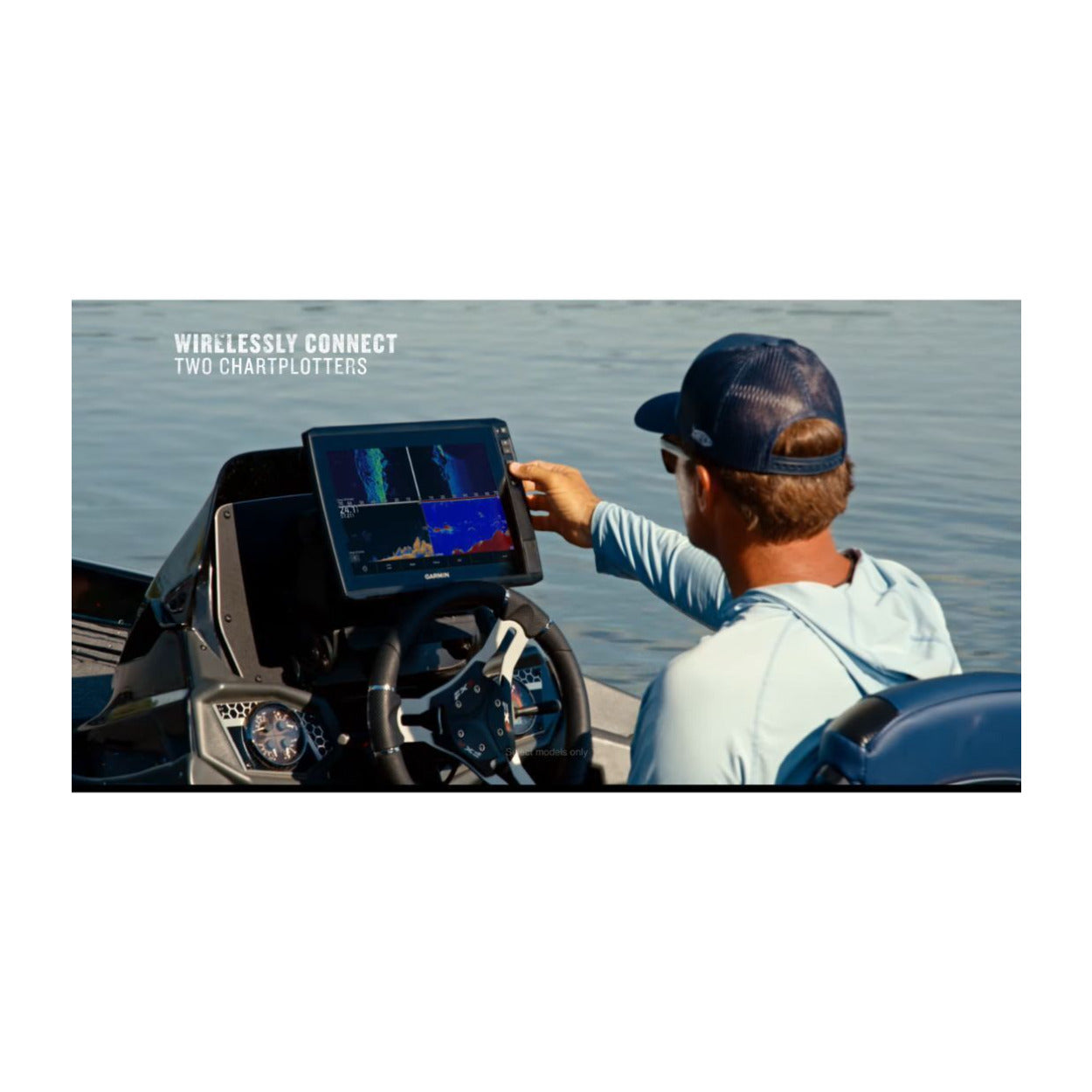

The ECHOMAP Ultra 2 series supports the full lineup of LiveScope live-scanning sonar products (transducers sold separately). High-contrast vivid scanning sonar color palettes make it easier than ever to distinguish targets and structure. Experience unparalleled coverage and detail. This model comes with built-in Garmin Navionics Plus mapping, which includes a 1-year subscription for daily updates, depth range shading, and more. Bring a fresh new look and feel to your chartplotter with Garmin Navionics Vision Plus premium mapping (sold separately), featuring high-resolution relief shading, satellite imagery, and more. If you have another compatible ECHOMAP Ultra 2 or ECHOMAP UHD2 chartplotter on your boat, you can wirelessly share information, such as sonar, waypoints, and routes, with them.
Stay Connected

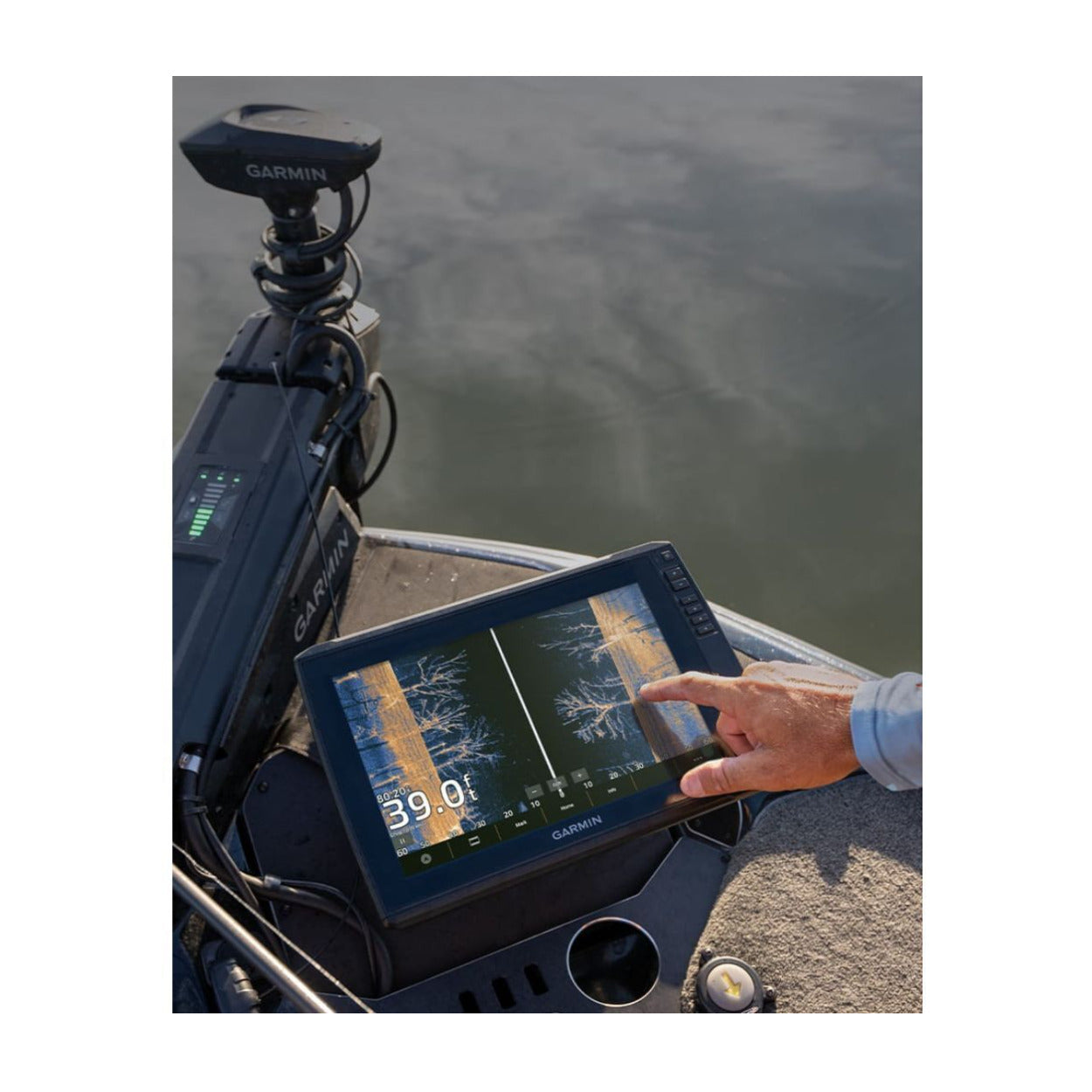

Get improved position accuracy with multi-band GPS. With NMEA 2000 network compatibility, connect to heading sensors, autopilots, Fusion-Link audio systems, and more. Pair with the free smart-device ActiveCaptain app for software updates, screen recording, Garmin Quickdraw Community data, and more. Wirelessly connect to your Force trolling motor to navigate to waypoints, draw and follow routes, and more. The quick-disconnect bail mount lets you quickly install and remove your unit.

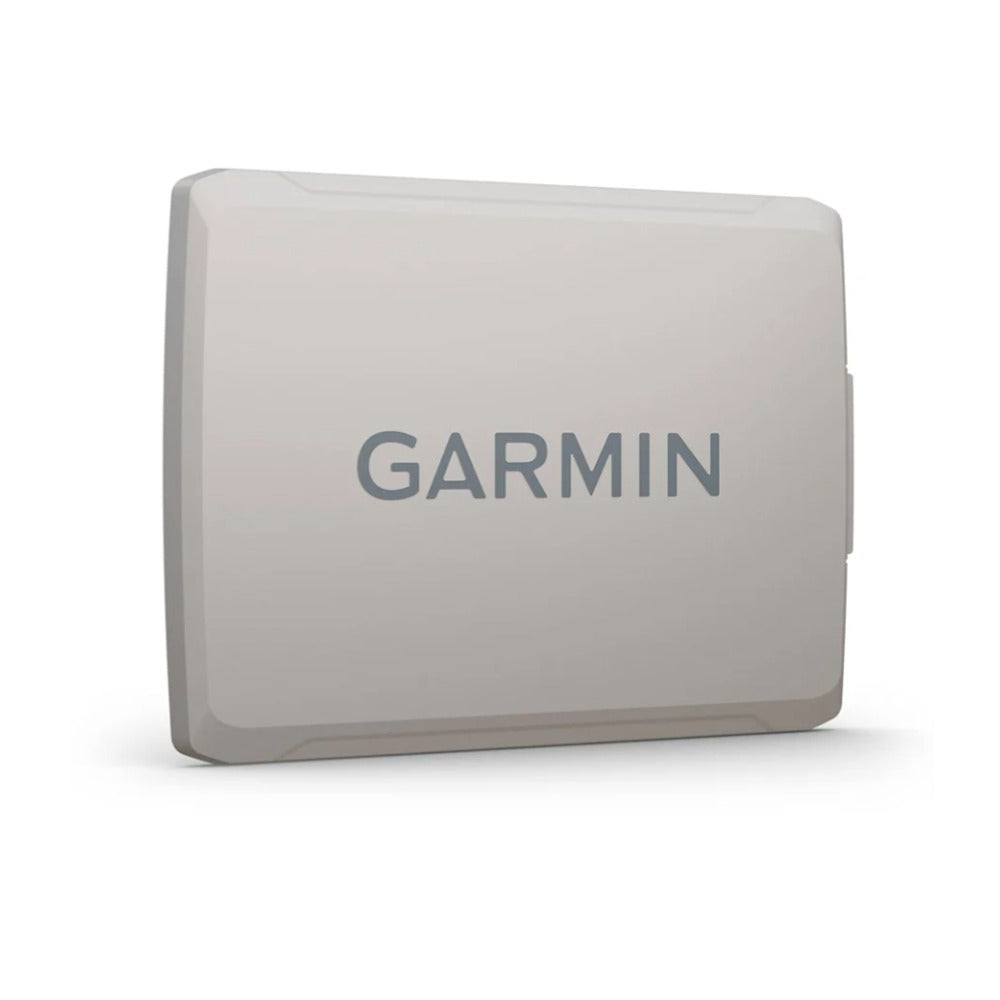

Garmin ECHOMAP Ultra 2 12-Inch Protective Cover
Protect your Garmin ECHOMAP Ultra 2 using this protective cover from harsh marine conditions when not in use. Designed to help shield your 12-inch ECHOMAP Ultra 2 unit from dust, UV exposure, salt, and moisture.

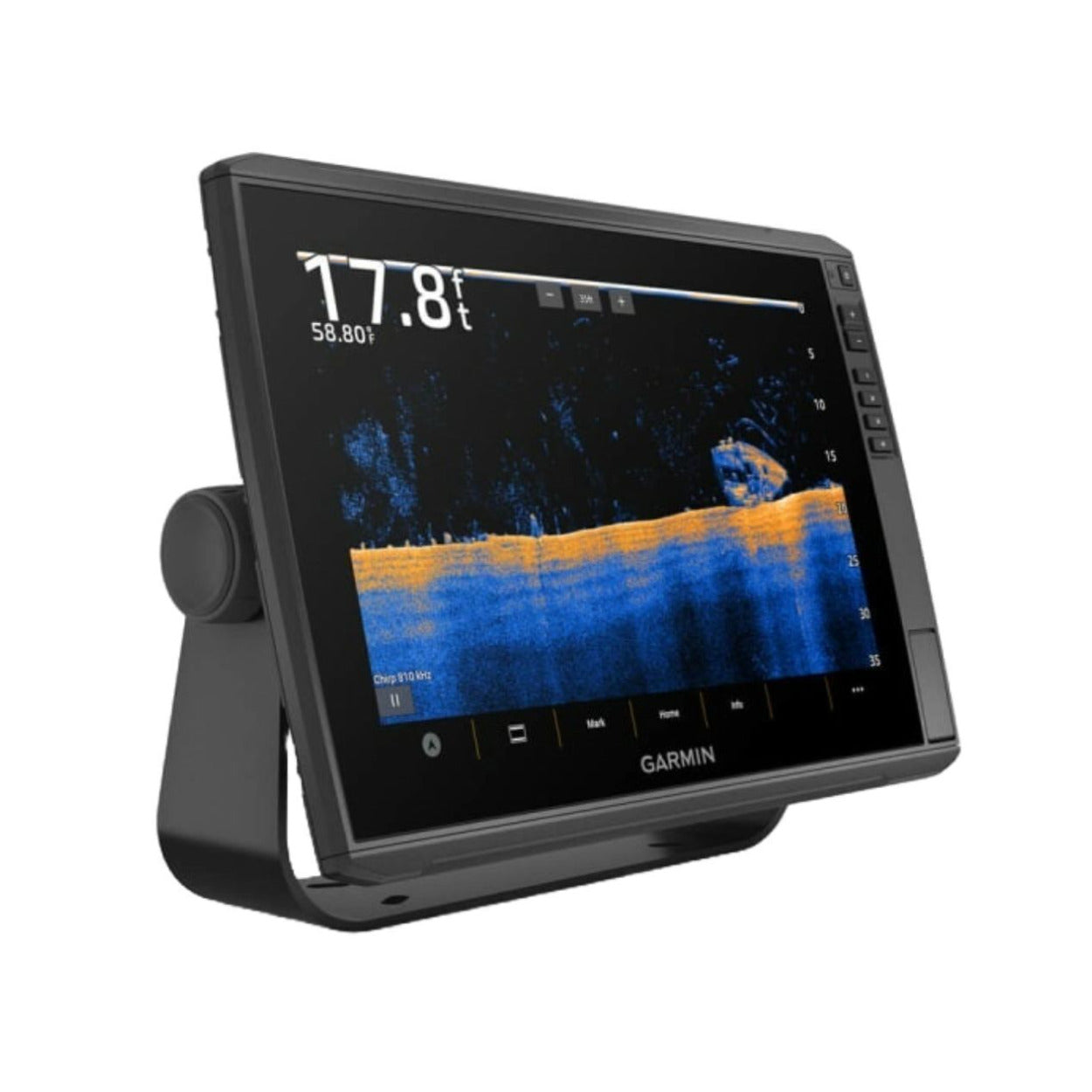

Garmin ECHOMAP Ultra 2 12-Inch 126sv Chartplotter (Black)
General
| Dimensions | 13.4 x 9.0 x 3.9 inches (34.1 x 22.9 x 9.8 cm) |
| Weight | 5.5 lbs (2.5 kg) |
| Water Rating | IPX7 |
| Touchscreen | Yes |
| Display Type | WXGA, IPS |
| Display Size | 10.3 x 6.4; 12.1 inches diagonal (26.1 x 16.3 cm) |
| Display Resolution | 1280 x 800 pixels |
| Mounting Options | Bail or flush |
| User Input | Touchscreen with keyed assist |
Maps & Memory
| Data Card Slots | 2 microSD cards |
| Waypoints | 5,000 |
| Track Points | 50,000 |
| Saved Tracks | 50 |
| Navigation Routes | 100 |
Sensors
| Satellite Networks | GPS, GLONASS, Galileo, BeiDou |
| Internal Receiver | Yes |
| Receiver Speed | 10 Hz |
| Network Compatibility | NMEA 2000 compatible |
| WAAS Support | Yes |
| GPS Technology | Multi-band, multi-constellation GPS |
Built-in Maps
| Auto Guidance+ | Yes |
| Garmin Navionics+ | Inland & Coastal (126sv model) |
| Tide Tables | Yes (126sv model) |
Optional Map Support
| Compatible Maps | BlueChart g3, BlueChart g3 Vision, LakeVü g3, LakeVü g3 Ultra |
| Premium Maps | Garmin Navionics+, Garmin Navionics Vision+ |
| Land/Custom Mapping | TOPO 100K, Standard Mapping |
| User Mapping | Garmin Quickdraw Contours |
Chartplotter Features
| AIS Tracking | Yes |
| DSC Calling | Yes |
| Audio Integration | Supports Fusion-Link compatible radios |
| Mobile App Integration | ActiveCaptain compatible |
| Sailing Features | Yes |
Electrical Features
| Power Input | 9 to 18 Vdc |
| Typical Current Draw (12 Vdc) | 2.5 A |
| Maximum Current Draw (12 Vdc) | 5.0 A |
| Maximum Power Usage (10 Vdc) | 36 W |
Sonar Features
| Sonar Display | Yes |
| Power Output | 600 W |
| Traditional Sonar | Built-in single channel CHIRP (70/83/200 kHz, L, M, H CHIRP) |
| ClearVü Down-Scanning | Built-in 260/455/800/1000/1200 kHz |
| SideVü Side-Scanning | Built-in 260/455/800/1000/1200 kHz |
| Advanced Sonar Support | Panoptix sonar, LiveScope |

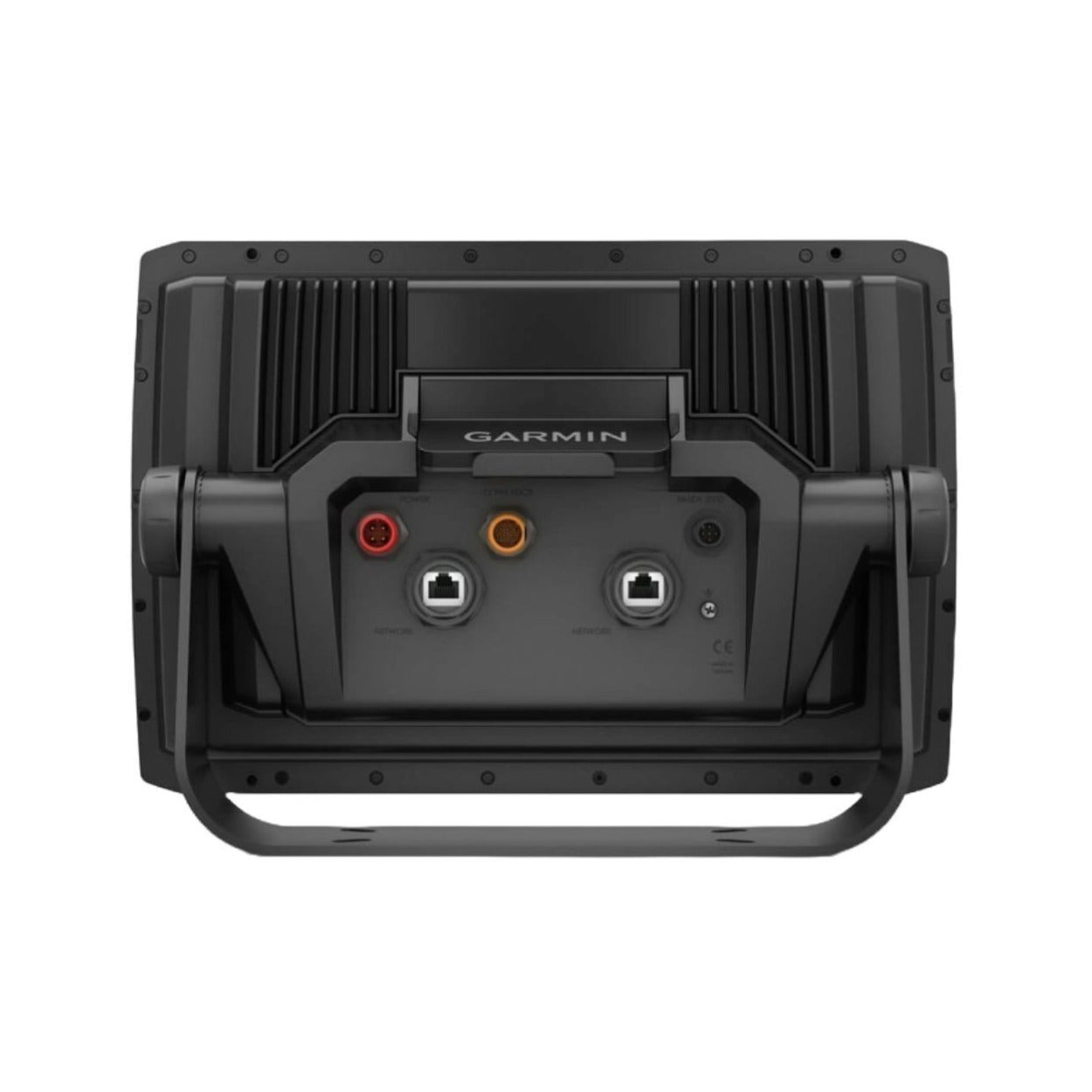

Networking & Connections
| NMEA 2000 Ports | 1 |
| Garmin Marine Network Ports | 2 large connectors |
| Transducer Ports | One 12-pin scanning sonar port |
| Wireless Connections | ANT connectivity, Garmin Wi-Fi local network |
Garmin ECHOMAP Ultra 2 12-Inch Protective Cover
| Product Type | Protective Cover |
| Compatible Display Size | 12 inch ECHOMAP Ultra 2 |
| Compatibility | ECHOMAP Ultra 2 chartplotter series |
