BZBGear Live Streaming PTZ Camera Bundle (NDI/HDMI/SDI/USB) (Used)
Condition: Used – Very Good
Condition Details: Fully functional with light cosmetic wear such as small scratches or blemishes.

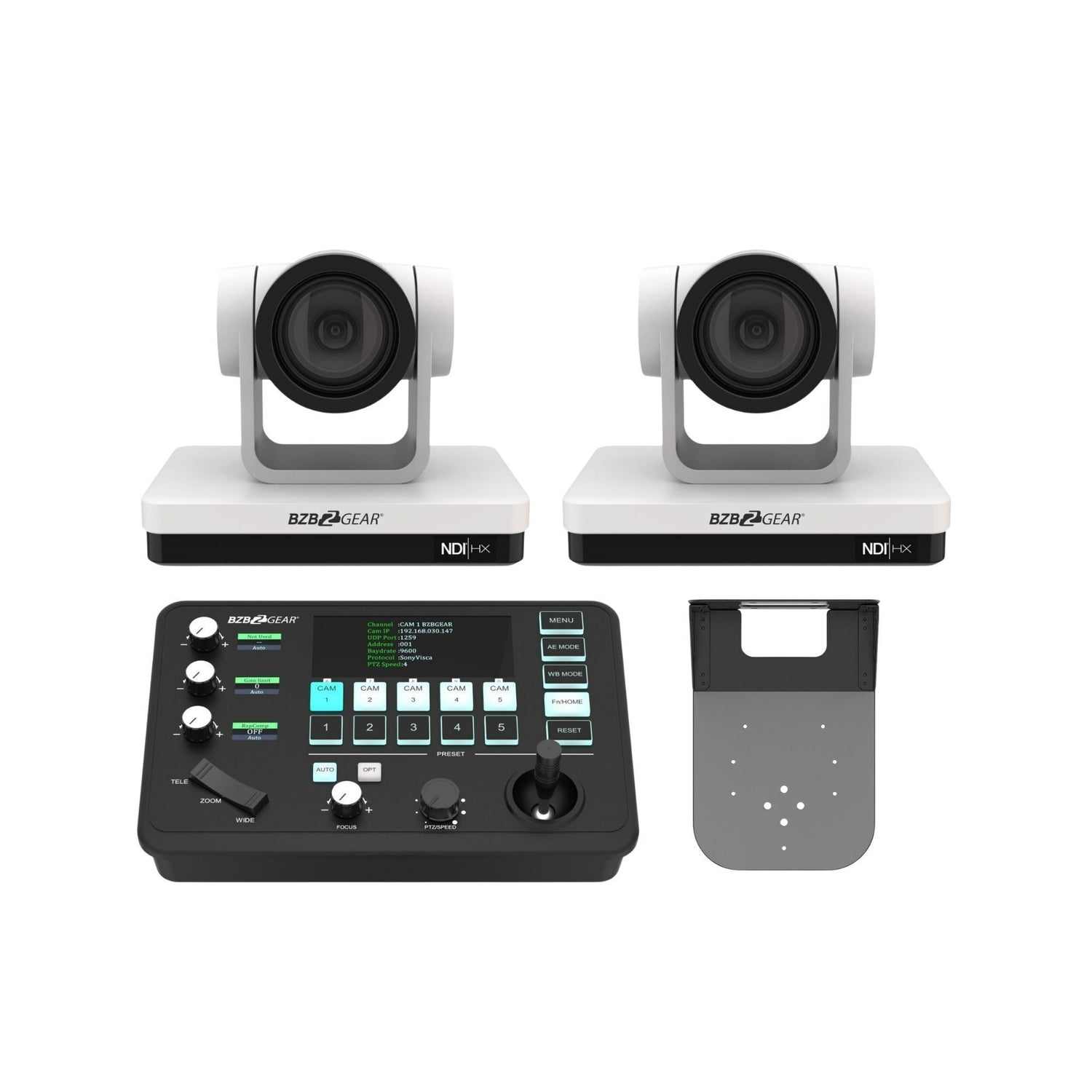

The BZBGear Universal NDI/HDMI/SDI/USB Live Streaming PTZ Camera System is a versatile, professional-grade solution designed for live production, streaming, conferencing, and broadcast environments. This comprehensive setup delivers high-quality video, flexible connectivity, and precise control—making it an excellent value for studios, houses of worship, education, and corporate AV applications.
High-Quality PTZ Camera Performance

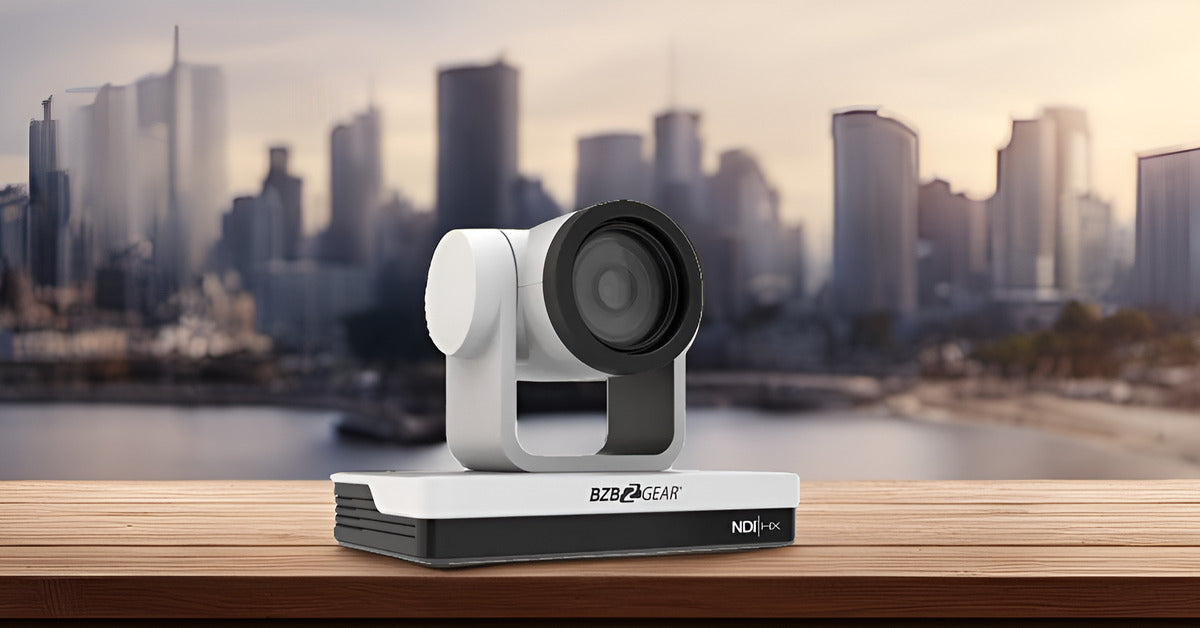

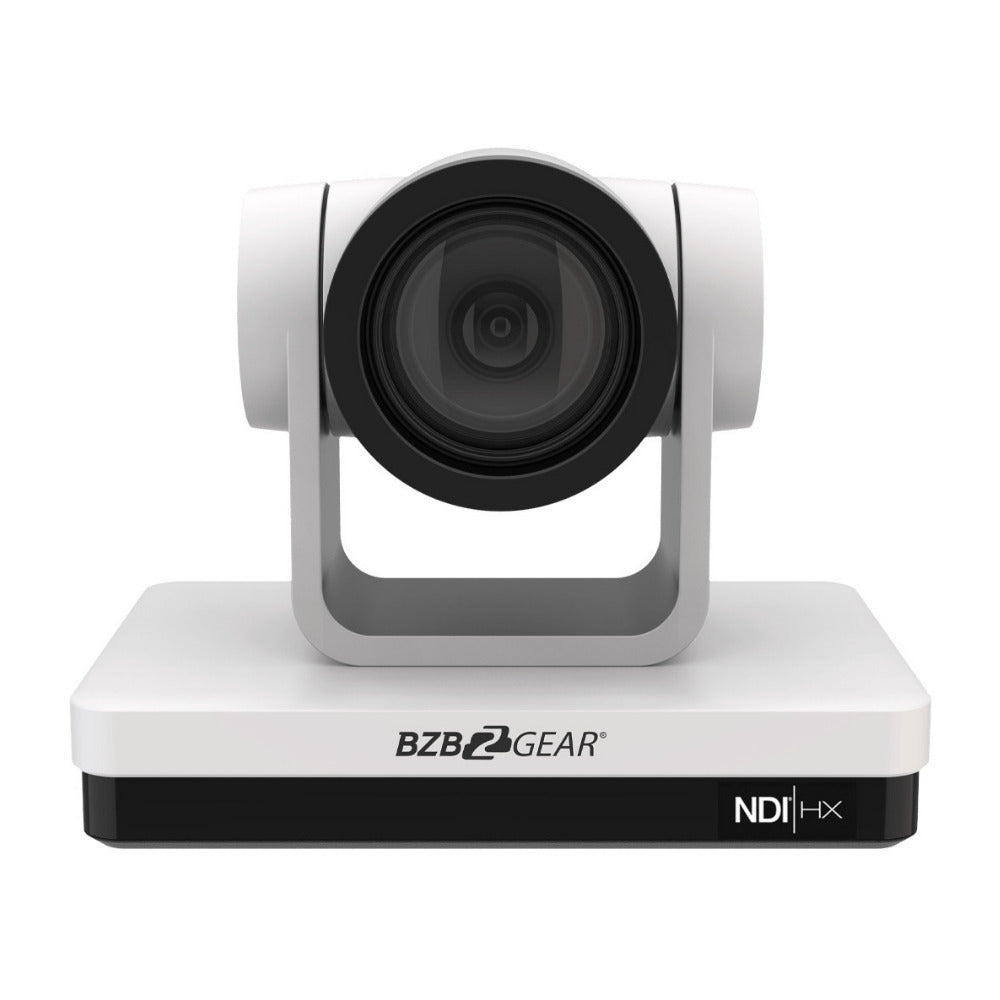

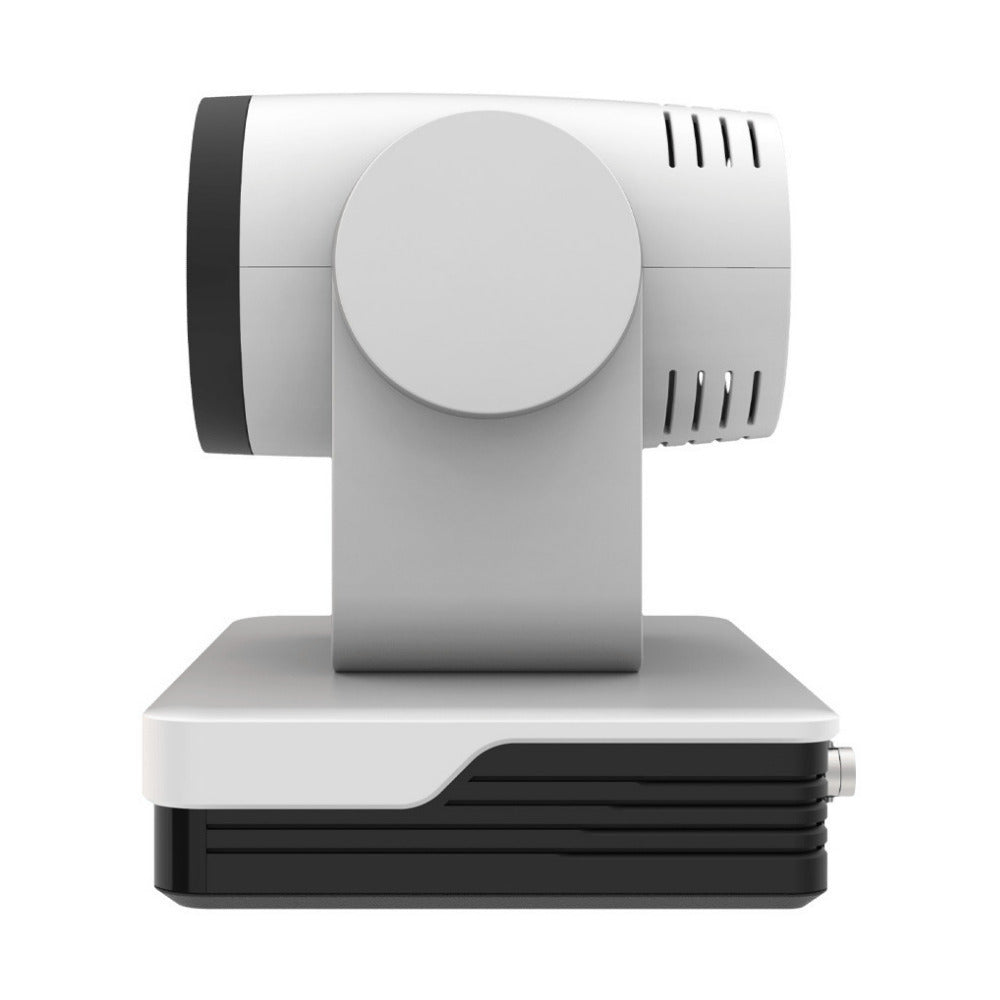

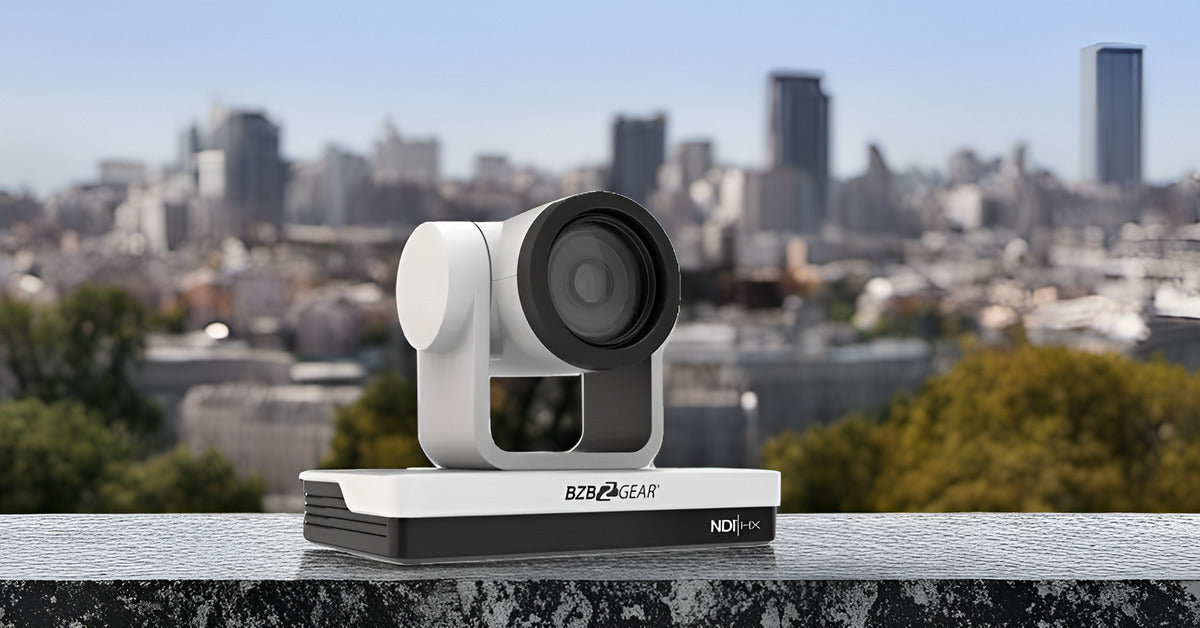

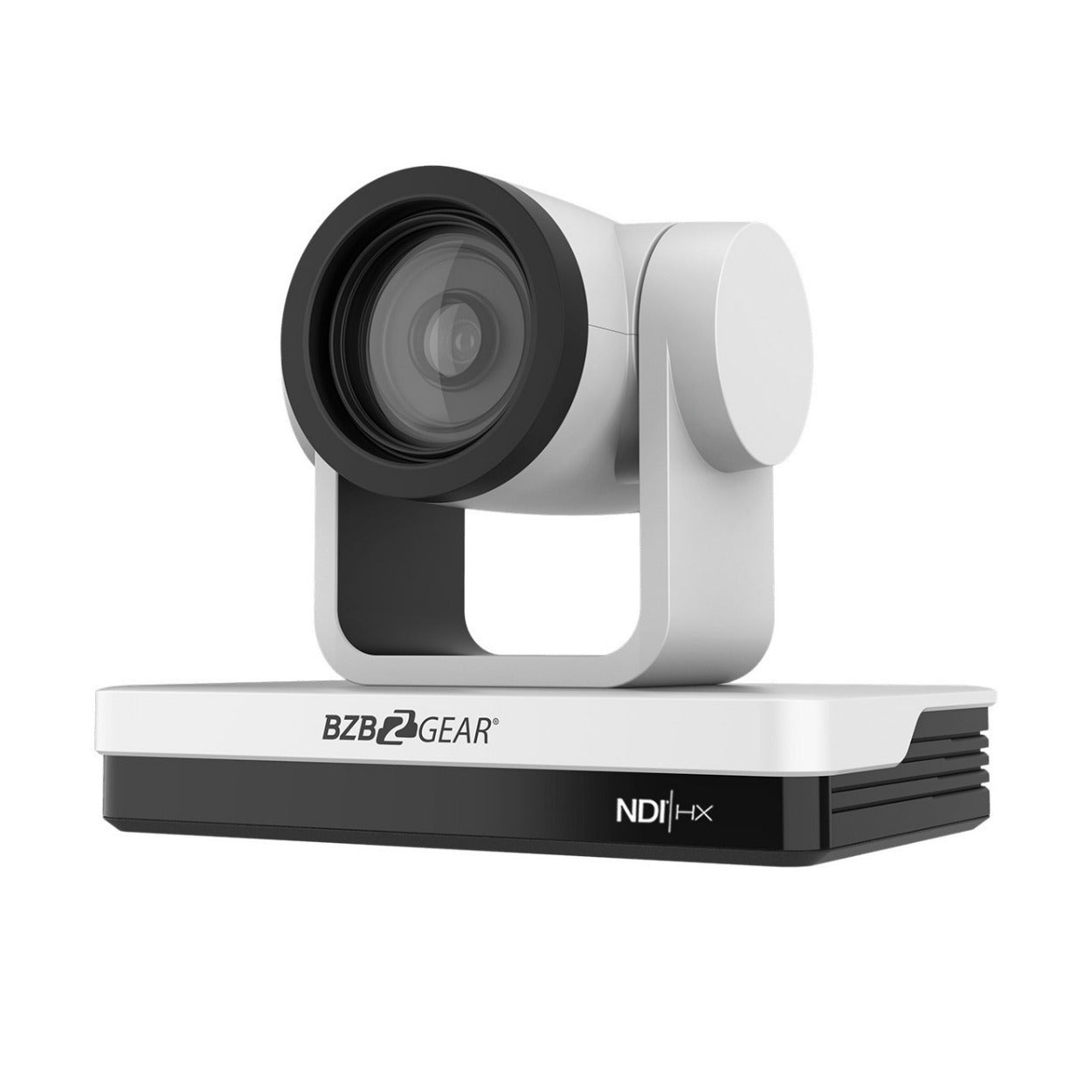

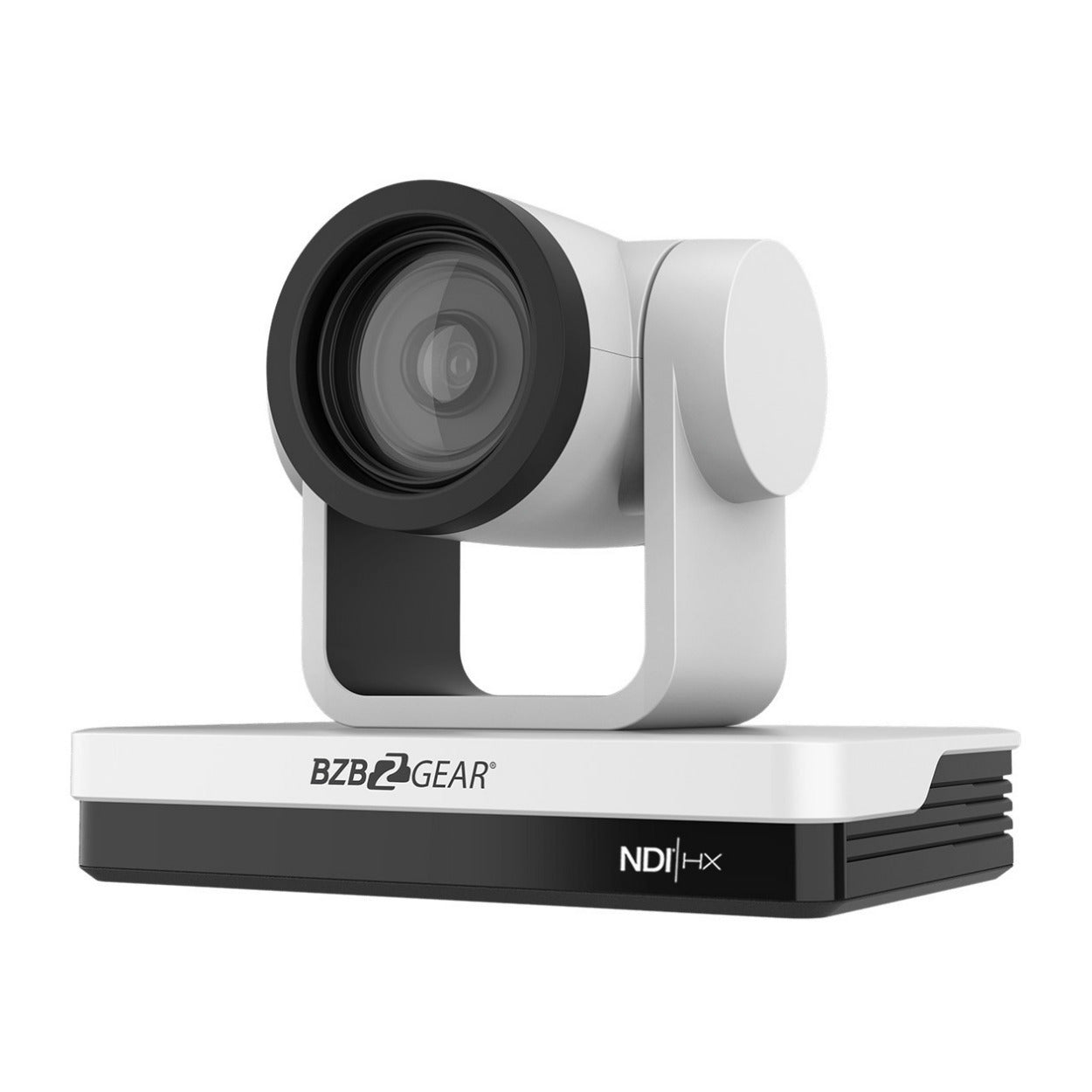

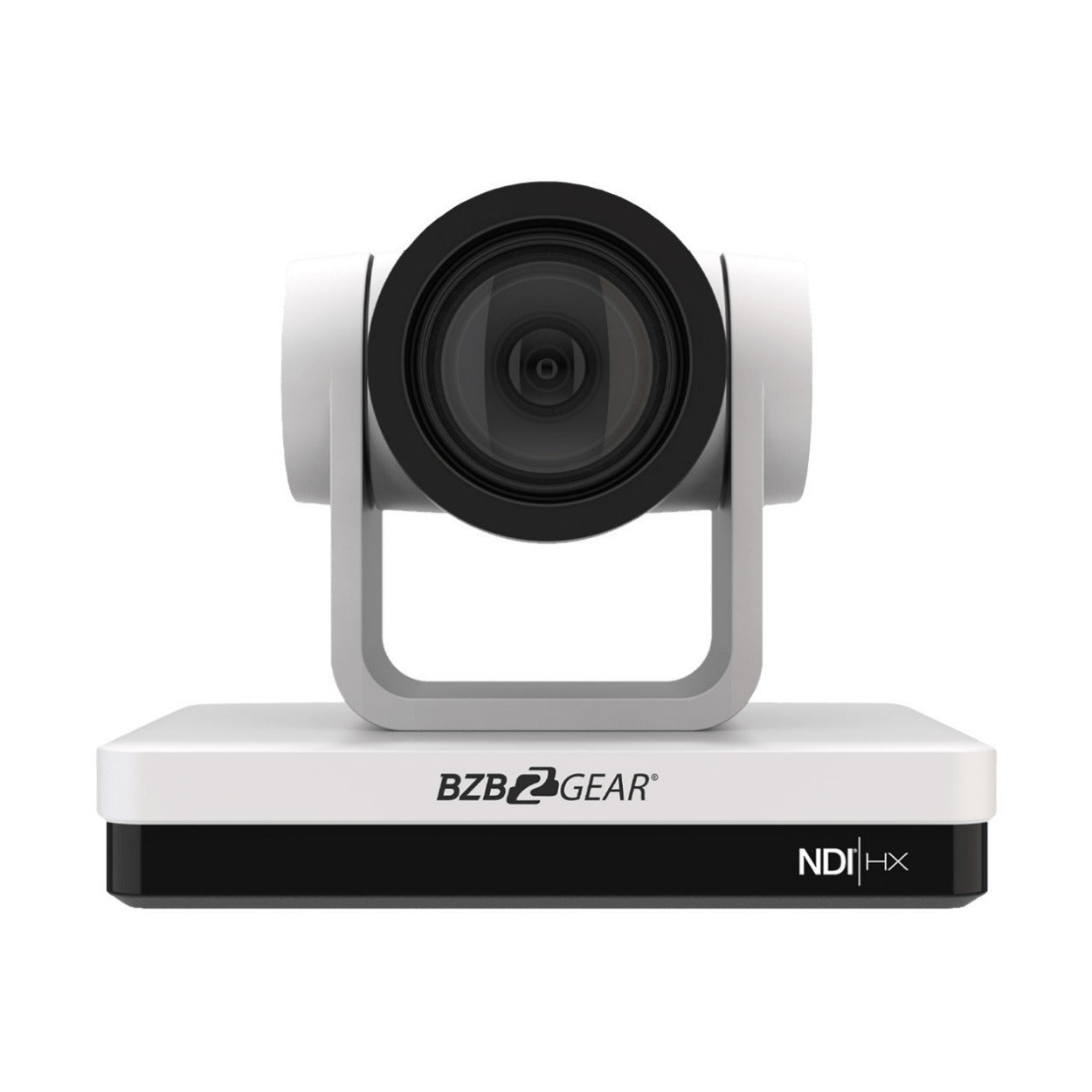

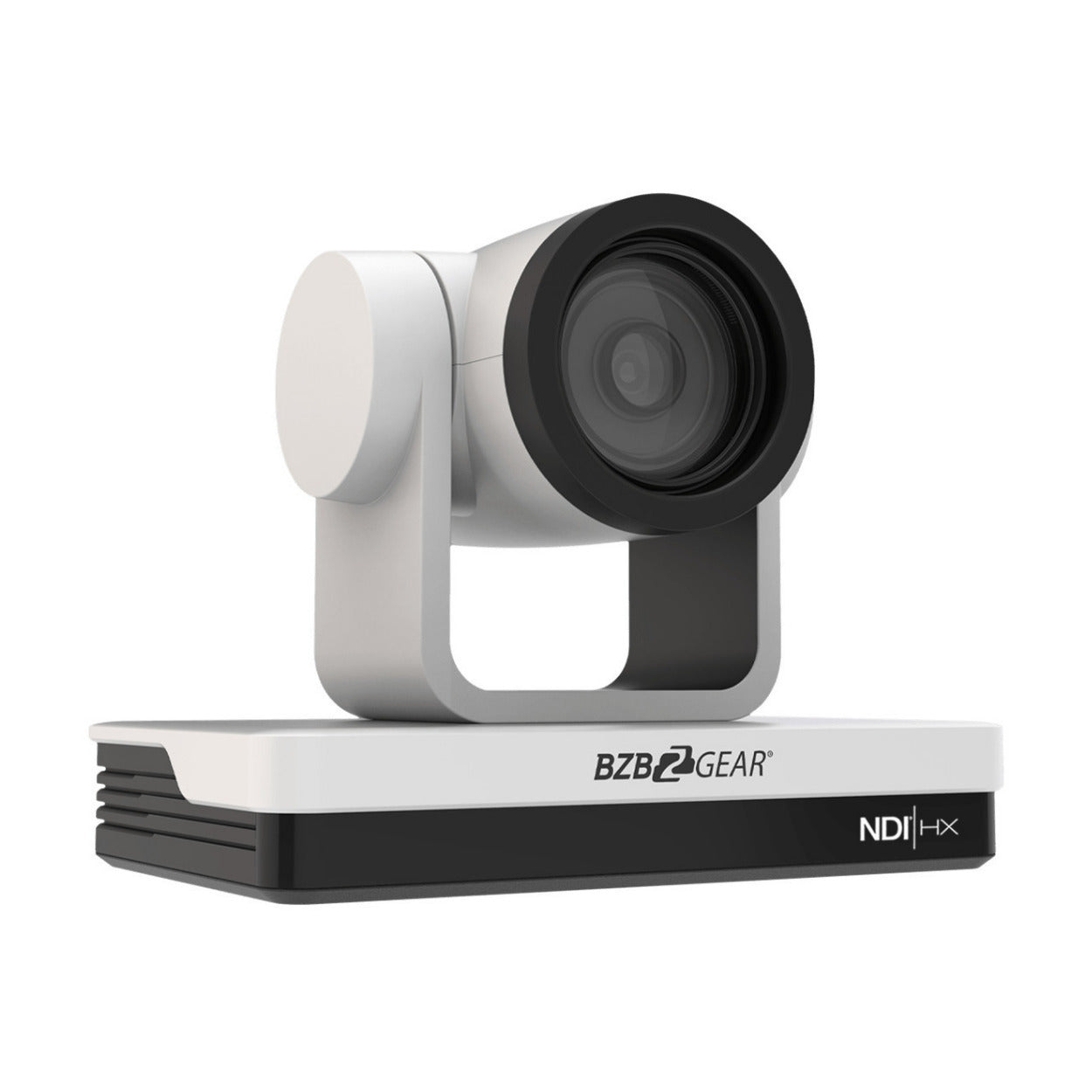

The BZBGear BG-UPTZ-ND PTZ cameras deliver crisp Full HD video at up to 1080p60, powered by a 1/2.8-inch progressive CMOS sensor. Available with either a 30x or 20x optical zoom, these cameras capture sharp detail at a wide range of distances, supported by advanced autofocus algorithms for consistent image clarity.
Flexible Video Outputs and NDI Integration
With HDMI, 3G-SDI, USB 3.0, and NDI|HX outputs, the BG-UPTZ-ND cameras integrate seamlessly into virtually any production workflow. Native NDI|HX2 support enables efficient, low-bandwidth IP video transmission with reduced latency, allowing multiple devices to operate smoothly on the same network.
PoE Convenience and Built-In Streaming
Power over Ethernet (PoE) simplifies installation by eliminating the need for separate power and video cables. Built-in streaming support with H.264/H.265 compression and RTMP(S) protocol allows direct streaming to platforms such as YouTube and Facebook without additional hardware.
Advanced Control and Preset Functionality
These PTZ cameras support extensive control options including WebGUI, NDI, IP VISCA, ONVIF, RS232/422/485, and Pelco P/D. Up to 255 preset positions and IR remote compatibility provide fast, repeatable camera movements for professional productions.
Compact PTZ Joystick Controller

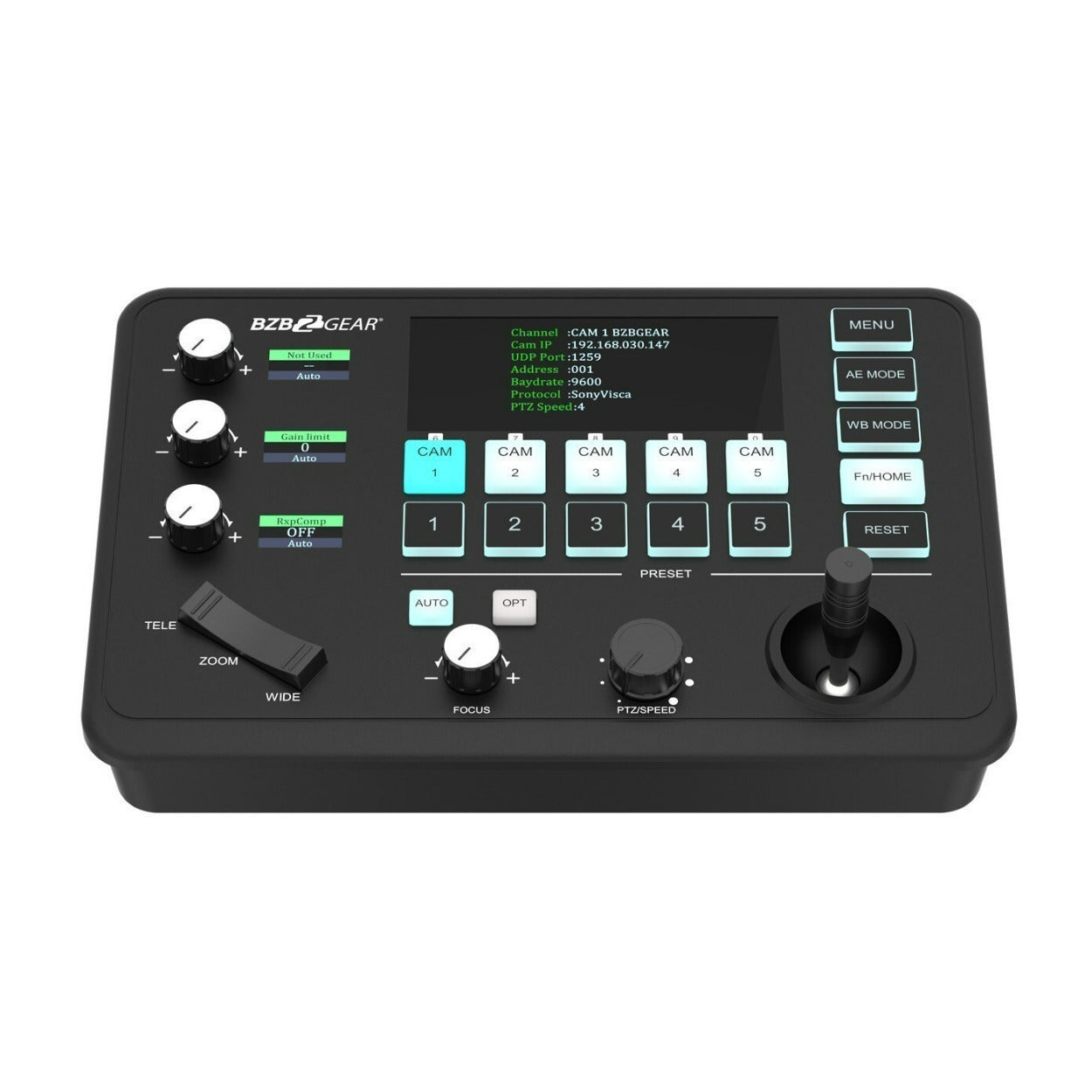

The BZBGear BG-Commander-Jr joystick controller offers precise pan, tilt, and zoom control via a responsive 2-axis joystick and zoom bridge. It supports simultaneous communication over IP and serial protocols, making it ideal for controlling multiple PTZ cameras in live environments.
Professional Mounting and Installation Options

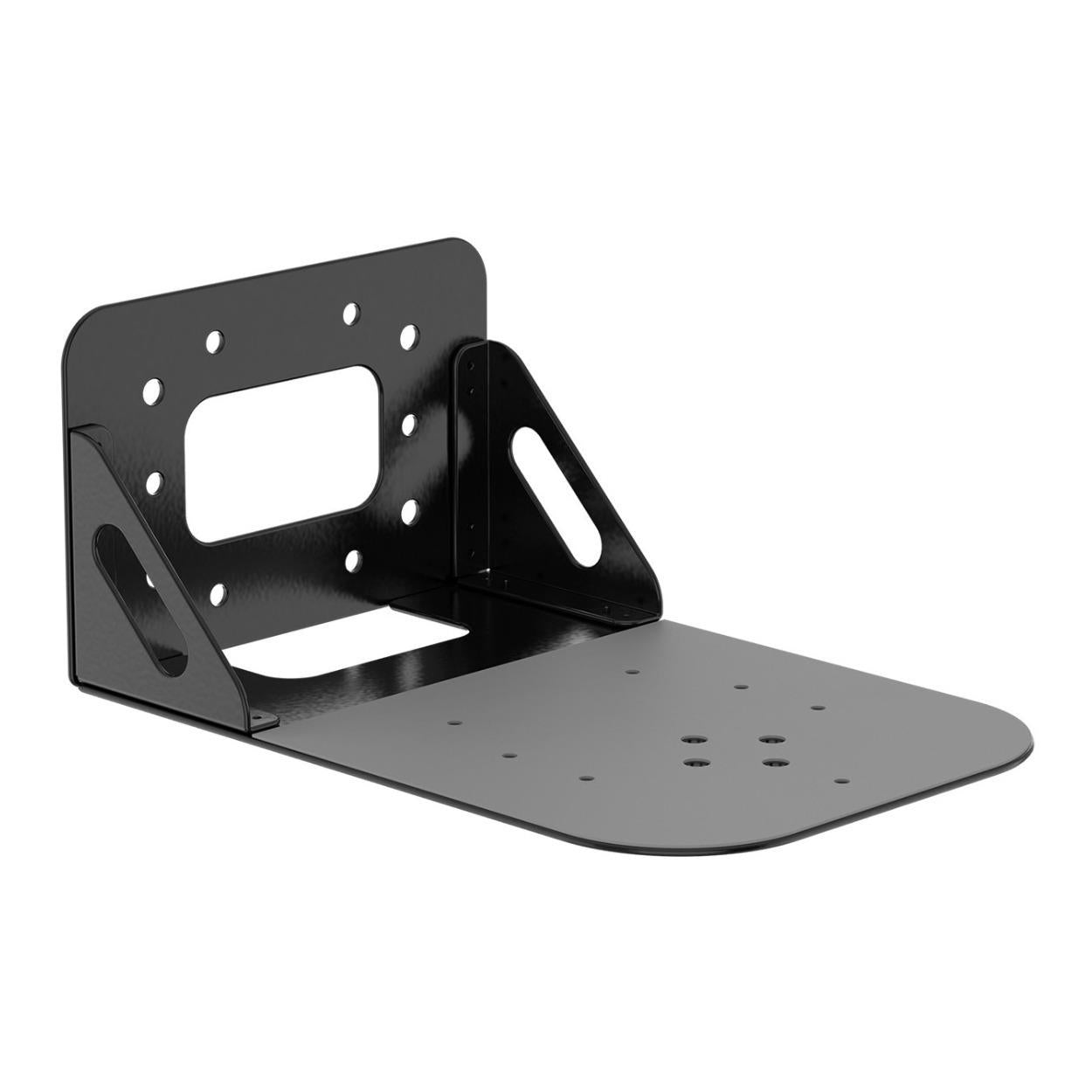

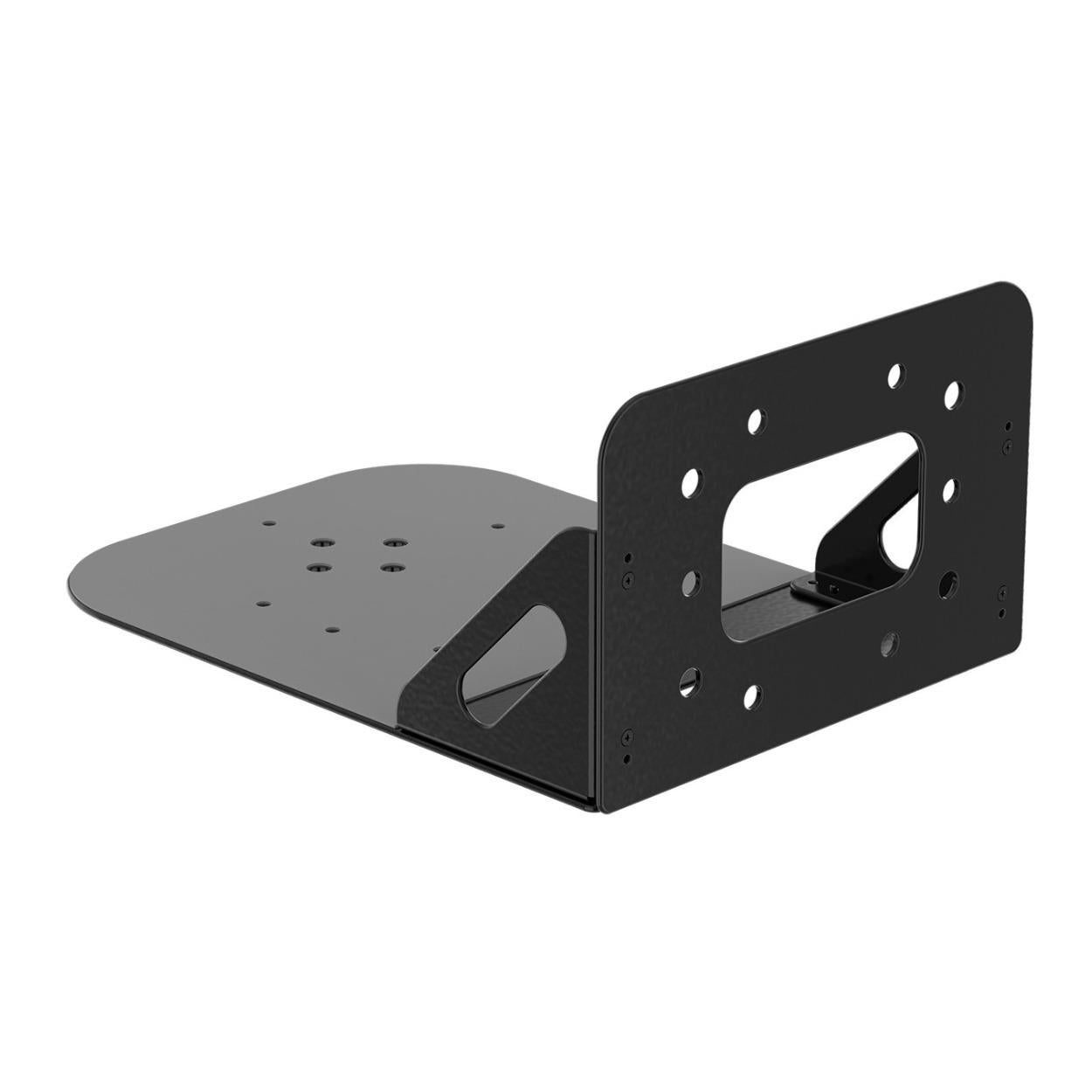

The included BZBGear Universal Wall Mount Bracket provides secure, stable camera placement with a slim-profile steel design. It supports wall, ceiling, or tripod installations, offering flexibility for permanent or temporary setups.
Combining high-quality imaging, powerful IP-based workflows, intuitive control, and flexible mounting, this BZBGear PTZ camera system delivers a reliable and scalable solution for modern live production and streaming needs offering strong performance and excellent overall value.
BZBGear Universal NDI/HDMI/SDI/USB Live Streaming PTZ Camera with 30x Optical Zoom
Camera & Imaging
| Image sensor | 1/2.8-inch progressive CMOS |
| Effective pixels | 2.07 megapixels (16:9) |
| Minimum illumination | 0.5 lux (F1.8, AGC ON) |
| Signal-to-noise ratio | ≥50 dB |
Lens & Zoom
| Optical zoom | 30x |
| Horizontal field of view | 65.1° (wide) to 2.34° (tele) |
| Focus system | Auto / Manual |
Video Formats & Resolution
| 1080p | 60/50/30/25 |
| 1080i | 60/50 |
| 720p | 60/50 |
PTZ Movement
| Pan range | 340° |
| Pan speed | Up to 80°/sec |
| Tilt range | -30° to +90° |
| Tilt speed | Up to 60°/sec |
Interfaces & Connectivity
| Video outputs | HDMI, 3G-SDI, IP, USB 3.0 |
| Control & data | LAN (PoE), RS-232, RS-485 |
| Audio input | Line In |
Streaming & Control Protocols
| Protocols supported | RTSP, RTMP, ONVIF, GB/T28181 |
| Preset positions | 9 via IR remote, up to 255 via keyboard or PC |
Exposure & Image Control
| Exposure modes | Auto, Manual, Priority AE, Exposure Compensation, Bright |
| Shutter speed | 1/1 to 1/10,000 sec |
| Gain | Auto / Manual |
| White balance | Auto, Manual, ATW, One-click, Indoor, Outdoor |
| Image effects | Full color, Black & White, Electronic flip |
Power & Environmental
| Power supply | 12V DC |
| Power consumption | Max. 30W |
| Operating temperature | 0°C to 40°C |
| Storage temperature | -20°C to 60°C |
Physical Specifications
| Dimensions | 178 × 115.5 × 151 mm |
| Weight | 3 lb (1.38 kg) |
| Color | White |
BZBGear Universal NDI/HDMI/SDI/USB Live Streaming PTZ Camera with 20x Optical Zoom
Camera & Imaging
| Image sensor | 1/2.8-inch progressive CMOS |
| Effective pixels | 2.07 megapixels (16:9) |
| Minimum illumination | 0.5 lux (F1.8, AGC ON) |
| Signal-to-noise ratio | ≥50 dB |
Lens & Zoom
| Optical zoom | 20x |
| Horizontal field of view | 54.7° (wide) to 3.3° (tele) |
| Focus system | Auto / Manual |
Video Formats & Resolution
| 1080p | 60/50/30/25 |
| 1080i | 60/50 |
| 720p | 60/50 |
PTZ Movement
| Pan range | 340° |
| Pan speed | Up to 80°/sec |
| Tilt range | -30° to +90° |
| Tilt speed | Up to 60°/sec |
Interfaces & Connectivity
| Video outputs | HDMI, 3G-SDI, IP, USB 3.0 |
| Control & data | LAN (PoE), RS-232, RS-485 |
| Audio input | Line In |
Streaming & Control Protocols
| Protocols supported | RTSP, RTMP, ONVIF, GB/T28181 |
| Preset positions | 9 via IR remote, up to 255 via keyboard or PC |
Exposure & Image Control
| Exposure modes | Auto, Manual, Priority AE, Exposure Compensation, Bright |
| Shutter speed | 1/1 to 1/10,000 sec |
| Gain | Auto / Manual |
| White balance | Auto, Manual, ATW, One-click, Indoor, Outdoor |
| Image effects | Full color, Black & White, Electronic flip |
Power & Environmental
| Power supply | 12V DC |
| Power consumption | Max. 30W |
| Operating temperature | 0°C to 40°C |
| Storage temperature | -20°C to 60°C |
Physical Specifications
| Dimensions | 178 × 115.5 × 151 mm |
| Weight | 3 lb (1.38 kg) |
| Color | White |
BZBGear Universal Compact Serial and IP PTZ Camera Joystick Controller
Communication & Interfaces
| RS-422 / RS-485 | Phoenix Contact 4-pin 3.81 mm terminal |
| RS-232C | DB9 male interface |
| LAN | RJ45 Ethernet (IP control) |
| Power input | JEITA Type 4 female interface |
| Firmware upgrade | Micro-USB (online) |
Camera Control & Compatibility
| Supported cameras | Up to 5 |
| Communication protocols | VISCA, PELCO-P, PELCO-D, UDP |
| IP protocols | UDP, VISCA over IP |
| Camera channels | 5 |
Control Surface & Operation
| Joystick | 2-axis PTZ joystick |
| Zoom control | Tele / Wide bridge keys |
| Variable knobs | 4 |
| Buttons | 17 silicone buttons |
| Preset keys | 5 presets per channel |
| Pan/Tilt speed | 7-level adjustment |
| Zoom speed | 7-level adjustment |
| Focus modes | Auto / Manual / OPT |
| AE mode | Switchable with adjustable values |
| White balance mode | Switchable with adjustable values |
| Camera menu access | One-key call |
Display
| LED displays | 4 color LED display screens |
Control Signal Format
| Baud rates | 2400 / 4800 / 9600 / 19200 / 38400 bps |
| Data bits | 8-bit |
| Stop bits | 1 |
| Parity | None |
Power & Consumption
| Rated voltage | DC 12V |
| Rated current | 0.3 A max |
| Maximum power consumption | 3.6 W |
Security & Environment
| Password protection | Yes |
| Kensington lock slot | Yes |
| Operating temperature | 32°F to 104°F (0°C to 40°C) |
| Storage temperature | -4°F to 140°F (-20°C to 60°C) |
| Operating environment | Indoor |
Physical Specifications
| Dimensions | 9.6 × 6.5 × 1.9 in (244 × 164 × 48 mm) |
| Gross weight | 2.43 lb (1.1 kg) |

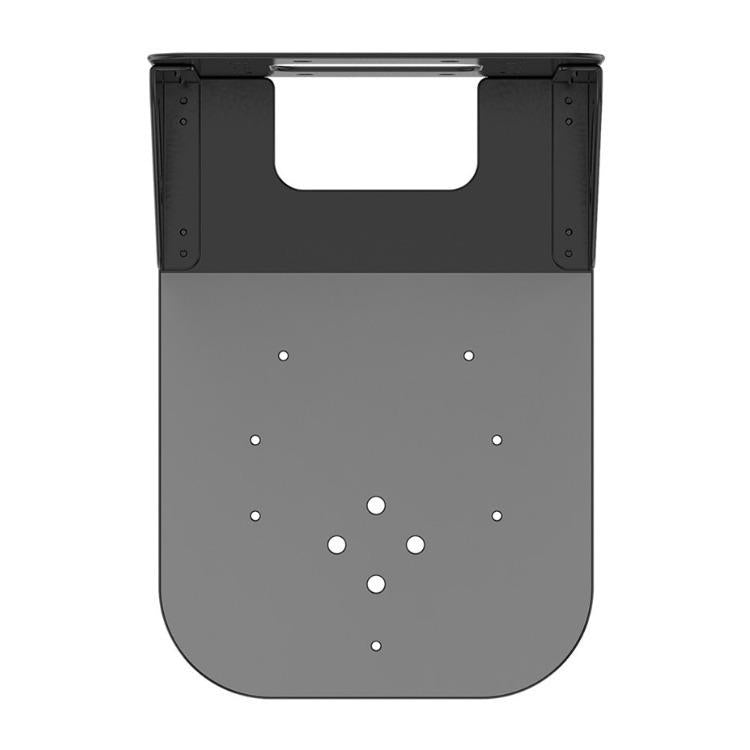

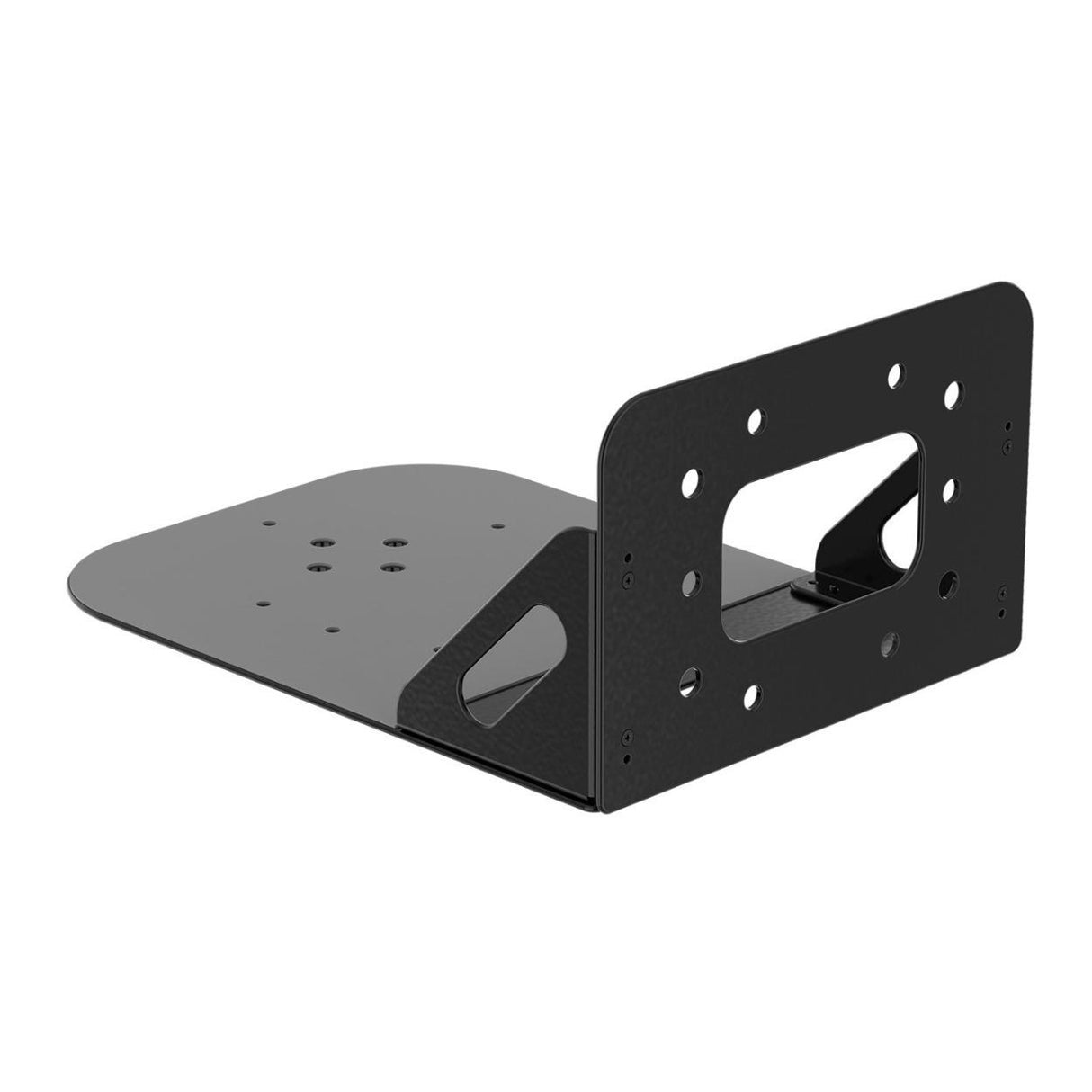

BZBGear Universal PTZ Camera Wall Mount Bracket
General
| Product type | Wall mount bracket for PTZ cameras |
| Compatibility | Designed for universal PTZ camera mounting |
Construction & Finish
| Material | Heavy-gauge steel |
| Finish | Durable powder-coated surface |
| Surface treatment | Rubberized coating to reduce vibration and protect camera housing |
Color
| Black |
Mounting & Use
| Mounting position | Wall-mounted |
| Application | Conference rooms, classrooms, houses of worship, studios, and broadcast environments |
| Design focus | Secure camera support with long-term durability |
