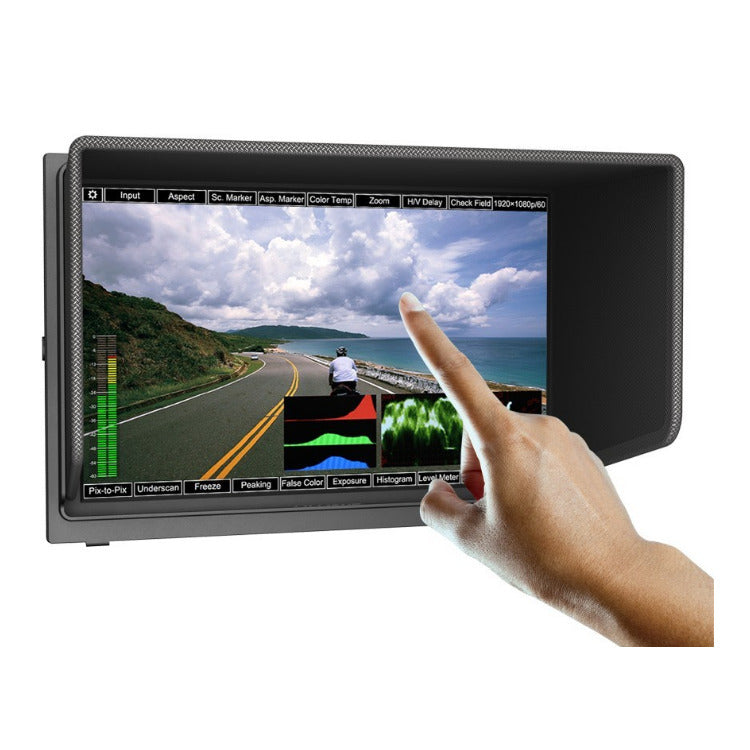

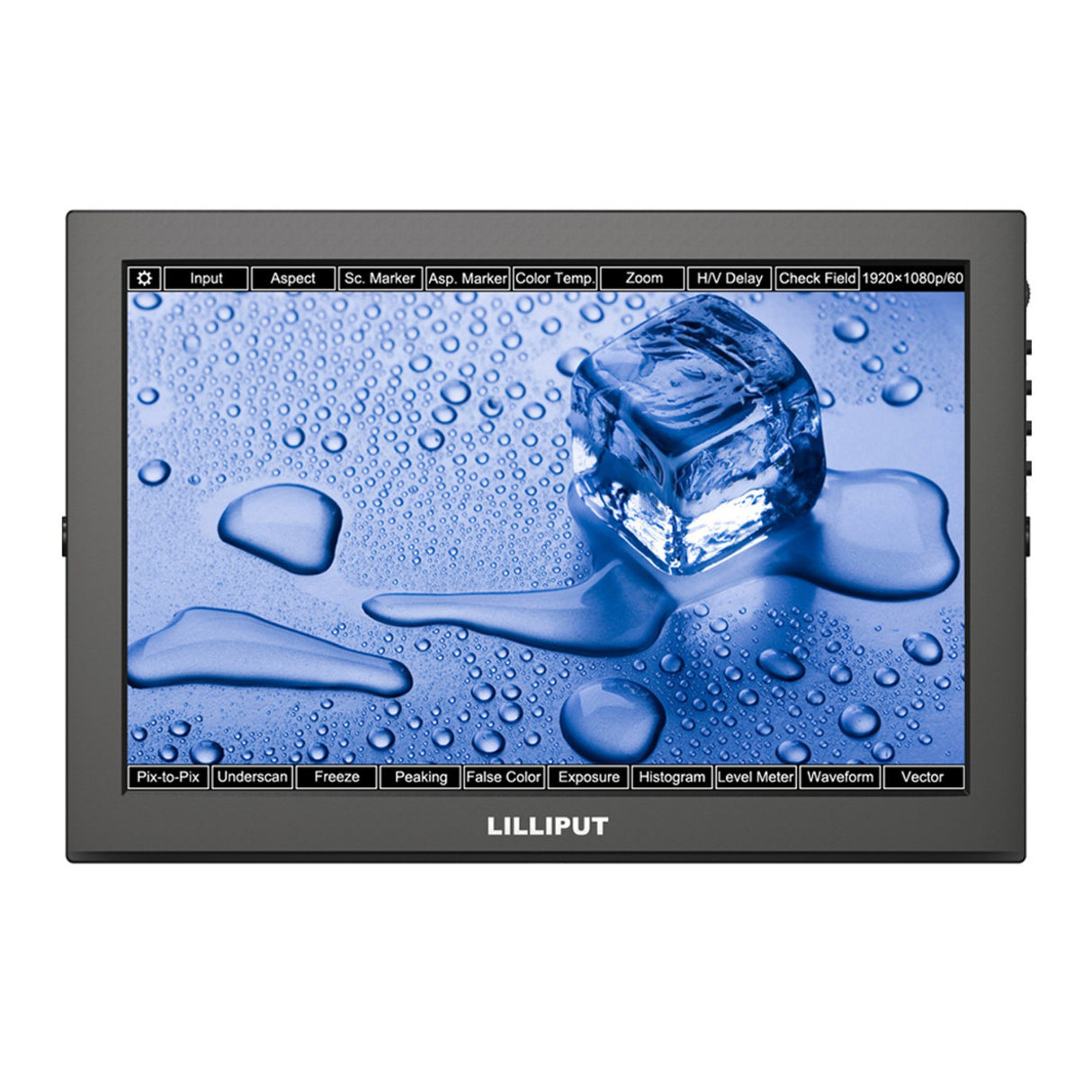

Lilliput TM-1018/S 10.1-Inch Touch 3G-SDI Camera Monitor

The Lilliput TM-1018/S features a high quality panel and capacitive touchscreen, making it the apex of the Lilliput monitor range. It boasts a 3G-SDI connection, suitable for the needs of broadcast professionals. It features composite and component through BNC connectors and HDMI inputs, making it able to achieve all the requirements of common broadcast applications. For further convenience, it includes an HDMI output, eliminating the need for an expensive splitter.

The Lilliput TM-1018/S 10.1-inch Touch 3G-SDI Camera Monitor creatively integrates waveform, vectorscope, video analyzer and touch control, all into one monitor. This Lilliput on-camera monitor provides Luminance/Color/RGB histograms, Luminance/RGB Parade/YCbCr Parade waveforms, Vectorscope and other waveform modes, as well as measurement modes such as Peaking, Exposure and Audio Level Meter. These features make it possible to accurately monitor when making movies or playing videos.

Level Meter, Histogram, Waveform and Vectorscope can be displayed horizontally all at once. This Lilliput monitor also provides pro waveform measurement and color control, allowing you to record natural color.

Histogram

The histograms consist of RGB, Color and Luminance histograms. RGB shows the red, green, and blue channels in an overlay histogram while the color shows histograms for each of the RGB channels. Luminance shows the distribution of brightness in an image as a graph of luminance

Waveform

Waveform monitoring consists of Luminance, YCbCr Parade and RGB Parade waveforms. These are used for measuring the brightness, luminance or chroma values from a video input signal. This means it will warn you of out-of-range conditions such as overexposure errors, and it will also help correct color and the balance of your camera's blacks and whites.

Vectorscope

Vectorscope displays image saturation and shows you where on the color spectrum your pixels reside. This can be displayed in various sizes and positions. Vectorscope lets you monitor the color gamut range in real time.

Audio Level Meter

To see numerical indicators and headroom levels, turn to the Audio Level Meter. This generates accurate audio level displays, which will prevent errors during monitoring.

Ideal for Variety of A/V Applications

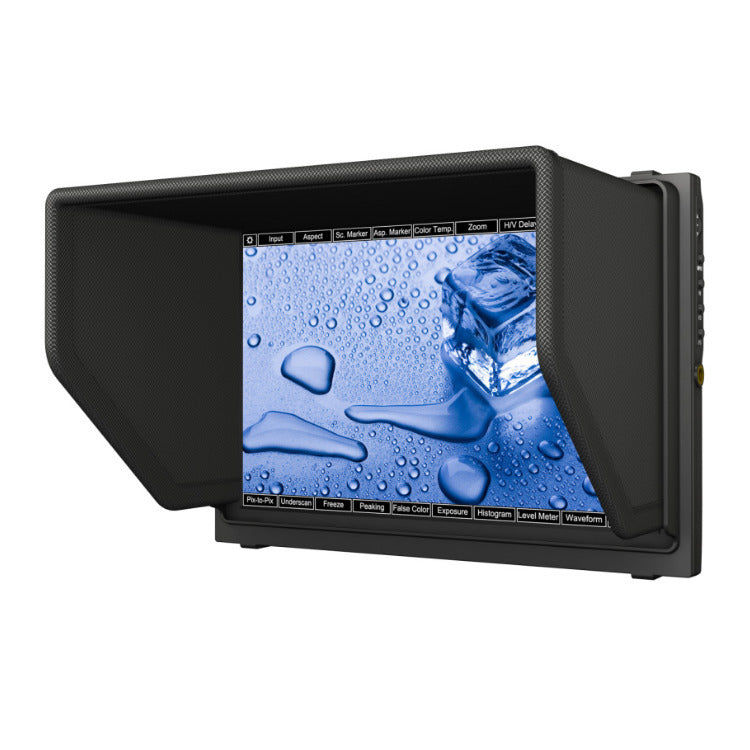

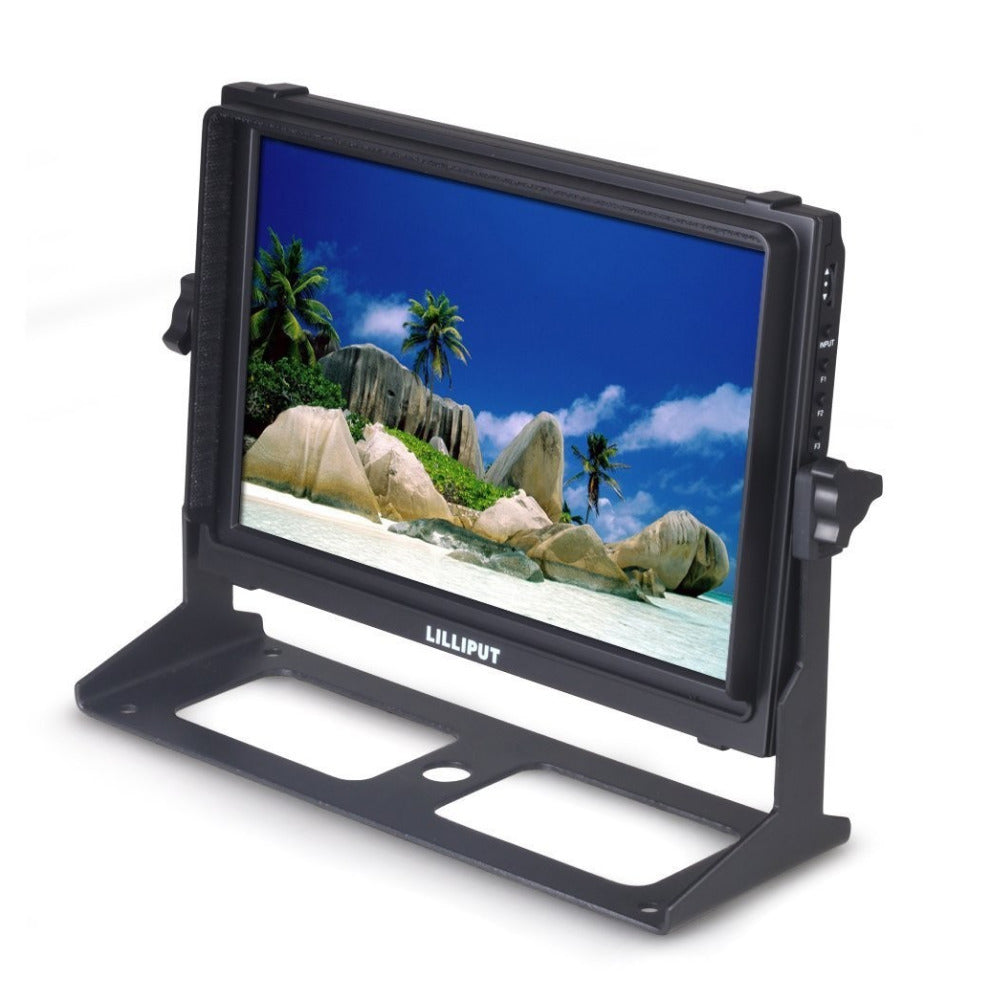

This Lilliput monitor is equipped with design features that make it perfect for numerous audio/video uses. This slim and portable monitor has a 10.1-inch widescreen panel with a 16:9 aspect ratio. The TM-1018 has been seen in TV broadcast rooms, audio-visual installations and as a preview monitor used by professional camera crews for on-camera and video village installations.

Advanced Screen

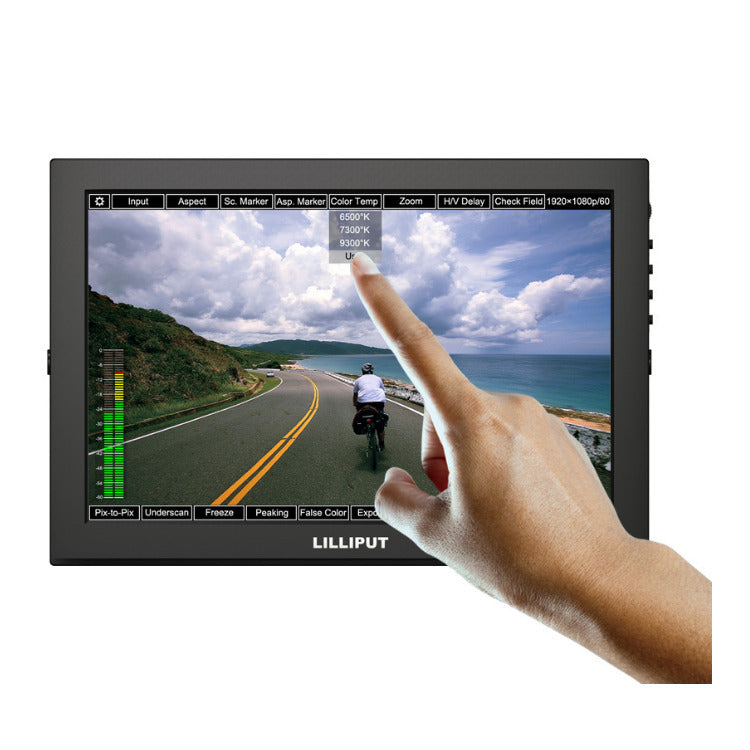

The TM-1018 uses the latest IPS screen panels, which enable greater pixel pitch, 170 degree wide viewing angles and 1280 x 800 base resolutions. The outstanding resolution capability allows upscaling to a Full HD 1080p signal. The multi-touch capacitive IPS LED screen of the TM-1018 is boosted further by a crisp, sharp 800:1 contrast ratio and an LED backlight for clearer picture and consistent, lasting brightness.

On Screen Volume Level

This field monitor provides an on-screen volume meter, letting you monitor unwanted background noise or volume peaks while filming your video and connecting via HDMI.

Versatility

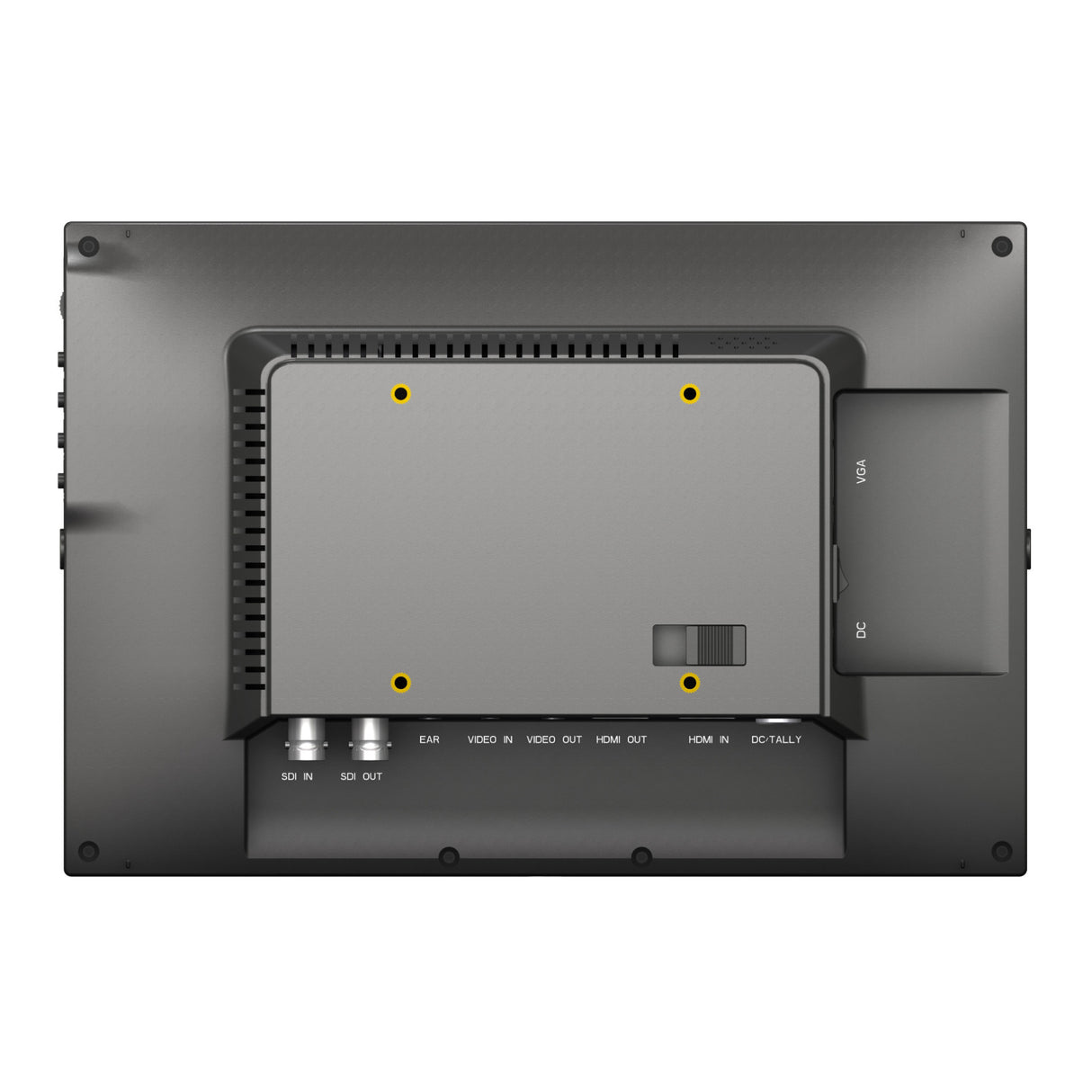

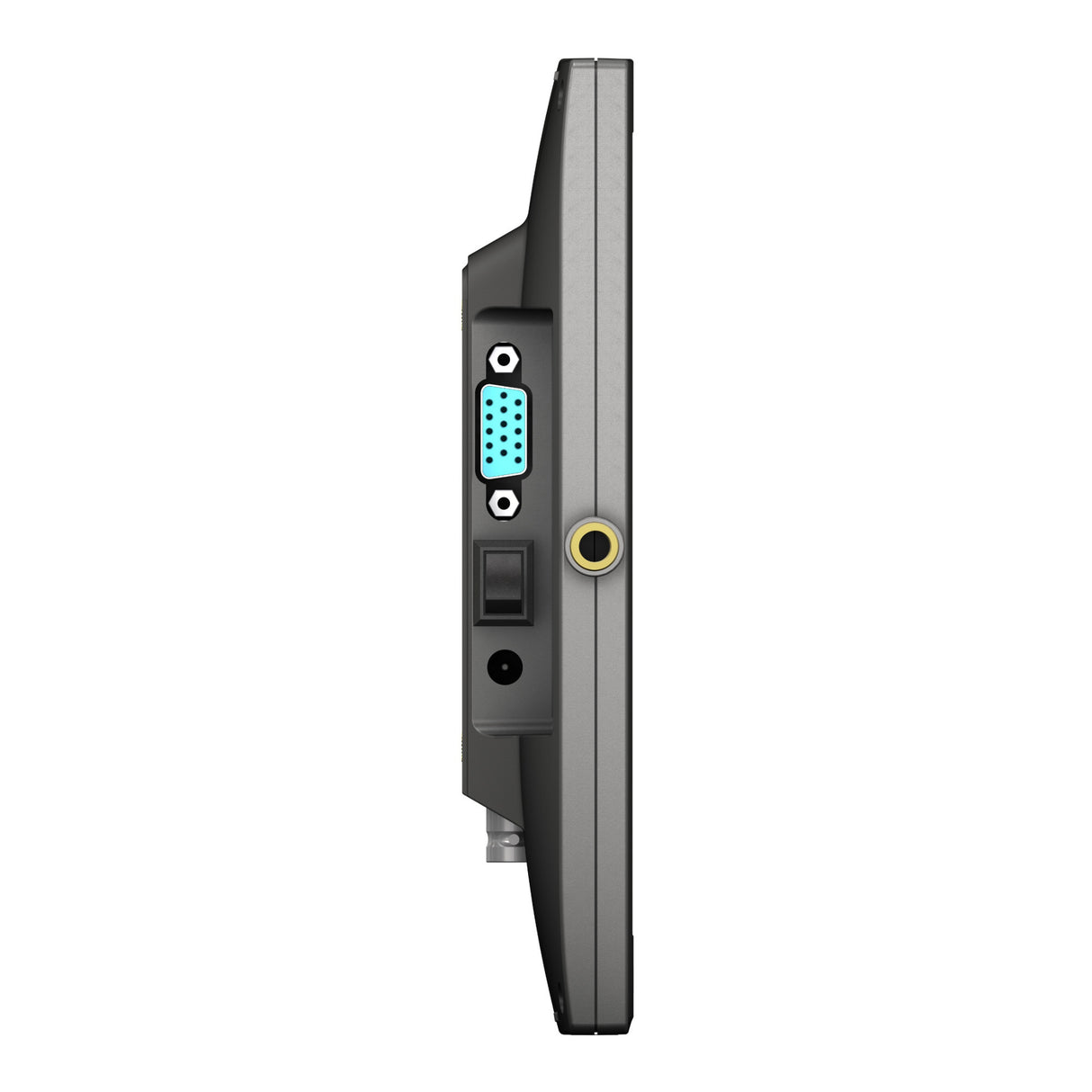

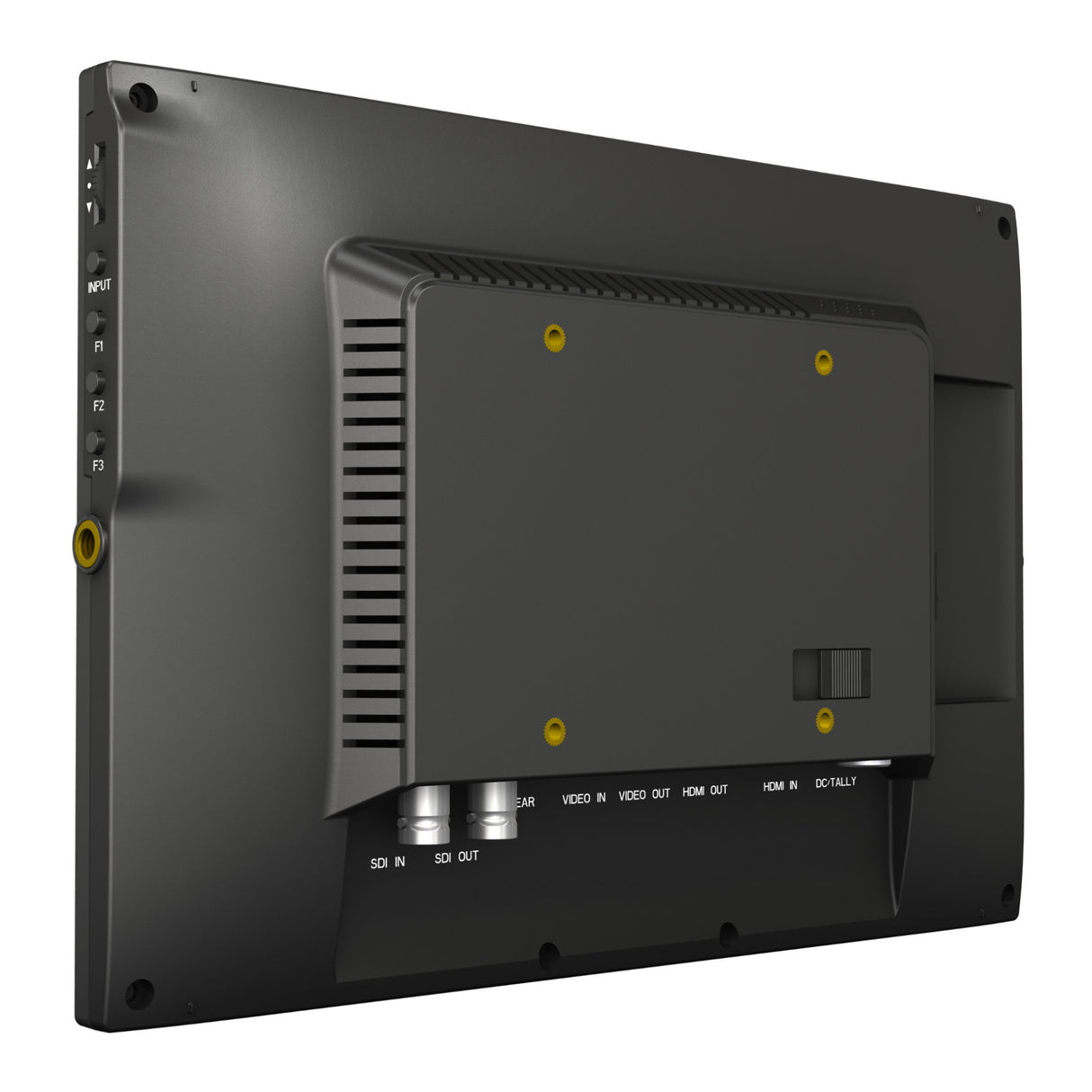

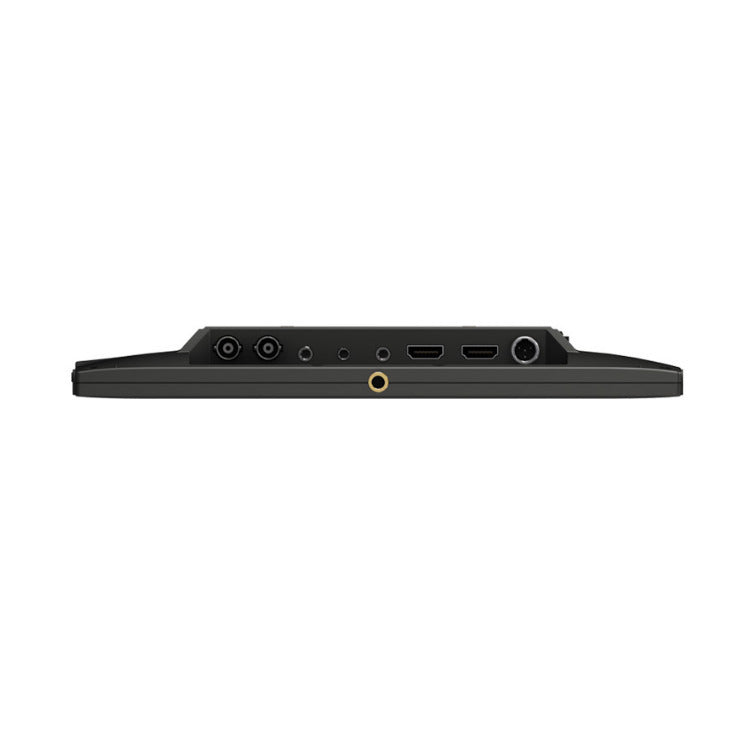

The Lilliput TM-1018/S is made for DSLR and higher standard cameras and is compatible with all major varieties with HDMI input. It features abundant interfaces, including 3G-SDI, HDMI, VGA and AV inputs. It allows for HDMI pass-through thanks to an HDMI output feature. Duplicate video seamlessly onto a second monitor without having to use a pesky HDMI splitter.
