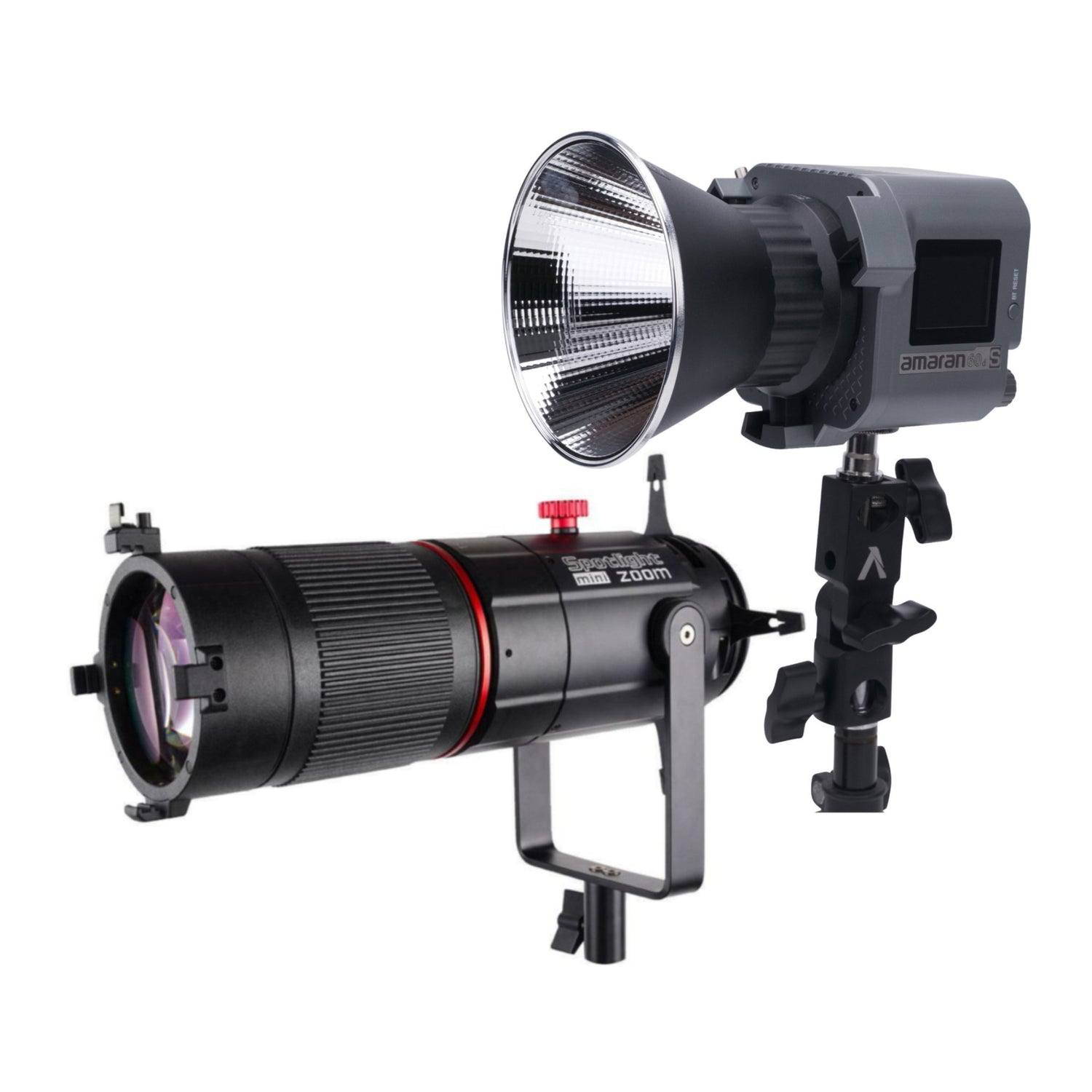

Aputure Amaran COB 60D S Point Source LED 65W Daylight with Full-Size Universal Bowens Mount Bundle
Couldn't load pickup availability
Product highlights
Product highlights

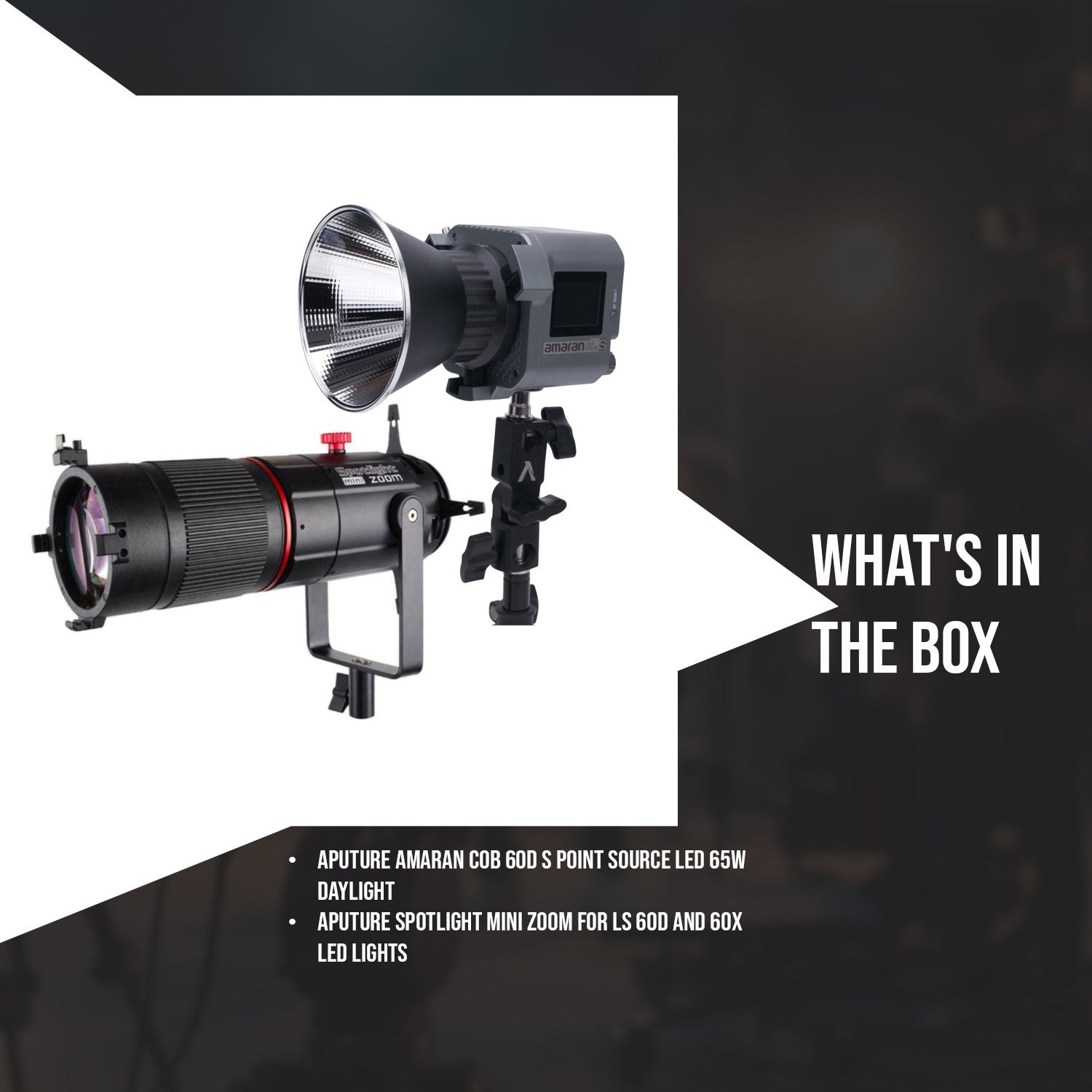

In the box
In the box
Free standard shipping
Free standard shipping
*Orders placed before 1 PM EST Mon - Thur will ship the same day. Orders placed beyond these hours will be shipped the next business day. Exclusions apply. See shipping policy
Free Local Pickup
Free Local Pickup
Please call for store stock availability. Requests made before 2:30 PM EST can be available for next-day pickup. Learn more
Aputure Spotlight Mini Zoom for LS 60d and 60x LED Lights
The Spotlight Mini Zoom brings you an adjustable beam angle projection lens designed for the LS 60d and LS 60x Focusing LEDs. Mount your LS 60d OR 60x onto the Spotlight Mini Zoom, when combined you can adjust and redefine the shape of your lighting.
2x Optical Zoom
The Spotlight Mini Zoom can adjust between a 15 to 30-degree beam spread, giving you an effective 2x zoom range. It also has an illumination circle with a diameter of 1.4m to 2.8m from 5m away.
Flawless Clarity
Thanks to custom-designed Aputure precision optics, the Spotlight Mini Zoom can display spotless image quality with minimal color fringing and over an eighty-percent edge-to-edge homogenous light distribution.
Sharp Light Control
Each blade of the Spotlight Mini Zoom's 4-lead shutter design helps filmmakers achieve accurate cuts and light shaping
15 GOBOS
The Spotlight Mini Zoom is compatible with the M-Size Gobos and includes a Gobo holder with 15 gobo patterns. This gives you the optimum flexibility and creativity in your light design.
18 Leaf Iris
An 18-leaf Iris is an essential addition to the Spotlight Mini Zoom that allows users to further control the size of the illumination circle and tighten the beam spread with incredible ease.
Smart Travel
The Spotlight Mini Zoom and all its included accessories is packed inside a durable soft carrying case. Making it easy to travel with to any film set.

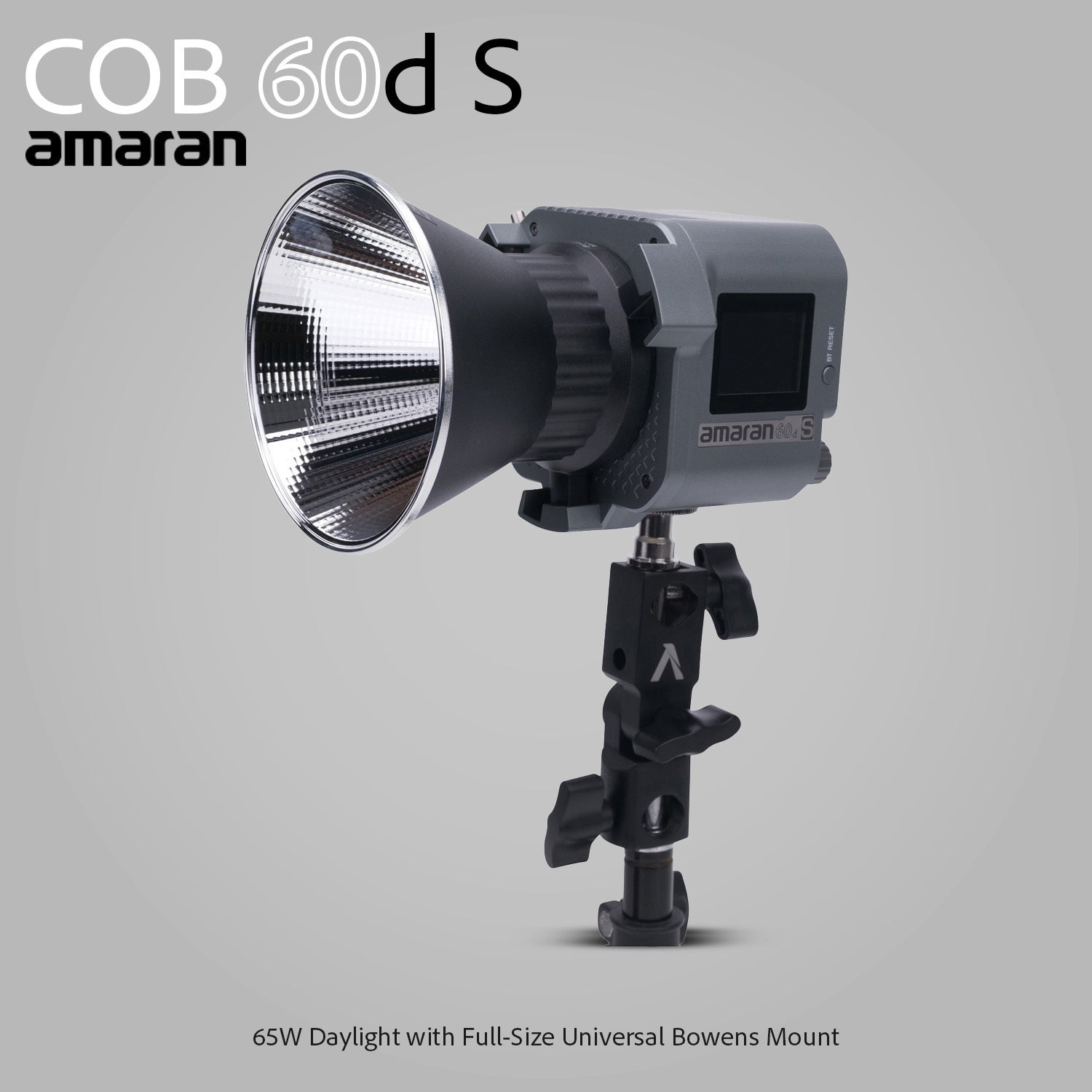

Aputure Amaran COB 60D S Point Source LED 65W Daylight with Full-Size Universal Bowens Mount

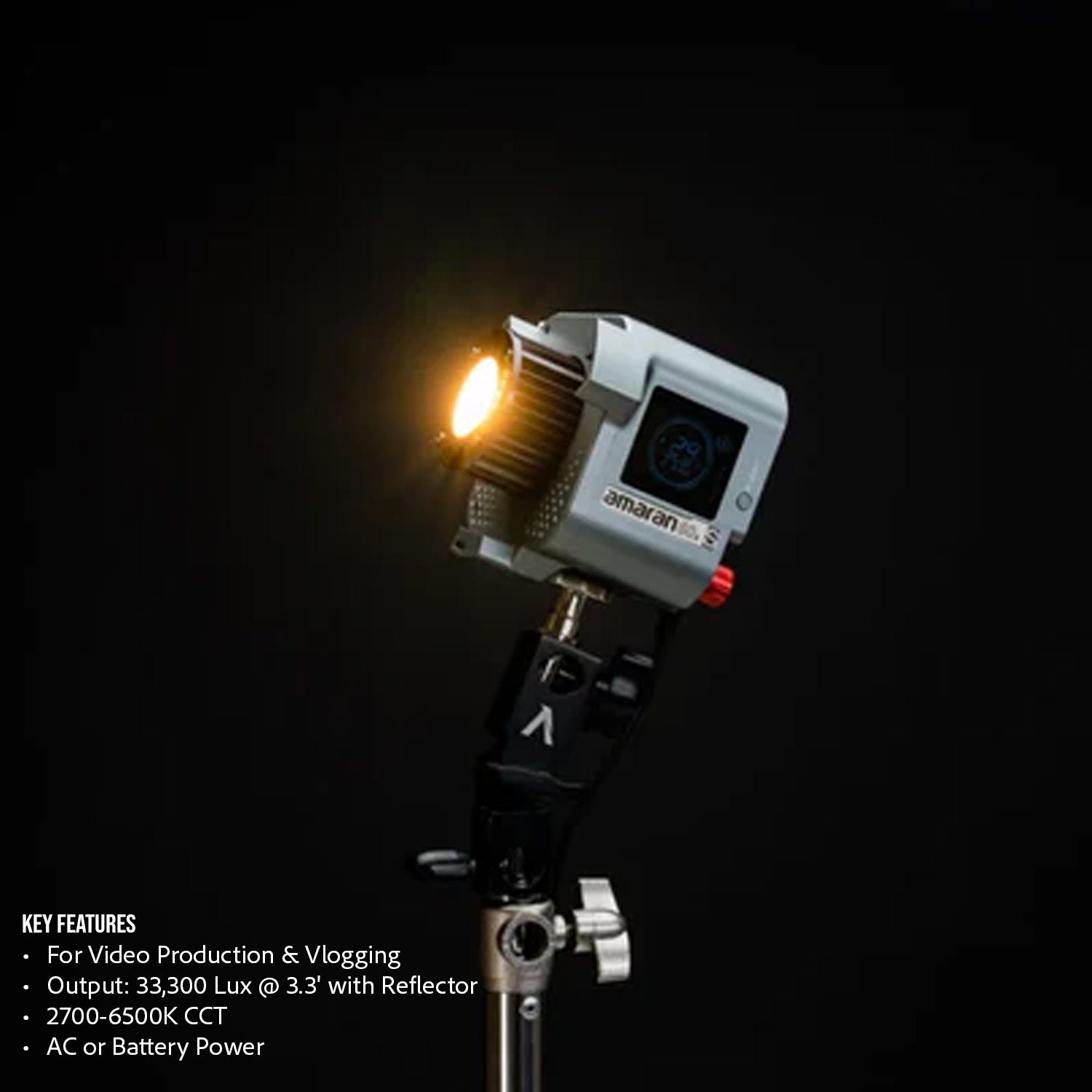

The Aputure Amaran COB 60d S Point Source LED is an ultra-compact 65W daylight Bowens Mount point-source light with integrated controls, full Bowens Mount versatility, and an upgraded LED chipset for enhanced color quality and spectral reproduction.
All-New Design
Featuring an all-new dual-blue LED chipset design, the COB 60d S has improved spectral continuity to achieve stunning spectral reproduction of an ultra-high SSI (D56) of 86, a 19 percent increase in SSI from its predecessor. The enhanced color accuracy of the COB 60d S can also be seen in its increased CRI (96), TLCI (99), TM-30 RF (96), and TM-30 RG (100) values.

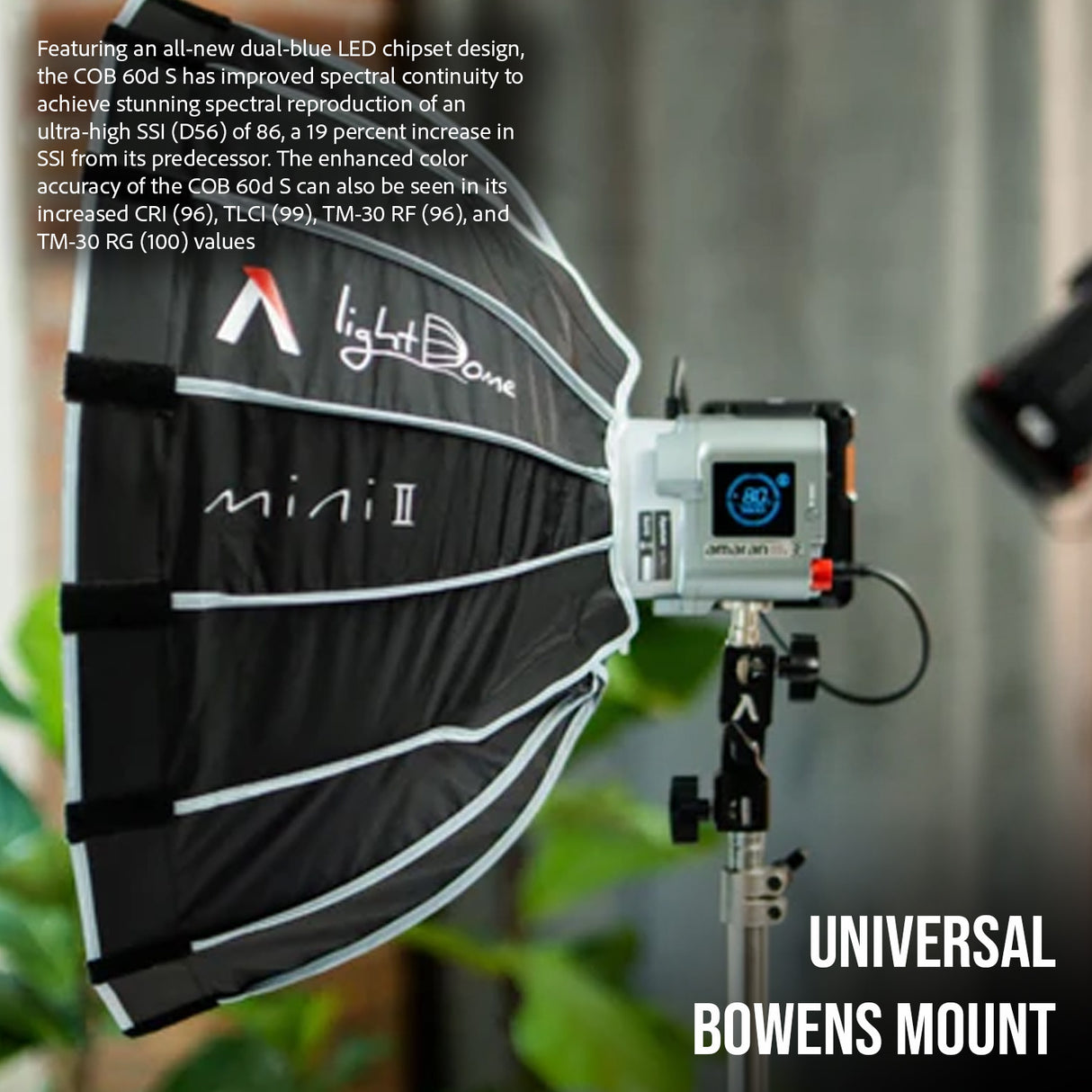

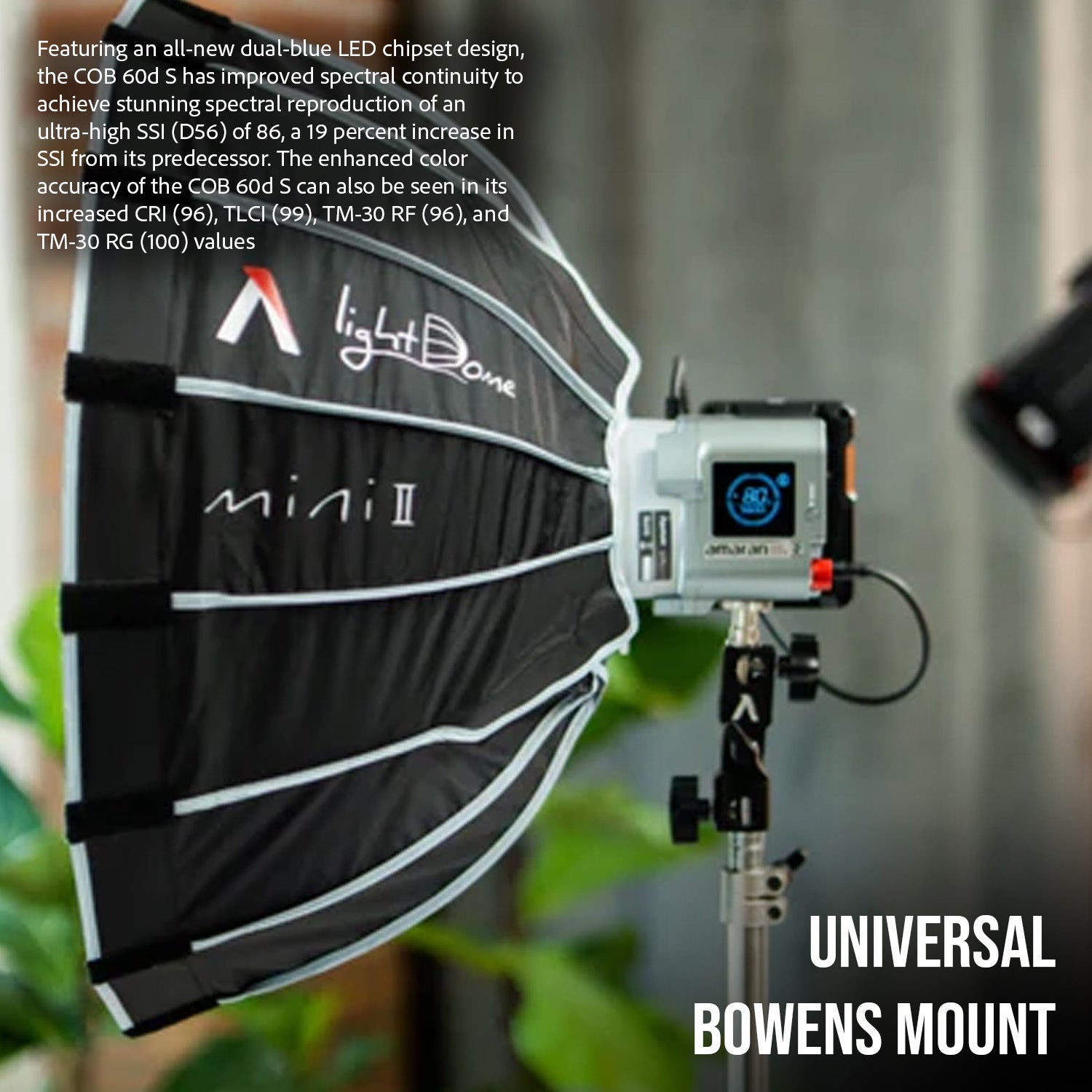

Compatibility
Equipped with a full-size universal Bowens Mount, the miniature COB 60d S is compatible with the largest selection of modifiers on the market, including the Light Box 45 x 45, Light Dome SE, Light Dome Mini II, and Aputure Lantern, making it an incredibly versatile multi-tool. For additional versatility, the COB 60d S can also be used with an umbrella with the included Tilting Stand Mount.
Compact Stature
With its small stature as compact as a camera, the COB 60d S contains a powerhouse LED that can output 37,800+ lux at 1 meter when paired with the matching Hyper Reflector (Mini). Its miniature form factor houses an intuitive LCD screen and control knob interface that seamlessly blends into the body of the fixture, with the ability to adjust the light in 1 percent increments and toggle through intensity presets with ease.
Power
| AC Input Power | 100V ~ 240V / 1.5A |
Sync
| Interface | USB Type-A |
Light Fixture
| Color Accuracy Standard | CRI 96+ |
| Cooling System | Active |
| Number of LEDs | 1 |
| Fixture Dimensions | Lamp Head with mounting bracket: 4.61 x 4.37 x 9.09 inch (11.7 x 11.1 x 23.1 cm) |
| Mount Type | V-Mount |
| Auto Zoom Head | No |
- Distance / CCT / Beam Angle / Beam Diameter (cm) / Brightness
- 1m / 5600K / 30 degrees / 60 / 3,250 lux / 302 fc
- 1m / 5600K / 15 degrees / 30 / 14,400 lux / 1,338 fc
- 3m / 5600K / 30 degrees / 170 / 430 lux / 40 fc
- 3m / 5600K / 15 degrees / 85 / 1,660 lux / 154 fc
- 5m / 5600K / 30 degrees / 280 / 160 lux / 15 fc
- 5m / 5600K / 15 degrees / 140 / 610 lux / 57 fc
- Distance / CCT / Beam Angle / Beam Diameter (cm) / Brightness
- 1m / 2700K / 30 degrees / 60 / 1,780 lux / 165 fc
- 1m / 2700K / 15 degrees / 30 / 7,860 lux / 730 fc
- 1m / 3200K / 30 degrees / 60 / 2,200 lux / 204 fc
- 1m / 3200K / 15 degrees / 30 / 9,690 lux / 900 fc
- 1m / 4300K / 30 degrees / 60 / 2,280 lux / 212 fc
- 1m / 4300K / 15 degrees / 30 / 10,030 lux / 932 fc
- 1m / 5600K / 30 degrees / 60 / 2,420 lux / 225 fc
- 1m / 5600K / 15 degrees / 30 / 10,640 lux / 988 fc
- 1m / 6500K / 30 degrees / 60 / 2,350 lux / 218 fc
- 1m / 6500K / 15 degrees / 30 / 10,330 lux / 960 fc
- 3m / 2700K / 30 degrees / 170 / 240 lux / 22 fc
- 3m / 2700K / 15 degrees / 85 / 910 lux / 85 fc
- 3m / 3200K / 30 degrees / 170 / 300 lux / 28 fc
- 3m / 3200K / 15 degrees / 85 / 1,125 lux / 105 fc
- 3m / 4300K / 30 degrees / 170 / 310 lux / 29 fc
- 3m / 4300K / 15 degrees / 85 / 1,170 lux / 109 fc
- 3m / 5600K / 30 degrees / 170 / 330 lux / 31 fc
- 3m / 5600K / 15 degrees / 85 / 1,240 lux / 115 fc
- 3m / 6500K / 30 degrees / 170 / 320 lux / 30 fc
- 3m / 6500K / 15 degrees / 85 / 1,200 lux / 111fc
- 5m / 2700K / 30 degrees / 280 / 90 lux / 8 fc
- 5m / 2700K / 15 degrees / 140 / 335 lux / 31 fc
- 5m / 3200K / 30 degrees / 280 / 110 lux / 26 fc
- 5m / 3200K / 15 degrees / 140 / 415 lux / 39 fc
- 5m / 4300K / 30 degrees / 280 / 115 lux / 11 fc
- 5m / 4300K / 15 degrees / 140 / 430 lux / 40 fc
- 5m / 5600K / 30 degrees / 280 / 120 lux / 11 fc
- 5m / 5600K / 15 degrees / 140 / 460 lux / 43 fc
- 5m / 6500K / 30 degrees / 280 / 120 lux / 11 fc
- 5m / 6500K / 15 degrees / 140 / 440 lux / 41 fc
- No reflector: 107.8 degree
- Hyper reflector (mini): 13.9 degree
- DC power supply: 19V/4.73A
- AC power supply: 100V to 240V/1.5A
- V-mount battery: 12V to 16.8V
- Lamp head without mounting bracket: 4.61 x 4.37 x 4.37 inch (11.7 x 11.1 x 11.1 cm)
- Lamp Head with mounting bracket: 4.61 x 4.37 x 9.09 inch (11.7 x 11.1 x 23.1 cm)
- Power supply: 5.79 x 2.52 x 1.47 inch (147 x 64 x 37.4 mm)
- Power cable: 161.4 inch (410 cm)
- Battery plate: 4.33 x 3.39 x 0.87inch (11 x 8.6 x 2.2 cm)
- Lamp head: 1.53 lb (695 g)
- Power supply: 1.1 lb (500 g)
- Battery plate: 0.24 lb (111 g)
- Total with case: 578 lb (2.621 kg)
- No reflector
- 0.5 m: 11500 lux (1068 fc)
- 1 m: 2940 lux (273 fc)
- 3 m: 344 lux (32 fc)
- Hyper reflector:
- 0.5 m: 134700 lux (12514 fc)
- 1 m: 37800 lux (3512 fc)
- 3 m: 4200 lux (390 fc)
Aputure Spotlight Mini Zoom for LS 60d and 60x LED Lights
Aputure Spotlight Mini Zoom for LS 60d and 60x LED Lights
Specifications
| Beam Angle | 15-30 |
| Optical Zoom Range | 2X |
| Gobo Size | M-Size |
| Iris Slot Dimensions | 10*87.5*103mm / 0.4*3.4*4.1in |
| Accessory Slot Diameter | 106mm / 4.2in |
| Gel Slot Diameter | 123.5mm / 4.9in |
| Construction Material | Aluminum Alloy |
Dimensions
| Spotlight Mini Zoom w/o Yoke | 163.5*163.5*378mm / 6.4*6.4*14.9in |
| Spotlight Mini Zoom with Yoke | 170*285*378mm / 6.7*11.2*14.9in |
| Spotlight Mini Zoom Iris | 126*87*8.7mm / 5*3.4*0.4in |
| Total with Carrying Case | 475*295*255mm / 18.7*11.6*10in |
Weight
| Spotlight Mini Zoom w/o Yoke | 4095g / 9lbs |
| Spotlight Mini Zoom with Yoke | 4400g / 9.7lbs |
| Spotlight Mini Zoom Iris | 77g / 0.2lbs |
| Total with Carrying Case | 6580g / 14.5lbs |
Photometrics
| LS 60d | |
| LS 60x |
Aputure Amaran COB 60D S Point Source LED 65W Daylight with Full-Size Universal Bowens Mount
General Specifications
| CCT | 5,600K |
| CRI | 96+ |
| TLCI | 99+ |
| CQS | 95+ |
| SSI (D56) | 86+ |
| TM-30 RF (average) | 96 |
| TM-30 RG (average) | 100 |
| Max power consumption | 77 W |
| Max power output | 65 W |
| Lumens | 7,195 lm |
| Beam angle | |
| Operating voltage | |
| Operating temperature | 14 to 104-degree-F (-10 to 40-degree-C) |
| Storage temperature | 4 to 176-degree-F (-20 to 80-degree-C) |
| Control methods | On-board, Sidus Link App |
| Firmware upgradeable | Sidus Link |
| Wireless operating range (Bluetooth) | ≤262.5 feet (≤80 m) |
| Screen type | LCD |
| Cooling method | Active cooling |
| Dimensions | |
| Weight | |
Photometrics
| CCT | 5600K |
| Source |
