MustHD 7" 1920x1200 Full HD 3G-SDI Field Monitor for Professional Videographers
Couldn't load pickup availability
Product highlights
Product highlights
In the box
In the box
Free standard shipping
Free standard shipping
*Orders placed before 1 PM EST Mon - Thur will ship the same day. Orders placed beyond these hours will be shipped the next business day. Exclusions apply. See shipping policy
Free Local Pickup
Free Local Pickup
Please call for store stock availability. Requests made before 2:30 PM EST can be available for next-day pickup. Learn more

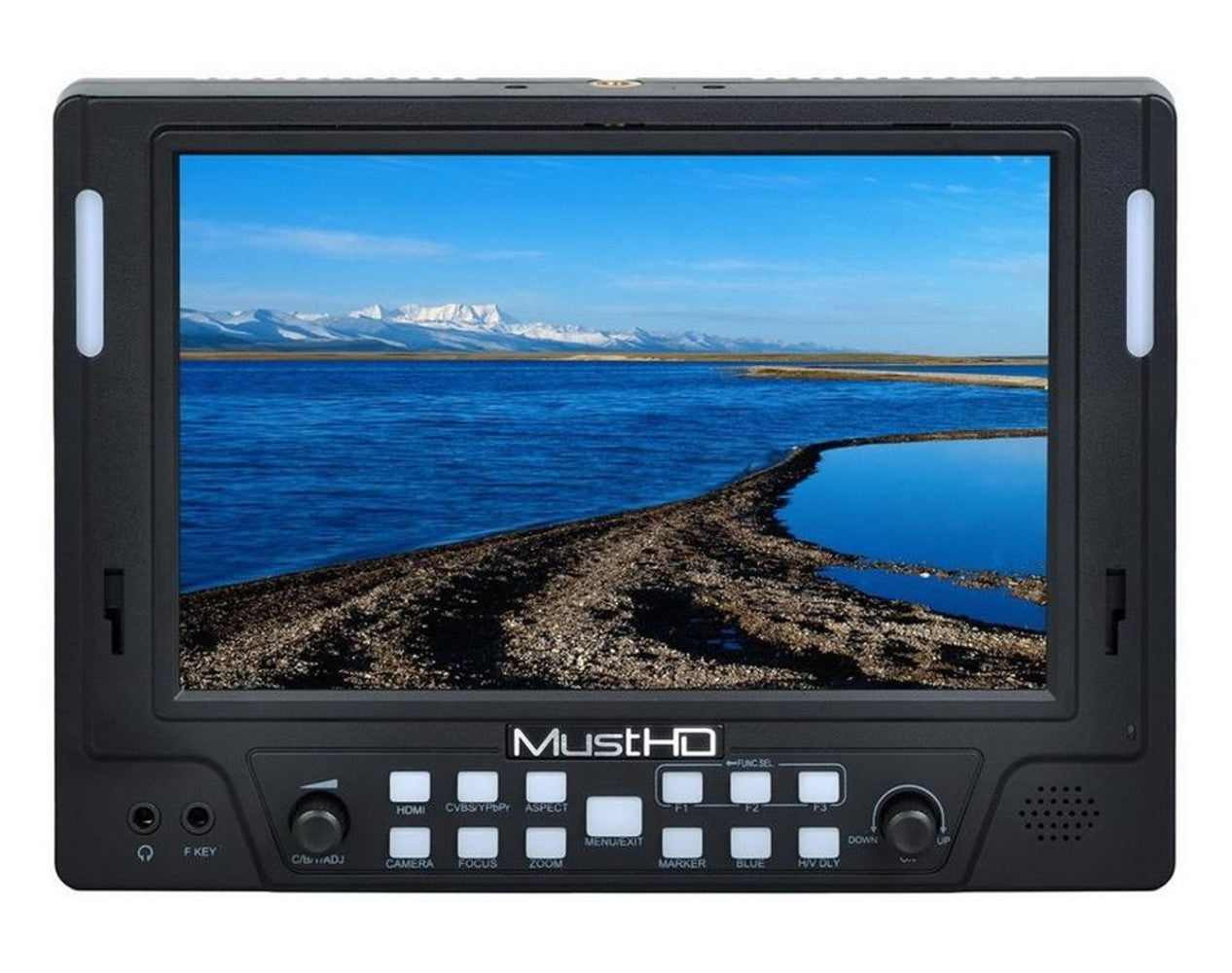

MustHD M702S is a professional grade field monitor with both 3G-SDI and HDMI inputs and loop-through support. The 7" 1920 x 1200 pixel IPS screen combined with 450 cd/m² (450 nits) brightness and a 1100:1 contrast ratio provide a crisp image clear image. The 178° horizontal and 178° vertical viewing angles make it easy to see even at an angle.
Features include 3G-SDI, HDMI and Composite inputs with 4K Support, Luminance of 450cd/m² (450 nits),3G-SDI/HDMI Loop-through Support, Speaker & Headphone Output, and Four 1/4”-20 Thread Mounting Holes. It also have includes Focus Assist / peaking color RGB, false color for under/over luminance warning, Histogram and Zebra Pixel-to-Pixel, Zoom (from 10-90%), R/G/B/Gray-only display, H/V mirror, and 3 button programmable wired remote.
Main
| Configuration | Core |
| Color | Black |
LCD
| Size | 7 inches, IPS panel |
| Resolution | 1920*1200 Native |
| Pixel Pitch | 0.078（W）x0.078(H)mm |
| Viewing Angle H | 178 degrees ; V: 178 degrees |
| Luminance | 450 cd/㎡ |
| Contrast Ratio | 1100:1 |
| Display Area | 151.2 (H) x 94.5(W)mm |
| 1x3G-SDI | 480i/480p/576i/576p/720p/1080i/1080p/4K |
| 1xHDMI | 480i/480p/576i/576p/720p/1080i/1080p/4K |
| 1xComposite | CVBS |
| 1xLAN(RJ45) | TALLY |
| 1x3G-SDI | 480i/480p/576i/576p/720p/1080i/1080p/4K |
| 1xHDMI | 480i/480p/576i/576p/720p/1080i/1080p/4K |
| Analog Stereo(phone jack) | |
| Internal speaker (Mixed Mono) | |
| DC 6-20V | |
| 8W | |
| 0℃to 45℃ (32℉ to 113℉) | |
| -20℃to 60℃ (14℉ to 140℉) | |
| 197.5x143.6x50.6 (7.78x5.65x1.99) | |
| 480g |
