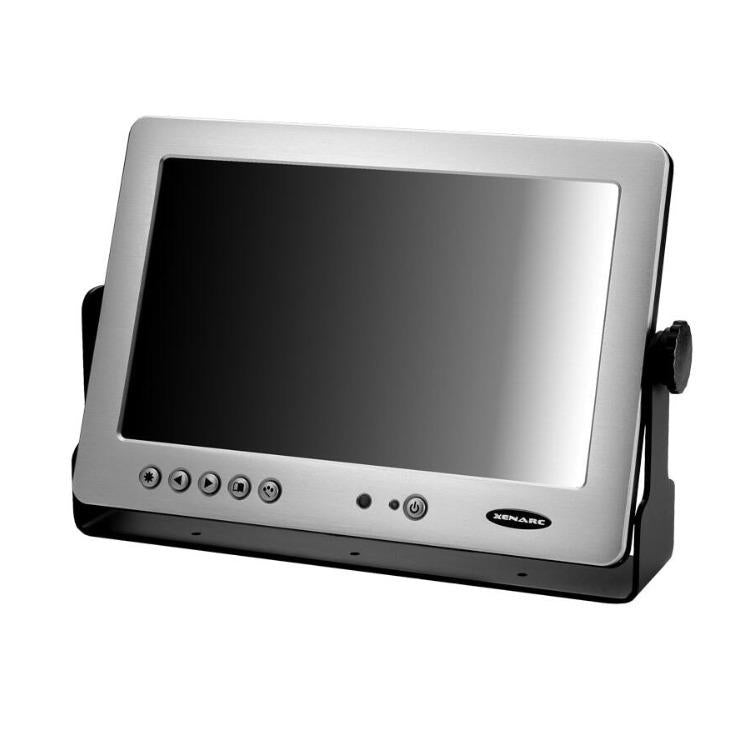

Xenarc Technologies 10-inch LCD Touch Panel with VGA, HDMI, DVI, and AV Inputs
Couldn't load pickup availability
Product highlights
Product highlights
In the box
In the box
Free standard shipping
Free standard shipping
*Orders placed before 1 PM EST Mon - Thur will ship the same day. Orders placed beyond these hours will be shipped the next business day. Exclusions apply. See shipping policy
Free Local Pickup
Free Local Pickup
Please call for store stock availability. Requests made before 2:30 PM EST can be available for next-day pickup. Learn more
Xenarc Technologies was one of the first small form factor portable touchscreen manufacturers to introduce a 10.1-inch LCD screen with touchscreen and now we have further improved this popular model by incorporating an HDMI video input as well as the latest LED backlight technology. In addition, Solid Capacitors are used in place of Electrolytic Capacitors throughout the 10-inch touchscreen LCD to further improve the stability and durability, especially in extreme temperature conditions. This is a 10.1-inch touchscreen monitor with 1000NIT direct sunlight readability.
Rugged and Versatile
This ruggedized and versatile 10.1-inch monitor product incorporates the innovation of a VGA video monitor with a 5-wire resistive touch-screen panel and now HDMI input as well. Use the convenient 10-inch touch-screen as your input device, and control your mouse cursor or the mini on-screen keyboard that comes with your operating system. The touch screen utilizes the USB port as the interface. You can connect several of these touchscreen displays to your computer and the touchscreens will work simultaneously through the multi-monitor support.
Aluminum Face Plate
The brushed, anodized aluminum faceplate gives the 10.1-inch HDMI, DVI, VGA display touchscreen monitor a futuristic yet elegant look. The entire enclosure is constructed with aluminum, making the unit both strong and lightweight and the thin profile (only 1.19-inch ) makes the display very space-saving.
Connectivity
| External Ports | USB Type-C |
General
| AC Input Power | Not Available |
Electrical
| AC/DC Power Adapter | PA-130 / 12 VDC (Not Included) |
Environmental
| Storage Temperature | -30°C to 80°C |
| Operating Temperature | -4 to 158-degree F (-20 to 70-degree C) |
Physical
| Weight | 3.3 lb |
| Wall Mounting | Not Available |
Display
| Resolution | 1920 x 1080 |
| Brightness | 400 cd/m² |
| TV Screen Size (Diagonal) | 10.1" |
| Variable Frame Rates | Not Available |
| Touch Screen | 42190 |
| Viewing Angle (H x V) | 140 x 120° |
| Response Time | 20ms |
| Dot Pitch | 1,843,200 (dots) |
Xenarc Technologies 10-inch LCD Touch Panel with VGA, HDMI, DVI, and AV Inputs
| Screen size | Diagonal 10.1-inch (16:9) |
| Physical resolution | 1024 (H) x 600 (V) WXGA |
| Supported resolution | 640 x 480 to 1920 x 1080 |
| Dot resolution | 3072 x 600 = 1,843,200 (dots) |
| Brightness | 400 cd/m² |
| Contrast ratio | 600:1 |
| Viewing angle | 140-degree horizontal, 120-degree vertical |
| Response time (Tr/Tf) | 5/20ms (Typ.) |
| Touch screen interface | USB port |
| Operating voltage range | DC 9V to 36V |
| Power supply | DC 12V |
| Power consumption | ≤ 20W |
| Operating temperature | -4 to 158-degree-F (-20 to 70-degree-C) |
| Storage temperature | -22 to 176-degree-F (-30 to 80-degree-C) |
| Vibration | Operating Random Vibration Test (5-500Hz, 1.0Grms), IEC 60068-2-64 standard |
| Shock | Operating Shock Test, 10G peak acceleration (11ms duration), IEC 60068-2-27 standard |
| MTBF (Mean time between failures) | > 55,000 hours or > 6.2 years of continuous operation |
| Dimensions | 265W x 186H x 33.2D mm |
| Weight | 3.3 lb |
