Xenarc Technologies 12.1-inch IP67 IK08 Touchscreen LCD Monitor with VGA, HDMI, DVI Inputs
Couldn't load pickup availability
Product highlights
Product highlights
In the box
In the box
Free standard shipping
Free standard shipping
*Orders placed before 1 PM EST Mon - Thur will ship the same day. Orders placed beyond these hours will be shipped the next business day. Exclusions apply. See shipping policy
Free Local Pickup
Free Local Pickup
Please call for store stock availability. Requests made before 2:30 PM EST can be available for next-day pickup. Learn more

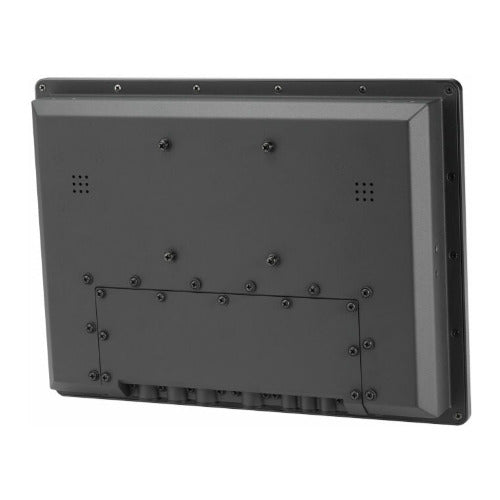

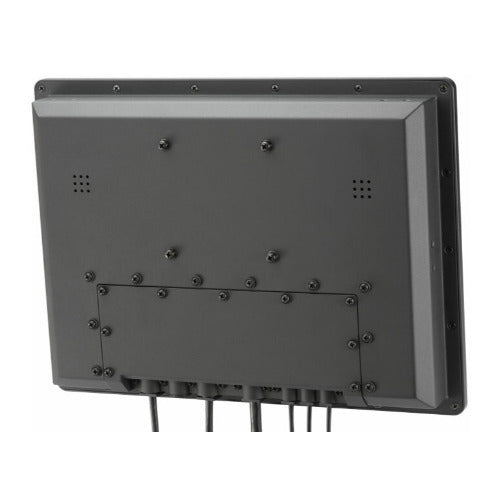

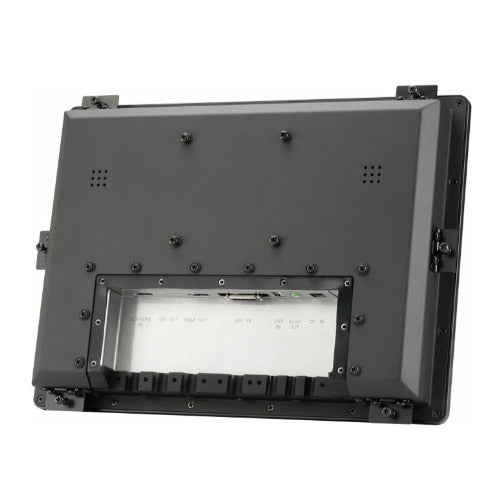

The versatility of the 1219 series extends beyond its usability in many different environments. The Xenarc Technologies 12.1-inch IP67 IK08 Touchscreen LCD Monitor can video interface through the proprietary 26-pin cable (HDMI, VGA, AV Inputs) as well as HDMI direct into the monitor. The 12.1-inch touchscreen display monitor comes with an HDMI output that allows you to chain up a few 1219 series 12.1-inch touchscreen monitors or output to other HDMI monitors. With the included waterproof cables, the 1219GNH is IP67 on all sides and angles. The casing of this display is designed to be used as a stand-alone monitor as well as a panel mount monitor. VESA standard mounting holes on the back further provide users with numerous mounting options. The IK08 rating makes this display vandal-resistant and shock-resistant.
Rugged Display
The 12.1-inch Touchscreen LCD Monitor was designed for those looking for a truly rugged, bright, compact display, usable in just about any environment or application.
High-Grade Components
By utilizing high-grade components, this display is perfect for industrial, in-car computing applications or any other applications where a small, durable, environmentally rugged display is required.
General
| AC Input Power | DC 12V |
Environmental
| Storage Temperature | -30°C to 85°C |
| Operating Temperature | -22 to 185-degree F (-30 to 85-degree C) |
Physical
| Weight | 6.30 |
| Wall Mounting | Not Available |
Video
| Video System | NTSC |
Display
| Resolution | 1920 x 1080 |
| Brightness | 1000 cd/m² |
| TV Screen Size (Diagonal) | 12.1" |
| Variable Frame Rates | Not Available |
| Viewing Angle (H x V) | 178 x 178° |
| Contrast Ratio | 1000:1 |
| Response Time | 25ms |
| Dot Pitch | 3,072,000 (dots) |
Xenarc Technologies 12.1-inch IP67 IK08 Touchscreen LCD Monitor with VGA, HDMI, DVI Inputs
| Screen size | Diagonal 12.1-inch (16:9) |
| Physical resolution | 1280 (H) x 800 (V) HD |
| Supported resolution | 640 x 480 to 1920 x 1080 |
| Dot resolution | 3840 x 800 = 3,072,000 (dots) |
| Brightness | 1000 cd/m² |
| Contrast ratio | 1000:1 |
| Viewing angle | 178-degree Horizontal, 178-degree Vertical |
| Response time (Tr+Tf) | 25ms (Typ.) |
| Touch screen interface | USB port |
| Operating voltage range | DC 9V to 36V |
| Power supply | DC 12V |
| Power consumption | ≤ 20W |
| Operating temperature | -22 to 185-degree F (-30 to 85-degree C) |
| Storage temperature | -22 to 185-degree F (-30 to 85-degree C) |
| Vibration | Operating Random Vibration Test (5-500Hz, 1.0Grms), IEC 60068-2-64 standard |
| Shock | Operating Shock Test, 10G peak acceleration (11ms duration), IEC 60068-2-27 standard |
| MTBF (Mean time between failures) | > 55,000 Hours or > 6.2 Years of continuous operation |
| Dimension | 312W x 230H x 44.2D mm |
| Weight | 6.30 lb |
