- V-RAPTOR XL [X] 8K VV Camera System
- DSMC3 RED Touch 7 Inch LCD
- DSMC3 RED Touch 7.0 Inch LCD Hood
- DSMC3 RMI Cable 18 Inch
- 2x RED PRO CFexpress v4 Type B 2TB
- RED PRO CFexpress v4 Type B Card Reader
- 4x REDVOLT XL-G
- RED Compact Dual Gold Mount Charger
- DSMC3 RED 5-Pin to Dual XLR Adapter
- V-RAPTOR XL Top Handle w/ Extensions
- V-RAPTOR XL Top 15mm LWS Rod Support Bracket
- V-RAPTOR XL Bottom 15mm LWS Rod Support Bracket
- V-RAPTOR XL Riser Plate
NOTE: Power cord not included – must purchase separately.
Trusted & Verified

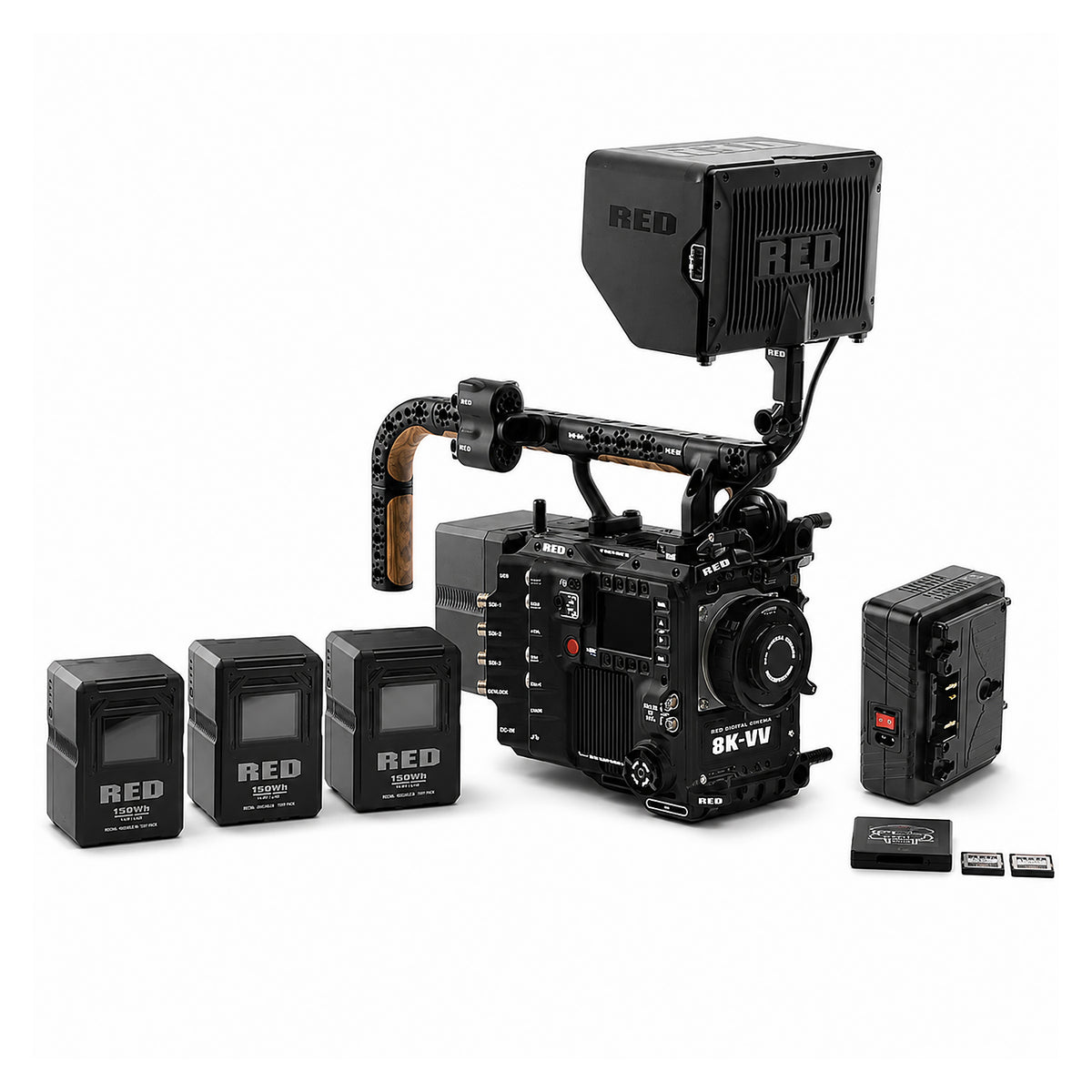

RED Digital Cinema V-RAPTOR XL X 8K VV 35.4MP Camera Production Pack (Gold Mount)
- 35.4 MP 8K VV global shutter CMOS sensor captures 8192 x 4320 video
- With 17+ stops of dynamic range
- Records REDCODE RAW up to 120 fps at 8K 17:9 and up to 600 fps at 2K 2.4:1
- Built in electronic ND offers 2 to 7 stops with 1/4, 1/3, and full stop adjustment
- Interchangeable lens mount system includes a shimmable V-RAPTOR XL PL Mount
- CFexpress Type B media supports data rates up to 800 MB/s with qualified cards
- Dual voltage 14/26 V power support and multiple regulated outputs suit production workflows
- RED Global Vision adds Extended Highlights and Phantom Track recording tools
- Wi-Fi, USB-C, Gigabit Ethernet, timecode, genlock, and multiple SDI outputs
The RED V RAPTOR XL X 8K VV combines large format global shutter capture with high frame rates and an integrated production body. Its 35.4 Megapixel CMOS sensor records 8192 x 4320 images and supports REDCODE RAW up to 120 fps at 8K 17:9. At the wider 8K 2.4:1 format, the camera reaches 150 fps. This combination gives cinematographers detailed 8K acquisition, controlled motion rendering, and multiple format choices for narrative, commercial, television, live, and virtual production.
Global Shutter 8K VV Imaging
The global shutter architecture captures each frame without the temporal skew associated with a rolling shutter. RED states 17 plus stops of dynamic range. RED Global Vision adds Extended Highlights capability for retaining additional detail and color in extreme dynamic range scenes. Phantom Track can record multiple LED instances as dedicated clips for compatible virtual production environments. Image Processing Pipeline 2 supports 33 x 33 x 33 3D LUTs and the import and adjustment of CDLs, giving production teams a structured path from capture through monitored looks.
Recording Formats and Exposure Control
REDCODE RAW scales from 8K 120 fps at 17:9 through 2K 600 fps at 2.4:1, with intermediate 7K, 6K, 5K, 4K, and 3K options. Supported acquisition formats include standard aspect ratios and multiple anamorphic selections. Apple ProRes recording is available in ProRes 4444 XQ, ProRes 4444, ProRes 422 HQ, ProRes 422, and ProRes 422 LT at resolutions up to 4K 120P. A motorized clear filter and precision controlled electronic ND system provide 2 to 7 stops of density. Select 1/3, 1/4, or 1 stop increments to adjust exposure while maintaining the intended aperture and shutter settings.
Integrated Crew and Camera Control
The XL body centralizes monitoring, synchronization, remote control, media, and accessory power. Three 12G SDI ports and a dedicated EVF SDI output provide multiple viewing paths. Timecode, genlock, PTP, Gigabit Ethernet, USB C, dual band Wi-Fi, and the Ambient Communication Network support synchronized and remote workflows. Regulated 12 V and 24 V outputs allow compatible accessories to draw power from the camera body. The Gold Mount configuration uses an integrated dual voltage 14 V and 26 V interface, while the included shimmable PL Mount supports production lenses. CFexpress Type B media handles data rates up to 800 MB/s when RED branded or qualified cards are used.
Imaging:
| Camera Model | V-RAPTOR XL X 8K VV |
| Sensor Type | V-RAPTOR X 8K VV 35.4 Megapixel Global Shutter CMOS |
| Effective Pixels | 8192 x 4320 |
| Sensor Size | 40.96 mm x 21.60 mm, 46.31 mm diagonal |
| Dynamic Range | 17 plus stops |
| Built In ND | Motorized clear filter and precision controlled electronic ND filter |
| Electronic ND Range | 2 stops minimum to 7 stops maximum |
| Electronic ND Increments | 1/3 stop, 1/4 stop, and 1 stop |
| Autofocus | Phase Detect with Face Detection |
Lens Mount:
| Mount Type | Interchangeable lens mount |
| Included Mount | V-RAPTOR XL PL Mount, shimmable |
| Optional Mount | V-RAPTOR XL Locking Canon EF Mount |
| DSMC Lens Mount Compatibility | Physically compatible without electronic communication or control |
Recording Media:
| Media Type | CFexpress Type B |
| Maximum Data Rate | Up to 800 MB/s using RED branded or other qualified CFexpress media cards |
| Playback Frame Rates | 23.98, 24, 25, 29.97, 30, 50, 59.94, and 60 fps at all resolutions |
REDCODE RAW Maximum Frame Rates:
| 8K | 120 fps at 17:9 and 150 fps at 2.4:1 |
| 7K | 140 fps at 17:9 and 175 fps at 2.4:1 |
| 6K | 160 fps at 17:9 and 200 fps at 2.4:1 |
| 5K | 192 fps at 17:9 and 240 fps at 2.4:1 |
| 4K | 240 fps at 17:9 and 300 fps at 2.4:1 |
| 3K | 320 fps at 17:9 and 400 fps at 2.4:1 |
| 2K | 480 fps at 17:9 and 600 fps at 2.4:1 |
REDCODE RAW Settings:
| 8K 17 | 9 Up to 60 fps: REDCODE HQ, MQ, LQ, and ELQ |
| 8K 17 | 9 Up to 120 fps: REDCODE LQ and ELQ |
| 6K 17 | 9 Up to 96 fps: REDCODE HQ, MQ, LQ, and ELQ |
| 6K 17 | 9 Up to 160 fps: REDCODE MQ, LQ, and ELQ |
| 4K 17 | 9 Up to 240 fps: REDCODE HQ, MQ, LQ, and ELQ |
| 2K 17 | 9 Up to 480 fps: REDCODE HQ, MQ, LQ, and ELQ |
REDCODE RAW Acquisition Formats:
| 8K | 17:9, 2:1, 2.4:1, 16:9, 1:1, Anamorphic 2x, 1.8x, 1.6x, 1.5x, 1.3x, and 1.25x |
| 7K | 17:9, 2:1, 2.4:1, 16:9, 1:1, Anamorphic 2x, 1.8x, and 1.6x |
| 6K | 17:9, 2:1, 2.4:1, 16:9, 1:1, Anamorphic 1.5x, 1.3x, and 1.25x |
| 5K | 17:9, 2:1, 2.4:1, 16:9, and 1:1 |
| 4K | 17:9, 2:1, 2.4:1, 16:9, and 1:1 |
| 3K | 17:9, 2:1, 2.4:1, 16:9, and 1:1 |
| 2K | 17:9, 2:1, 2.4:1, 16:9, and 1:1 |
Apple ProRes Recording:
| Dedicated Recording | ProRes 4444 XQ, ProRes 4444, ProRes 422 HQ, ProRes 422, and ProRes 422 LT |
| Maximum Dedicated Recording | Up to 4K 4096 x 2160 at 120P |
| Proxy Recording | Up to ProRes 422 HQ at 2K 2048 x 1080 at up to 60P |
Construction and Dimensions:
| Construction | Aluminum Alloy |
| Dimensions | 200.81 mm x 151.38 mm x 165.9 mm, 7.9 inches x 6 inches x 6.5 inches, length x width x height at largest fixed dimensions |
| Weight | 8.08 lb, 3.67 kg, with Gold Mount and PL Mount |
Power:
| Battery Interface | Integrated dual voltage 14 V and 26 V Gold Mount battery interface |
| DC Power Input | 19.5 V to 34 V through the 4-Pin 2B DC-IN port |
| Regulated 12 V Outputs | 2 P-TAP connectors at 3 amps combined |
| Rear 12 V Output | 1 rear 2-Pin 0B connector at 3 amps |
| Rear 12 V Output | 1 rear 2-Pin 0B connector at 1.5 amps |
| Front 12 V Output | 1 front 2-Pin 0B connector at 1 amp |
| Regulated 24 V Outputs | 2 front 3-Pin Fischer connectors at 3 amps combined |
Environmental:
| Operating Temperature | 0 degrees C to 40 degrees C, 32 degrees F to 104 degrees F |
| Storage Temperature | Minus 20 degrees C to 50 degrees C, minus 4 degrees F to 122 degrees F |
| Storage Relative Humidity | 0 percent to 85 percent noncondensing |
RED Global Vision:
| Extended Highlights | Captures additional detail and color in extreme dynamic range scenarios |
| Phantom Track | Captures multiple LED instances as dedicated clips |
Color Management:
| Image Processing | Image Processing Pipeline 2, IPP2 |
| 3D LUT Support | 33 x 33 x 33 |
| CDL Support | Import and adjustment supported |
Audio:
| Integrated Microphones | Dual channel digital mono, uncompressed, 24 bit 48 kHz |
| Audio Input | Dual channel mic, line, and plus 48 V through the 5-Pin 00B Audio Port, uncompressed, 24 bit 48 kHz |
| Headphone Output | 3.5 mm stereo headphone port |
IP Connectivity:
| RED Connect Module Compatibility | Live 8K R3D video over IP or live 4K over SMPTE ST 2110 |
| Wireless | Dual band Wi-Fi at 2.4 GHz or 5 GHz |
| Wireless Functions | Camera control, live preview, and direct Camera to Cloud workflow through Frame.io or Amazon S3 |
| Wired Control | USB-C or 9-Pin Gigabit Ethernet |
| Wired Functions | Remote camera control, live preview, direct Camera to Cloud workflow, and high speed remote media offload |
Monitor Outputs:
| Accessory Port | Proprietary Top Accessory Port for monitoring and control |
| SDI Outputs | 3 12G-SDI ports with 6G-SDI, 3G-SDI, and 1.5G-SDI modes |
| EVF Output | 1 3G-SDI port with 3G-SDI and 1.5G-SDI modes |
| 12G-SDI Output | Up to 4096 x 2160 4:2:2 at 60p |
| 6G-SDI Output | Up to 4096 x 2160 4:2:2 at 30p, 25p, and 24p |
| 3G-SDI Output | Up to 2048 x 1080 4:2:2 at 60p |
| 1.5G-SDI Output | Up to 2048 x 1080 4:2:2 at 30p, 25p, and 24p |
| Output Data | SMPTE Timecode, HANC Metadata, and 24 bit 48 kHz audio |
Monitor Options:
| Monitor Option | DSMC3 RED Touch 7.0 inch LCD |
| Viewfinder Option | RED Compact EVF with DSMC3 Adapter A |
| Live Preview | IP streamed 1080p preview through Wi-Fi, USB-C, or Ethernet |
| Integrated Display | Integrated 2.4 inch LCD for camera control without preview video |
Additional I/O:
| Genlock | Tri Level Genlock through BNC |
| Timecode | Linear Timecode through 5-Pin 0B |
| Network Access | PTP and remote camera access through 9-Pin 0B GIG-E |
| Camera Control | RCP2 through 4-Pin 00B CTRL |
| Wireless Synchronization | Genlock and timecode through the integrated Ambient Communication Network |
RED Control and RED Control Pro:
| RED Control | Full camera controls and live preview from compatible iOS or Android devices |
| RED Control Pro | Operates one or multiple cameras over an IP connection |
| Control Functions | Synchronizes settings, manages media files, supports direct Frame.io uploads, and provides CDL and LUT controls |
| Multi Camera Applications | Supports multi camera arrays, multi camera productions, and live event workflows from a central location |
| Standard App Availability | Apple App Store and Google Play Store |
| RED Control Pro Availability | Apple App Store only and requires an additional purchase |
| Connectivity | Wireless or wired through USB-C |
