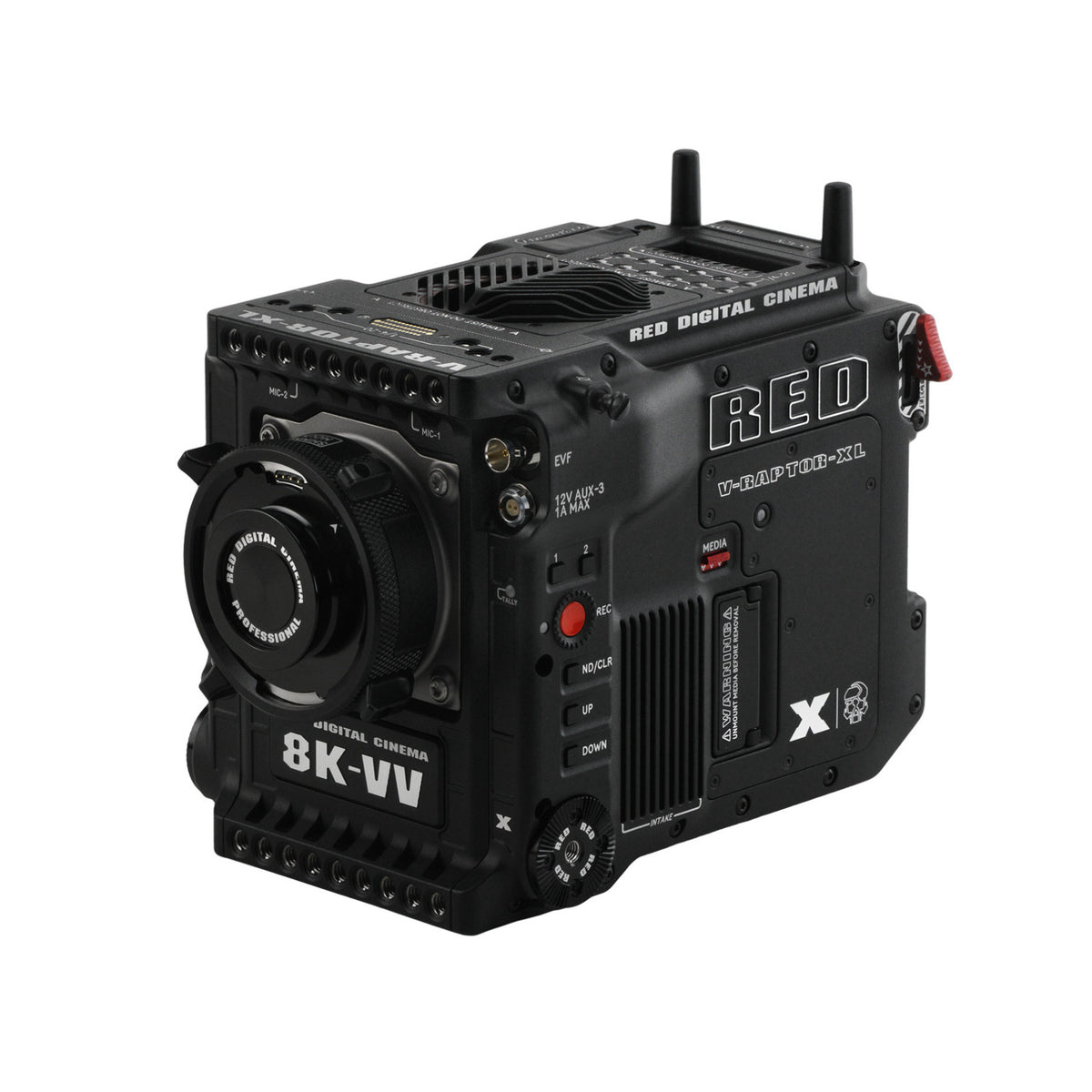

- V-RAPTOR XL [X] 8K VV Camera System

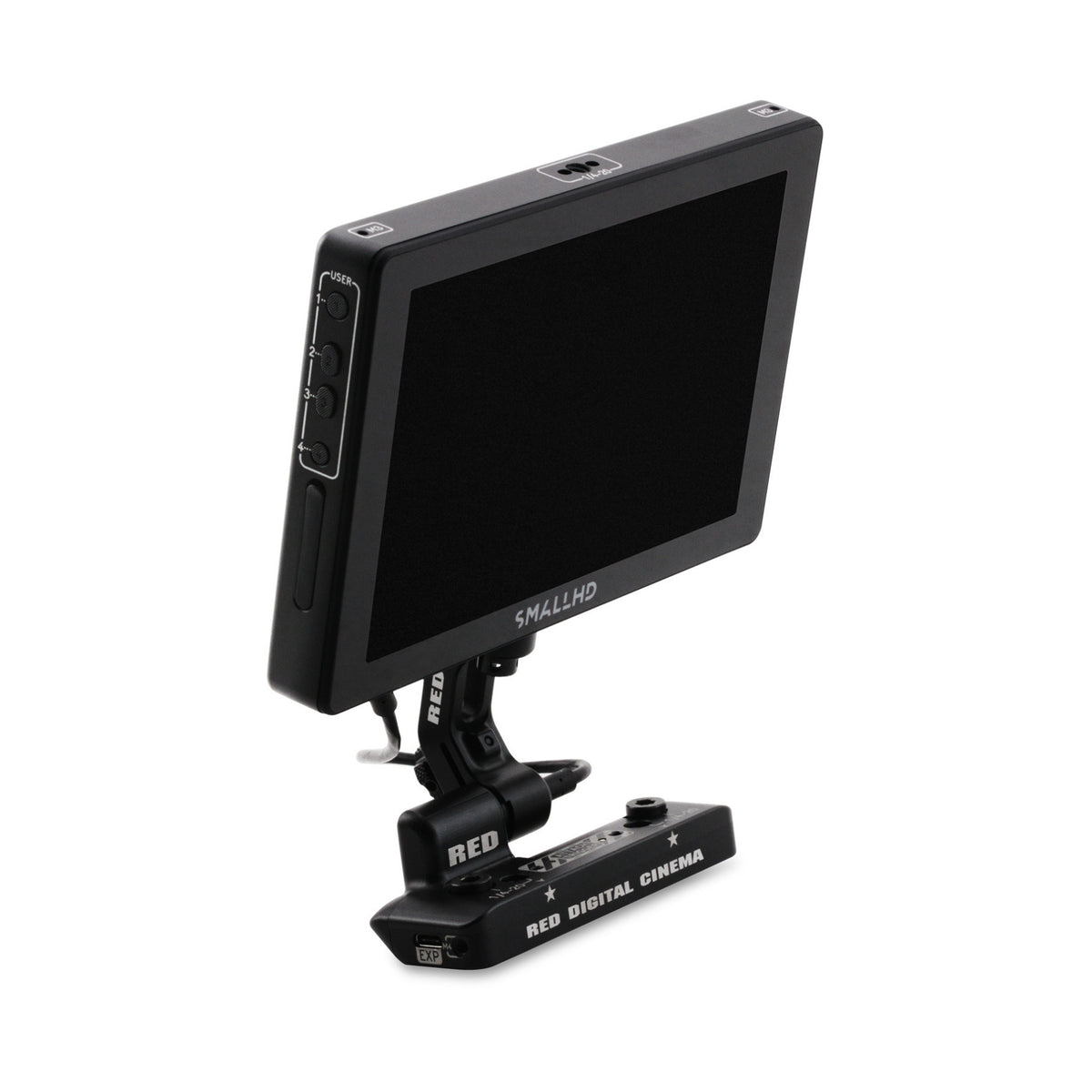

- DSMC3 RED Touch 7 Inch LCD
- DSMC3 RED Touch 7.0 Inch LCD Hood
- DSMC3 RMI Cable 18 Inch

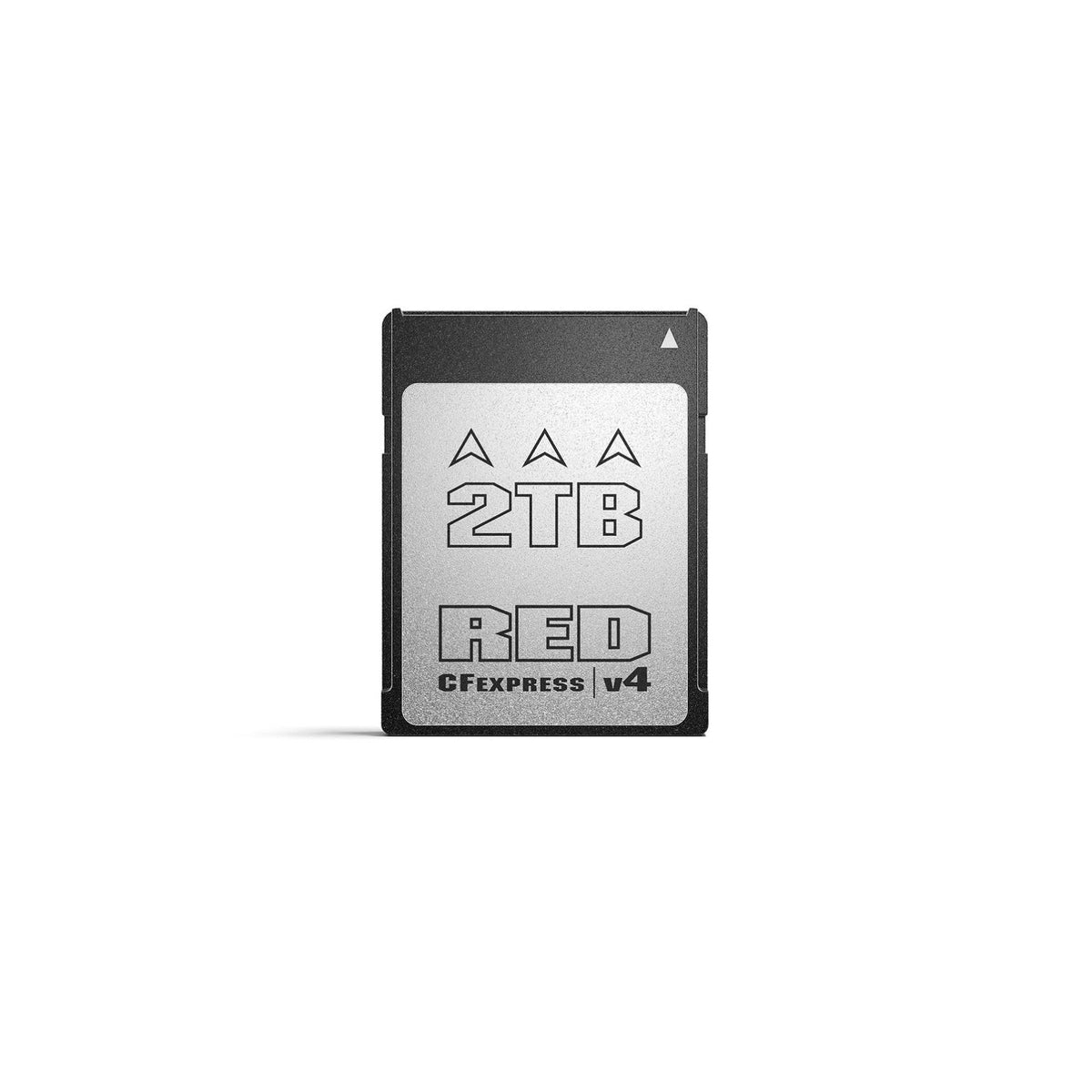

- 2x RED PRO CFexpress v4 Type B 2TB

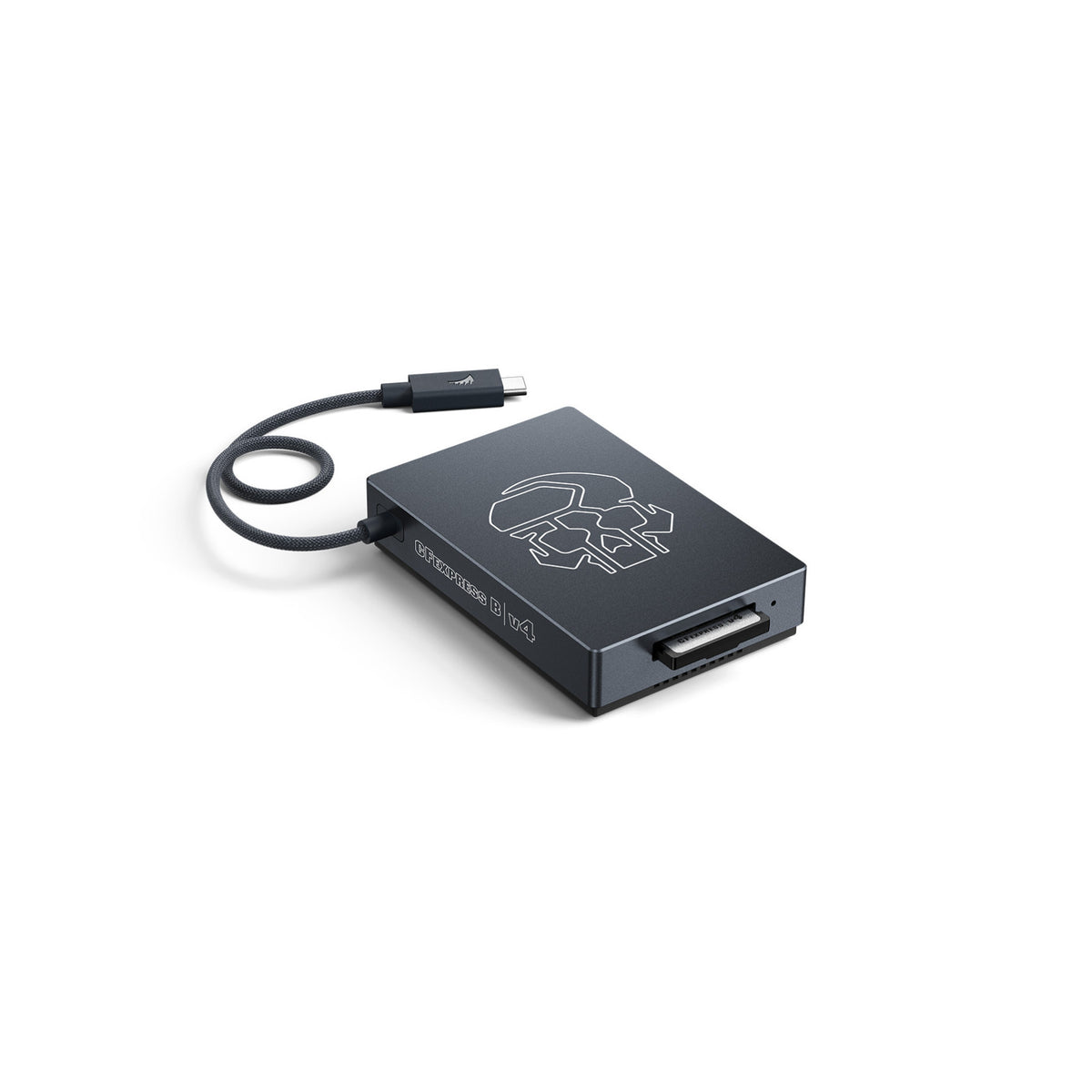

- RED PRO CFexpress v4 Type B Card Reader

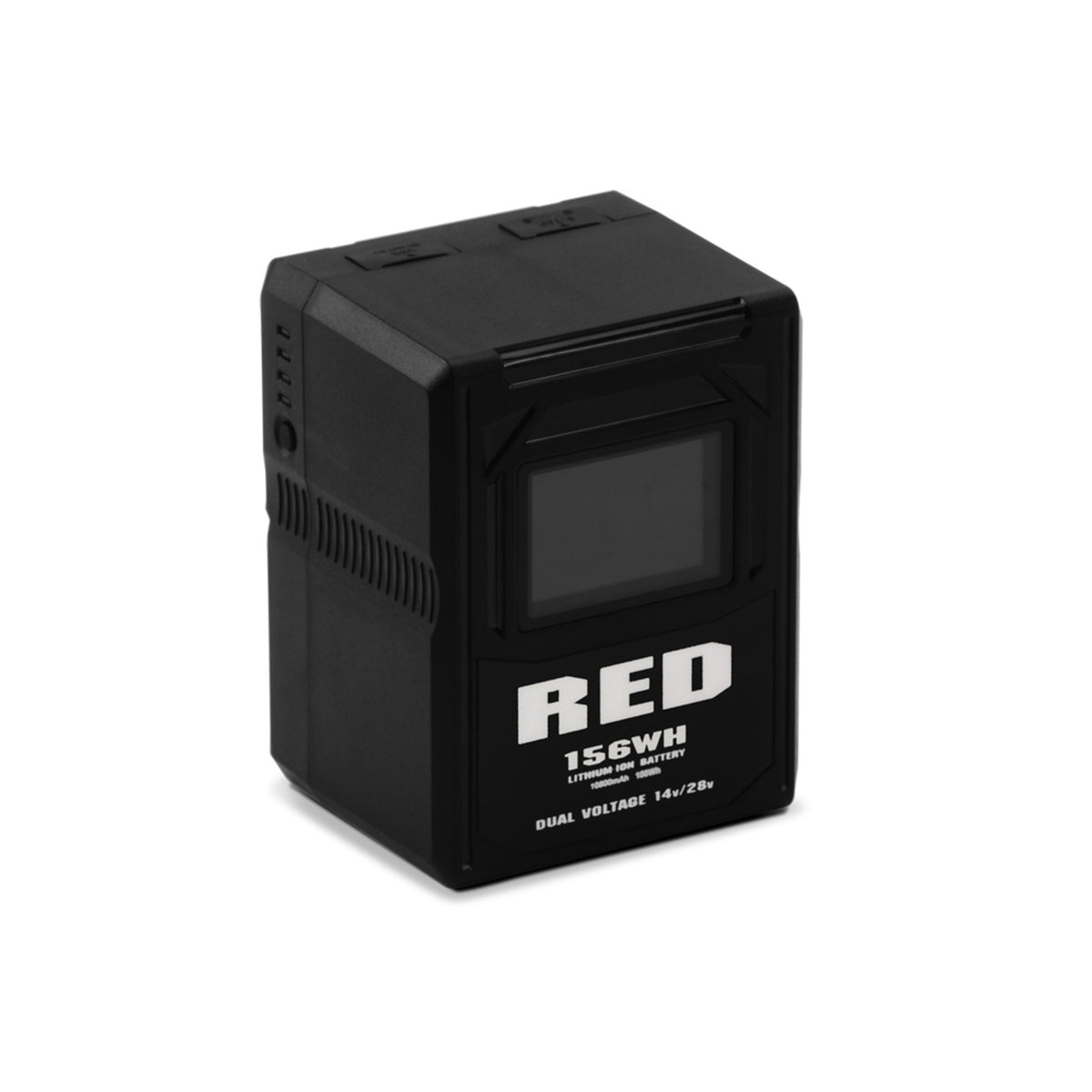

- 4x REDVOLT XL-G

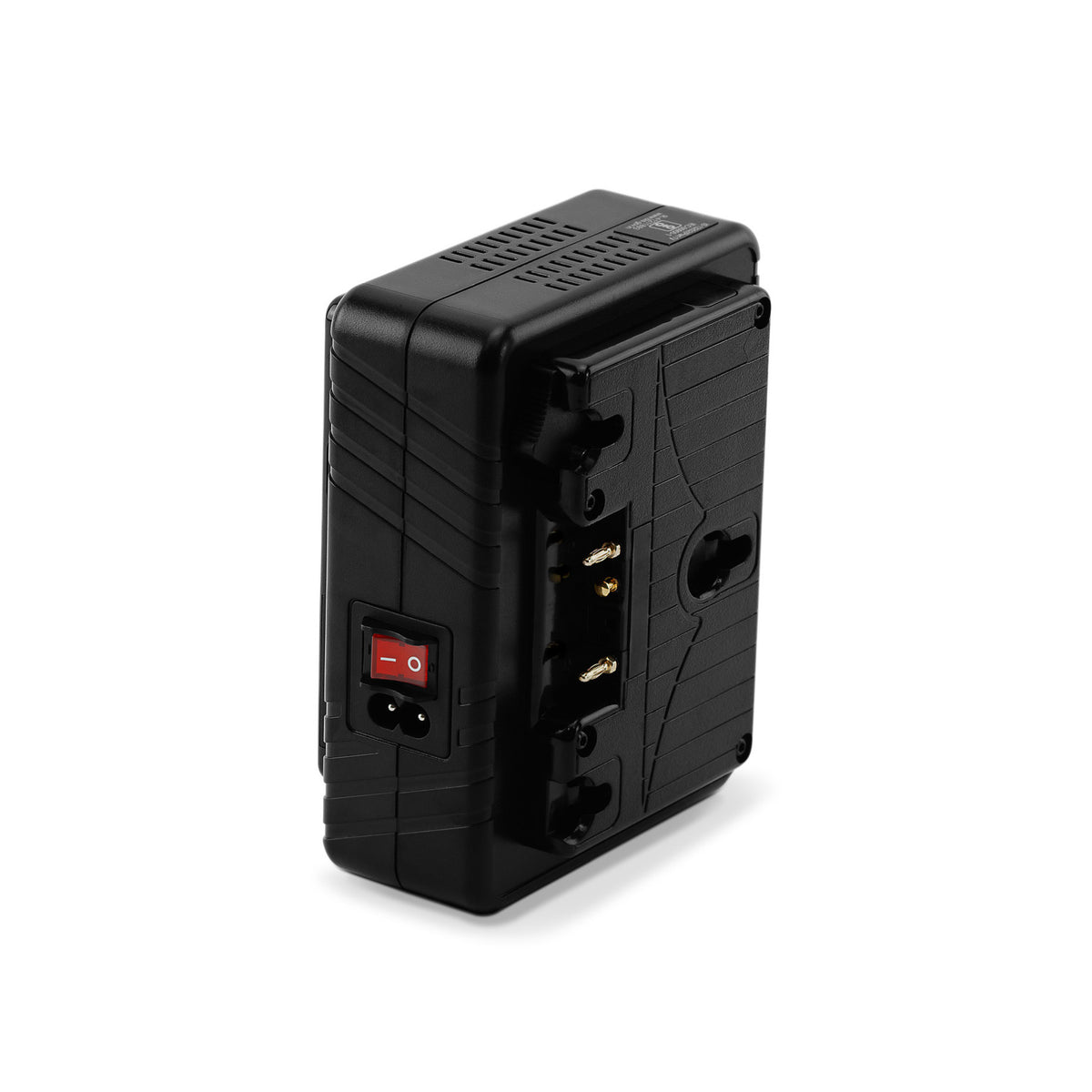

- RED Compact Dual Gold Mount Charger

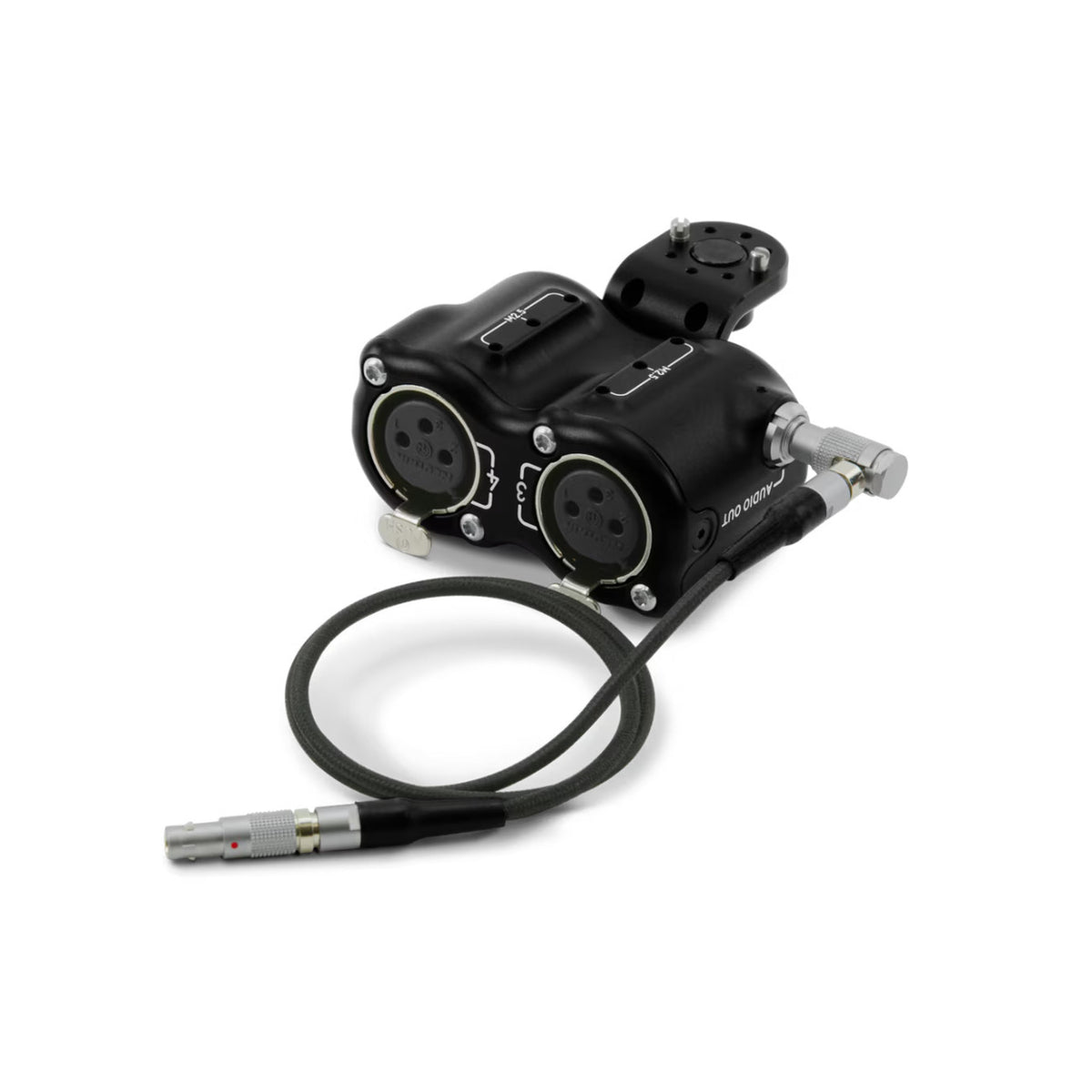

- DSMC3 RED 5-Pin to Dual XLR Adapter
- V-RAPTOR XL Top Handle w/ Extensions

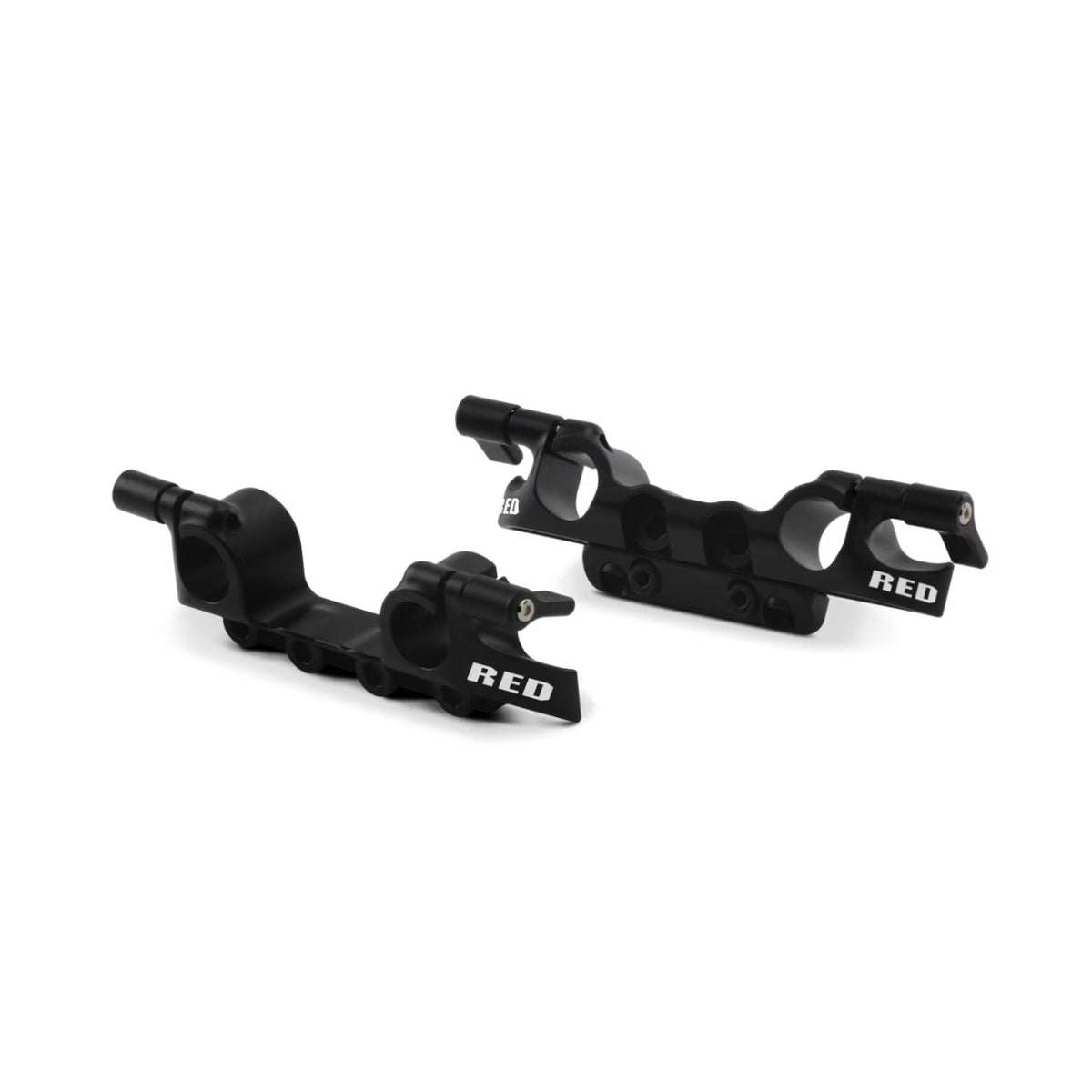

- V-RAPTOR XL Top 15mm LWS Rod Support Bracket
- V-RAPTOR XL Bottom 15mm LWS Rod Support Bracket

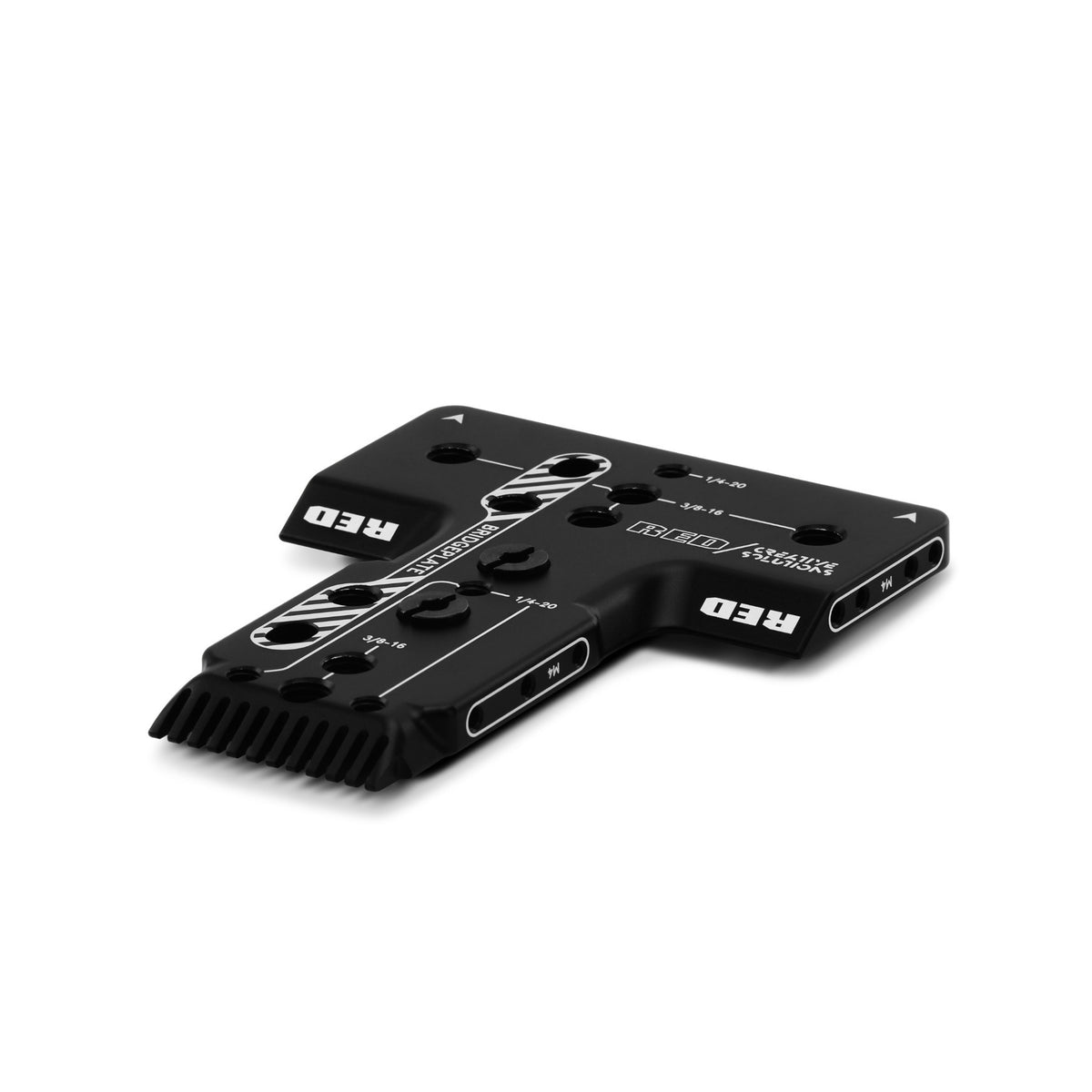

- V-RAPTOR XL Riser Plate
NOTE: Power cord not included – must purchase separately.
Trusted & Verified

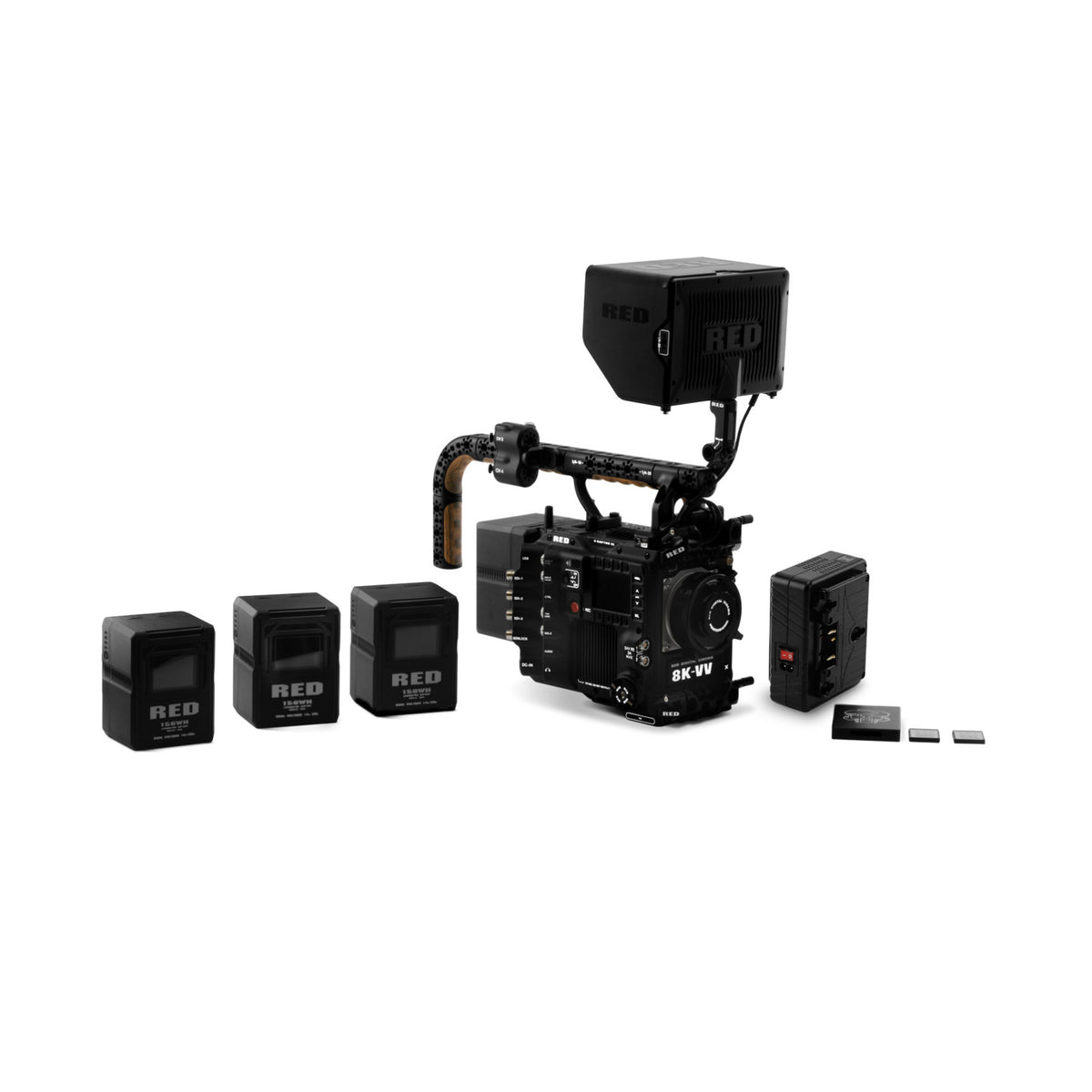

RED Digital Cinema V-RAPTOR XL X 8K VV 35.4MP Camera Production Pack (Gold Mount)
- 35.4 MP 8K VV global shutter CMOS sensor captures 8192 x 4320 video
- With 17+ stops of dynamic range
- Records REDCODE RAW up to 120 fps at 8K 17:9 and up to 600 fps at 2K 2.4:1
- Built in electronic ND offers 2 to 7 stops with 1/4, 1/3, and full stop adjustment
- Interchangeable lens mount system includes a shimmable V-RAPTOR XL PL Mount
- CFexpress Type B media supports data rates up to 800 MB/s with qualified cards
- Dual voltage 14/26 V power support and multiple regulated outputs suit production workflows
- RED Global Vision adds Extended Highlights and Phantom Track recording tools
- Wi-Fi, USB-C, Gigabit Ethernet, timecode, genlock, and multiple SDI outputs
Amazing Image, Enhanced On-Set Experience
V-RAPTOR XL [X] 8K VV combines the strengths of RED’s two families of cameras into one powerful all-purpose workhorse. The frame rates, lowlight performance, and resolution of the V-RAPTOR line combined with the global shutter advancements of KOMODO, the V-RAPTOR [X] 8K VV sensor is the culmination of the latest advancements in digital cinema image making. Using RED’s newest 8K VV sensor, V-RAPTOR XL [X] leverages the benefits and flexibility of large format, global shutter, high framerate, 8K acquisition, all inside of a large-scale-production ready XL camera body.
Built for Production Workflows
V-RAPTOR XL [X] is designed to support high-end motion picture and television productions as well as any filmmaker who would benefit an all-in-one solution. Dual voltage battery support offers compatibility with a wide range of common batteries found on set today, both 14 V batteries and high voltage 26 V V-Lock or Gold Mount options. 12 V and 24 V auxiliary power outputs allows camera assistants to power all the peripherals needed to do their job from one centralized place. Front facing 3G-SDI and 2-Pin 12 V power, as well as compatibility with the DSMC3 RED Touch 7.0 inch LCD, supports any camera operators viewing preference. Wireless timecode, genlock, and camera control, as well as four SDI outputs support the DIT, giving them access to everything they need at their cart.
Exposure and On Set Control
Built-in electronic ND allows cinematographers to precisely select their density in 1/4, 1/3, and full stop increments, providing never before seen exposure and depth of field control inside a cinema camera of this level.
Advanced Connectivity
Additionally, the V-RAPTOR XL [X] and the DSMC3 platform features advanced connectivity solutions which enable applications such as remote control and monitoring, in-camera Frame.io integration, AWS direct upload, RED Connect for live 8K R3D video over IP or live 4K over SMPTE ST 2110, and more.
Global Vision
V-RAPTOR XL [X] 8K VV is pushed to new limits with the introduction of RED Global Vision, a new suite of tools that use the global shutter sensor to provide even more flexibility and ease of use throughout the production process. Global Vision’s Extended Highlights allows the camera to see even further into highlight detail, providing more detail for HDR finishes, or softer and more subtle highlight roll-off for SDR. RED Global Vision also includes Phantom Track to streamline any Virtual Production environment employing GhostFrame or Frame Remapping, capturing distinct R3D clips per each sub-frame slice, as well as allowing for monitoring of either slice live on-set over each SDI.
Imaging:
| Sensor Type | V-RAPTOR [X] 8K VV 35.4 Megapixel Global Shutter CMOS |
| Effective Pixels | 8192 x 4320 |
| Sensor Size | 40.96 mm x 21.60 mm, 46.31 mm diagonal |
| Dynamic Range | 17+ stops |
| Built In ND | Motorized clear filter and precision controlled electronic ND filter |
| Electronic ND Range | 2 stops minimum to 7 stops maximum |
| Electronic ND Increments | 1/3 stop, 1/4 stop, and 1 stop |
| Autofocus | Phase Detect with Face Detection |
Lens Mount:
| Mount Type | Interchangeable lens mount |
| Included Mount | V-RAPTOR XL PL Mount, shimmable |
| Optional Mount | V-RAPTOR XL Locking Canon EF Mount |
| DSMC Lens Mount Compatibility | Physically compatible without electronic communication or control |
Recording and Media:
| Media Type | CFexpress Type B |
| Maximum Data Rate | Up to 800 MB/s using RED branded or other qualified CFexpress media cards |
| Playback Frame Rates | 23.98, 24, 25, 29.97, 30, 50, 59.94, and 60 fps at all resolutions |
REDCODE RAW Maximum Frame Rates:
| 8K | 120 fps at 17:9, 150 fps at 2.4:1 |
| 7K | 140 fps at 17:9, 175 fps at 2.4:1 |
| 6K | 160 fps at 17:9, 200 fps at 2.4:1 |
| 5K | 192 fps at 17:9, 240 fps at 2.4:1 |
| 4K | 240 fps at 17:9, 300 fps at 2.4:1 |
| 3K | 320 fps at 17:9, 400 fps at 3K 2.4:1 |
| 2K | 480 fps at 17:9, 600 fps at 2K 2.4:1 |
REDCODE RAW Settings:
| 8K 17 | 9 Up to 60 fps: REDCODE HQ, MQ, LQ, and ELQ |
| 8K 17 | 9 Up to 120 fps: REDCODE LQ and ELQ |
| 6K 17 | 9 Up to 96 fps: REDCODE HQ, MQ, LQ, and ELQ |
| 6K 17 | 9 Up to 160 fps: REDCODE MQ, LQ, and ELQ |
| 4K 17 | 9 Up to 240 fps: REDCODE HQ, MQ, LQ, and ELQ |
| 2K 17 | 9 Up to 480 fps: REDCODE HQ, MQ, LQ, and ELQ |
REDCODE RAW Acquisition Formats:
| 8K | 17:9, 2:1, 2.4:1, 16:9, 1:1, Anamorphic 2x, 1.8x, 1.6x, 1.5x, 1.3x, and 1.25x |
| 7K | 17:9, 2:1, 2.4:1, 16:9, 1:1, Anamorphic 2x, 1.8x, and 1.6x |
| 6K | 17:9, 2:1, 2.4:1, 16:9, 1:1, Anamorphic 1.5x, 1.3x, and 1.25x |
| 5K | 17:9, 2:1, 2.4:1, 16:9, and 1:1 |
| 4K | 17:9, 2:1, 2.4:1, 16:9, and 1:1 |
| 3K | 17:9, 2:1, 2.4:1, 16:9, and 1:1 |
| 2K | 17:9, 2:1, 2.4:1, 16:9, and 1:1 |
Apple ProRes Recording:
| Dedicated Recording | ProRes 4444 XQ, ProRes 4444, ProRes 422 HQ, ProRes 422, and ProRes 422 LT |
| Maximum Dedicated Recording | Up to 4K 4096 x 2160 at 120P |
| Proxy Recording | Up to ProRes 422 HQ at 2K 2048 x 1080 at up to 60P |
Physical:
| Construction | Aluminum Alloy |
| Dimensions | 200.81 mm x 151.38 mm x 165.9 mm / 7.9 inches x 6 inches x 6.5 inches, L x W x H at largest fixed dimensions |
| Weight | 8.08 lb / 3.67 kg with Gold Mount and PL Mount |
Power:
| Battery Type | Integrated dual voltage 14/26 V Gold Mount battery interface |
| DC Power Input | 19.5 to 34 V through 4-Pin 2B DC IN |
| Regulated 12 V Outputs | 2 P-TAP connectors, 3 amps combined |
| Rear 12 V Output | 1 x 2-Pin 0B at 3 amps |
| Rear 12 V Output | 1 x 2-Pin 0B at 1.5 amps |
| Front 12 V Output | 1 x 2-Pin 0B at 1 amp |
| Regulated 24 V Outputs | 2 front 3-Pin Fischer connectors, 3 amps combined |
Environmental:
| Operating Temperature | 0°C to 40°C (32°F to 104°F) |
| Storage Temperature | –20°C to 50°C (–4°F to 122°F) |
| Storage Relative Humidity | 0% to 85% noncondensing |
RED Global Vision:
| Extended Highlights | Captures additional detail and color in extreme dynamic range scenarios |
| Phantom Track | Captures multiple LED instances as dedicated clips |
Color Management:
| Image Processing | Image Processing Pipeline 2, IPP2 |
| 3D LUT Support | 33×33×33 |
| CDL Support | Import and adjustment supported |
Audio:
| Integrated Microphones | Dual channel digital mono, uncompressed, 24 bit 48 kHz |
| Audio Input | Dual channel mic, line, and +48 V through 5-Pin 00B Audio Port, uncompressed, 24 bit 48 kHz |
| Headphone Output | 3.5 mm stereo headphone port |
IP Connectivity:
| RED Connect Module Compatibility | Live 8K R3D video over IP or live 4K over SMPTE ST 2110 |
| Wireless | Dual band Wi-Fi at 2.4 GHz or 5 GHz |
| Wireless Functions | Camera control, live preview, and direct Camera to Cloud workflow through Frame.io or Amazon S3 |
| Wired Control | USB-C or 9-Pin Gigabit Ethernet |
| Wired Functions | Remote camera control, live preview, Camera to Cloud workflow, and high speed remote media offload |
Monitor Outputs:
| Accessory Port | Proprietary Top Accessory Port for monitoring and control |
| SDI Outputs | 3 x 12G-SDI with 6G-SDI, 3G-SDI, and 1.5G-SDI modes |
| EVF Output | 1 x 3G-SDI with 3G-SDI and 1.5G-SDI modes |
| 12G-SDI | Up to 4096 x 2160 4:2:2 at 60p |
| 6G-SDI | Up to 4096 x 2160 4:2:2 at 30p, 25p, and 24p |
| 3G-SDI | Up to 2048 x 1080 4:2:2 at 60p |
| 1.5G-SDI | Up to 2048 x 1080 4:2:2 at 30p, 25p, and 24p |
| Output Data | SMPTE Timecode, HANC Metadata, and 24 bit 48 kHz audio |
Monitor Options:
| Monitor Option | DSMC3 RED Touch 7.0 inch LCD |
| Monitor Option | RED Compact EVF with DSMC3 Adapter A |
| Live Preview | IP streamed 1080p live preview through Wi-Fi, USB-C, or Ethernet |
| Integrated Display | Integrated 2.4 inch LCD for camera control without preview video |
Additional I/O:
| Genlock | Tri Level Genlock through BNC |
| Timecode | Linear Timecode through 5-Pin 0B |
| Network Access | PTP and remote camera access through 9-Pin 0B GIG-E |
| Camera Control | RCP2 through 4-Pin 00B CTRL |
| Wireless Sync | Genlock and Timecode through integrated Ambient Communication Network |
Camera Control:
| RED Control | Full camera controls and live preview from compatible iOS or Android devices |
| RED Control Pro | Supports one or multiple cameras over an IP connection |
| Control Functions | Synchronize settings, manage media, upload to Frame.io, and develop custom looks with CDL and LUT controls |
| Connectivity | Wireless or wired through USB-C |
