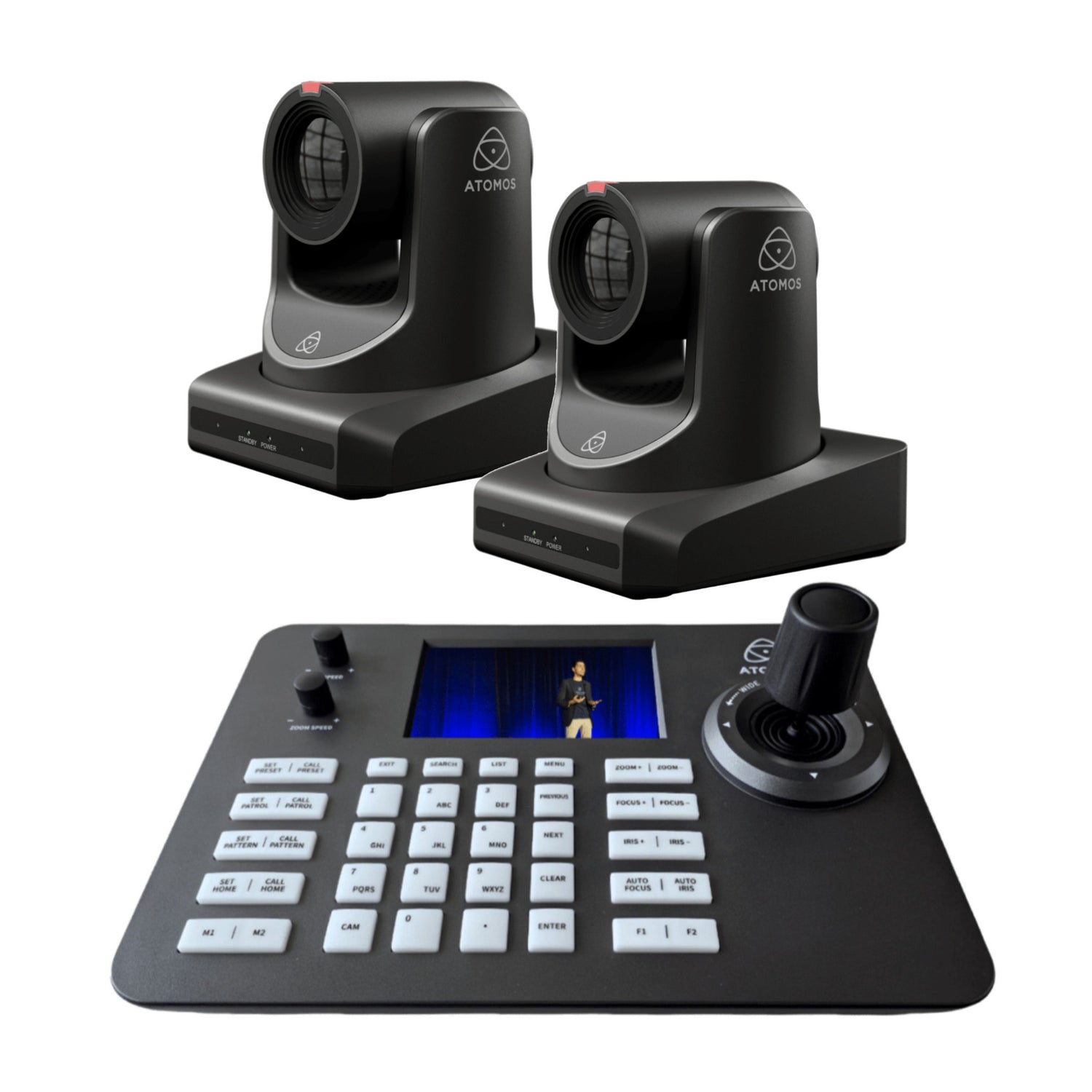

Atomos A-Eye HD-20X Auto-Tracking PTZ Camera 20X Optical Zoom CMOS Sensor Bundle
Couldn't load pickup availability
Product highlights
Product highlights

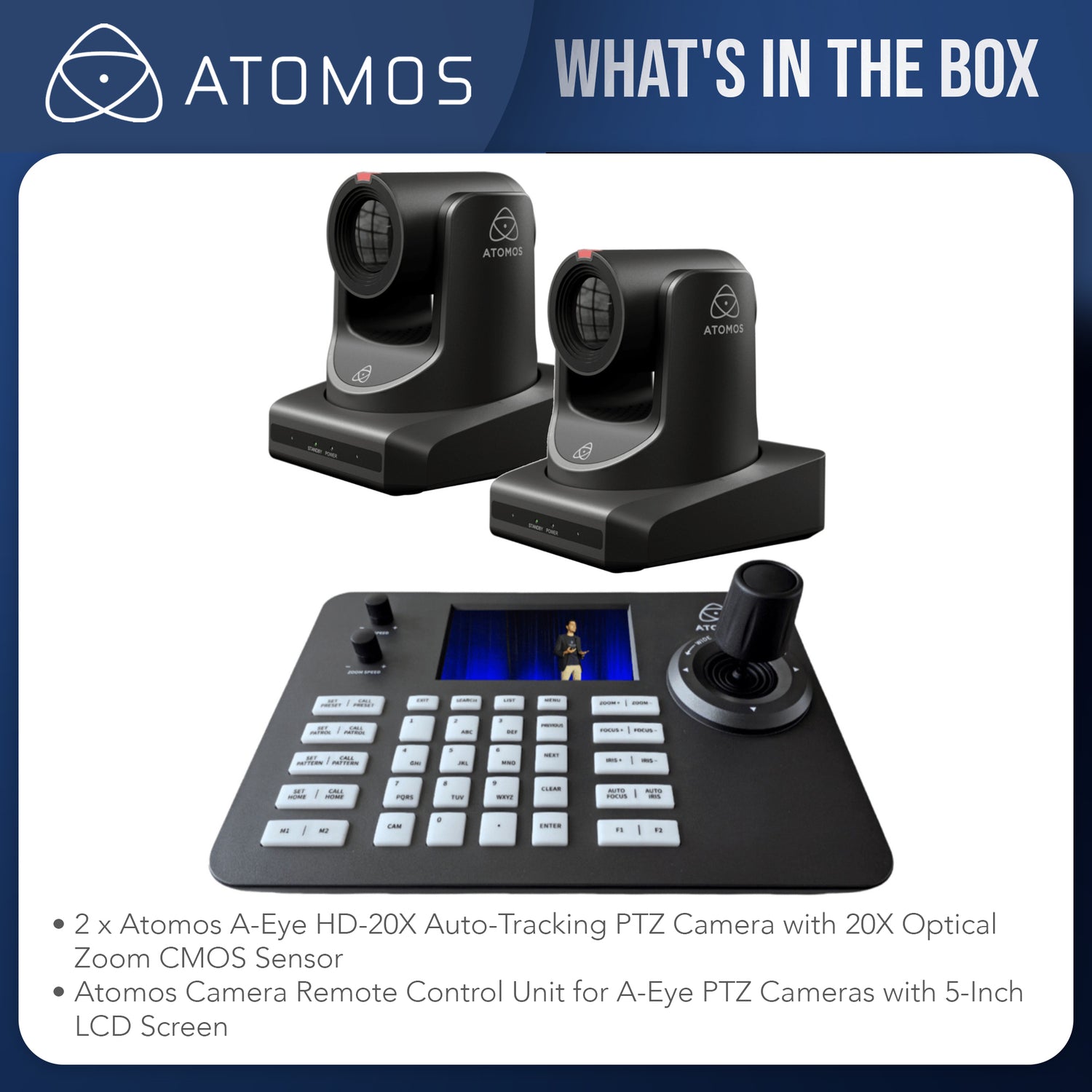

In the box
In the box
Free standard shipping
Free standard shipping
*Orders placed before 1 PM EST Mon - Thur will ship the same day. Orders placed beyond these hours will be shipped the next business day. Exclusions apply. See shipping policy
Free Local Pickup
Free Local Pickup
Please call for store stock availability. Requests made before 2:30 PM EST can be available for next-day pickup. Learn more
Atomos A-Eye HD-20X Auto-Tracking PTZ Camera 20X Optical Zoom CMOS ...

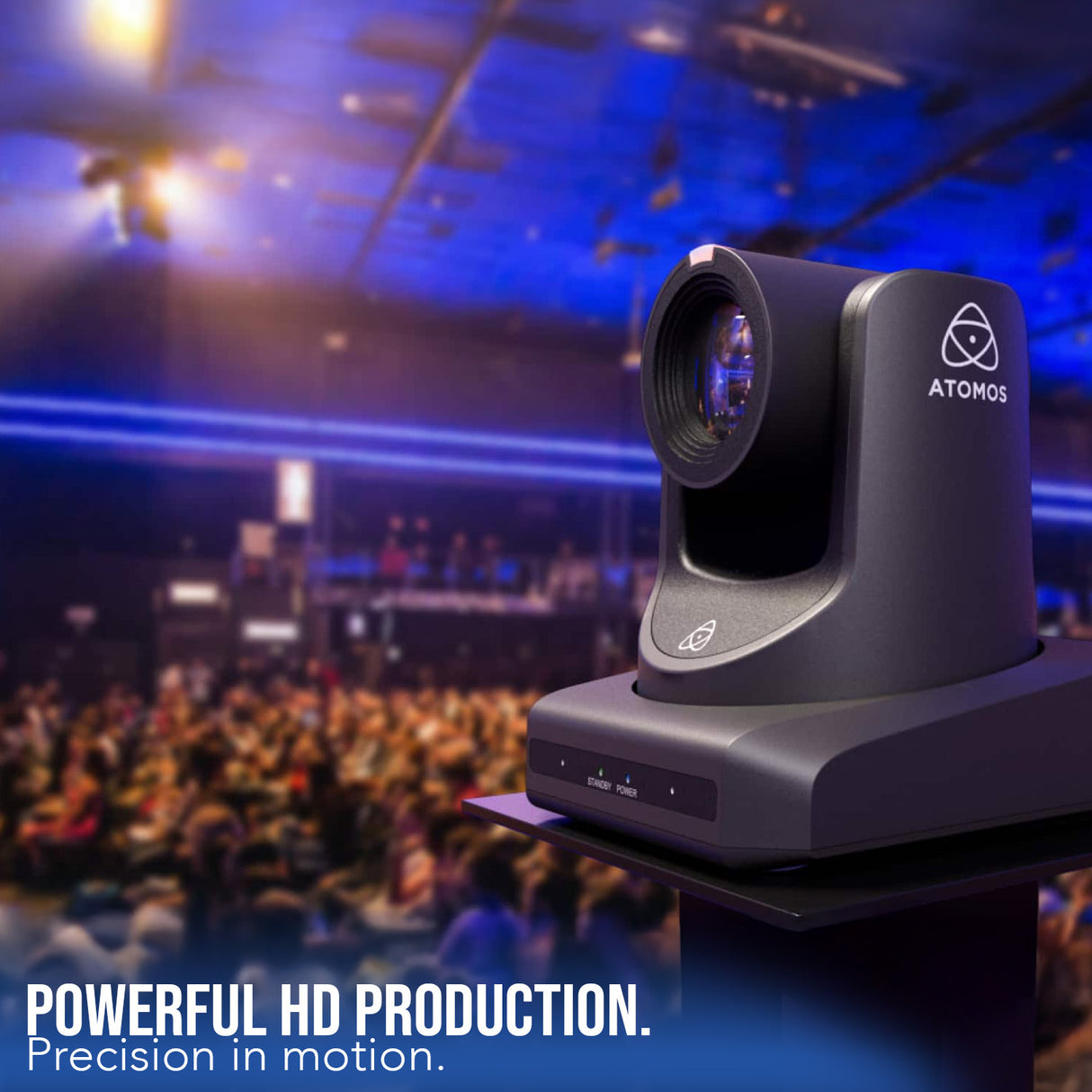

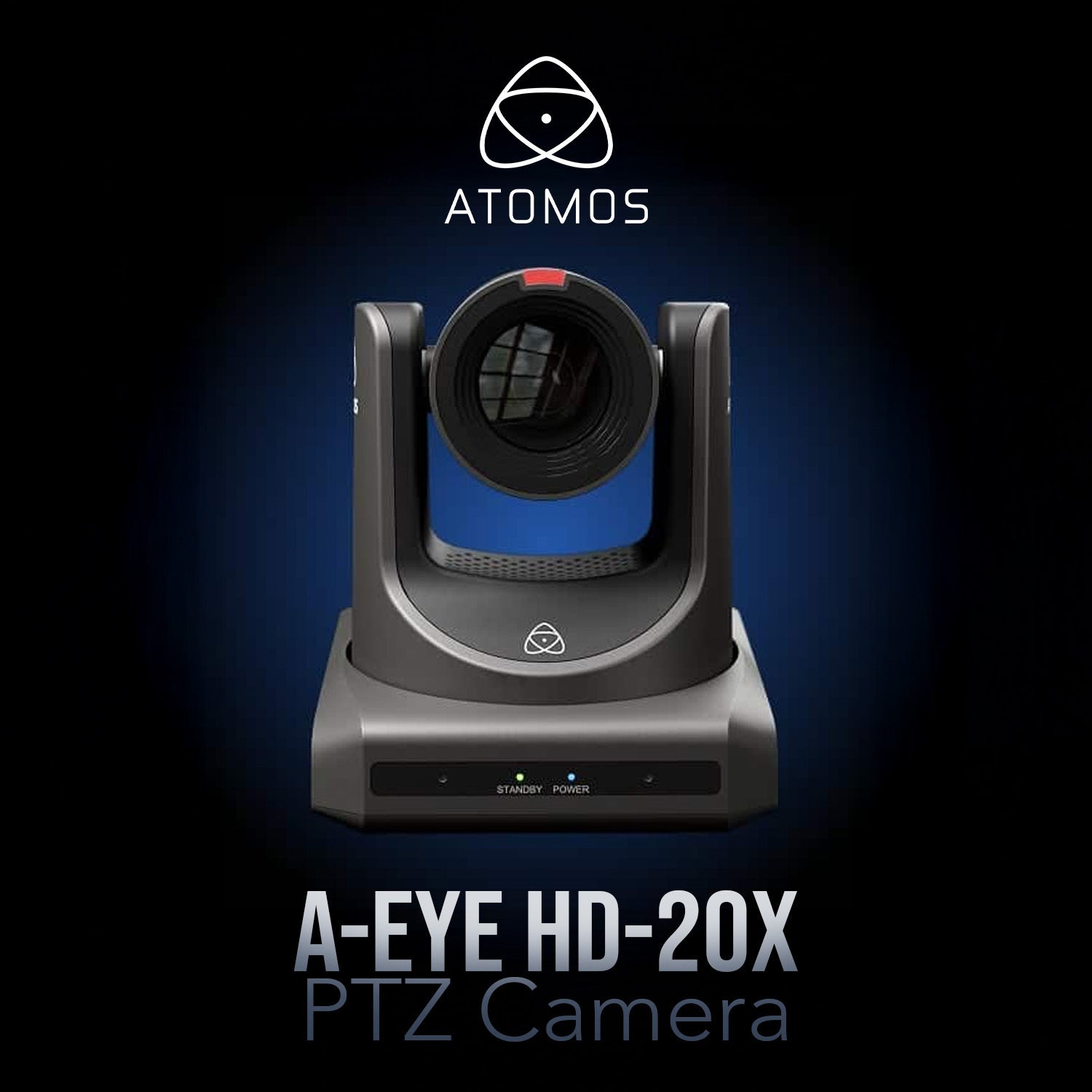

Atomos A-Eye HD-20X Auto-Tracking PTZ Camera with 20X Optical Zoom CMOS Sensor
The A-Eye HD-20X is a PTZ camera designed for professional use in education, worship, business, and content creation. It offers AI-powered tracking, sharp image quality, and smooth camera movement for scalable and operator-free video production.

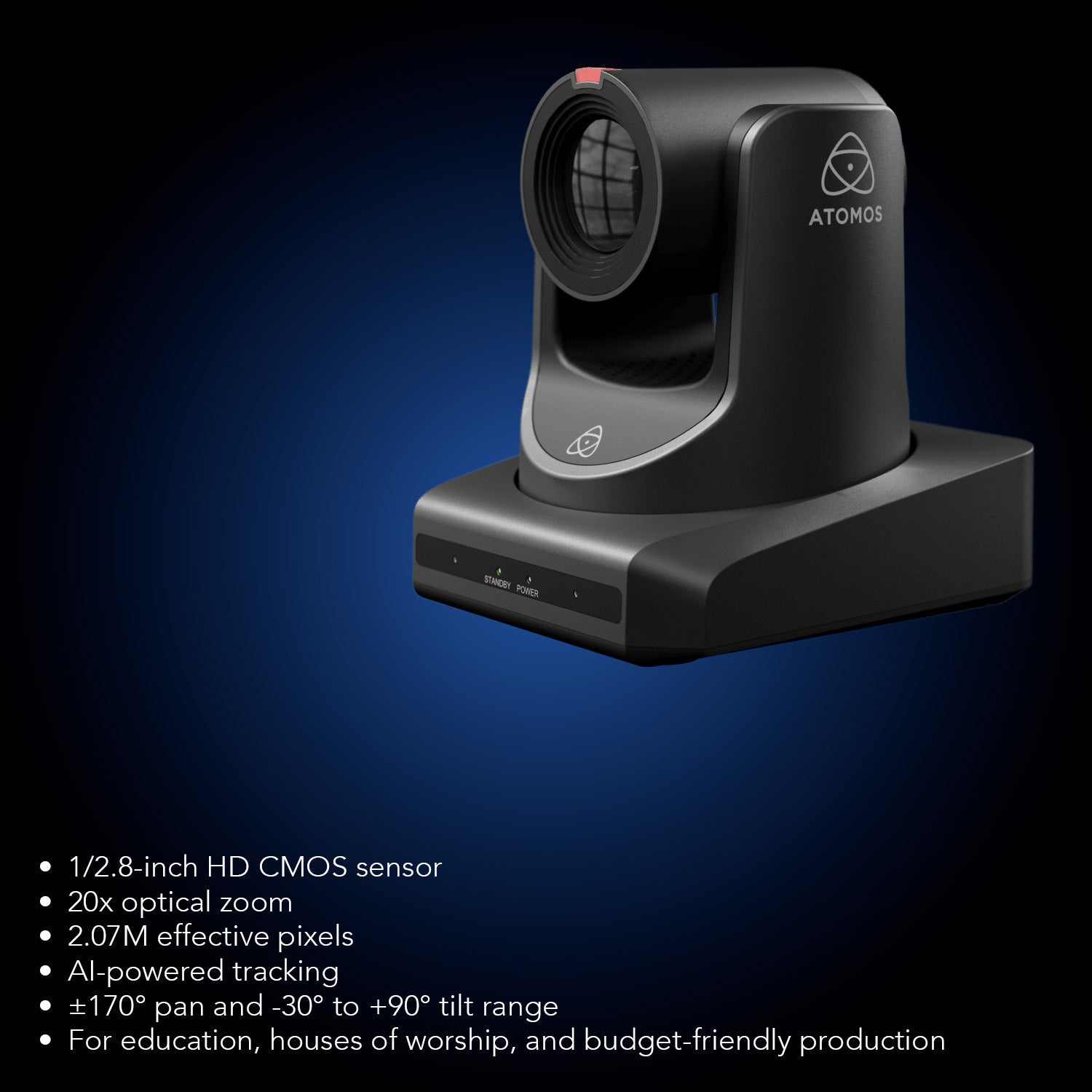

High-Performance HD CMOS Sensor
Equipped with a 1/2.8-inch HD CMOS sensor and 2.07 million effective pixels, the camera delivers clear and detailed video suitable for live streams and recorded sessions.
20X Optical Zoom
Capture subjects from a distance without losing clarity. The 20X optical zoom allows tight framing even in large rooms or auditoriums, making it ideal for classrooms and stage coverage.
AI-Powered Auto Tracking
Built-in AI technology enables the camera to detect and follow a moving subject automatically. This removes the need for a manual operator, keeping the subject centered and in focus at all times.
Wide PTZ Range
The camera supports ±170 degrees pan and -30 degrees to +90 degrees tilt, allowing flexible framing and complete room coverage. This feature is useful for wide classrooms, conference spaces, and dynamic stage presentations.
Versatile Use Across Settings
Designed for education, houses of worship, and production teams looking for reliable and budget-friendly camera solutions. Supports multi-camera systems and remote control setups.

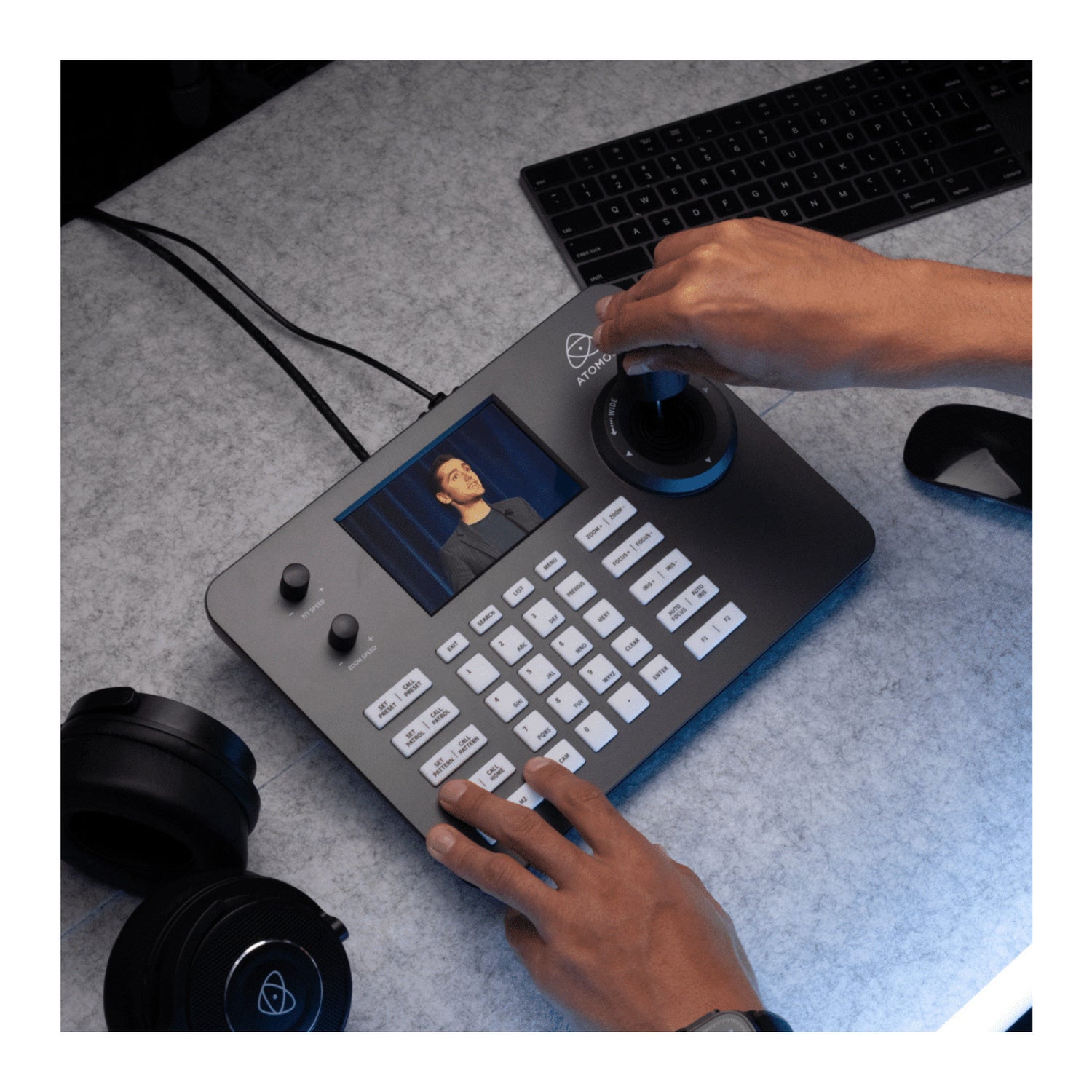

Atomos Camera Remote Control Unit for A-Eye PTZ Cameras with 5-Inch LCD Screen
A-Eye Control is a dedicated control hub designed for A-Eye PTZ cameras. It enables seamless remote operation, efficient preset switching, and IP-based video production for professional environments like classrooms, studios, and event spaces.
5-Inch LCD Screen for Real-Time Monitoring
Monitor camera output directly on the built-in LCD display. This allows operators to adjust framing and presets without external screens or additional equipment.
4D Joystick for Accurate Movement
The variable speed 4D joystick enables smooth and responsive pan, tilt, zoom, and focus control. It offers flexibility when tracking subjects or repositioning cameras during live production.
Customizable Buttons and Shortcuts
Program function buttons to switch presets, adjust settings, or toggle views quickly. Customization improves workflow efficiency and supports different shooting styles.
ONVIF Protocol Support
Compatible with ONVIF-supported systems, the controller ensures reliable communication with A-Eye and other compliant PTZ devices over IP networks.
Power Options for Flexible Setup
Powered by DC 12V or POE, the unit adapts to various installation environments without needing multiple power adapters or additional wiring.
Atomos A-Eye HD-20X Auto-Tracking PTZ Camera with 20X Optical Zoom CMOS Sensor
Physical
| Dimensions (W x H x D mm) | 139.2mm x 176.5mm x 165.8mm |
| Weight | About 1.5Kg |
Environmental
| Ambient operating temperature | Up to 40 degrees Celsius |
Construction
| Body | ABS |
Power
| Input voltage | DC 12V/PoE+ (802.3at) |
| Operating power | Max 15W |
| Power on indicator | Yes |
Video
| Sensor | 1/2.8 inch, CMOS |
| Effective pixels | 2.07M |
| Lens | 20x, f = 4.42mm ~ 88.5mm, F1.8 ~ F2.8 |
| Scanning mode | Progressive |
| Resolutions supported | 1080P60, 1080P59.94, 1080P50, 1080I60, 1080I59.94, 1080I50, 1080P30, 1080P29.97, 1080P25, 720P60, 720P59.94, 720P50 |
| Color system / compression | YUY2/MJPEG/H.264 |
| Video format | YUY2: max to 1080P@5fps, H.264 AVC: max to 1080P@30fps |
| Digital zoom | 16x |
| Minimum Illumination | 0.5 Lux @ (F1.8, AGC ON) |
| Shutter | 1/30s ~ 1/10000s |
| Image flip | Supported |
| Image freeze | Supported |
| White balance | Auto, VAR, Manual, One Push, Indoor, Outdoor |
| Backlight compensation | Support |
| Digital noise reduction | 2D & 3D Digital Noise Reduction |
| SNR | ≥55dB |
Mechanical
| Horizontal FOV | 60.7° ~ 3.36° |
| Vertical FOV | 34.1° ~ 1.89° |
| Pan angle | ±170° |
| Tilt angle | -30° ~ +90° |
| Pan speed | 1.7° ~ 100°/s |
| Tilt speed | 1.7° ~ 69.9°/s |
| Preset position | 255 |
| Preset accuracy | 0.1° |
USB
| Operating system | Windows 7/8/10, Mac OS X, Linux, Android, iOS, iPadOS |
| USB audio | Supported |
| USB video protocol | UVC 1.1/UVC 1.5 |
| USB PTZ control | Supported |
Network
| Video compression | H.264/H.265 |
| Video stream | First Stream, Second Stream |
| First stream resolution | 1920x1080, 1280x720, 1024x576, 960x540, 640x480, 640x360 |
| Second stream resolution | 1280x720, 1024x576, 720x480, 640x360, 480x272, 320x240, 320x180 |
| Video bit rate | 32Kbps ~ 20480Kbps |
| Bit rate control | CBR, VBR |
| Frame rate | 1fps ~ 60fps |
| Audio compression | AAC |
| Audio bit rate | 96Kbps, 128Kbps, 256Kbps |
| Protocols | NDI HX3, TCP/IP, HTTP, RTSP, RTMP/RTMPS, ONVIF, DHCP, SRT, Multicast |
Audio
| Microphone | Built-in dual microphone, 100Hz to 16KHz frequency response |
| Audio input | Line In |
| Audio output | Line Out, HDMI, USB |
Input/Output Interfaces
| Line In | 3.5mm audio interface |
| Line Out | 3.5mm audio interface |
| RS-485 | 2-pin phoenix port; max distance: 1200m; protocol: VISCA/Pelco-D/Pelco-P |
| RS-232 IN | 8-pin Mini DIN; max distance: 30m; protocol: VISCA/Pelco-D/Pelco-P |
| RS-232 OUT | 8-pin Mini DIN; max distance: 30m; protocol: VISCA network use only |
| Network | 10M/100M Adaptive Ethernet Port |
| USB | USB 2.0: Type A |
| SDI | 3G-SDI: BNC type, 800mVp-p, 75Ω. To SMPTE 424M standard |
| HDMI | HDMI version 1.3 |
| Power jack | JEITA type (DC IN 12V) |
| Tally indicator | Yes |
Warranty
| Standard | 1 year. Extended to 2 years on product registration. |
Atomos Camera Remote Control Unit for A-Eye PTZ Cameras with 5-Inch LCD Screen
Physical
| Dimensions (W x H x D mm) | 340 x 268 x 140mm |
| Weight | 900gms |
Environmental
| Ambient operating temperature | -10 degrees to 55 degrees Celsius |
Construction
| Body | Polycarbonate ABS |
Power
| Input voltage | DC12V-2A |
| Operating power | ≤5W |
Warranty
| Standard | 1 year. Extended to 2 years on product registration. |
