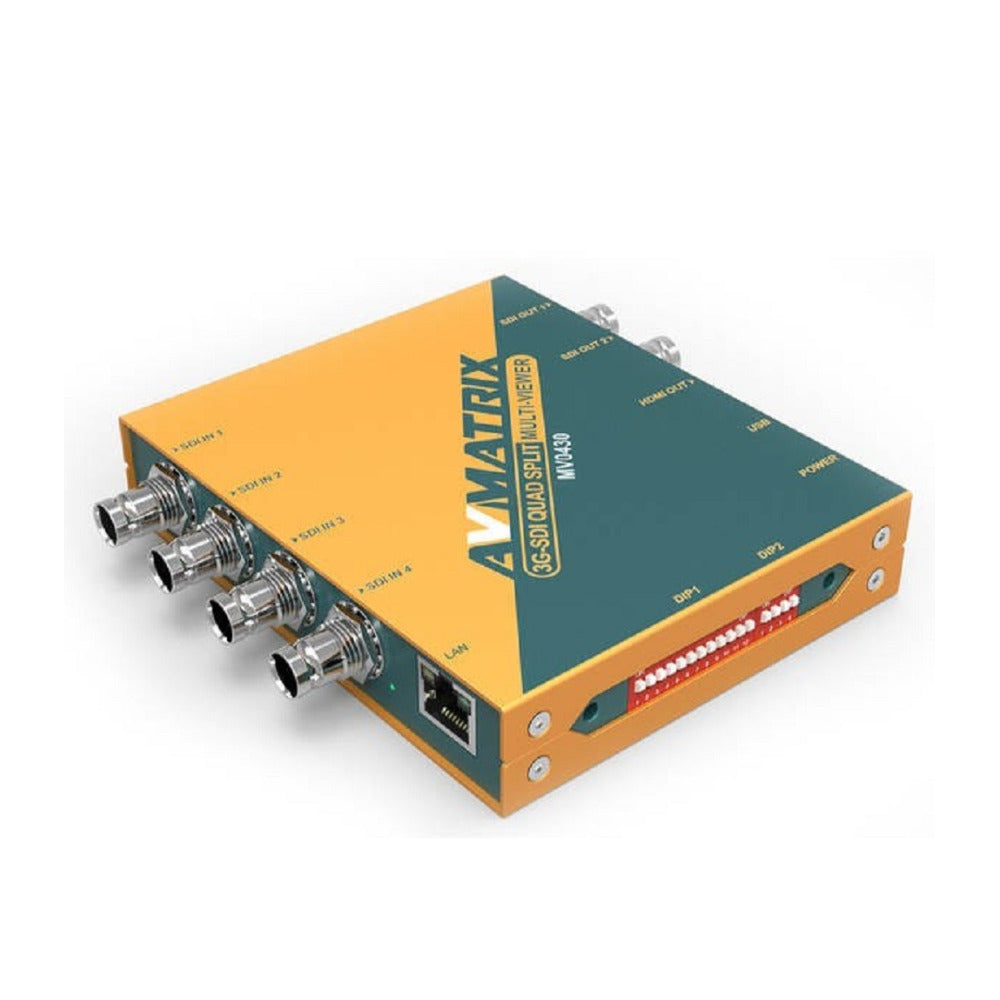

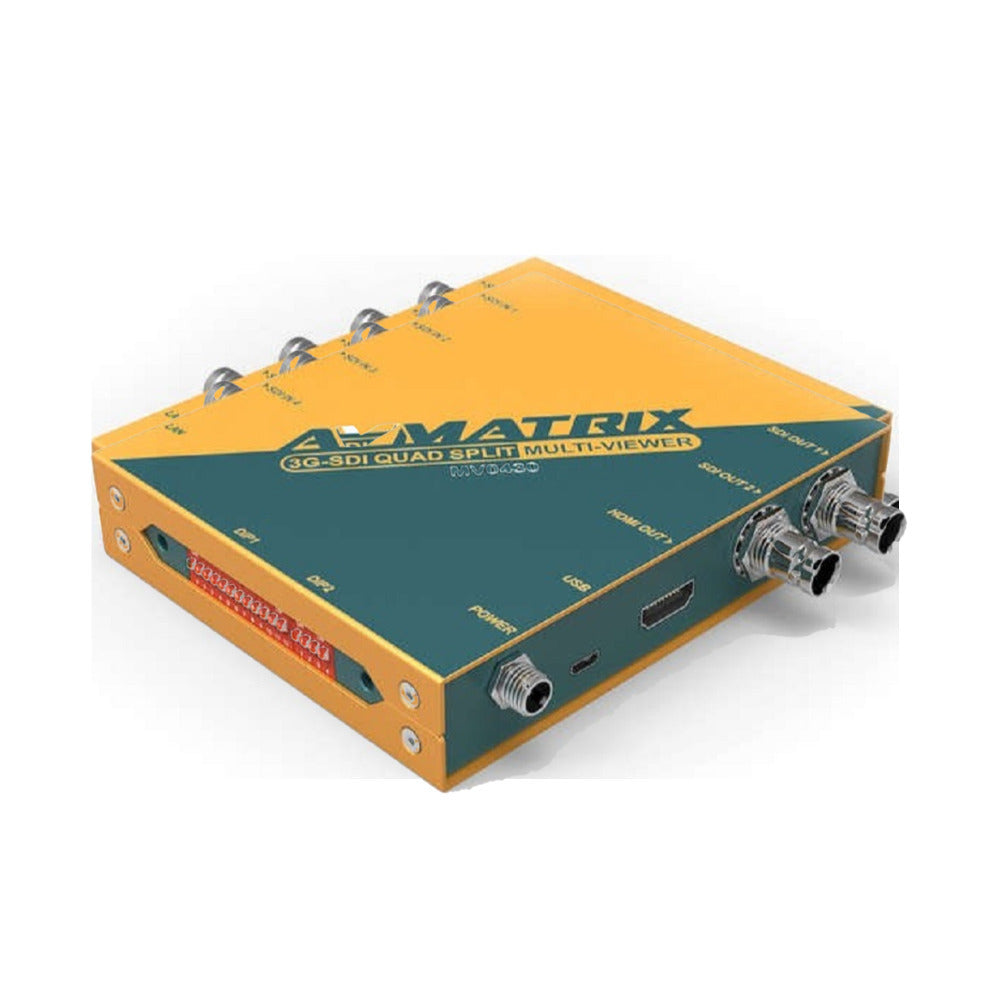

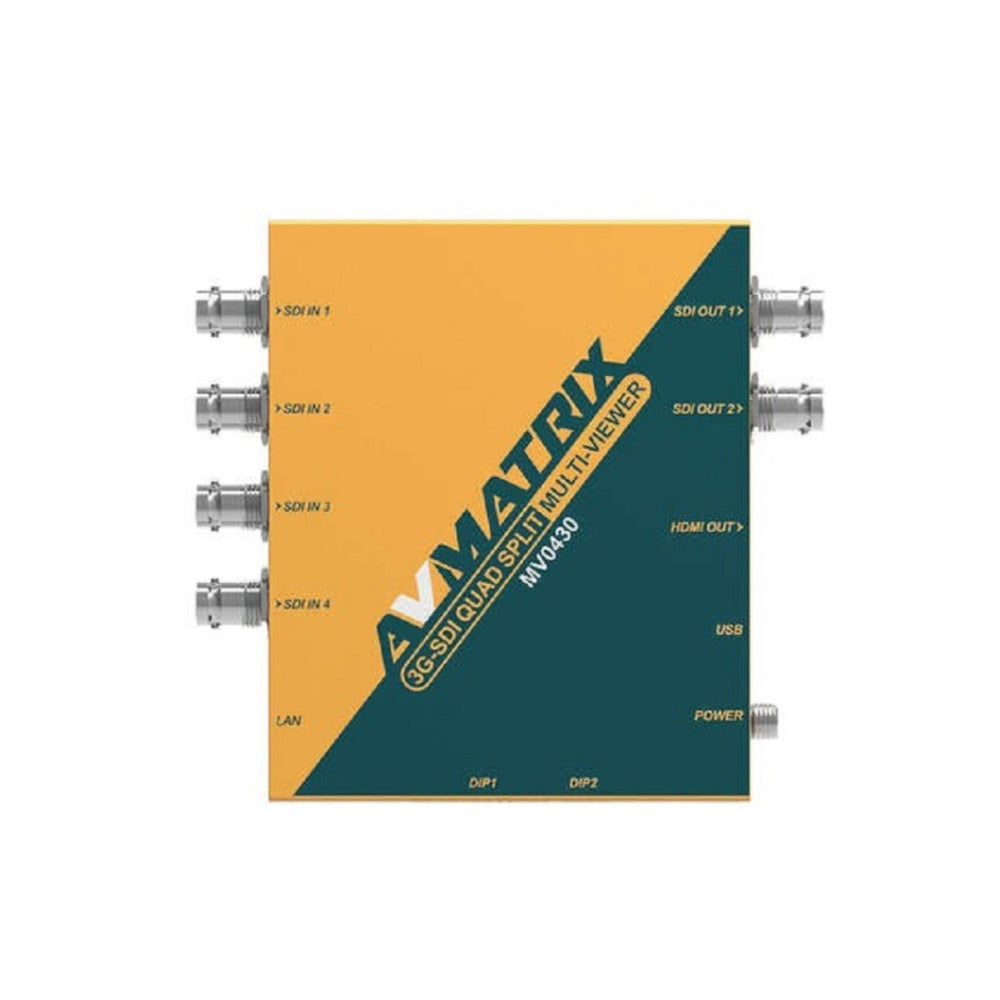

AV Matrix MV0430 Quad Split Multi-Viewer

  • mfr: MV0430
  • SKU: MV0430
In Stock

Available options:

  • Free standard shipping

    *Orders placed before 3 PM EST Mon - Thur will ship the same day. Orders placed beyond these hours will be shipped the next business day. Exclusions apply. See shipping policy

  • Free Local Pickup

    Please call for store stock availability.

    Requests made before 2:30 PM EST can be available for next-day pickup. Learn more

Additional options:

Product highlights

  • 4x SD/HD/3G-SDI inputs with auto detection
  • 2x SD/HD/3G-SDI and 1x HDMI outputs for multi-view
  • 11 Selectable SDI & HDMI output formats
  • 16 preset layouts both full screen and multi-view mode
  • 11 character UMO overlay, custom position and color
  • Audio level meter overlay, custom position
  • Control easily via the DIP switches
  • USB port for keyboard control
  • LAN port for control and firmware update
  • Threaded locking power connector

AV Matrix MV0430 Quad Split Multi-Viewer

The AV Matrix MV0430 is an exquisite and professional SDI multi-viewer which features 4-channel 3G/HD/SD-SDI auto adaptive inputs and 2-channel 3G-SDI as well as 1-channel HDMI outputs. Total 16 preset layouts are provided for choices. User can also adjust the size and position of 11-character UMD and audio meter overlay freely. All the functions can be easily set by a built-in DIP switch, or PC via LAN. MV0430 is your ideal choice for broadcasting and AV post production applications.

11 Output Formats Selectable

The MV0430 features in 4-channel 3G/HD/SD auto adaptive inputs and 2-channel 3G-SDI as well as 1-channel HDMI outputs. 4 inputs can be shown simultaneously on the same display. From 720p25 to 1080p60, 11 signal output formats can be selected by users.

16 Group Present Layouts

The MV0430 provides 16 group preset layouts, including frequently-used modes like quad split, full screen, triple windows, PiP and PoP mode.

User-Defined UMD and Audio Meter Overlay

Another great feature of MV0430 is the user friendly design, for example, in each individual window, users can set 13 characters UMD overlay separately and adjust it’s size and position freely. Similarly, the size and position of the 2-channel audio metering can also be user-defined.

Easy Controls over DIP Switches

Adjust the DIP switches to set the functions by finger. It also can be remote set by using software by connecting it with a PC via LAN.

Specifications

Connections
HDMI Inputs 2
External Ports USB Type-C
General
Weight 465 g
Color Green/Yellow
