- AV Matrix MV0430 Quad Split Multi-Viewer
- 2 x Brackets
- Power Adapter
- Micro USB Cable
Trusted & Verified

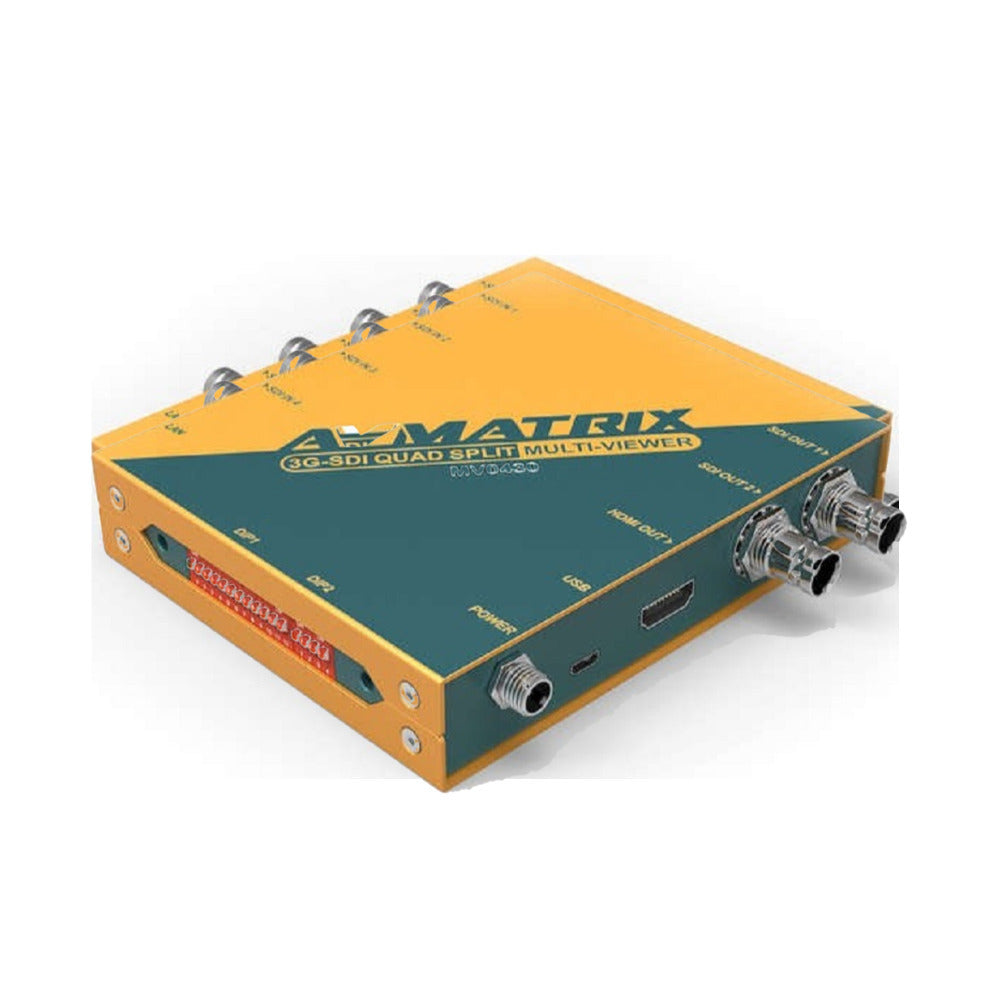

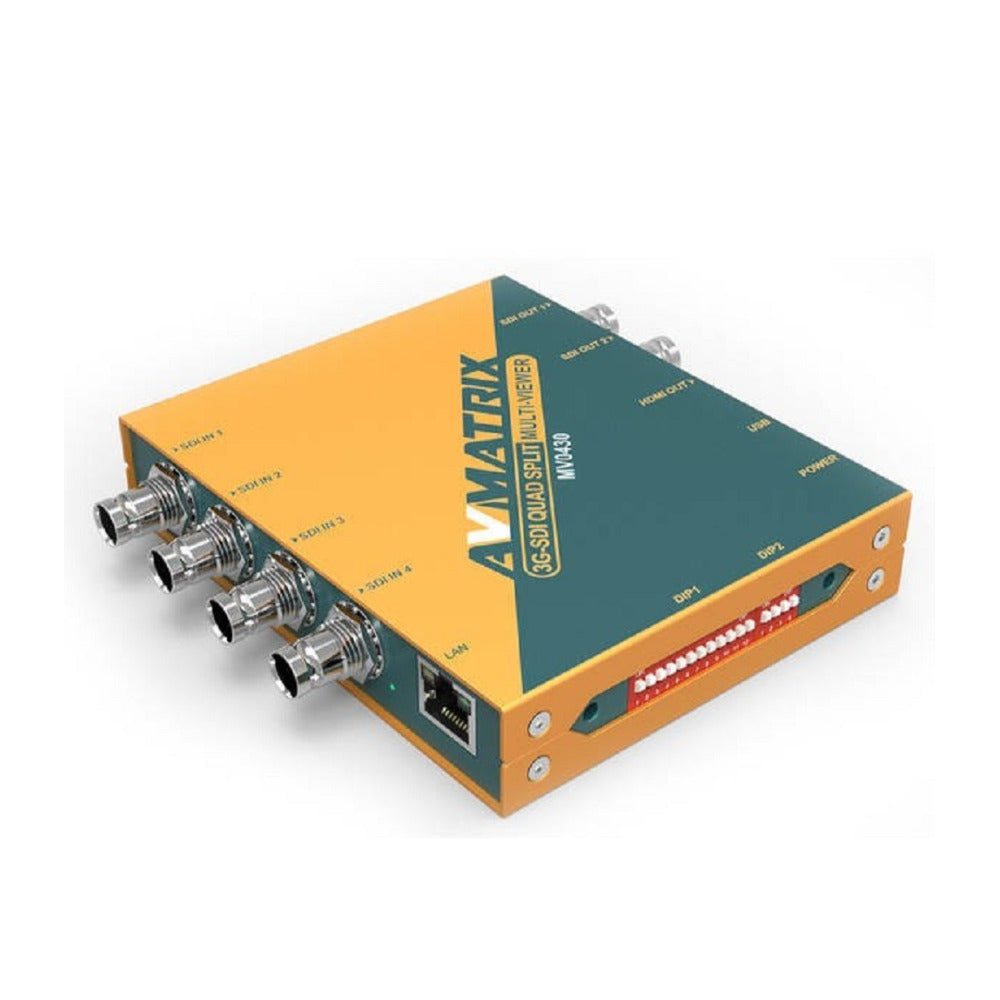

AV Matrix MV0430 Quad Split Multi-Viewer
- 4x SD/HD/3G-SDI inputs with auto detection
- 2x SD/HD/3G-SDI and 1x HDMI outputs for multi-view
- 11 Selectable SDI & HDMI output formats
- 16 preset layouts both full screen and multi-view mode
- 11 character UMO overlay, custom position and color
- Audio level meter overlay, custom position
- Control easily via the DIP switches
- USB port for keyboard control
- LAN port for control and firmware update
- Threaded locking power connector
The AV Matrix MV0430 is an exquisite and professional SDI multi-viewer which features 4-channel 3G/HD/SD-SDI auto adaptive inputs and 2-channel 3G-SDI as well as 1-channel HDMI outputs. Total 16 preset layouts are provided for choices. User can also adjust the size and position of 11-character UMD and audio meter overlay freely. All the functions can be easily set by a built-in DIP switch, or PC via LAN. MV0430 is your ideal choice for broadcasting and AV post production applications.
11 Output Formats Selectable
The MV0430 features in 4-channel 3G/HD/SD auto adaptive inputs and 2-channel 3G-SDI as well as 1-channel HDMI outputs. 4 inputs can be shown simultaneously on the same display. From 720p25 to 1080p60, 11 signal output formats can be selected by users.
16 Group Present Layouts
The MV0430 provides 16 group preset layouts, including frequently-used modes like quad split, full screen, triple windows, PiP and PoP mode.
User-Defined UMD and Audio Meter Overlay
Another great feature of MV0430 is the user friendly design, for example, in each individual window, users can set 13 characters UMD overlay separately and adjust it’s size and position freely. Similarly, the size and position of the 2-channel audio metering can also be user-defined.
Easy Controls over DIP Switches
Adjust the DIP switches to set the functions by finger. It also can be remote set by using software by connecting it with a PC via LAN.

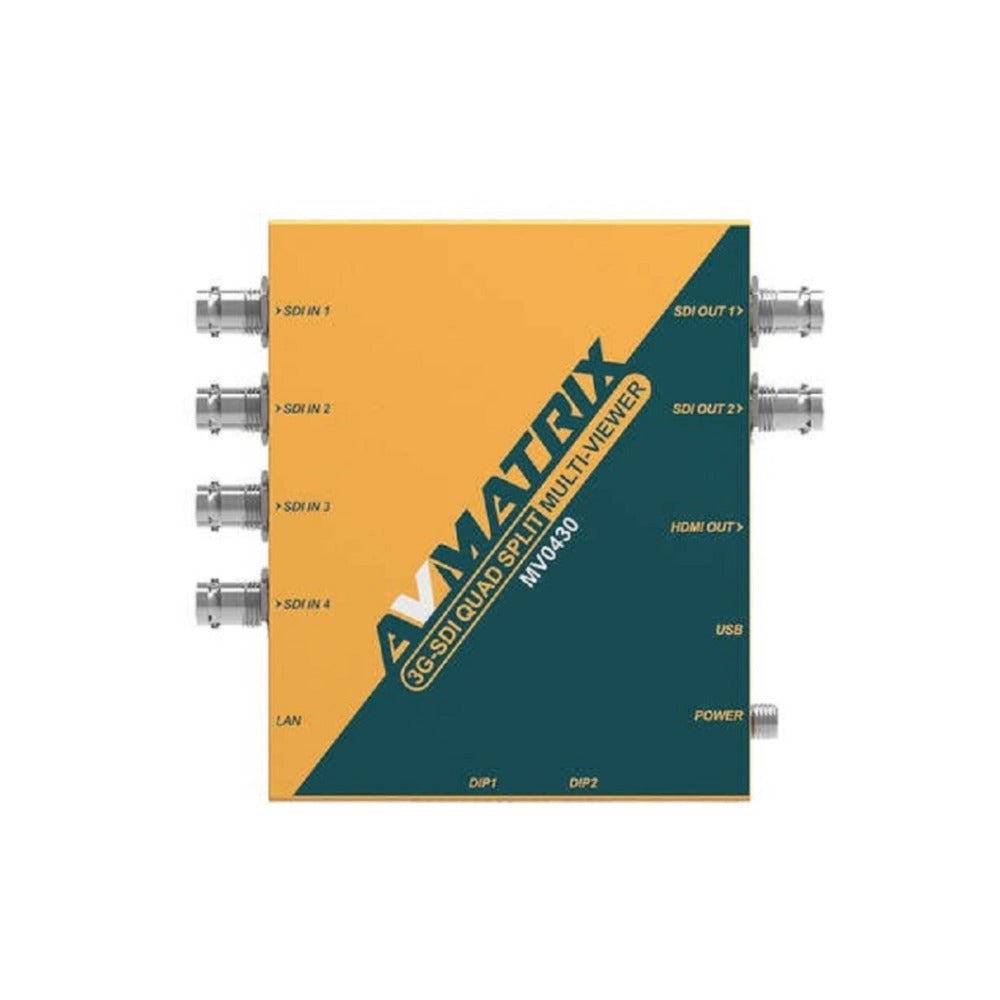

AV Matrix MV0430 Quad Split Multi-Viewer
Connections
| SDI video input | SD/HD/3G-SDI(75 Ω) x4 |
| SDI video output | SD/HD/3G-SDI(75 Ω) x2 |
| HDMI video output | HDMI type A x1 |
Standard
| SDI input format support |
|
| SDI & HDMI output format support |
|
| SDI video rate | SD/HD/3G-SDI |
| SDI compliance | SMPTE 292M / SMPTE 259M / SMPTE 424M |
| SDI & HDMI color space | YUV or RGB for inputs. YUV for outputs |
| SDI auto switching | Auto selects SD, HD, and 3G-SDI on input |
Controls
| Dip switches | Configuration |
| Lan port | Configuration and firmware updates |
| USB port | USB keyboard |
Size
| Dimension (L x W x D) | 125.5 x 104 x 24.5 mm |
| Weight | 465 g |
Power
| Power connector | Threaded locking connector |
| Power consumption | 4.5 W |
| Voltage range | DC 12 V |
Environment
| Operating temperature | -20 degree ~ 60 degree Celsius (HDMI output for 0 degree ~ 60 degree Celsius) |
| Storage temperature | -30 degree ~ 70 degree Celsius |
| Relative humidity | 0-90% non-condensing |
