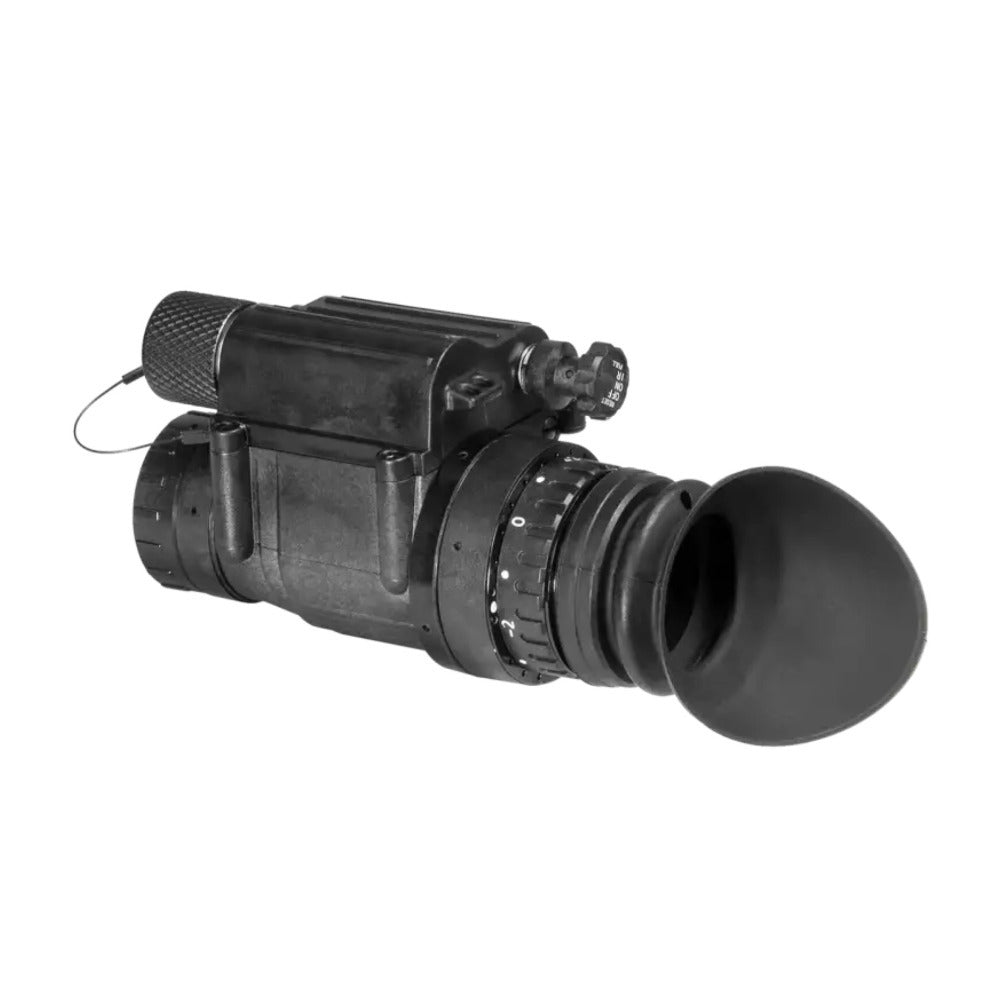

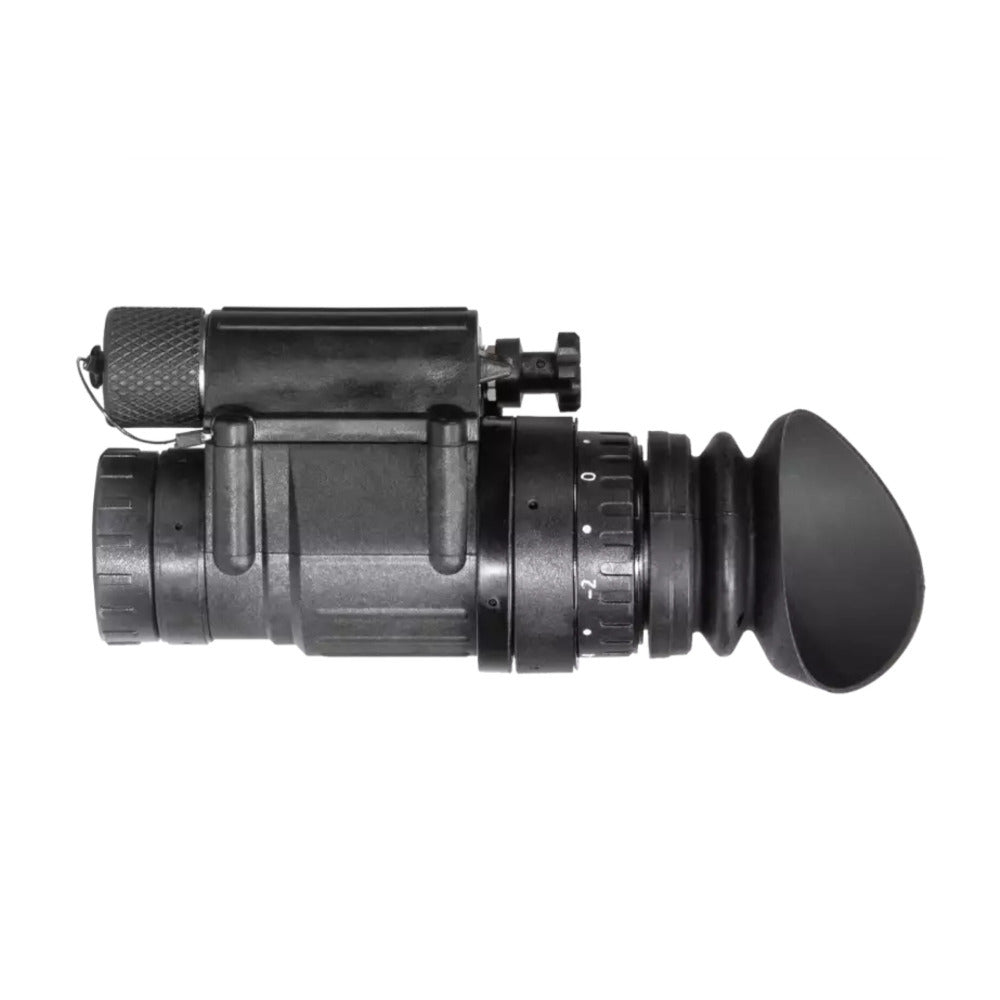

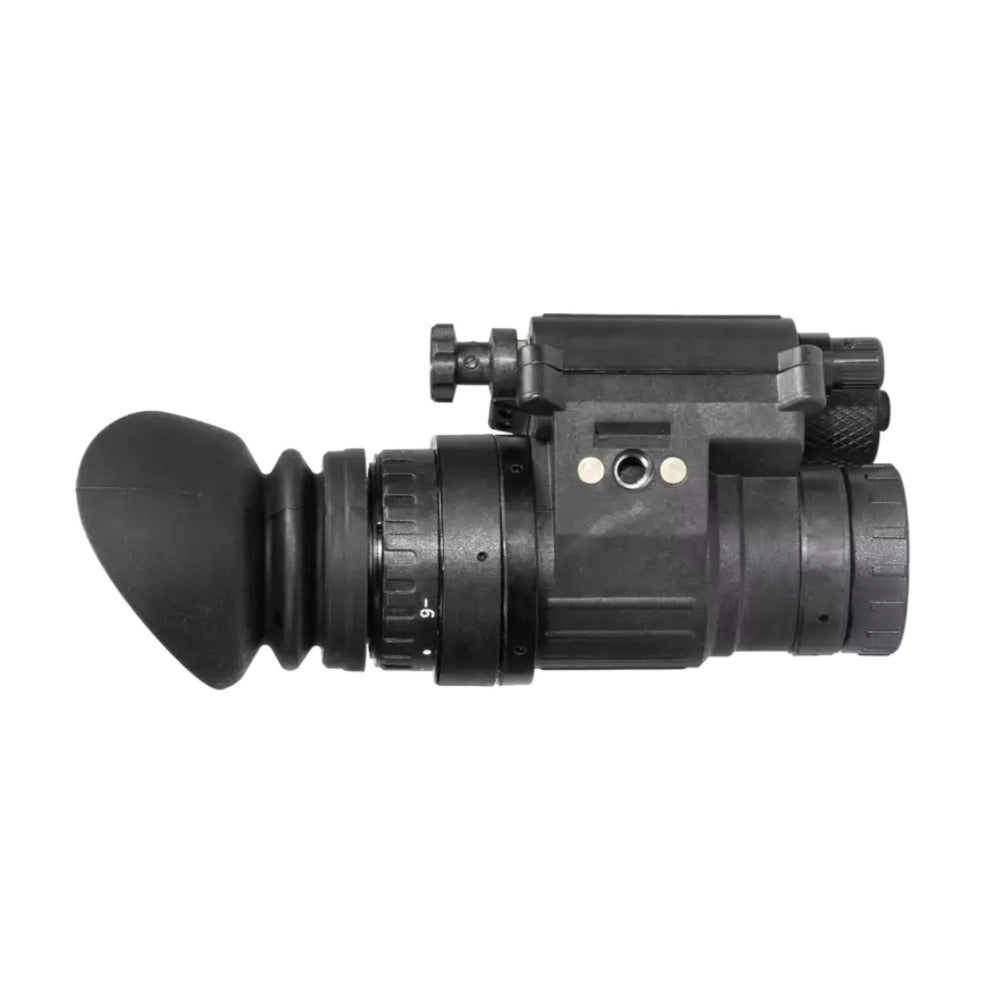

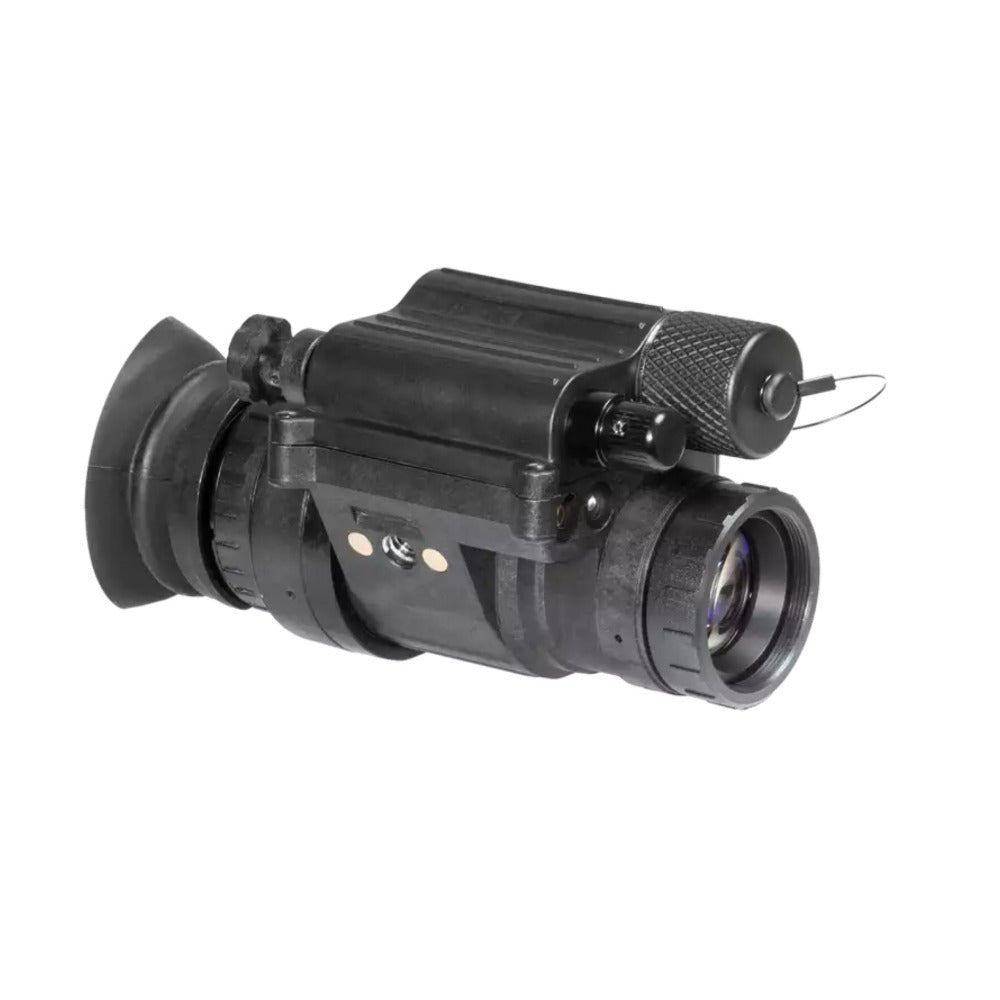

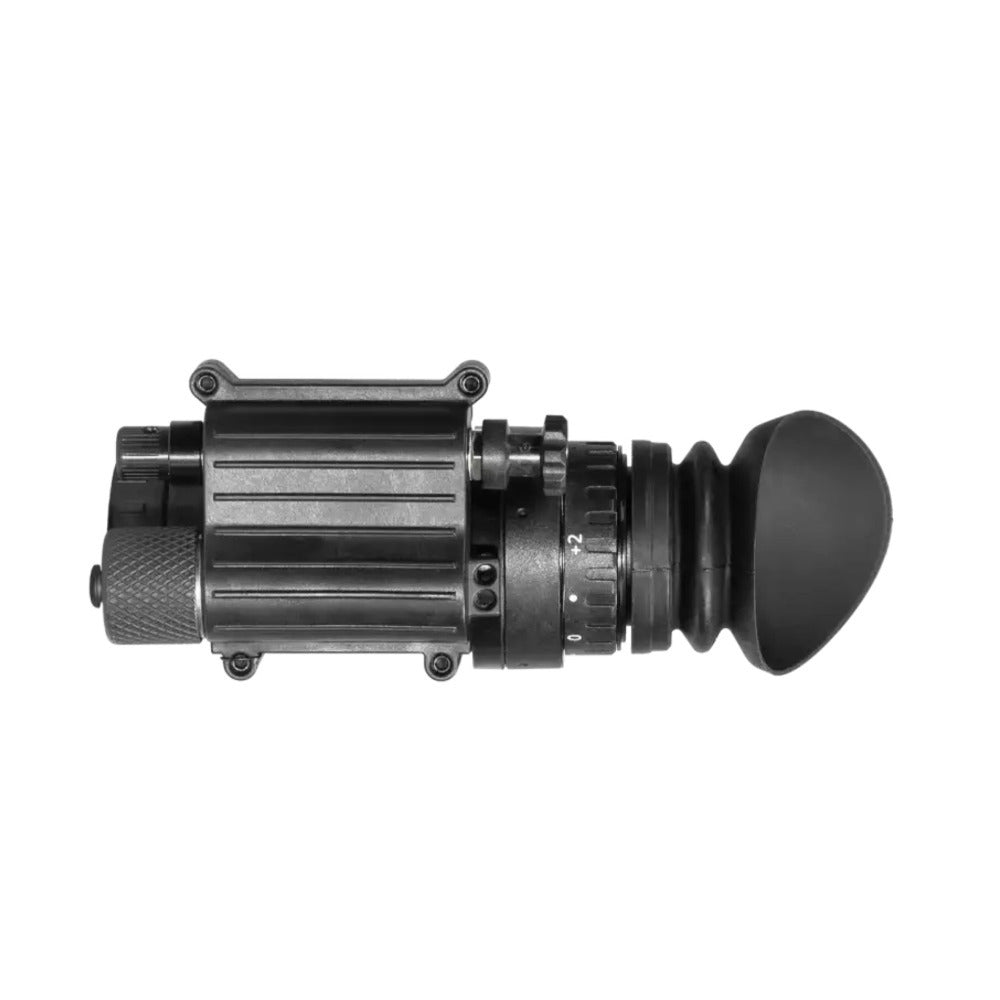

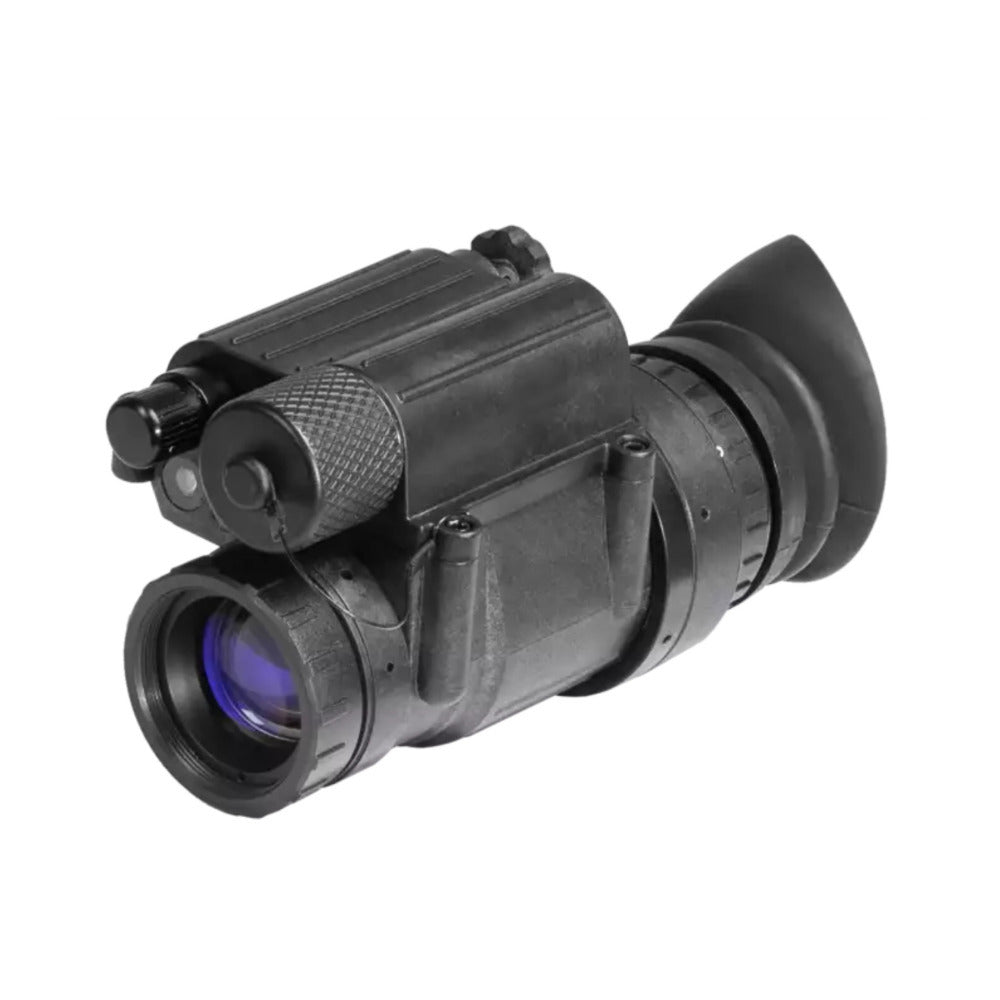

The AGM PVS-14E 3AW1 Night Vision Monocular is designed for users who need reliable night vision in different environments. It builds on the proven PVS-14 platform while introducing improvements in weight, power flexibility, and ease of use. The device can be used handheld, mounted on a head harness, or attached to compatible helmets, making it suitable for field operations, surveillance, and nighttime navigation. The unit features a Gen 3 Auto-Gated White Phosphor Level 1 image intensifier tube, delivering high-resolution night vision with improved contrast and a natural black-and-white viewing image.
Lightweight and Compact Design
The PVS-14E uses a more compact lens and eyepiece system that reduces overall size and weight. At only 10.2 oz (290 g) and 4.25 inches in length, the device is easier to carry and wear for extended periods. The lighter design helps reduce fatigue while maintaining durability for demanding environments.
Flexible Battery Compatibility
The monocular supports both AA and CR123 batteries, allowing users to choose whichever power source is available. This flexibility helps ensure the device can continue operating even when one battery type is not accessible.
Electronic Polarity Switching System
The built-in electronic polarity switching system allows batteries to be inserted in any orientation. Users do not need to worry about the correct battery direction, which simplifies operation in low-light conditions and speeds up battery replacement.
Automatic Articulation Shut-Off
An auto shut-off system turns the device off when it is rotated away from the user’s eye and turns it back on when returned to the viewing position. This feature helps conserve battery power and improves convenience during helmet-mounted use.
Manual Gain Control and Bright Light Protection
The PVS-14E includes manual gain control, allowing users to adjust image brightness based on surrounding light conditions. It also features automatic bright light shut-off, which protects the photocathode tube from sudden exposure to intense light and automatically restores operation once light levels drop.
Built-In Infrared Illuminator
A built-in IR illuminator provides additional illumination in extremely dark environments. This helps improve visibility when natural ambient light is limited or unavailable.

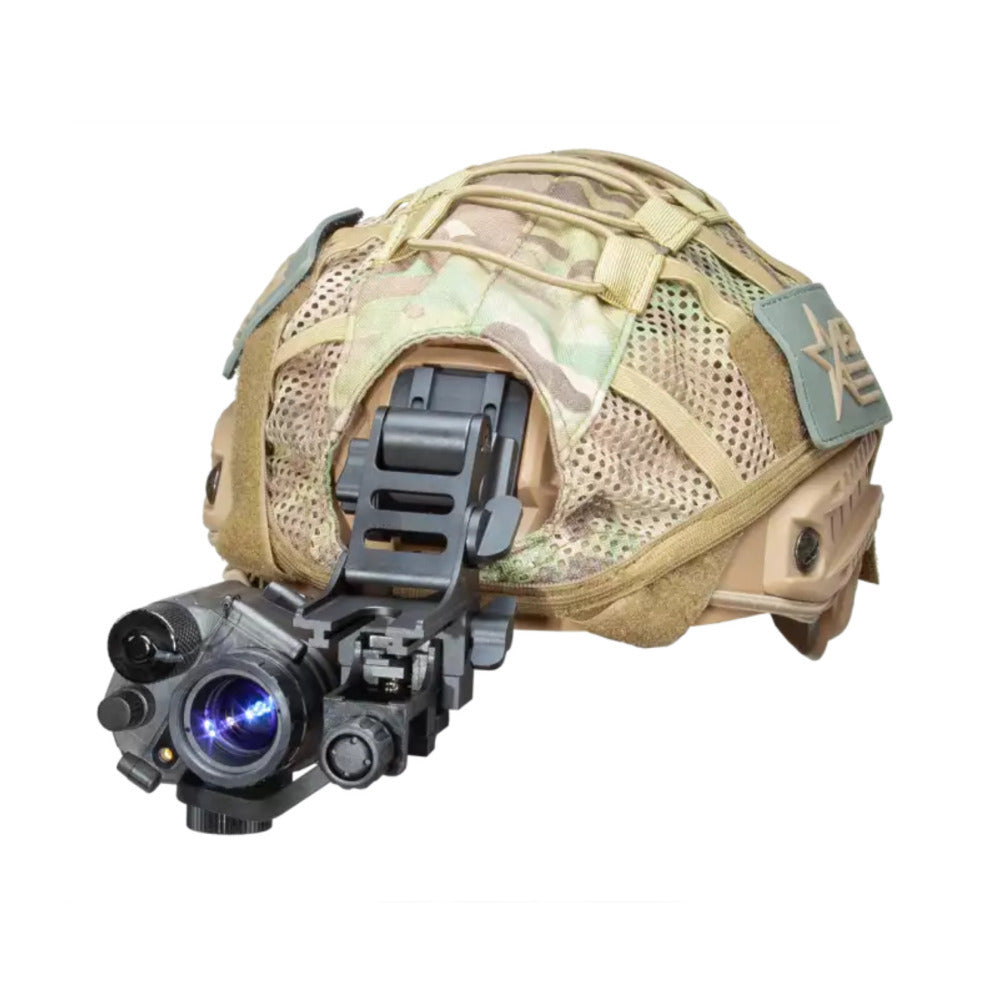

Multiple Mounting Options
The device can be used handheld, head-mounted, or helmet-mounted, offering flexibility for different operational needs. This versatility makes the monocular useful for observation, movement, and hands-free viewing.
Rugged and Waterproof Construction
The PVS-14E is built to meet MIL-STD-810G standards, ensuring reliable performance in harsh conditions. Its waterproof housing helps protect the internal components when used in challenging environments.
| Dimensions | 108 × 63 × 69 mm (4,25 × 2,5 × 2,7 in) |
| Image Intensifier Tube | Gen 3 Auto-Gated 'White Phosphor Level 1' |
| Resolution | 64-72 lp/mm |
| Field of view cleanness by zone | Gen 3 IIT 3AL1 is the highest resolution and the cleanest offered by AGM. There are practically no visible spots in Zone 1. |
| Magnification | 1x |
| Lens System | 26 mm; F/1.2 |
| FOV | 40° |
| Focus Range | 0.25 m to infinity |
| Diopter Adjustment | -6 to +2 diopters |
| Led Indicators | - Low Battery - IR On - Excessive Light Conditions |
| Infrared Illuminator | Yes |
| Manual Gain Control | Yes |
| Bright Light Cut-Off | Yes |
| Battery Type | One AA Alkaline or one AA Lithium L91 or one CR123 Lithium or one AA or RCR123 rechargeable battery up to 3.7V |
| Battery Life (Operating) | Up to 40 hours at 20°C |
| Operating Temperature Range | -51° C to +49° C (-60° F to 120° F) |
| Storage Temperature Range | -51° C to +85° C (-60° F to 185° F) |
| Weight | 290 g (10.2 oz) |
