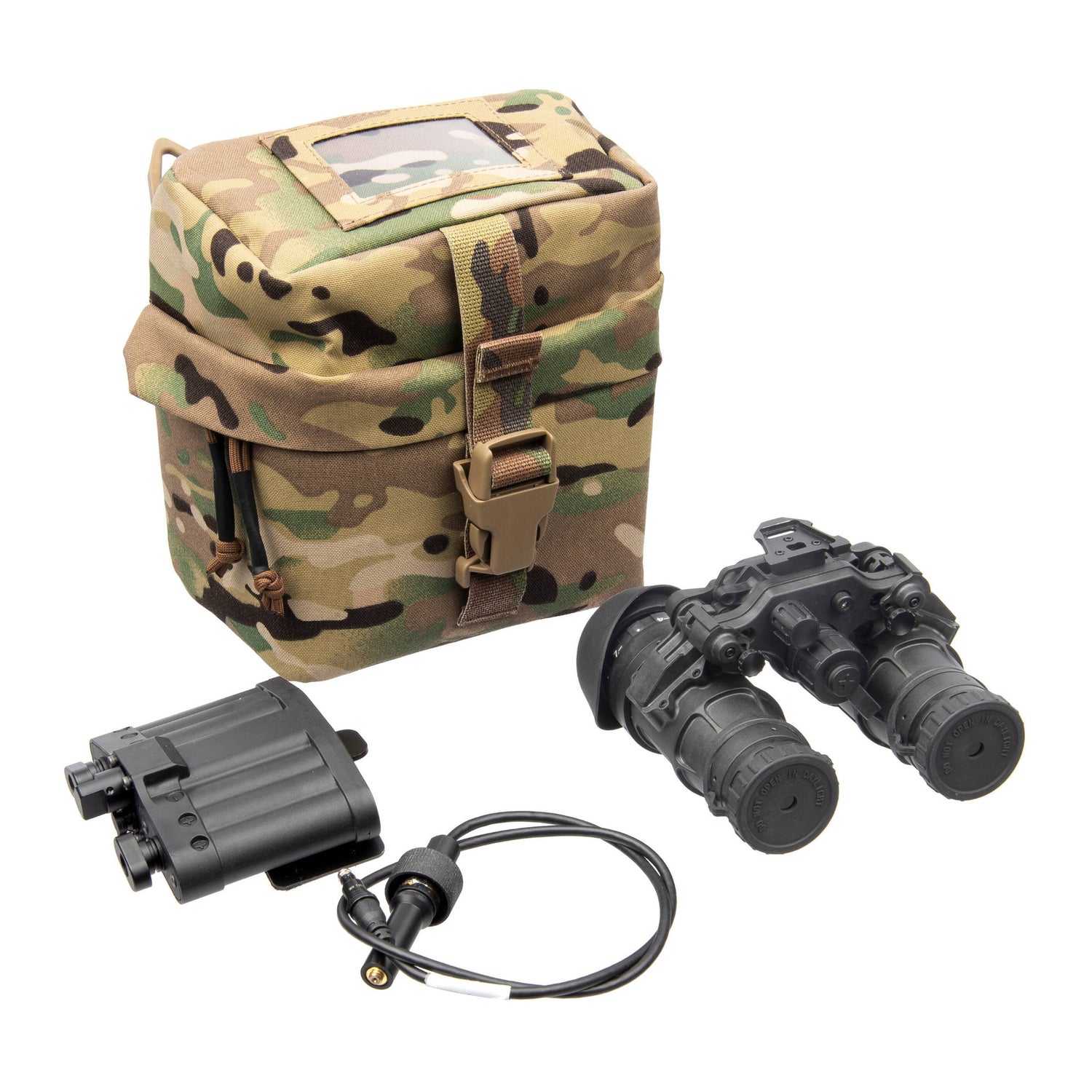

- AGM UNVG 3AW1 Gen 3 Auto-Gated White Phosphor Level 1 Night Vision Binocular
- External Battery Pack
- Connecting Cable with Battery Adapter
- Demist Shield (2)
- Sacrificial Window (2)
- Neck Strap
- Carrying Case
- Lens Cloth
- User Manual
- AA Battery
Trusted & Verified

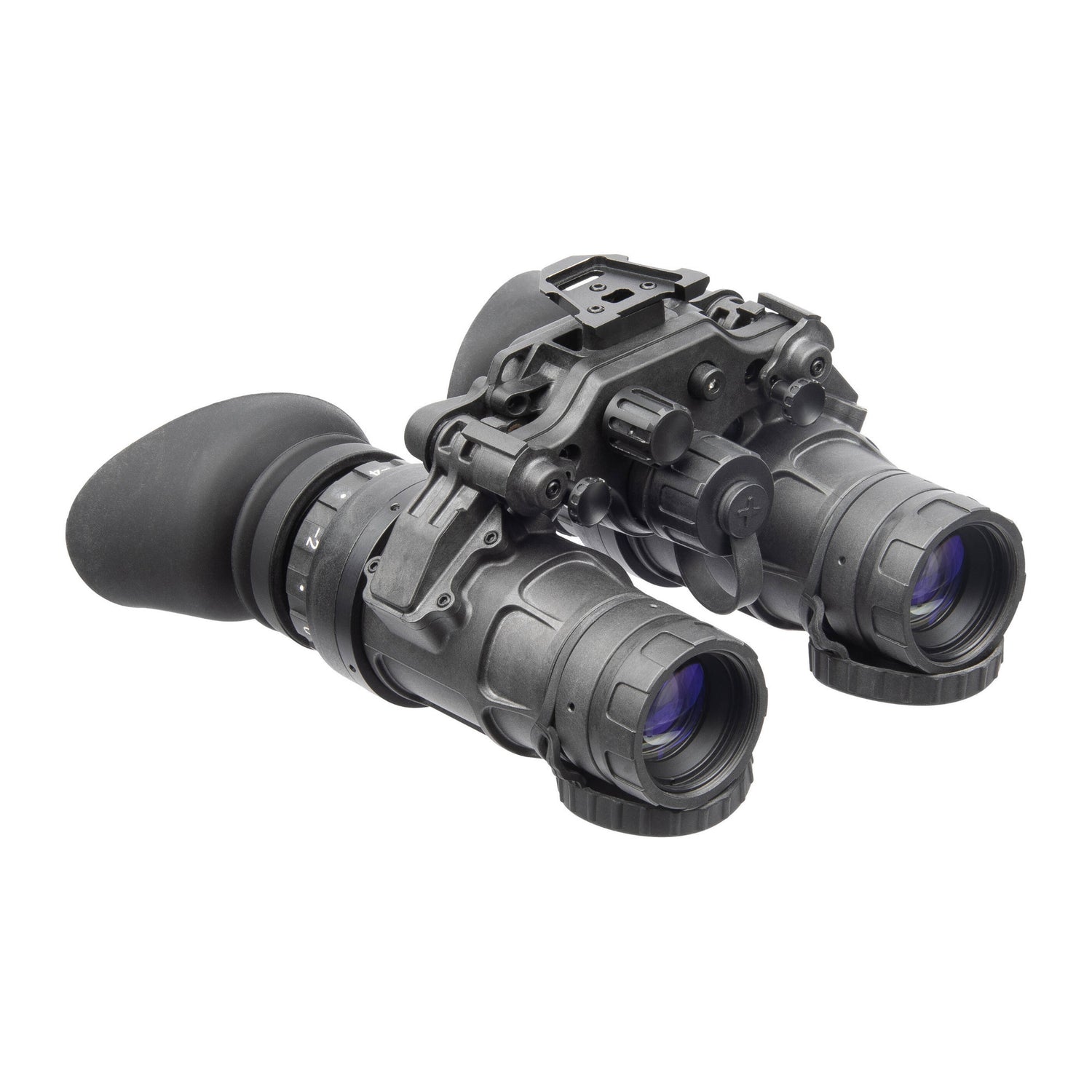

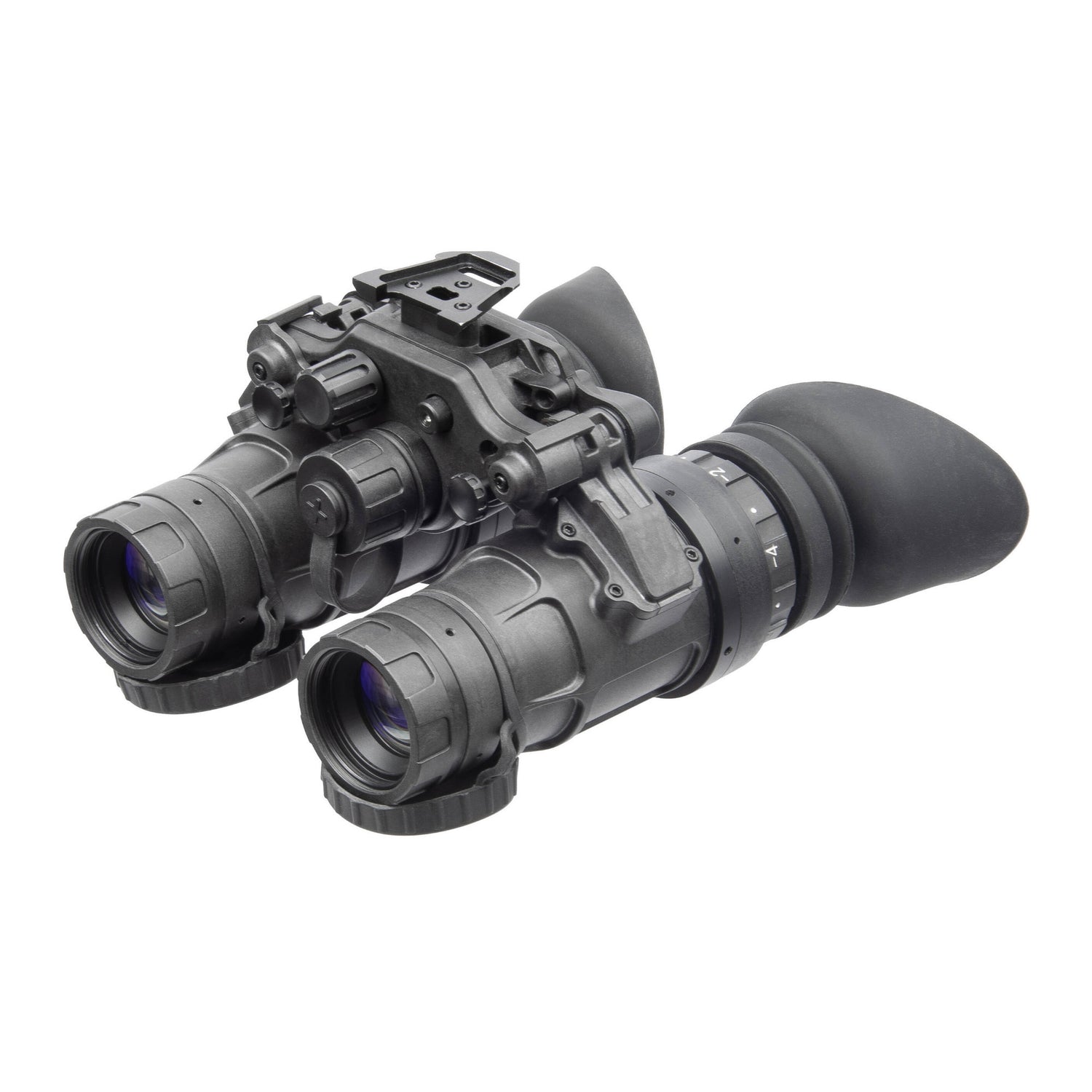

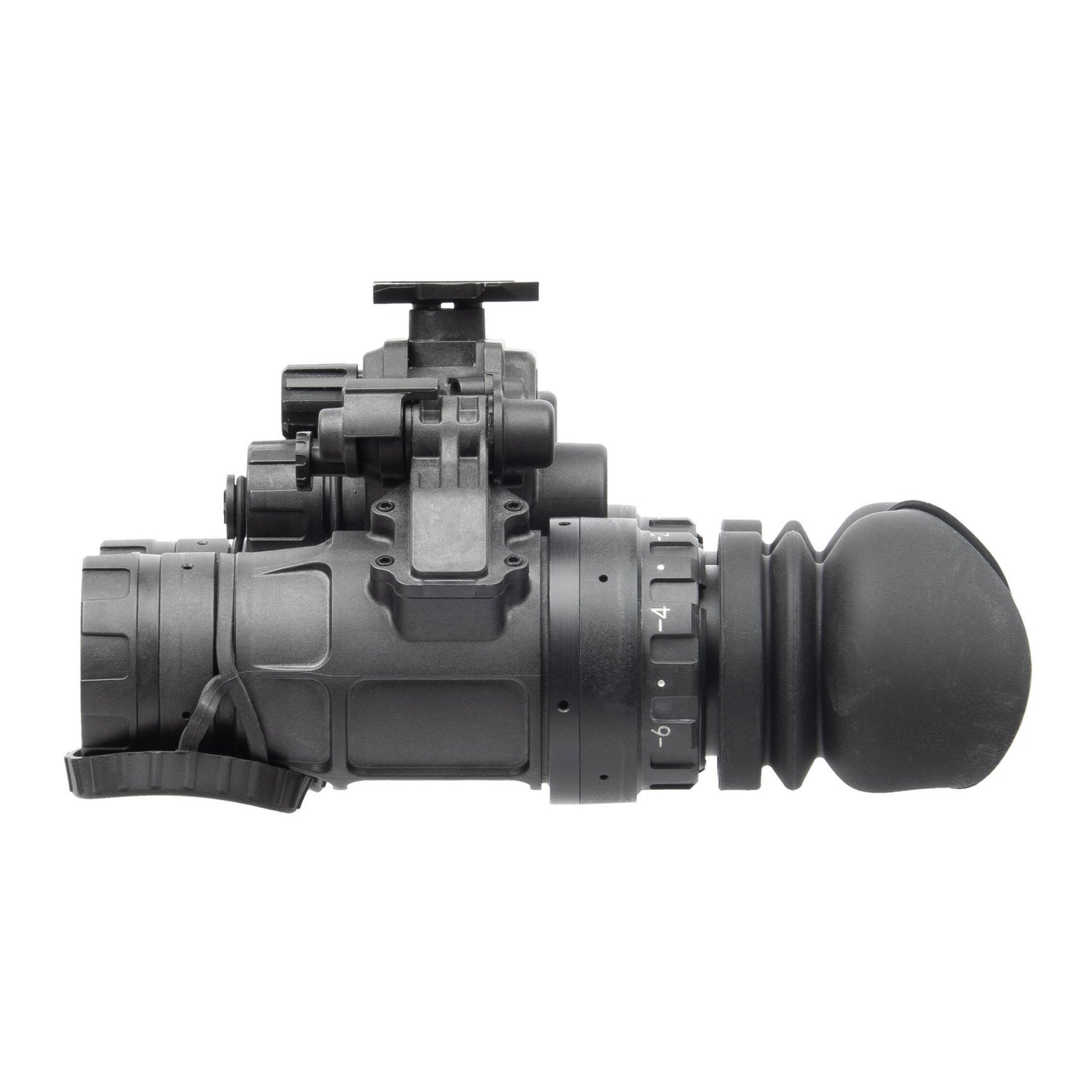

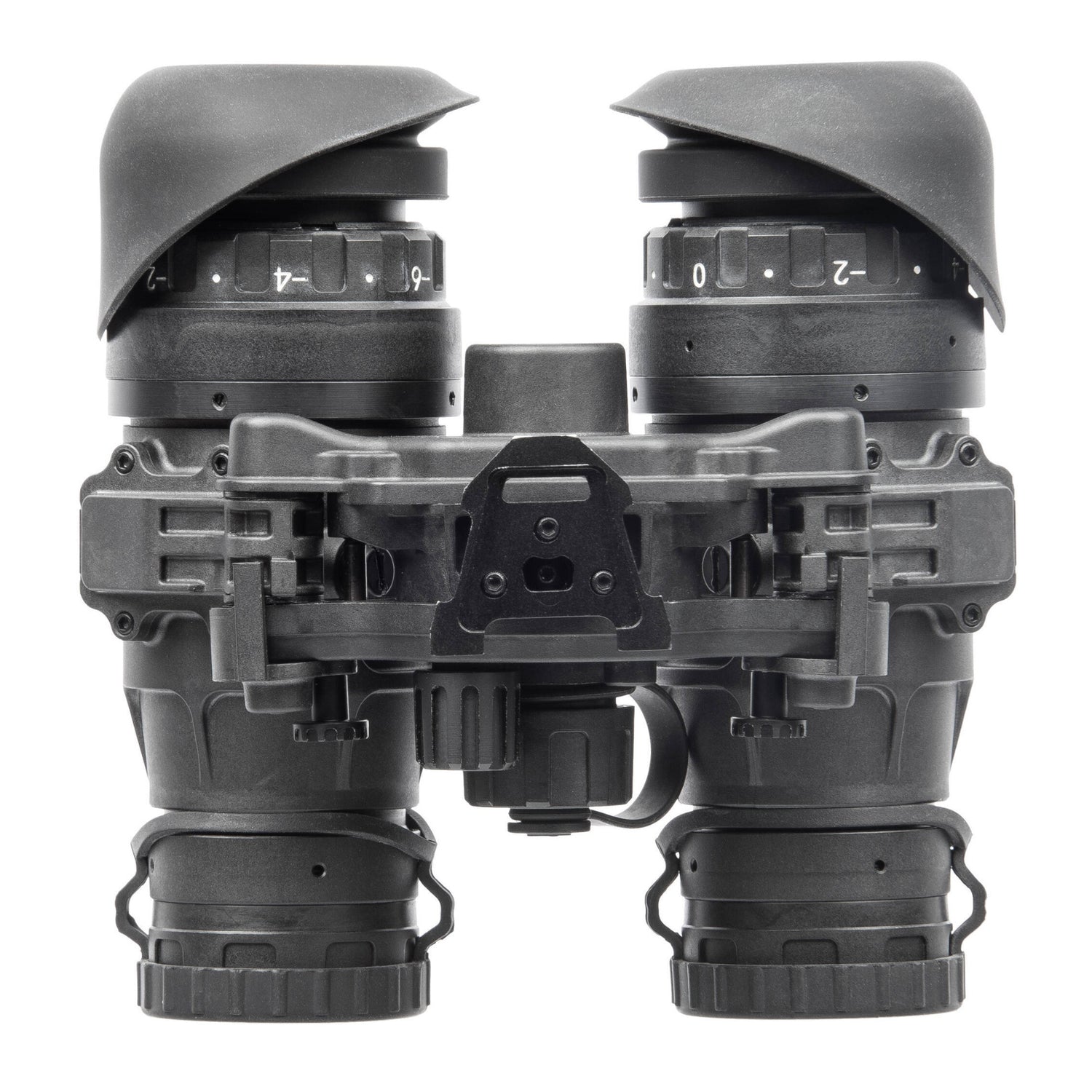

AGM UNVG 3AW1 Gen 3 Auto-Gated White Phosphor Level 1 Night Vision Binocular
- Dual-channel night vision system supports Gen 2+ or Gen 3 image intensifier tubes
- Independent pod movement allows a single or dual eye configuration
- Automatic tube shutoff when pods are rotated to the side
- Manual gain control for adjusting image brightness in changing light conditions
- Operates up to 15 hours on a single AA battery
- External battery pack extends runtime up to 50 hours
- Integrated infrared illuminator for visibility in total darkness
- Durable PEEK and glass fiber composite housing for shock and corrosion resistance
- Dovetail base compatible with standard helmet and headset mounts
- Lightweight 17.6 oz design helps reduce fatigue during extended use
- Objective and eyepiece lenses compatible with PVS-14 style components
The AGM UNVG 3AW1 is a dual-channel night vision system designed for flexible operation and reliable low-light visibility. With a compact composite housing, adjustable pod design, and manual brightness control, the system supports different viewing configurations and extended use in the field.
Dual-Channel Night Vision Performance
The system supports high-performance Gen 2+ or Gen 3 image intensifier tubes. This configuration provides clear night vision while maintaining depth perception and awareness in low-light environments.
Adjustable Pod Configuration
Each pod can move independently, allowing the user to switch between single-eye and dual-eye viewing. This design provides flexibility and allows quick adjustments depending on operational needs.
Automatic Tube Shutoff
Each optical tube automatically powers off when its pod is rotated to the side. This helps conserve battery power and extends operating time when only one pod is in use.
Manual Gain Brightness Control
The manual gain control allows the user to adjust image brightness based on the surrounding light conditions. This helps maintain image quality and improves visibility when lighting conditions change.
Extended Battery Operation
The device runs up to 15 hours using a single AA battery. With the included external battery pack, runtime can extend up to 50 hours, allowing longer operation without frequent battery replacement.
Built-In Infrared Illuminator
The integrated infrared illuminator supports close-range visibility in complete darkness. This feature is useful for reading or navigating in environments with no available light.
Durable Composite Construction
The housing uses PEEK and glass fiber material to provide resistance to corrosion and shock. The durable structure helps maintain reliability during extended use.
Helmet Mount Compatibility
A dovetail base allows the device to attach to standard helmet or headset mounting systems. This provides secure installation and stable positioning during operation.
Lightweight Design for Extended Use
At approximately 17.6 oz (500 g), the system maintains a lightweight design that helps reduce fatigue during long periods of use.
PVS-14 Style Component Compatibility
The objective and eyepiece lenses are compatible with PVS-14 style components, allowing integration with existing accessories and attachments.
| Interpupillary Distance | 56 to 72 mm |
| Image Intensifier Tube | Gen 3 Auto-Gated White Phosphor Level 1 |
| Resolution | 64-72 lp/mm |
| Field of view cleanness by zone | Gen 3 IIT 3AW1 is the highest resolution and the cleanest offered by AGM. There are practically no visible spots in Zone 1. |
| Magnification | 1x |
| Lens System | 25mm, F/1.23 |
| FOV | 40° |
| Focus Range | 0.25 m to Infinity |
| Eye Relief | 25 mm |
| Diopter Adjustment | -6 to +2 diopters |
| Infrared Illuminator | Yes |
| Manual Gain Control | Yes |
| Battery Type | One AA (1.5 V) or External Battery Pack (four AA or two CR123A) |
| Battery Life (Operating) | One AA - up to 15 hours / External Battery Pack (four AA) - up to 50 hours / External Battery Pack (two CR123A) - up to 30 hours |
| Exit Pupil Diameter | 14 mm |
| Operating Temperature Range | -40°C to +50°C (-40°F to +122°F) |
| Storage Temperature Range | -50°C to +70°C (-58°F to +158°F) |
| Weight | (w/o battery) - Goggles: 500 g (1.1 lb) / External Battery Pack: 250 g (0.55 lb) |
| Overall Dimensions | Goggles: 101 × 116 × 85 mm (4.0 × 4.6 × 3.3 in) / External Battery Pack: 102 × 86 × 34 mm (4.0 × 3.4 × 1.3 in) |
| Protection Level | IP67 |
