AGM NVG-40 3APW Auto-Gated Gen 3+ P45-White Phosphor NV Goggle
Couldn't load pickup availability
Product highlights
Product highlights
In the box
In the box
Free standard shipping
Free standard shipping
*Orders placed before 1 PM EST Mon - Thur will ship the same day. Orders placed beyond these hours will be shipped the next business day. Exclusions apply. See shipping policy
Free Local Pickup
Free Local Pickup
Please call for store stock availability. Requests made before 2:30 PM EST can be available for next-day pickup. Learn more

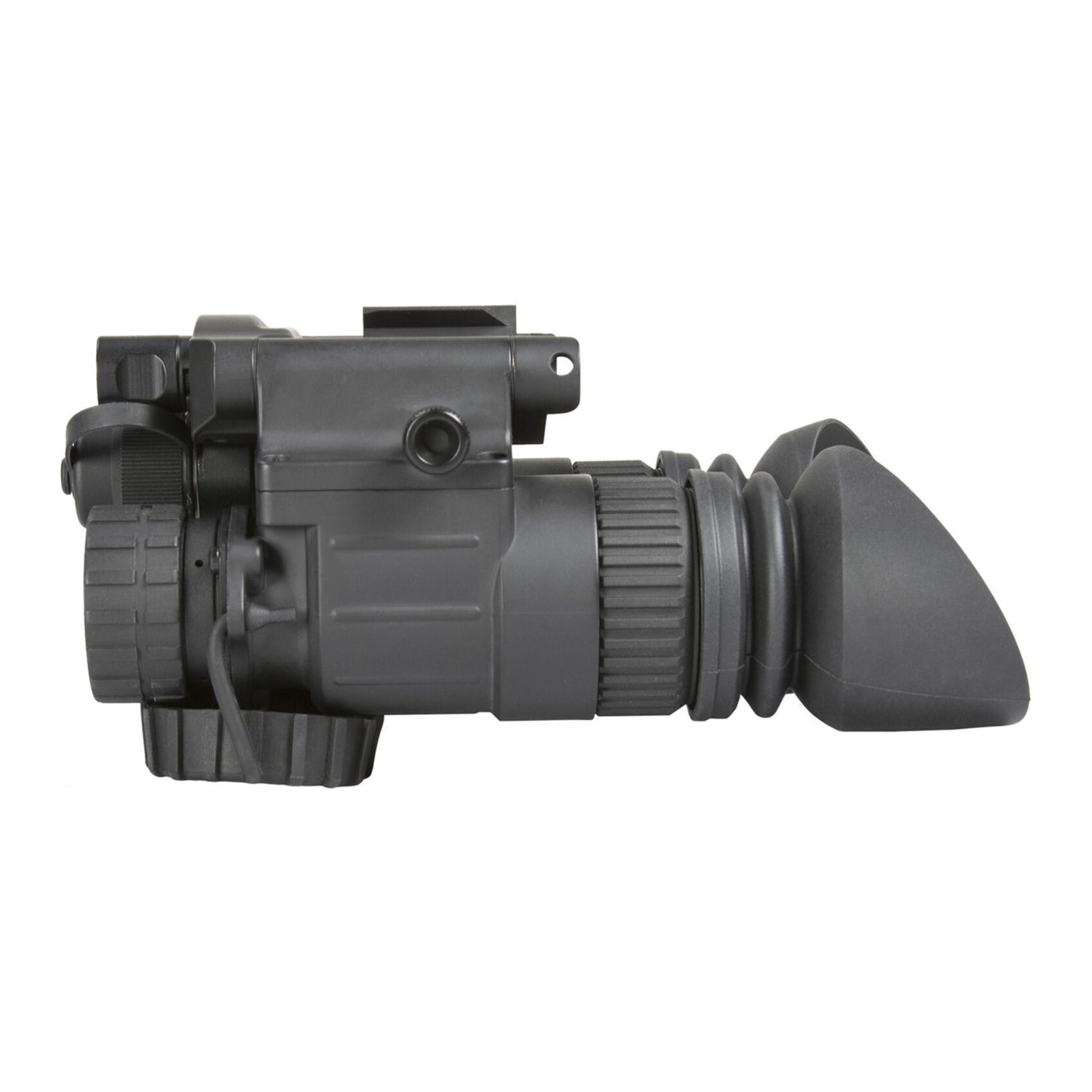

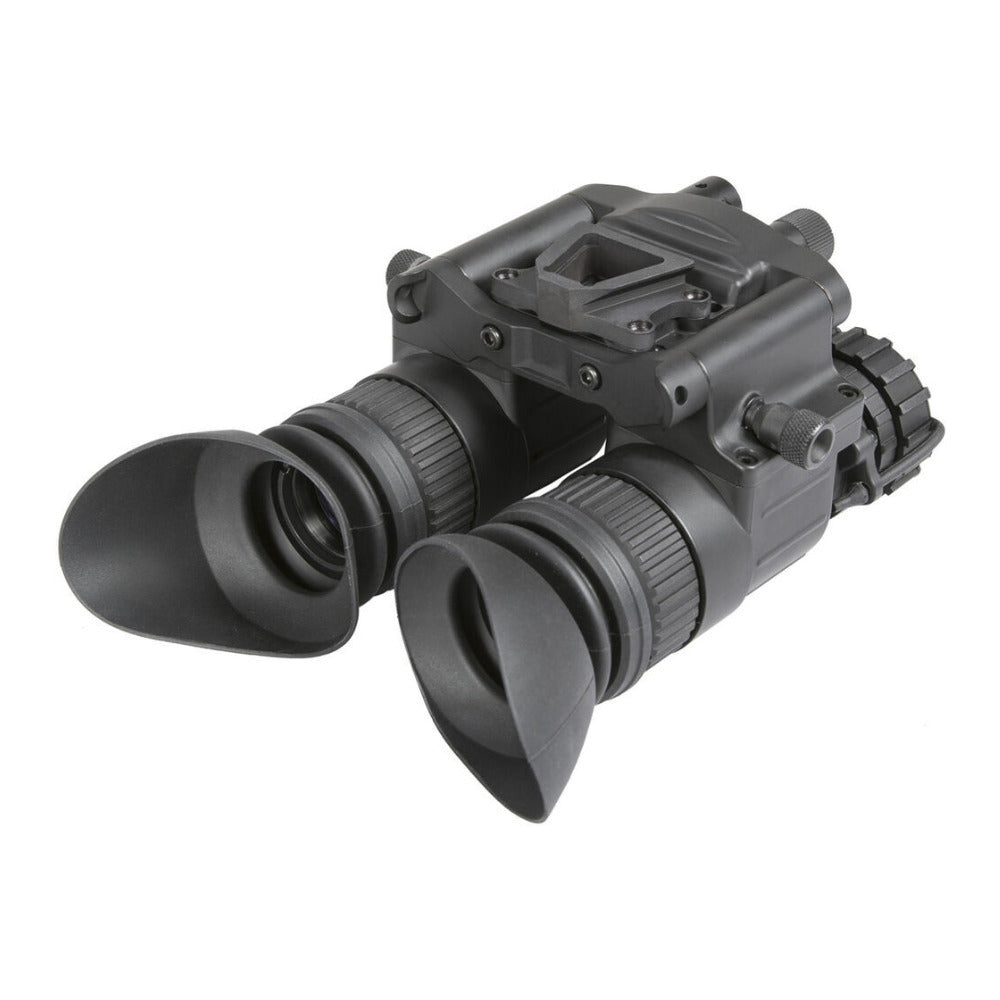

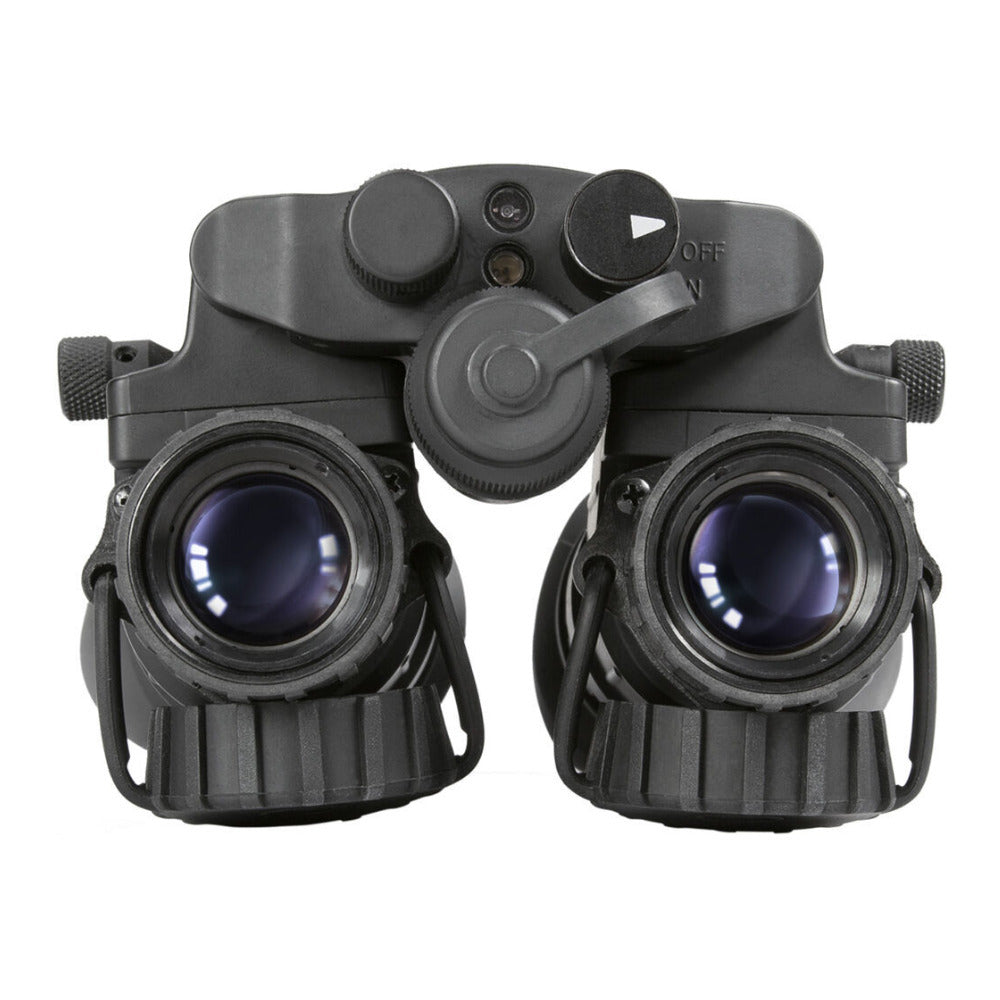

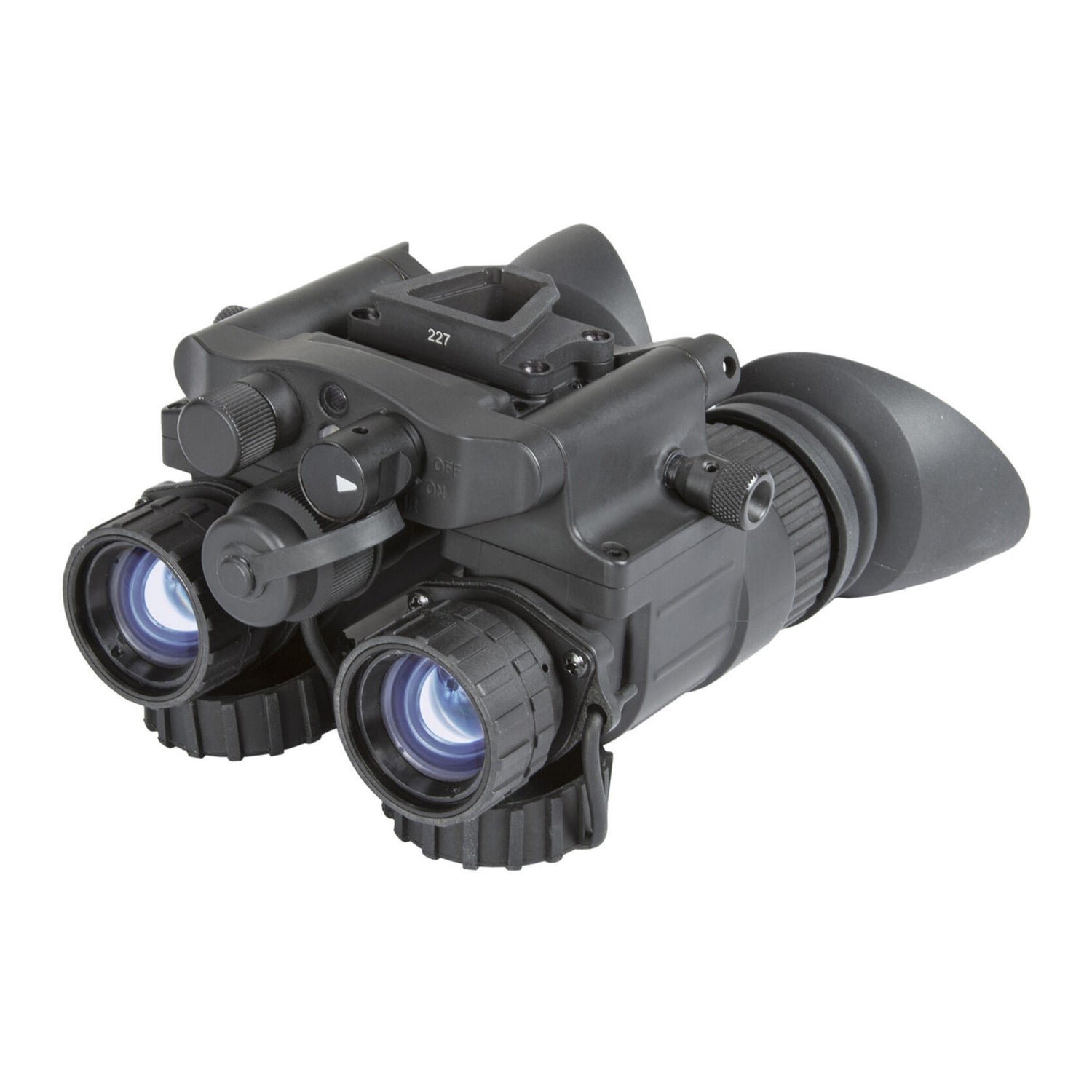

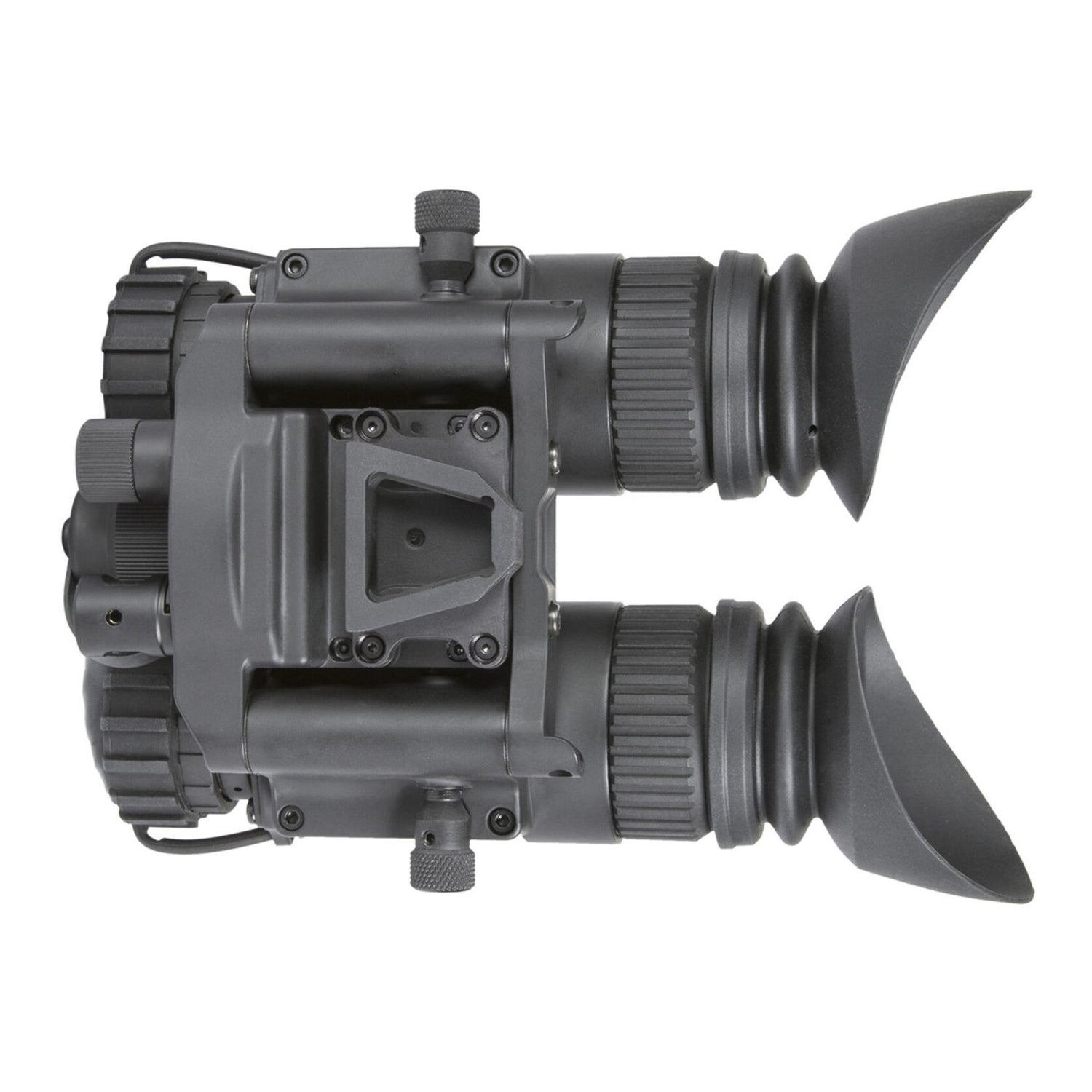

The AGM NVG-40 is a dual-channel night vision system. The NVG is made of a compact composite
housing for durability and features advanced multi-coated optics. The device can be outfitted with
either a Gen 2+ or Gen 3 high-performance image intensifier tube (IIT). The bright light cut-off feature
ensures that the high-quality photocathode tube is protected. The NVG is also equipped with a manual
Gain Control, which adjusts the image brightness, provides the highest possible image quality even in
changing light conditions. Operating from a single AA alkaline battery or CR123A battery, the NVG can
run up to 20 hours. Also equipped with an integral infrared illuminator for reading in the dark.
Features:

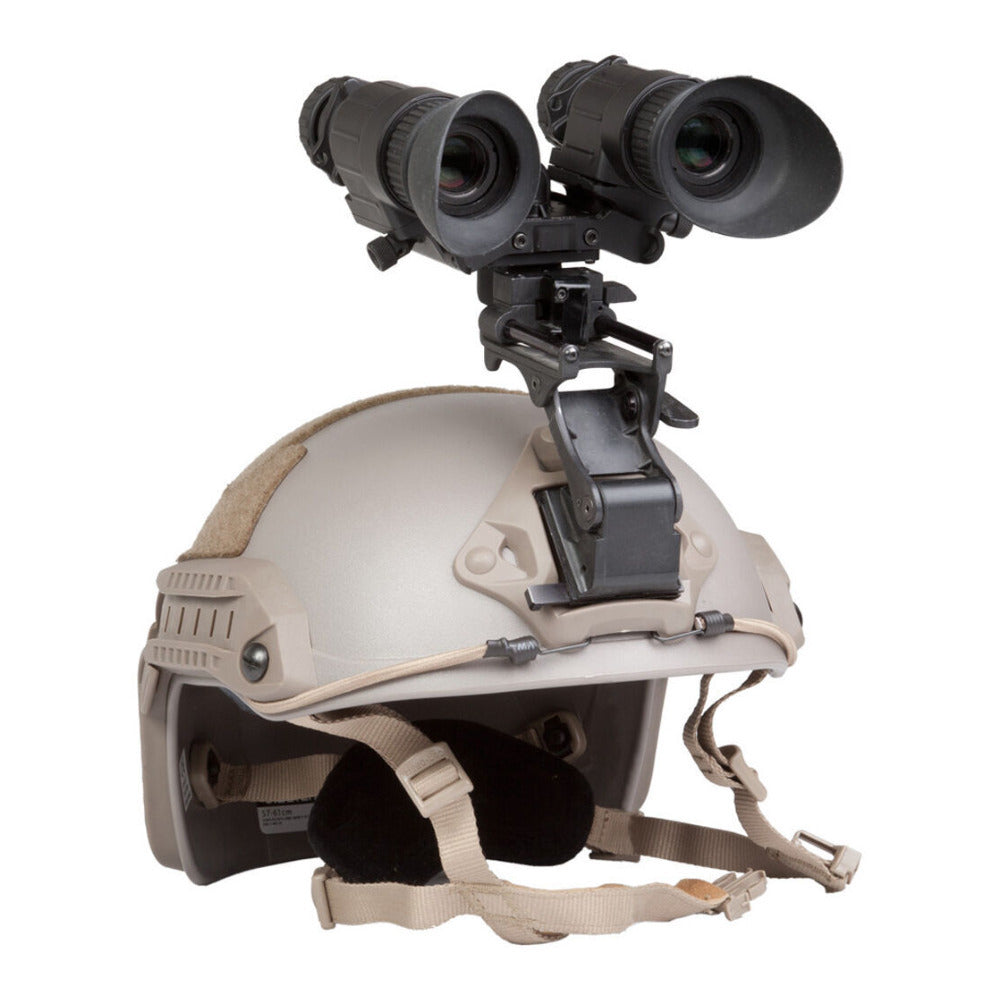

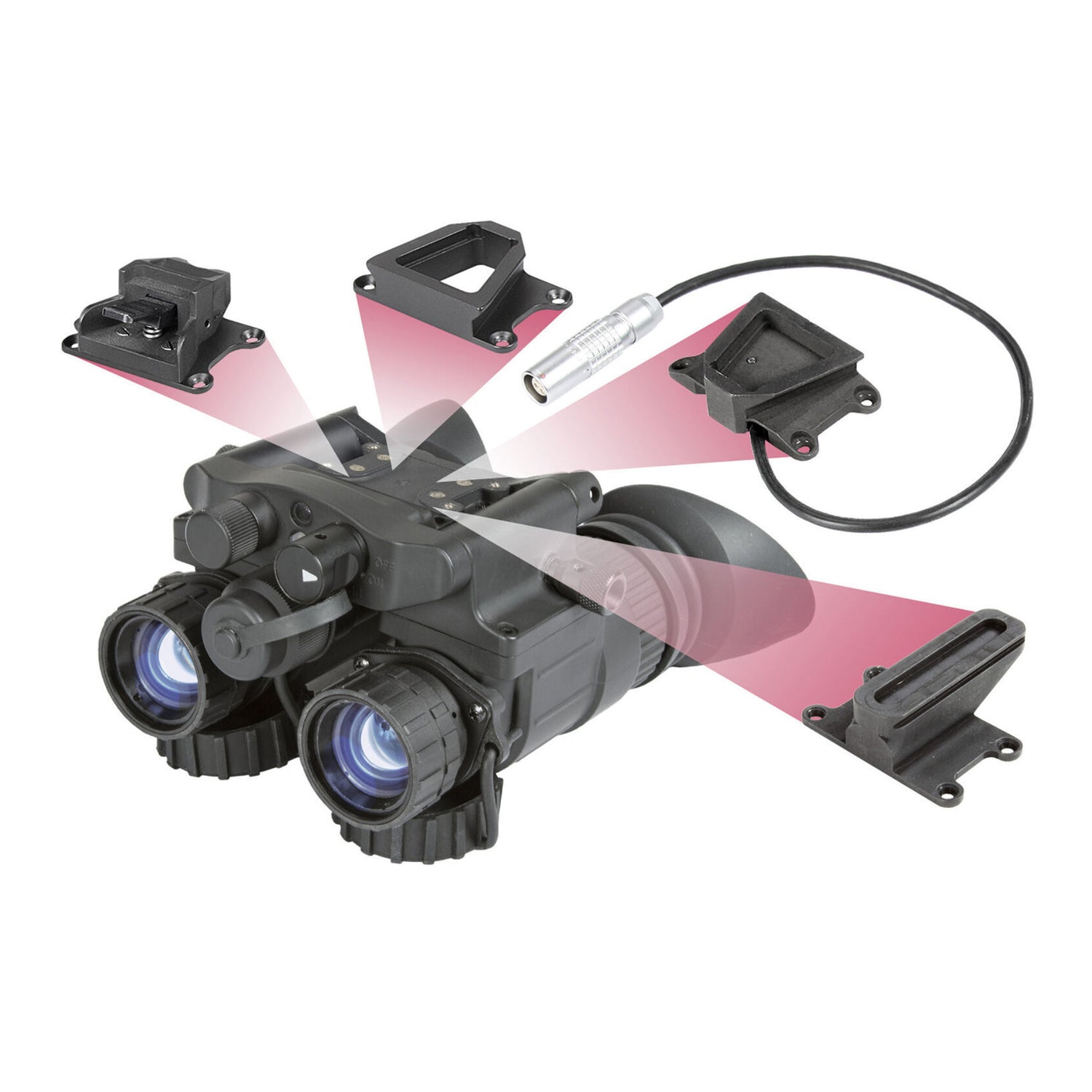

- NVG Interface Shoe (preinstalled) is used for installing the NVG to either a standard dovetail-type headset or helmet mount.
- Bayonet/Horn Interface Shoe (included) is used for installing the NVG to either a standard bayonet/horn type headset and helmet mount.
- NVG Interface Shoe with Connector (optional) is used for installing the NVG-40/NVG-50 to either standard dovetail type headset and helmet mounts, and connecting the Battery Pack.
- Mini-Rail Interface Shoe is used for installing the NVG to the mounts with a mini-rail interface. Mini-Rail Interface Shoe is included in the optional AGM Goggle Kit W and AGM Helmet Mount
| Image Intensifier Tube | Gen 3 Auto-Gated White Phosphor 3APW |
| Resolution | 64-72 lp/mm |
| Field of view cleanness by zone | Gen 3 IIT 3APW is the highest performing and the cleanest Gen 3 IIT made by L3 and Elbit. |
| Magnification | 1x |
| Lens System | 27 mm, F/1.3 |
| FOV | 40° |
| Focus Range | 0.25 m to Infinity |
| Eye Relief | 25 mm |
| Diopter Adjustment | -6 to +2 dpt |
| Led Indicators | Low Battery IR On Excessive Light Conditions |
| Infrared Illuminator | Yes |
| Manual Gain Control | Yes |
| Bright Light Cut-Off | Yes |
| Automatic Shut-Off System | Yes |
| Battery Type | One CR123A (3V) or AA (1.5 V) |
| Battery Life (Operating) | Up to 20 hours at 20°C (up to 80 hrs with optional battery pack) |
| Waterproof | Yes |
| Operating Temperature Range | -40°C to +50°C (-40°F to +122°F) |
| Storage Temperature Range | -50°C to +70°C (-58°F to +158°F) |
| Weight | 645 g (1.42 lbs) |
| Overall Dimensions | 115 × 118 × 74 mm (4.5 × 4.6 × 2.9 in) |
| Protection Level | IP67 |
