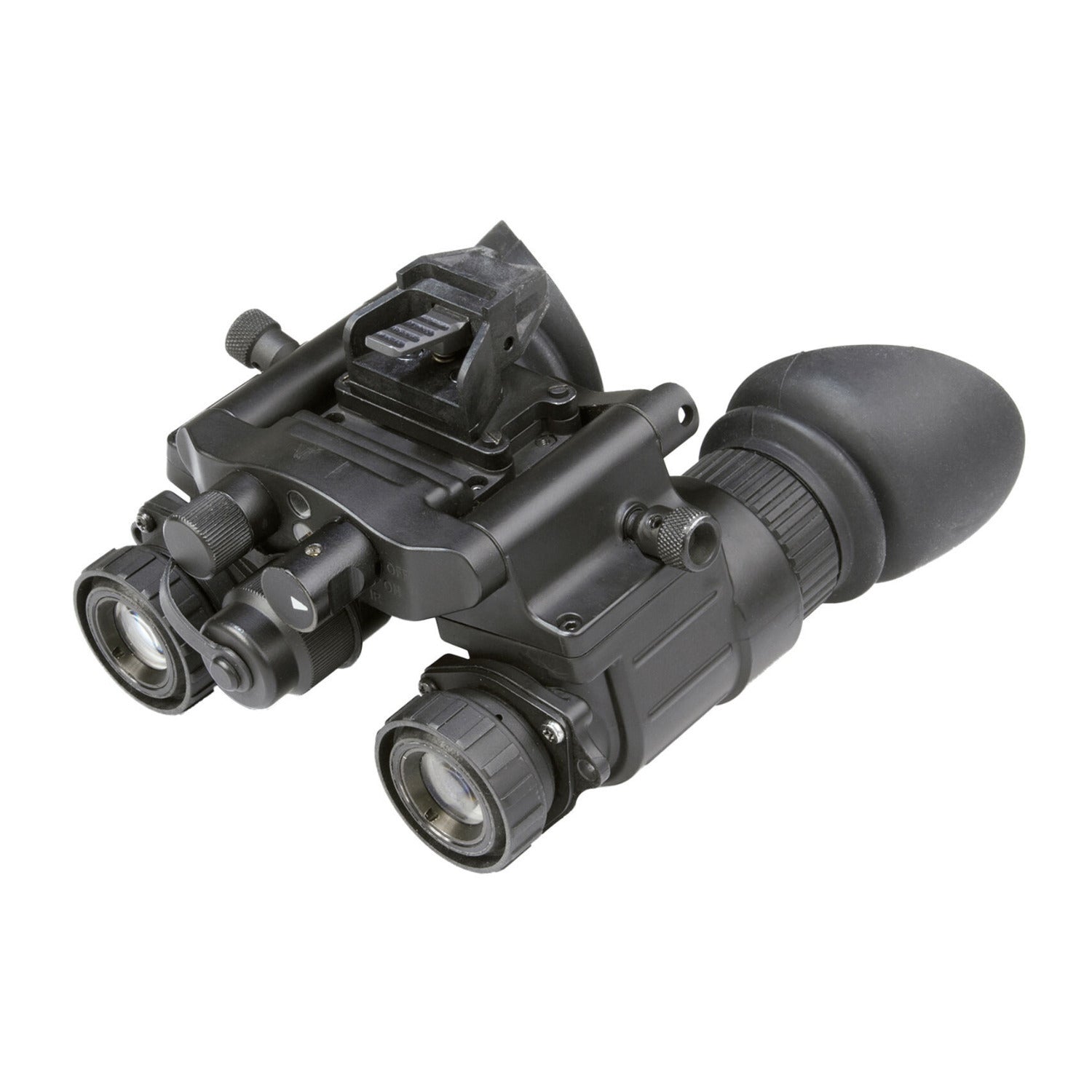

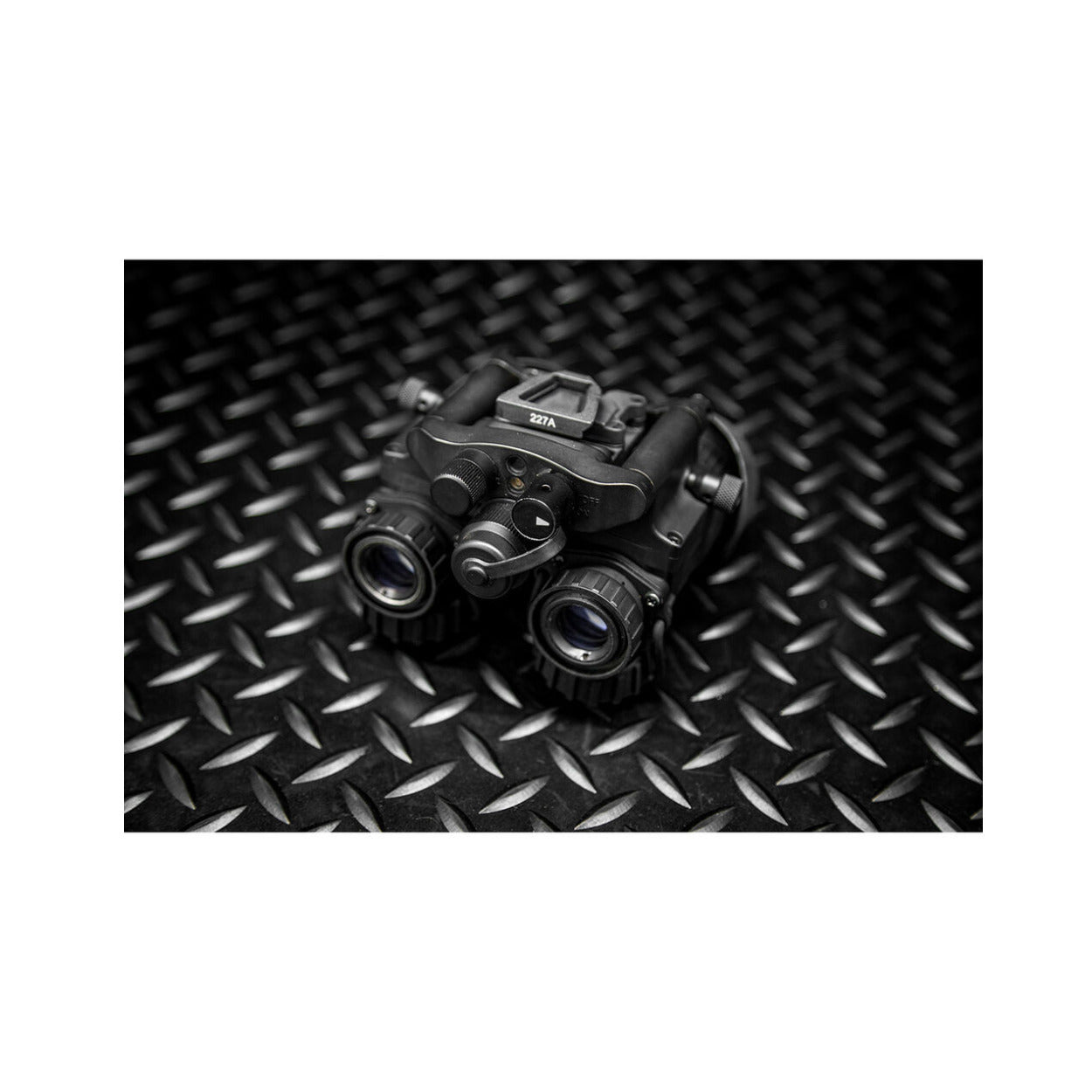

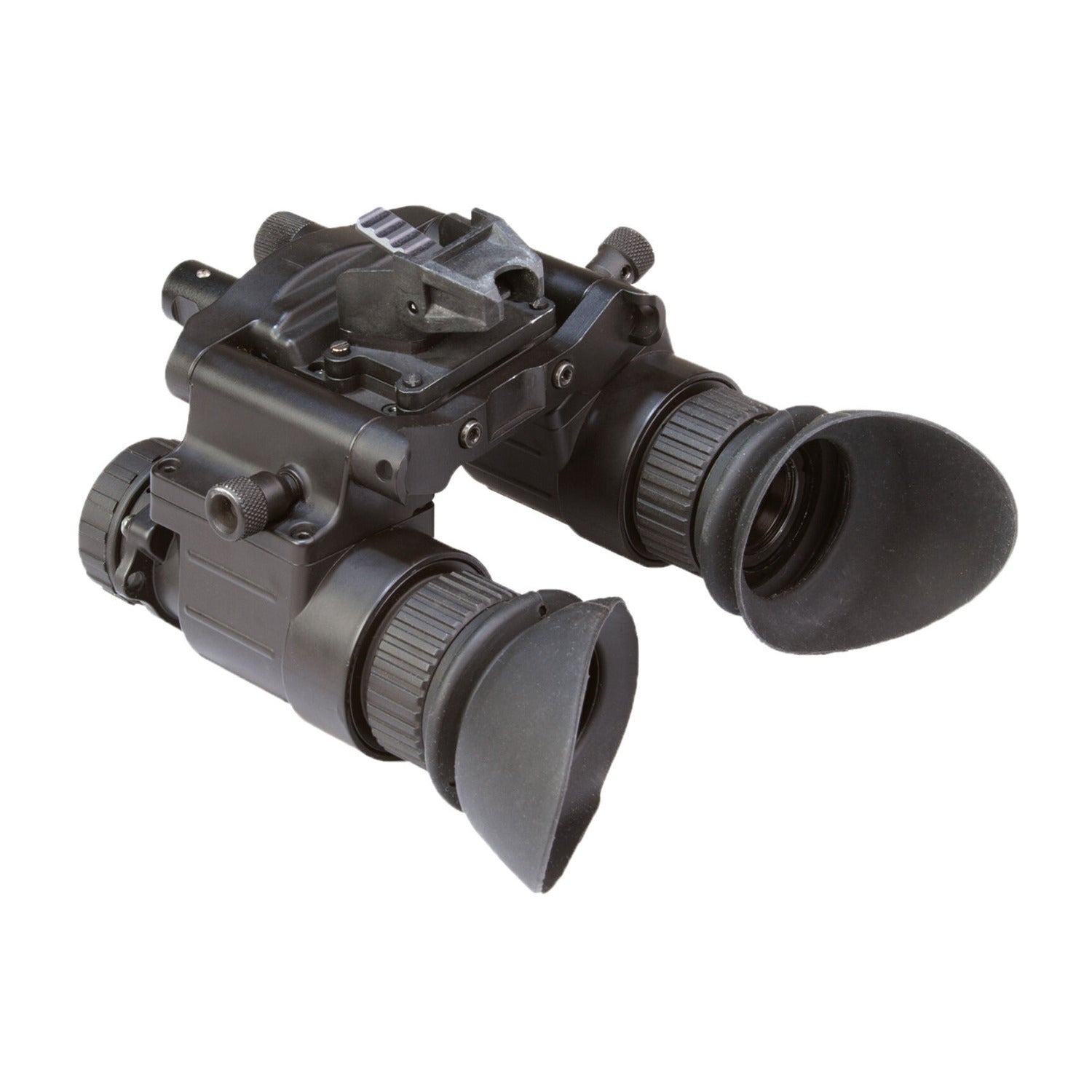

AGM NVG-50 3APW Auto-Gated Gen 3+ P45-White Phosphor NV Goggle
Couldn't load pickup availability
Product highlights
Product highlights
In the box
In the box
Free standard shipping
Free standard shipping
*Orders placed before 1 PM EST Mon - Thur will ship the same day. Orders placed beyond these hours will be shipped the next business day. Exclusions apply. See shipping policy
Free Local Pickup
Free Local Pickup
Please call for store stock availability. Requests made before 2:30 PM EST can be available for next-day pickup. Learn more
The AGM NVG-50 is a dual-channel night vision system. The NVG-50 uses optics which give it a wider 51 degrees field of view with the tradeoff of shorter eye-relief. The NVG is made of a compact composite housing for durability, and features advanced multi-coated optics. The device can be outfitted with either a Gen 2+ or Gen 3 high-performance image intensifier tube (IIT). The bright light cut-off feature ensures that the high-quality photocathode tube is protected. The NVG is also equipped with Manual Gain Control, which adjusts the image brightness, providing the highest possible image quality even in changing light conditions. Operating from a single AA alkaline battery or CR123A battery, the NVG can run up to 20 hours. Also equipped with an integral infrared illuminator for reading in the dark.
Dual‑Tube Night Vision with True Stereoscopic Vision
The AGM NVG-50 Night Vision Goggle features a redundant dual‑channel design that delivers true stereoscopic vision for improved depth perception, spatial awareness, and enhanced target identification during nighttime operations.
Wide Field of View with Advanced Optics
Equipped with advanced multi‑coated optics, the NVG‑50 provides an expanded 51 degrees field of view for improved situational awareness while maintaining sharp image clarity in low‑light environments.
High‑Performance Image Intensifier Compatibility
Supports Gen 2+ or Gen 3 image intensifier tubes and includes manual gain control for adjusting brightness in changing lighting conditions, ensuring optimal image quality and reliable nighttime performance.

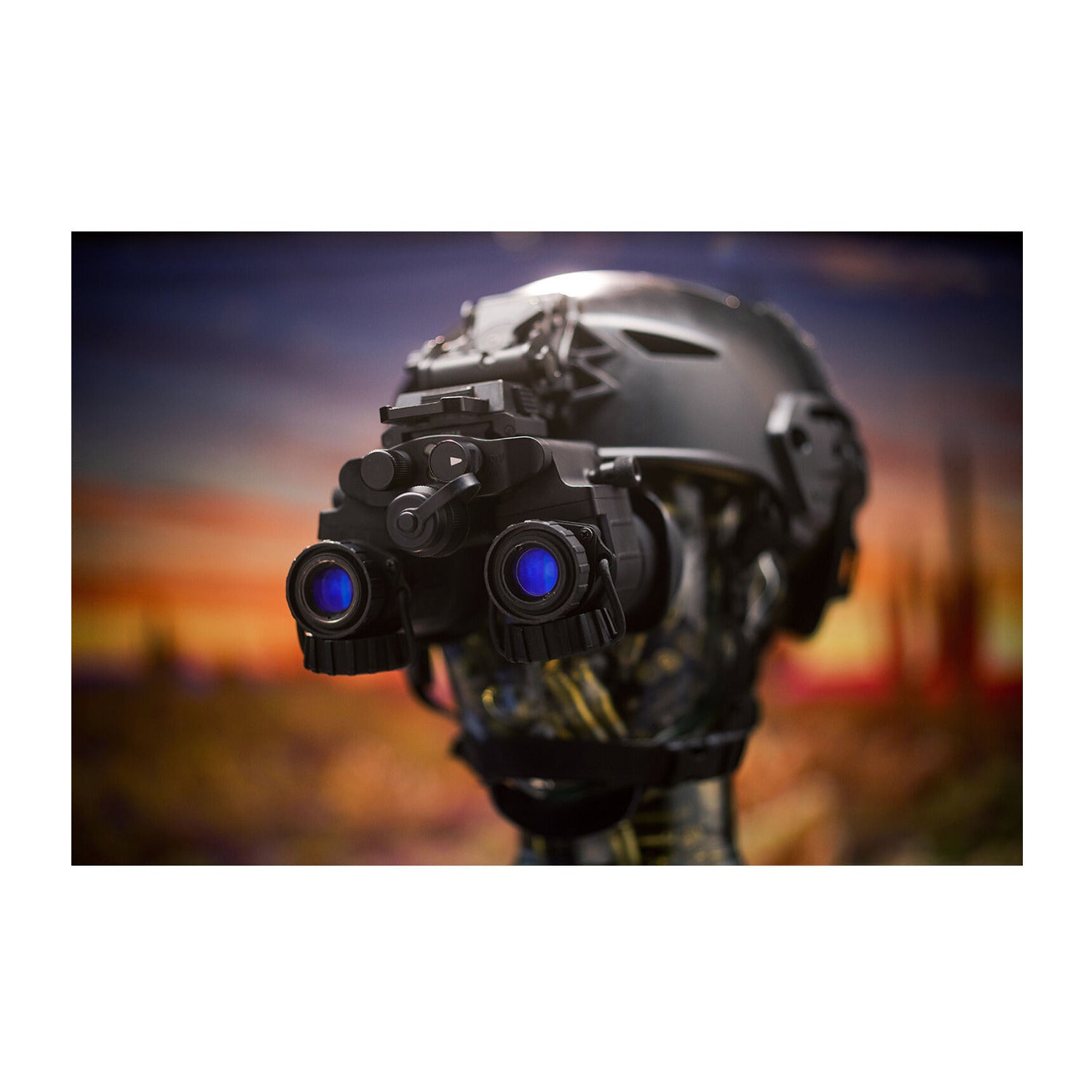

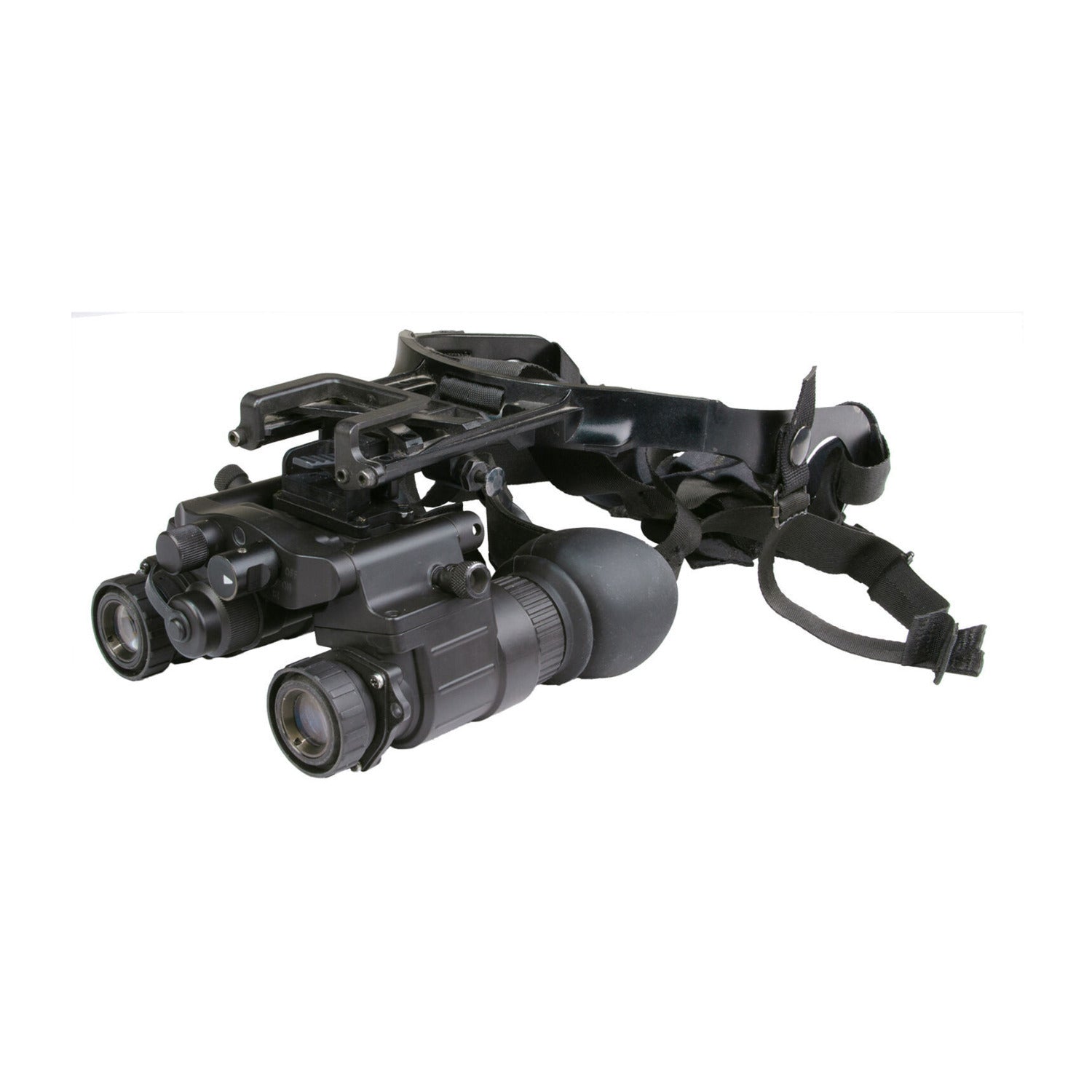

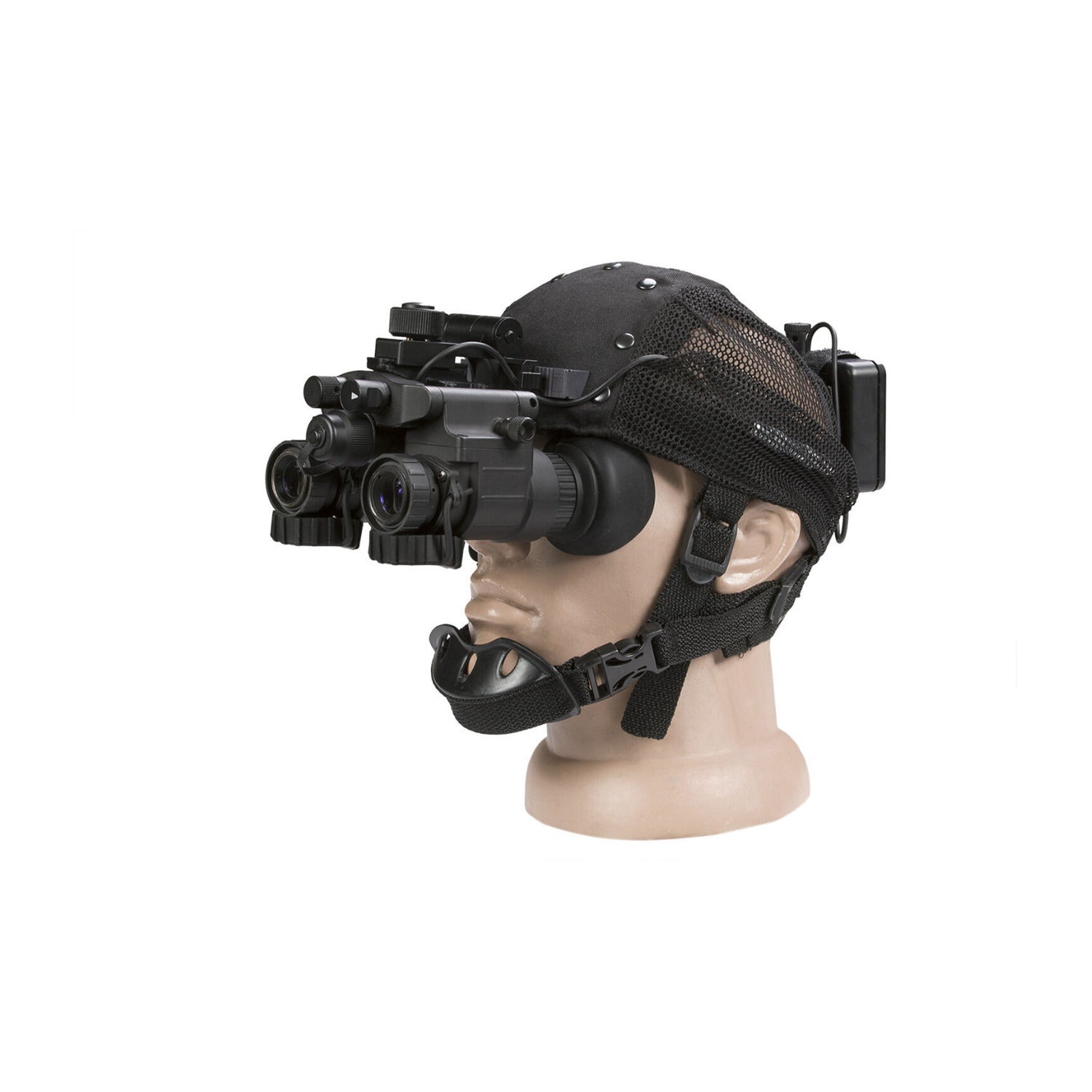

Durable, Lightweight, and Helmet Mountable Design
Built with a compact composite housing for durability and waterproof protection, the NVG‑50 can be head‑ or helmet‑mounted for hands‑free operation and supports dovetail, bayonet/horn, and mini‑rail mounting interfaces.
Integrated Infrared Illuminator with Long Battery Life
Includes a built‑in IR illuminator with flood lens for reading or navigating in total darkness and operates up to 20 hours using a single CR123A lithium or AA battery, with bright light cut‑off protection for the photocathode tube.
Image Intensifier Tube
| Gen 3 Auto-Gated White Phosphor 3APW | |
| Resolution | 64–72 lp/mm |
| Field of View Cleanness by Zone | Gen 3 IIT 3APW is highest performing and the cleanest Gen 3 IIT made by L3 and Elbit |
Optics & Magnification
| Magnification | 1x (3x optional) |
| Lens System | 19 mm; F/1.26 |
| Field of View (FOV) | 51° |
| Focus Range | 0.25 m to infinity |
| Eye Relief | 17 mm |
| Diopter Adjustment | -6 to +2 dpt |
Indicators & Controls
| LED Indicators | Low battery, IR on, Excessive light conditions |
| Infrared Illuminator | Yes |
| Manual Gain Control | Yes |
| Bright Light Cut-Off | Yes |
| Automatic Shut-Off System | Yes |
Power & Battery
| Battery Type | One CR123A (3V) or AA (1.5V) |
| Battery Life (Operating) | Up to 20 hours at 20°C (up to 80 hours with optional battery pack) |
Durability & Environment
| Waterproof | Yes |
| Operating Temperature Range | -40°C to +50°C (-40°F to +122°F) |
| Storage Temperature Range | -50°C to +50°C (-58°F to +122°F) |
| Protection Level | IP67 |
Physical Specs
| Weight | 615 g (1.35 lbs) |
| Overall Dimensions | 112 × 118 × 74 mm (4.4 × 4.6 × 2.9 in) |
