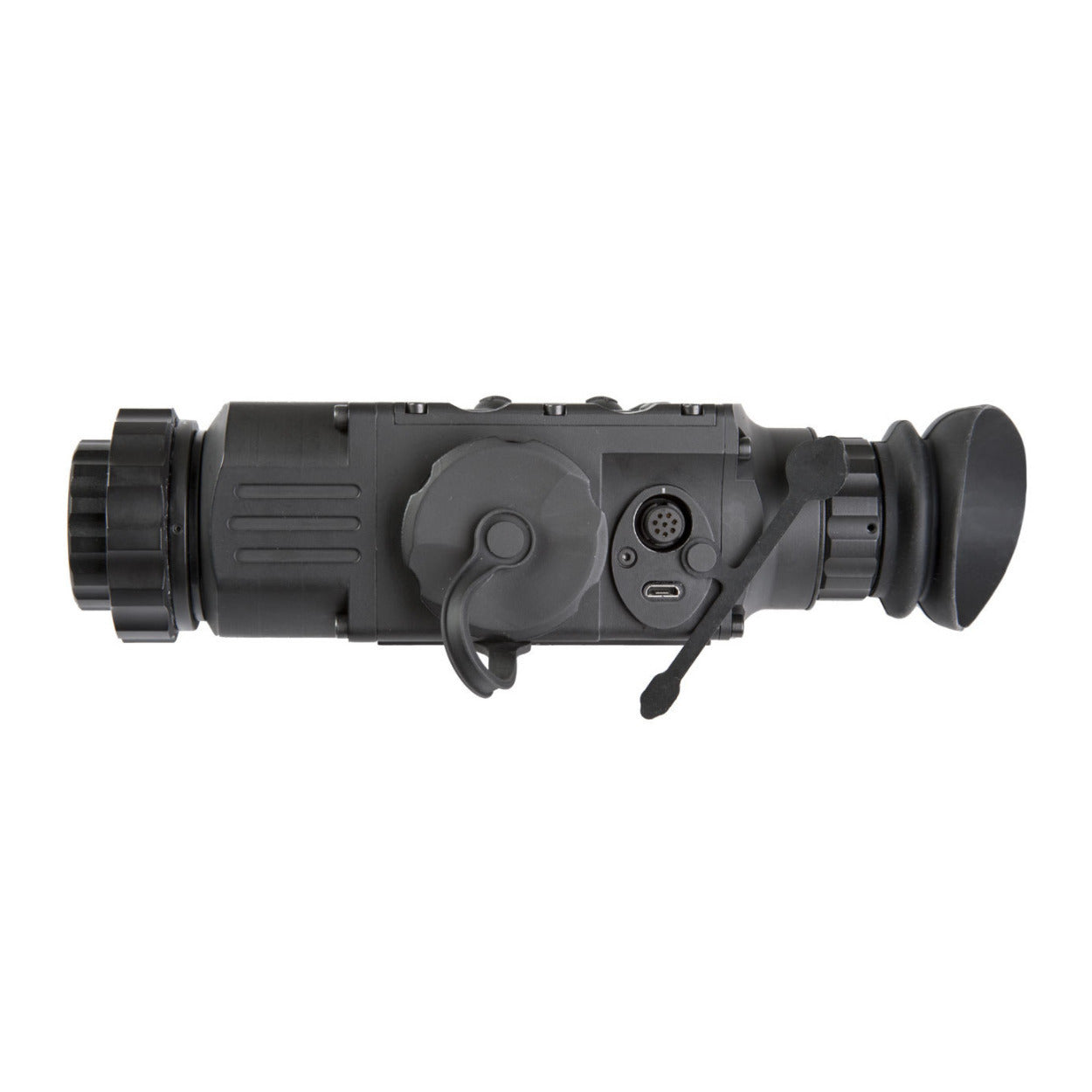

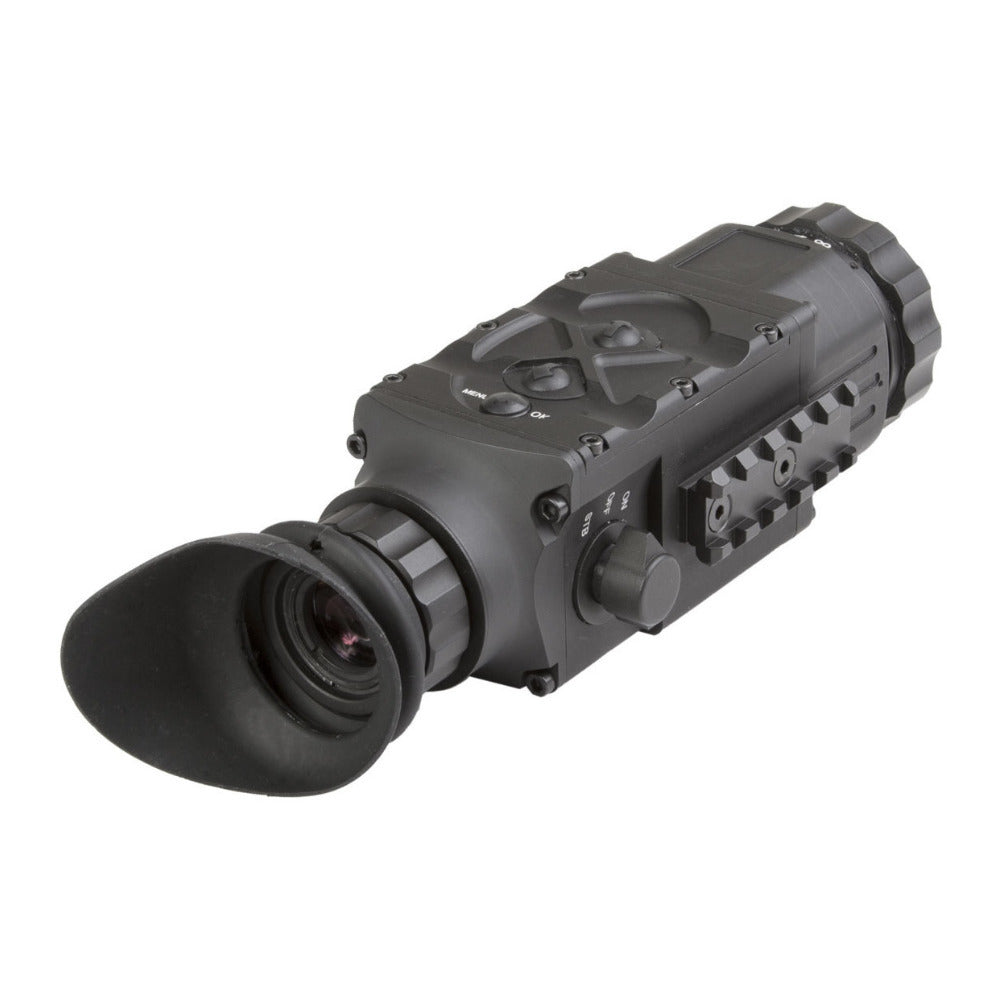

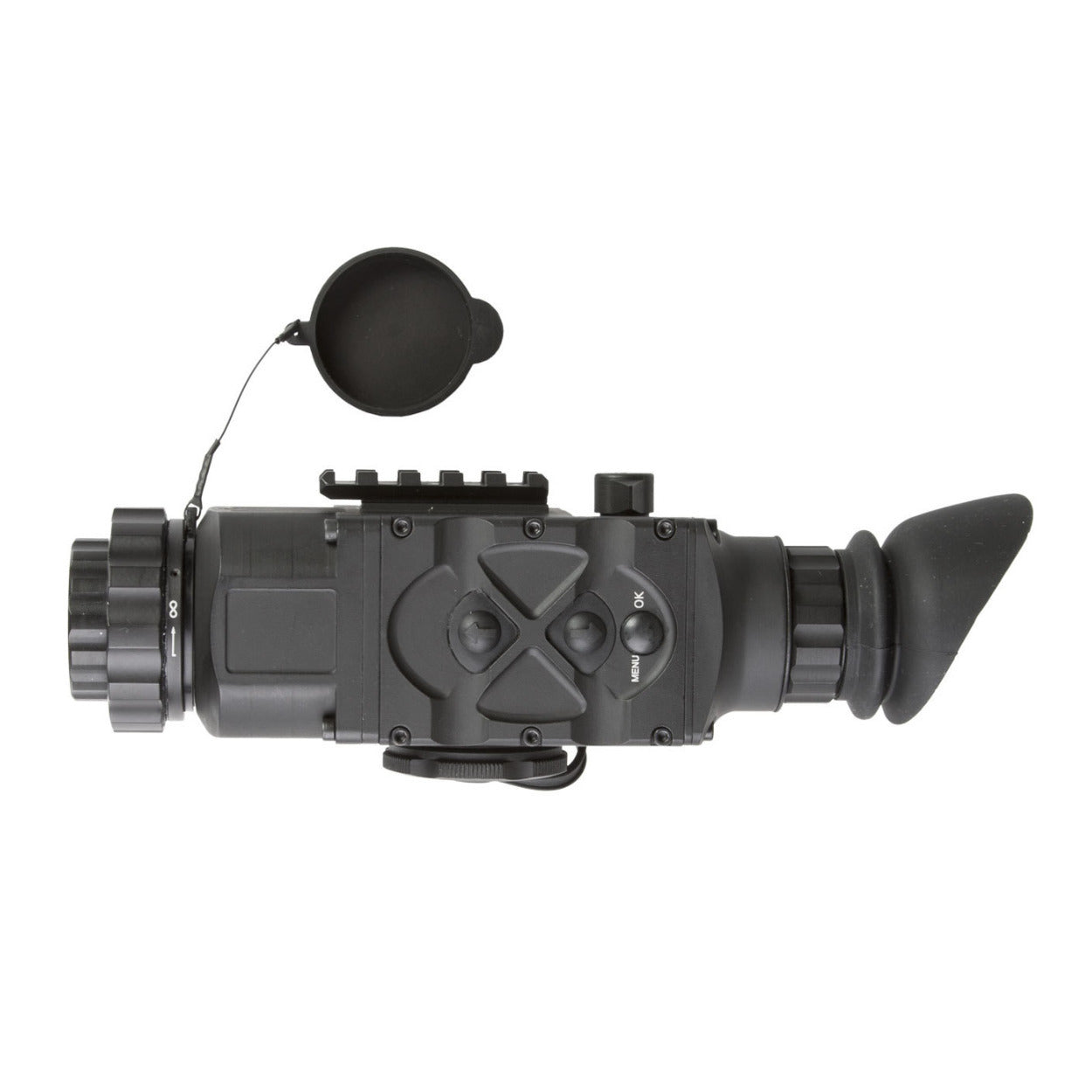

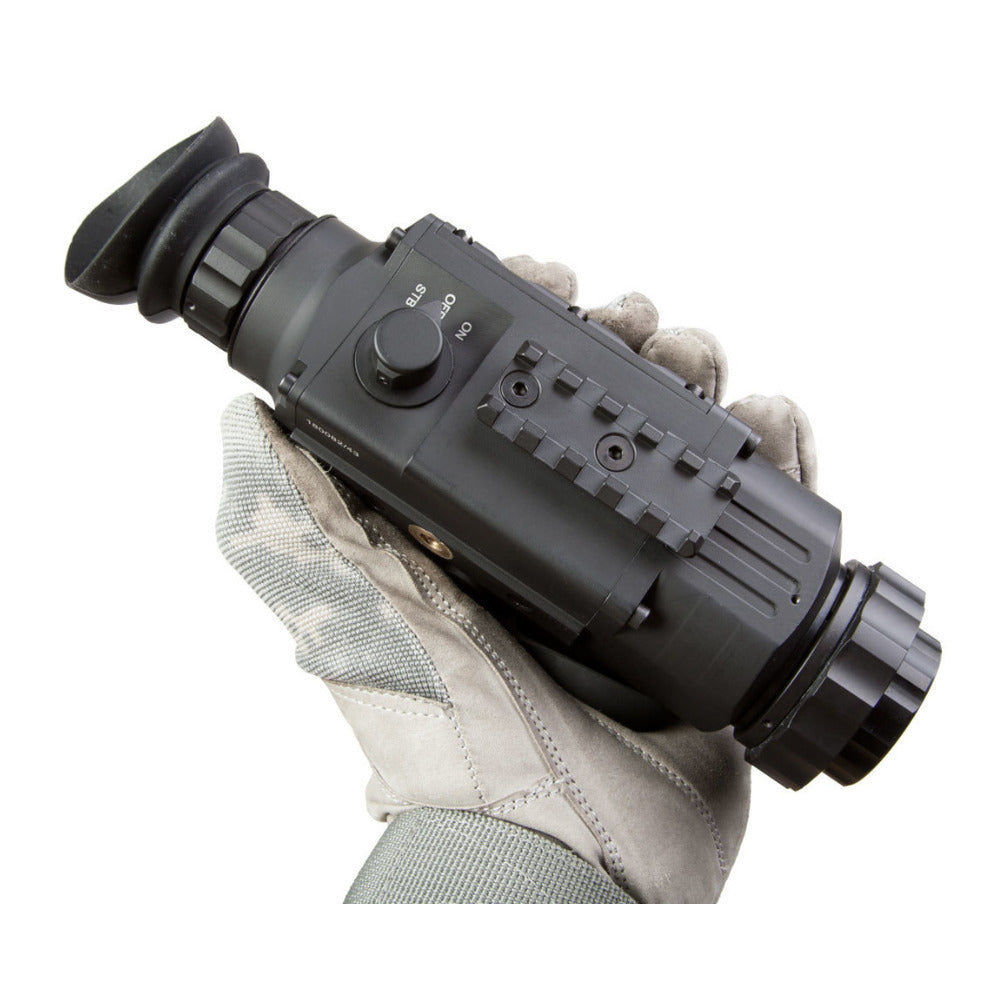

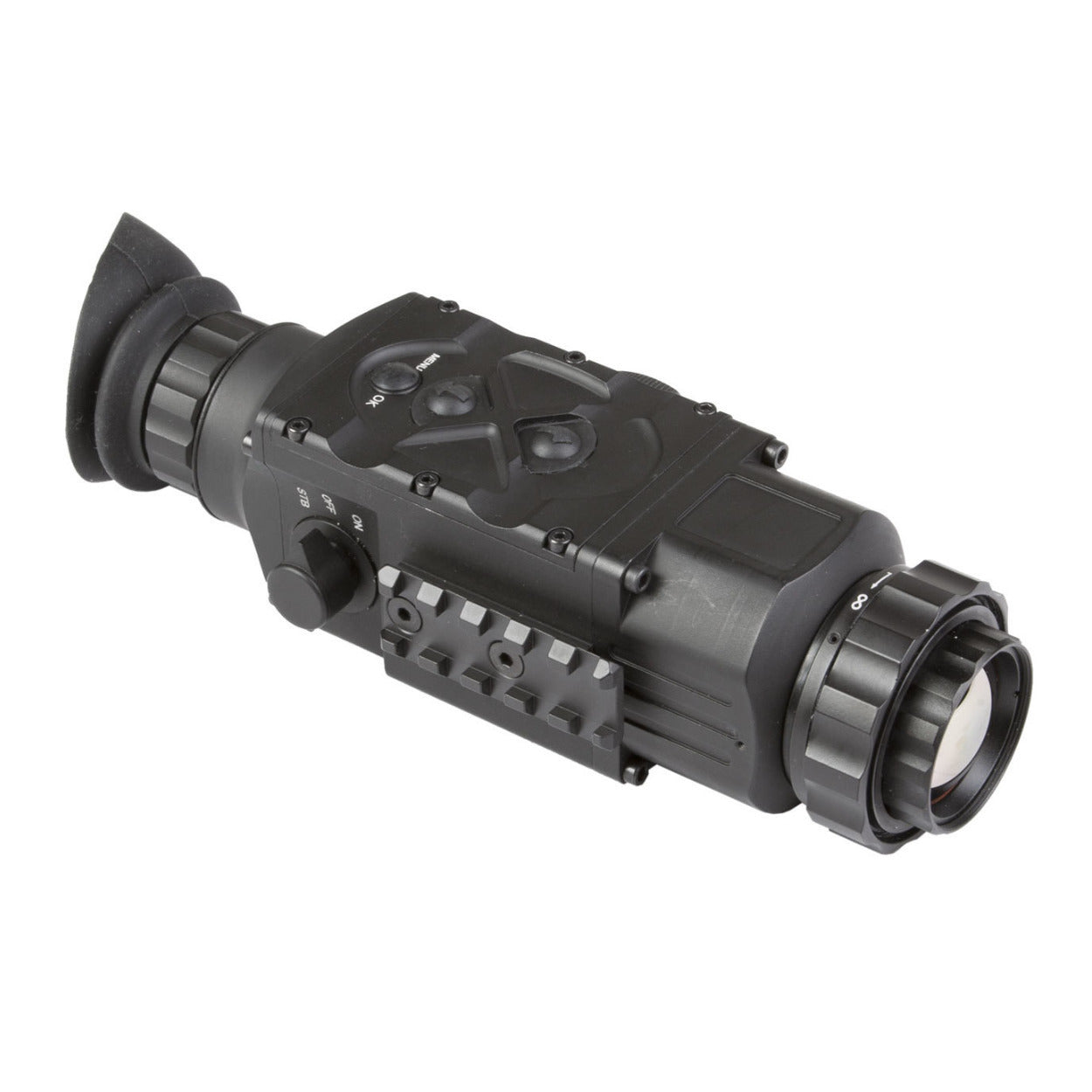

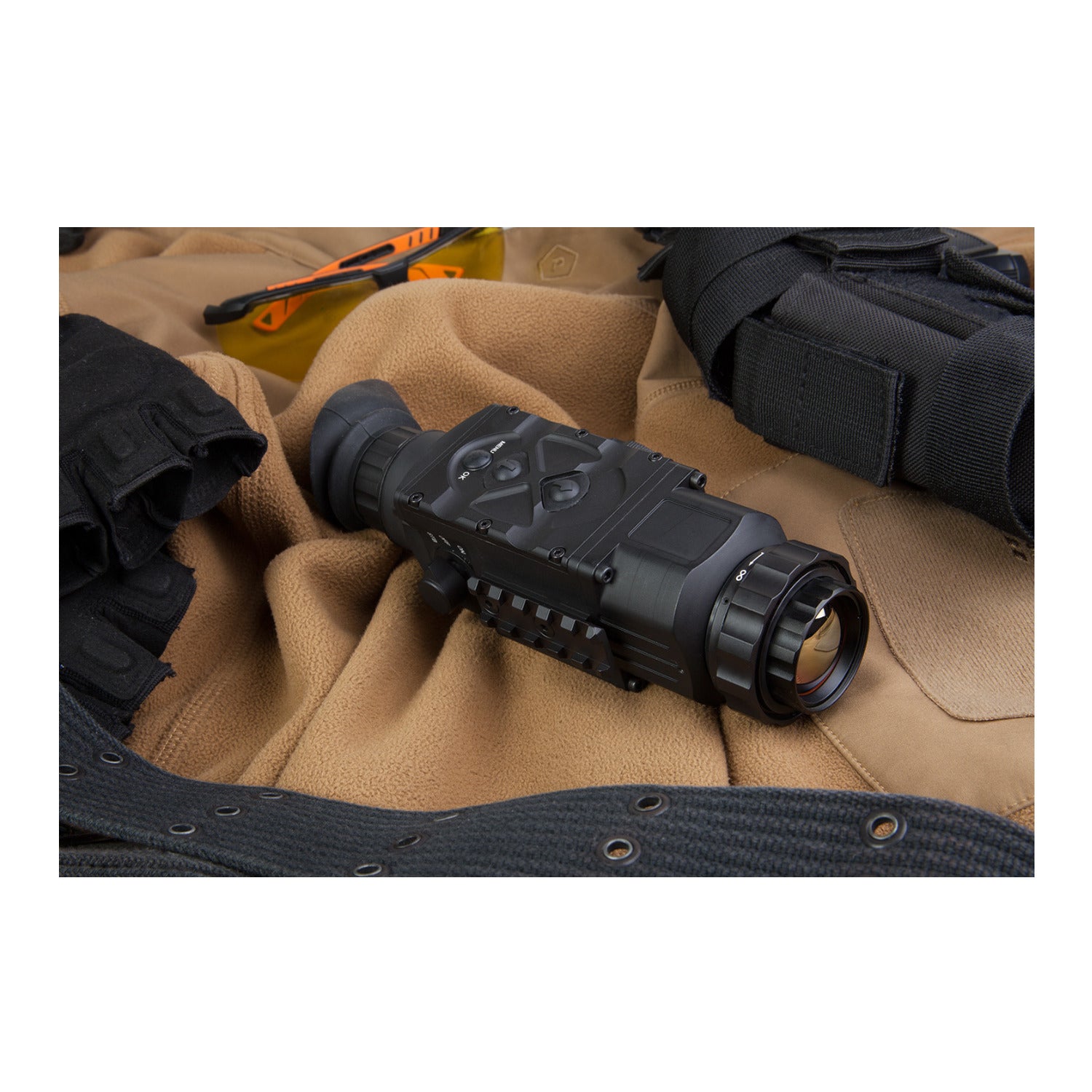

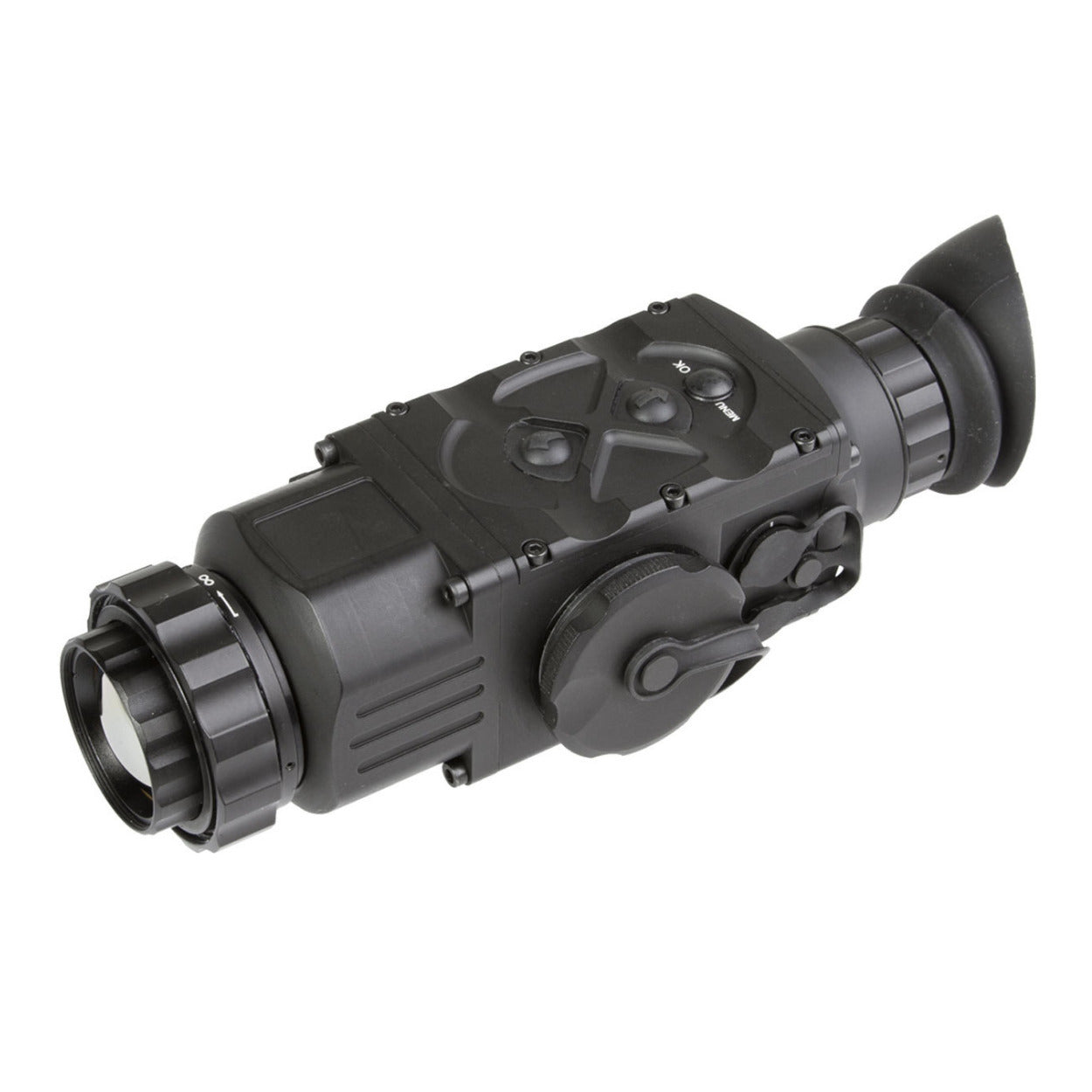

AGM Asp TM25-640 Short/Medium Range Thermal Imaging Monocular
The AGM ASP represents the line of the most technologically advanced thermal imaging monoculars currently existing on the market. Based on FLIR Tau 2 VOx microbolometer cores and made of high-grade aircraft aluminum alloy the unit guarantees durability and outstanding performance even to the most sophisticated users. This uncooled, long-wave infrared, magnified thermal imaging camera by AGM is designed for fulfilling of both day and night missions irrespective of the environment and weather factors, while a wide variety of objective lenses (25 mm, 50 mm, and 75 mm) enables the operator to use the device as both a compact, pocket-sized thermal imaging monocular, or as a long-range observation tool. The ASP thermal imaging monocular can be easily connected to extended battery pack to increase operational time. Optional Wi-Fi module for live video streaming and recording is also available.
AGM Asp TM25-640 Short/Medium Range Thermal Imaging Monocular
| Detector type | FLIR Tau 2 640x512 30 Hz 17μm Uncooled Microbolometer |
| Resolution | 640x512 |
| Start up | 3 seconds |
| Lens system | 25 mm; F/1.0 |
| Magnification | 1x |
| Field of view (H x V) | 24 degree x 20 degree |
| Digital zoom | 1x, 2x, 4x, and 8x |
| Diopter adjustment range | -5 to +5 dpt |
| Focusing range | 2.5 m to infinity |
| Display | 800x600 |
| Video output | PAL (768x574 pixels) / NTSC (640x480 pixels) |
| Temperature imaging palettes | White Hot, Black Hot, Fusion, Rainbow, Globow, Ironbow1, Ironbow2, Sepia, Color1, Color2, Ice-Fire, Rain, and OEM |
| Interfacing | Micro-USB (Power bank 5V); Universal S620 connector (Power In, Analog Video In/Out, Wi-Fi Attachment, HD Recorder, Extended Battery Pack) |
| Battery type | Two CR123A 3V Lithium Batteries or CR123 Type Rechargeable Batteries with Voltage from 3.0V to 3.7V (2) |
| Battery life (Operating) | Up to 4 hr |
| Operating temperature range | -40 degree C to +50 degree C (-40 degree F to +122 degree F) |
| Weight | 0.58 kg (1.2 lb) |
| Overall dimensions | 196 x 72 x 56mm (7.7 x 2.8 x 2.2 inches) |
