- Alpen Optics Crestone XP 7x24 OLED Laser Rangefinder
- Protective Case
- Lanyard
- CR2 Battery

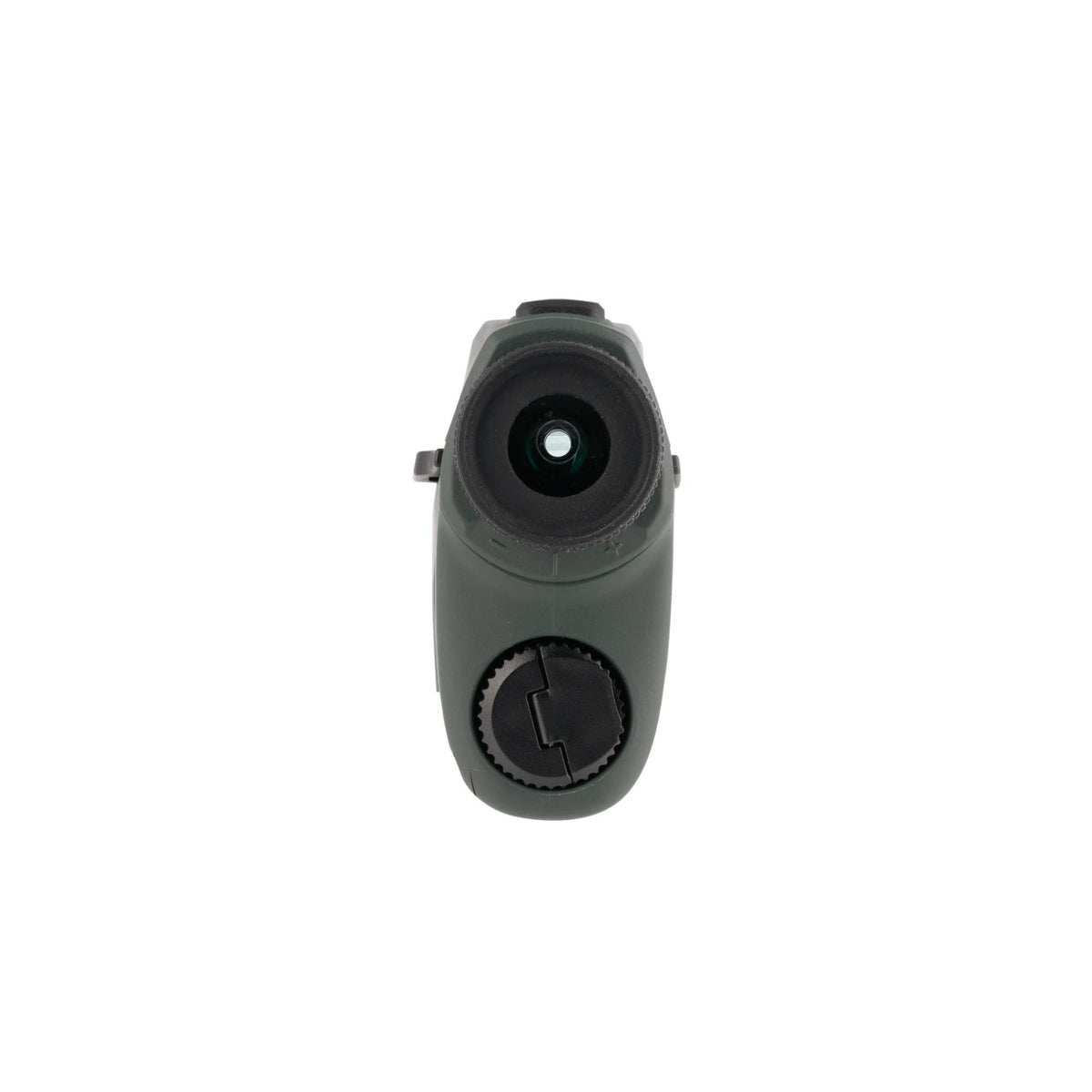

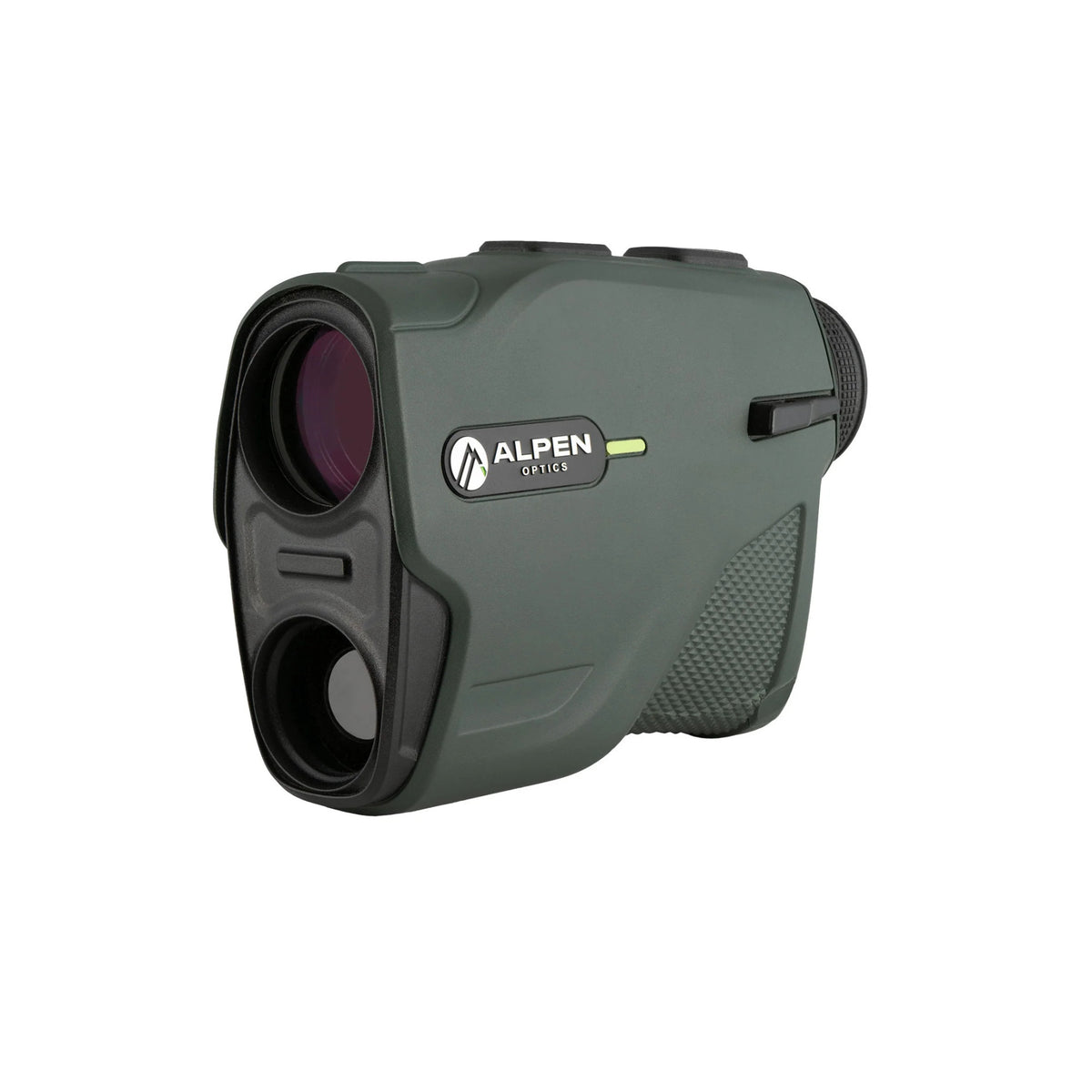

Alpen Optics Crestone XP 7x24 OLED Handheld Laser Rangefinder
- 7x magnification provides a closer view of distant targets
- 24 mm objective lens supports a compact handheld optical design
- Red OLED display offers 6 selectable brightness levels
- LOS and HCD modes provide direct and angle-compensated measurements
- Reflective target ranging reaches up to 2000 yards
- Measurements can be displayed in yards or meters
- IPX4 water resistance supports outdoor use
- Automatic shutoff activates after 10 seconds
The Alpen Optics Crestone XP 7x24 OLED Laser Rangefinder combines magnified viewing and precise distance measurement in a compact handheld design. Its 7x magnification and 24 mm objective lens help users identify distant targets, while the red OLED readout presents measurement data clearly in changing outdoor light.
Flexible Distance Measurement
Choose between LOS and HCD scan modes to match the ranging task. The rangefinder measures reflective targets up to 2000 yards, building targets up to 1400 yards, tree targets up to 1000 yards, and deer targets up to 700 yards. Measurements can be displayed in yards or meters, and response time is under 1.5 seconds.
Adjustable OLED Viewing
The OLED display uses a red readout with 6 brightness levels, allowing the reticle intensity to be adjusted for brighter or darker surroundings. The optical system provides 7x magnification, a 24 mm objective lens, multi-coated optics, 14 mm eye relief, and a 3.4 mm exit pupil.
Made for Outdoor Carry
An IPX4 water resistance rating helps protect the rangefinder during outdoor use. The contoured dual barrel body is shaped for a secure handheld grip, while a 10-second automatic shutoff helps conserve the included CR2 battery. A case and lanyard are also supplied for storage and transport.
General
Optical Specifications:
| Magnification | 7x |
| Objective Lens | 24 mm |
| Transmission Diameter | 18 mm |
| Field of View | 6.6 degrees |
| Eye Relief | 14 mm |
| Exit Pupil | 3.4 mm |
| Diopter Focus | Minus 3.0 to Plus 3.0 |
| Lens Coating | Multi-coated |
Ranging Specifications:
| Minimum Distance Range | 5 meters or 6 yards |
| Reflective Target Range | Up to 1828 meters or 2000 yards |
| Building Target Range | Up to 1280 meters or 1400 yards |
| Tree Target Range | Up to 914 meters or 1000 yards |
| Deer Target Range | Up to 640 meters or 700 yards |
| Response Time | Less than 1.5 seconds |
| Accuracy Below 100 Yards | Plus or minus 1 yard |
| Accuracy From 100 to 1000 Yards | Plus or minus 2 yards |
| Accuracy Above 1000 Yards | Plus or minus 3 yards |
| Scan Modes | LOS and HCD |
| Units of Measure | Yards and Meters |
Inclinometer:
| Maximum Angle | Plus or minus 60 degrees |
| Accuracy Within Plus or Minus 30 Degrees | Plus or minus 1 degree |
| Accuracy From 30 to 60 Degrees | Plus or minus 2 degrees |
Display and Power:
| Display Type | Red OLED |
| Reticle Brightness Levels | 6 |
| Automatic Shutoff | 10 seconds |
| Battery Type | 1 CR2 Battery |
Environmental Specifications:
| Water Resistance | IPX4 |
| Operating Temperature Range | 14 to 122 degrees Fahrenheit |
| Storage Temperature Range | Minus 4 to 149 degrees Fahrenheit |
| Laser Type | Class 3R |
