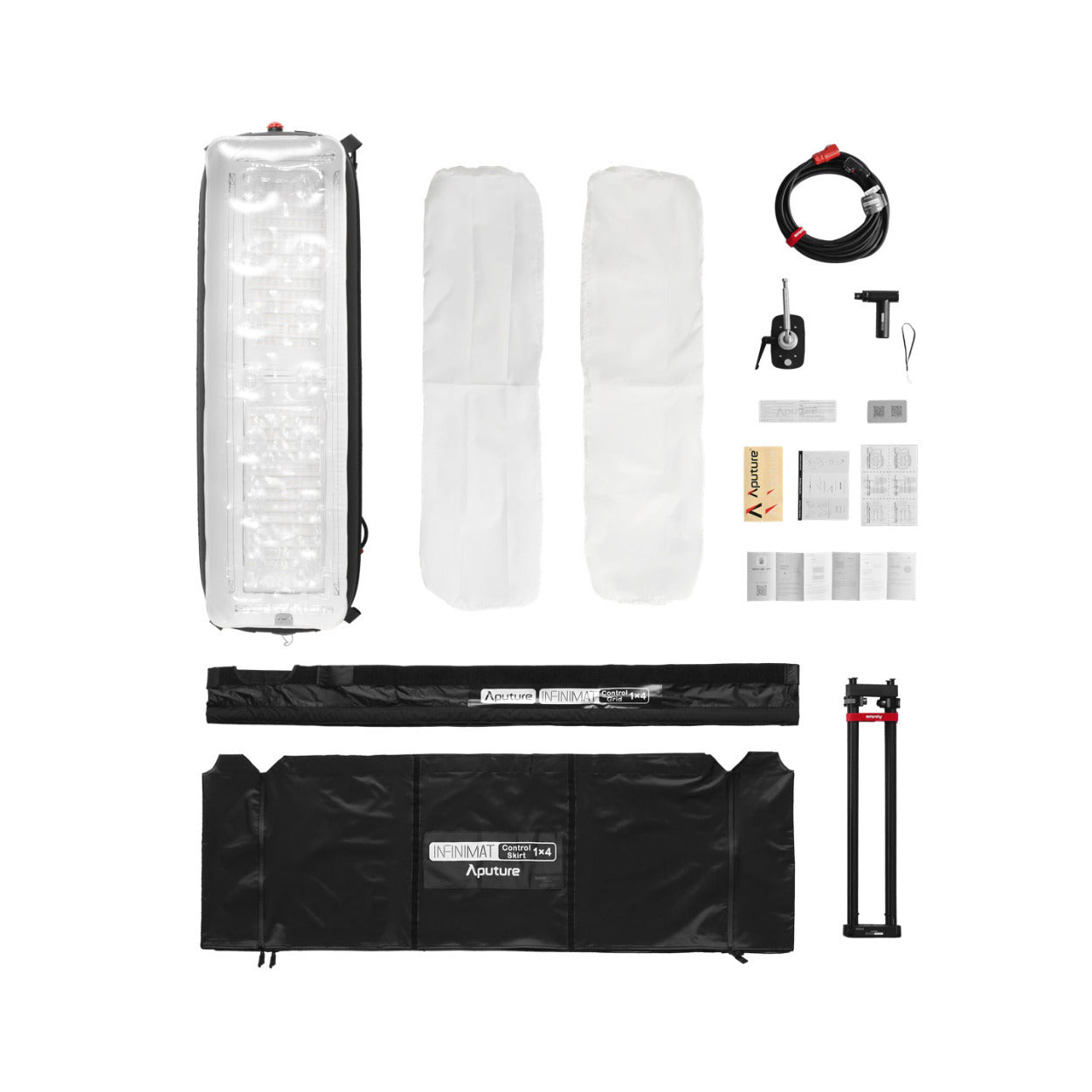

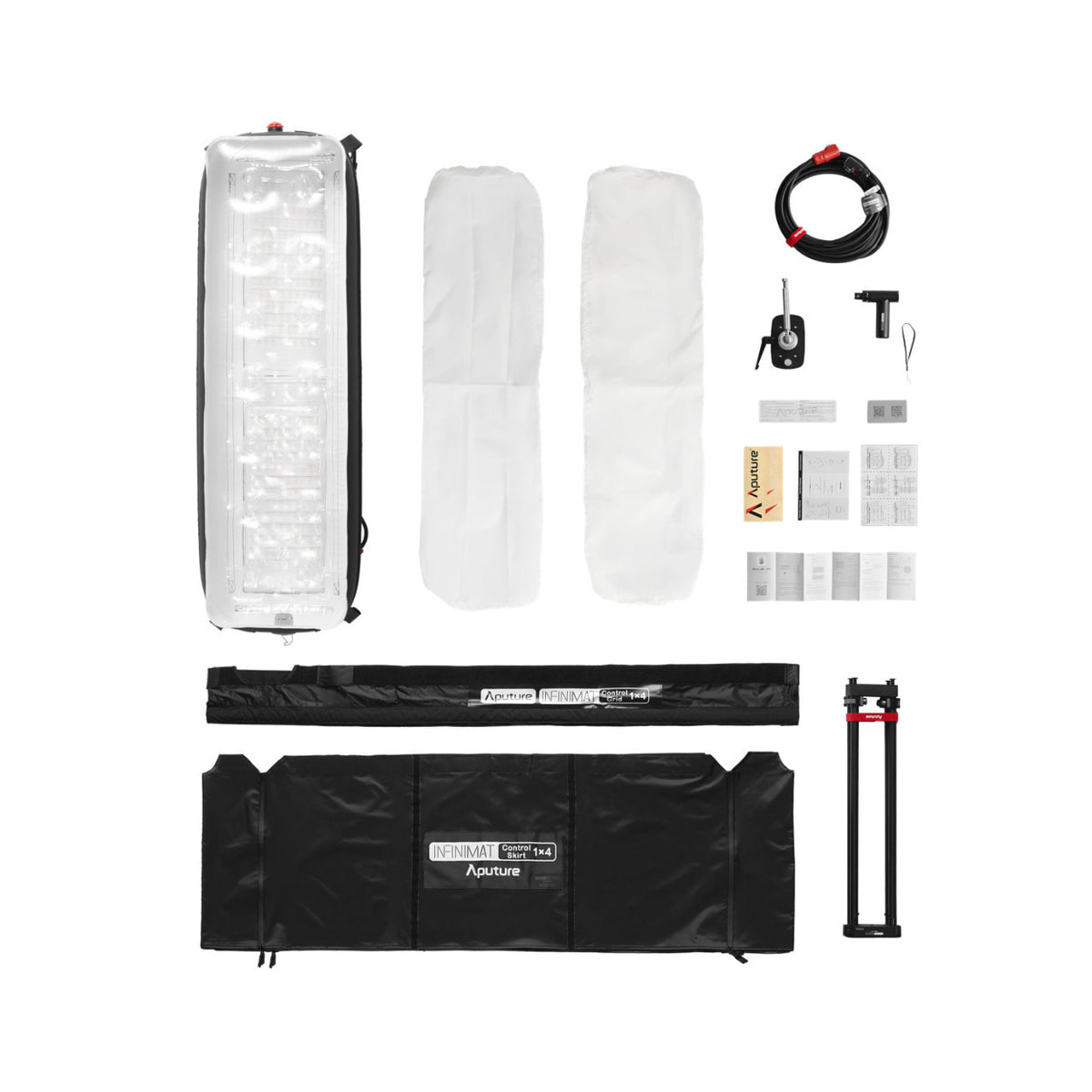

- INFINIMAT 1x4 Lamp Head

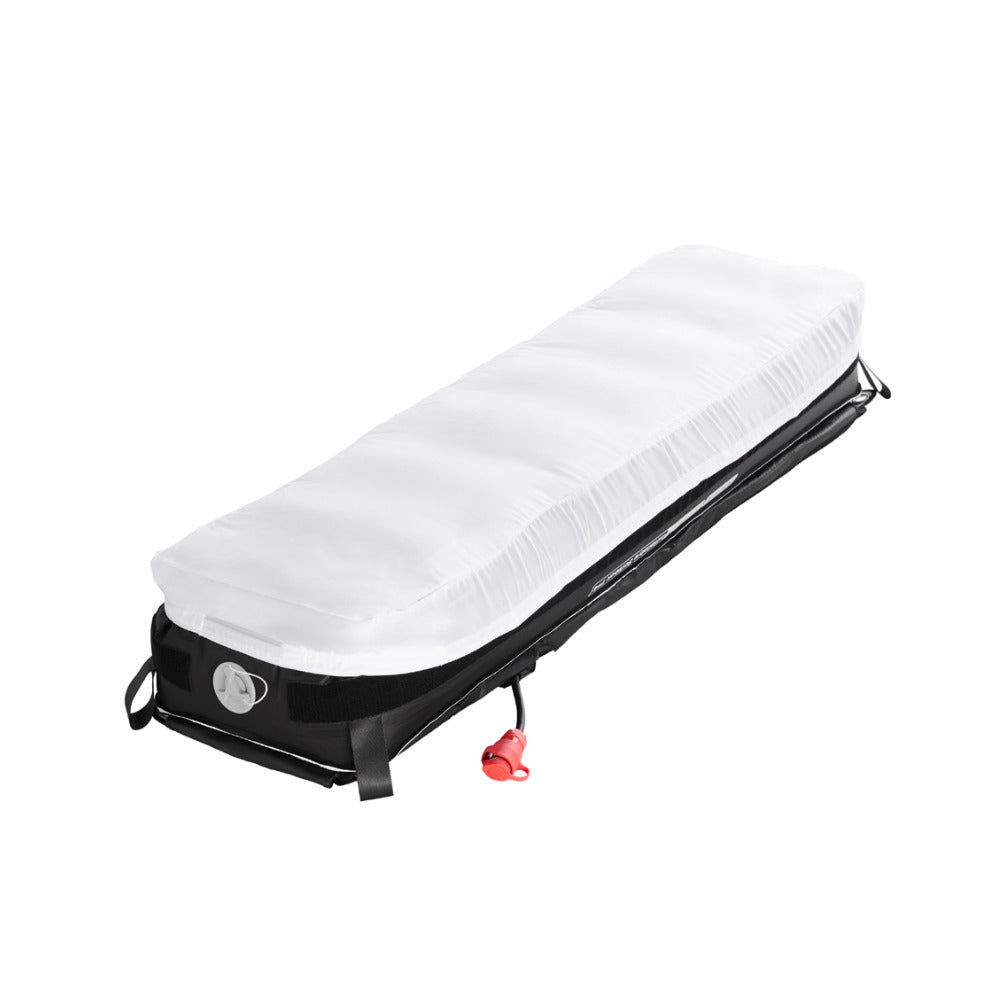

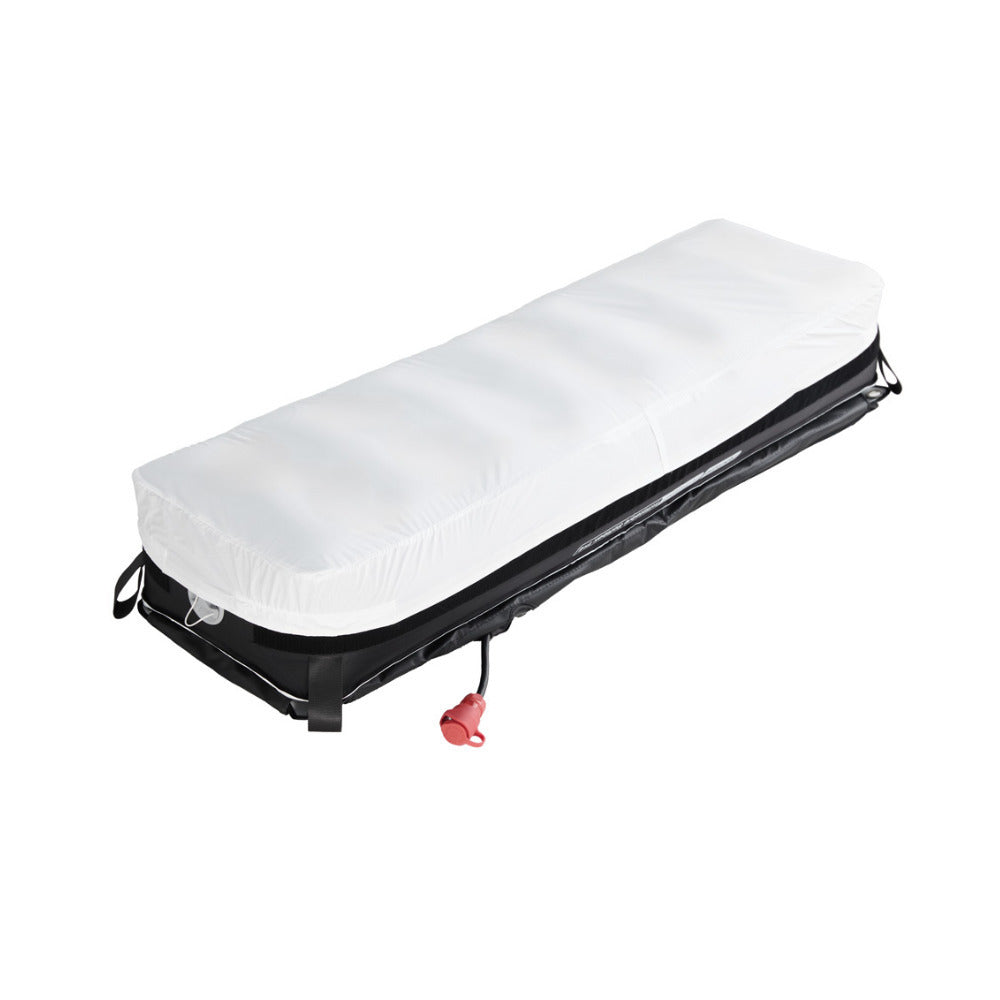

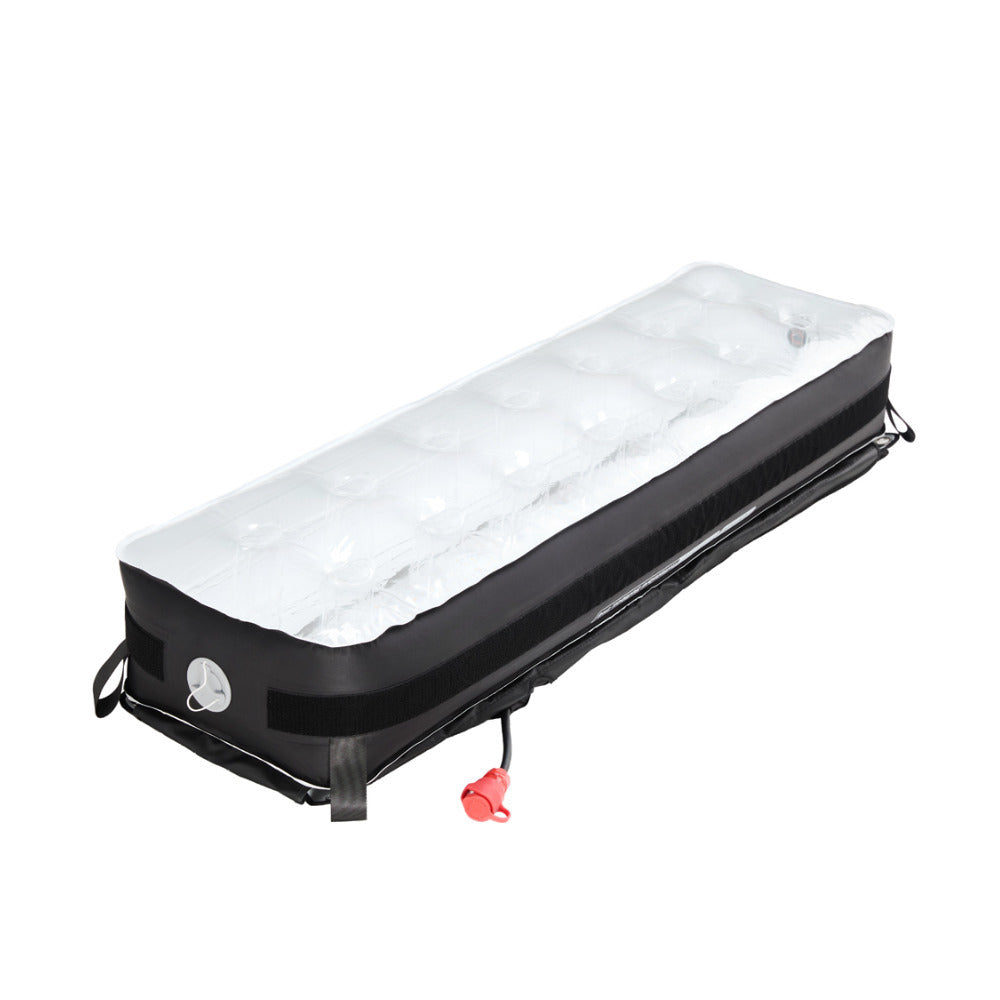

- INFINIMAT1x4 Clear Softbox

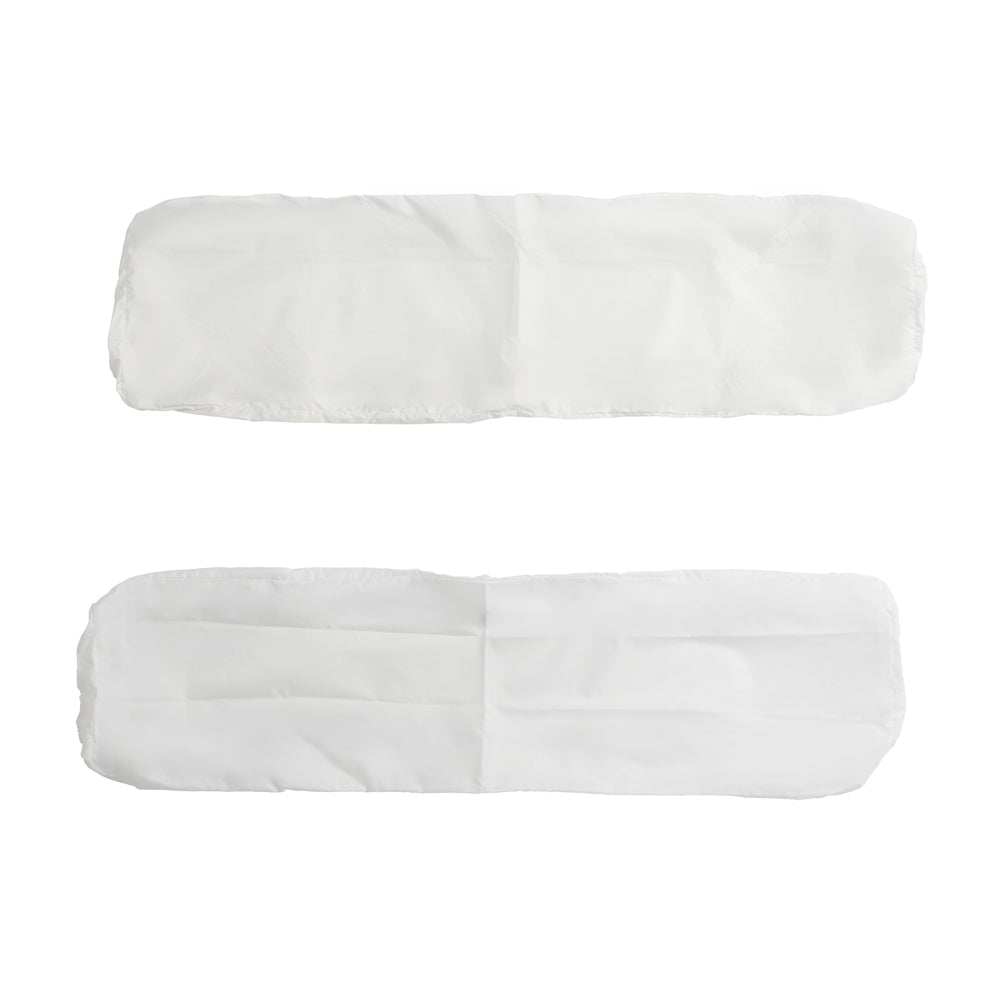

- INFINIMAT 1x4 1-Stop Diffusion Cloth
- INFINIMAT 1x4 2-Stop Diffusion Cloth
- INFINIMAT 1x4 Light Control Grid
- INFINIMAT 1x4 Light Control Skirt
- INFINIMAT Air Pump Mini
- INFINIMAT 7.5m Head Cable (400W)
- INFINIMAT 1x4 Mounting Bracket
- K-Mount Arm w/ Straight 5/8” Pin
- INFINIMAT Patch Kit

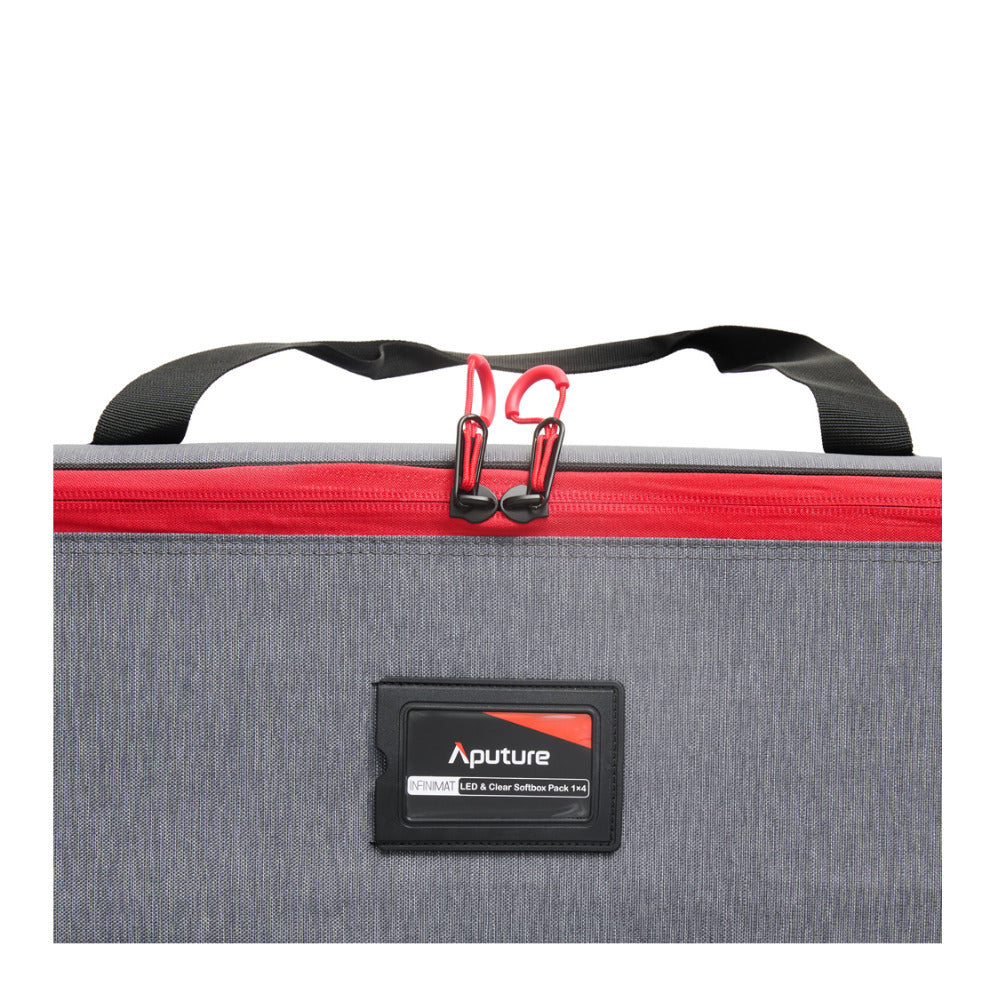

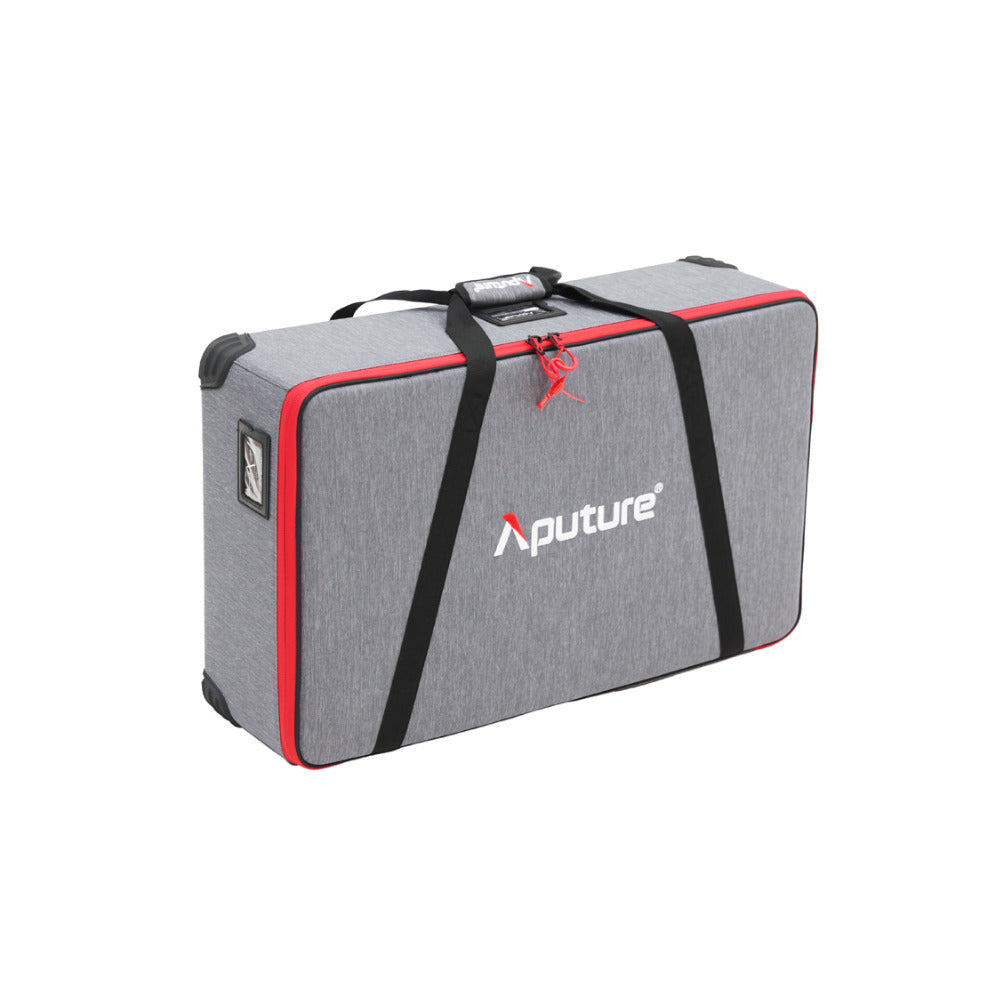

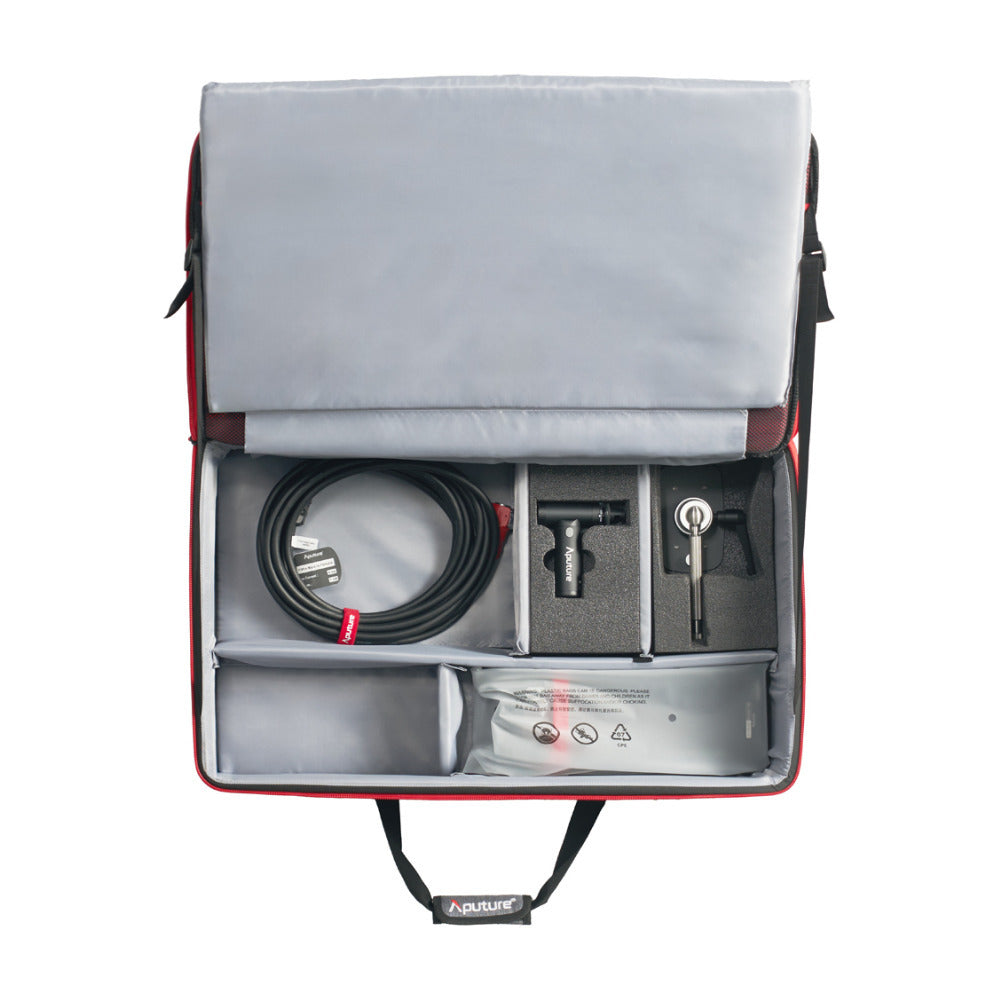

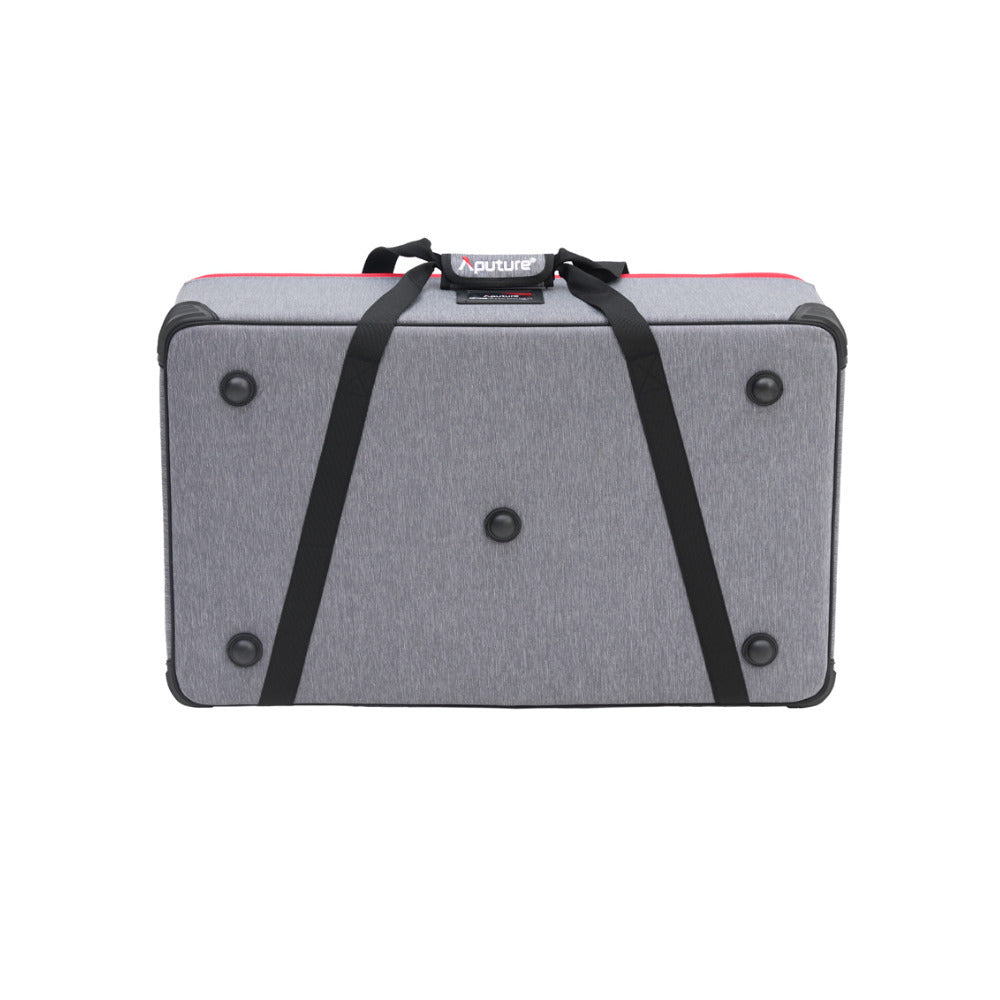

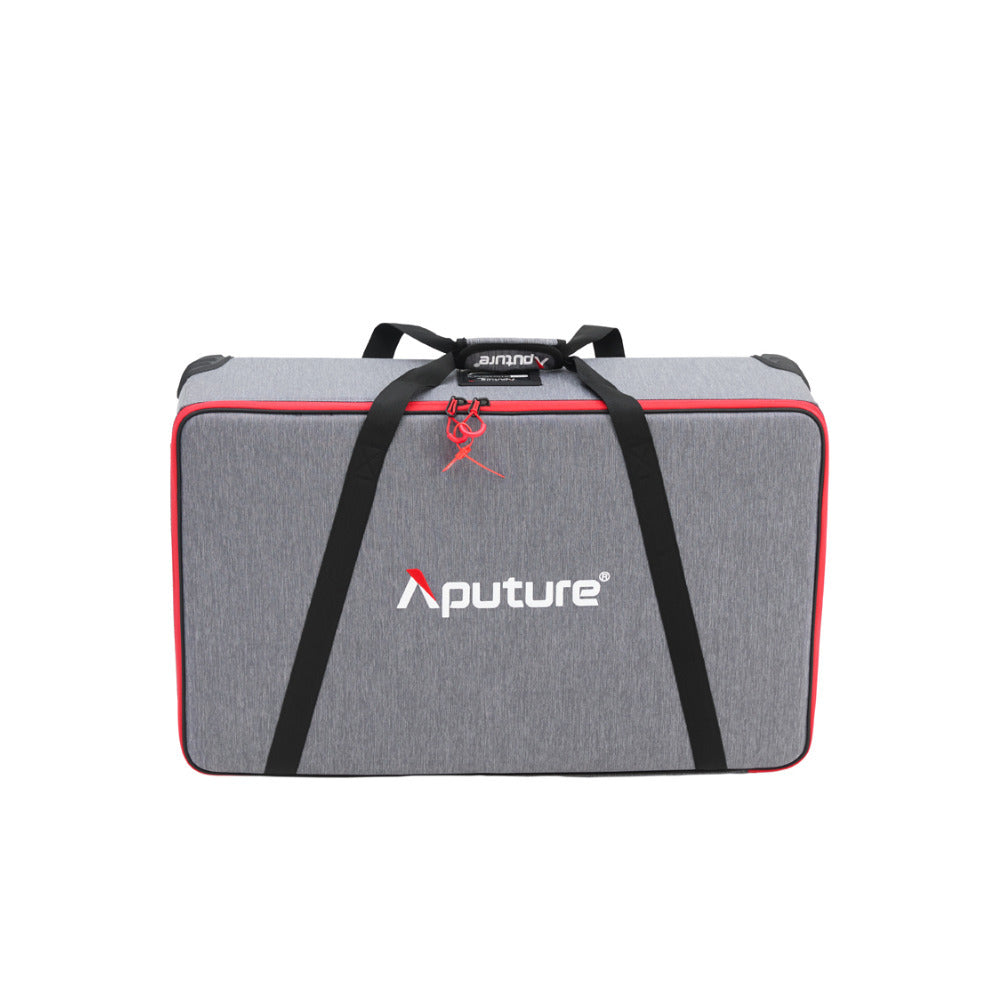

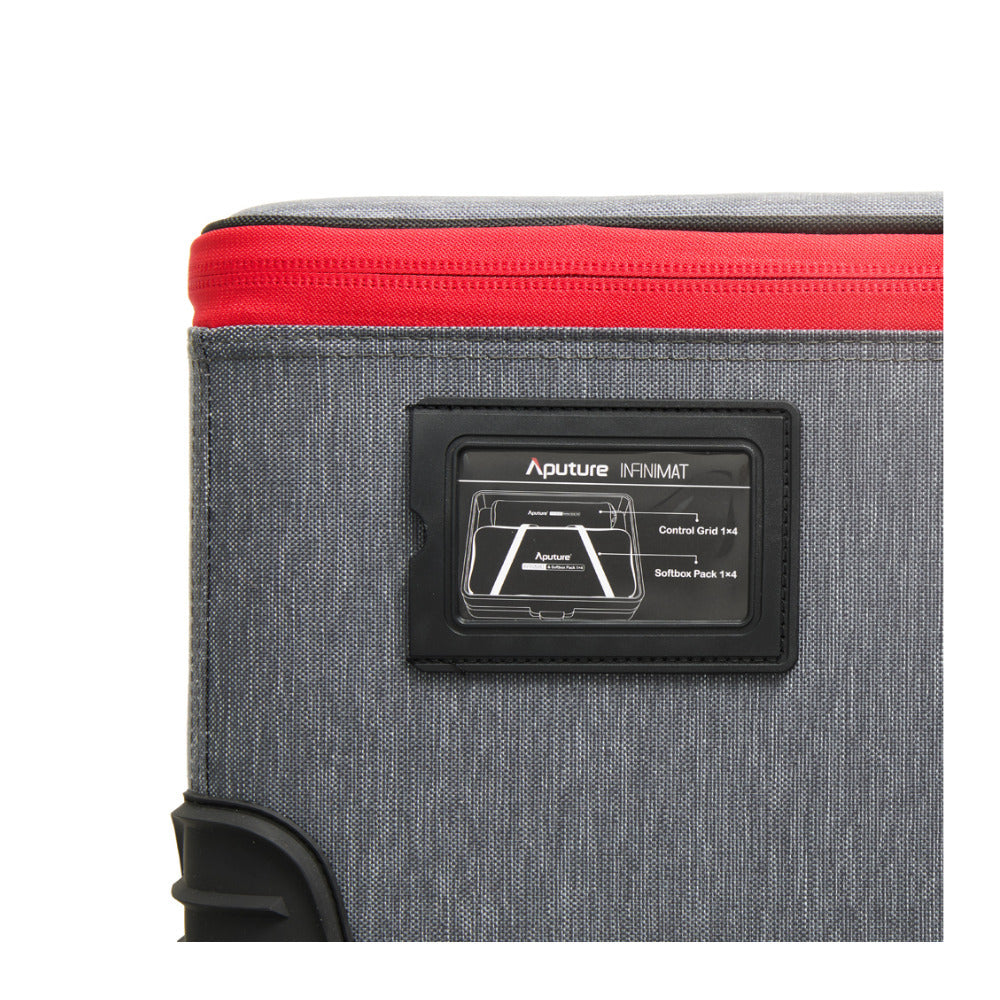

- Soft Carrying Case
Trusted & Verified
Aputure INFINIMAT LED & Clear Softbox Pack 1x4
- Modular full-color RGBWW LED mats with inflatable structural airbags and hook and loop diffusion cloths
- 1x4 Foot Version
- Multiple mounting/rigging methods (carbon fiber bracket with K-Mount ball head)
- Power and control multiple INFINIMATS using a single control box
- IP65 dust & water-resistant rating for lamp head and control box

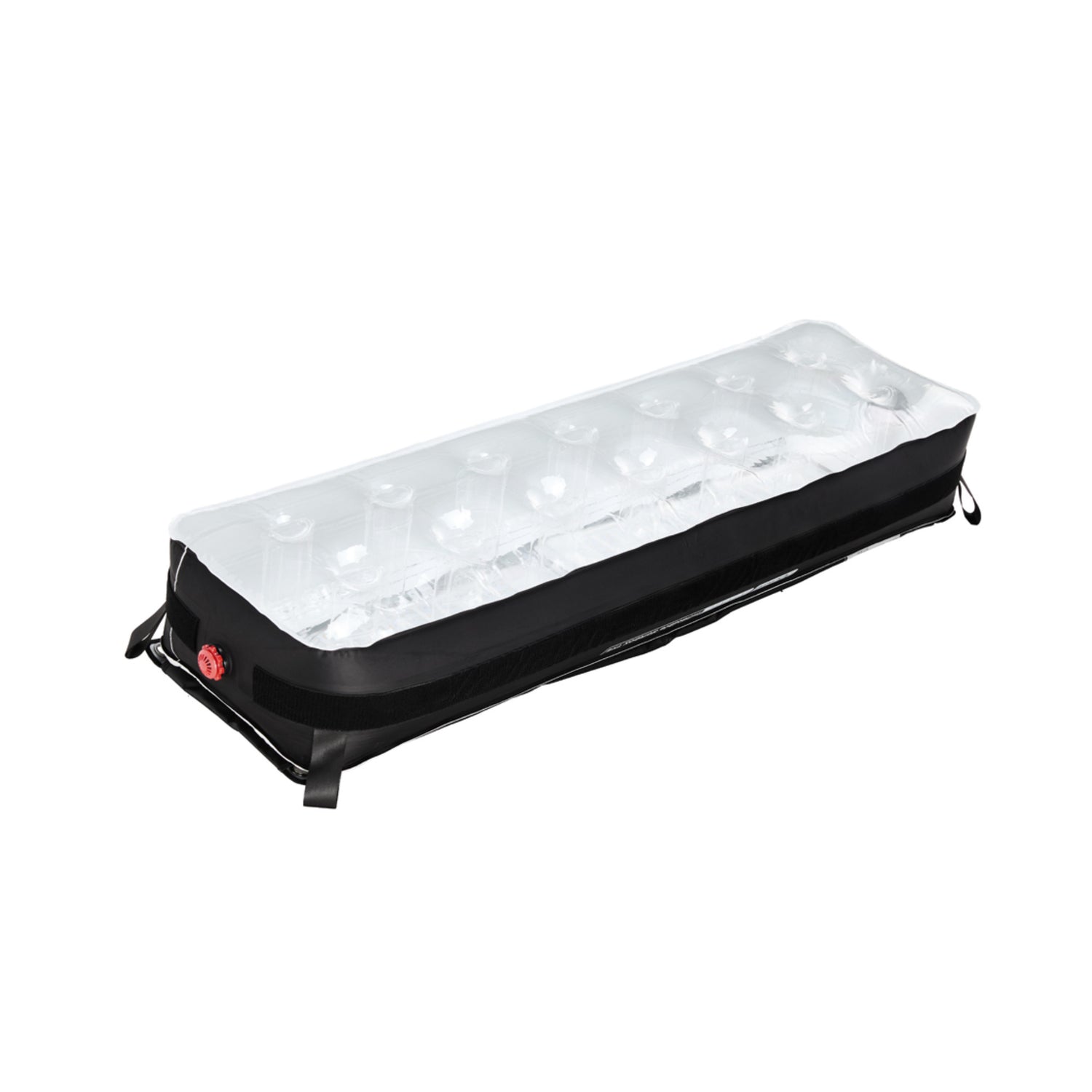

- Inflatable airbag provides Structural Support for lamp head, diffusion, light control grid, and light control skirt
- Automatic pressure release valves on inflatable airbags to prevent overfilling of air
- Included airbag repair patches to ensure the continued operation of airbag even when punctured
- Included light control grid and light control skirt

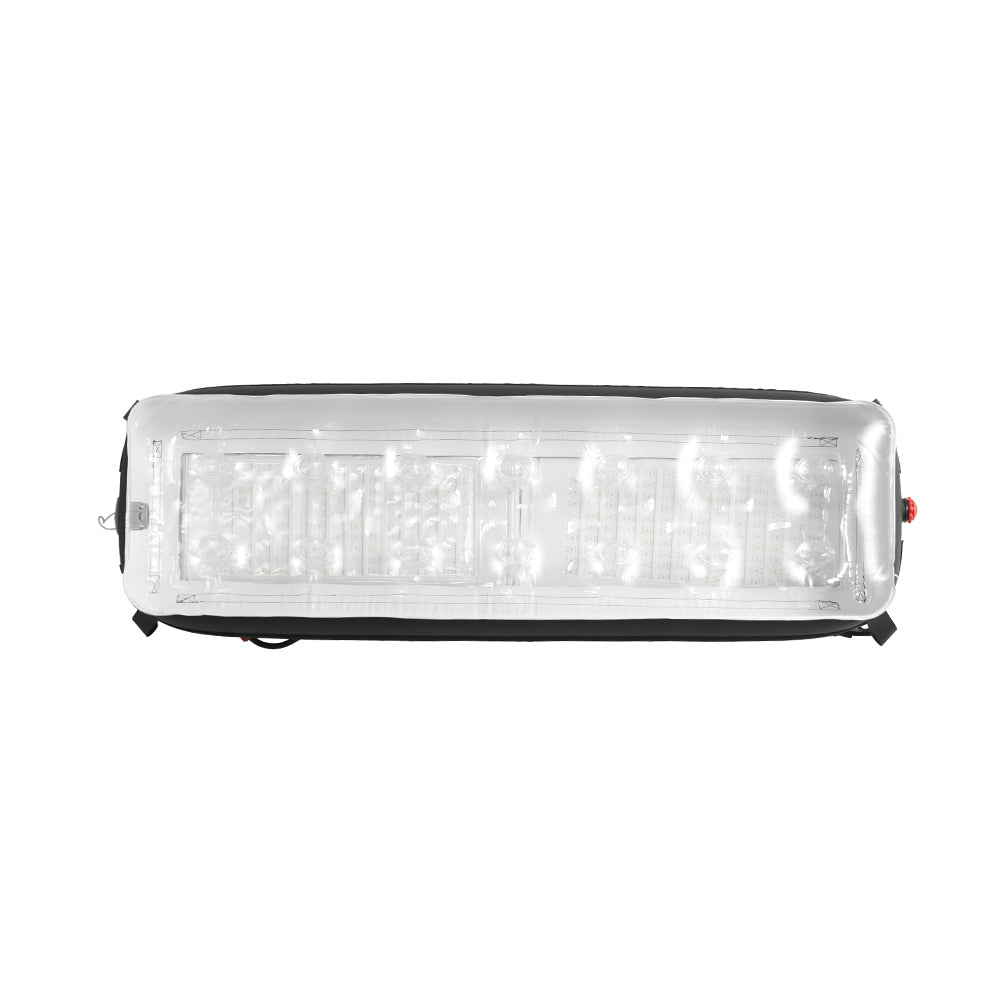

The Aputure INFINIMAT LED & Clear Softbox Pack 1x4 includes one INFINIMAT RGBWW LED 1x4 lamp head and one matching clear inflatable softbox pack complete with diffusion cloths and a light control grid. The clear inflatable softbox provides structural rigidity for the lamp head and can be used clear for maximum output or with the included diffusion cloth for a softer source. This pack is designed for use with existing INFINIMAT control boxes and allows users to expand their lighting setups by adding additional lamp heads.
Control boxes can power multiple lamp heads at once:
- 400W Control Box: 3 × low-output ports for sizes 2×4 and smaller.
- 1600W Control Box: 2 × high-output ports for sizes 4×4 and larger, plus 3 × low-output ports for sizes 2×4 and smaller.
Each lamp head connects to the control box using the appropriate high- or low-output INFINIMAT head cable.
Aputure INFINIMAT 1x4 RGBWW LED Mat & Clear Inflatable Softbox Kit
Key Features
| Professional 1x4 RGBWW LED lighting kit designed for film, broadcast, and studio use | |
| Ultra-thin flexible LED mat with 2-pixel control and high color accuracy across 2,000K–10,000K | |
| Inflatable clear softbox provides smooth, diffused light with fast 33-second inflation time | |
| Control via Sidus Link App, DMX/RDM, CRMX, or etherCON for full wireless or wired flexibility | |
| Weather-sealed IP65 construction for durability in demanding on-set environments | |
| Compatible with the Aputure INFINIMAT 400W Control Box for advanced lighting management | |
| Ideal for cinematic lighting setups requiring versatile, modular diffusion and output control |
Color Specifications
| CCT Range | 2,000K – 10,000K |
| CRI | ≥96 |
| TLCI | ≥97 |
| CQS | ≥95 |
| SSI (Tungsten) | 84 |
| SSI (D56) | 73 |
| TM-30 RF (Average) | 92 |
| TM-30 RG (Average) | 100 |
Hardware Features
| Pixel Count | 2 pixels |
| Pixel Module | 1x2 |
| Softbox Inflation Time (Air Pump Mini) | 33 seconds |
| Full-Inflation Duration | 7 days |
Power Specifications
| Maximum Power Consumption | 201W |
| Maximum Power Output | 162W |
| Operating Voltage | DC1 & DC2: 12V–16.8V / 22V–33.6V, AC: 100V–264V |
Weights
| INFINIMAT 1x4 | 2.40 kg / 5.29 lbs |
| INFINIMAT Air Pump Mini | 0.24 kg / 0.53 lbs |
| Control Box 400W | 7.2 kg / 15.87 lbs |
| Inflatable Clear Softbox 1x4 | 0.95 kg / 2.09 lbs |
| 1-Stop Diffusion Cloth | 87 g / 0.19 lbs |
| 2-Stop Diffusion Cloth | 97 g / 0.21 lbs |
| Light Control Skirt 1x4 | 0.78 kg / 1.72 lbs |
| Light Control Grid 1x4 | 0.71 kg / 1.56 lbs |
| Carrying Case (INFINIMAT LED & Softbox) | 4.00 kg / 8.82 lbs |
| Carrying Case (Control Box Pack) | 2.9 kg / 6.39 lbs |
Control and Firmware
| Control Methods | On-board, Sidus Link App, DMX/RDM, CRMX, etherCON |
| Firmware Upgradeable | Via Sidus Link or USB Drive |
| Wireless Range (Bluetooth & CRMX) | ≤100m / ≤328.1 ft |
| Control Box Type | INFINIMAT Control Box 400W |
Dimensions
| INFINIMAT 1x4 | 4.07 × 1.12 ft |
| INFINIMAT Air Pump Mini | 1.42 × 4.49 × 4.96 in |
| Control Box 400W | 13.19 × 8.66 × 9.45 in |
| Inflatable Clear Softbox 1x4 | 4.07 × 1.12 × 0.56 ft |
| 1-Stop / 2-Stop Diffusion Cloth | 48.0 × 13.6 in |
| Light Control Skirt 1x4 | 118.00 × 19.69 in |
| Light Control Grid 1x4 | 4.00 × 1.14 ft |
| Carrying Case (LED & Softbox) | 30.11 × 18.50 × 10.23 in |
| Carrying Case (Control Box Pack) | 17.13 × 15.55 × 12.36 in |
Environmental Specifications
| Weather Resistance Rating | IP65 |
| Operating Temperature | -20°C ~ 50°C |
| Storage Temperature | -20°C ~ 85°C |
| Control Box Noise Levels | High Speed Mode: 29.3 dBA Medium Speed Mode: 24.7 dBA |
Country of Origin
| Country of Origin | China |
