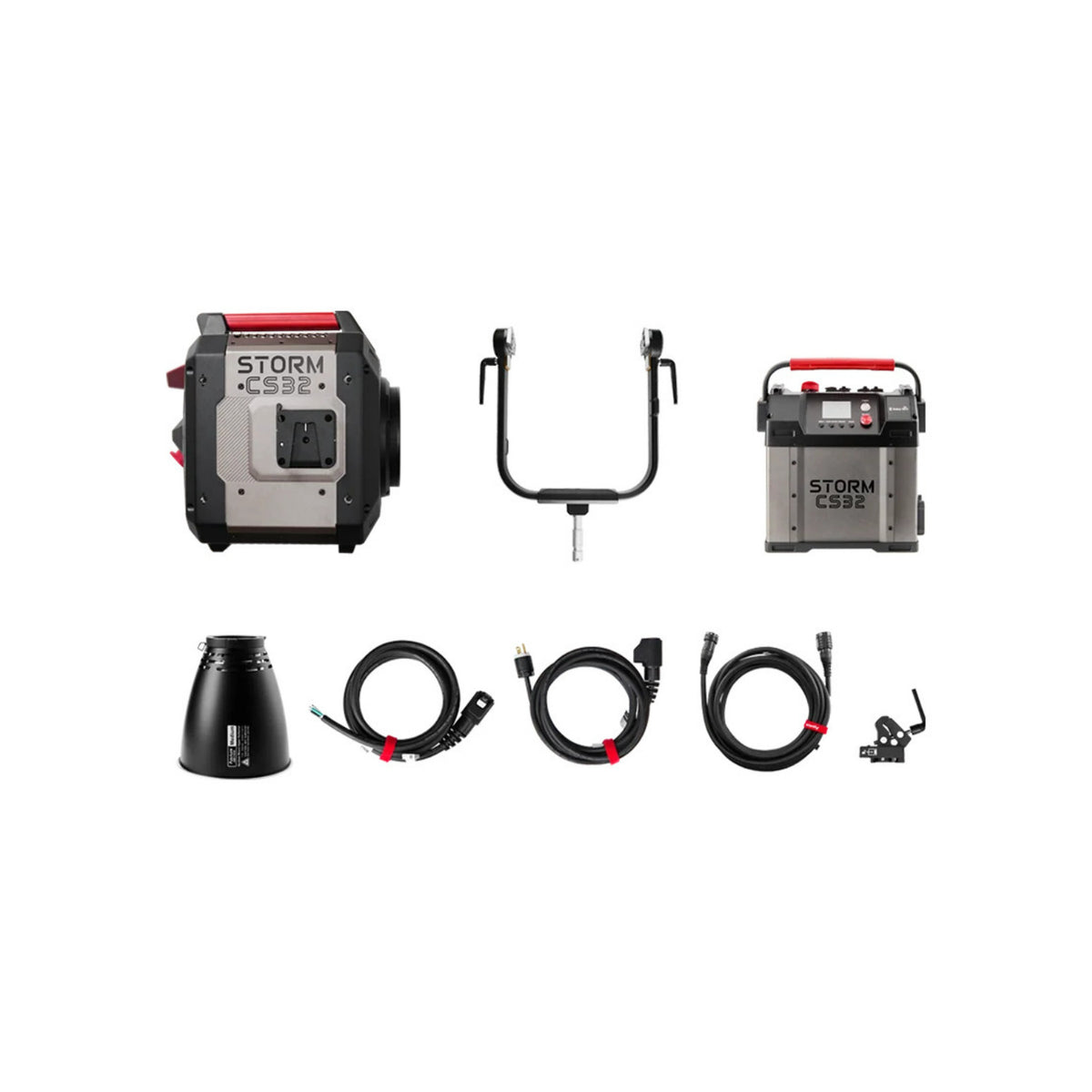

- STORM CS32 Lamp Head
- STORM CS32 Removable Yoke
- STORM Series Aputure Mount Protection Cover
- STORM CS32 Control Box
- AM11030 Medium Reflector
- PLG28 4 Pin to Bare Leads AC Power Cable, 3 m
- PLG28 4 Pin to NEMA 5 20P AC Power Cable, 6 m
- PLK28 10 Pin Male to Female Lamp Head Cable, 7.5 m
- Aputure Ultra Clamp

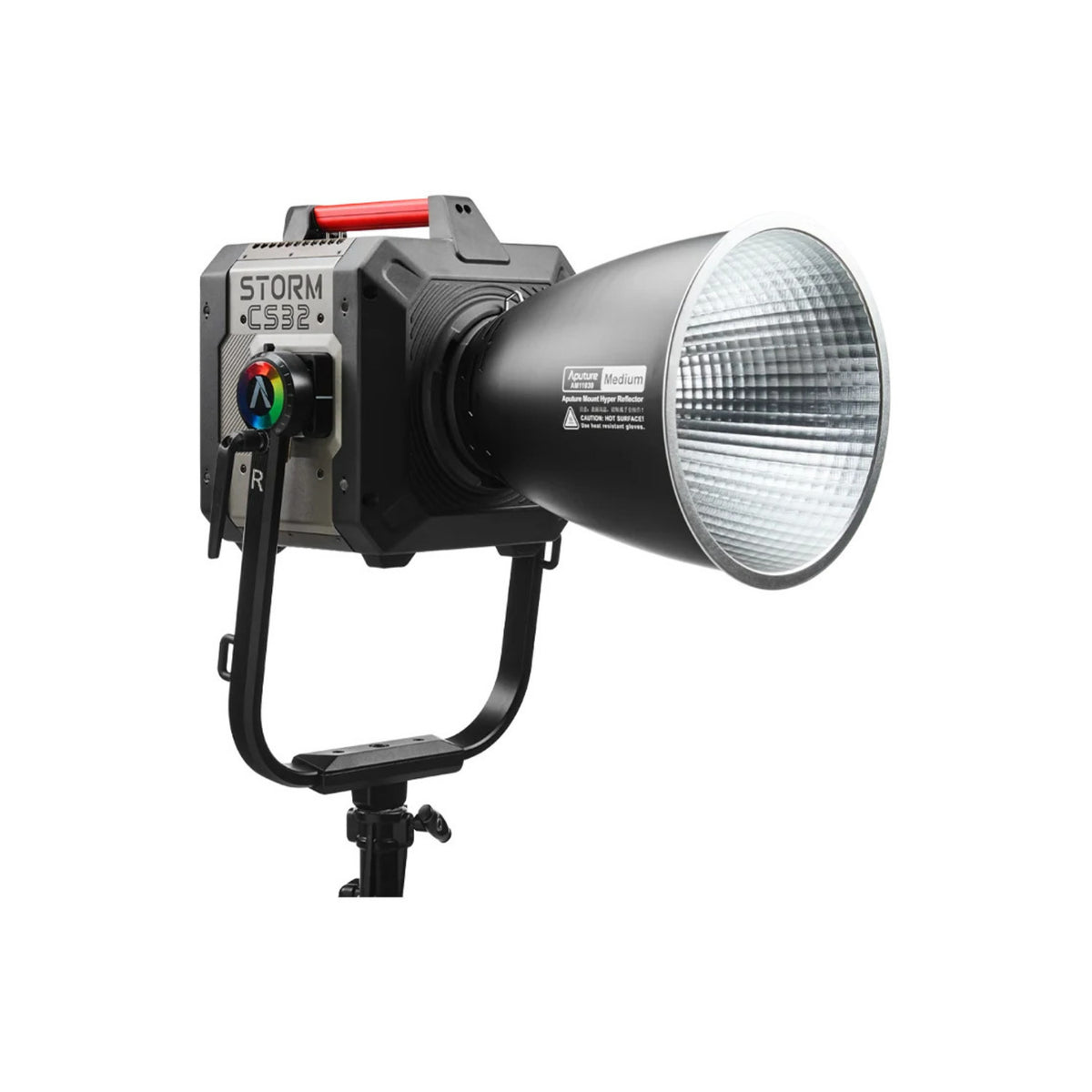

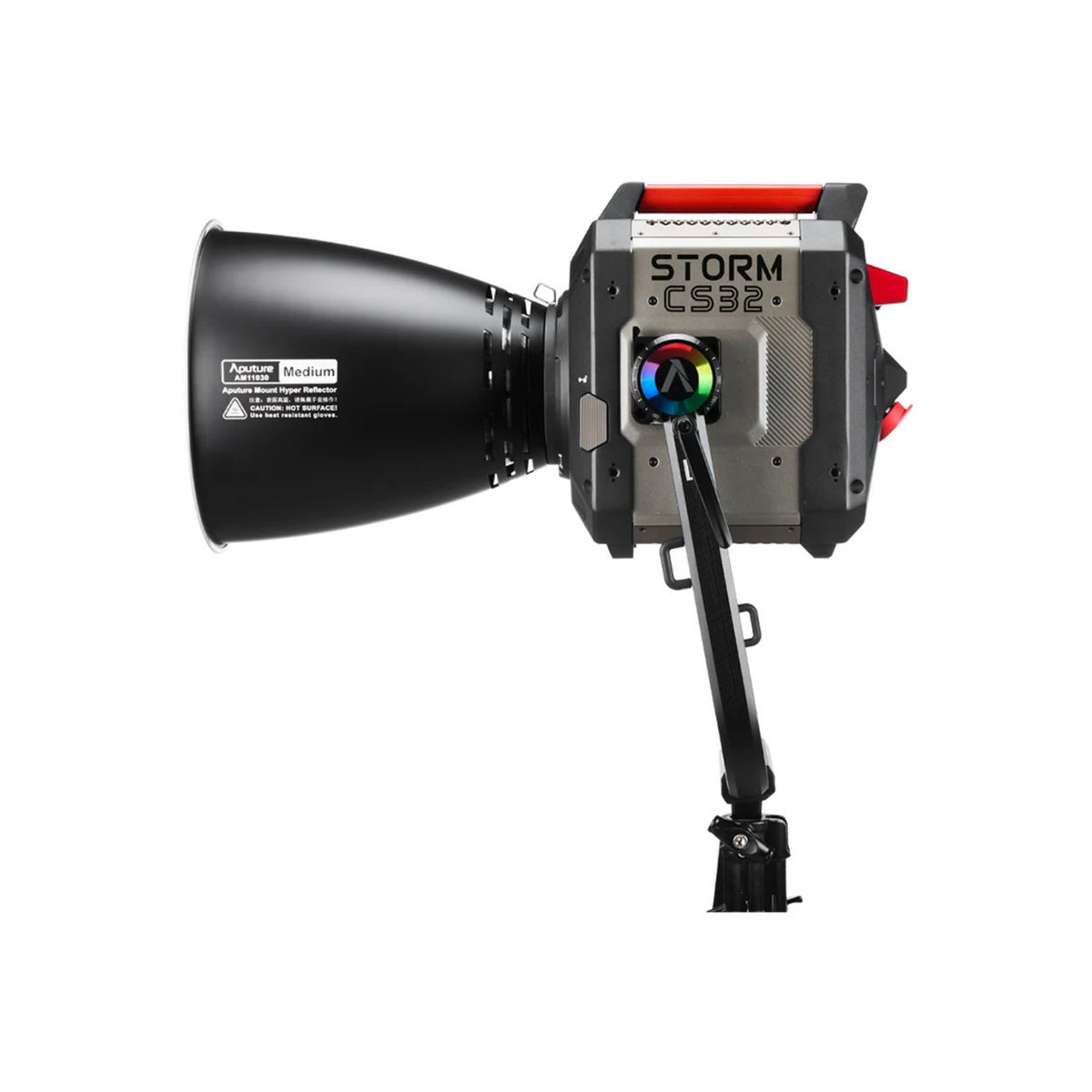

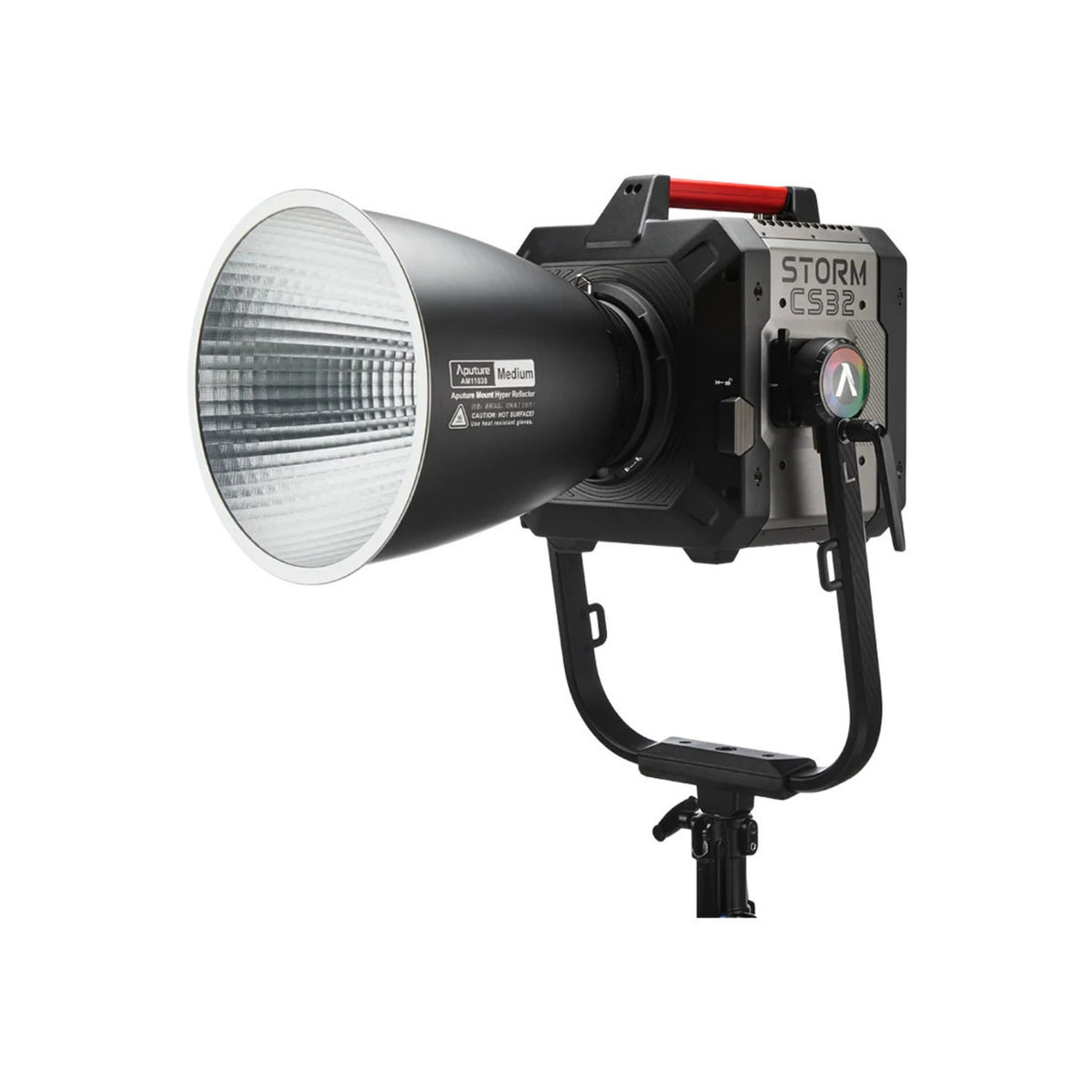

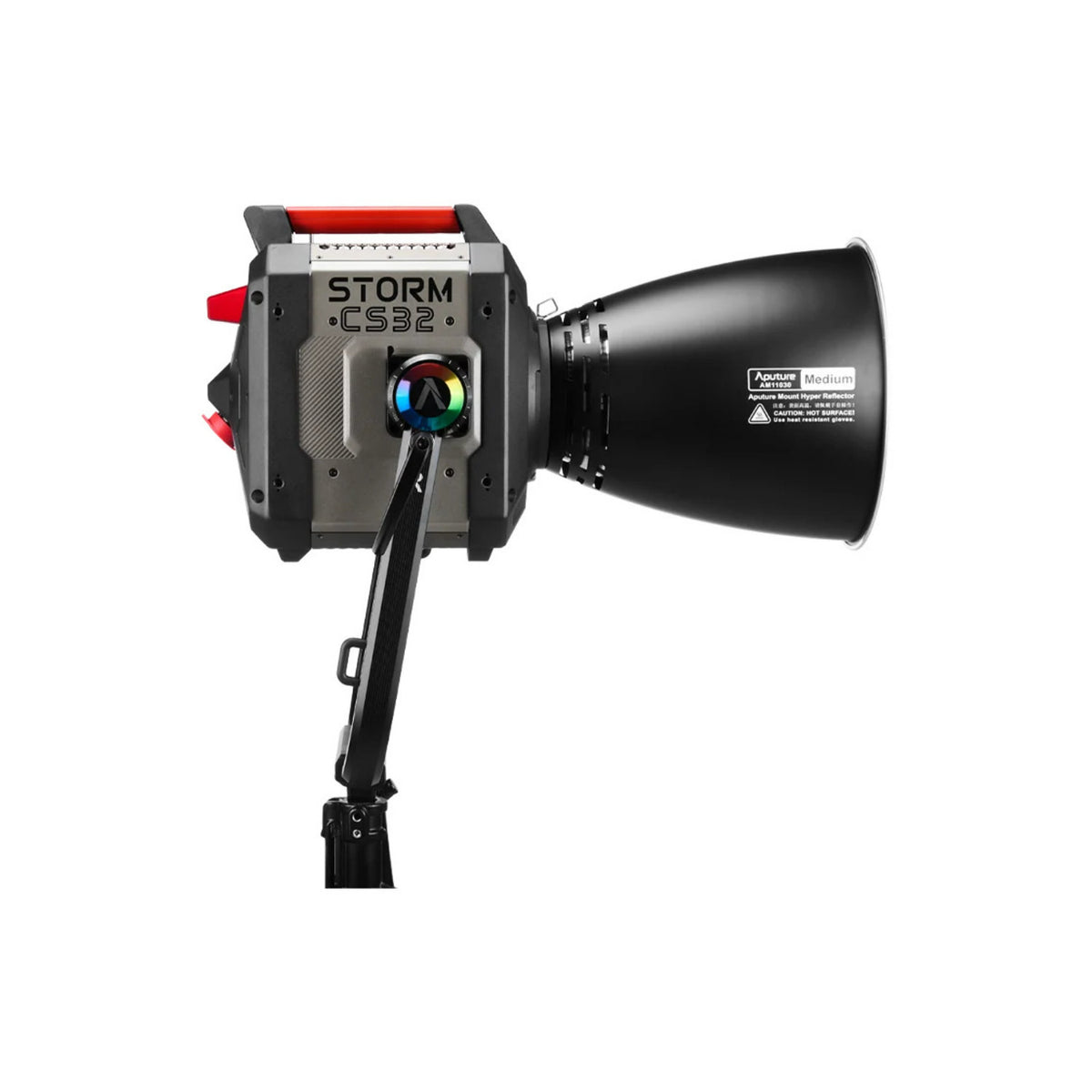

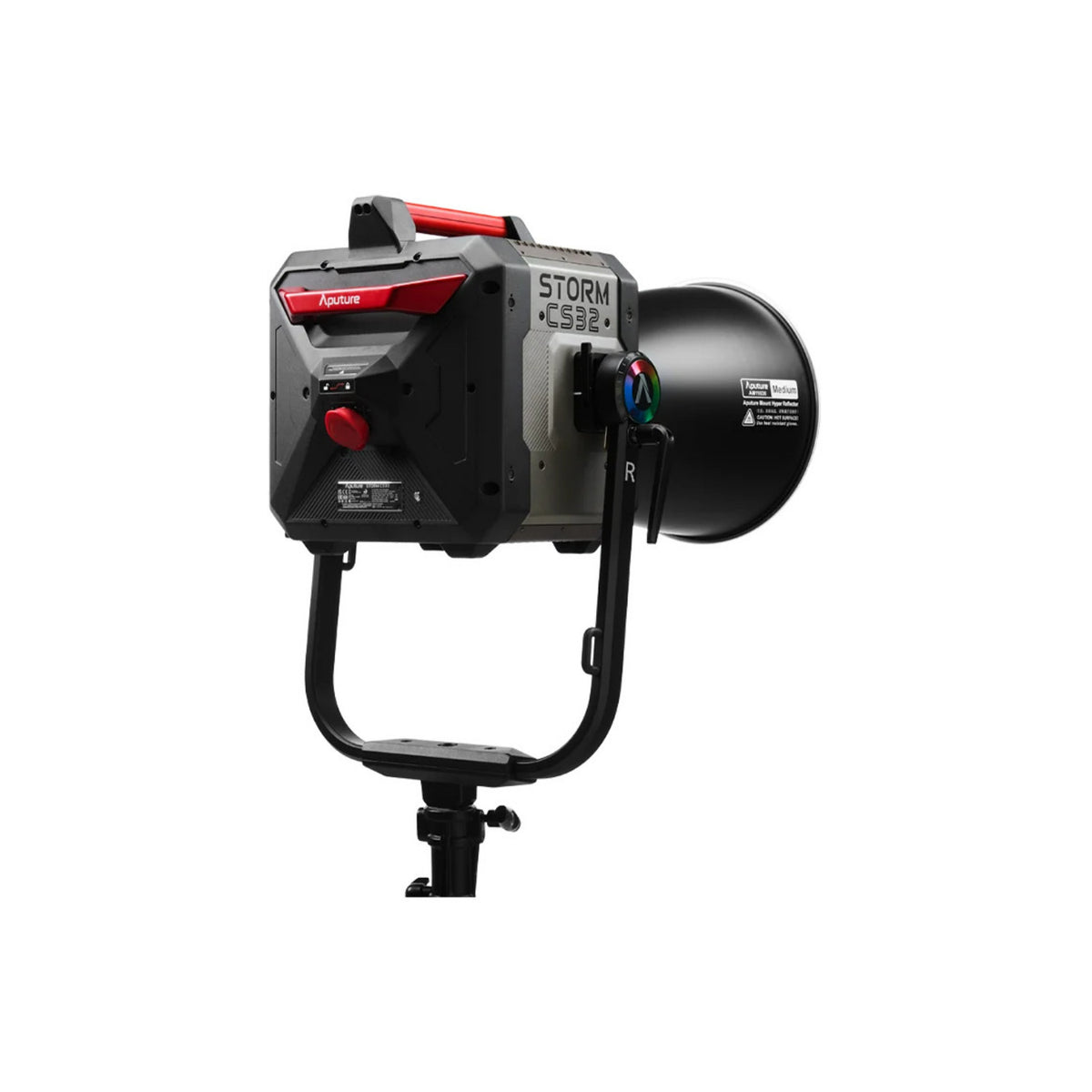

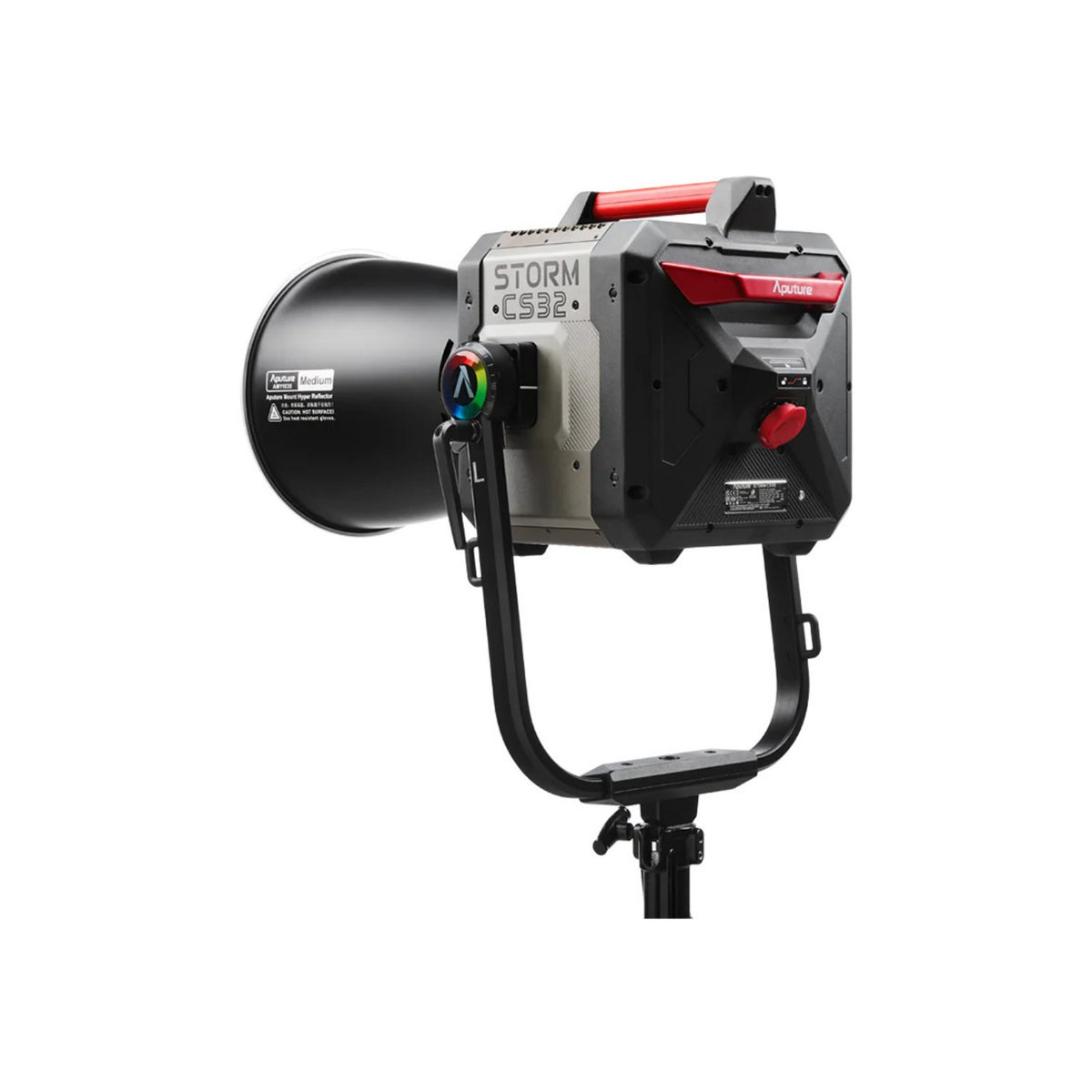

Aputure STORM CS32 Tunable Color LED Monolight (No Case)
- 3,200W maximum power consumption for high-output professional production lighting
- 1,800K to 20,000K CCT range supports warm, daylight, and cool white light
- BLAIR CG with Extended Red engine delivers high-fidelity white and tunable color
- CRI 97 and TLCI 98 support accurate color reproduction for cameras
- More than 90 percent Rec. 2020 coverage enables a broad range of saturated colors
- CCT, HSIC+, RGB, GEL, xy, Source, FX, and Sidus FX lighting modes
- Onboard, Sidus Link, DMX, CRMX, Art-Net, and sACN control options
- IP65-rated construction supports demanding studio and location environments
The Aputure STORM CS32 is a 3,200W tunable color LED point source built for demanding film, television, commercial, and studio productions. Its BLAIR CG with Extended Red light engine combines high output with precise white light and broad color control. The fixture covers a 1,800K to 20,000K CCT range and provides full green and magenta adjustment, giving crews the flexibility to match tungsten, daylight, practical sources, or creative color environments.
BLAIR CG With Extended Red Light Engine
The multi-emitter light engine delivers CRI 97, TLCI 98, SSI 93 for tungsten, and SSI 91 for daylight. It also covers more than 90 percent of the Rec. 2020 color space. HSIC+, RGB, xy, GEL, Source, and CCT control modes support both precise color matching and creative lighting effects. The included 30-degree reflector concentrates the output when a more focused beam is required.
Professional Power and Control
The STORM CS32 draws up to 3,200W and supports 100V to 240V operation at full output when the appropriate power connection is used. On-set control options include onboard operation, Sidus Link, Sidus Link Pro, DMX, CRMX, Art-Net, and sACN. The included 7.5 m head cable separates the lamp head from the control box, while compatible extension cables can increase the total head cable distance to 45 m.
Production Ready Protection and Transport
The lamp head and control system carry an IP65 rating for demanding production environments. The removable yoke, medium reflector, protection cover, Ultra Clamp, regional power cables, lamp head cable, and flight case create a transport-focused package for location work. The lamp head weighs 16.80 kg without the yoke, while the fully loaded flight case weighs 75.00 kg.
General
Color:
| LED Chipset | BLAIR CG With Extended Red |
| CCT Range | 1,800K to 20,000K |
| CRI | 97 |
| TLCI | 98 |
| SSI Tungsten | 93 |
| SSI D56 | 91 |
| TM 30 Rf | 96 |
| TM 30 Rg | 100 |
Power:
| Operating Voltage at Full Output | 100V to 240V, 50 to 60 Hz |
| Maximum Power Consumption | 3,200W |
| Maximum Lamp Head Power Consumption | 3,000W |
| Maximum Power Output | 2,600W |
| Maximum AC Current at 240V | 16A |
| Maximum AC Current at 100V | 32A |
| Maximum Head Cable Length | 45 m |
Optical:
| Native Beam Angle | 78 degrees |
| Beam Angle With Included Reflector | 30 degrees |
| Compatible Reflectors | 20 degree, 25 degree, 35 degree, and 50 degree XT52 reflectors, plus 30 degree CS32 reflector |
Environmental:
| IP Rating | IP65 |
| Operating Temperature | Negative 20 degrees C to 45 degrees C, negative 4 degrees F to 113 degrees F |
| Storage Temperature | Negative 40 degrees C to 80 degrees C, negative 40 degrees F to 176 degrees F |
| Cooling Method | Air Cooled |
| Lamp Head Fan Noise at 1 m, Max Mode | 52.6 dBA |
| Lamp Head Fan Noise at 1 m, High Mode | 52.4 dBA |
| Lamp Head Fan Noise at 1 m, Medium Mode | 40.2 dBA |
| Lamp Head Fan Noise at 1 m, Low Mode | 31.3 dBA |
| Lamp Head Fan Noise at 1 m, Silent Mode | 24.3 dBA |
Control and Firmware:
| Control Methods | Onboard, Sidus Bluetooth, DMX, CRMX, Art Net, sACN |
| Firmware Upgrade Methods | USB A, Sidus Link, Sidus Link Pro |
| Bluetooth Wireless Range | 100 m |
| CRMX Wireless Range | 100 m |
Mounting:
| Modifier Mount Type | Aputure Mount |
| Included Rigging Hardware | 28 mm Junior Pin |
Dimensions:
| Lamp Head With Yoke | 52.9 x 77.2 x 35.8 cm, 20.8 x 30.4 x 14.1 in |
| Lamp Head Without Yoke | 37.2 x 38.3 x 35.8 cm, 14.6 x 15.1 x 14.1 in |
| Removable Yoke | 52.9 x 60.9 x 15.0 cm, 20.8 x 24.0 x 5.9 in |
| Control Box | 34.5 x 16.0 x 37.6 cm, 13.6 x 6.3 x 14.8 in |
| 30 Degree Reflector | 34.5 x 36.5 cm, 13.6 x 14.4 in |
| Head Cable Length | 7.5 m |
| Bare Leads AC Power Cable Length | 3 m |
| NEMA 5 20P AC Power Cable Length | 6 m |
| Flight Case | 84.6 x 65.0 x 66.5 cm, 33.3 x 25.6 x 26.2 in |
Weight:
| Lamp Head With Yoke | 19.80 kg, 43.65 lb |
| Lamp Head Without Yoke | 16.80 kg, 37.04 lb |
| Removable Yoke | 3.00 kg, 6.61 lb |
| Control Box | 10.80 kg, 23.81 lb |
| Head Cable | 3.15 kg, 6.94 lb |
| Aputure Ultra Clamp | 0.92 kg, 2.03 lb |
| Fully Loaded Flight Case | 75.00 kg, 165.35 lb |
