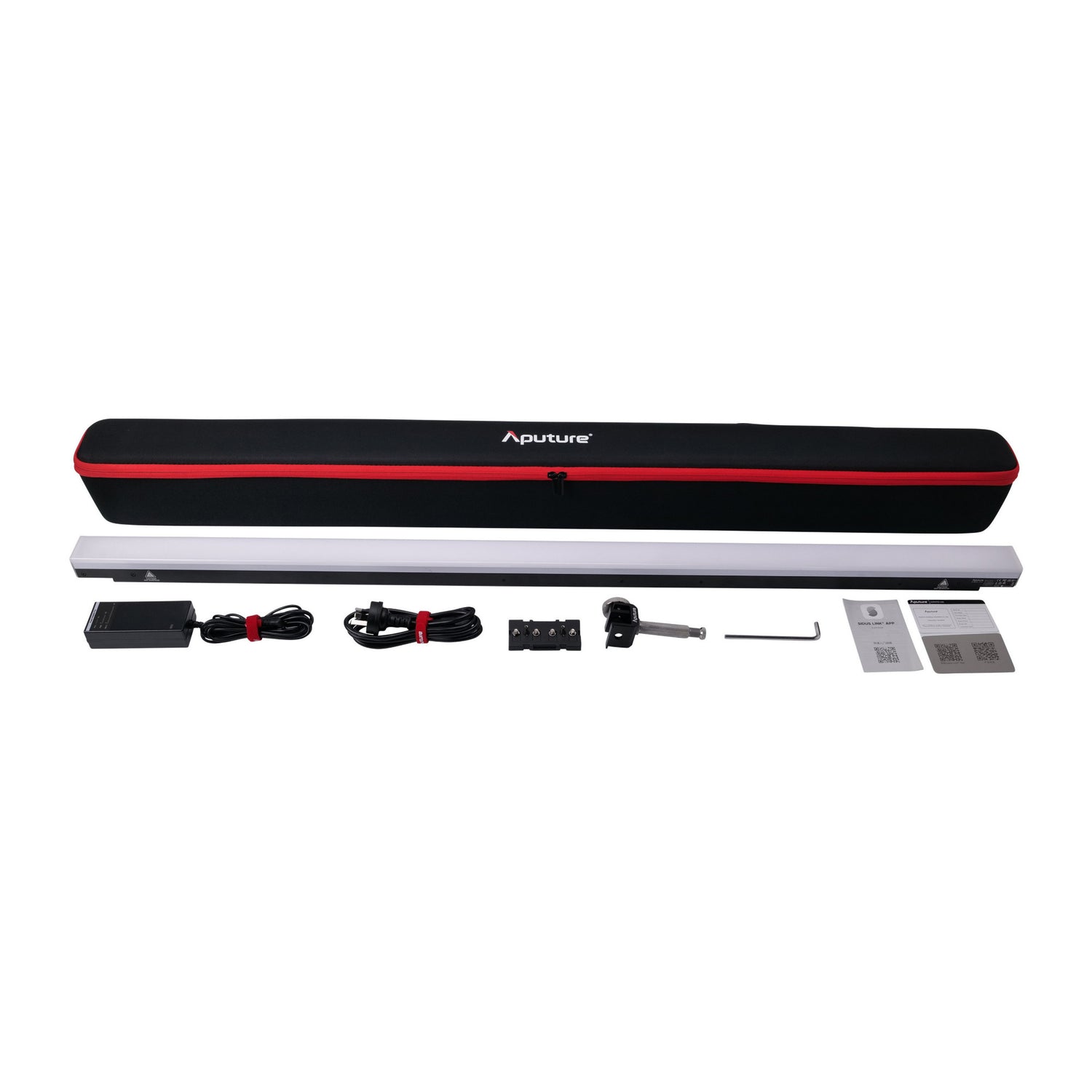

In the box
In the box
Free standard shipping
Free standard shipping
*Orders placed before 1 PM EST Mon - Thur will ship the same day. Orders placed beyond these hours will be shipped the next business day. Exclusions apply. See shipping policy
Free Local Pickup
Free Local Pickup
Please call for store stock availability. Requests made before 2:30 PM EST can be available for next-day pickup. Learn more
Condition: Used – Very Good
Condition Details: Fully functional with light cosmetic wear such as small scratches or blemishes.

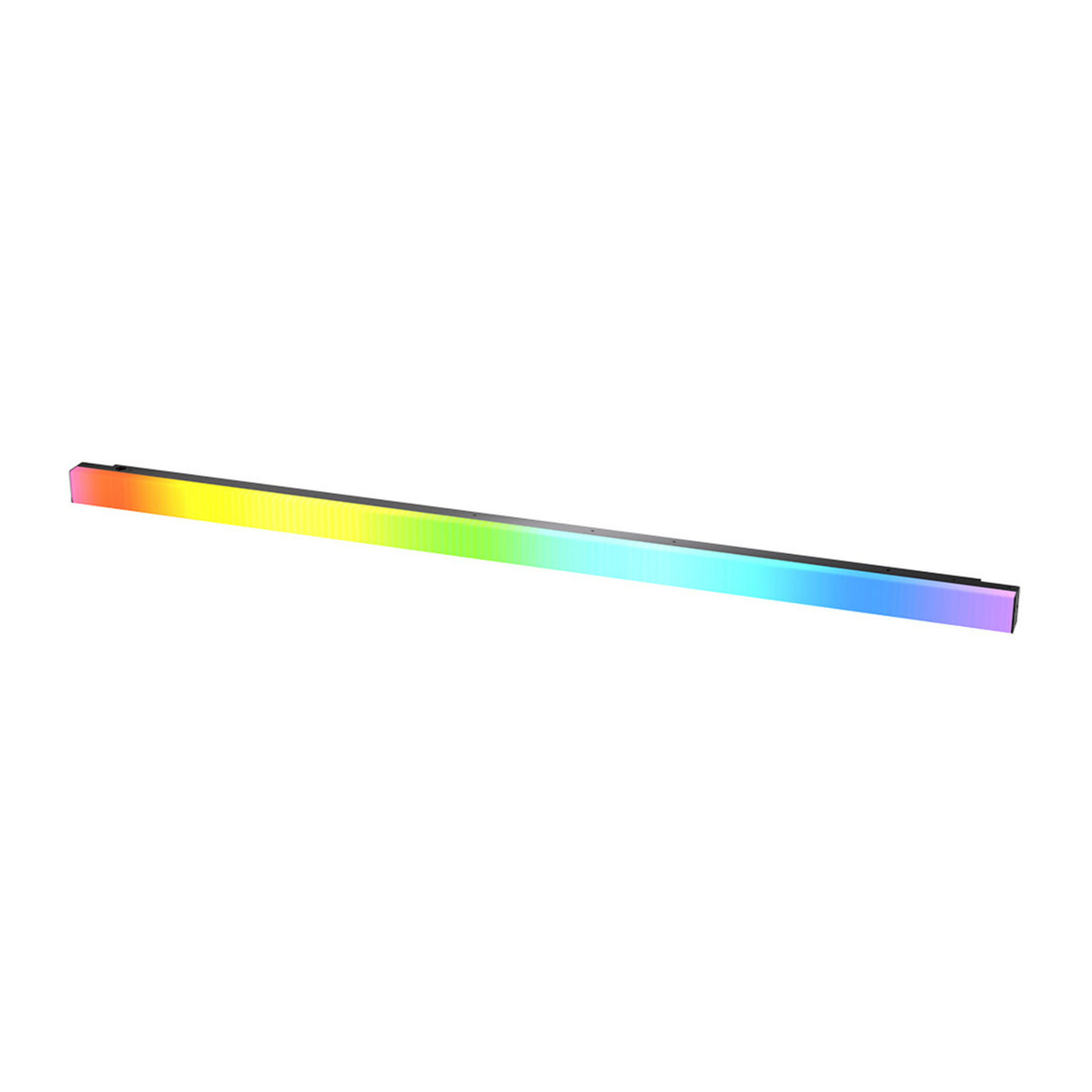

Create striking, customizable lighting designs with the Aputure Infinibar PB12 Pixel Bar, a modular RGBWW LED pixel bar built for professional film, studio, and live-production environments.
96-Pixel RGBWW Lighting Control
Individually controllable pixels and an RGBWW chipset deliver vibrant color effects with smooth transitions, ideal for creative motion lighting and dynamic scene accents.
Modular, Seamless Design

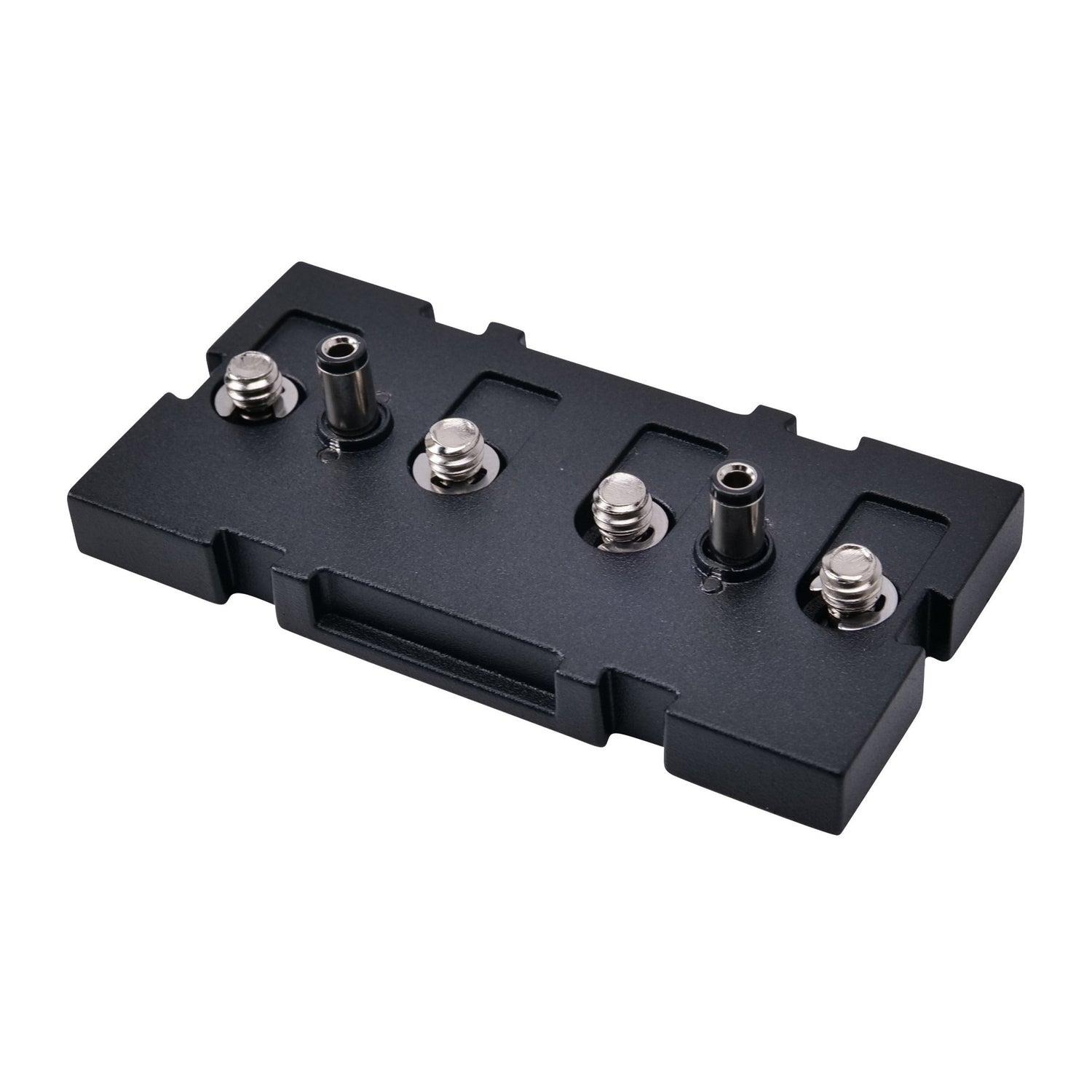

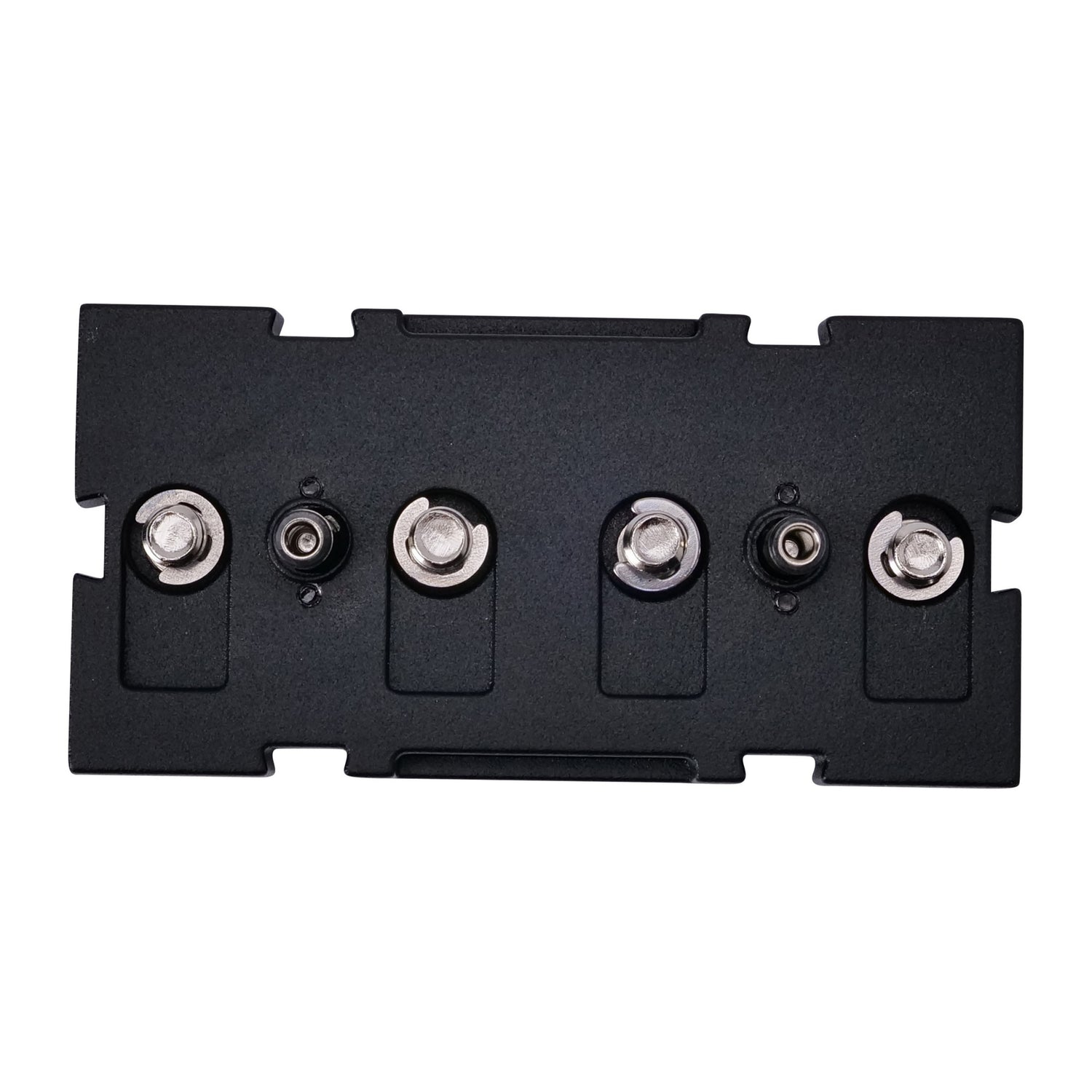

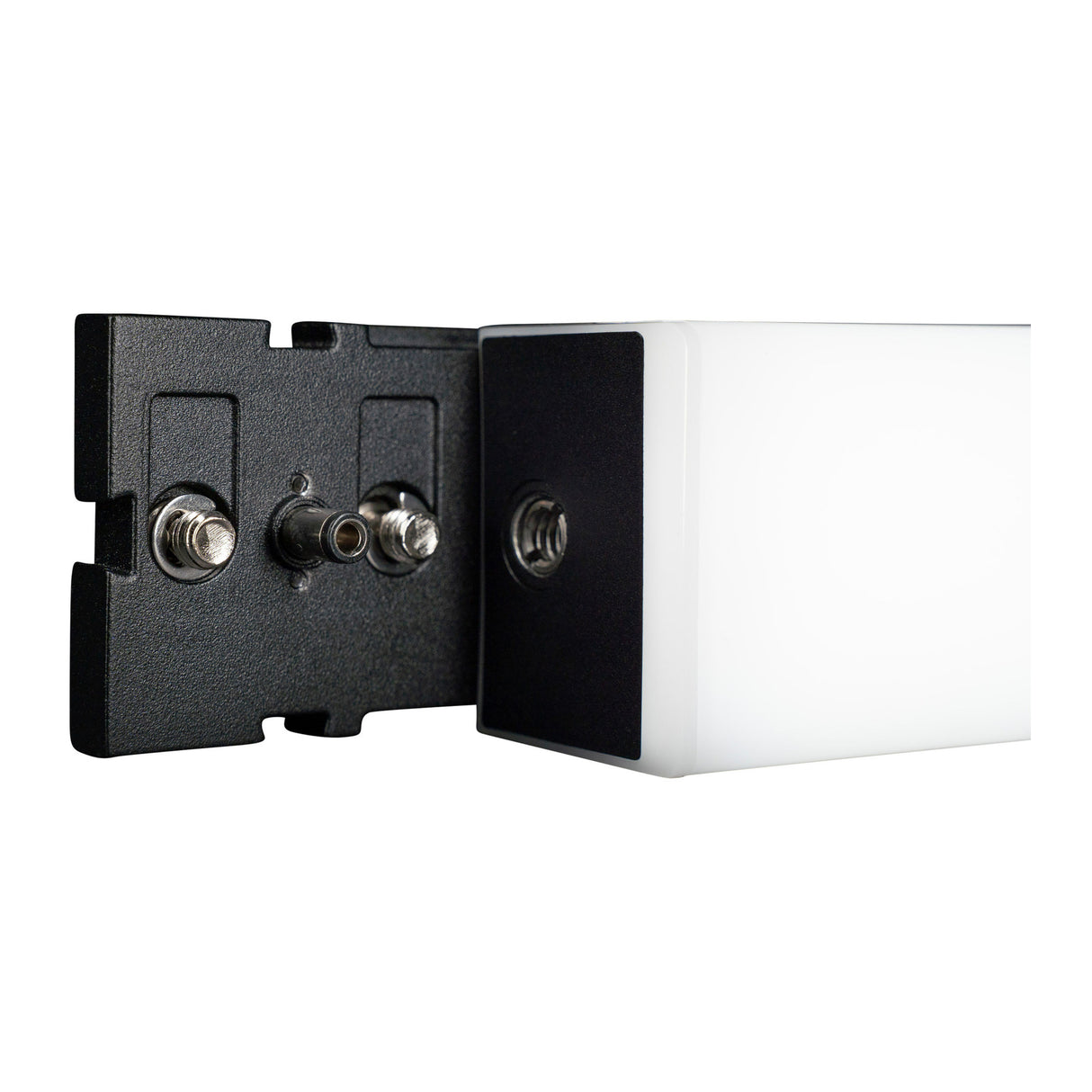

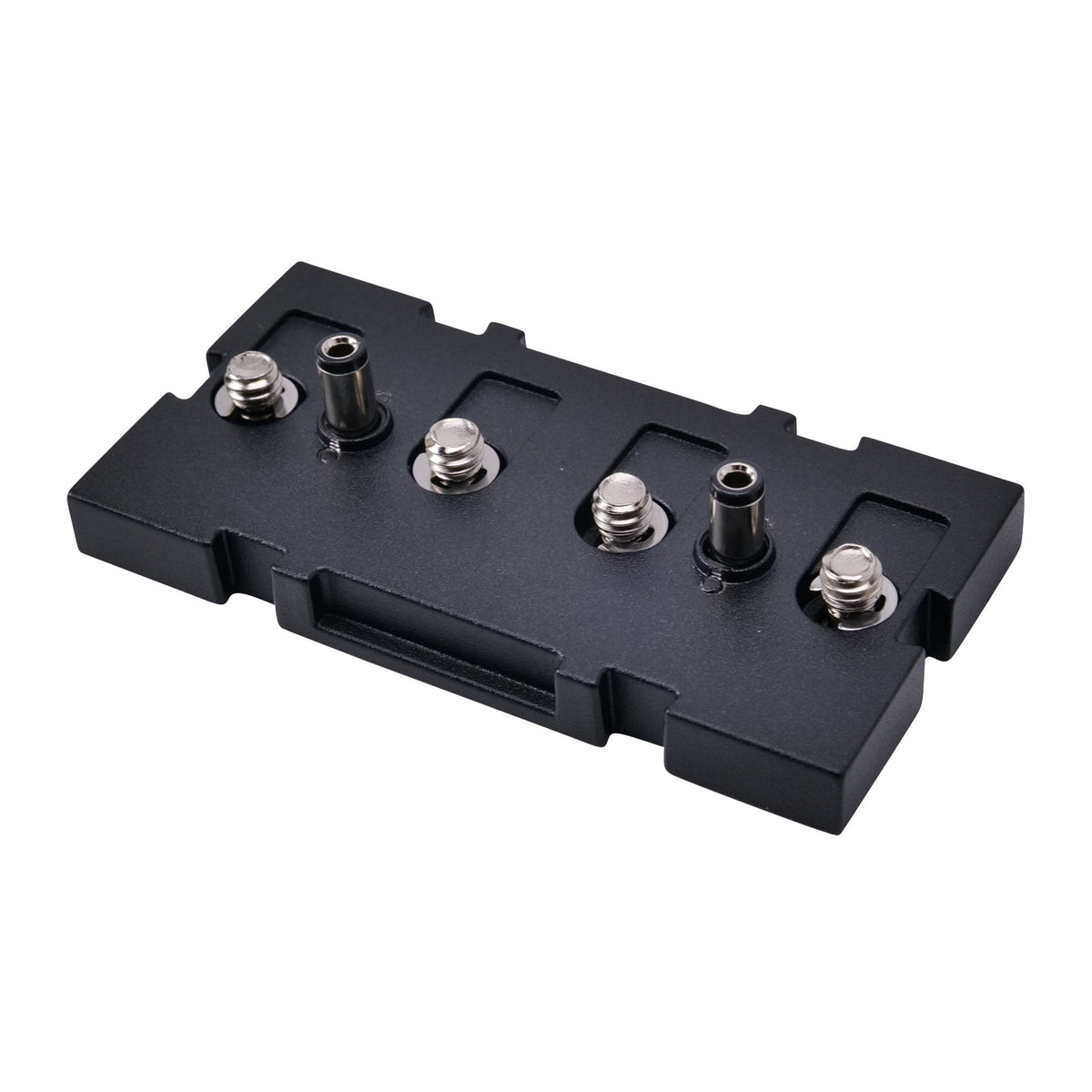

Link multiple Infinibars using a variety of connectors to form custom shapes and continuous layouts. The seamless blending design minimizes gaps for clean, unified pixel effects.
Advanced Wireless & DMX Control
Control lighting via the Sidus Link app, LumenRadio CRMX, or wired DMX using an optional USB-C to DMX adapter for easy integration into professional lighting workflows.
Accurate Color Performance
A wide 2,000K–10,000K CCT range, full green–magenta adjustment, and over 90% Rec.2020 coverage ensure consistent color accuracy and natural skin tones.
Built-In Effects & Custom Presets
Access multiple System FX and Pixel FX, or save custom effects directly in the Sidus Link app for fast setup and repeatable results.
Durable, Portable Build

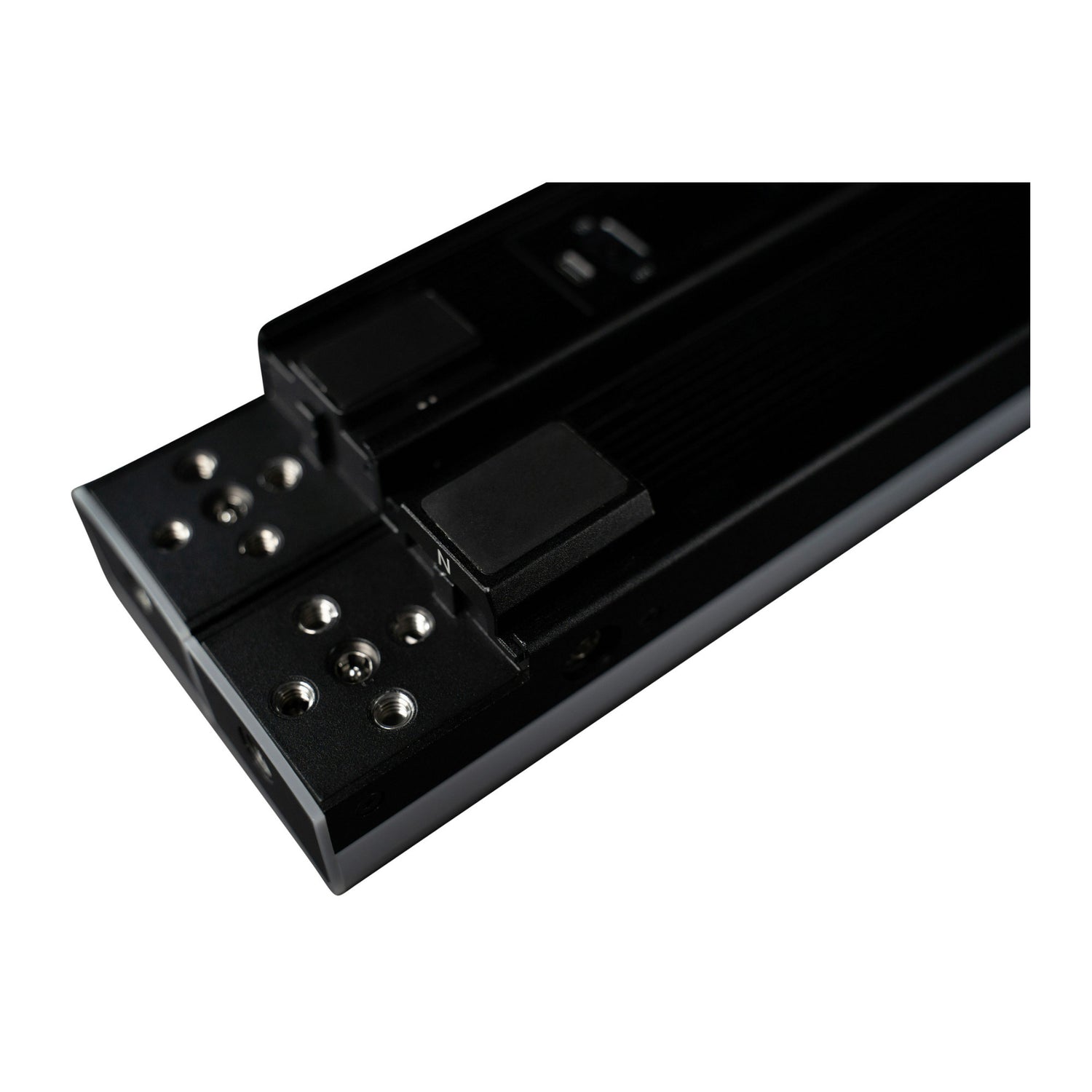

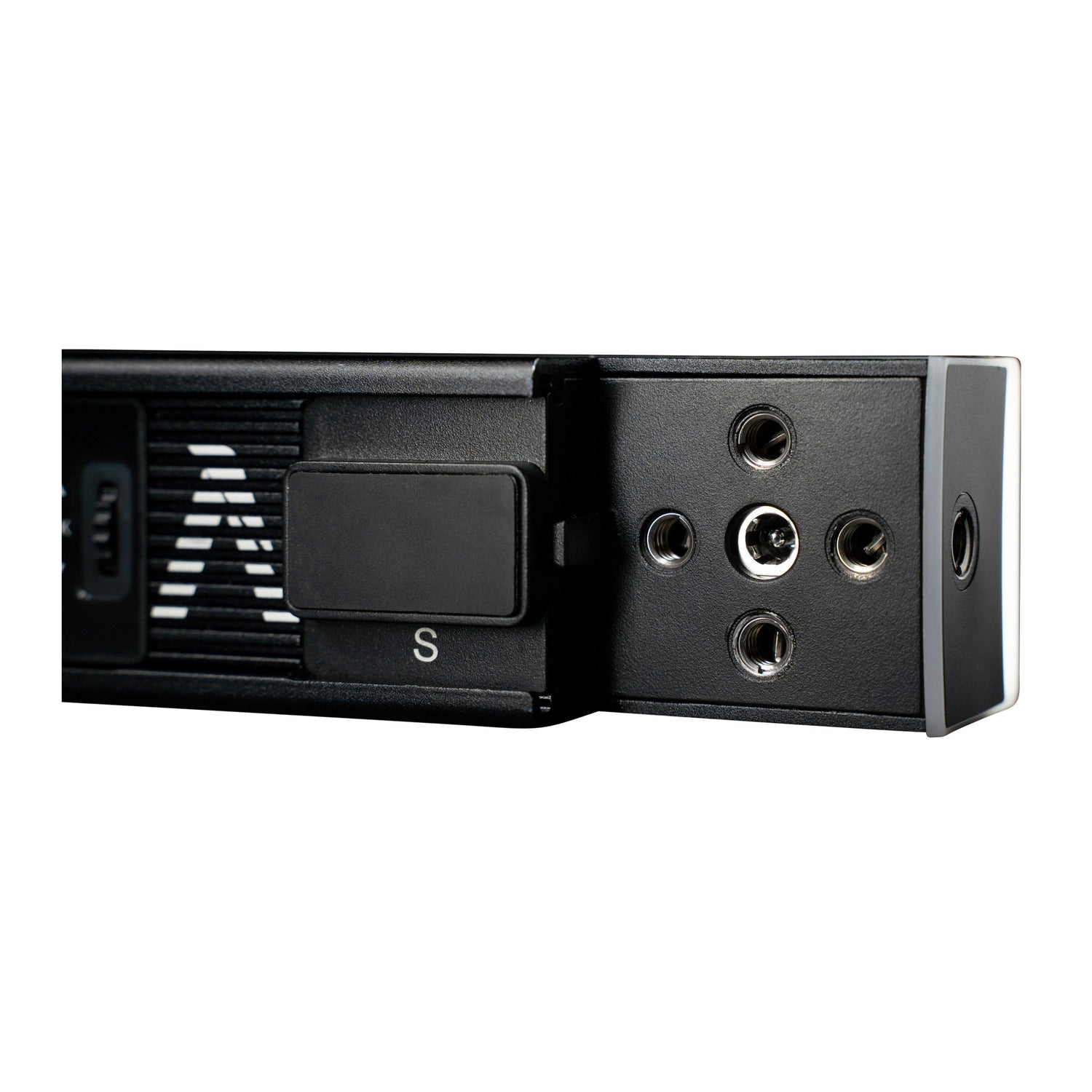

An aluminum housing with integrated magnets, rail compatibility, and dual 1/4"-20 threads makes mounting flexible, while the 59.2Wh internal battery provides up to 80 minutes of runtime at full output.
A versatile lighting tool for creators who need precise control, modular flexibility, and professional color performance in a compact form factor.

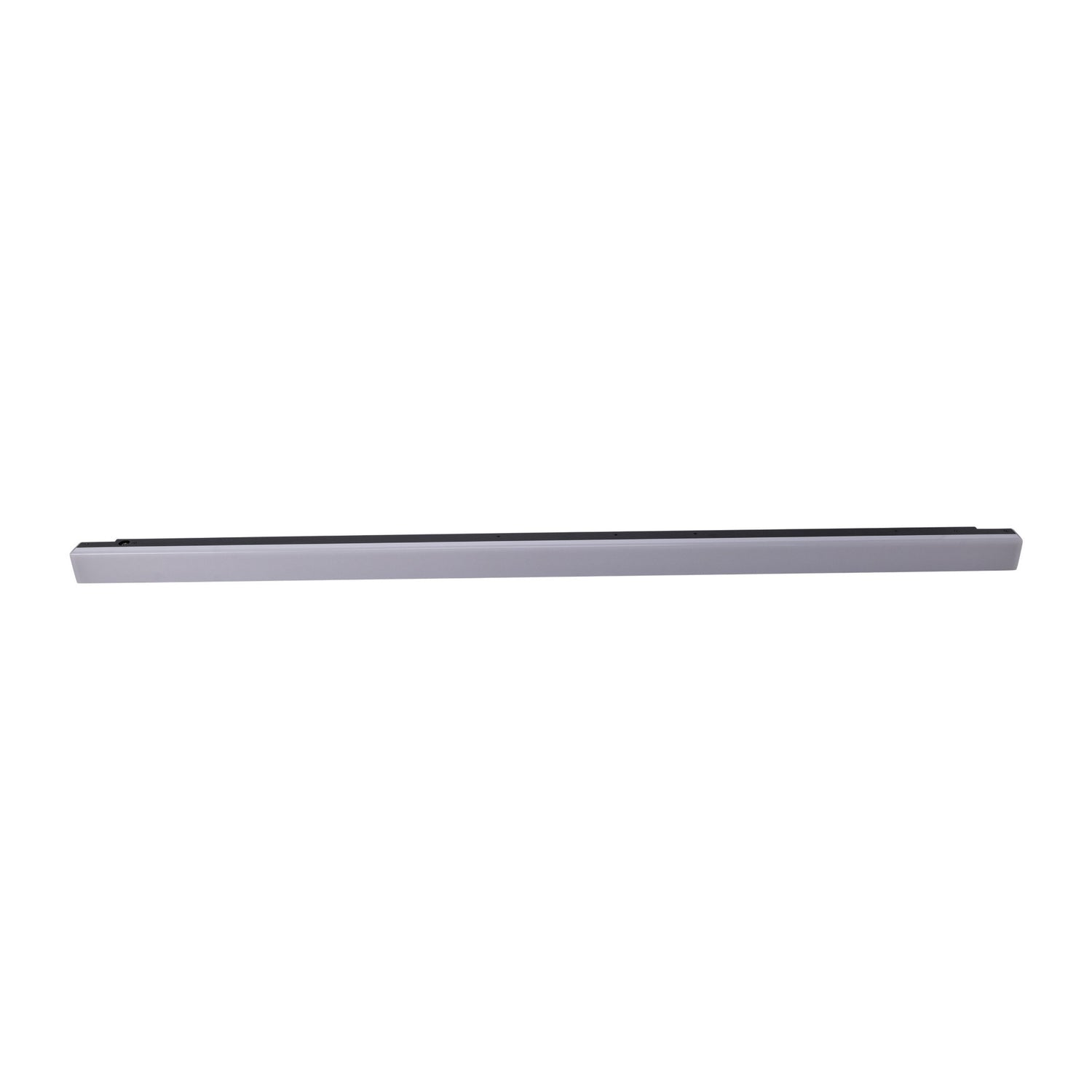

- Fixture: 47.4 x 1.77 x 1.69 inch (1,204 x 45 x 43 mm)
- Fixture + spacer: 47.4 x 1.77 x 2.05 inch (120.4 x 4.5 x 5.2 cm)

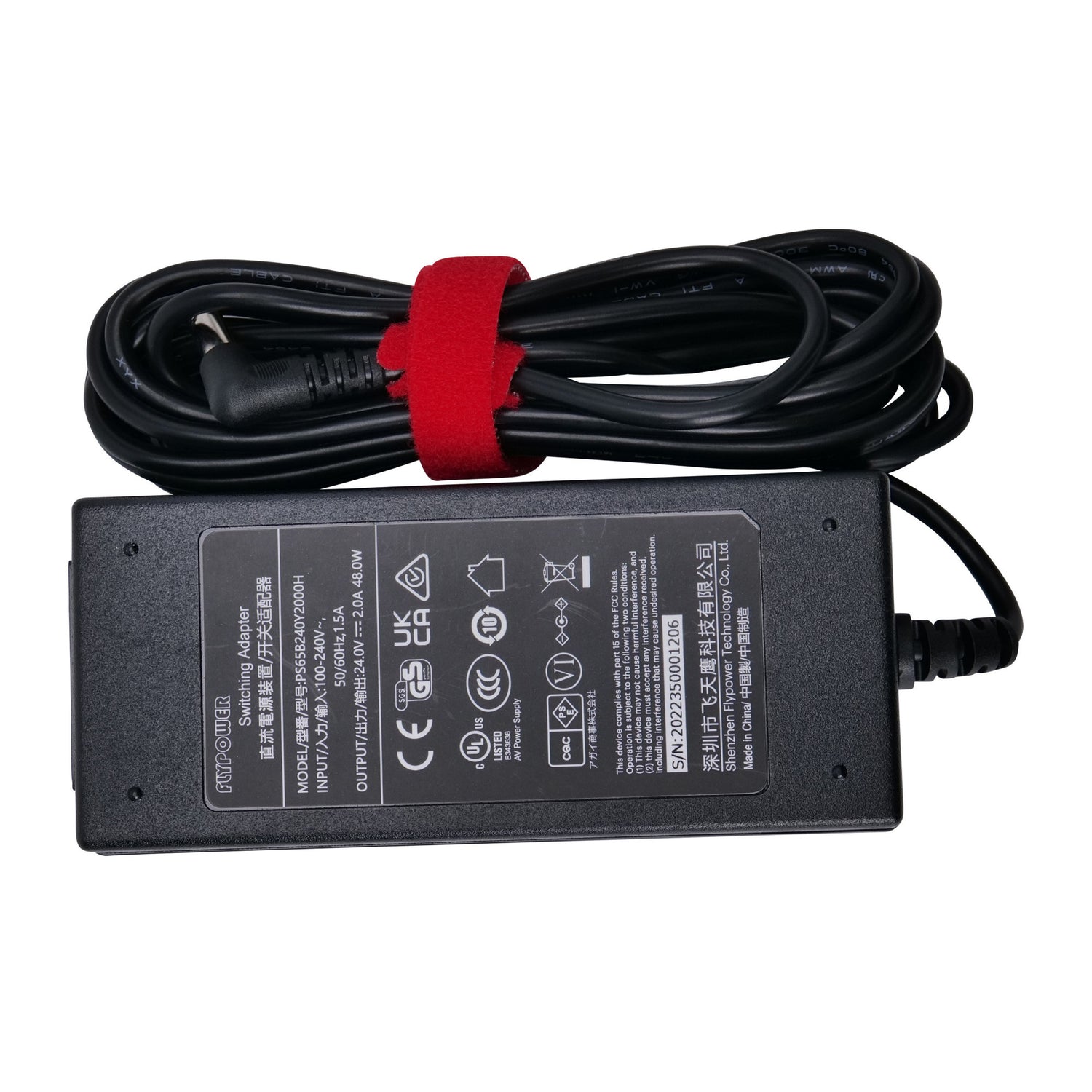

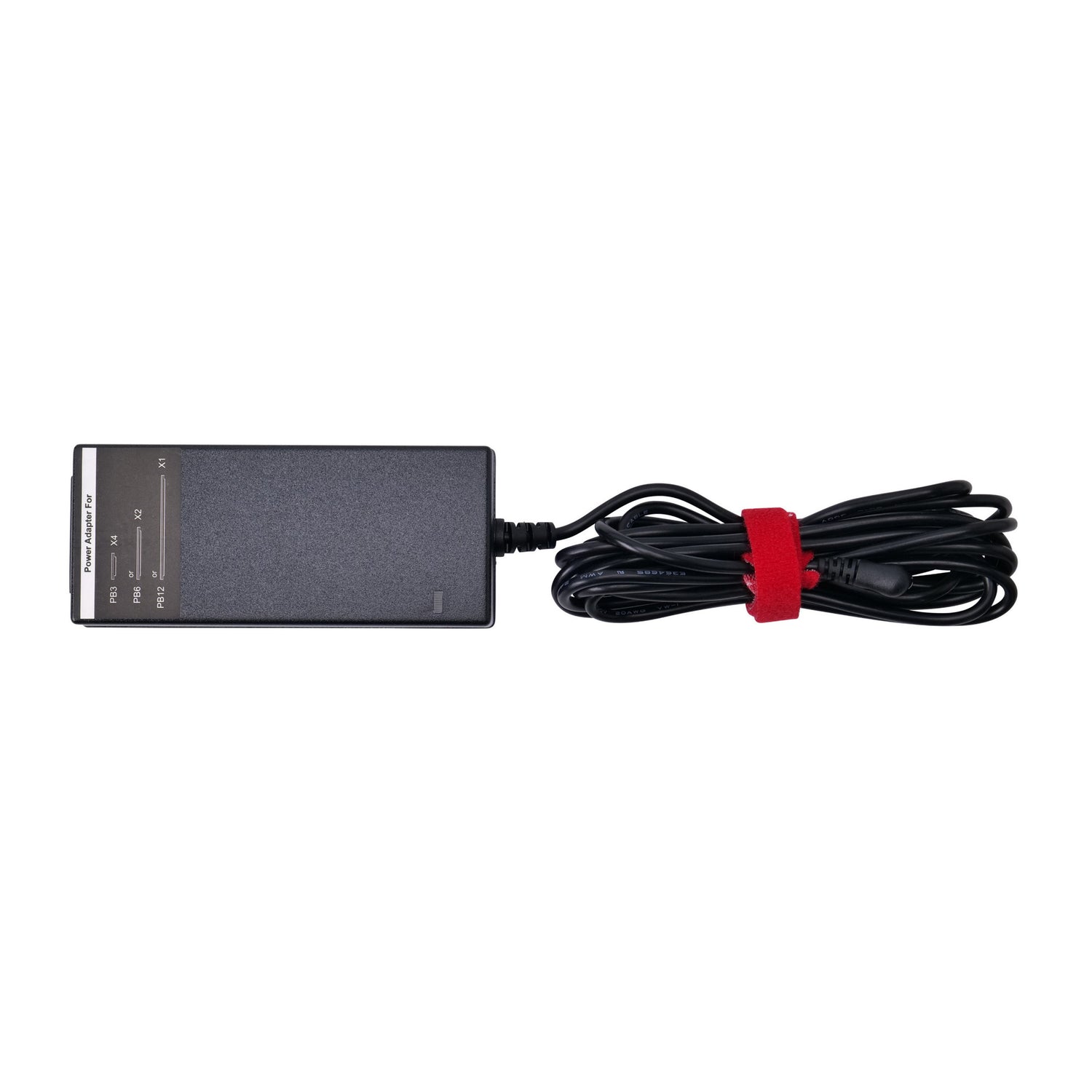

- AC power supply: 4.72 x 2.09 x 1.26 inch (12.0 x 5.3 3.2 cm)

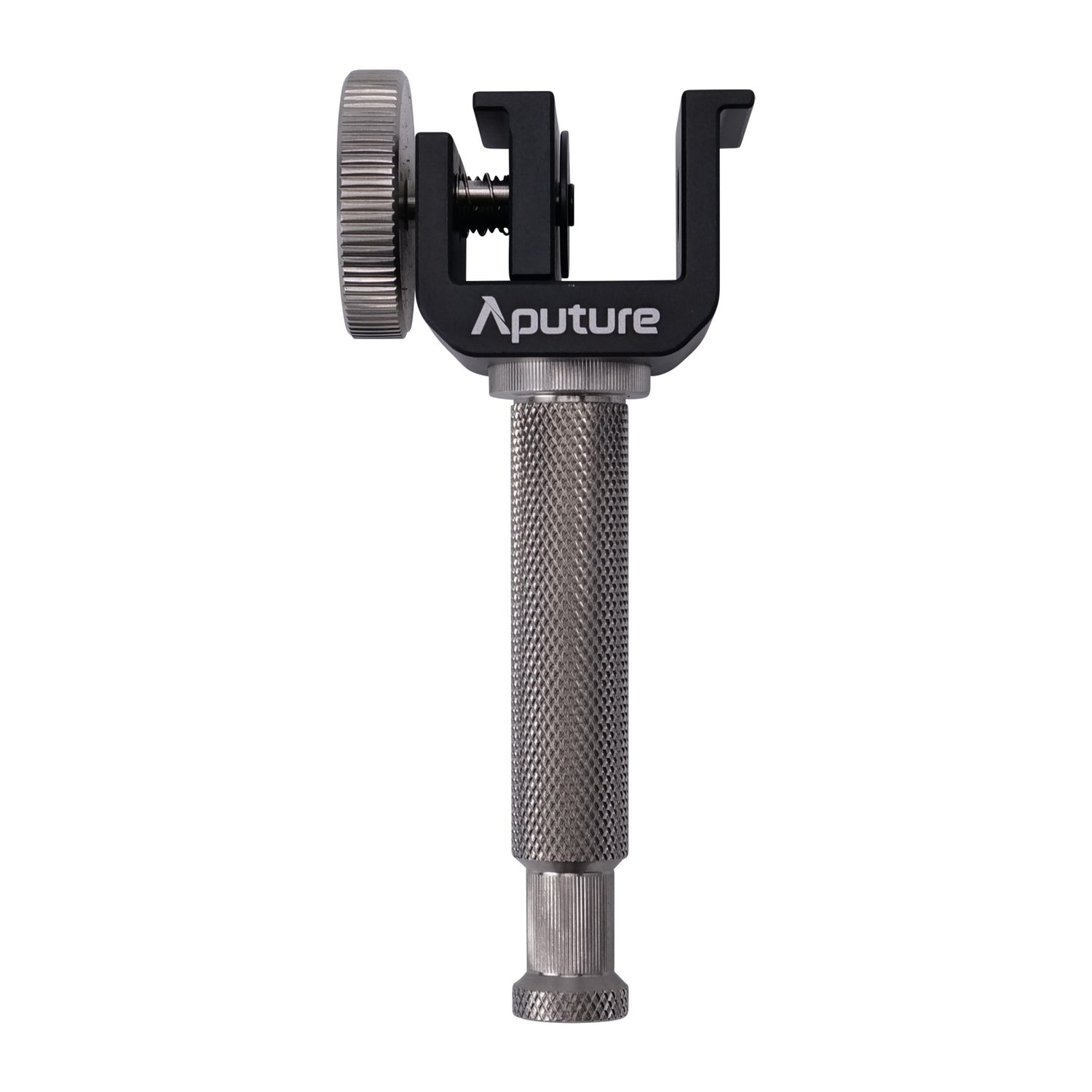

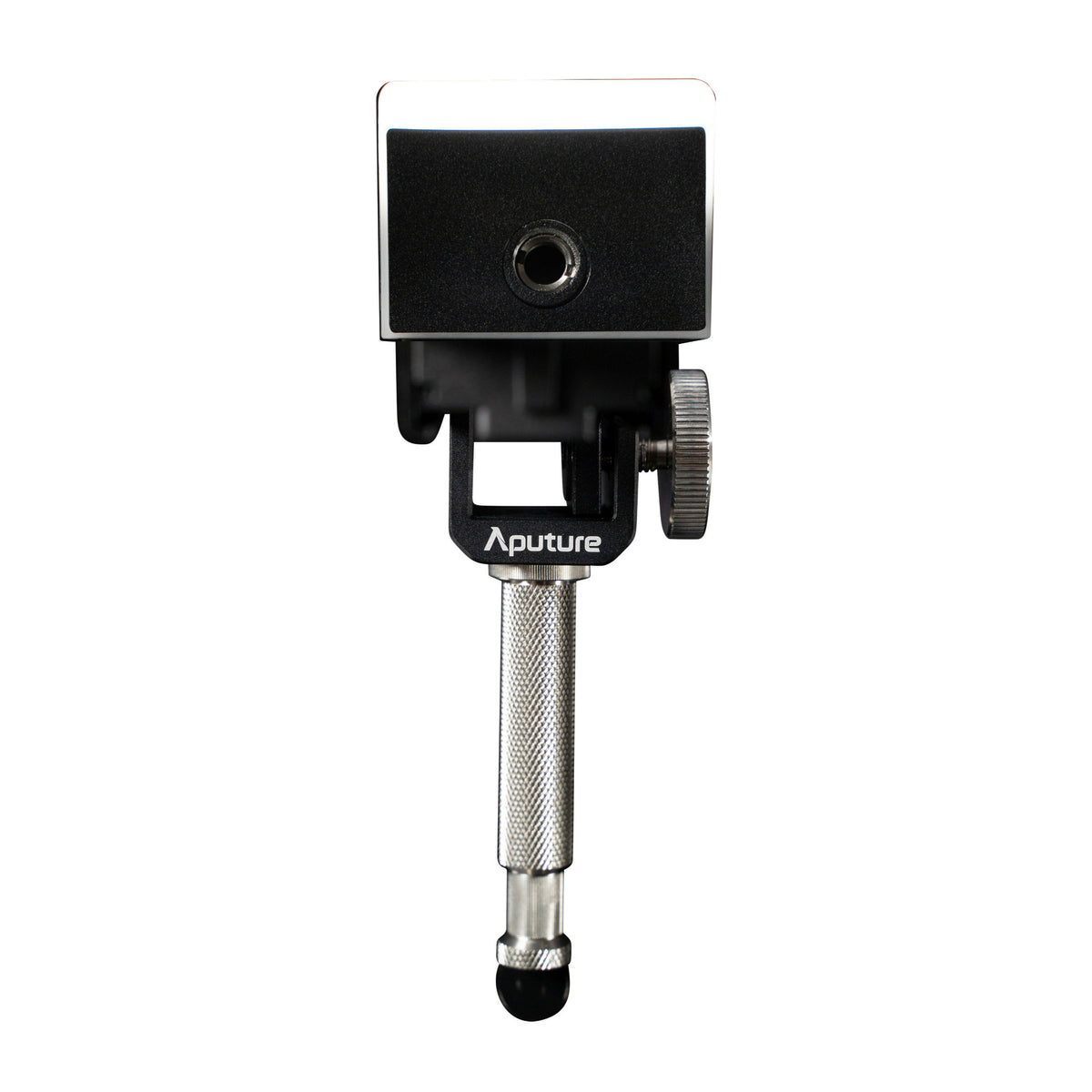

- Infinibar clamp: 4.8 x 2.17 x 1.57 inch (12.2 x 5.5 x 4.0 cm)

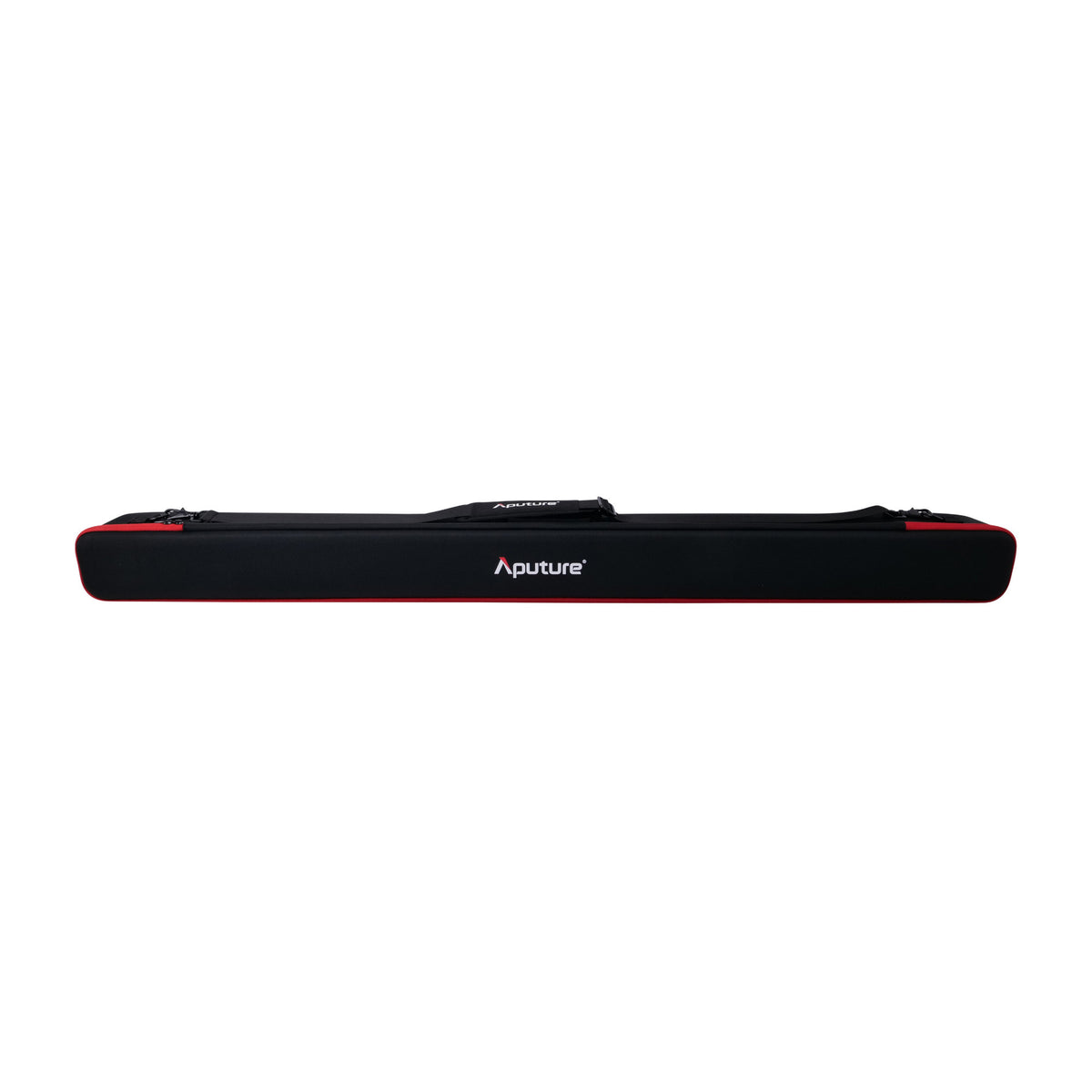

- Case: 50.0 x 5.1 x 4.9 inch (127.7 x 13.0 x 12.5 cm)
- Fixture: 4.31lbs (1.96 kg)
- Fixture + spacer: 4.61 lb (2.09 kg)
- AC power supply: 1.08 lb (0.49 kg)
- Infinibar clamp: 0.60 lb (0.27 kg)
- Case (empty): 3.83 lb (1.74 kg)
Aputure Infinibar PB6 Flexible, Wireless, Versatile, and Easy to Mount Pixel Bar
| CCT | 2,000K – 10,000K |
| CRI | 96+ |
| TLCI | 98+ |
| CQS | 96 |
| SSI (D56) | 74 |
| SSI (Tungsten) | 85 |
| TM-30 RF (Average) | 94 |
| TM-30 RG (Average) | 103 |
| Color chipset | RBGWW |
| Beam angle (half-peak) | 120-degree |
| Lumens | 2,077lm |
| Max power output | 27W |
Max Power Consumption
| Fixture | 36.5W |
| Power supply | 40W |
Operating Voltage and Current
| Fixture | 24V, 1.8A |

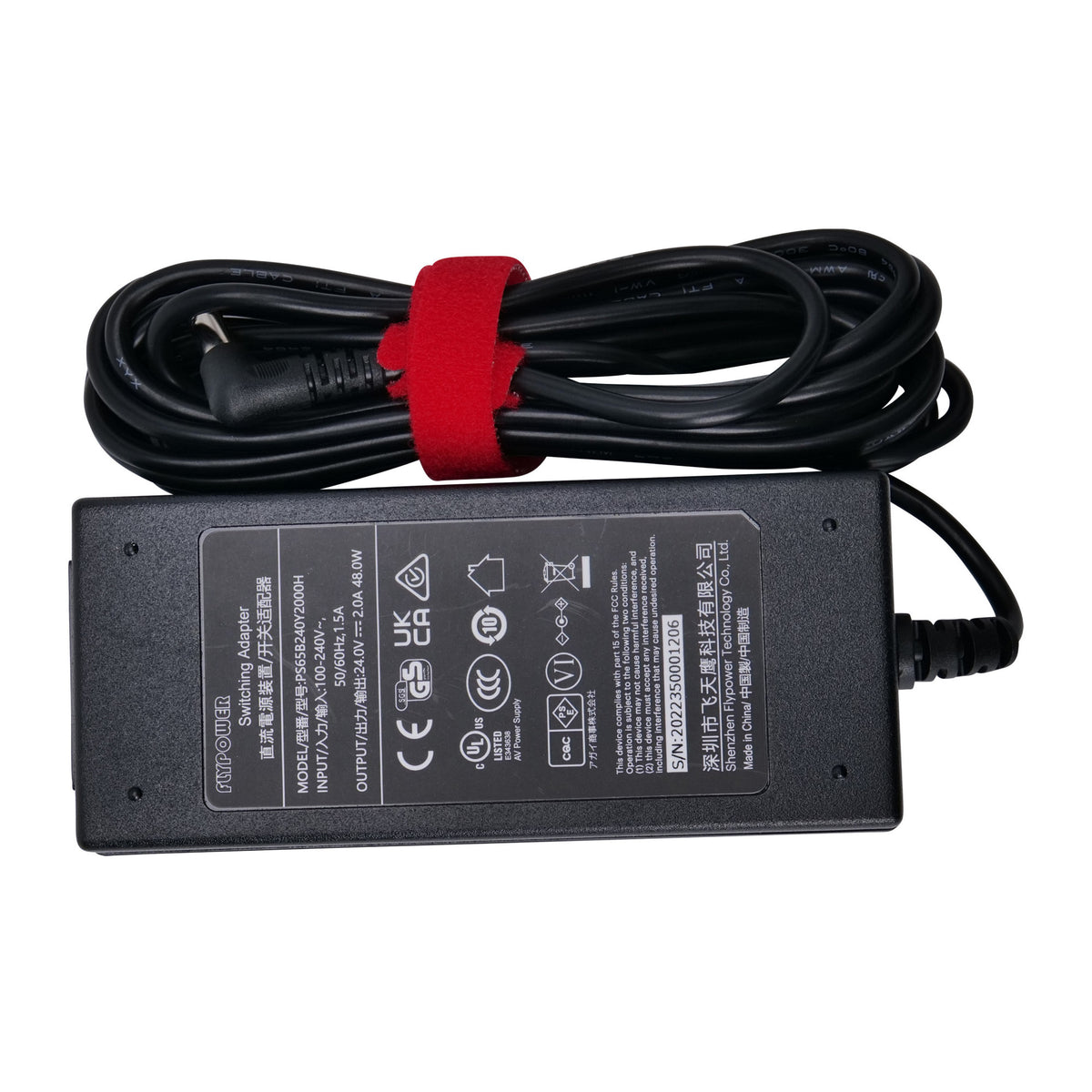

| Power supply | 100V-240V 50/60Hz, 1.5A |
| Battery capacity | 7.4V, 8000mAh, 59.2Wh |
| Battery life | Approx. 80 mins at max output |
| Charge time | Approx. 150 mins (24V/1A) |
| Pixel mapping | 96 pixels |
| Operating temperature | -10-degree-C to 45-degree-C (14-degree-F to 113-degree-F) |
| Control methods | Sidus Link App, DMX/RDM1, LumenRadio CRMX |
Wireless Operating Range
| Bluetooth | ≤80 m (≤262.5 feet) |
| Lumenradio | ≤100m / ≤328.1 feet |
| IP rating | IP 20 |
| Screen type | OLED |
| Firmware upgradeable | Sidus Link, USB-C |
| Cooling method | Passive cooling |
| Mounting | Infinibar rail |
| Dimensions | |
| Weight | |
| Estimated LED lifetime (L70) | 50,000 Hours |
| Est. color shift over lifetime (CCT) | 2% Over 6,000 Hours |
| Certifications | CE, FCC, KC, NCC, ROHS, RCM, ICES, UKCA, PSE |
