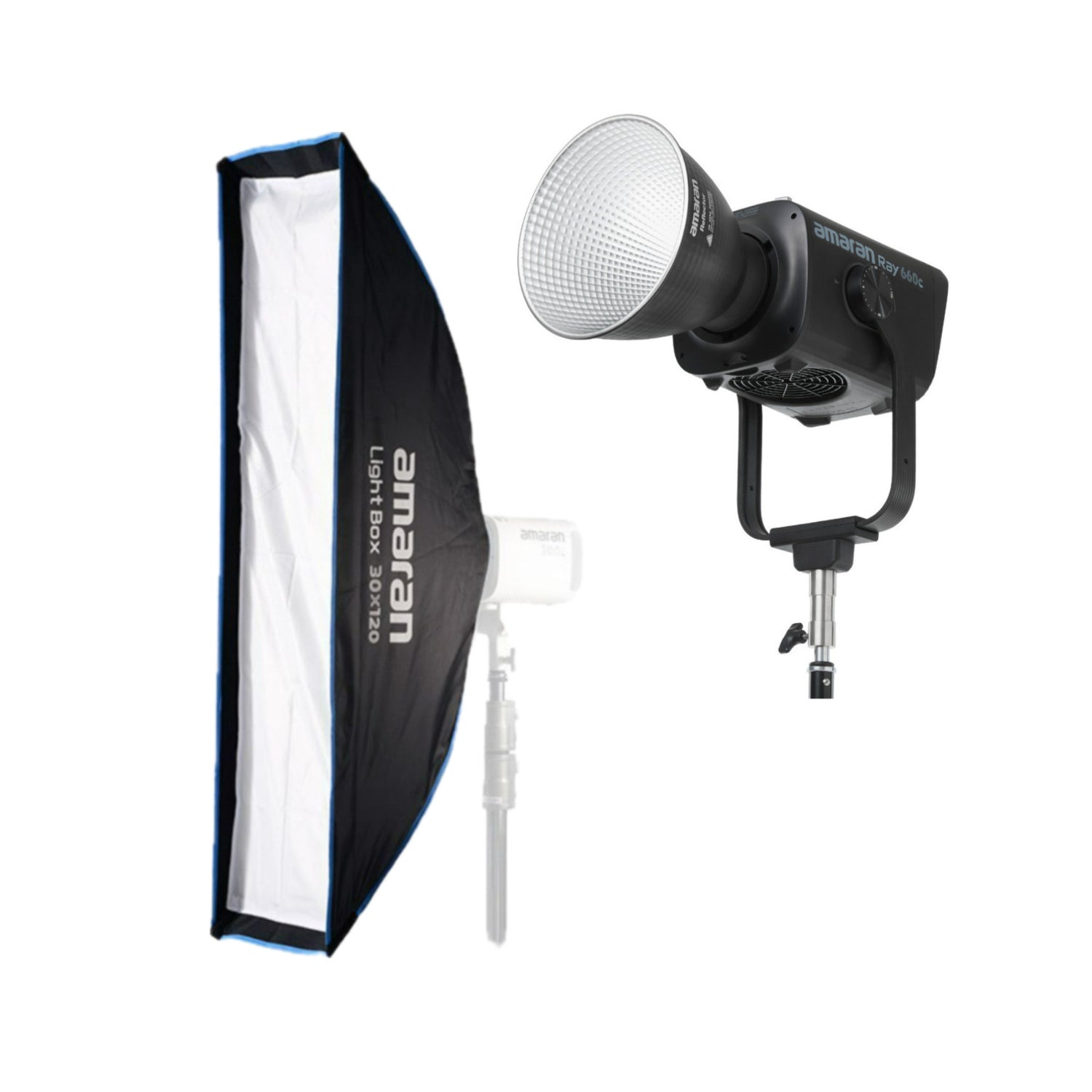

Amaran Ray 660W Full-Color COB Video Light with Light Box 30x120 Bundle
Couldn't load pickup availability
Product highlights
Product highlights

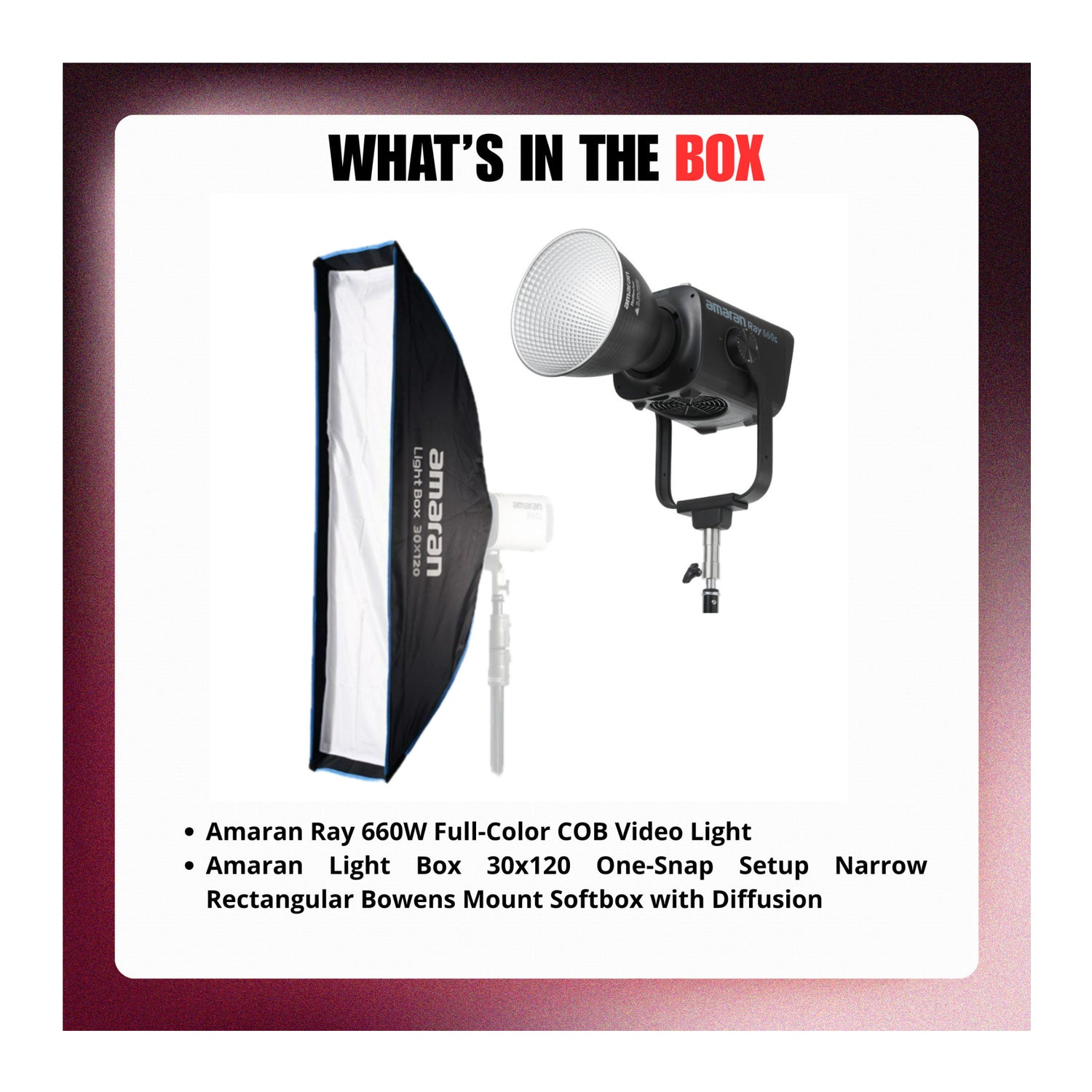

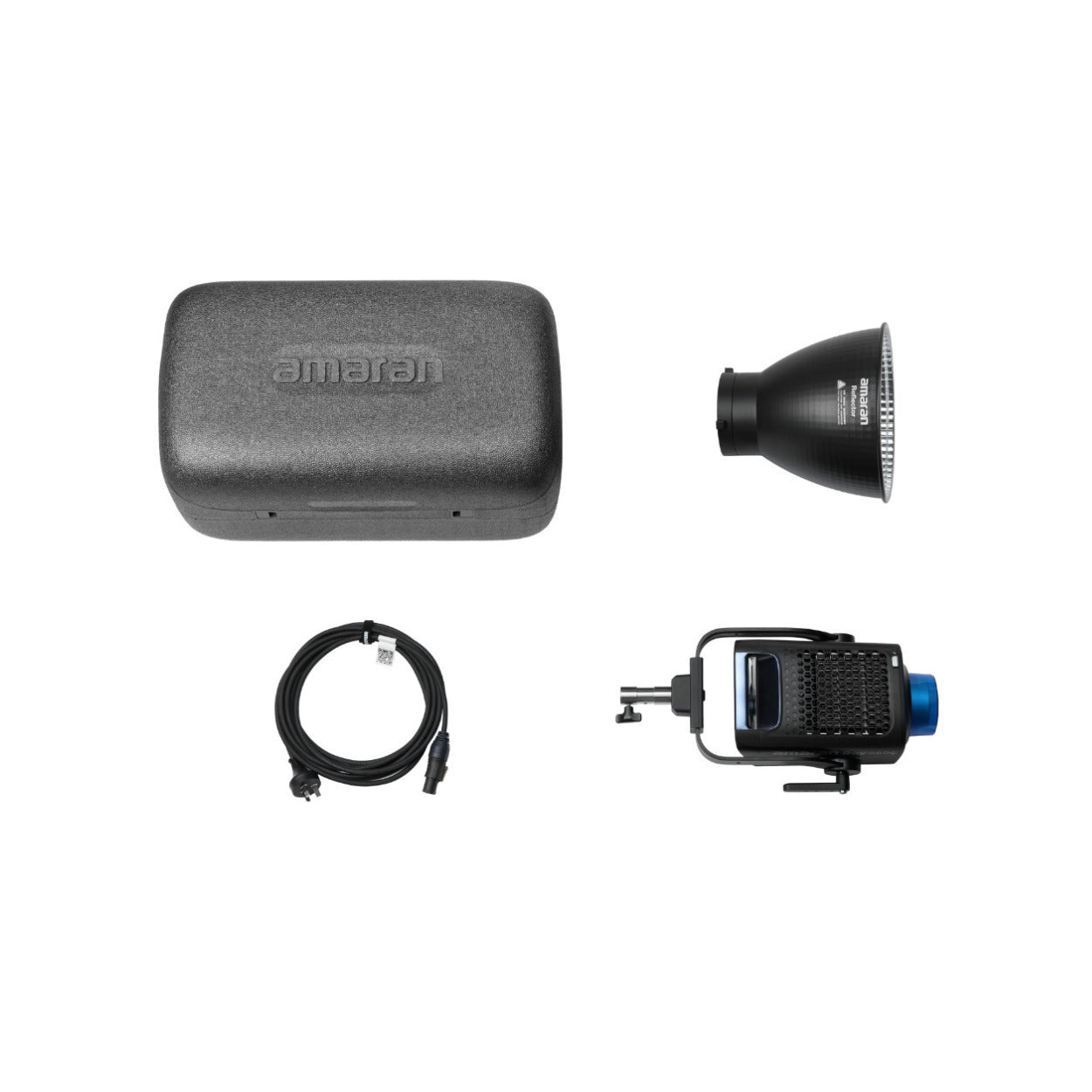

In the box
In the box
Free standard shipping
Free standard shipping
*Orders placed before 1 PM EST Mon - Thur will ship the same day. Orders placed beyond these hours will be shipped the next business day. Exclusions apply. See shipping policy
Free Local Pickup
Free Local Pickup
Please call for store stock availability. Requests made before 2:30 PM EST can be available for next-day pickup. Learn more

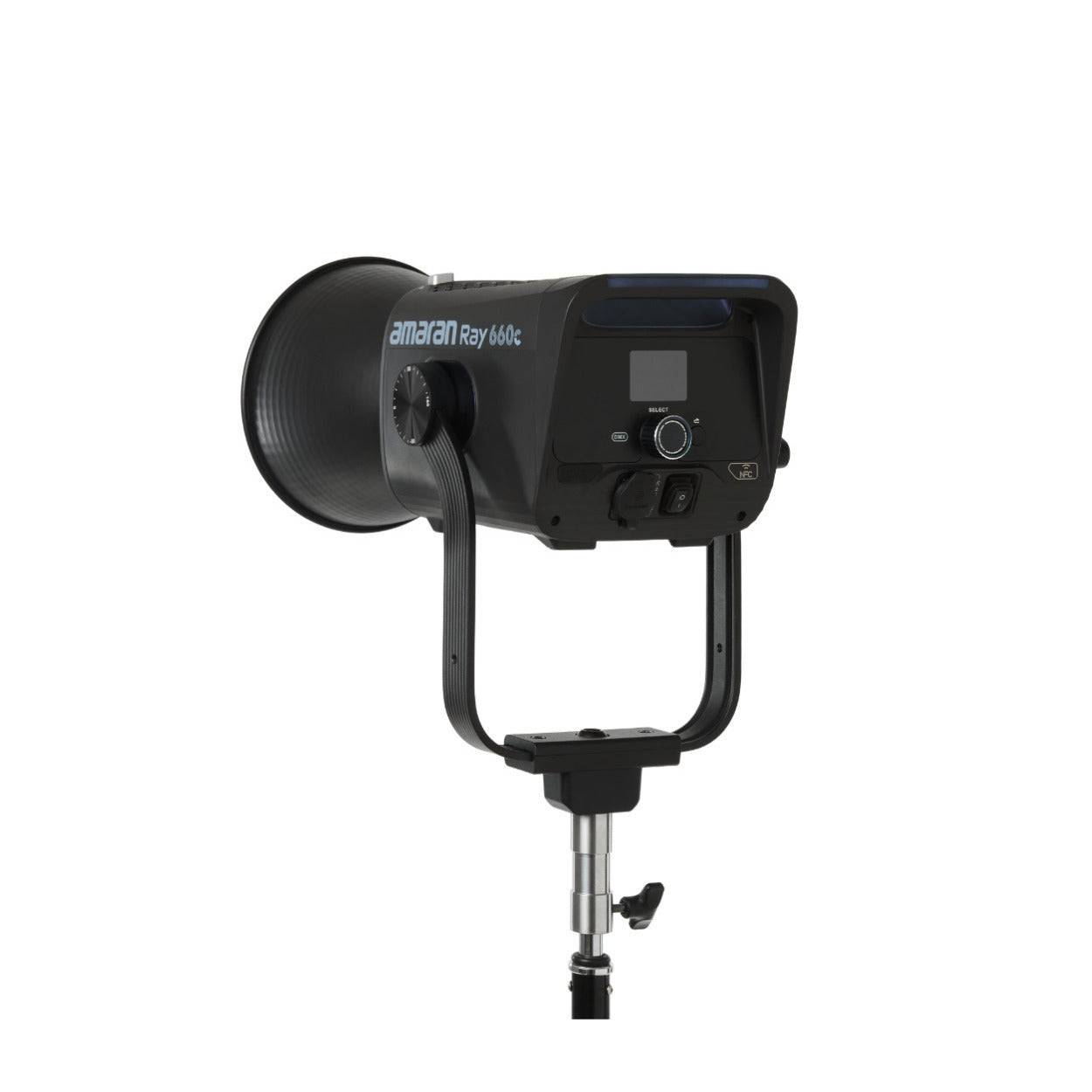

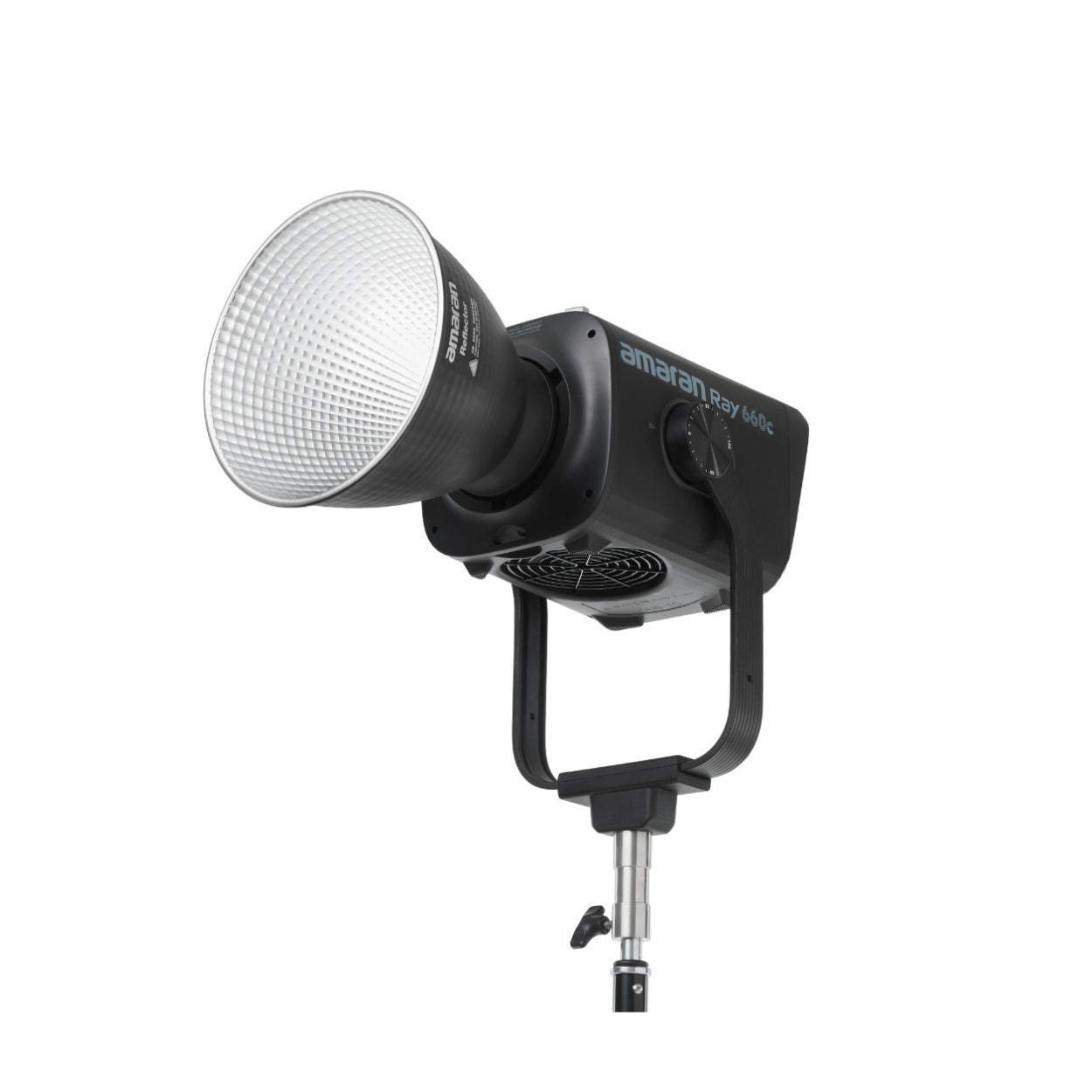

Amaran Ray 660W Full-Color COB Video Light with Integrated AC Power High Output RGBWW LED Lighting
Designed for home studios and on-location spaces that need more punch, the Amaran Ray 660c is a 660W full-color point-source LED light powered by the OmniColor light engine, delivering true-to-life color and powerful, studio-quality output in a streamlined mono-light design that runs on a single AC cable. With DMX control via USB-C and an IP54-rated build for real-world shoots, the Amaran Ray 660c keeps setups simple and efficient, from larger studios to expansive outdoor spaces.
All-in-one design for studio simplicity.
The Amaran Ray 660c is the first full-color COB in its power class to integrate the power supply directly into the light, so you can start creating faster with just a single AC cable. With fewer components to carry, store, and mount, and by eliminating bulky external power bricks to manage, this all-in-one mono-light design keeps your setup efficient and clutter-free.
True-to-life color with OmniColor.
Powered by the OmniColor light engine, the Amaran Ray 660c reproduces light that looks true to life, both on camera and to the eye. Building on Amaran’s previous full-color chipset, OmniColor expands the red and blue ranges to deliver a fuller, more balanced spectrum of light, achieving SSI scores of 87 (Tungsten) and 80 (D56). What you see is what you capture: cleaner whites, truer skin tones, and more accurate color that stays consistent on camera.
Powerful, studio-quality output for larger spaces.
Whether lighting subjects or filling expansive studios, the Amaran Ray 660c delivers up to 38,500 lux at 1 m without accessories, the highest-output Amaran COB light to date. It gives you flexibility to light farther back, use larger softboxes, and fill wider frames. Boost your output with the included reflector, extend your throw with the optional Fresnel, or soften your light with optional Bowens-mount softboxes.
DMX control via USB-C for advanced workflows.
From podcasts to music video sets, add DMX control via the optional USB-C to 5-Pin DMX In & Out adapter to integrate the Amaran Ray 660c with industry-standard consoles and software. Whether programming precise cues, syncing multi-light looks, or triggering repeatable scenes, DMX control via USB-C lets you scale into advanced studio workflows when needed.
Instant, effortless controls.
When you need quick, hands-on control, the Amaran Ray 660c makes setup and adjustments faster, either on the light or in the Amaran app. Use the Flow Turn Knob to fine-tune one step at a time when you need precision, or spin quickly to accelerate through settings when efficiency is key. In the Amaran app, pair your Amaran Ray 660c, or multiple lights in the Ray family, with just a tap via built-in NFC, even before turning them on.

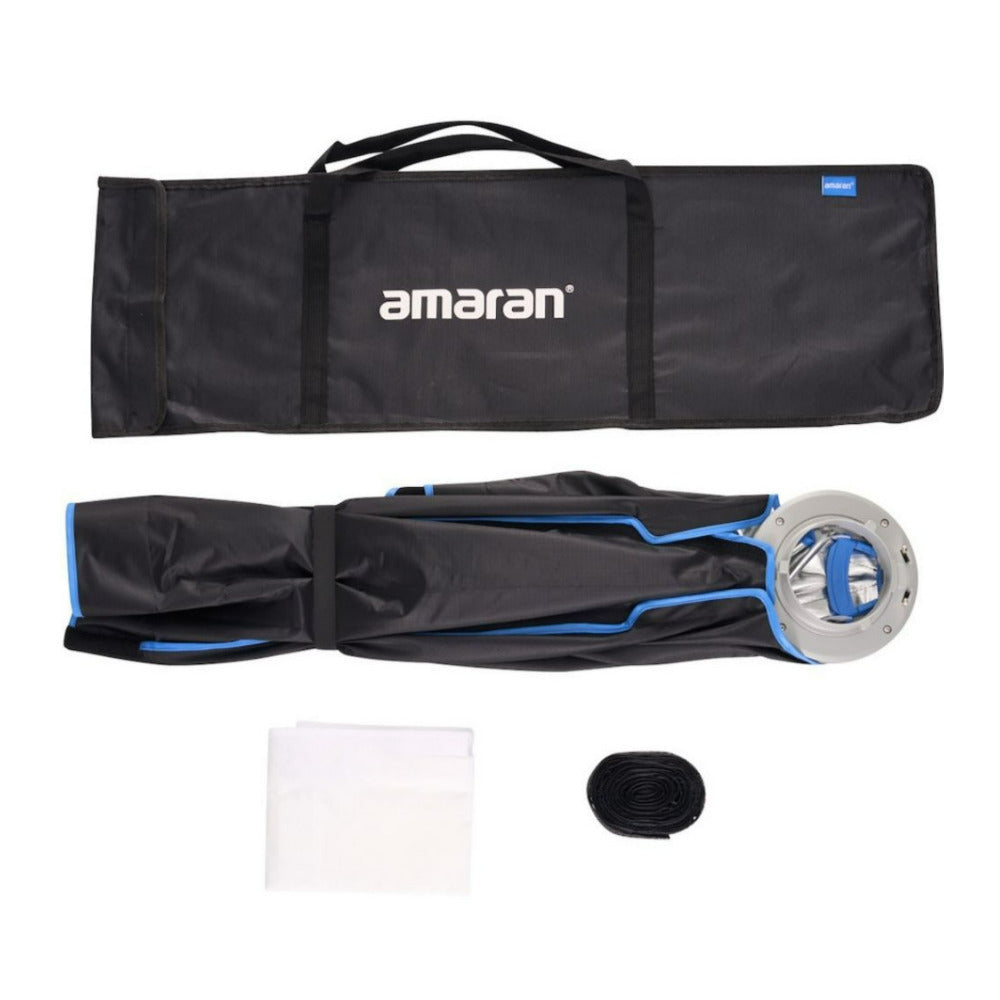

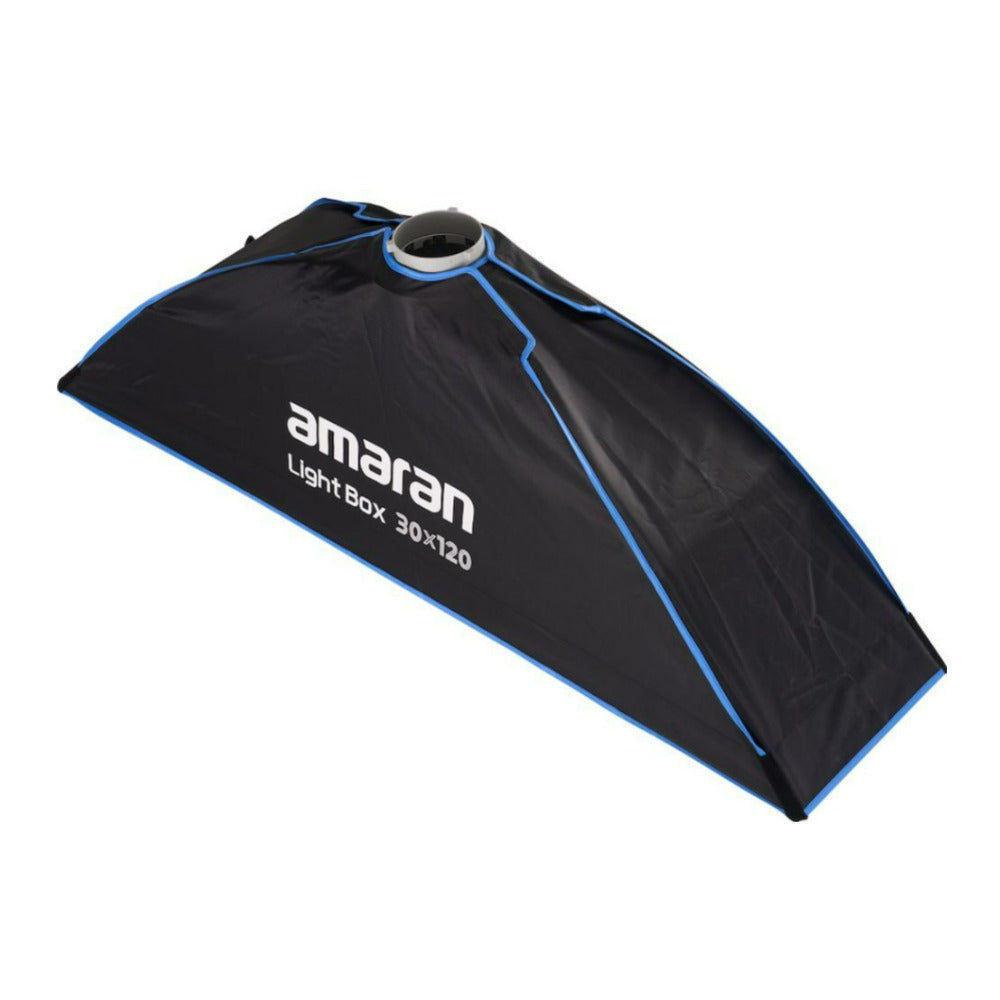

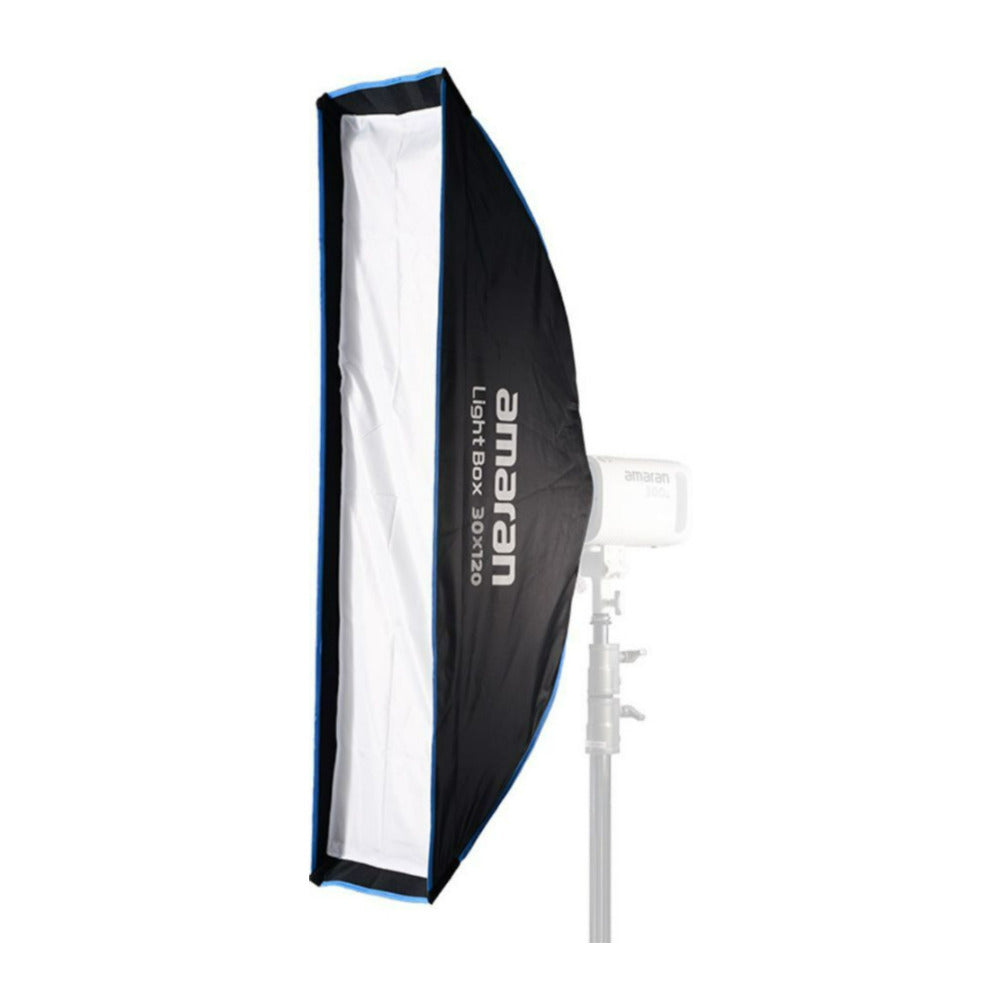

Amaran Light Box 30x120 One-Snap Setup Narrow Rectangular Bowens Mount Softbox with Diffusion
The amaran Light Box 30x120 is a narrow 1×4 ft (30×120 cm) Bowens Mount softbox that sets up in one snap, converting LEDs into soft, linear light ideal for full-length portraits and creative shoots. Its collapsible flat-pack design saves space, and it works with Bowens Mount fixtures up to 600W. Including diffusion and a control grid, it offers precise, portable lighting for home studios and traveling creators. Export is restricted outside the U.S. under ITAR regulations.
ITAR Compliance: Export of this product outside of the United States of America is not allowed and is controlled by the US Department of State.
- Standard: 2,300K – 10,000K
- Expanded (CCT+): 1,800K – 20,000K
- No Reflector: 70°
- With Reflector: 45°
- AC 100V – 240V / 50–60Hz
- 28dBA (30°C / 86°F)
- -10°C – 40°C / 14°F – 104°F
- -20°C – 80°C / -4°F – 176°F
- On-board, Amaran App, DMX²
- Amaran App, USB-C
- ≤80m / ≤262.5ft (Bluetooth)
- TFT
- Active Cooling
Amaran Ray 660W Full-Color COB Video Light
| CCT | |
| CRI | 95+ |
| TLCI | 95+ |
| SSI (Tungsten) | 87 |
| SSI (D56) | 80 |
| TM-30 RG (Average) | 100 |
| TM-30 RF (Average) | 94 |
| Max Power Output | 660W |
| Max Power Consumption | 750W |
| Color Chipset | OmniColor |
| Lumens | 45,904 lumens |
| Weather Resistance Rating | IP54 |
| Beam Angle | |
| Operating Voltage | |
| Max Noise Level | |
| Operating Temperature | |
| Storage Temperature | |
| Control Methods | |
| Firmware Upgradable | |
| Wireless Operating Range | |
| Screen Type | |
| Cooling Method | |
Amaran Light Box 30x120 One-Snap Setup Narrow Rectangular Bowens Mount Softbox with Diffusion
| Dimensions (Built) | 11.81 x 47.24 x 16.14-inch (30.0 x 120.0 x 41.0cm) |
| Dimensions (Collapsed) | 31.89 x 8.27 x 2.76-inch (81.0 x 21.0 x 7.0cm) |
| Diffusion Cloth (1.5 Stop) | 44.80 x 11.06-inch (113.8 x 28.1cm) |
| Inner Baffle Diffusion | 28.27 x 7.44-inch (71.8 x 18.9cm) |
| Light Control Grid | 44.80 x 10.31-inch (113.8 x 26.2cm) |
| Carrying Bag | 32.28 x 10.24-inch (82.0 x 26.0cm) |
| Weight | 1.98 lbs (900g) |
