ASUS TUF Gaming B850-PLUS WIFI Motherboard for Ryzen 9000/8000/7000 Processors
Couldn't load pickup availability
Product highlights
Product highlights
In the box
In the box
Free standard shipping
Free standard shipping
*Orders placed before 1 PM EST Mon - Thur will ship the same day. Orders placed beyond these hours will be shipped the next business day. Exclusions apply. See shipping policy
Free Local Pickup
Free Local Pickup
Please call for store stock availability. Requests made before 2:30 PM EST can be available for next-day pickup. Learn more
ASUS TUF Gaming B850-PLUS WIFI Motherboard for Ryzen 9000/8000/7000...
ASUS TUF GAMING B850-PLUS WIFI takes all the essential elements of the latest AMD Ryzen processors and combines them with game-ready features and proven durability. Engineered with premium components, an upgraded power solution and a comprehensive cooling system, this motherboard goes beyond expectations with rock-solid and stable performance for marathon gaming. TUF GAMING motherboards also undergo rigorous endurance testing to ensure that they can handle conditions where others may fail. This platform delivers the power and connectivity that advanced AI PC applications demand.
Premium Performance
Stable power is crucial for maximizing the performance of AMD processors. The motherboard is designed to meet the needs of high-core-count CPUs. It features 14(80A), 2(80A), and 1(80A) power stages that integrate high-side and low-side MOSFETs and drivers into packages rated for up to 80A each. This configuration ensures optimal power delivery, efficiency, stability and performance for both current and future AMD processors.
Eight Layered PCB Design
This multi-layered printed circuit board design quickly dissipates heat around the voltage regulators to improve overall system stability and provide the CPU with more overclocking headroom.
TUF Components
TUF chokes deliver rock-solid power to the CPU, improving system stability. And TUF 5K black metallic capacitors provide 52% wider temperature tolerance and a 2.5X-longer lifespan than standard motherboard capacitors.
DRAM Overclocking Performance
Comprehensive memory tuning options are the cornerstone of TUF GAMING motherboards. With the motherboard, you can extract all the potential out of your DDR5 modules, whether they're from an extreme-speed kit or an entry-level set that would otherwise be locked.
ASUS AEMP
ASUS Enhanced Memory Profile (AEMP) is an exclusive firmware feature for PMIC-restricted memory modules. AEMP automatically detects the memory chips on your kit and then presents optimized frequency, timing and voltage profiles that you can quickly apply.
M.2 PCIe 5.0 Support
This motherboard also features one PCIe 5.0 M.2 slot to enjoy the fastest data transfers of up to 128 Gbps, and all M.2 slots support NVMe RAID configurations to take advantage of the latest available speeds.
Multiple Temperature Sources
Each header can dynamically reference three thermal sensors. Fan Xpert 4 allows you to map the temperature of supported ASUS graphics cards to optimize cooling for GPU- and CPU-intensive tasks.
Superb PCH Heatsink
An expanded surface area for the chipset cooler maximizes system performance and heat dissipation.
Smart Fan Protection
A dedicated integrated circuit protects each fan header from excess heat and electrical currents.
Rear USB 20Gbps Type-C
Extensive USB support ensures connections to a wide array of external devices. This motherboard includes a USB 20Gbps Type-C port on the rear I/O panel that delivers transfer speeds of up to 20Gbps.

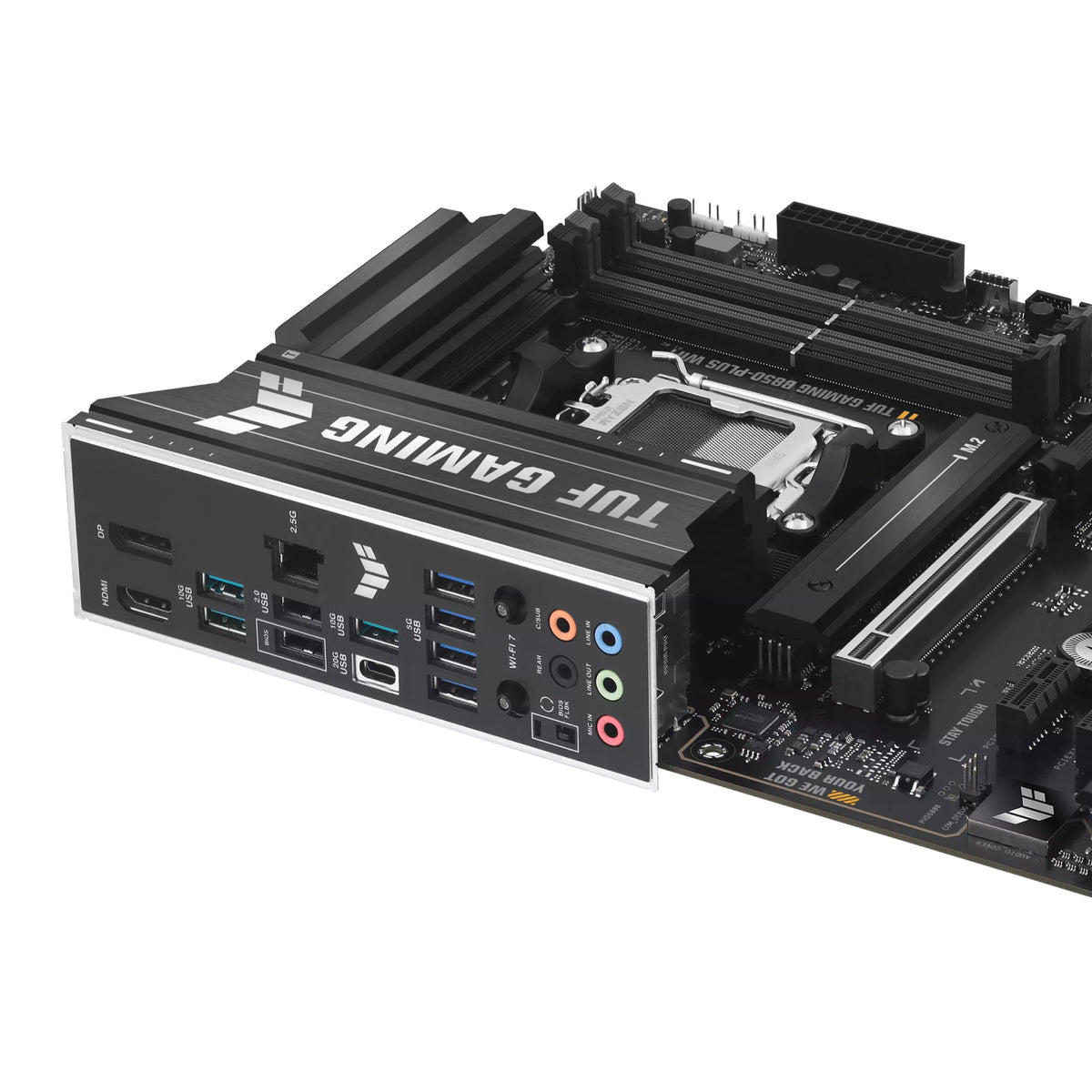

Pre-mounted I/O Shield
Our pre-installed I/O shield safeguards ports, simplifies the build process, increases functionality and enhances aesthetics for PC DIY enthusiasts.

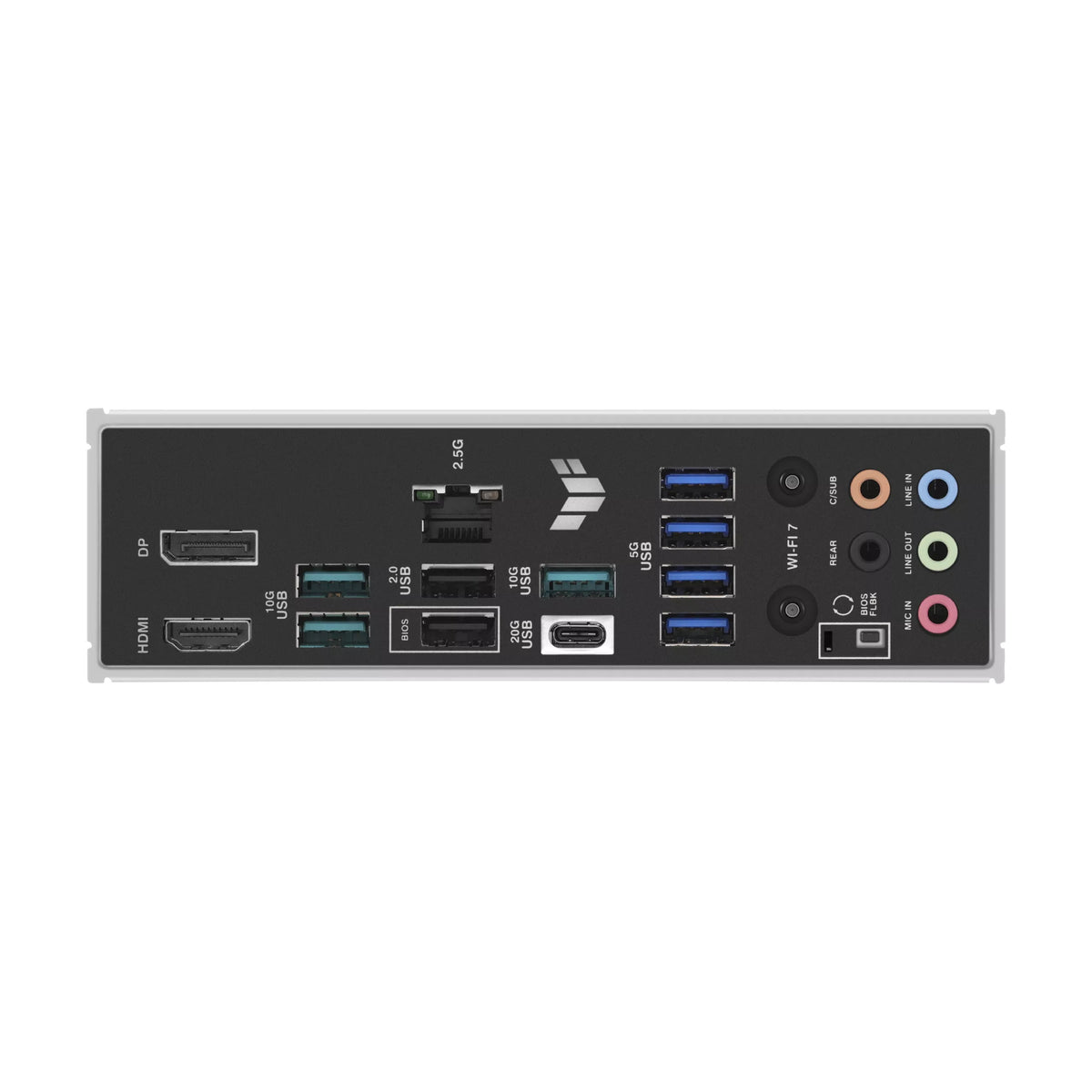

Stainless Steel Back I/O Panel
TUF Gaming motherboards features a corrosion-resistant stainless steel rear I/O panel with up to a 3X longer lifespan. These models pass a rigorous 72-hour salt fog test, surpassing the industry standard.

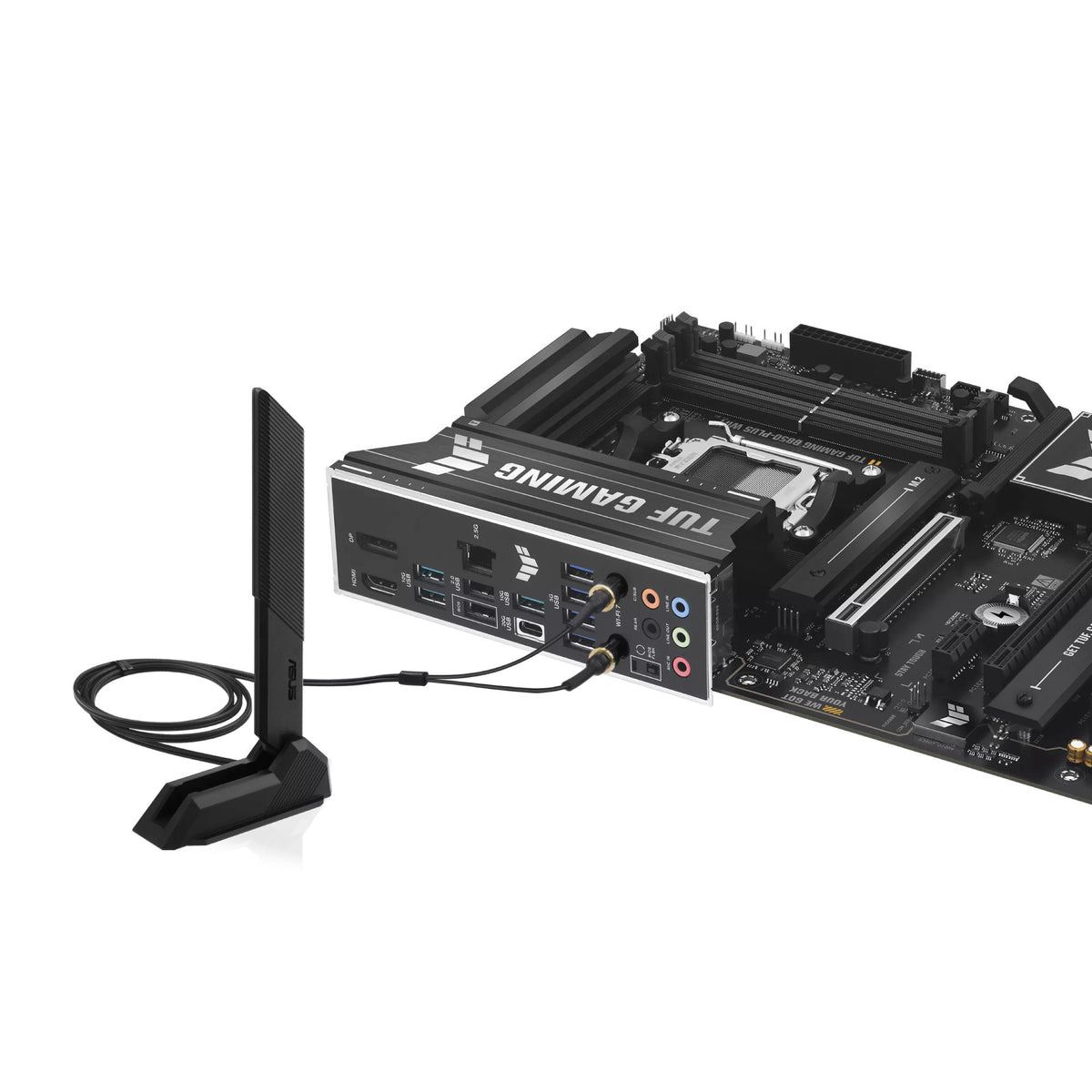

Ultrafast Networking
WiFi 7 ensures stable connections and low latency, and on-board 2.5Gb Ethernet kicks your LAN connection up a notch by improving bandwidth speeds up to 2.5X faster than 1Gb connections.
CPU
| CPU | AMD Socket AM5 for AMD Ryzen 9000 /8000 / 7000 Series Desktop Processors |
| Chipset | AMD B850 Chipset |
RAM Memory
| Memory Slots | 4 x DIMM slots / max. 256GB / DDR5 |
| Memory Slots Compatibility | Supports up to 8000+ MT/s (OC) with Ryzen 9000 /8000 / 7000 Series Processors, ECC and Non-ECC Un-buffered DIMM |
| Dual Channel Memory Architecture | Supports AMD Extended Profiles for Overclocking (EXPO) and ASUS Enhanced Memory Profile (AEMP). |
Graphics
| Ports | 1 x DisplayPort, 1 x HDMI Port |
| Graphics Compatibility | Graphics specifications may vary between CPU types. Please refer to AMD CPU specifications. Supports max. 8K at 30Hz as specified in DisplayPort 1.4, and supports 4K at 60Hz as specified in HDMI 2.1. |
Expansion Slots
| AMD Ryzen 9000 and 7000 Series Desktop Processors | 1 x PCIe 5.0 x16 slot (supports x16 mode) |
| AMD Ryzen 8000 Series Desktop Processors | 1 x PCIe 4.0 x16 slot (supports x8/x4 mode) |
| AMD B850 Chipset | 1 x PCIe 4.0 x16 slot (supports x4 mode), 2 x PCIe 4.0 x1 slots |
Storage
| Total Supports | 3 x M.2 slots and 4 x SATA 6Gb/s ports |
| AMD Ryzen 9000 / 7000 Series Desktop Processors | M.2 x 1 slot (Key M), type 2280 (supports PCIe 5.0 x4 mode) / M.2 x 2 slot (Key M), type 2242/2260/2280/22110 (supports PCIe 4.0 x4 mode) |
| AMD Ryzen 8000 Series Desktop Processors | M.2 x 1 slot (Key M), type 2280 (supports PCIe 4.0 x4 mode) / M.2 x 2 slot (Key M), type 2242/2260/2280/22110 (supports PCIe 4.0 x4/x2 mode) |
| AMD B850 Chipset | M.2 x 3 slot (Key M), type 2280 (supports PCIe 4.0 x4 mode) / 4 x SATA 6Gb/s ports |
Ethernet
| Ethernet | 1 x Realtek 2.5Gb Ethernet / TUF LANGuard |
Wireless and Bluetooth
| Wi-Fi Compatibility | 2x2 Wi-Fi 7 (802.11be), Supports 2.4/5/6GHz frequency band |
| Wi-Fi Bandwidth | Supports Wi-Fi 7 160MHz bandwidth, up to 2.9Gbps transfer rate |
| Bluetooth | v5.4 compatible |
USB
| Rear USB (Total 10 ports) | 1 x USB 20Gbps port (1 x USB Type-C) / 3 x USB 10Gbps ports (3 x Type-A) / 4 x USB 5Gbps ports (4 x Type-A) / 2 x USB 2.0 ports (2 x Type-A) |
| Front USB (Total 7 ports) | 1 x USB 10Gbps connector (supports USB Type-C) / 1 x USB 5Gbps header supports 2 additional USB 5Gbps ports / 2 x USB 2.0 headers support 4 additional USB 2.0 ports |
| USB Type-C Power Delivery Output | Max. 5V/3A |
Audio
| Realtek ALC1220P 7.1 CODEC | Impedance sense for front and rear headphone outputs, internal audio amplifier to enhance the highest quality sound for headphone and speakers, supports jack-detection, multi-streaming and front Panel jack-retasking, and provides high quality 120 dB SNR stereo playback output and 113 dB SNR recording input (Line-in). |
| Audio Key Features | Audio Shielding, premium audio capacitors, dedicated audio PCB layers, audio cover, and unique de-pop circuit. |
| Audio Bandwidth Limitations | Due to limitations in HDA bandwidth, 32-Bit/192 kHz is not supported for 7.1 Surround Sound audio. |
Back Panel I/O Ports
| Back Panel I/O Ports | 1 x USB 20Gbps port (1 x USB Type-C) / 3 x USB 10Gbps ports (3 x Type-A) / 4 x USB 5Gbps ports (4 x Type-A) / 2 x USB 2.0 ports (2 x Type-A) / 1 x DisplayPort / 1 x HDMI port / 1 x Wi-Fi module / 1 x Realtek 2.5Gb Ethernet port / 5 x Audio jacks / 1 x BIOS FlashBack button |
Internal I/O Connectors
| Fan and Cooling Related | 1 x 4-pin CPU Fan header / 1 x 4-pin CPU OPT Fan header / 1 x 4-pin AIO Pump header / 4 x 4-pin Chassis Fan headers |
| Power Related | 1 x 24-pin Main Power connector / 2 x 8-pin +12V CPU Power connectors |
| Storage Related | 3 x M.2 slots (Key M) / 4 x SATA 6Gb/s ports |
| USB | 1 x USB 10Gbps connector (supports USB Type-C) / 1 x USB 5Gbps header supports 2 additional USB 5Gbps ports / 2 x USB 2.0 headers support / 4 additional USB 2.0 ports |
| Miscellaneous | 3 x Addressable Gen 2 headers / 1 x Clear CMOS header / 1 x Chassis Intrusion header / 1 x COM Port header / 1 x Front Panel Audio header (F-AUDIO) / 1 x 10-1 pin Front System Panel header / 1 x Thunderbolt (USB4) header |
Special Features
| ASUS TUF Protection | DIGI+ VRM (Digital power design with DrMOS) / ESD Guards / TUF LANGuard / Overvoltage protection / SafeSlot / Stainless-steel back I/O |
| ASUS Q-Design | M.2 Q-Latch / PCIe Slot Q-Release / Q-Antenna / Q-Dashboard / Q-DIMM / Q-LED (CPU in red, DRAM in yellow, VGA in white, Boot Device in yellow-green) / Q-Slot |
| ASUS Thermal Solution | M.2 heatsink / VRM heatsink design |
| ASUS EZ DIY | BIOS FlashBack button / BIOS FlashBack LED / ProCool / Pre-mounted I/O shield / SafeDIMM |
| Aura Sync | Addressable Gen 2 headers |
Software Features
| ASUS Exclusive Software | Armoury Crate / Aura Creator / Aura Sync / Fan Xpert 4 / Power Saving |
| ASUS EZ DIY | ASUS CrashFree BIOS 3 / ASUS EZ Flash 3 / ASUS UEFI BIOS EZ Mode / ASUS MyHotkey |
| Addional Compatible Software | ASUS DriverHub / ASUS GlideX / TurboV Core / TUF GAMING CPU-Z / DTS Audio Processing / Norton 360 for Gamers (60 Days Free Trial) / WinRAR (40 Days Free Trial) / UEFI BIOS |
Miscellaneous
| BIOS | 256 Mb Flash ROM, UEFI AMI BIOS |
| Manageability | WOL by PME, PXE |
| Operating System | Windows 11 |
| Form Factor | ATX Form Factor |
| Dimensions | 12 inch x 9.6 inch (30.5 cm x 24.4 cm) |
