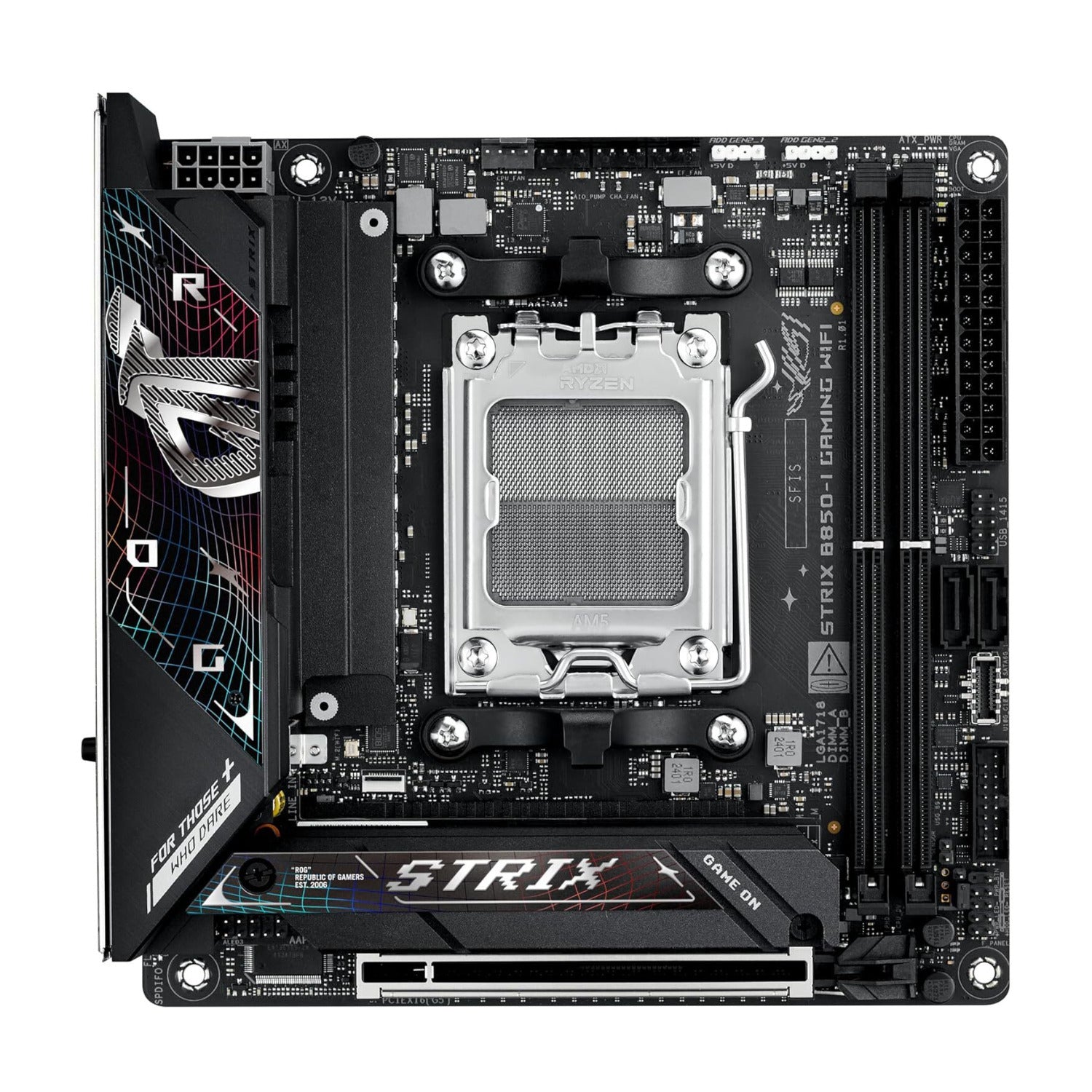

ASUS ROG Strix B850-I Gaming AMD B850 Mini-ITX Motherboard with Power Stages
Couldn't load pickup availability
Product highlights
Product highlights
In the box
In the box
Free standard shipping
Free standard shipping
*Orders placed before 1 PM EST Mon - Thur will ship the same day. Orders placed beyond these hours will be shipped the next business day. Exclusions apply. See shipping policy
Free Local Pickup
Free Local Pickup
Please call for store stock availability. Requests made before 2:30 PM EST can be available for next-day pickup. Learn more
The ROG Strix B850-I Gaming WiFi integrates cutting-edge technology into a sleek mini-ITX form factor. It features PCIe 5.0 slots for graphics and storage, dual-channel DDR5 slots and robust power delivery for top-tier gaming and heavy workloads. Meanwhile, advanced cooling solutions maintain peak performance, and WiFi 7 ensures ultra-fast connectivity. This platform delivers the power and connectivity that advanced AI PC applications demand.
AMD AM5 Socket
Ready for AMD Ryzen 9000, 8000 and 7000 series desktop processors
Intelligent Control
ASUS AI Advisor, AI Overclocking, AI Networking II and AEMP to simplify setup and improve performance
Robust Power Solution
10+2+1 power solution rated for up to 90A per stage with ProCool power connectors
Optimized Thermal Design
Massive heatsinks with integrated I/O cover and high-conductivity thermal pads
Latest M.2 Support
Two onboard PCIe 5.0 M.2 slots, one cooled by a large heatsink to maximize performance, and the other for additional storage
Abundant Connectivity
USB 20Gbps Type-C port, USB 10Gbps Type-C front-panel connector, five additional USB 10Gbps ports, PCIe 5.0 x16 SafeSlot, HDMI port
High-Performance Networking
On-board WiFi 7 (802.11be) with Intel 2.5 Gb Ethernet
DIY Friendly Design
PCIe Slot Q-Release Slim, M.2 Q-Slide, M.2 Q-Latch, Q-Antenna, Q-Dashboard, Q-LED, BIOS FlashBack button, Clear CMOS button, FlexKey button and pre-mounted I/O shield
Immersive Audio
ROG SupremeFX ALC4080 codec with Savitech SV3H712 amplifier, along with Dolby Atmos
Unmatched Personalization
ASUS-exclusive Aura Sync RGB lighting, including two addressable Gen 2 headers
Renowned Software
ASUS DriverHub, TurboV Core, ASUS GlideX, HWiNFO, Norton 360 for Gamers (60-day free trial), bundled 60-day AIDA64 Extreme trial subscription and intuitive UEFI BIOS dashboard.
- Ryzen 9000: up to 8200+ MT/s
- Ryzen 8000: up to 9600+ MT/s
- Ryzen 7000: up to 8000+ MT/s
- Ryzen 7000 & 9000: PCIe 5.0 ×4
- Ryzen 8000: PCIe 4.0 ×4
- 1 × USB 20 Gbps (Type-C)
- 5 × USB 10 Gbps (4 × Type-A + 1 × Type-C)
- 2 × USB 2.0 (Type-A)
- 1 × USB 10 Gbps
- 1 × USB 5 Gbps header (supports 2 additional ports)
- 1 × USB 2.0 header (supports 2 additional ports)
- USB Type-C PD output: max 5 V/3 A
- Impedance sense for headphones
- Jack detection, multi-streaming, MIC jack retasking
- 120 dB SNR stereo playback, 110 dB SNR recording input
- Supports up to 32-bit/384 kHz playback (front panel)
CPU
| AMD Socket AM5 | |
| Supports AMD Ryzen 9000, 8000 & 7000 Series Desktop Processors |
Chipset
| AMD B850 Chipset |
Memory
| 2 × DIMM slots, max. 128 GB, DDR5 | |
| Supported speeds (OC) | |
| Supports ECC and Non-ECC Un-buffered DIMMs* | |
| Dual-channel memory architecture | |
| AMD EXPO & ASUS AEMP support for optimized memory overclocking | |
| *Non-ECC DDR5 supports On-Die ECC function | |
| Memory compatibility depends on CPU and module configuration |
Graphics
| 1 × HDMI port (Supports 4K @ 60 Hz via HDMI 2.1) | |
| 1 × USB 10 Gbps port (Type-C with DisplayPort 1.4a, max 4K @ 60 Hz) | |
| Graphics capabilities vary by CPU |
Expansion Slots
| Ryzen 9000 & 7000 Series | 1 × PCIe 5.0 ×16 (Q-Release Slim) |
| Ryzen 8000 Series | 1 × PCIe 4.0 ×16 (Q-Release Slim) |
Storage
| 2 × M.2 slots (Key M) | |
| 2 × SATA 6 Gb/s ports | |
| M.2 support varies by CPU |
Ethernet
| 1 × Intel 2.5 Gb Ethernet | |
| ASUS LANGuard |
Wireless & Bluetooth
| Wi-Fi 7 (802.11be) 2×2, 2.4/5/6 GHz bands, up to 2.9 Gbps | |
| Bluetooth v5.4 | |
| Wi-Fi 7 requires Windows 11 24H2 or later for full function |
USB Ports
| Rear (8 ports) | |
| Front (5 ports) |
Audio
| ROG SupremeFX 7.1 HD Audio CODEC (ALC4080) | |
| Audio Features | SupremeFX Shielding, Savitech SV3H712 AMP, rear optical S/PDIF, premium capacitors, audio cover |

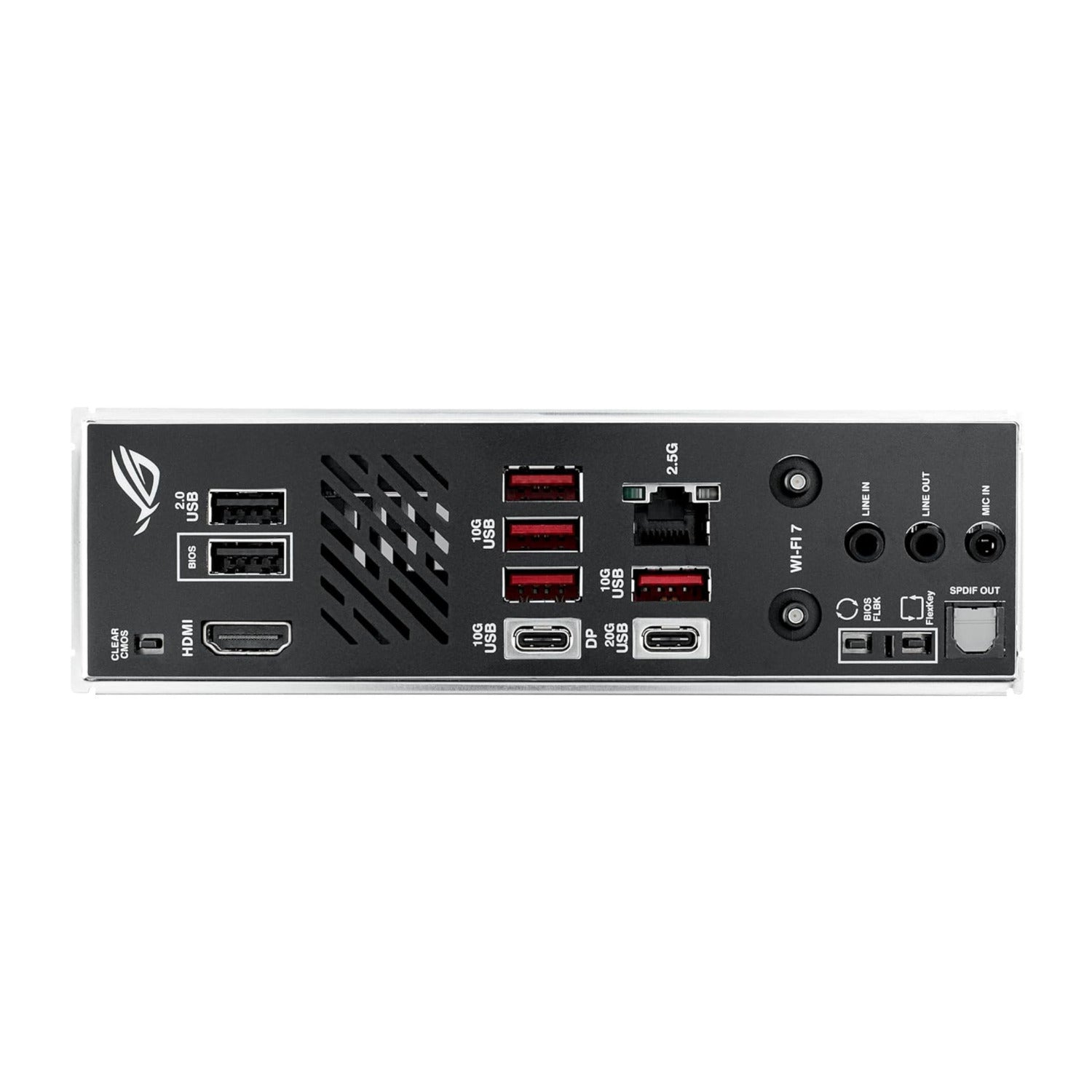

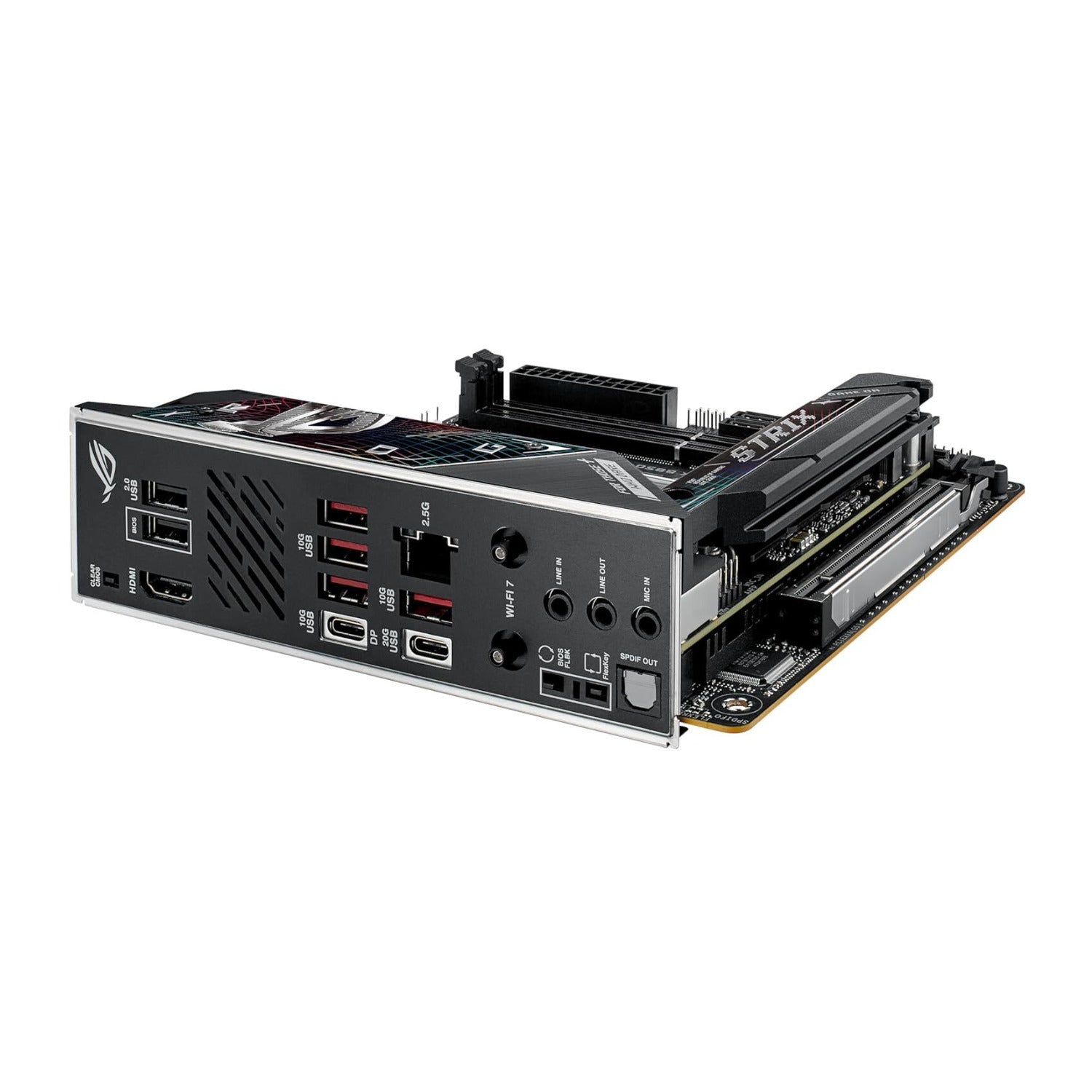

Back Panel I/O
| 1 × USB 20 Gbps | |
| 5 × USB 10 Gbps (4 × Type-A + 1 × Type-C DP Alt Mode) | |
| 2 × USB 2.0 (Type-A) | |
| 1 × HDMI port | |
| 1 × Wi-Fi module | |
| 1 × Intel 2.5 Gb Ethernet | |
| 3 × Audio jacks, 1 × Optical S/PDIF out | |
| 1 × BIOS FlashBack button | |
| 1 × Clear CMOS button | |
| 1 × FlexKey button |
Internal I/O Connectors
| Fan/Cooling | CPU, Extra Flow, AIO Pump, Chassis fan headers |
| Power | 24-pin main, 8-pin +12V CPU |
| Storage | 2 × M.2, 2 × SATA 6 Gb/s |
| USB | 1 × 10 Gbps Type-C, 1 × 5 Gbps header (2 ports), 1 × USB 2.0 header (4 ports) |
| Miscellaneous | 2 × Addressable Gen2 headers, CPU Over-voltage jumper, F_AUDIO header, Front Panel 10-1 pin, Thermal Sensor header |
Special Features
| Extreme Engine Digi+, 5K Black metallic capacitors | |
| ASUS Q-Design | M.2 Q-Latch, M.2 Q-Slide, PCIe SafeSlot Q-Release, Q-Antenna, Q-Dashboard, Q-DIMM, Q-LED, Q-Slot |
| Thermal Solution | M.2 heatsinks & backplate |
| EZ DIY | BIOS FlashBack, Clear CMOS, ProCool, Pre-mounted I/O shield, SafeSlot, SafeDIMM |
| Aura Sync | Addressable Gen2 headers |
Software Features
| ROG Exclusive | ROG CPU-Z, Dolby Atmos |
| ASUS Armoury Crate | AIDA64 trial, Aura Creator, Aura Sync, Fan Xpert 4, GameFirst, HWiNFO, Power Saving |
| ASUS DriverHub, GlideX, TurboV Core | |
| Free trials | Adobe Creative Cloud, Norton 360, WinRAR |
BIOS
| UEFI AMI BIOS, 256 Mb Flash ROM | |
| ASUS CrashFree BIOS 3, EZ Flash 3, EZ Mode, MyHotkey |
Manageability
| WOL by PME, PXE |
Operating System
| Windows 11 |
Form Factor
| Mini-ITX (6.7 × 6.7 inch / 17 × 17 cm) |
