ASUS TUF GAMING Z790-PLUS WIFI LGA 1700 ATX Gaming Motherboard
Bring speed and connectivity to your build with the TUF GAMING Z-790 PLUS WIFI LGA 1700 ATX Motherboard from ASUS. Utilizing the Intel Z790 chipset and LGA 1700 socket, this motherboard is compatible with 13th Gen Intel processors. Install up to 192GB of DDR5 RAM across four memory slots. Four M.2 and four SATA III interfaces allow for ample storage, while PCIe 5.0 x16, 4.0 x16, 4.0 x4, and two 3.0 x1 slots accommodate adapter cards.
Connect to wired peripherals via USB-C 3.2 Gen 2x2 and 3.2 Gen 2 ports, or via two USB-A 3.2 Gen 2 and four 3.2 Gen 1 ports. Output video via DisplayPort 1.4 or HDMI 2.1 interfaces. An RJ45 port supports 2.5 Gigabit Ethernet, and the included antenna allows for Wi-Fi 6E connectivity. The rear I/O panel also sports five 1/8in audio jacks and a S/PDIF output for digital audio. Internal headers provide support for fans, Clear CMOS, Thunderbolt 4, RGB lighting, and front-panel USB-C 3.2 Gen 2 and USB-A 3.2 Gen 1 and 2.0 ports. The ASUS TUF GAMING Z-790 PLUS WIFI LGA 1700 ATX Motherboard is compatible with Windows 10 and 11 64-bit operating systems.
Intel LGA 1700 Socket
The Intel LGA 1700 socket is compatible with 13th Gen Intel Core processors.
Z790 Chipset
Compatible with 13th Gen or Raptor Lake CPUs, this chipset is optimized for overclocking support and fast performance.
Enhanced Power Solution
A 16+1 Phase Power DrMOS, six-layer PCB, ProCool sockets, alloy chokes, and durable capacitors allow for stable power delivery.
Connectivity to the Core
Connect to fast internals and accessories using PCIe 5.0 and Thunderbolt 4 headers, plus support for a front-panel USB-C 3.2 Gen 2x2 port.
Made for Online Gaming
Hop online and keep abreast of the action with Wi-Fi 6E and Intel 2.5 Gigabit Ethernet. Plus, a TUF LANGuard design ensures optimized surge tolerance for greater protection.
Two-Way AI Noise Cancellation
Reduce background noise for crystal-clear communication in games or video conferences.
Cool by Design
Use AI Cooling II to balance thermals and acoustics of any build with a single click. Enlarged VRM, PCH, and M.2 heat sinks, hybrid fan headers, and Fan Xpert 4 utility via Armoury Crate allow for comprehensive cooling.
Aura Sync RGB Effects
An edge lighting design, addressable RGB headers, and RGB strip header support let you set the mood for your favorite games.
DIY Design
A PCIe slot Q-release, M.2 Q-latch, Q-LED, and SafeSlot allow for easy installation of components, meaning you can get up and running fast.
USB 3.2 Gen 2
Doubling the speed of its predecessor, USB 3.2 Gen 2 features a maximum throughput of 10 Gb/s when used with compatible devices and is synonymous with USB 3.1 Gen 2.
- 1x USB-C (USB 3.2 Gen 2x2)
- 1x USB-C (USB 3.1/3.2 Gen 2)
- 2x USB-A (USB 3.1/3.2 Gen 2)
- 4x USB-A (USB 3.0 / 3.1/3.2 Gen 1)
- 1x HDMI 2.1
- 1x DisplayPort 1.4
- 5x 1/8 in / 3.5 mm
- 1x S/PDIF
- 2x M.2 (M Key) 2242, 2260, 2280, 22110 (PCIe 4.0 x4)
- 1x M.2 (M Key) 2242, 2260, 2280 (PCIe 4.0 x4)
- 1x M.2 (M Key) 2242, 2260, 2280 (PCIe 4.0 x4, SATA (Unspecified))
- RAID 0, 1, 5, 10 (SATA)
- RAID 0, 1, 5, 10 (M.2)
- 1x PCIe 5.0 x16
- 1x PCIe 4.0 x16 (x4 mode)
- 1x PCIe 4.0 x4
- 2x PCIe 3.0 x1
- 1x USB 3.1/3.2 Gen 2 Header (Supports 1 USB-C Port)
- 1x USB 3.0 / 3.1/3.2 Gen 1 Header (Supports 2 USB-A Port)
- 2x USB 2.0 Header (Supports 4 USB-A Port)
- 2x 4-Pin CPU
- 4x 4-Pin System
- 1x 24-Pin Mainboard
- 2x 8-Pin ATX
CPU
| Chipset | Intel Z790 |
| CPU Socket | LGA 1700 |

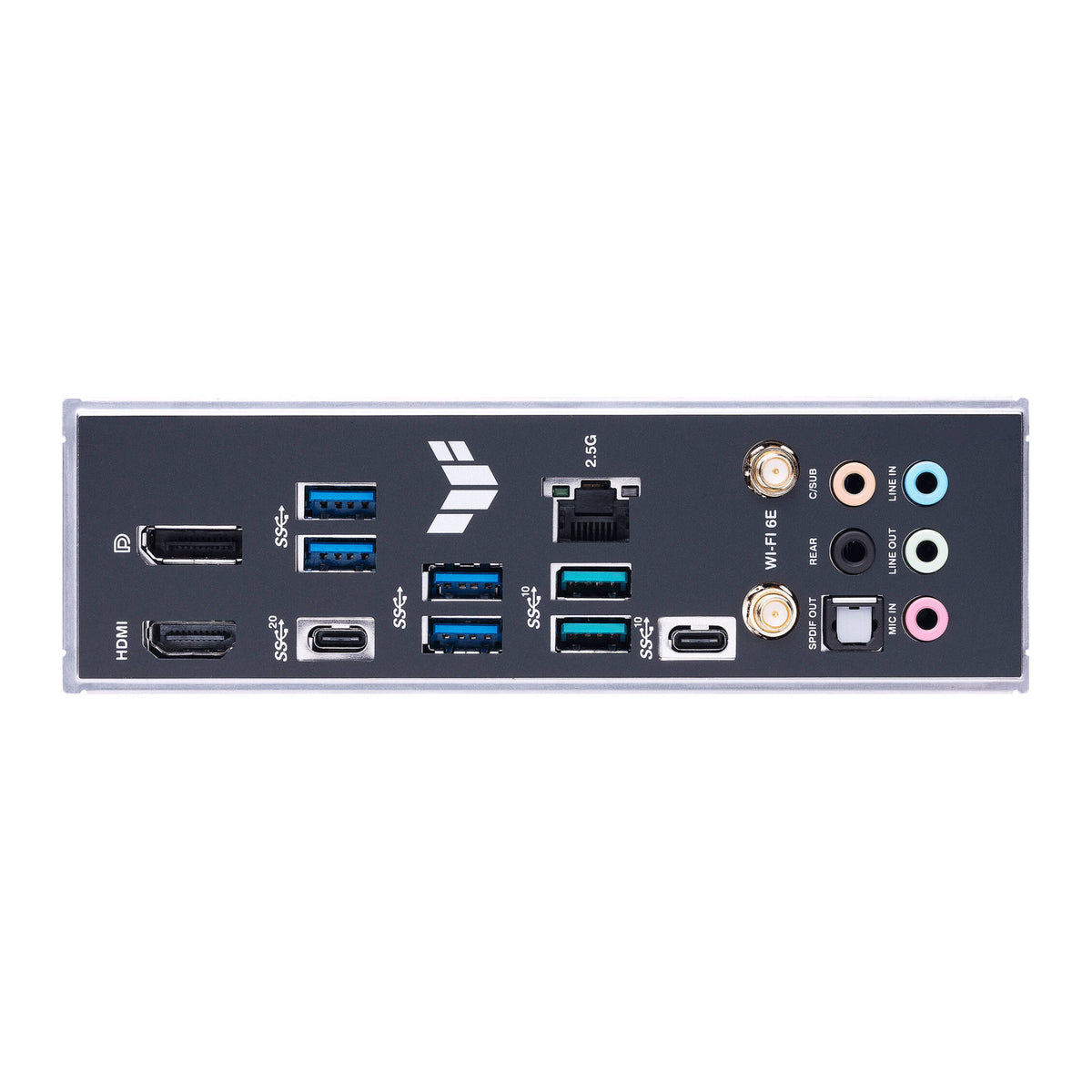

Back Panel I/O
| USB | |
| Thunderbolt | No |
| Display | |
| Audio | |
| Ethernet / Controller | 1x Intel 2.5Gigabit |
| Wi-Fi Antenna | 2x Connector |
Memory
| Memory Slots | 4x 288-Pin |
| Memory Support | DDR5 4800, 5000, 5200, 5400, 5600, 5800, 6000, 6200, 6400, 6600, 6800, 7000, 7200 MT/s |
| Maximum Capacity | 192 GB |
| Channel Architecture | Dual Channel |
| ECC Support | Non-ECC Unbuffered |
Storage Expansion
| SATA | 4x SATA III |
| Storage Slots | |
| RAID Support | |
Internal I/O
| Expansion Slots | |
| USB | |
| Air Cooling | |
| Liquid Cooling | 1x 4-Pin Pump |
| Power Connectors | |
| Security | Chassis Intrusion |
| LED Header | 4x RGB |
| Diagnostics | Clear CMOS |
| Add-On | 1x Thunderbolt Header |
| Legacy | 1x Serial |
BIOS
| ROM | 192 Mb |
Front Panel I/O
| Front Panel I/O | AAFP, USB 3.0 / 3.1/3.2 Gen 1, Thunderbolt 4 |
Audio
| Audio Codec | Realtek S1220A (7.1-Channel) |
| DAC | No |
Wireless
| Wi-Fi | Wi-Fi 6E (802.11ax) with MU-MIMO Support |
| Bluetooth | 5.3 |
Software
| OS Compatibility | Windows 10 to 11 (64-Bit Only) |
Physical
| Form Factor | ATX |
| Dimensions | 12 x 9.6 in / 30.5 x 24.4 cm |
