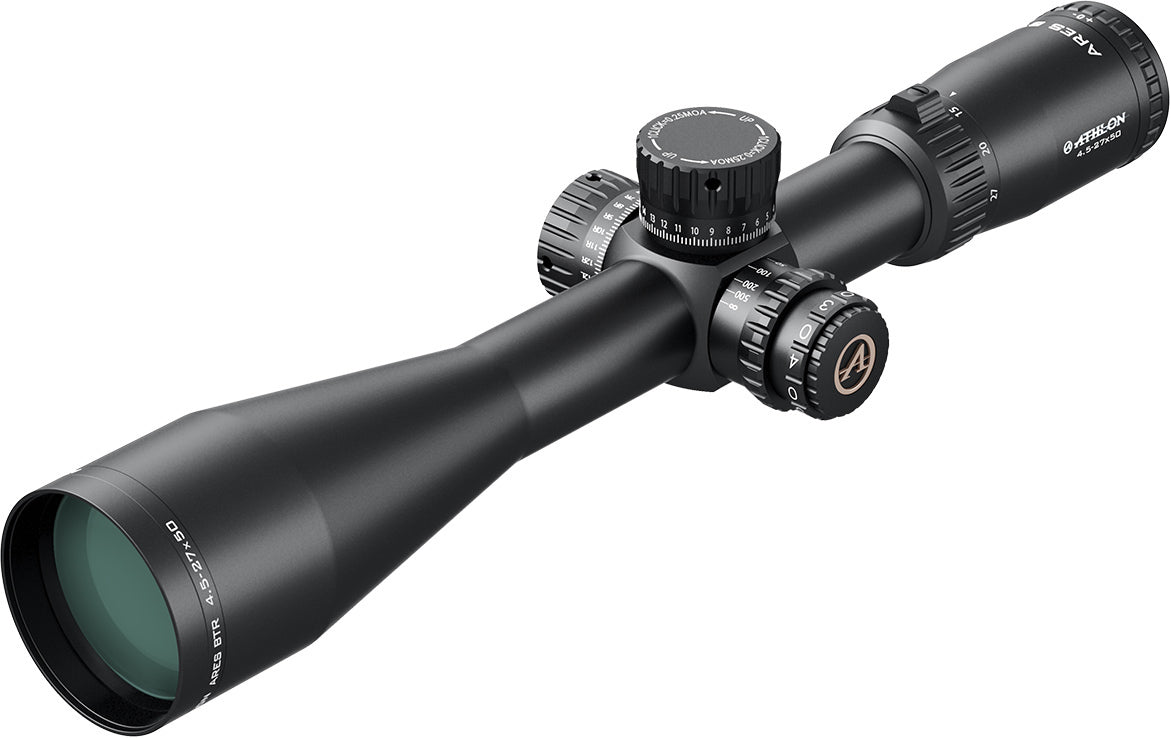

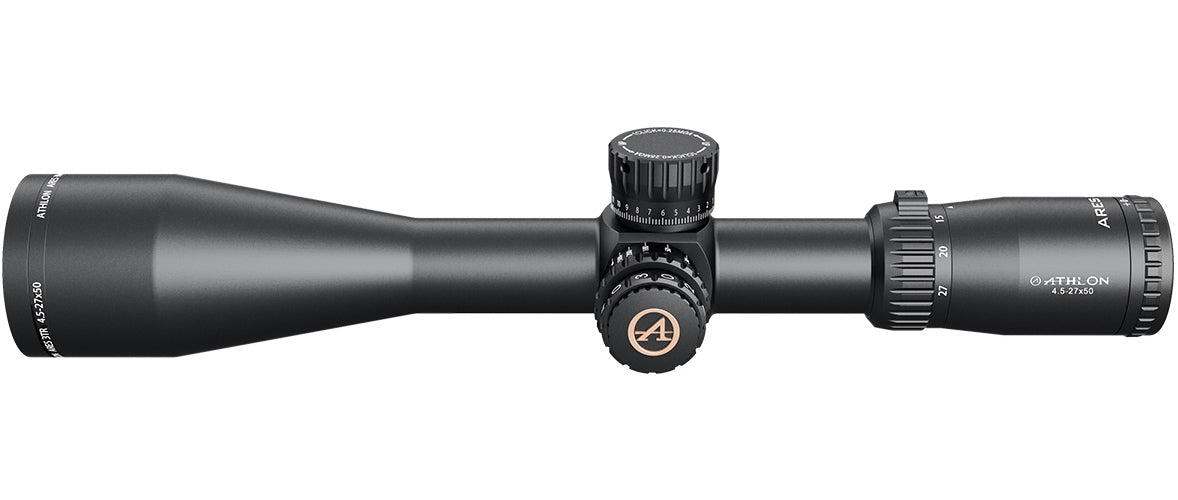

Athlon Optics Ares BTR 4.5-27x5 Riflescope (Exp, SF, APLR3 FFP IR MIL Reticle)
Couldn't load pickup availability
Product highlights
Product highlights
In the box
In the box
Free standard shipping
Free standard shipping
*Orders placed before 1 PM EST Mon - Thur will ship the same day. Orders placed beyond these hours will be shipped the next business day. Exclusions apply. See shipping policy
Free Local Pickup
Free Local Pickup
Please call for store stock availability. Requests made before 2:30 PM EST can be available for next-day pickup. Learn more
When you want the best features from the top-tier riflescopes but not break the bank, look no further than the new Ares BTR first focal plane riflescope family. This feature rich riflescope is set to take the market by storm. HD Glass and advanced fully multicoated optics deliver crisp bright images for taking long range shots. The one piece tube, precision-machined from aircraft-grade 6061-T6 aluminum will deliver precise, accurate results all day long. With a precise true zero stop feature, you won’t find this product in the market at this price point, it just didn't exist until NOW! This Ares BTR 4.5-27x50 Model has the APLR3 first focal plane illuminated MIL reticle in it.
HD Glass
HD Glass gives you better light transmission, brighter, and sharper image.

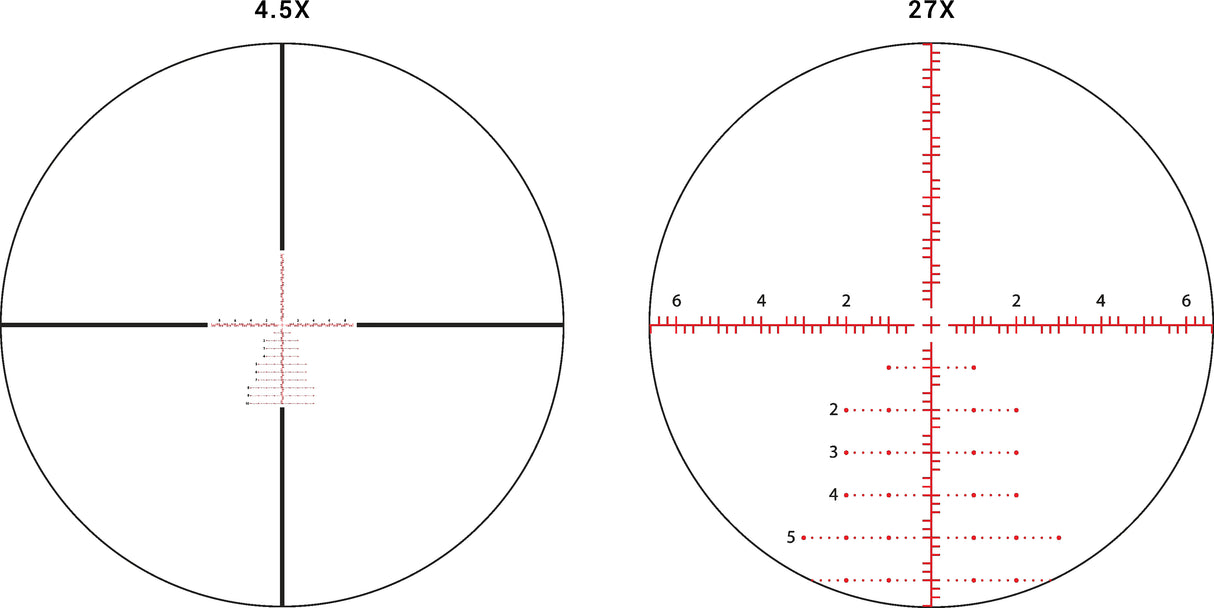

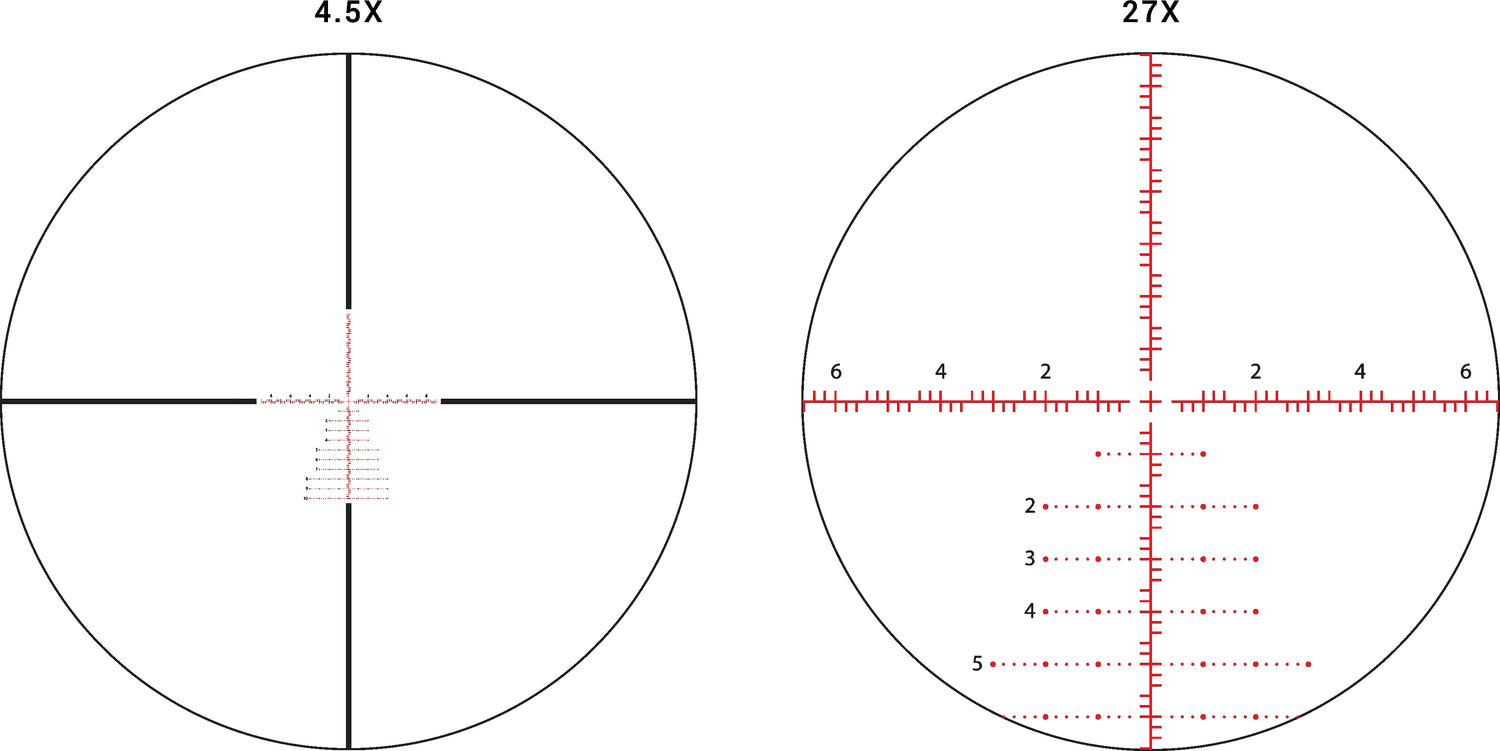

APLR3 FFP IR MIL Reticle
APLR3 FFP IR MIL reticle can help you quickly determine distance, holdover positions, windage correction and leads for a moving target. Unique design of fine .2 mil mark increments from center all the way to four directions.
Fully Multicoated
Fully Multicoated optics effectively reduce reflected light and increases the transmission of light giving you a brighter image than normal single coated lenses.
XPL Coating
XPL Coating gives you an extra protection on the exterior lenses from dirt, oil and scratches or anything else mother nature can throw at you.
Precision Zero Stop System
The system allows you to lock down your zero position and dial back to it with a sharp and precise stop right at your zero mark even if turning it in pitch-dark or blinded folded.
High Precision Erector System
The high precision erector system processed by high precision CNC machine with +/- 0.0001mm tolerance level to provide you the most accurate power settings and smoothest magnification change.
6061 T6 Aluminum
The 6061T6 aircraft grade aluminum tube with exceptional strength and superior mechanical integrity will protect these world class optics no matter what punishment you throw at it.
Exposed Tactical Direct Dial
Exposed Direct Dial Turrets for elevation and windage allow you to quickly make adjustment as you needed and engage your target within a blink of your eyes.
One Piece Tube Construction
Heat treated one piece tube gives the scope extra strength over multi-piece tubes. A one piece tube also is better at keeping moisture out thus keeping your scope fog proof for the life of the product.
Waterproof, Fog Proof and Shockproof
Waterproof to protect the scope in the harshest weather conditions or if accidentally submerged underwater, fog proof to allow you to immediately engage your target when you take your rifle to cold ambient temperature from warm inside, and shockproof with a robust mechanical system with special designs on both control and erector system that give you the ultimate recoil resistance to withstand 1000G recoil for 1000 times.
Argon Purged
Argon Purging uses the inertia gas with bigger size molecules to purge any moisture out of the tube, giving you better waterproofing and thermal stability.
Main
| Magnification | Zoom |
| Objective Lens Diameter | 50mm |
| Reticle Pattern | APLR3 FFP IR MIL |
| Configuration | Core |
| Min Power (Variable) | 4.5x |
| Max Power (Variable) | 27x |
| Tube Diameter | 30mm |
| Application | Rifles |
| Color | Black |
Athlon Optics Ares BTR 4.5-27x5 Riflescope (Exp, SF, APLR3 FFP IR MIL Reticle)
| Magnification | 4.5-27 |
| Objective lens diameter | 50 mm |
| Reticle | APLR3 FFP IR MIL, Glass Etched illuminated |
| Surface finish | Matte |
| Lens coating | Wide Band Fully Multicoated |
| Extra coating | Xtra Protective Coating |
| Tube material | 6061 Aluminum |
| Tube diameter | 30 mm |
| Exit pupil | 11.1-1.8 mm |
| Eye relief | 3.9 inches |
| Field of view @100 yards | 22.7-3.8 feet |
| Click value | 0.1 MIL |
| Adjustment range per rotation | 10 MIL |
| Total elevation adjustment | 24 MIL |
| Total windage adjustment | 24 MIL |
| Turret style | Exposed Direct Dial |
| Parallax adjustment | Side Focus - 25 yards to infinity |
| Purging material | Argon |
| Length | 13.8 inch |
| Weight | 27.3 oz |
| User instruction manual | Downloadable |
| Reticle manual | Downloadable |
| SKU# | 212007 |
