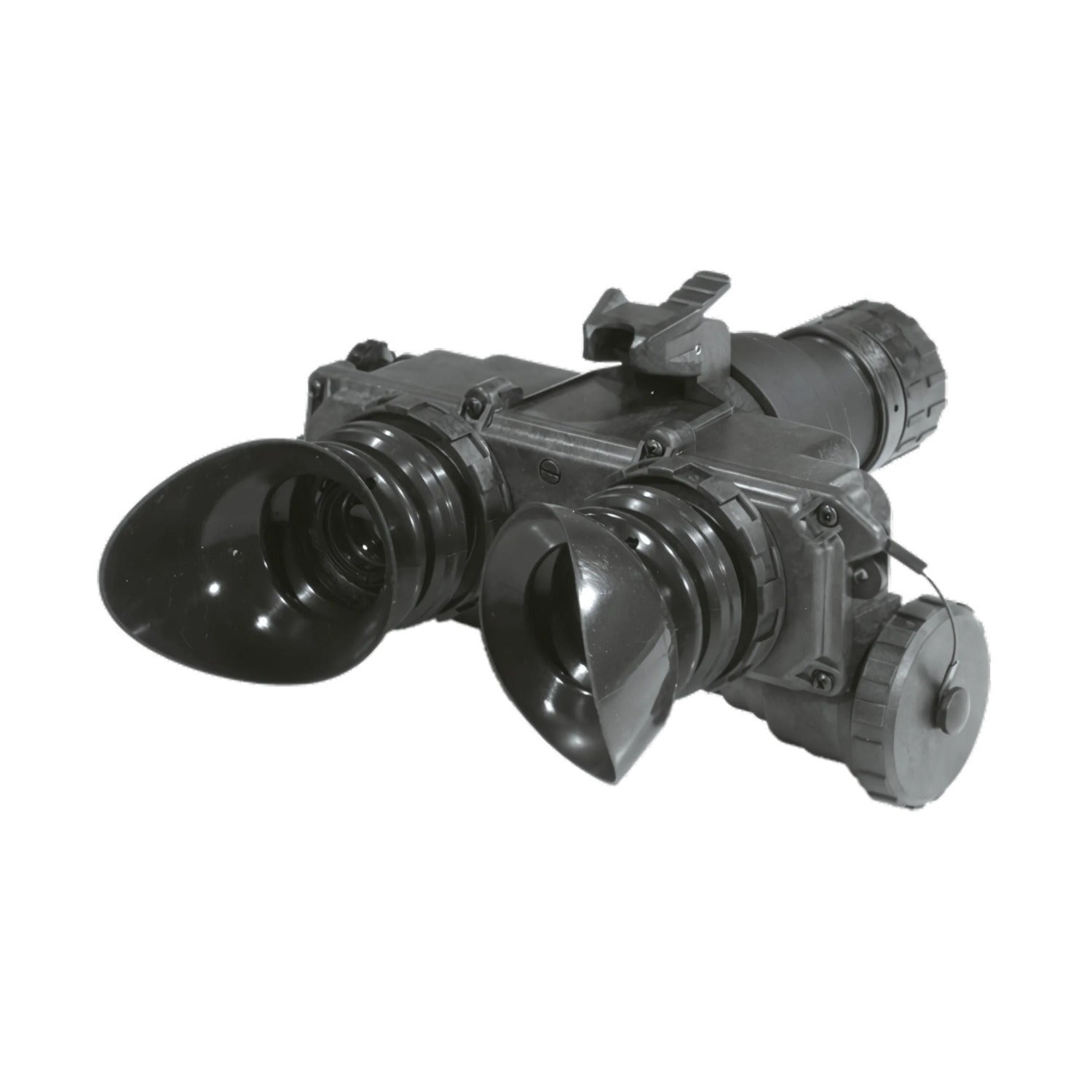

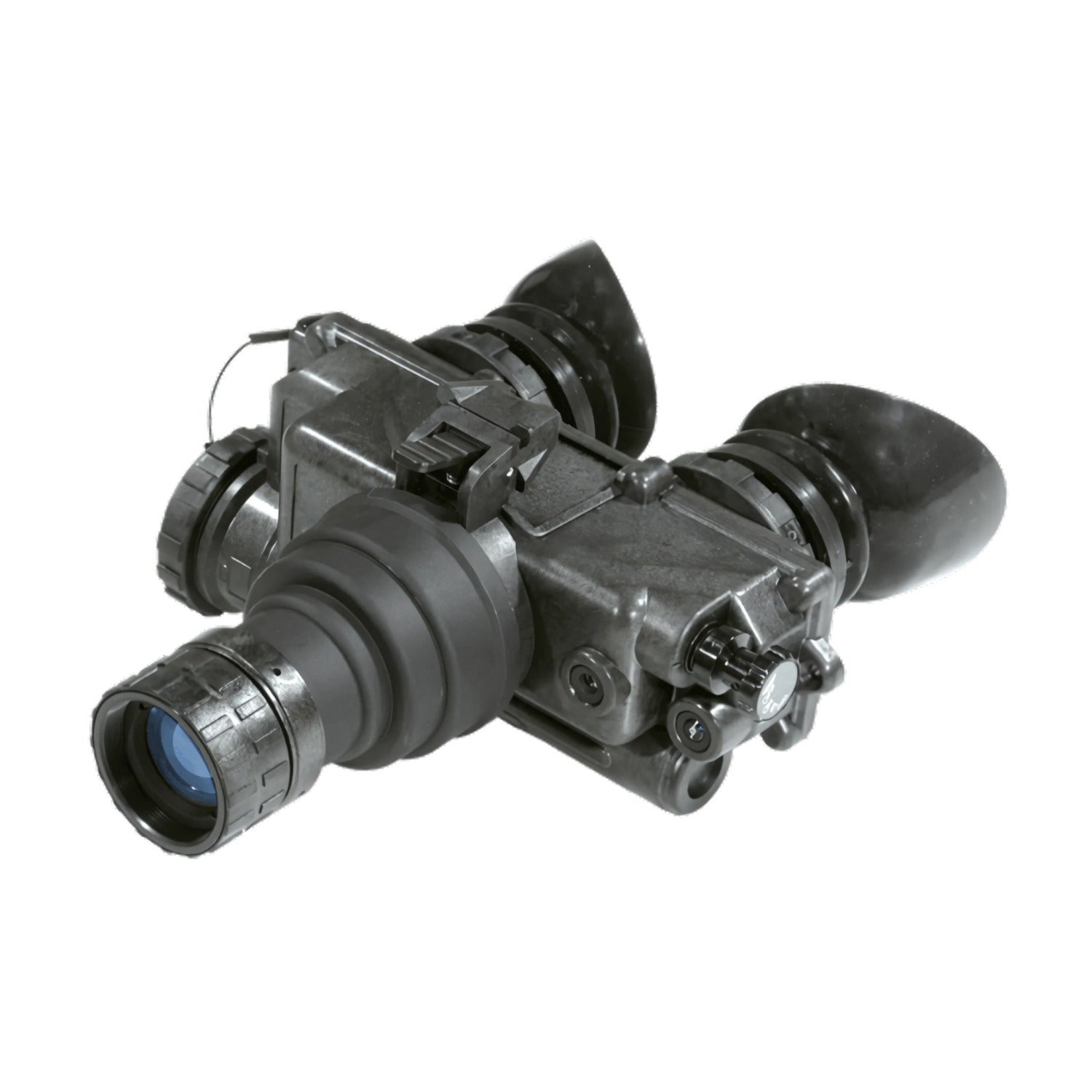

ATN PVS7-HPT Green Phosphor Night Vision Goggles with 57-60lp/mm 1x Magnification and IR Illuminator
Military-Proven Performance
The ATN PVS7-HPT 57-60 lp/mm Green Phosphor Night Vision Goggles are built to U.S. military standards and have consistently proven their effectiveness in combat situations. Trusted as the standard issue for the U.S. Army, this system is crafted from military-grade materials for maximum durability, water resistance, and reliability—even in harsh, wet, or dirty conditions.
High-Resolution Night Vision

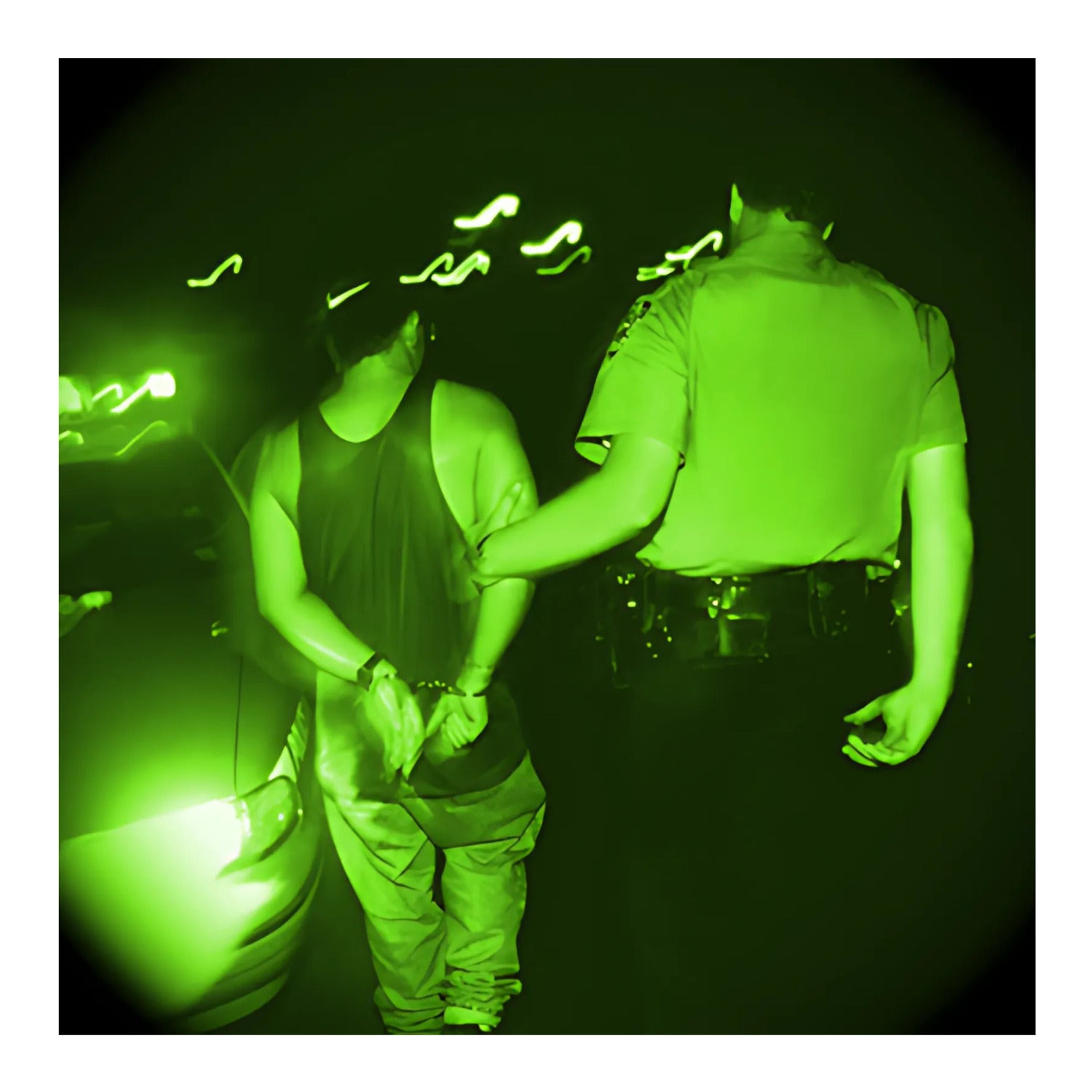

These night vision goggles are outfitted with a high-performance Gen 2+ Green Phosphor image intensifier tube, delivering a resolution of 57-60 lp/mm for exceptional clarity. The PVS7-HPT features a built-in infrared illuminator that emits 'invisible' light, allowing the goggles to operate even in complete darkness. With Automatic Brightness Control, it automatically adjusts brightness levels for optimal image clarity, and a bright light cut-off function protects the internal optics from intense light exposure.
Versatile Multi-Purpose Use

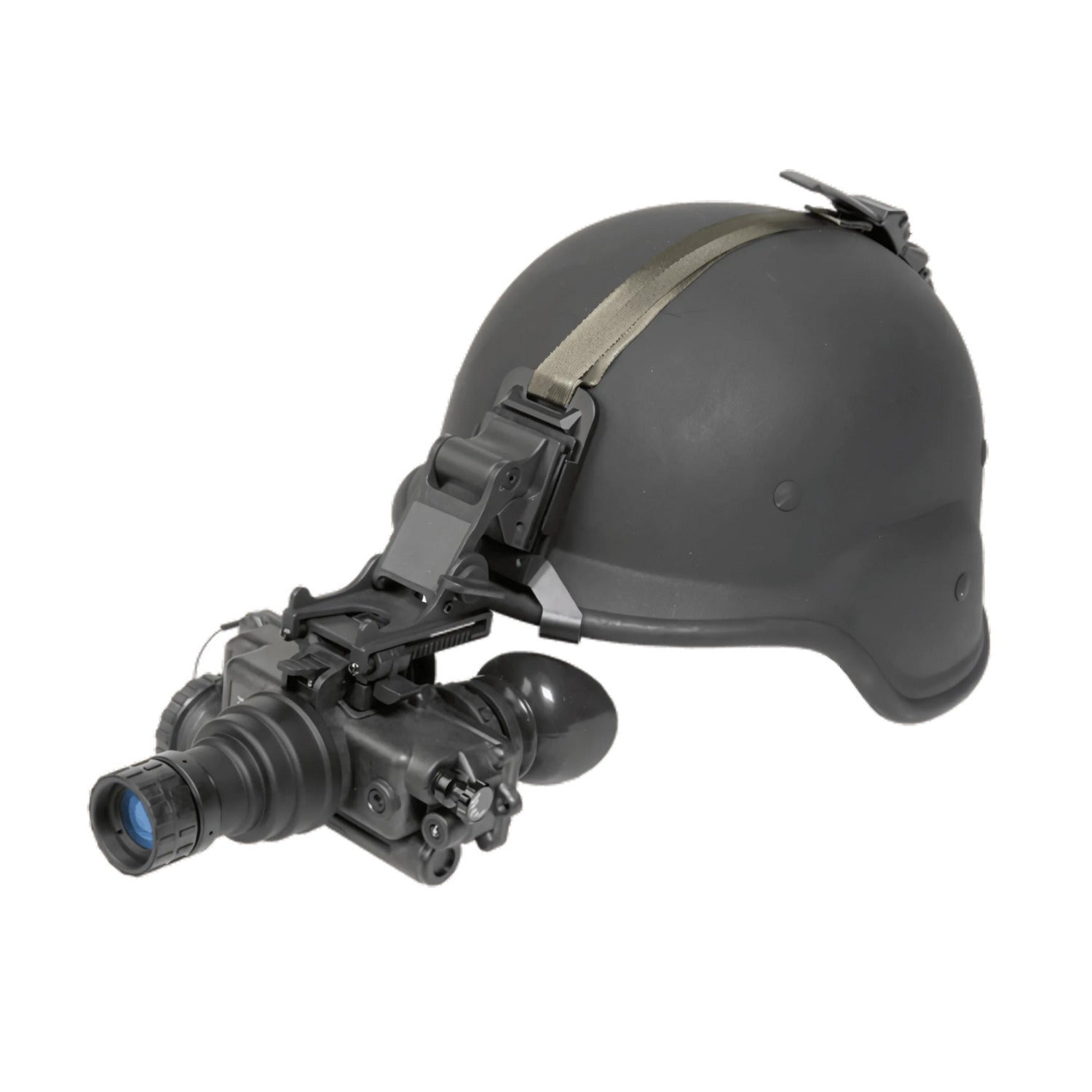

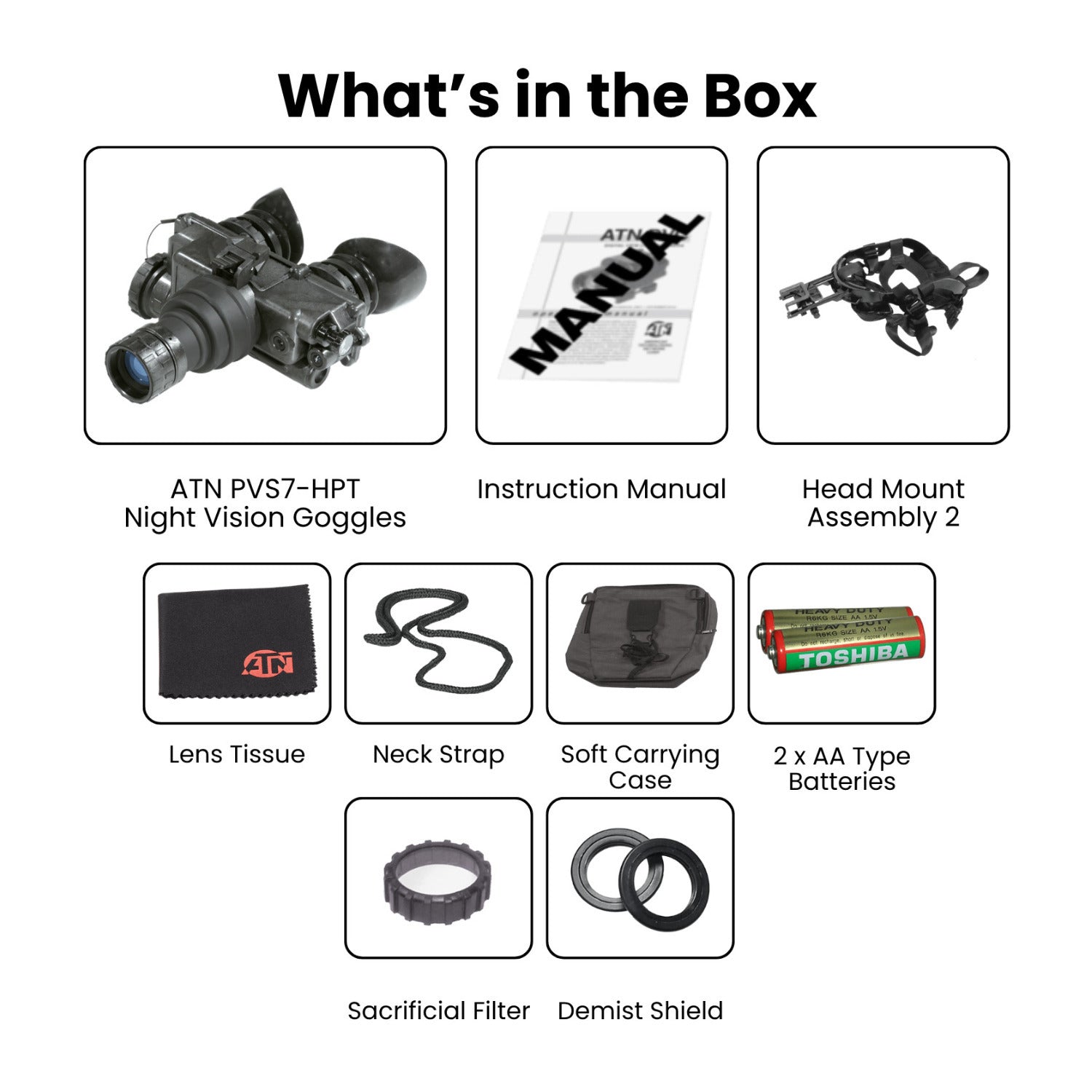

The ATN PVS7-HPT is built for hands-free or handheld use, offering head-mounted and helmet-mounted configurations depending on mission requirements. Its flip-up shut-off feature works seamlessly with optional helmet mounts, and it ships with essential accessories including a full Mil-Spec body with goggles assembly, a protective case, batteries, and a head mount assembly for out-of-the-box readiness.
Expandable and Mission-Ready

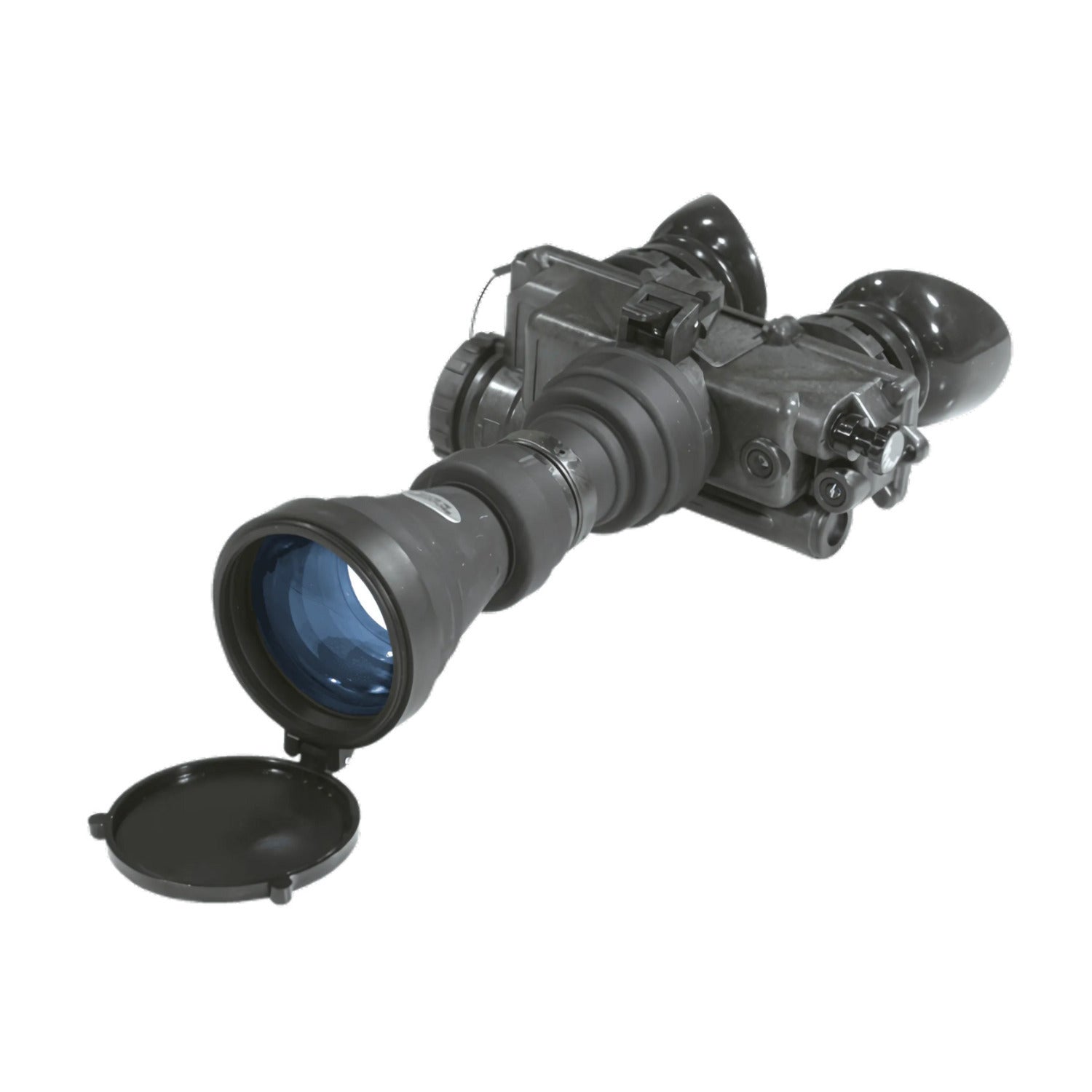

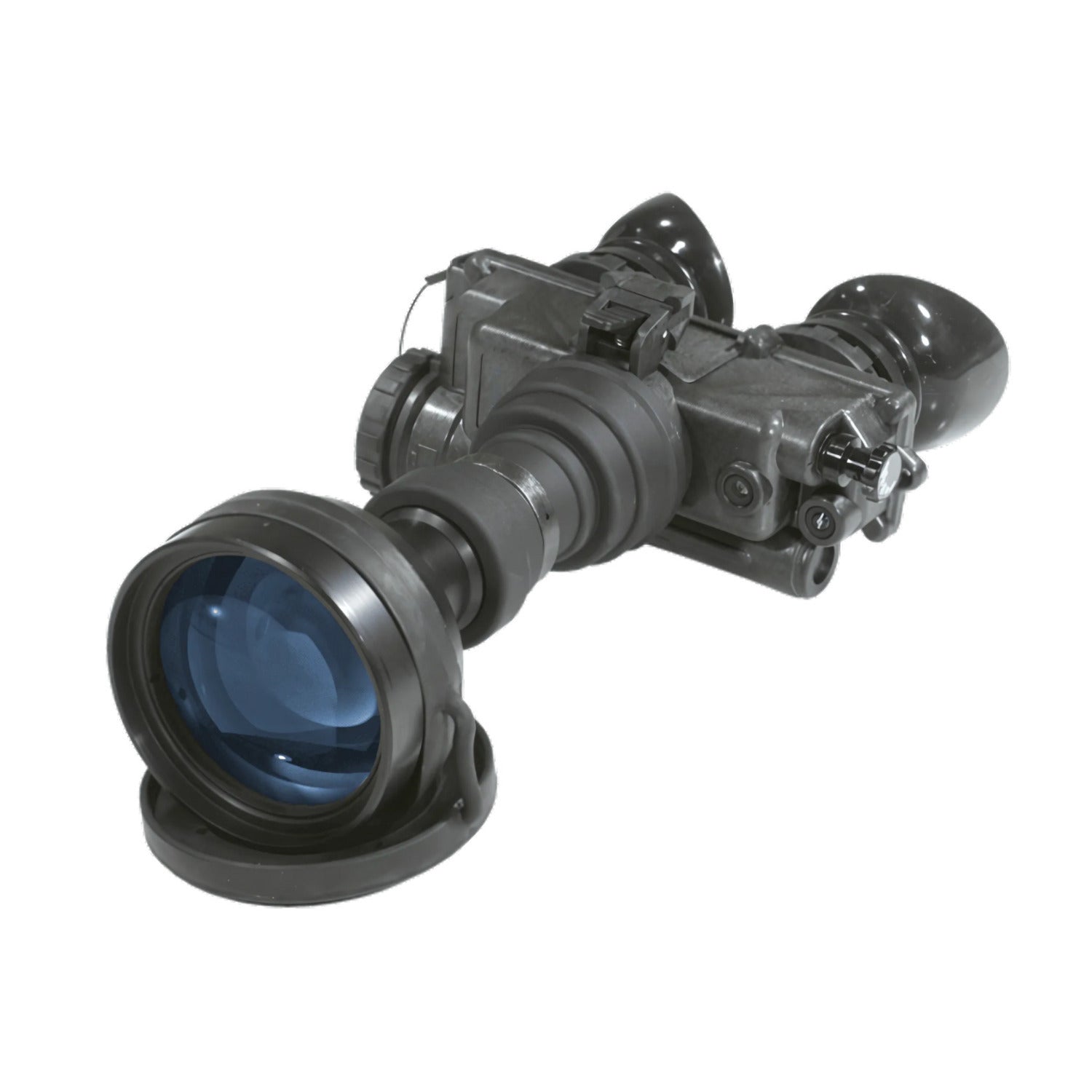

This system supports optional Mil-Spec Afocal and compatible objective lenses that convert the unit into a powerful night vision viewer with 3.0x or 5.0x magnification. Its ergonomic and lightweight design ensures comfort over long periods of use, while the water and fog-resistant housing guarantees performance in any environment.
Advanced Features for Critical Operations
Equipped with a momentary or continuous IR switch, internal low battery and IR indicators, and an auto-shutoff function, the PVS7-HPT is built for reliability in the field. Powered by two AA batteries with up to 50 hours of runtime, this device supports extended operations in extreme temperatures ranging from -40 to 122 degrees Fahrenheit (-40 to 50 degrees Celsius).
Main
| Configuration | Core |
| Mounting Options | Mount Ready |
| Objective Lens Diameter | 27mm |
| Color | Black |
ATN PVS7-HPT Green Phosphor Night Vision Goggles with 57-60lp/mm 1x Magnification and IR Illuminator
Generation
| Gen 2+, Green Phosphor |
Magnification
| 1 X |
Resolution
| 57-60 lp/mm |
FOV
| 40 degrees |
Total Darkness IR System
| Yes |
Lens System
| f/1.2, 27 mm |
Proshield Lens Coating
| Yes |
Range of Focus
| 0.25 yard/m to infinity |
Diopter Adjustment
| -2 to +6 |
Automatic Brightness Control
| Yes |
Bright Light Cut-off
| Yes |
Infrared Illuminator
| Built-in |
IR Indicator
| Yes |
Low Battery Indicator
| Yes |
Power Supply
| 2 x 1.5V (AA type battery) |
Battery life (Li-ion)
| 50 hours |
Environmental Rating
| Water resistant |
Operating Temperature
| -40 degrees Fahrenheit to 122 degrees Fahrenheit / -40 degrees Celsius to 50 degrees Celsius |
Storage Temperature
| -58 degrees Fahrenheit to 158 degrees Fahrenheit / -50 degrees Celsius to 70 degrees Celsius |
Dimensions
| 6.4 in x 3 in x 6 in / 162 mm x 76 mm x 152 mm |
Weight
| 1.5 lbs / 0.68 kg |
