ATN PVS14-3WHPT NV Monocular G3 White Phospher HP Auto-Gated 64-72 lp/mm
Couldn't load pickup availability
Product highlights
Product highlights
In the box
In the box
Free standard shipping
Free standard shipping
*Orders placed before 1 PM EST Mon - Thur will ship the same day. Orders placed beyond these hours will be shipped the next business day. Exclusions apply. See shipping policy
Free Local Pickup
Free Local Pickup
Please call for store stock availability. Requests made before 2:30 PM EST can be available for next-day pickup. Learn more
The ATN PVS14-3HPW is the trusted Gen 3 night vision monocular used by U.S. military and special forces worldwide. Featuring a high-performance auto-gated image intensifier tube with crisp white phosphor display and a wide 40-degree field of view, this versatile, lightweight device can be helmet-mounted, weapon-mounted, or handheld. Built to MIL-SPEC standards, waterproof and rugged, it offers superior clarity in low-light conditions with built-in IR illumination, manual gain control, and automatic shutoff for bright light protection. Includes all essential accessories and a 3-year warranty.
Gen 3 White Phosphor Image Intensifier Tube
Provides crisp, high-contrast night vision with reduced eye strain compared to traditional green phosphor.
40 degrees Field of View (FOV)
Wide viewing angle for better situational awareness in low-light environments.
Auto-Gated Technology
Automatically adjusts to changing light conditions, protecting the tube from bright light and extending device life.
Military-Grade Quality (MIL-STD-810 Compliant)
Built to withstand extreme environments with rugged, waterproof construction.

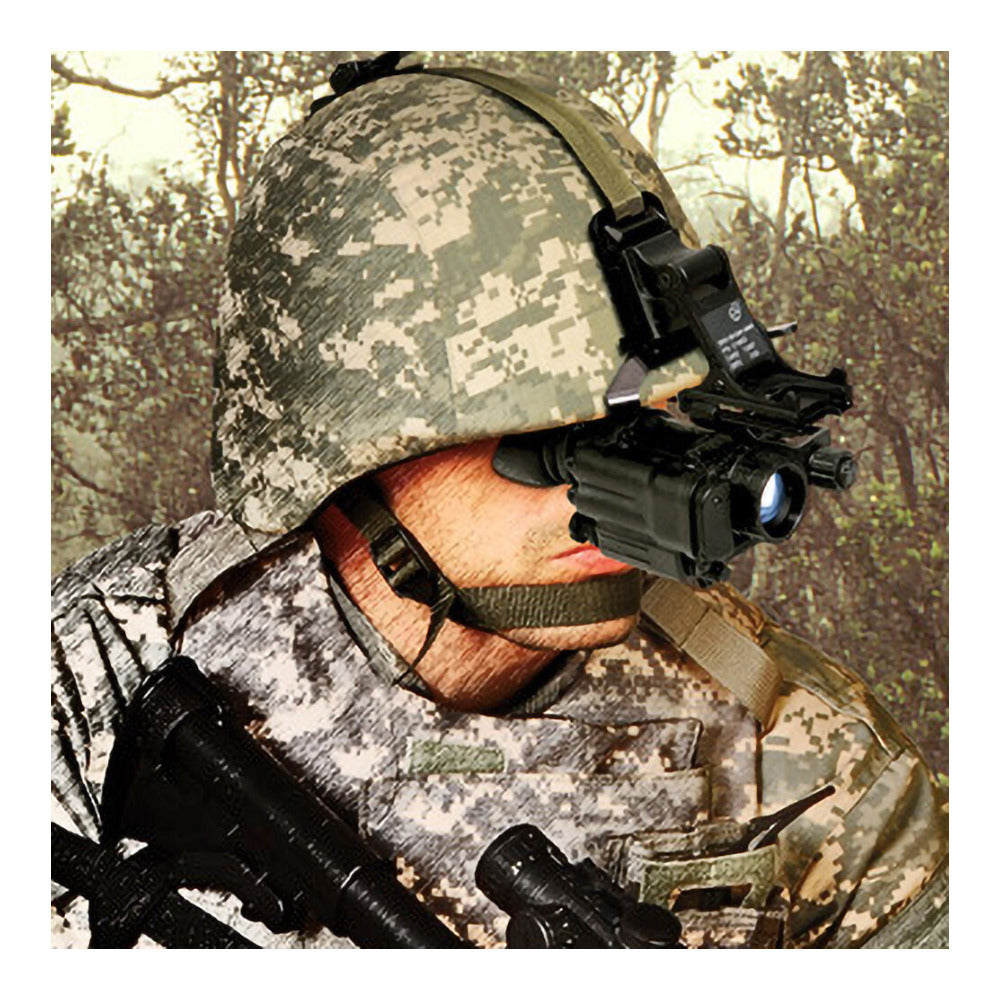

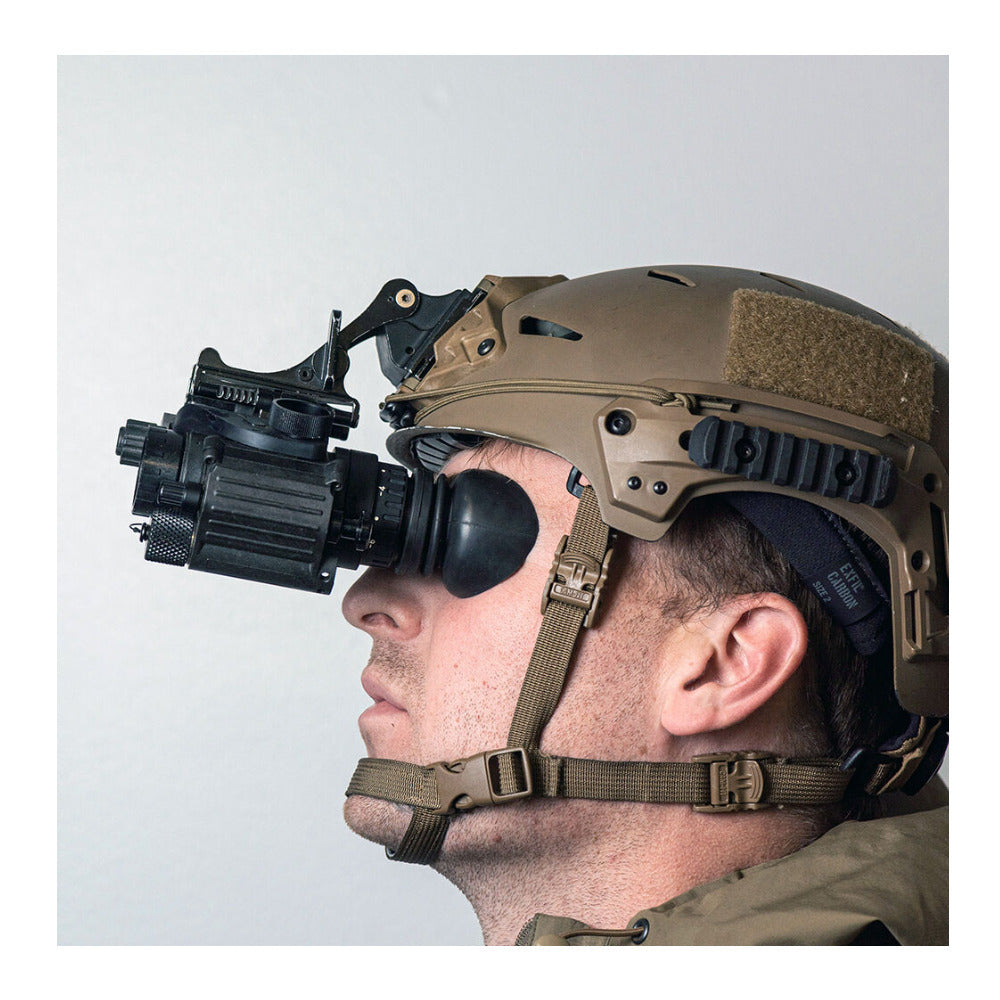

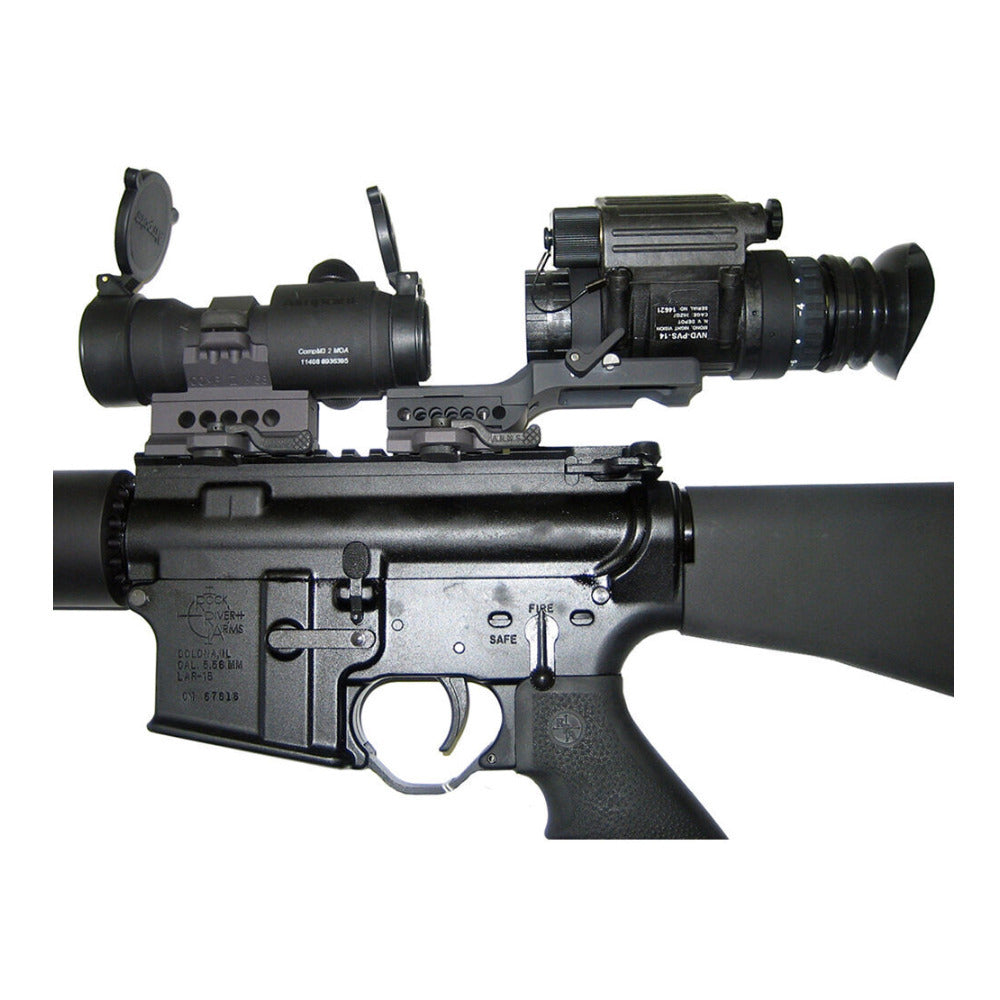

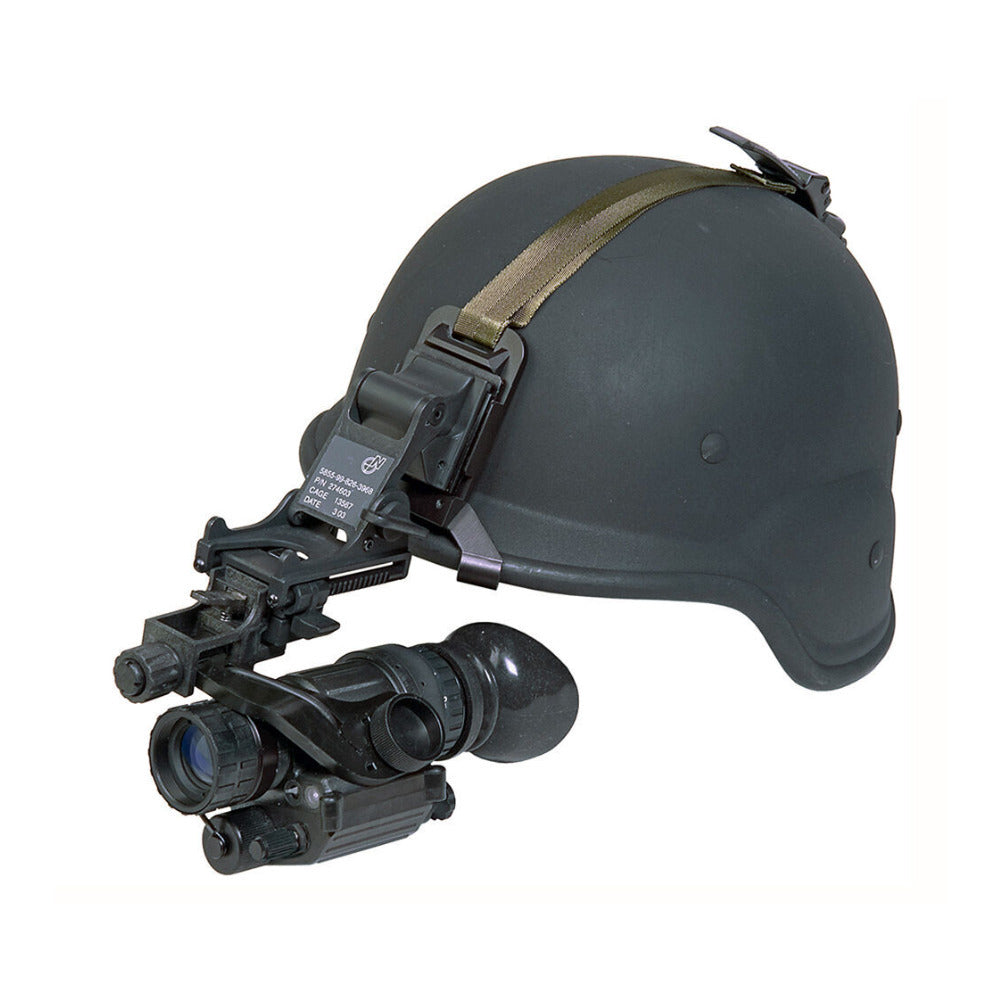

Versatile Mounting Options
Can be helmet-mounted, weapon-mounted behind optics, or used handheld for maximum flexibility.
Built-in Infrared (IR) Illuminator
Enhances visibility in total darkness without external light sources.
Manual Gain Control & Automatic Brightness Control
Allows users to fine-tune image brightness for optimal clarity.
Automatic Shut-Off System
Protects the device by shutting it down instantly if exposed to bright light.
High-Resolution Optics (64-72 lp/mm)
Delivers sharp, detailed images essential for tactical operations.
Lightweight and Compact Design
Weighs only 0.78 lbs (0.35 kg) with compact dimensions for comfortable long-term use.
Long Battery Life
Runs up to 50 hours on a single AA battery for extended missions.
Wide Operating Temperature Range
Functions reliably in temperatures from -60 degrees Fahrenheit to 120 degrees Fahrenheit (-51 degrees Celsius to 49 degrees Celsius).
Diopter Adjustment (-5 to +2)
Customizable focus for individual eyesight needs.
Main
| Configuration | Core |
| Resolution (Max) | 64-72 Ip/mm |
| Magnification | 1x |
| Objective Lens Diameter | 27mm |
| Color | Black |
ATN PVS14-3HPW Gen 3 Night Vision Monocular with White Phosphor and 40 Degrees Field of View (Black)
| Generation | USA Gen 3, White Phosphor, Auto-Gated / Thin-Filmed |
| Magnification | 1X |
| Resolution | 64-72 lp/mm, A-Grade |
| Field of View (FOV) | 40 degrees |
| Lens System | f/1.2, 27 mm |
| Proshield Lens Coating | Yes |
| Range of Focus | 0.25 yard/m to infinity |
| Diopter Adjustment | -5 to +2 |
| Automatic Brightness Control | Yes |
| Bright Light Cut-off | Yes |
| Infrared Illuminator | Built-in IR |
| Indicator | Yes (IR on and Low Battery) |
| Power Supply | 1 x 1.5V AA type battery |
| Battery Life (Li-ion) | Up to 50 hours |
| Environmental Rating | Water resistant |
| Operating Temperature | -60 degrees Fahrenheit to 120 degrees Fahrenheit / -51 degrees Celsius to 49 degrees Celsius |
| Storage Temperature | -60 degrees Fahrenheit to 185 degrees Fahrenheit / -51 degrees Celsius to 85 degrees Celsius |
| Dimensions | 4.5 inch x 2 inch x 2.25 inch / 114 mm x 51 mm x 57 mm |
| Weight | 0.78 lbs / 0.35 kg |
| Manual Gain Control | Yes |
| Automatic Shut-off System | Yes |
| MIL-STD-810 Compliance | Yes |
| Country of Origin | USA |
| Available for Export | No |
