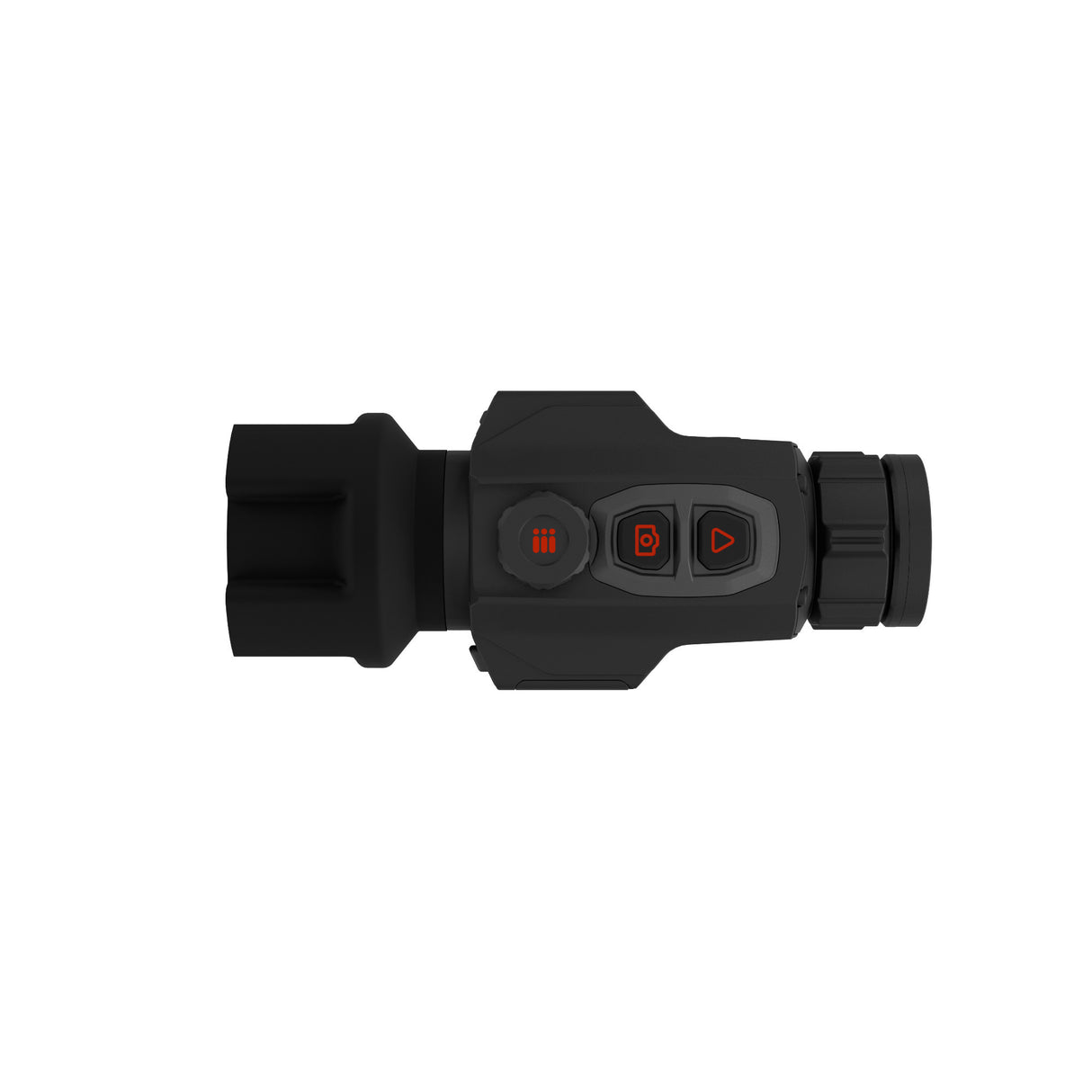

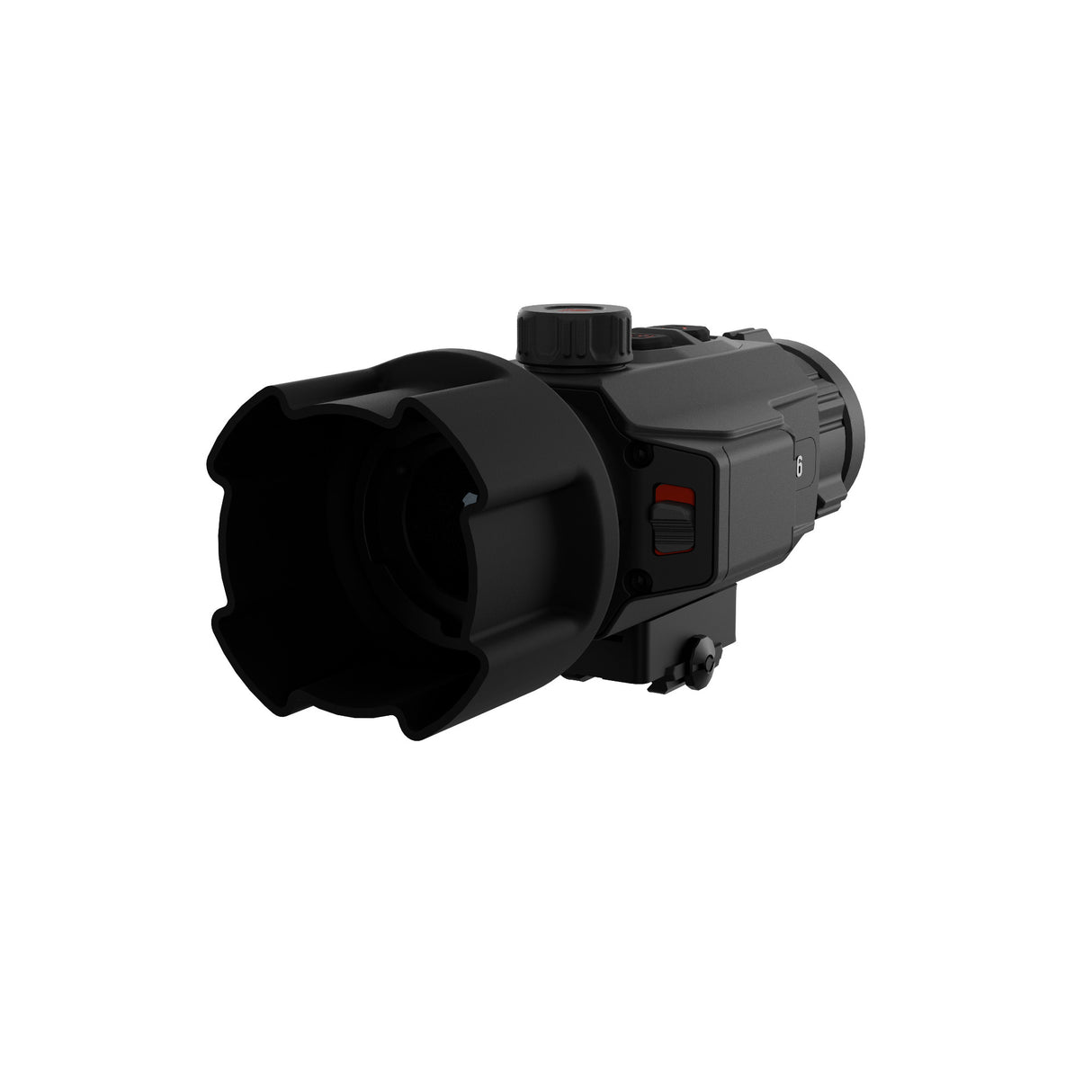

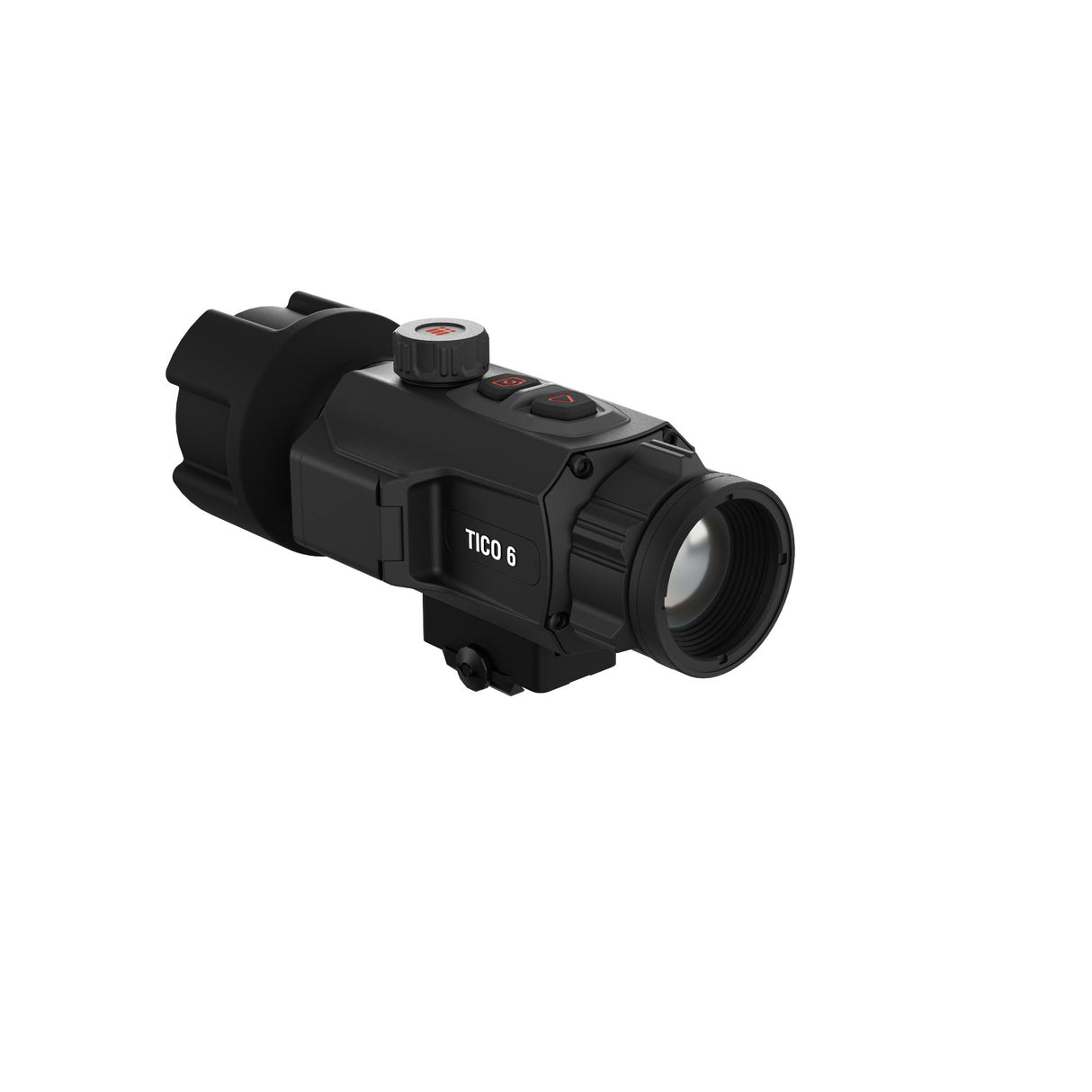

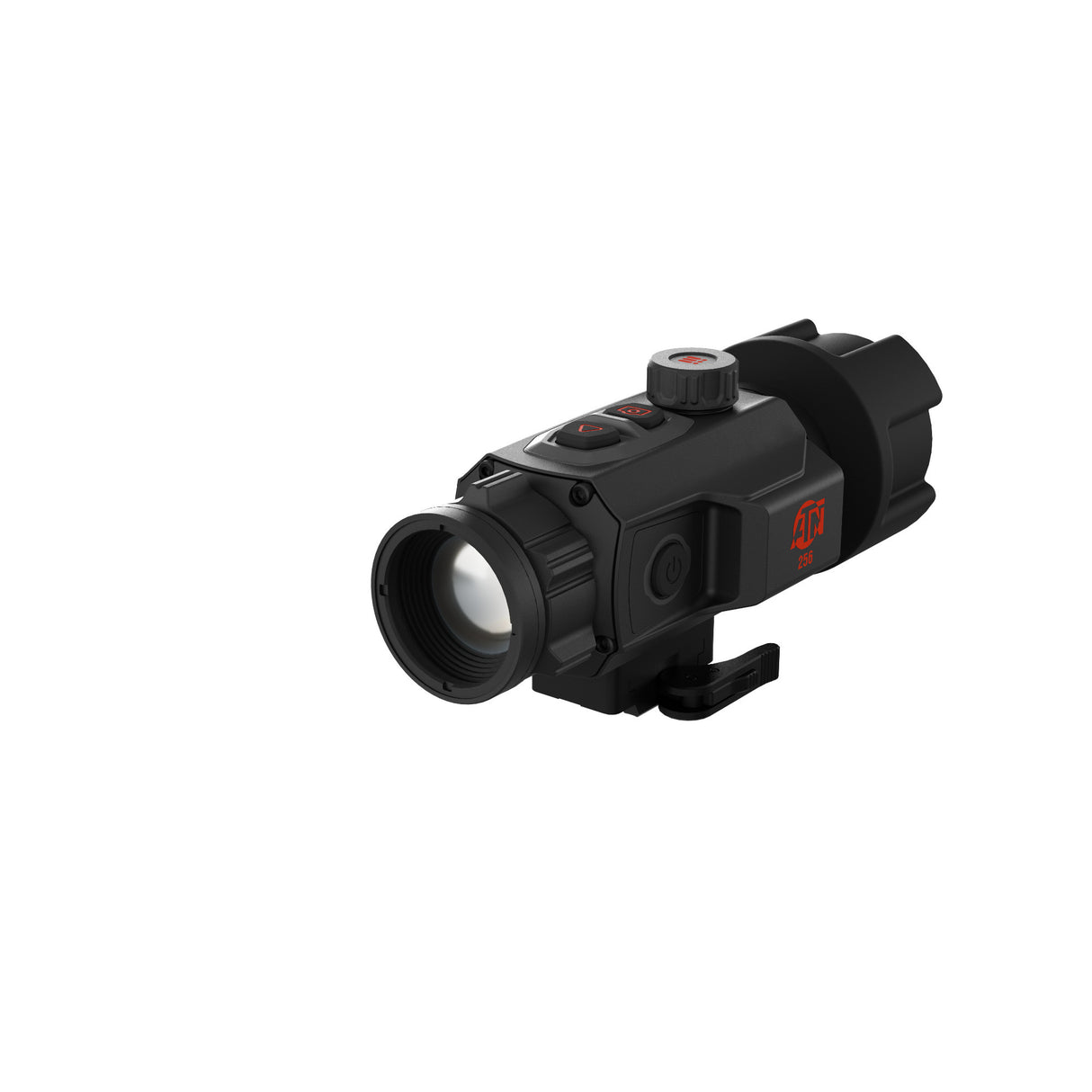

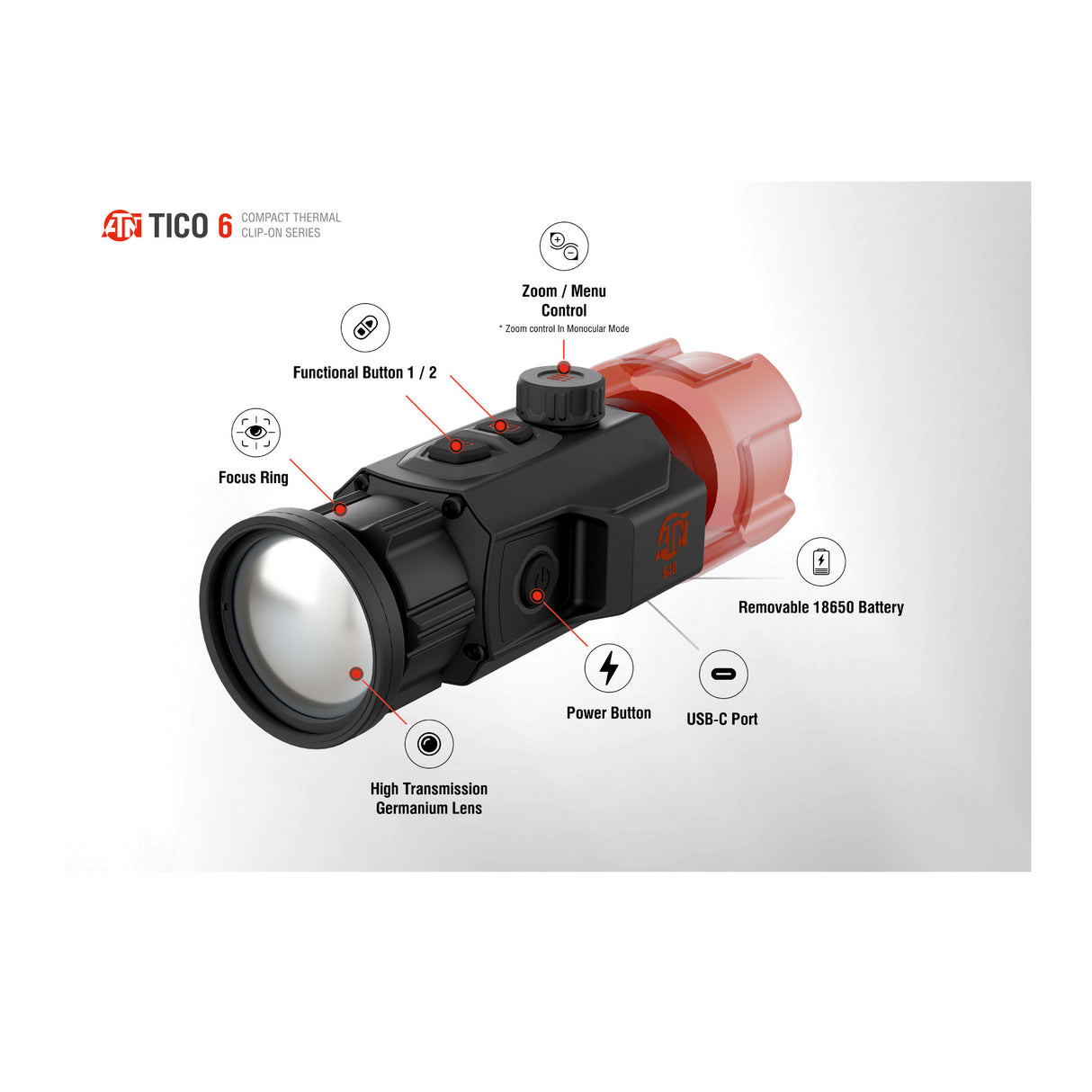

ATN TICO 6 Advanced Thermal Clip-on System 256192 Sensor (25mm)
Couldn't load pickup availability
Product highlights
Product highlights
In the box
In the box
Free standard shipping
Free standard shipping
*Orders placed before 1 PM EST Mon - Thur will ship the same day. Orders placed beyond these hours will be shipped the next business day. Exclusions apply. See shipping policy
Free Local Pickup
Free Local Pickup
Please call for store stock availability. Requests made before 2:30 PM EST can be available for next-day pickup. Learn more
The TICO 6 is a thermal clip-on solution designed for users who want to add thermal imaging to their existing daytime scope. It attaches quickly, maintains point-of-impact, and delivers clear imaging across different environments. It also works as a handheld device when needed, offering flexibility for both field and professional use.
Thermal Engine Performance
The 6th Generation Thermal Engine provides high sensitivity, ranging from ≤20 mK to ≤18 mK depending on the model. This allows the device to detect heat signatures clearly through darkness, fog, and brush. Users benefit from consistent visibility and target recognition in changing conditions.
AI-Enhanced Imaging
ATN SharpIR improves clarity by refining edges and enhancing contrast in real time. This feature helps separate targets from background heat sources, supporting faster identification and better situational awareness.
High-Resolution Displays
The device includes an OLED display with resolutions ranging from 800×600 to 1920×1080, depending on the model. The screen provides smooth motion and supports ease of viewing during long sessions, reducing eye strain and improving overall tracking.
Clip-On and Handheld Flexibility
The clip-on design allows users to retain their daytime optic and reticle. With an optional eyepiece adapter, the TICO 6 converts into a handheld monocular for scanning. This flexibility supports quick role changes without additional equipment.
Mounting and Control Options
The Quick-Detach Picatinny Mount ensures fast attachment. An optional Scope Mounting System gives direct alignment with the daytime scope. The Tactical Remote Control allows adjustments without shifting position, improving efficiency during active use.
Recording and Connectivity
Users can capture video and audio with the built-in recorder. Recoil Activated Video ensures key moments are saved automatically. The 64 GB internal memory supports long sessions, and the Wi-Fi Hotspot allows streaming and remote control through a connected device.
Durability and Field Readiness
A magnesium housing and weatherproof build support use in varying environments. The system is designed for long operational life and stable performance during field work or extended missions.
Optics and Sensors
| Detector Type | 12 μm VOx Uncooled Focal Plane Array |
| Sensor Resolution | 256×192 |
| Refresh Rate | 50 Hz |
| Thermal Sensitivity (NETD) | ≤ 20 mK |
| SharpIR | Yes |
| Non-Uniformity Correction (NUC) | Auto / Semi Auto / Manual |
| Lens System | 25 mm (Ge); F/1.0 |
| Field of View (H×V) | 7.0° × 5.3° |
| Focus Mechanism | Manual, Front Lens Adjustment |
| Optical Magnification | 1× |
| Detection Range | 1500 m |
| Optimal Day Scope Magnification | 1–8× |
Display and Viewing
| Display Resolution | 0.32 in OLED, 800×600 |
| Color Palettes | White Hot, Black Hot, Iron Red, Alarm, Green Hot, Sepia |
| Monocular Mode | Yes |
| Hot Point Tracking | Yes |
| Geomagnetic + Gyroscope | Yes |
Recording and Connectivity
| Internal Storage Capacity | 64 GB |
| Video / Audio Recording | Yes |
| Internal Gallery | Yes |
| Recoil Activated Video (RAV) | Yes |
| Built-in Wi-Fi (Hotspot) | Yes |
| Wireless Remote Control | Yes (Included) |
| App | ATN Connect 6 (iOS & Android) |
| Media Output | USB Type-C |
Power System
| Battery Type | 1 × 18650 Rechargeable (Replaceable) |
| Battery Life | ~8 hrs |
| Supports External Power Supply | Yes (USB Type-C 5 VDC / 2 A) |
| Standby / Sleep Mode | Yes |
| Startup Time | < 7 seconds (instant from Standby) |
Design and Durability
| Material | Magnesium Alloy |
| Mounting | Quick Detach (included) / Scope Mounting System (add-on) |
| Weight | 511 g / 1.12 lbs |
| Dimensions (L×W×H) | 159×85×74 mm (6.25×3.34×2.91 in) |
| Max Recoil Rating | 6000 J / 1000 g over 0.4 ms |
| Operating Temperature | -30 °C to +55 °C (-22 °F to 131 °F) |
| Waterproof / IP Rating | IP67 |
