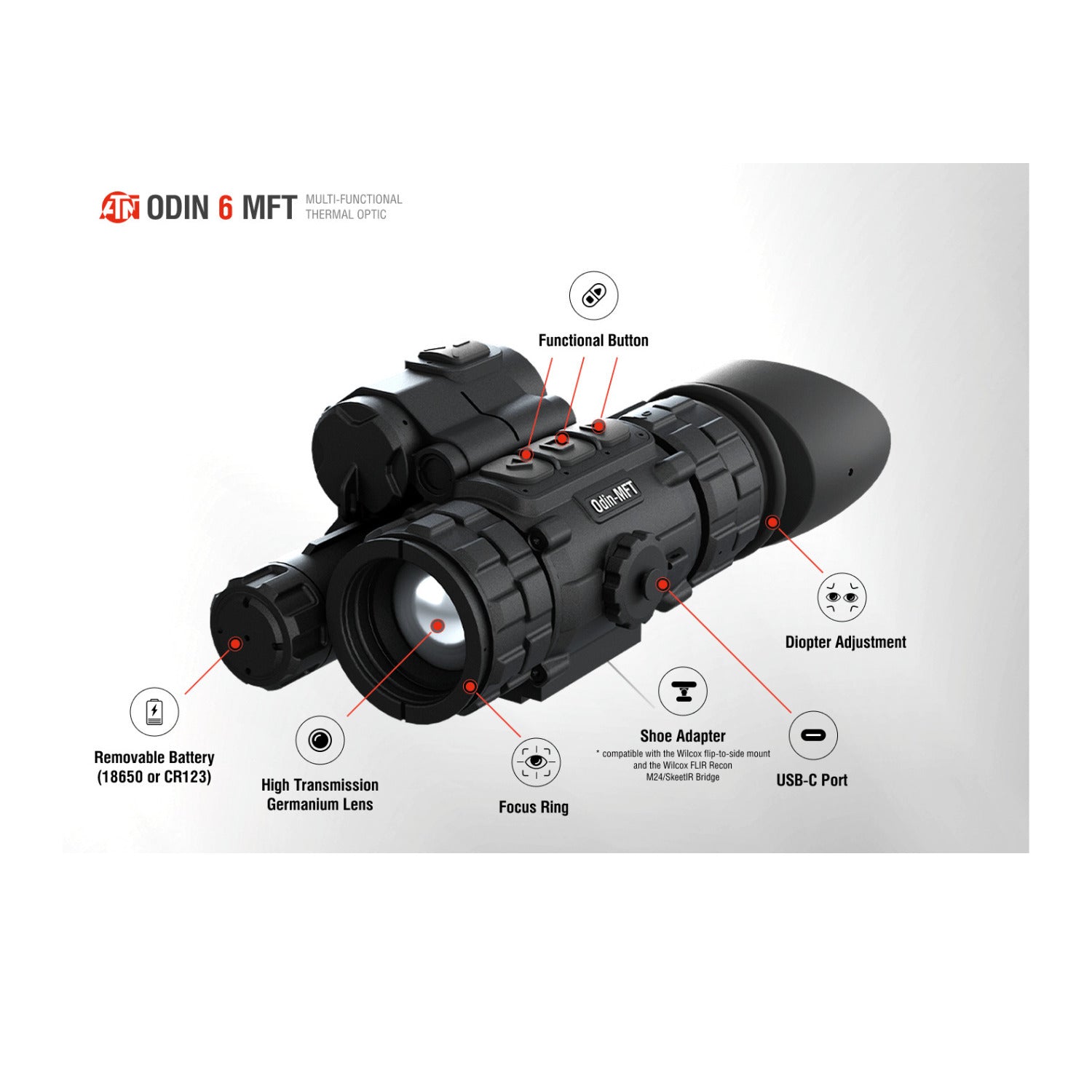

The Odin 6 MFT is a multi-function thermal optic built for users who need accuracy, flexibility, and dependable performance in any environment. It works as a handheld viewer, helmet-mounted device, clip-on optic, or weapon sight, giving you full control for any mission or hunt.
Advanced Thermal Engine
The 6th Generation Thermal Engine uses a 12 μm VOx sensor with ≤15 mK NETD sensitivity. This design improves thermal detection and produces clear images in various conditions. Whether scanning terrain or identifying targets, the engine ensures consistent clarity.
AI-Enhanced Imaging
SharpIR technology analyzes edges and contrast in real time. This helps define targets more cleanly and reduces visual noise. The result is easier identification and smoother tracking even in low-contrast environments.
High-Resolution OLED Display
The 1280×1024 OLED display offers smooth motion with a 50 Hz refresh rate. This provides detailed viewing and helps you follow moving subjects with accuracy.
Flexible Multi-Role Design
The Odin 6 MFT supports multiple setups—handheld, helmet-mounted, clip-on, or weapon-mounted. This design lets you adjust quickly based on the task or environment, improving overall efficiency.
Laser Rangefinder Option
The LRF model includes a built-in 1,000-yard laser rangefinder. This helps estimate distances instantly and supports precise long-range decisions.
Long Battery Life and Storage
With up to 8 hours of operation and 64 GB internal memory, the device supports extended use and onboard video/audio recording. USB-C connectivity allows quick file transfers and external power options.
Durable Magnesium Housing
The lightweight magnesium body improves mobility while maintaining structural strength. The device is weather-resistant, supporting dependable use in field conditions.
Operation Modes
| Clip-on, Weapon Sight, Helmet Monocular, Handheld Monocular |
Optics and Sensors
| Detector Type | 12 μm VOx Uncooled Focal Plane Array |
| Sensor Resolution | 640×480 |
| Refresh Rate | 50 Hz |
| Thermal Sensitivity (NETD) | ≤ 15 mK |
| SharpIR | Yes |
| Non-Uniformity Correction (NUC) | Auto / Manual |
| Lens System | 25 mm (Ge); F/1.0 |
| Field of View (H×V) | 17.5° × 13.2° |
| Focus Mechanism | Manual Focus Controlled by Lens Adjustment |
| Magnification | 1–8× |
| Digital Zoom | 1×, 2×, 4×, 8× |
| Detection Range | 1700 m |
Display and Viewing
| Display Resolution | 0.37 in OLED, 1280×1024 HD |
| Picture-in-Picture (PIP) | Yes |
| Color Palettes | Multiple |
| Eye Relief | Unlimited |
| Diopter Range | -3 to +3 D |
| NV Retention Mode | Special mode for retaining natural night vision capability |
| Customizable User Interface | Yes |
Ballistics and Targeting
| Ballistic Calculator | Yes |
| Manual Range Finder | Yes |
| Ballistic Profiles | 9 Customizable Profiles |
| Reticle Types | Ballistic reticle optimized for 5.56×45 mm and 7.62×51 mm; user-defined reticles supported |
| Reticle Styles | 7 Styles |
Recording and Connectivity
| Video / Audio Recording | Yes |
| Recoil Activated Video (RAV) | Yes |
| Media Output | USB Type-C (Data Transfer, Power Supply) |
| Internal Storage Capacity | 64 GB |
Smart Features
| Geomagnetic + Gyroscope | Yes |
| Hot Point Tracking | Yes |
| Standby / Sleep Mode | Yes (includes Shake-to-Wake function) |
| Startup Time | < 5 seconds |
Power System
| Battery Type | 1× 18650 or 1× CR123 or External USB Type-C (5 V DC) |
| Battery Life | ~8 hrs (18650), ~1 hr (CR123) |
| Supports External Power Supply | Yes (5 VDC / 2 A, USB Type-C interface) |
Design and Durability
| Material | Magnesium Alloy |
| Mounting | Wilcox NVG Shoe Interfaces / Picatinny (MIL-STD-1913) Rail Mount |
| Button Configuration | 5 functional buttons including power |
| Weight | 360 g / 0.79 lbs (without battery or eyecup) |
| Dimensions (L×W×H) | 100×75×60 mm (3.94×2.95×2.36 in) |
| Max Recoil Rating | 4500 J / 800 g over 0.3 ms |
| Operating Temperature | -46 °C to +49 °C (-51 °F to +120 °F) |
| Waterproof / IP Rating | IP67 |
