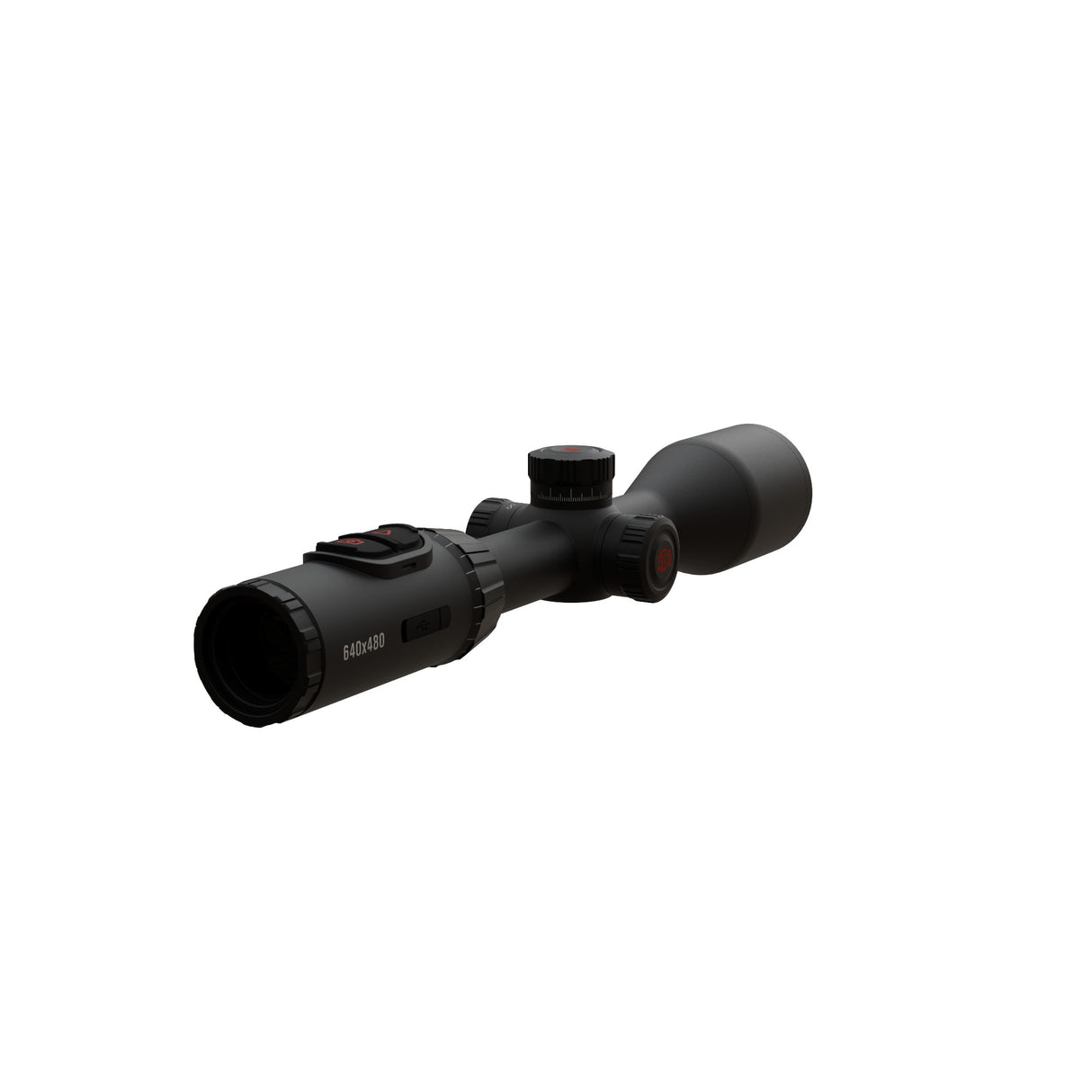

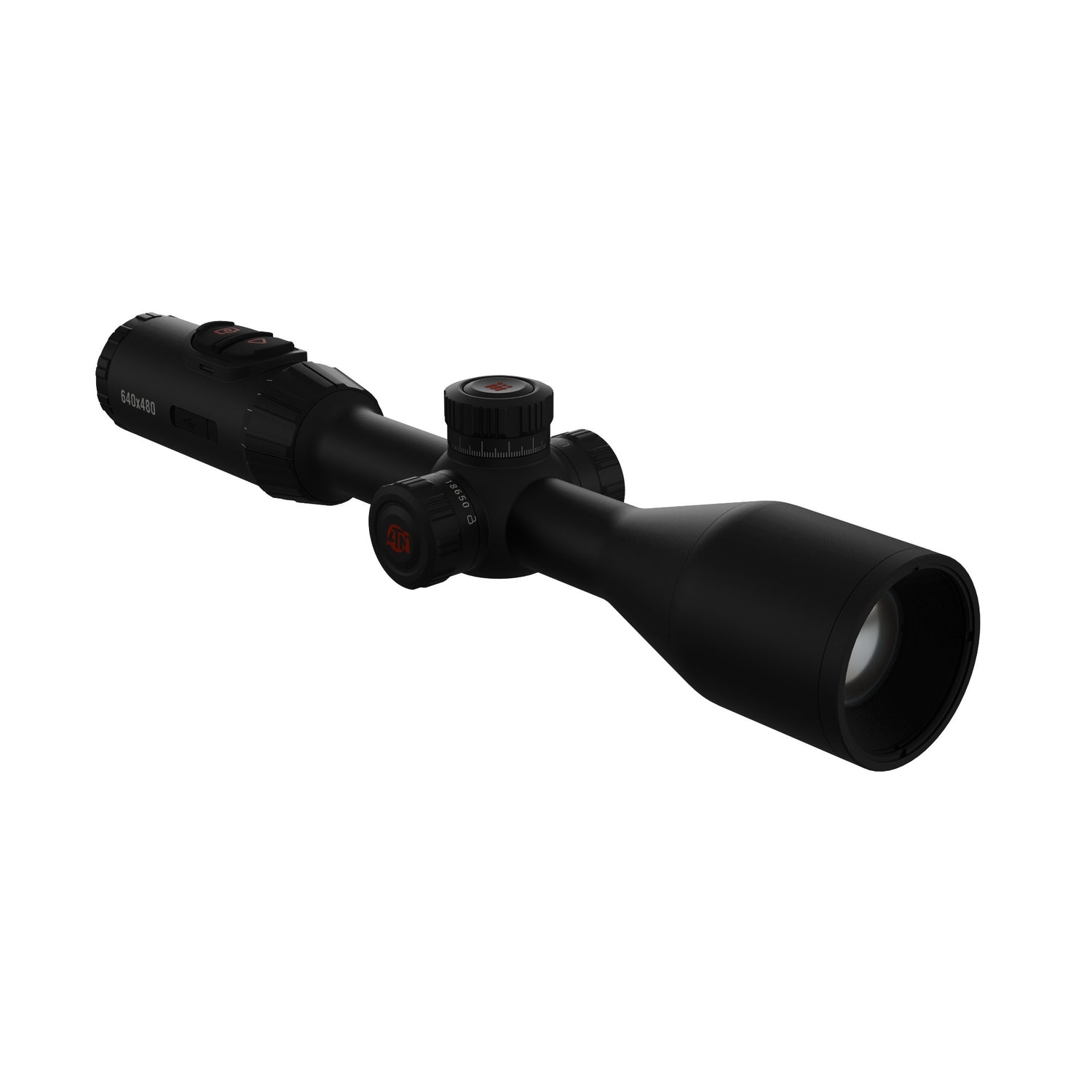

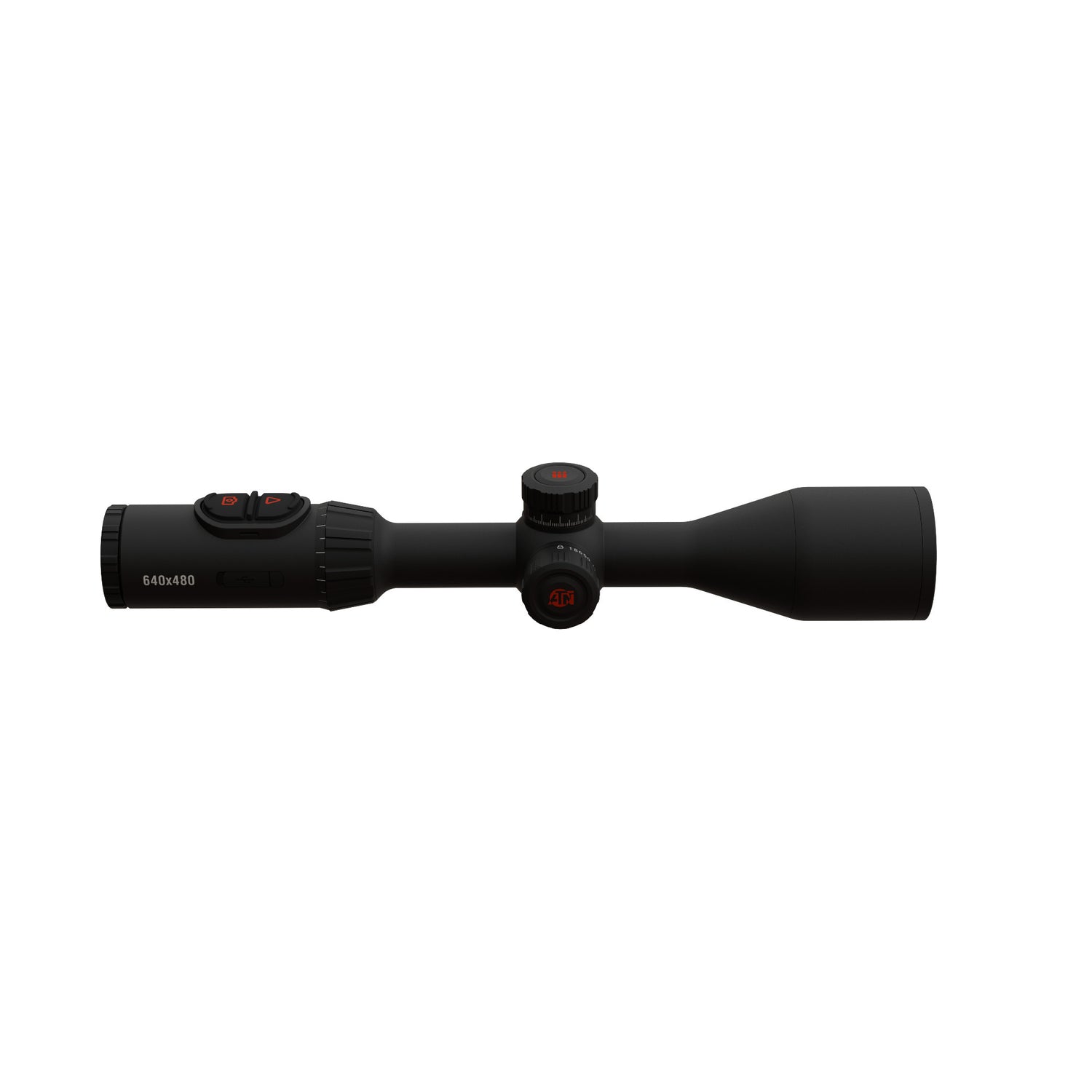

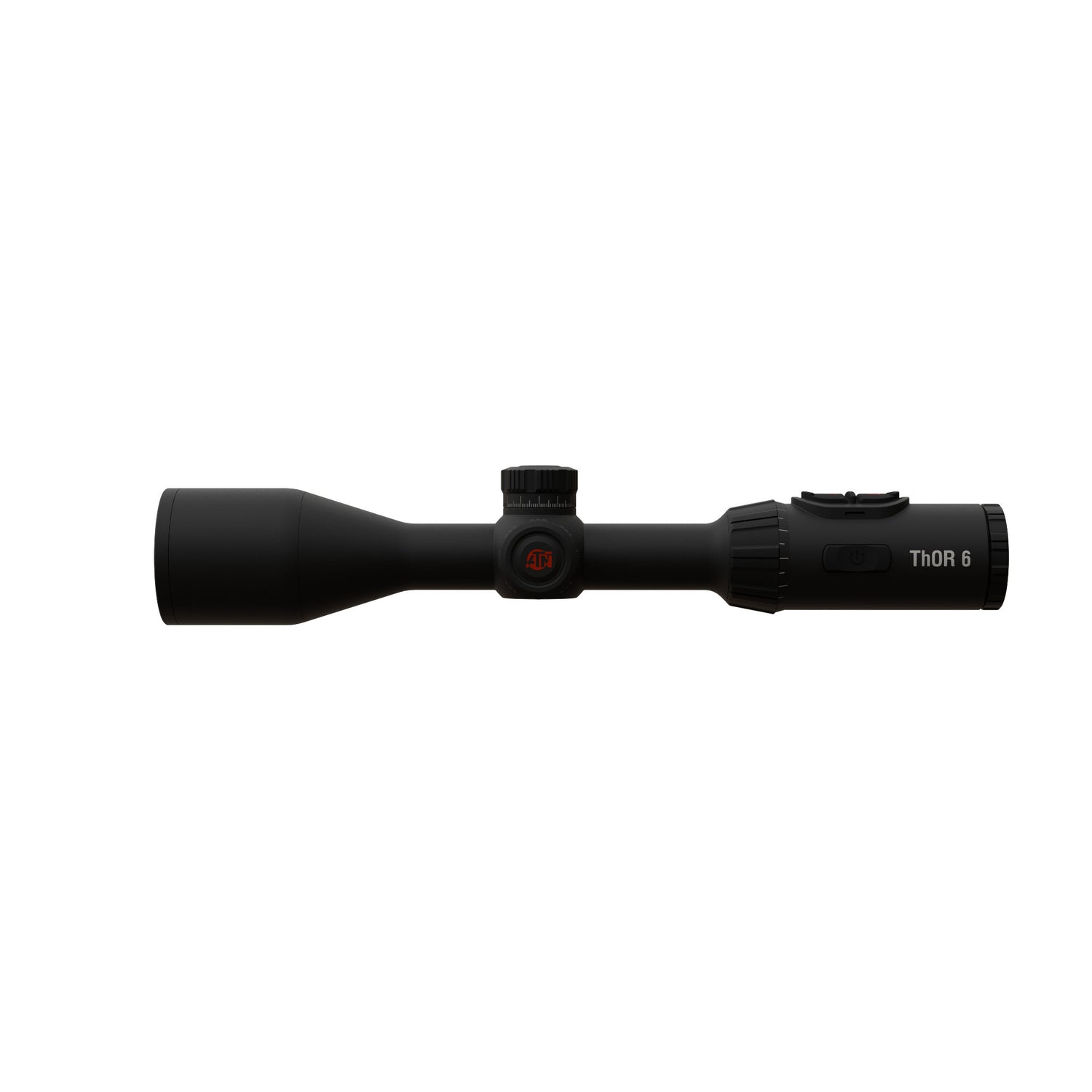

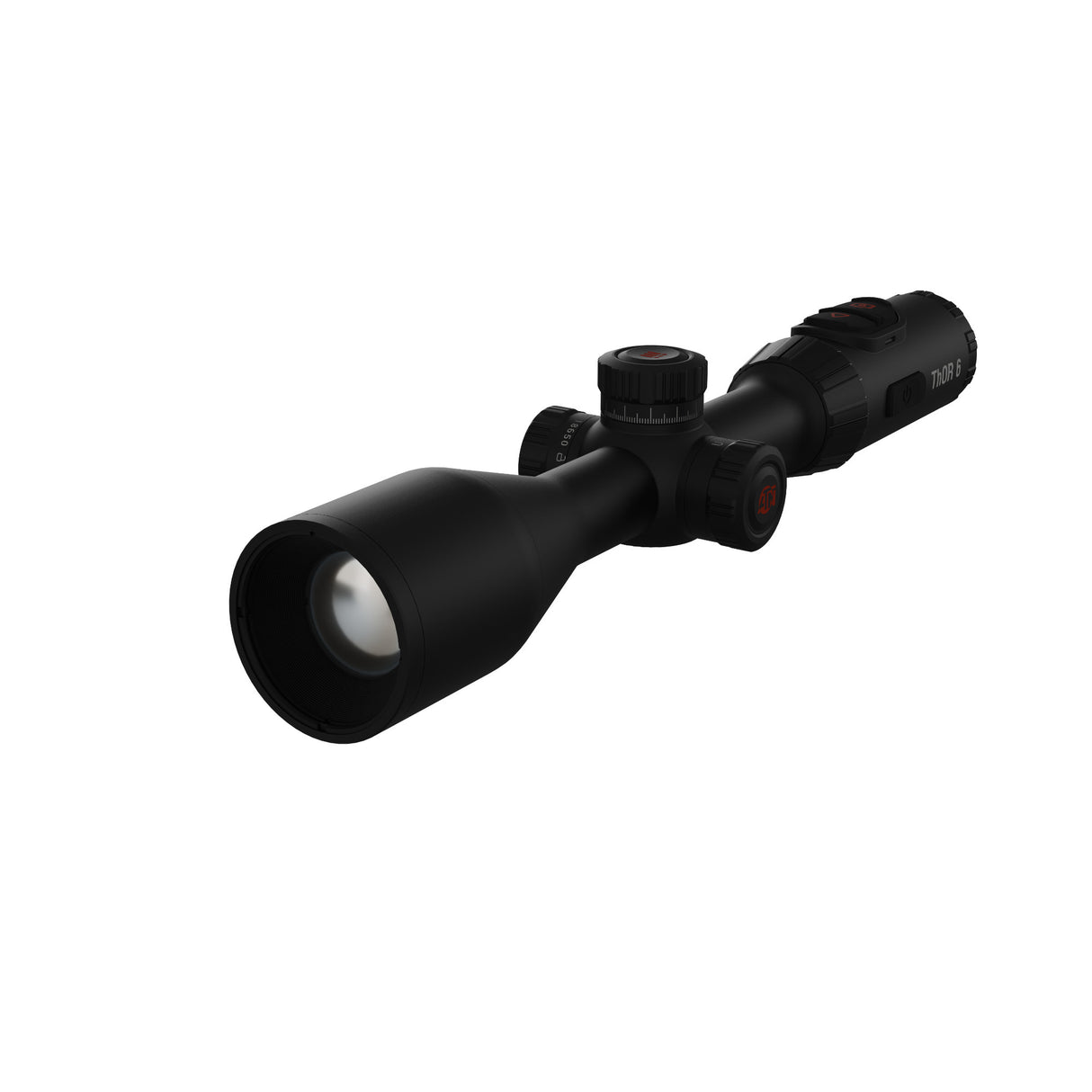

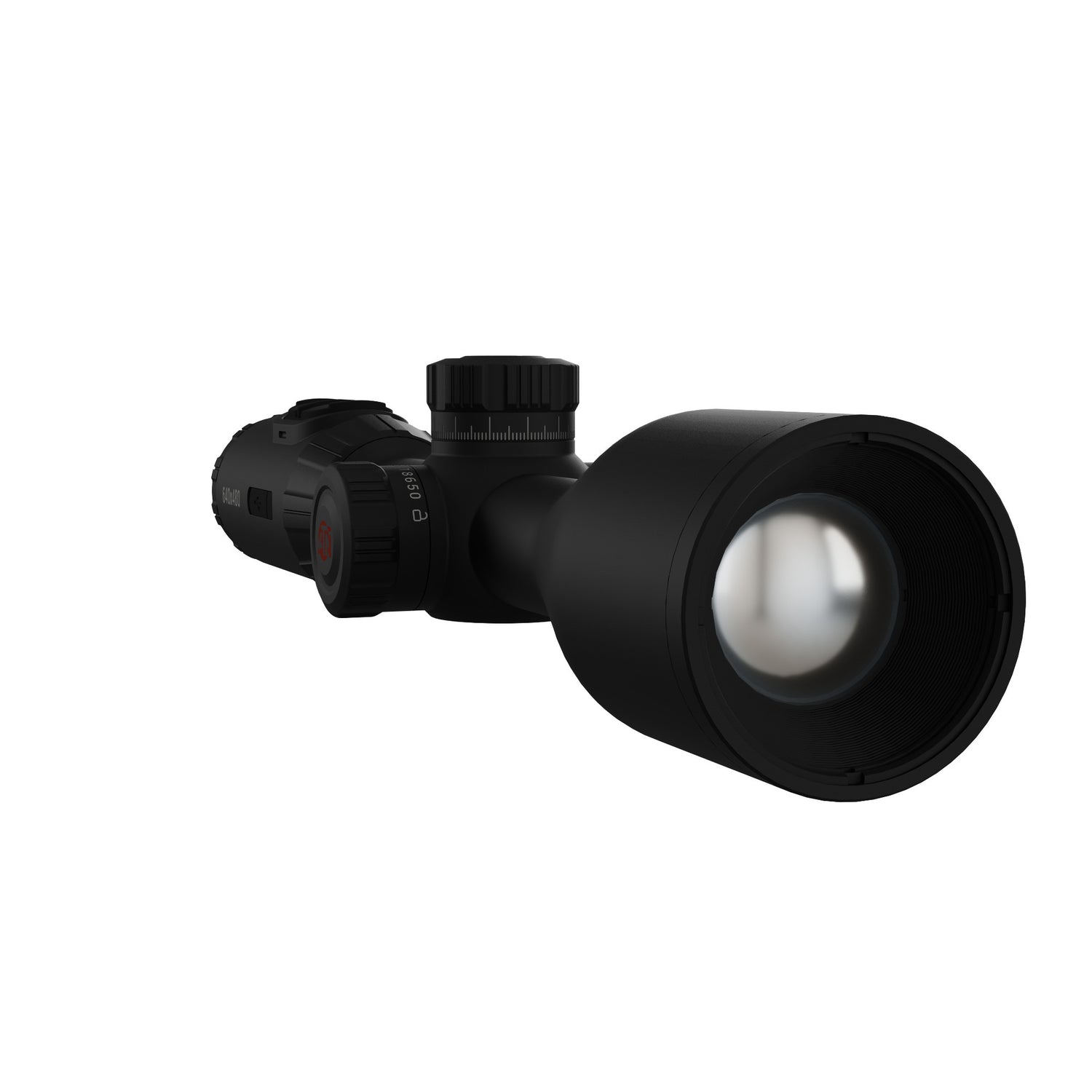

ATN ThOR 6 Elite 640 216x Thermal Riflescope with Advanced Imaging
Couldn't load pickup availability
Product highlights
Product highlights
In the box
In the box
Free standard shipping
Free standard shipping
*Orders placed before 1 PM EST Mon - Thur will ship the same day. Orders placed beyond these hours will be shipped the next business day. Exclusions apply. See shipping policy
Free Local Pickup
Free Local Pickup
Please call for store stock availability. Requests made before 2:30 PM EST can be available for next-day pickup. Learn more
The ATN ThOR 6 Elite 640 2–16x is a high-performance thermal riflescope designed for hunters and professionals who require clear imaging, long-range detection, and dependable performance in any environment. Built with ATN’s 6th Generation Thermal Engine and a high-resolution 640×512 sensor, it delivers crisp thermal imagery day or night. A rugged magnesium alloy body, smart recording features, and long battery life make it a reliable companion for demanding field use.
6th Generation Thermal Engine:
Enhances image clarity, reduces noise, and improves overall thermal performance in all conditions.
640×512 12μm Sensor (≤15mK NETD):
Captures high-resolution thermal images with excellent sensitivity, allowing better detection of subtle heat differences.
35mm High-Transmission Germanium Lens:
Provides a wide field of view and long-range detection capability up to 3100 meters.
Full-HD 0.49-Inch OLED Display:
Delivers sharp, high-contrast visuals for accurate target identification day or night.
SharpIR AI Imaging:
Automatically enhances edges and contrast to improve target separation and visibility in challenging environments.
Video and Audio Recording:
Allows users to capture high-quality footage directly from the scope for review or sharing.
Recoil Activated Video (RAV):
Automatically records moments before and after each shot, ensuring no key moment is missed.
64GB Internal Storage:
Offers ample space for storing videos, photos, and mission data without needing external memory.
Wi-Fi Connectivity with ATN Connect 6:
Enables wireless streaming, device control, and easy file transfers.
Picture-in-Picture Mode:
Provides a magnified window for precision aiming while maintaining full field awareness.
Zeroing Freeze:
Simplifies the sight-in process by locking the reticle position for quicker and more accurate zeroing.
Multiple Color Palettes:
Let users switch viewing modes to adapt to terrain, weather, or personal preference.
Reticle Transparency Adjustment:
Allows fine control of reticle visibility to match lighting and background conditions.
Rugged Magnesium Alloy Housing:
Durable, lightweight, and built to withstand harsh outdoor use and recoil.
Dual Power System:
Combines internal power and replaceable 18650 batteries for up to 9 hours of continuous operation.
IP67 Weatherproof Rating:
Protects against heavy rain, dust, and environmental extremes for dependable field performance.
Optics and Sensors
| Model | TIWST6635A |
| Detector Type | 12μm VOx Uncooled Focal Plane Array |
| Sensor Resolution | 640 × 512 |
| Thermal Sensitivity (NETD) | ≤ 15 mK |
| Refresh Rate | 50 Hz |
| SharpIR | Yes |
| Non-Uniformity Correction (NUC) | Auto / Semi / Manual |
| Lens System | 35 mm Germanium, f/1.0 |
| Field of View (H×V) | 12.52° × 9.41° |
| Focus Mechanism | Manual Central Knob |
| Detection Range | 3100 m |
| High Transmission Germanium Lens | Yes |
Magnification and Display
| Magnification Range | 2–16× |
| Digital Zoom | 1×, 2×, 4×, 8× |
| Zoom Type | Step and Smooth |
| Display Type | 0.49-inch OLED |
| Display Resolution | 1920 × 1080 |
| Eye Relief | 50 mm |
| Diopter Range | -5 to +5 D |
| Picture-in-Picture (PIP) | Yes |
Reticle and Targeting
| Reticle Types | 10 styles |
| Reticle Transparency Control | Yes |
| Zeroing Freeze | Yes |
| Color Palettes | White Hot, Black Hot, Iron Red, Alarm, Green Hot, Sepia |
| Hot Point Tracking | Yes |
| Ballistic Calculator | Not Available |
| Built-in Laser Rangefinder (LRF) | Not Available |
Recording and Connectivity
| Video and Audio Recording | Yes |
| Internal Gallery | Yes |
| Recoil Activated Video (RAV) | Yes |
| Internal Storage Capacity | 64 GB |
| Media Output | USB Type-C |
| Built-In Wi-Fi Hotspot | Yes |
| App Support | ATN Connect 6 (iOS and Android) |
Power and Controls
| Battery Type | 1 Internal 18650 and 1 Replaceable 18650 |
| Battery Life | Approximately 9 hours |
| Supports External Power | Yes (USB Type-C 5 VDC / 2A) |
| Standby / Sleep Mode | Yes |
| Startup Time | < 7 seconds from standby |
| Sensors | Geomagnetic and Gyroscope |
Mechanical and Environmental
| Housing Material | Magnesium Alloy |
| Mounting | 30 mm Rings (not included) |
| Weight | 830 g / 1.83 lbs |
| Dimensions (L × W × H) | 430 × 85 × 72 mm |
| Max Recoil Rating | 6000 Joules / 1000 g acceleration over 0.4 ms |
| Operating Temperature | -30°C to 55°C (-22°F to 131°F) |
| Waterproof / IP Rating | IP67 |
