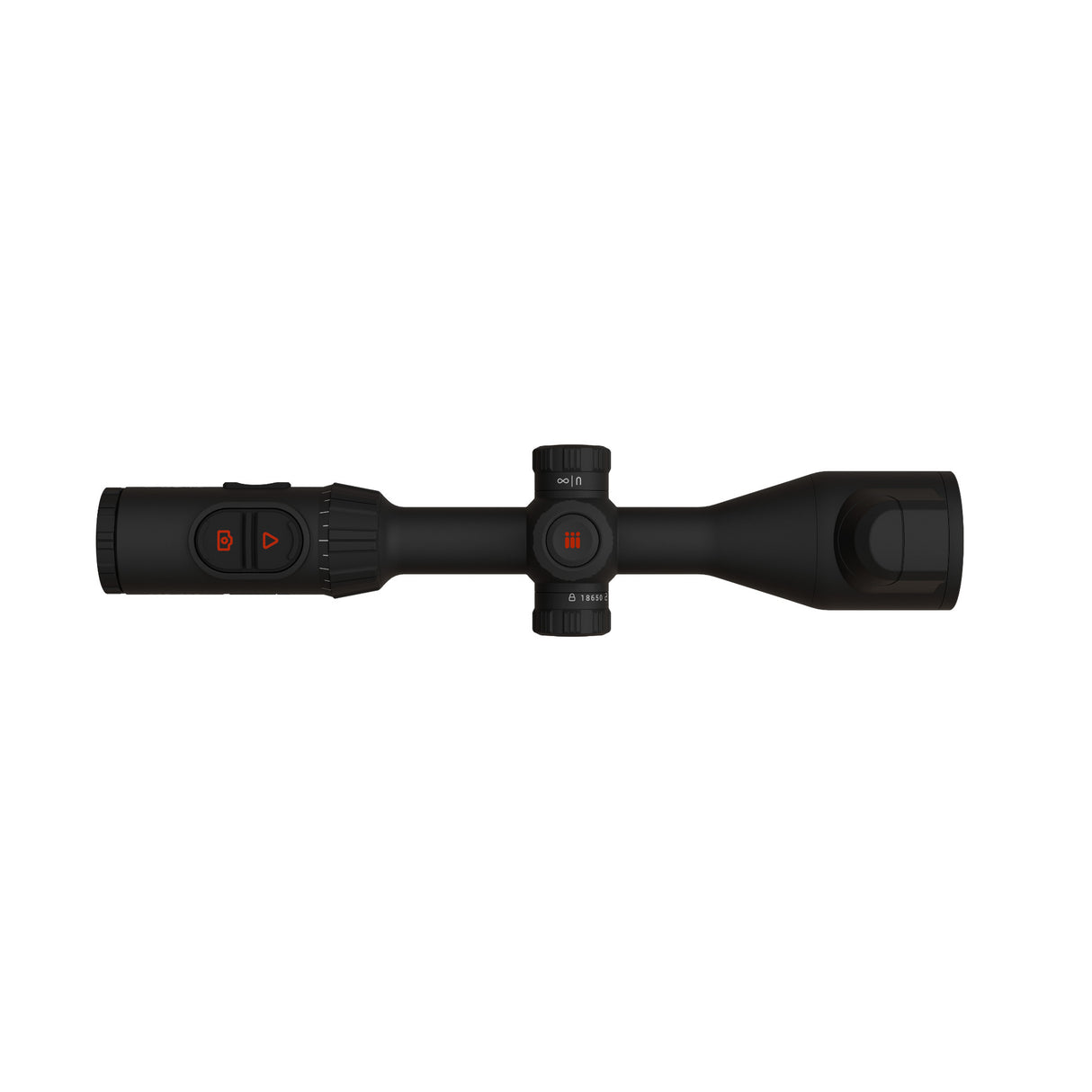

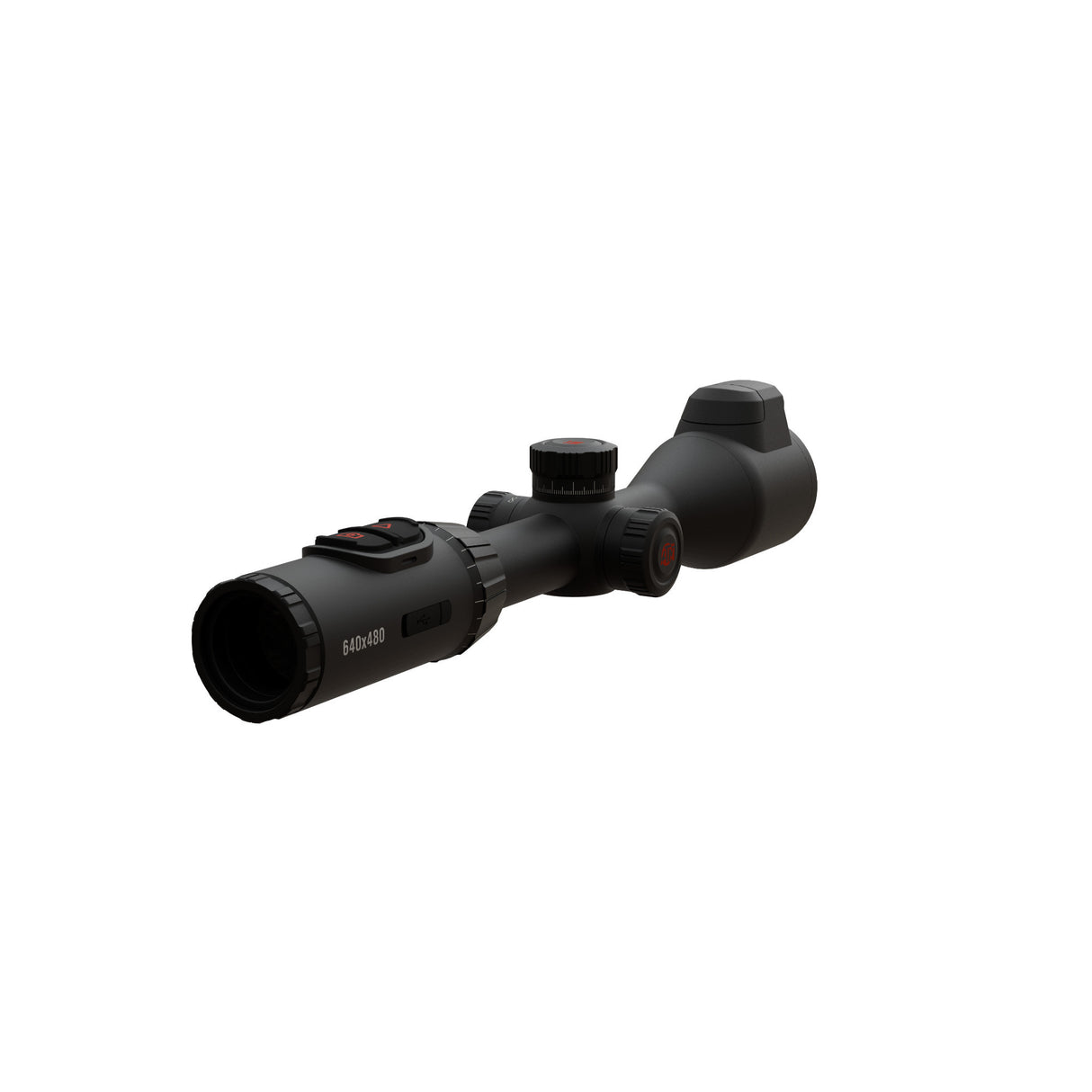

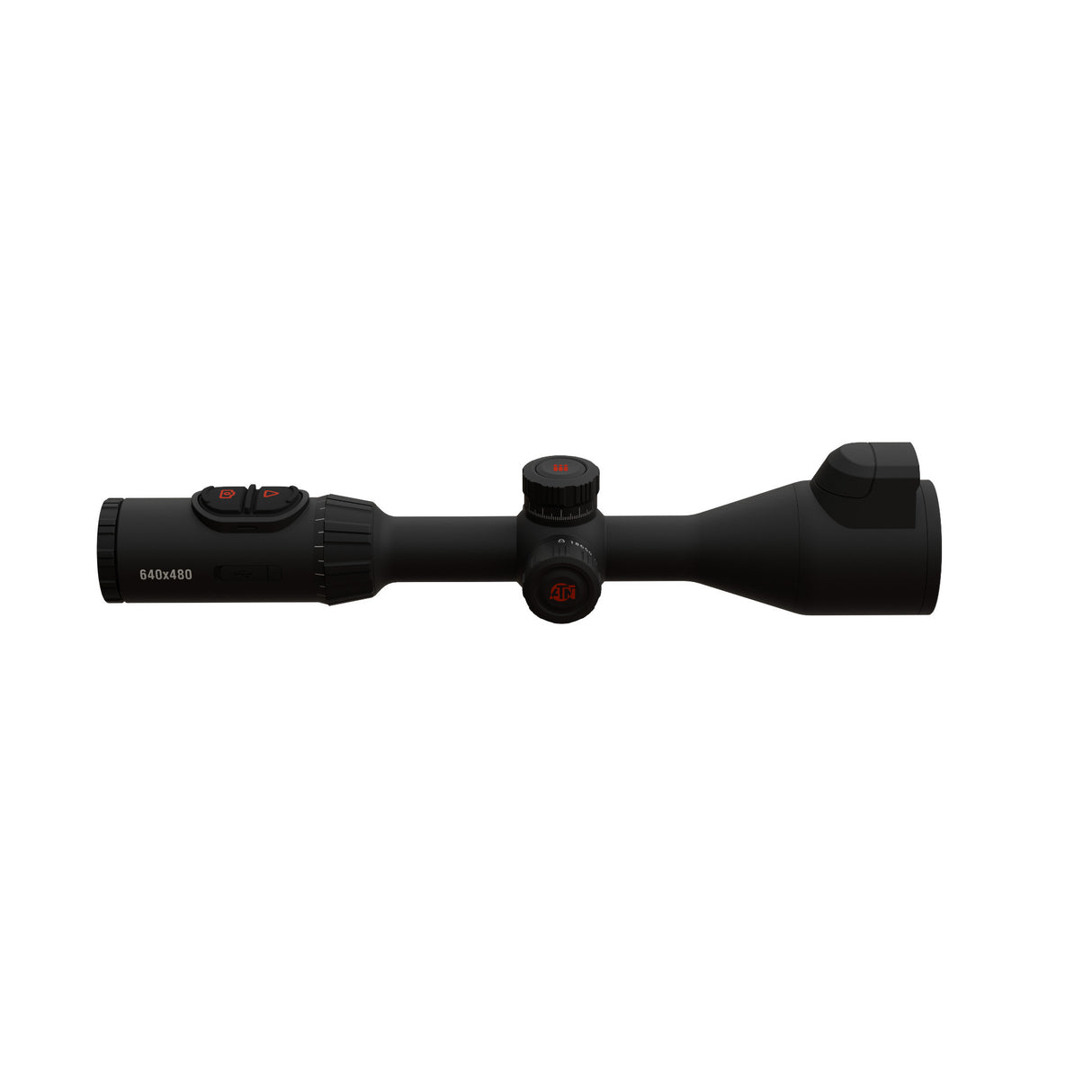

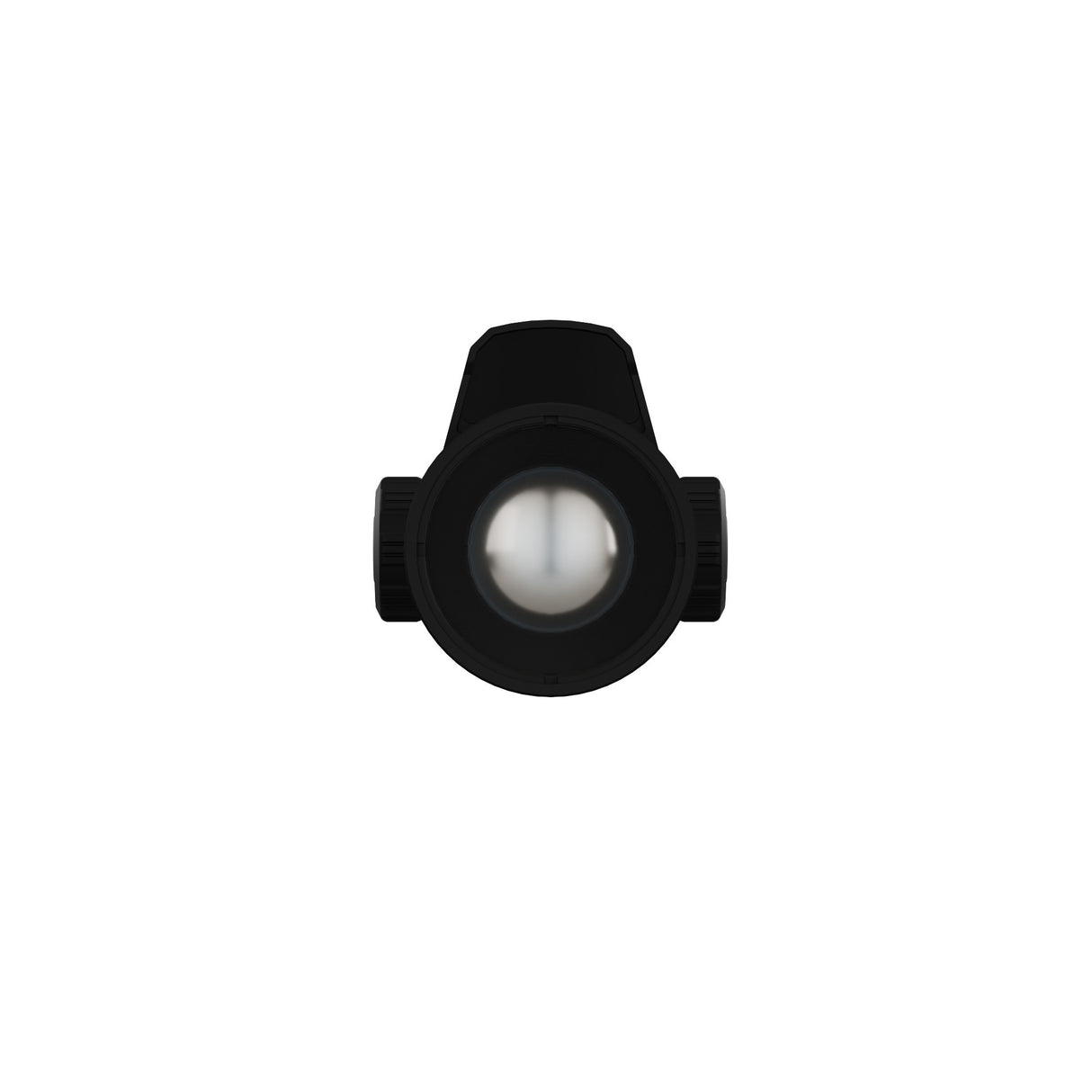

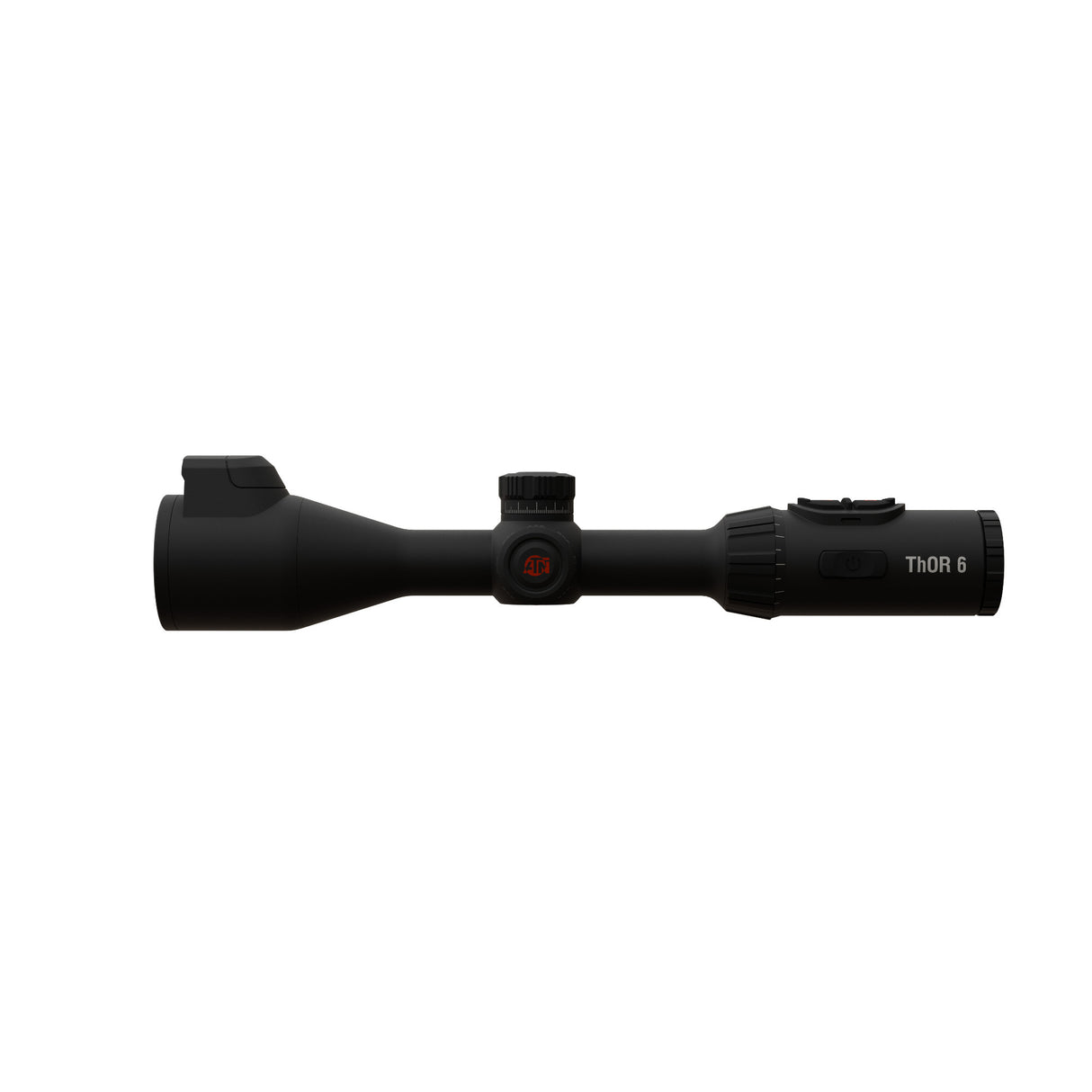

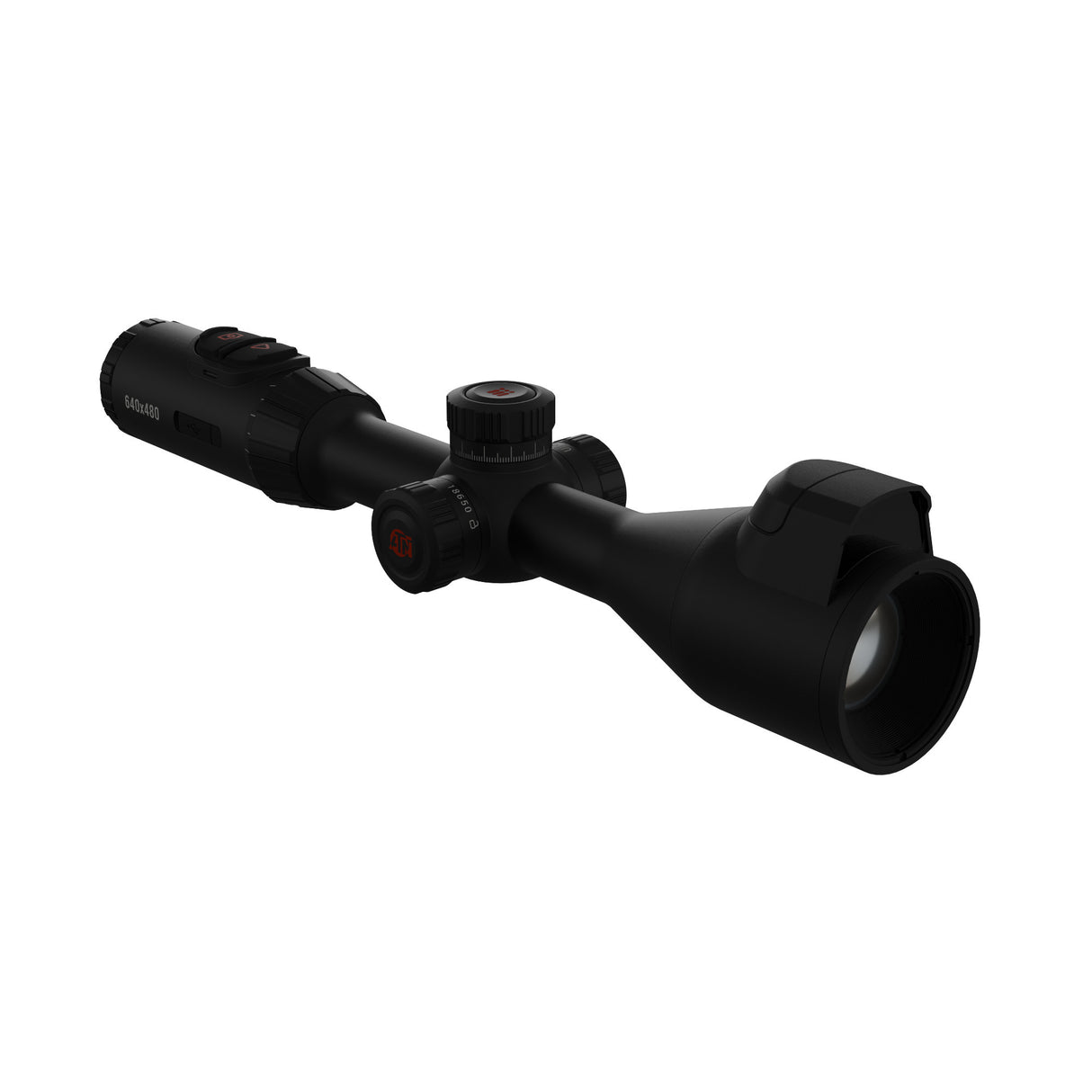

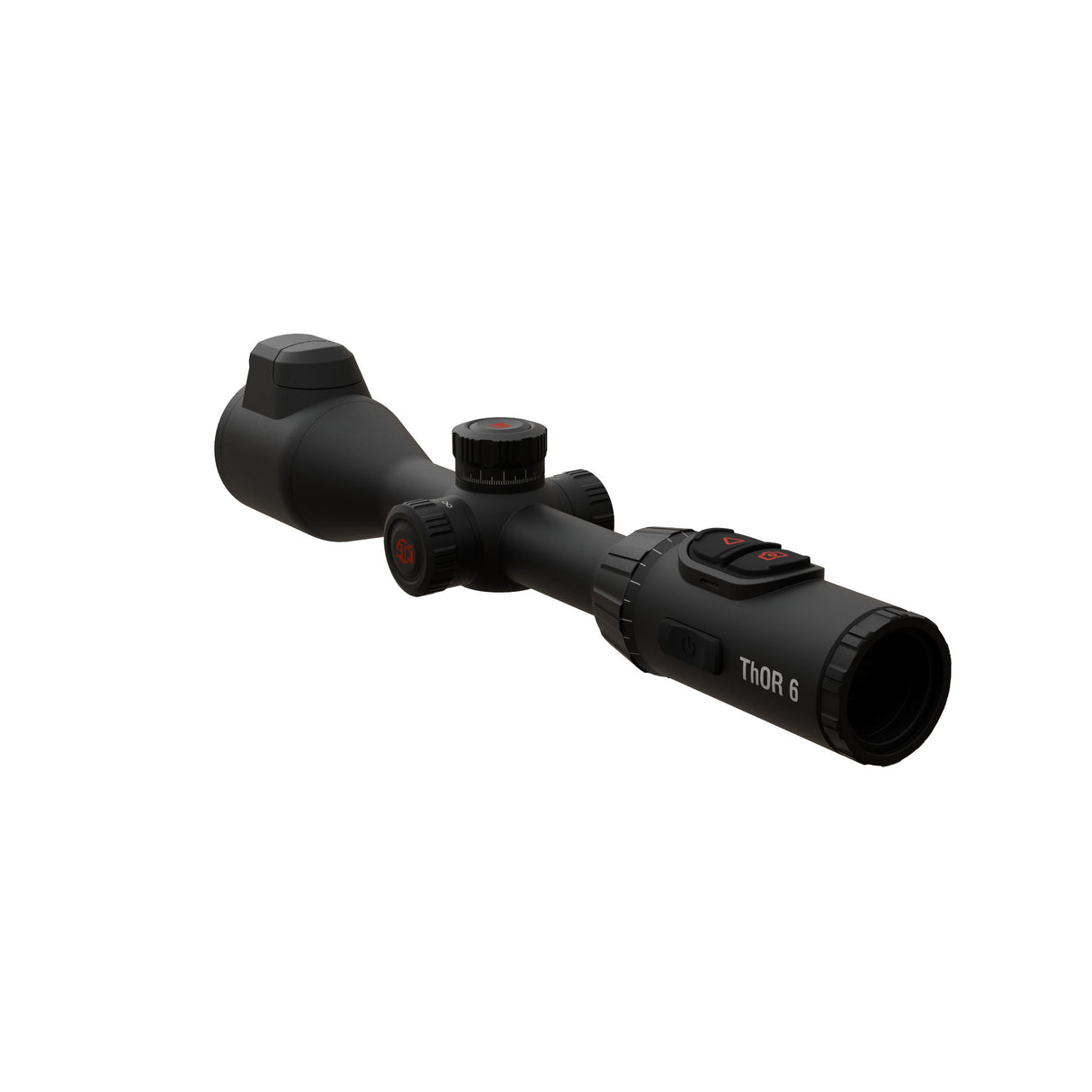

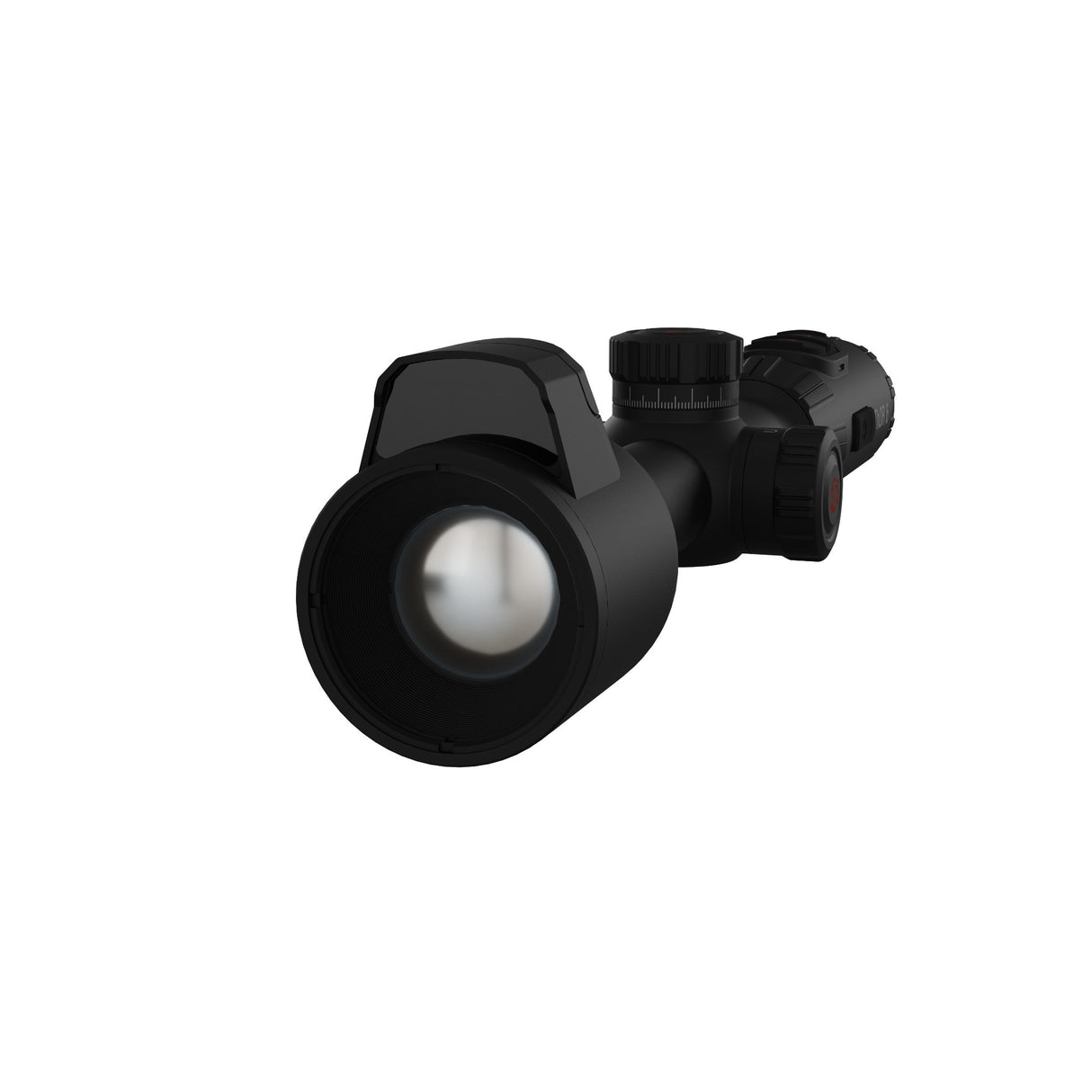

ATN ThOR 6 Elite Thermal Riflescope 216x 640512 Sensor with Built-In LRF
Couldn't load pickup availability
Product highlights
Product highlights
In the box
In the box
Free standard shipping
Free standard shipping
*Orders placed before 1 PM EST Mon - Thur will ship the same day. Orders placed beyond these hours will be shipped the next business day. Exclusions apply. See shipping policy
Free Local Pickup
Free Local Pickup
Please call for store stock availability. Requests made before 2:30 PM EST can be available for next-day pickup. Learn more
The ATN ThOR 6 LRF 640 Elite 2–16x is a high-performance thermal riflescope built for hunters, security professionals, and tactical users who require top-tier clarity, precision, and intelligent targeting. Powered by a 640×512 12μm sensor with ≤15mK NETD sensitivity, it delivers superior thermal imaging in total darkness, fog, brush, or harsh weather. Its 35mm germanium lens and full-HD OLED display reveal crisp detail, while SharpIR AI enhances contrast and target separation in real time. With an integrated Laser Rangefinder and Ballistic Calculator, long-range accuracy becomes effortless. Rugged, weatherproof, and equipped with dual battery power, the ThOR 6 Elite is built for demanding all-day field use.
6th Generation Thermal Engine
Delivers enhanced sensitivity, improved clarity, and faster detection through a ≤15mK NETD, 12μm thermal sensor.
640×512 High-Resolution Sensor
Provides detailed thermal imaging for precise target identification in low-contrast or adverse environments.
SharpIR AI Image Enhancement
Automatically sharpens edges, boosts contrast, and improves target separation without manual adjustment.
High-Transmission 35mm Germanium Lens
Maximizes light throughput to extend detection range and improve image brightness and clarity.
Full-HD 0.49-inch OLED Display
Offers a 1920×1080 high-definition viewing experience with reduced eye strain during long sessions.
Integrated Laser Rangefinder (LRF)
Provides fast, accurate distance readings up to 1001 m, essential for long-range precision.
Ballistic Calculator
Automatically adjusts the reticle for distance and angle, improving shot accuracy.
Picture-in-Picture (PIP)
Enables precise aiming by zooming in on the target while maintaining a wide field of view.
Multiple Color Palettes
Includes White Hot, Black Hot, Iron Red, Alarm, Green Hot, and Sepia for visibility in any terrain or lighting.
Hot Point Tracking
Highlights the hottest object in view for fast-moving target acquisition.
Zeroing Freeze
Pauses the image to allow quick and accurate zeroing adjustments.
Dual Power System
Combines an internal rechargeable battery with a replaceable 18650 cell for extended all-day operation.
Video and Audio Recording with RAV
Captures hunts automatically before and after each shot with 64GB of built-in storage.
Built-In Wi-Fi Hotspot
Enables streaming, sharing, and control through the ATN Connect 6 app on iOS and Android.
Rugged Magnesium Alloy Housing
Lightweight, durable, and designed for optimal heat dissipation and long-term reliability.
Weatherproof IP67 Construction
Protects against rain, dust, and harsh field conditions for use in any season.
Optics and Sensors
| Model | TIWST6635LRF |
| Detector Type | 12μm VOx Uncooled Focal Plane Array |
| Sensor Resolution | 640×512 |
| Thermal Sensitivity (NETD) | ≤15 mK |
| Refresh Rate | 50 Hz |
| SharpIR | Yes |
| Non-Uniformity Correction (NUC) | Auto / Semi / Manual |
| Lens System | 35 mm (Ge) F/1.0 |
| Field of View (H×V) | 12.52° × 9.41° |
| Focus Mechanism | Manual, Central Knob |
| Detection Range | 3100 m |
| High Transmission Germanium Lens | Yes |
Magnification and Display
| Magnification | 2–16× |
| Digital Zoom | 1×, 2×, 4×, 8× |
| Zoom Type | Step and Smooth |
| Display Type | 0.49-inch OLED |
| Display Resolution | 1920×1080 |
| Eye Relief | 50 mm |
| Diopter Range | -5 to +5 D |
| Picture-in-Picture | Yes |
Reticle and Targeting
| Reticle Types | 10 Styles |
| Reticle Transparency Control | Yes |
| Zeroing Freeze | Yes |
| Color Palettes | White Hot, Black Hot, Iron Red, Alarm, Green Hot, Sepia |
| Hot Point Tracking | Yes |
| Built-in Laser Rangefinder (LRF) | Yes |
| LRF Range | 1001 m |
| LRF Accuracy | ±1 m |
| LRF Laser | 906 nm, Class 1 |
| Ballistic Calculator | Yes |
Recording and Connectivity
| Video and Audio Recording | Yes |
| Internal Gallery | Yes |
| Recoil Activated Video (RAV) | Yes |
| Internal Storage | 64 GB |
| Media Output | USB Type-C |
| Built-in Wi-Fi Hotspot | Yes |
| App Compatible | ATN Connect 6 (iOS and Android) |
Power and Controls
| Battery Type | 1 Internal 18650 and 1 Replaceable 18650 |
| Battery Life | ~9 hours |
| External Power Support | Yes, USB Type-C (5 VDC / 2A) |
| Standby and Sleep Mode | Yes |
| Startup Time | <7 seconds |
| Geomagnetic and Gyroscope | Yes |
Mechanical and Environmental
| Material | Magnesium Alloy |
| Mounting | 30 mm Rings (not included) |
| Weight | 855 g / 1.89 lbs |
| Dimensions (L × W × H) | 430 × 85 × 80 mm |
| Max Recoil Rating | 6000 J |
| Operating Temperature | -30°C to 55°C |
| Waterproof and IP Rating | IP67 |
