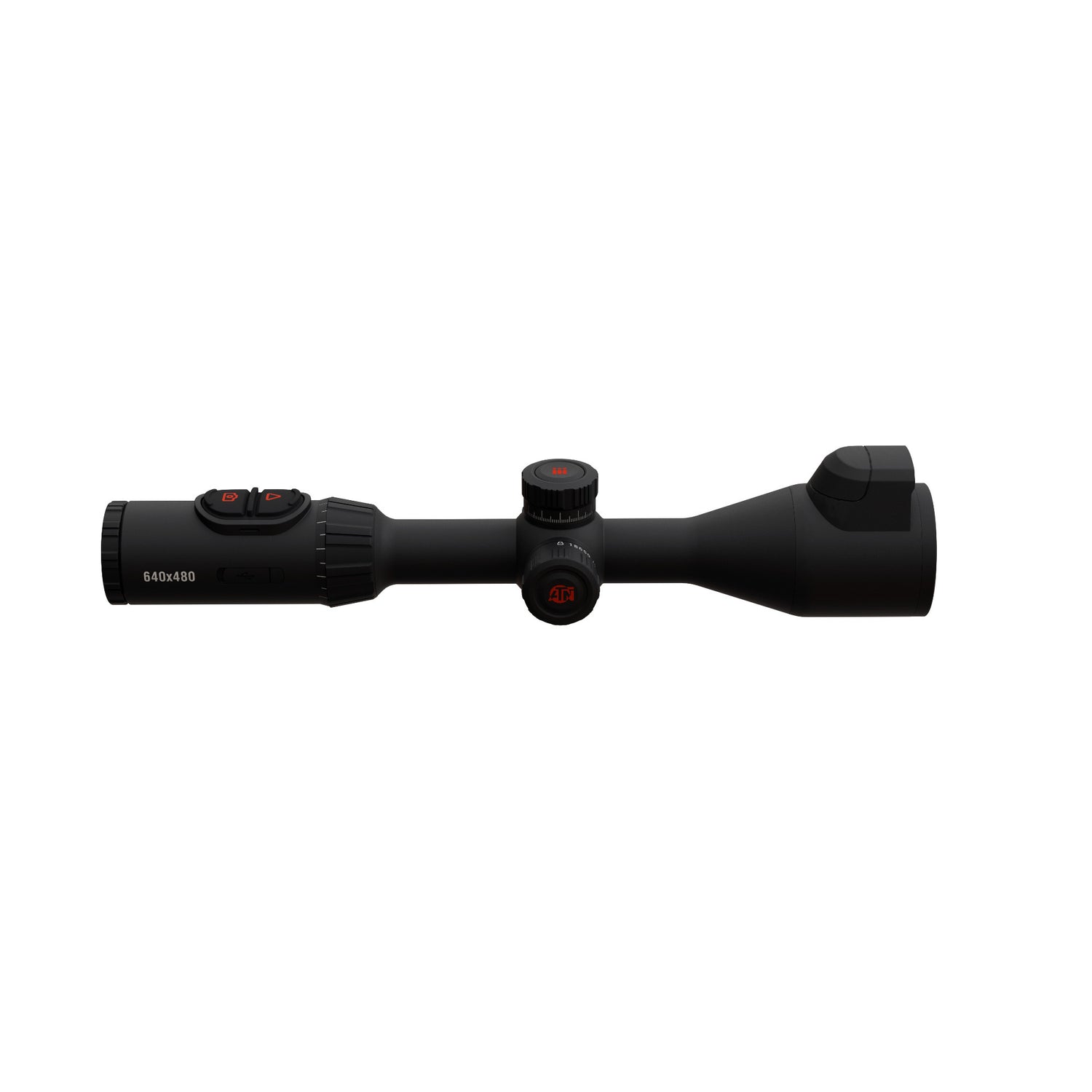

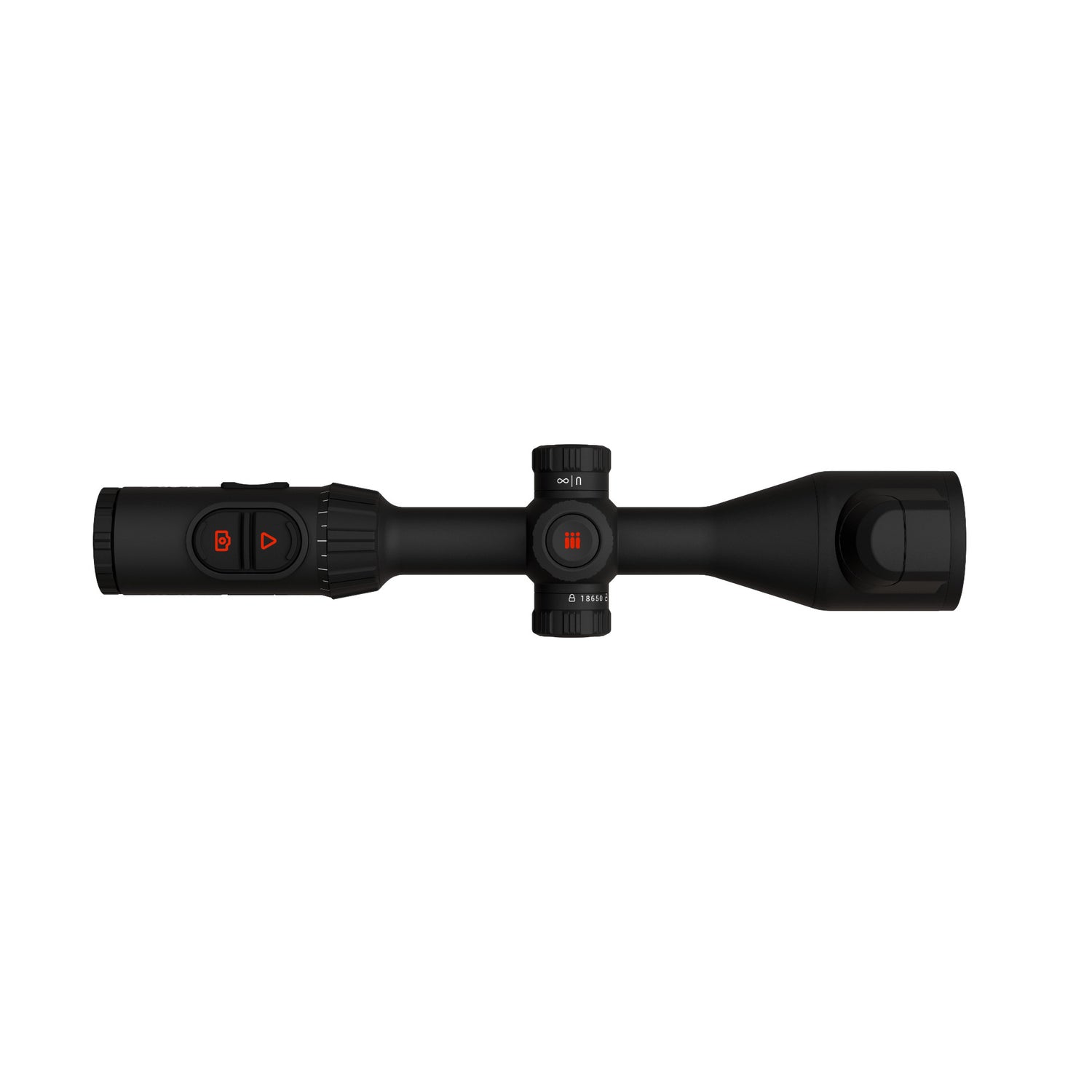

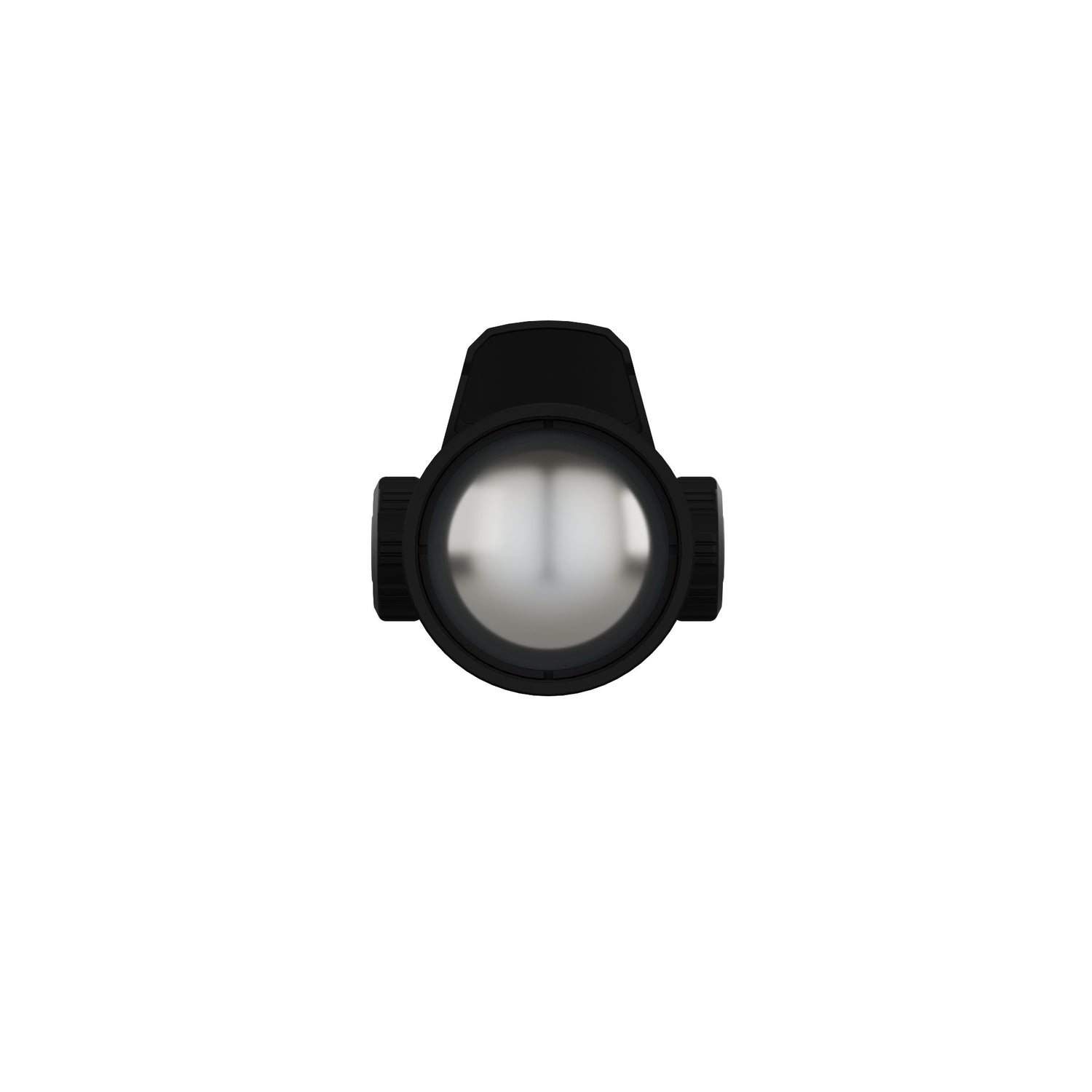

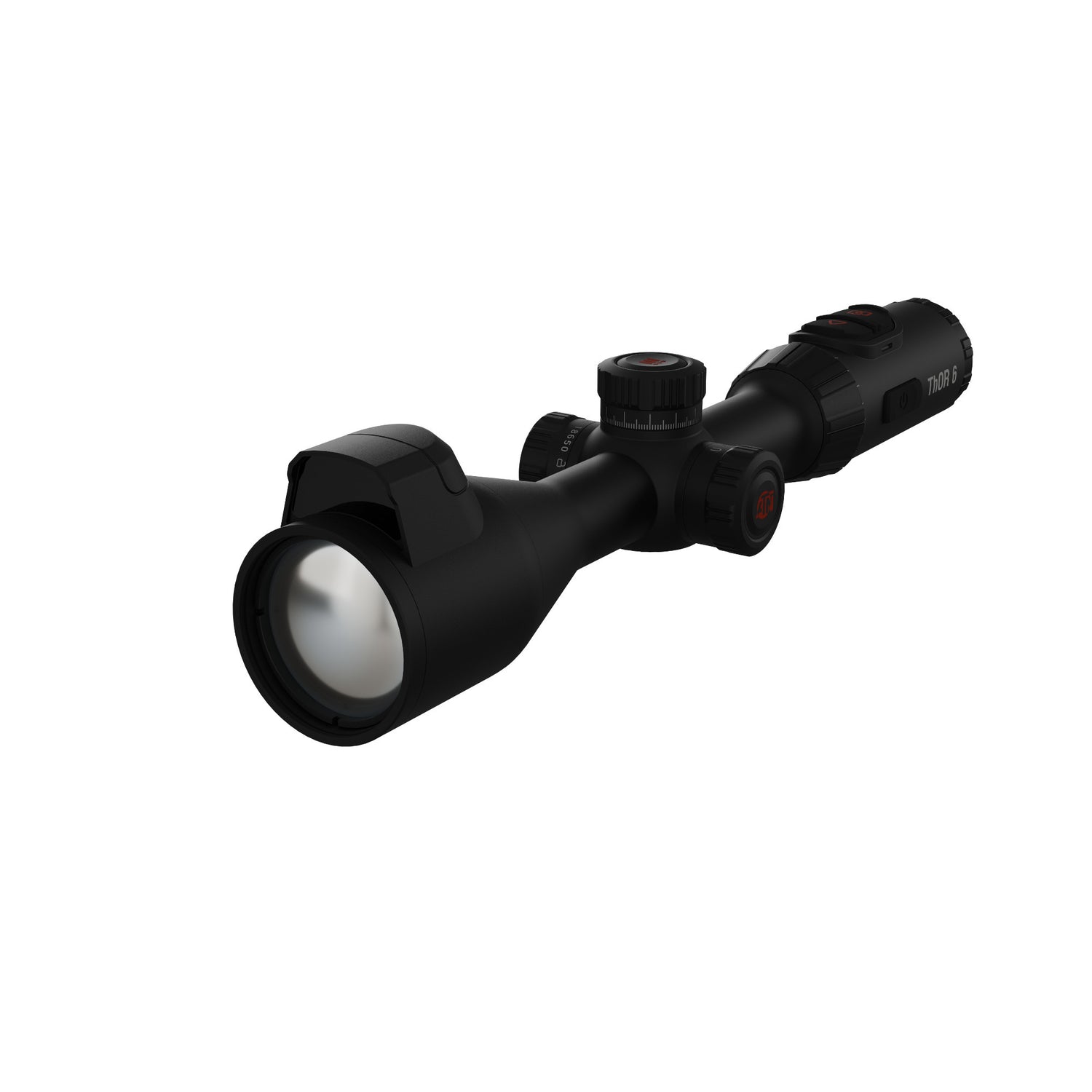

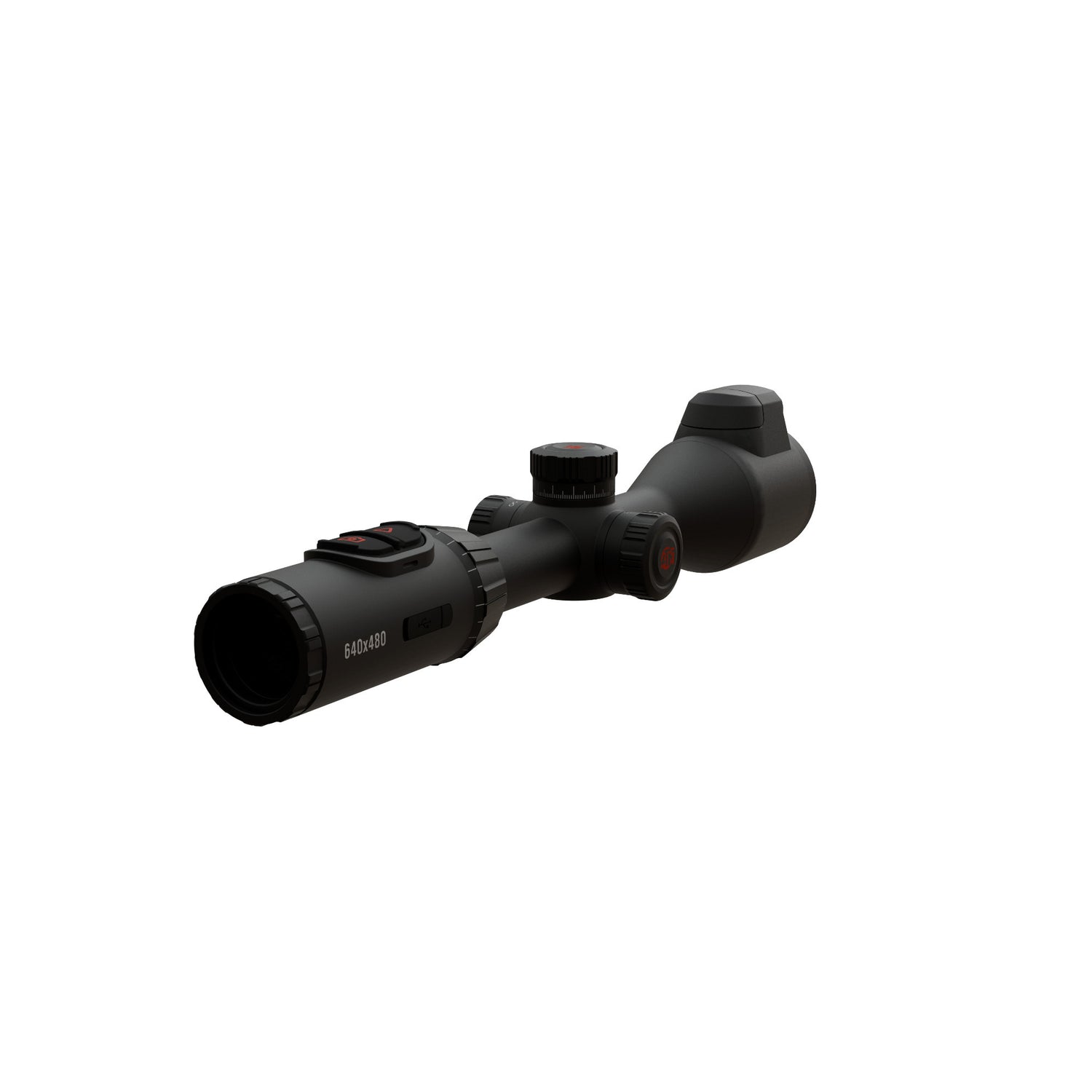

ATN ThOR 6 Elite 640 324x Thermal Riflescope with Built-in LRF
Couldn't load pickup availability
Product highlights
Product highlights
In the box
In the box
Free standard shipping
Free standard shipping
*Orders placed before 1 PM EST Mon - Thur will ship the same day. Orders placed beyond these hours will be shipped the next business day. Exclusions apply. See shipping policy
Free Local Pickup
Free Local Pickup
Please call for store stock availability. Requests made before 2:30 PM EST can be available for next-day pickup. Learn more
The ATN ThOR 6 LRF 640 Elite is a high-performance thermal riflescope designed for hunters, tactical operators, and security professionals. Built around ATN’s 6th Generation Thermal Engine, it delivers exceptional clarity, fast detection, and reliable target acquisition in all environments—from total darkness to foggy or low-contrast conditions. With a built-in Laser Rangefinder (LRF), Ballistic Calculator, and advanced AI imaging, this scope ensures precision, efficiency, and confidence in every shot.
6th Generation Thermal Engine
Provides ultra-clear imaging with 640×512 resolution, 12μm pixel pitch, and ≤15mK NETD, ensuring sharper details and faster detection in all conditions.
ATN SharpIR AI Technology
Proprietary AI automatically enhances contrast and sharpness, separating targets from complex backgrounds for faster and more confident decisions.
Built-in Laser Rangefinder and Ballistic Calculator
Measures distance up to 1002 m with ±1 m accuracy and automatically adjusts the reticle for range and angle to improve shot precision.
50mm High Transmission Germanium Lens
Maximizes light throughput for brighter, clearer images and longer detection ranges, even in challenging light or weather conditions.
0.49-Inch Full-HD OLED Display
1920×1080 resolution provides crisp visuals, smooth performance, and reduced eye strain during extended viewing sessions.
Multiple Color Palettes & Reticle Transparency
Six color modes (White Hot, Black Hot, Iron Red, Alarm, Green Hot, Sepia) and adjustable reticle transparency optimize visibility in any terrain or lighting.
Hot Point Tracking
Automatically highlights the hottest object in view for rapid target acquisition, ideal for fast-moving game.
Video and Audio Recording
Built-in 64GB storage allows capturing of hunts, with Recoil Activated Video (RAV) capturing moments before and after shots.
Wi-Fi Connectivity and ATN Connect 6 App
Stream, share, or review your recordings instantly via Wi-Fi connection and the ATN mobile app.
Picture-in-Picture (PIP) and Zeroing Freeze
PIP allows close-up observation of targets while keeping situational awareness. Zeroing Freeze pauses the image for quick scope calibration.
Ergonomic Design and Controls
Streamlined 3-button control and scope-like zoom provide intuitive adjustments. Easy-access manual focus knob ensures fast, precise tuning in the field.
Dual Power System
A combination of internal rechargeable and replaceable 18650 batteries provides up to 9 hours of continuous use. Supports external USB Type-C power.
Rugged and Weatherproof
Magnesium alloy construction with an IP67 rating withstands harsh environments and extreme temperatures for reliable field performance.
Optics and Sensors
| Model | TIWST6650LRF |
| Detector Type | 12μm VOx Uncooled Focal Plane Array |
| Sensor Resolution | 640×512 |
| Thermal Sensitivity (NETD) | ≤15 mK |
| Refresh Rate | 50 Hz |
| SharpIR | Yes |
| Non-Uniformity Correction (NUC) | Auto / Semi-Auto / Manual |
| Lens System | 50 mm (Ge), F/1.0 |
| Field of View (H×V) | 8.78° × 6.59° |
| Focus Mechanism | Manual Central Knob |
| Detection Range | 3650 m |
| High Transmission Germanium Lens | Yes |
Magnification and Display
| Magnification | 3–24× |
| Digital Zoom | 1×, 2×, 4×, 8× |
| Zoom Type | Step and Smooth |
| Display Type | 0.49-inch OLED |
| Display Resolution | 1920×1080 |
| Eye Relief | 50 mm |
| Diopter Range | -5 to +5 D |
| Picture-in-Picture (PIP) | Yes |
Reticle and Targeting
| Reticle Types | 10 Styles |
| Reticle Transparency Control | Yes |
| Zeroing Freeze | Yes |
| Color Palettes | White Hot, Black Hot, Iron Red, Alarm, Green Hot, Sepia |
| Hot Point Tracking | Yes |
| Built-in Laser Rangefinder (LRF) | Yes |
| LRF Range | 1002 m |
| LRF Accuracy | ±1 m |
| LRF Laser Specs | 907 nm, Class 1 (Eye Safe) |
| Ballistic Calculator | Yes |
Recording and Connectivity
| Video and Audio Recording | Yes |
| Internal Gallery | Yes |
| Recoil Activated Video (RAV) | Yes |
| Internal Storage | 64 GB |
| Media Output | USB Type-C |
| Built-in Wi-Fi (Hotspot) | Yes |
| App Compatibility | ATN Connect 6 (iOS and Android) |
Power and Controls
| Batteries | 1 × Internal 18650 and 1 × Replaceable 18650 |
| Battery Life | ~9 hours |
| External Power Support | USB Type-C (5 VDC / 2A) |
| Standby / Sleep Mode | Yes |
| Startup Time | <7 seconds |
| Geomagnetic and Gyroscope Sensors | Yes |
| Control | 3-Button Interface |
| Zoom Control | Traditional Scope-Like |
Mechanical and Environmental
| Material | Magnesium Alloy |
| Mounting | 30 mm Rings (Not Included) |
| Weight | 855 g / 1.89 lbs |
| Dimensions (L × W × H) | 430 × 85 × 80 mm (16.93 × 3.35 × 3.15 in) |
| Maximum Recoil Rating | 6000 Joules |
| Operating Temperature | –30°C to 55°C (–22°F to 131°F) |
| Waterproof / IP Rating | IP67 |
Other
| Barcode / UPC | 658175901235 |
| Warranty | 5 Years |
| Country of Origin | United Kingdom |
