Atomos A-Eye 4K-20X AI-Powered UHD PTZ Camera with 20x Optical Zoom...

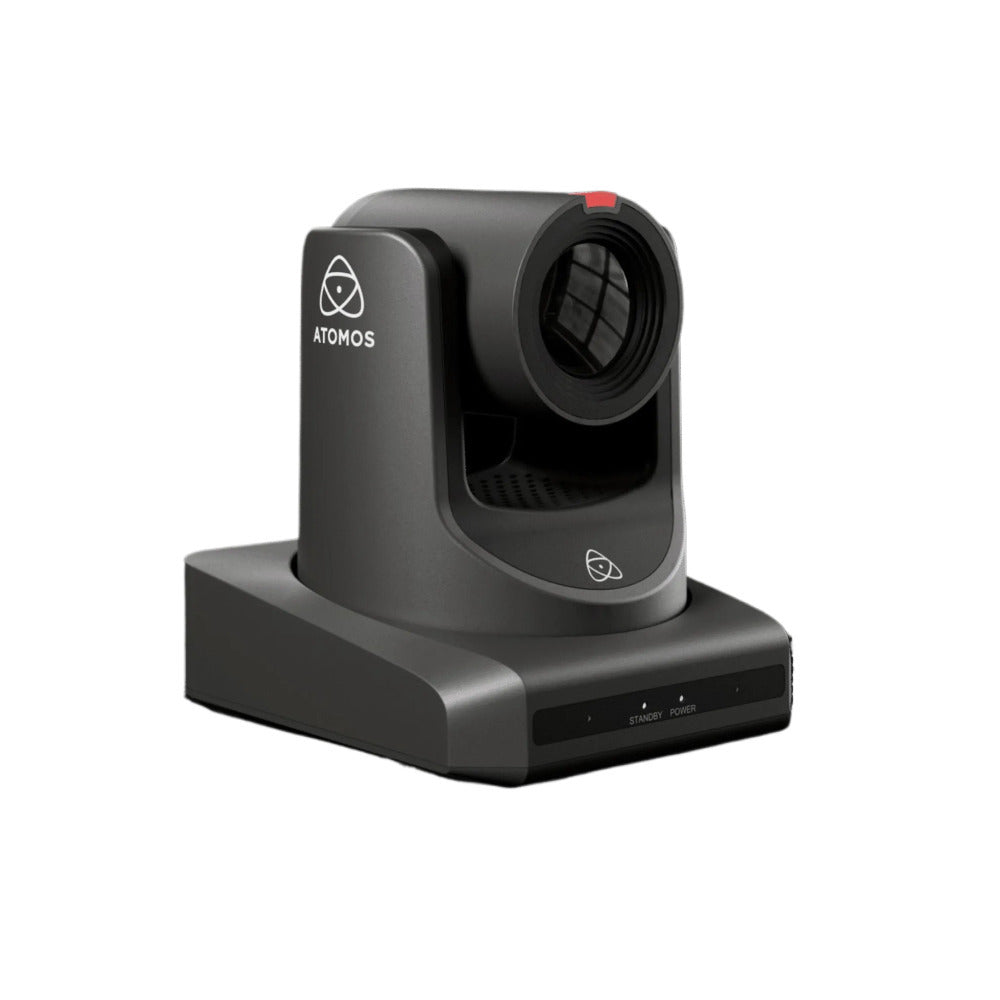

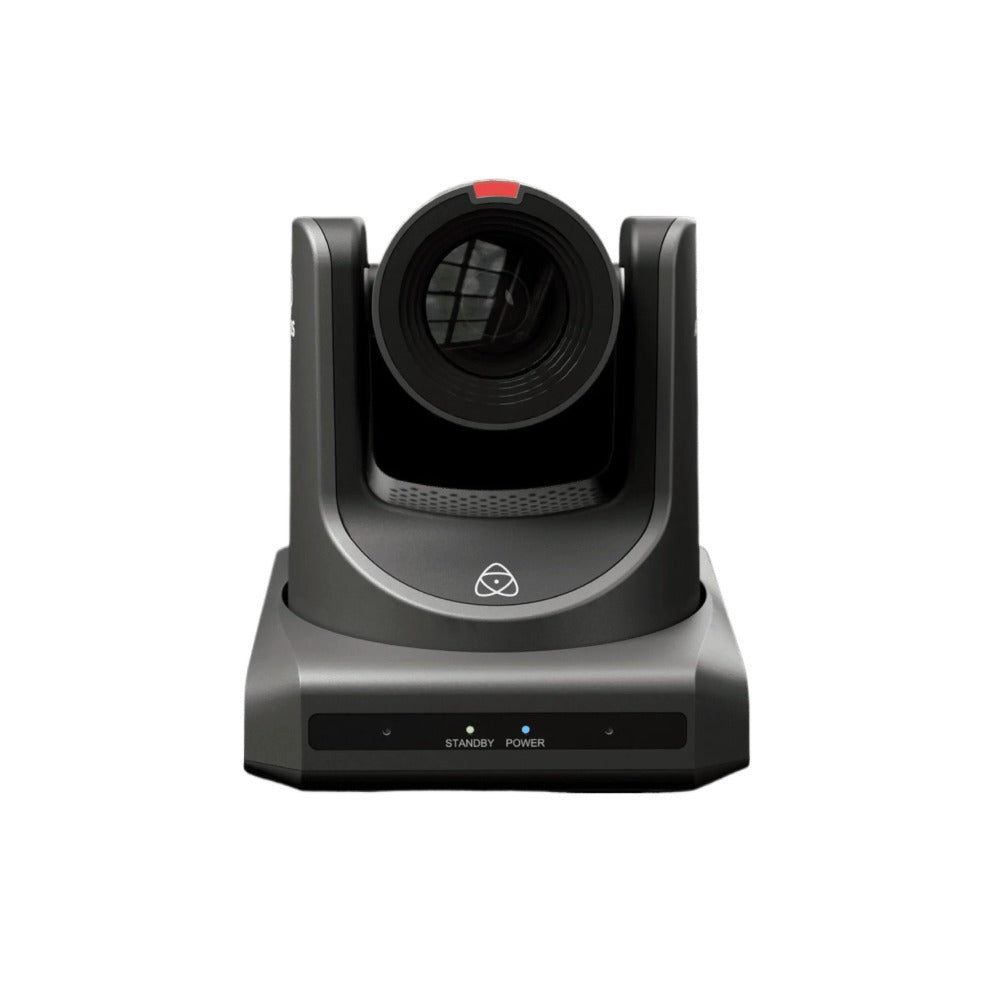

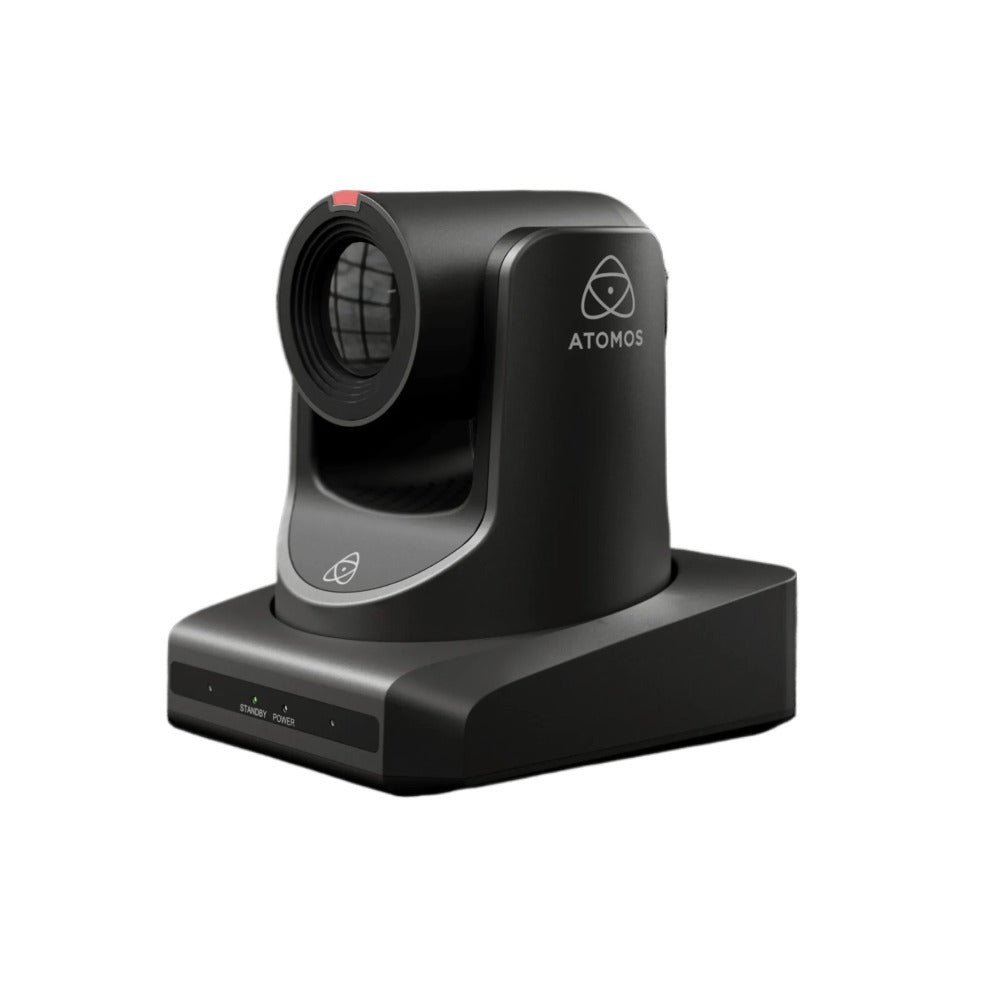

The A-Eye 4K-20X is an AI-powered UHD PTZ camera platform designed for professional multi-camera productions, live events, education, and large venues. Featuring intelligent auto-tracking, 20x optical zoom, and wide PTZ ranges (plus/minus 170 degrees pan, minus 30 degrees to plus 90 degrees tilt), it delivers smooth, precise subject tracking without the need for a camera operator. The platform supports versatile connectivity options, including HDMI, 3G-SDI, USB, and IP streaming with protocols like NDI HX3 and RTSP, enabling seamless integration into modern AV workflows. Powered via DC 12V or PoE+, with advanced video compression and 4K resolution support, the A-Eye platform ensures scalable, professional video production with exceptional image quality and automation.
AI-Powered Auto-Tracking:
Intelligent real-time subject tracking for smooth and precise framing without a camera operator.
1/2.8-inch UHD CMOS Sensor: Captures ultra-high-definition video with excellent image quality.
20x Optical Zoom:
Allows detailed close-ups from a distance without loss of clarity.
Wide PTZ Range:
Pan range of plus/minus 170 degrees and tilt range from minus 30 degrees to plus 90 degrees for versatile camera positioning.
4K Resolution Support:
Supports 4K UHD video at up to 60fps via HDMI and 1080p via 3G-SDI.
Multiple Video Compression Formats:
Supports H.264, H.265 (HEVC), MJPEG, and YUY2 for flexible streaming and recording.
Multiple Connectivity Options:
Includes HDMI, 3G-SDI, USB 2.0, Ethernet with PoE+, and audio line in/out interfaces.
Extensive Network Protocol Support:
Compatible with NDI HX3, RTSP, RTMP/RTMPS, ONVIF, SRT, DHCP, and multicast protocols for easy integration.
Preset Positions:
Up to 255 programmable presets with 0.1-degree accuracy for quick camera positioning.
Low-Light Performance:
Minimum illumination of 0.5 Lux with 2D and 3D digital noise reduction for clear images in dim environments.
Compact and Durable:
ABS body construction, lightweight at about 1.6 kg, suitable for versatile installation.
Power Options:
Supports DC 12V power input or PoE+ (802.3at), allowing flexible setup.
Operating Temperature:
Reliable performance up to 40 degrees Celsius ambient temperature.
Comprehensive Accessories:
Includes remote controller, mounting hardware, cables, lens cover, and power adapter with multiple plugs.
Main
| Video Resolution | 3840 x 2160 |
| Configuration | Core |
| Zoom | 20x |
| Color | Black |
Atomos A-Eye 4K-20X AI-Powered UHD PTZ Camera with 20x Optical Zoom and Auto-Tracking (Black)
Imaging
| Sensor Type | 1/1.8-inch UHD CMOS sensor |
| Effective Pixels | 8.42 megapixels |
| Lens | 20x optical zoom (f=6.25mm–125mm), F1.58–F3.95 |
| Digital Zoom | 16x |
| Field of View | Horizontal: 60.7° |
| Minimum Illumination | 0.5 Lux (F1.8, AGC ON) |
| Shutter Speed | 1/30s to 1/10,000s |
| White Balance | Auto, VAR, Manual, One Push, Indoor, Outdoor |
| Backlight Compensation | Supported |
| Noise Reduction | 2D & 3D Digital Noise Reduction |
| Signal-to-Noise Ratio | ≥55dB |
Pan and Tilt
| Pan Range | ±170 degrees |
| Tilt Range | –30 degrees to +90 degrees |
| Pan Speed | 1.7° to 100°/s |
| Tilt Speed | 1.7° to 69.9°/s |
| Preset Positions | 255 (accuracy: 0.1°) |
Connectivity

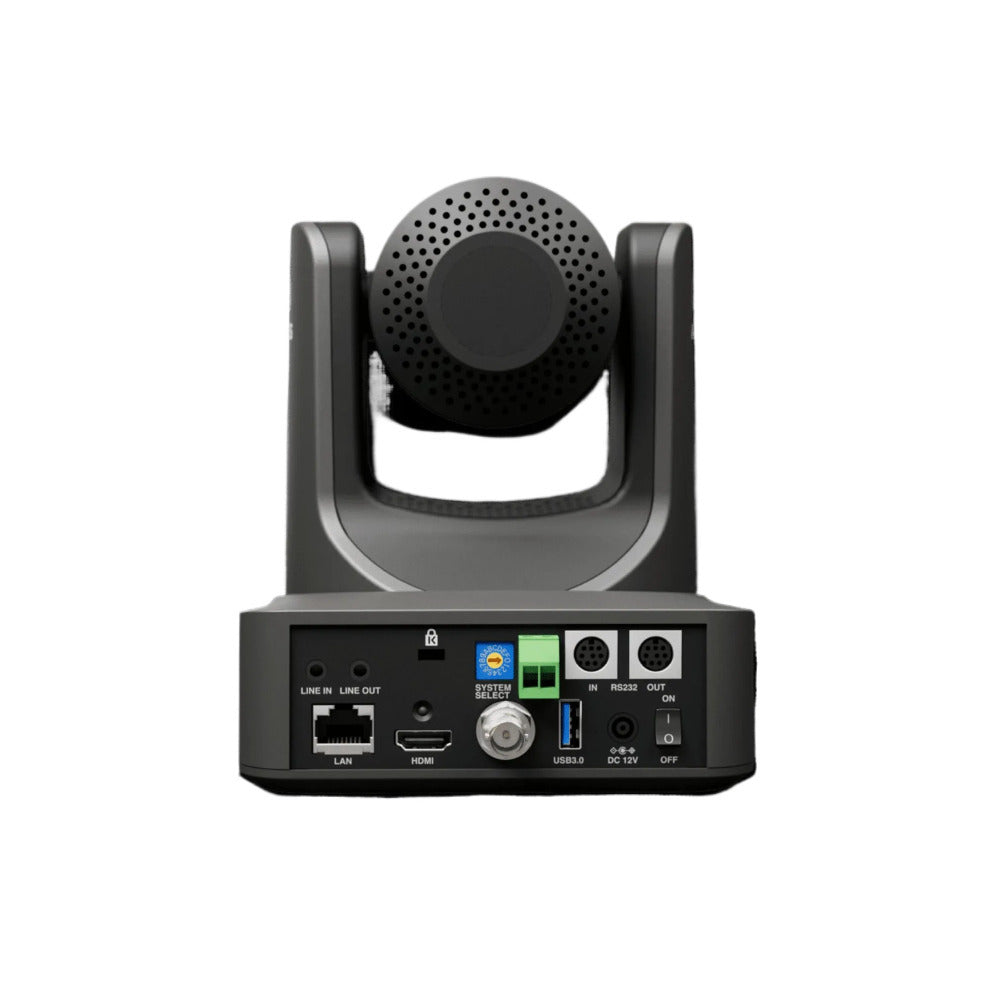

| Video Outputs | HDMI 1.3, 3G-SDI (BNC), USB 2.0 Type A, RJ45 (Ethernet) |
| Audio Input/Output | 3.5mm stereo line in/out |
| Control Protocols | NDI|HX3, RTSP, RTMP/RTMPS, ONVIF, VISCA, Pelco-D/P, RS-232, RS-485, SRT, Multicast, DHCP |
| Power Input | DC 12V or PoE+ (802.3at) |
| Operating Power | Max 18W |
Physical and Environmental
| Dimensions (W x H x D) | 146mm x 169mm x 168mm |
| Weight | Approximately 1.6 kg |
| Construction | ABS body |
| Operating Temperature | Up to 40°C |
AI and Automation
| Tracking | AI-powered auto-tracking |
| Control | Supports UVC 1.1/1.5 for USB PTZ control |
| Audio & Compression | |
| Audio Compression | AAC |
| Audio Bitrate | 96Kbps, 128Kbps, 256Kbps |
| Video Compression | H.264, H.265 (HEVC), MJPEG, YUY2 |
| Video Formats | YUY2: Max 1080P@5fps; H.264: Max 2160P@30fps; H.265: Max 2160P@30fps; MJPEG: Max 2160P@30fps |
